MASCOT 2240 (P) User manual

1
User Manual
Charger for
Li-Ion Batteries
EN User Manual
Updates and language specific user manuals are available on
www.mascot.no/downloads/usermanuals
Bruksanvisning
Käyttöohjeet
Bedienungsanleitung
Mode d’emploi
Manual de instrucciones
Istruzioni per l’uso
Doc.no. 5170E - Part No. 205170 - 11.01.2018
MASCOT ELECTRONICS AS
P.O.Box 177, N-1601 Fredrikstad, NORWAY
Phone: [phone] • Telefax: [phone]
E-mail: [e-mail] • Web: www.mascot.no

2
IMPORTANT SAFETY INSTRUCTIONS!
CAUTION! DOUBLE POLE / NEUTRAL FUSING!
This product is designed for indoor use.
(Not applicable to products marked ”IP67”)
A version of this product marked ”IP41” may be
available. This version is protected against ingress
of solid objects larger than 1.0 mm and the
effects of vertically falling drops of water
according to standard EN/IEC 60529.
A version of this product marked ”IP4X” or ”IP40”
may be available. This version is protected against
ingress of solid objects larger than 1.0 mm.
A version of this product marked ”IP44” may be
available. This version is protected against ingress
of solid objects larger than 1.0 mm and the
effects of water splashed against the enclosure
from any direction according to standard
EN/IEC 60529.
A version of this product, marked with a symbol
with two drops of water and/or ”IP67”, may be
available. This version is filled with a potting
IP41 IP44
IP67
TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK:
READ THROUGH THESE INSTRUCTIONS PRIOR TO USING THE PRODUCT.
CAREFULLY FOLLOW THESE INSTRUCTIONS WHEN USING THE PRODUCT.
RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
compound and is dust-tight and protected against
the effects of temporary immersion in water
according to standard EN/IEC 60529, but must
not be immersed in water for longer periods
of time.
Products marked with the “double square
symbol” are double insulated (Insulation Class II).
Products without this mark are Class I (relies on
safety earth for protection).
WARNING: To avoid risk of electric shock,
Class I products must only be connected to a
supply mains with protective earth.
At the end of their service life electric and
electronic equipment and their accessories shall
not be discarded with the municipal waste but be
disposed of using separate collection, treatment,
recovery/recycling and environmentally sound
disposal. This also applies to any potentially bio
hazardous parts and accessories. If in doubt;
contact your local authorities to determine the
proper method.
Technical specifications for your product:
See tables, the marking on the product
or www.mascot.no
IP4X

3
• The intended use for this product is to charge a
battery or a battery powered electrical accessory
(NiCd/NiMH, Lead-Acid, Lithium-Ion or LiFePO4
batteries) or to be used as a Power Supply to
power an electrical accessory. Please see the
marking on the product you have to verify the
type of product you have and read the applicable
instructions and technical specifications included
with this manual.
• This product may be used by unskilled operators,
under the condition that these instructions are
followed.
• Unskilled operators may contact the supplier or
manufacturer for assistance, if needed, in setting
up, using or maintaining this product and to report
unexpected operation or events.
• This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack
of experience and knowledge if they have been
given supervision or instruction concerning use of
the appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance.
• Do not allow animals to come into contact with
this product. Some animals are known to cause
damage to cables etc which may be a potential for
risk of electric shock and excessive temperatures.
Also, cables and small parts may represent a
strangulation risk for the animal.
• If the product is equipped with a mains cord,
please check that the cord is not damaged. If the
cord is damaged, the product must not be used
until the cord is replaced. Replacement should be
carried out by qualified personnel.
• The mains socket outlet used should always be
easily accessible to facilitate immediate removal of
the products mains supply should an operational
error occur during use. If the product has a
detachable mains cord the appliance coupler may
be used as a disconnect device.
• The product is “switched on” by inserting the mains
plug into the mains socket and “switched off”
by disconnecting the mains plug from the mains
socket.
• The product may be connected to an IT type
mains supply.
• For use in U.S.A.:
- Be sure to use 125V 15A receptacle
configuration before plugging in.
- Use a UL817-standard compliant mains cord (plug
type NEMA 1-15, cord type SJT or SVT).
• For use outside U.S.A:
Use a mains cord compliant with the country
specific requirements.
• The time from powering this product until its full
function starts may exceed 15 seconds.
• Should an operational error or unexpected change
in the performance occur during use; disconnect
the product from the mains immediately by
disconnecting the mains plug from the mains
socket and contact the supplier
• When not in use please think about disconnecting
the product from the mains. This will reduce the
risk of hazards, reduce the products environmental
impact and save electricity costs.
• To avoid overheating make sure there is sufficient
room for the circulation of air around the product
when in use. Do not cover it up.
• Even though this product complies with relevant
safety standards it should not be in contact with
human skin for long periods as some people
may get allergies or injuries from long-term
contact with moderate temperatures and/or plastic
materials.
• Prior to using this product with accessories and/or
interconnected equipment please carefully read its
respective User Manuals.
• If the product is supplied with exchangeable output
plugs, please see separate page for assembly.
• Output cables having a modular plug ( similar to a
telephone connector) must never be connected to
a telephone outlet.
Cautions to observe prior to use

4
• Products with a welded plastic housing are
not repairable. Please contact your supplier for
replacement part.
• This product contains hazardous voltages and
there are no user replaceable parts inside the
product. Never attempt to remove the cover.
• WARNING: No modification of this equipment is
allowed. Any repair/service should be carried out
by qualified personnel who may get assistance by
contacting the manufacturer or the manufacturer’s
agent.
• Products specified to have automatic polarity
protection must be switched off if a battery is
connected with reverse polarity. The protection will
be automatically reset when the polarity has been
corrected.
• In chargers specified to have a replaceable fuse as
polarity protection the fuse must be replaced if the
battery has been connected with reverse polarity.
When replacing the fuse; a fuse of the same type
and rating must be used.
• If the product is specified to comply with the
standard for Medical Electrical Equipment
(standards based on IEC60601-1) it complies
with some of the requirements for medical
electrical equipment and may be used in medical
applications and hospital environments.
• The product must not be used in the vicinity
of flammable anesthetic gases or in other
environments with flammable or explosive
atmosphere.
• If the product is specified to comply with the
standard for Medical Electrical Equipment
for Home Healthcare Environment (standard
IEC60601-1-11) it may be used in medical
applications used in a home healthcare
environment.
NOTE: Products relying on safety earth for
protection (Class I) may not be used in home
healthcare environment unless they are
permanently wired to the building installation:
Installation must only be carried out by qualified
service personnel, following the below instructions:
- The protective earth conductor must be
min. 0.75 mm2.
- Connect the protective earth conductor to the
external protective earthing system.
- Verify that the protective earth terminal used is
connected to the external protective earthing
system.
- Verify the integrity of the external protective
earthing system.
• This product converts the mains voltage to
a safety extra low voltage.
The output from products applying with 2MOPP
insulation ( model names followed by ”P”) may
be treated as Applied Part Type B or Type BF
according to standard EN/IEC 60601-1 and
may come in physical contact with a patient.The
housing of the product shall not be allowed to
contact the patient .
• This product must be operated in an environment
within temperature range +5 to +40°C, humidity
15 - 93 % RH and atmospheric pressure 70 -
106 kPa (700 - 1060 hPa).
• Expected service life of this product and
accessories delivered with this product is three (3)
years, if operated as indicated above. However; the
guarantee times indicated in document ”TERMS
OF SALES AND DELIVERY FOR MASCOT AS”
apply (available at www.mascot.com).
• Environmental parameters during transport and
storage between uses: temperature range -25
to +85 °C, humidity 15 - 93% RH NC and
atmospheric pressure 70 - 106 kPa (700 - 1060
hPa).
• If stored for longer periods of time the
environmental parameters should be within
the temperature range +5 to +35°C, humidity
range 10 - 75% RH NC and atmospheric pressure
70 - 106 kPa (700 - 1060 hPa) to maintain the
products expected service life.
• Expected shelf life of this product is one (1) year, if
stored as indicated above.

5
• This product complies with the requirements to
electromagnetic compatibility for medical electric
equipment and for use in residential, office or light
industrial environment but all electric products
imply a potential for electromagnetic or other
interference between the product and other
devices. If such interference is suspected please
disconnect the product from the mains and
consult a qualified technician, your supplier or the
manufacturer.
• No special maintenance procedure is required
but if the product gets dusty or dirty it should be
wiped clean using a dry cloth while the product
is disconnected from the mains. No other
maintenance should be necessary.
• For products having a plastic casing, please avoid
any contact with lotions, oils, grease and solvents
as most types of plastic may be degraded by such
chemicals. Also make sure to position, operate and
store such products away from UV-light and direct
sunlight.
• Position, operate and store this product only under
reasonable foreseeable environmental conditions
with respect to magnetic fields, EM-fields,
electrostatic discharges, pressure or variations in
pressure, acceleration etc.
• If this product is used with or mounted in a vehicle
it may only be used when the vehicle is not in use.
• When in use, position this product so that the label
can be read – within 40 cm of the operator.
• Turn the product off and allow it’s housing to cool
down prior to moving it to another location.
Cautions to observe prior to charging Li-Ion-batteries
• Li-Ion chargers are designed for charging Li-Ion
(LI) batteries only. Make sure you have the correct
battery charger for the chemistry and number of
cells in series. If the number of cells in series in
the battery pack is not known you can calculate it
by dividing the voltage indicated by 3.6VDC for LI
(e.g. a 14.4VDC LI battery contains 4 Li-Ion cells).
Make sure the charge voltage indicated on the
charger corresponds to the number of battery cells
in series multiplied by 4.2VDC (e.g. a 4 cell LI
battery is typically charged using 16.8VDC).
NOTE: The voltages indicated above are typical
and may vary between battery types and battery
makes. If in doubt; consult the specifications for
your battery.
• Make sure the specifications for your battery allows
for the maximum charge current indicated on the
charger.
• Make sure the specifications for your battery allows
for the environmental conditions present during
charging.
• Never attempt to charge batteries that are not
rechargeable.
• We recommend that you connect the charger
to the mains before connection is made to the
battery. This will reduce the sparks that may occur
due to difference in potential between charger
terminals and battery terminals. Note! Make sure
the charger terminals are not short-circuited and
ensure that the polarity is correct.
• Please ensure correct polarity when connecting
to the battery terminals. Reverse polarity conne-
ction may, in some chargers (see the chargers
specifications), result in a fuse blowing, requiring
replacement or leaving the charger useless.
• The charge cycle starts when the charger is
connected to the mains.
• If the charger is disconnected from the mains
voltage during a charge cycle the charger will start
a new charge cycle when it is reconnected to the
mains.
• The recommended minimum and maximum
battery capacity for which the specific charger
can be used vary from battery to battery. Please
follow the datasheet and recommendations from
the battery manufacturer. In our tables we use

6
typical 1C as a maximum current for Li-Ion cells.
1C means that charge current for a 1Ah battery
should be max 1A. Thus the typical minimum
capacity recommendation is 1Ah for a 1A charger.
For max battery capacity we have used C/40 for
chargers with timer (and/or uC) and 100 times
current detection levels for chargers using only
this termination method. For a 1A charger with
0.1A current detection level the max capacity
recommended will be 100 x 0.1A = 10Ah. Again
this is just typical recommendations. Please read
recommendations and datasheets from battery
manufacturer.
How to connect exchangeable AC-plugs
The following exchangeable AC plugs are available:
”EURO” 250V 2.5A (EN50075/IEC83 C5 II)
”US” 125V 2.5A (NEMA 1-15 / CSA-C22.2 No.42)
”UK” 250V 13A (BS 1363)
”AUS” 250V 10A (AS/NZS 3112)
Mains Cord Set is available on request if you wish your product to be ”DeskTop”
How to connect exchangeable DC-output plugs
1. To connect for desired polarity, both plug
ends are clearly marked.
2. When connected, the female plug is also
marked on each side to identify plug
polarity.
3. Shows the center polarity of the plug.
3 12
3 1 2

7

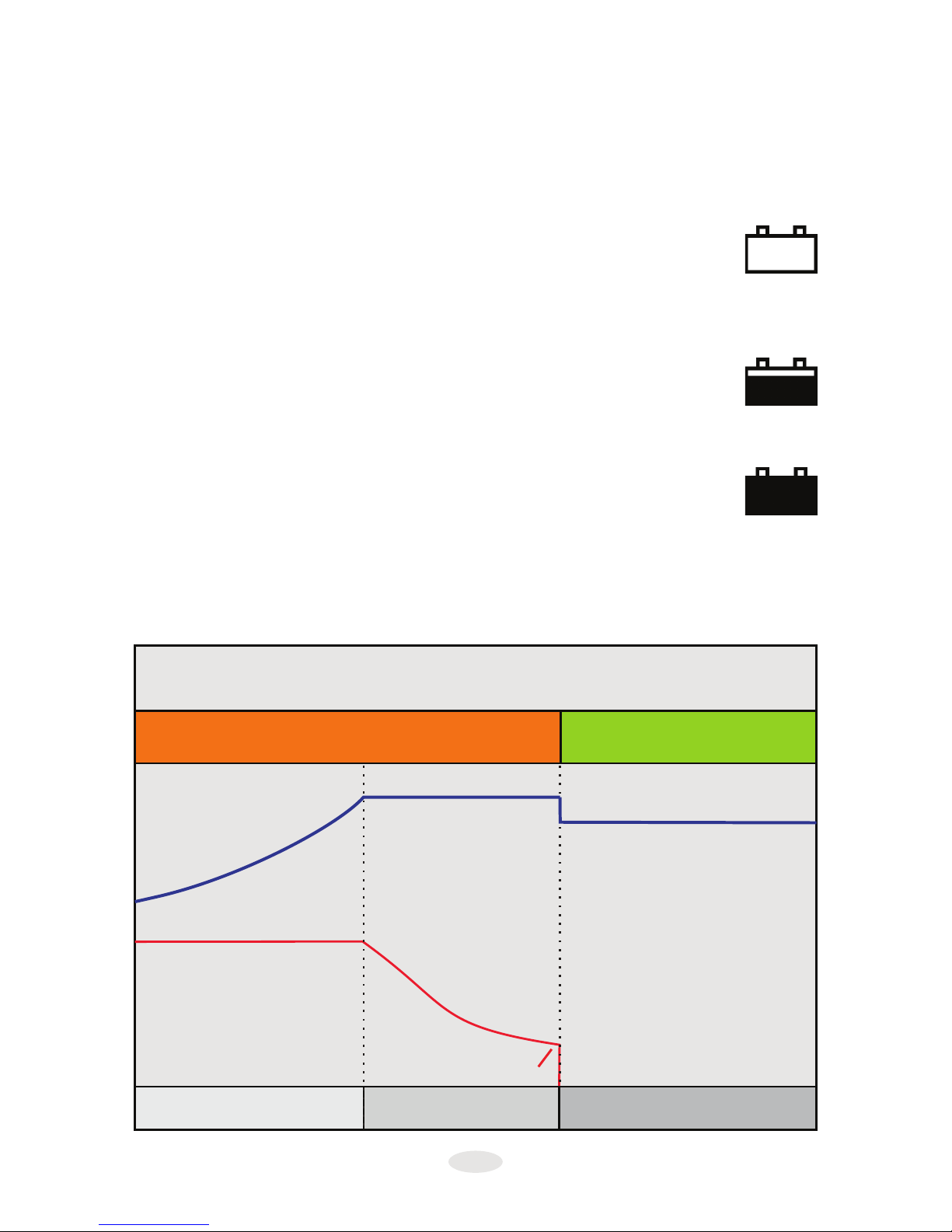

Explanation of Li-Ion battery charge cycle
(See tables for methods for each charger model.)
Charging method A
STEP 1 – CONSTANT CURRENT CHARGE
To start a charge cycle; connect the charger to the mains.
The charger is in constant current mode, charging with the maximum current indicated on
the charger, the LED-indication on the charger is ORANGE. This step allows rapid charging
of your battery until the battery reaches typically 80 - 95% of its capacity.
STEP 2 – CONSTANT VOLTAGE CHARGE
The charger is in constant voltage mode, charging with a decreasing current until the current
is below the chargers charge termination level (indicated on the charger). The LED-indication
on the charger is ORANGE. The battery is charged to its full capacity at the end of this step
STEP 3 –CHARGE COMPLETE
The LED-indication on the charger is GREEN and the battery is fully charged.
For Li-Ion batteries the charge current is zero and the battery has been charged it its full
capacity.
After end of charge battery voltage will remain at “Step 2” level even if output voltage of
charger is indicated as lower in the diagram. The charger will return to Step 1 if the battery
is used. A load larger than the cut-off current will initiate a new charge cycle.
INDICATOR: GREEN
Charge Voltage
Charge Current
INDICATOR: ORANGE
Charge Voltage
Step 2
CV Charge
Step 3
Charge complete
Step 1
CC Charge &XW2ϑ&XUUHQWDiagram: A
Orange
Orange
Green

8

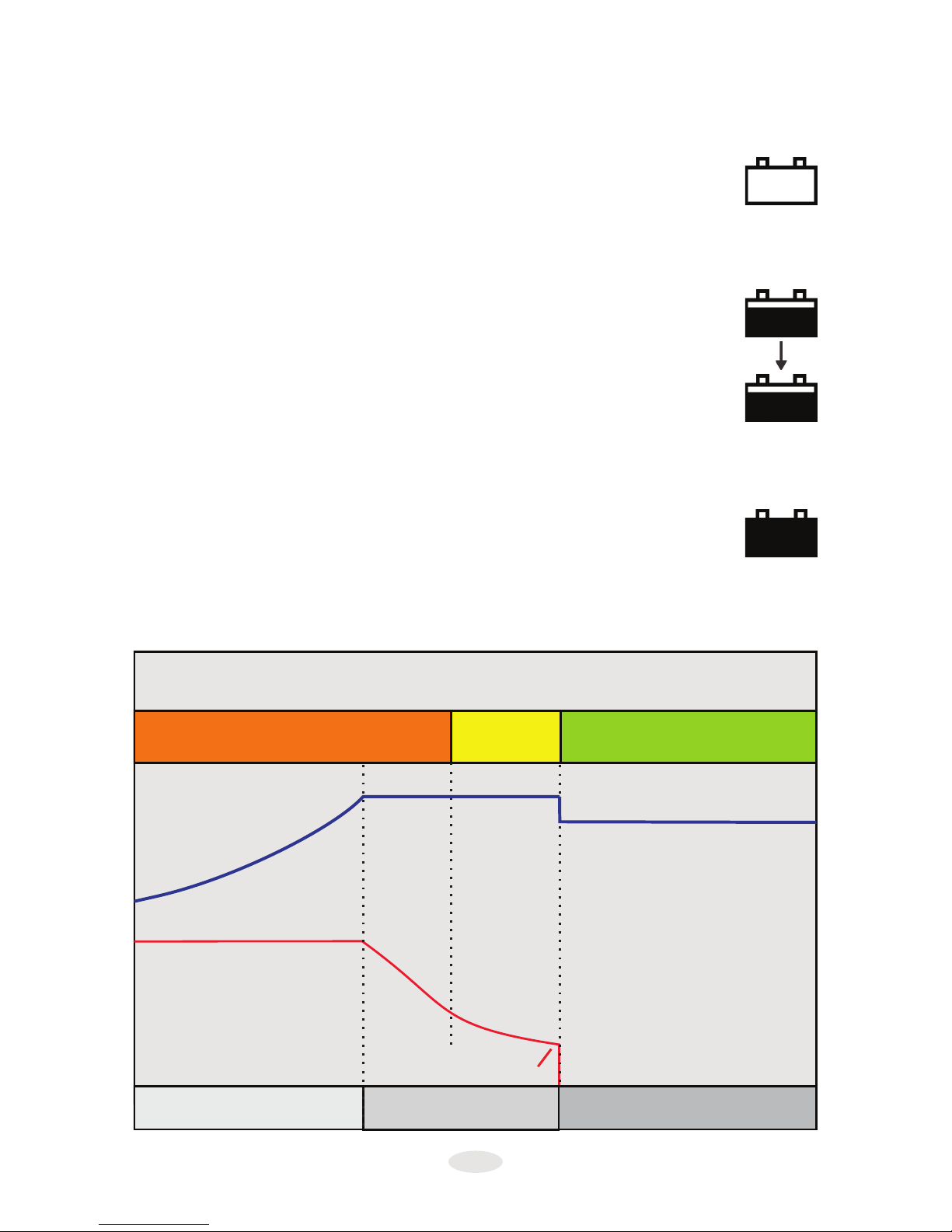

Charging method B
STEP 1 - CONSTANT CURRENT CHARGE
To start a charge cycle; connect the charger to the mains.
The charger is in constant current mode, charging with the maximum current indicated on
the charger, the LED-indication on the charger is ORANGE. This step allows rapid charging
of your battery until the battery voltage has increased to a certain set level
STEP 2 - CONSTANT VOLTAGE CHARGE
When the battery voltage has increased to a certain set level the charger enters constant
voltage mode, charging with a decreasing current until the current is below the chargers
charge termination level (indicated on the charger). The LED-indication on the charger is
ORANGE. When the battery has reached typically 90 - 95% of its full capacity the charge
current has dropped below a set level and the LED-indication on the charger changes to
YELLOW to indicate that the battery is almost fully charged and may be ready for use.
The constant voltage charge continues and the battery reaches its full capacity at the end
of this step
STEP 3 - CHARGE COMPLETE
The LED-indication on the charger is GREEN and the battery is fully charged.
For Li-Ion batteries the charge current is zero and the battery has been charged to its full
capacity. After end of charge battery voltage will remain at “Step 2” level even if output
voltage of charger is indicated as lower in the diagram. The charger will return to Step 1 if
the battery is used. A load larger than the cut-off current will initiate a new charge cycle.
Orange
Orange
Green
Yellow
INDICATOR:
YELLOW
INDICATOR: GREEN
Charge Voltage
Charge Current
INDICATOR: ORANGE
Charge Voltage
Step 2
CV Charge
Step 3
Charge complete
Step 1
CC Charge &XW2ϑ&XUUHQWDiagram: B

9

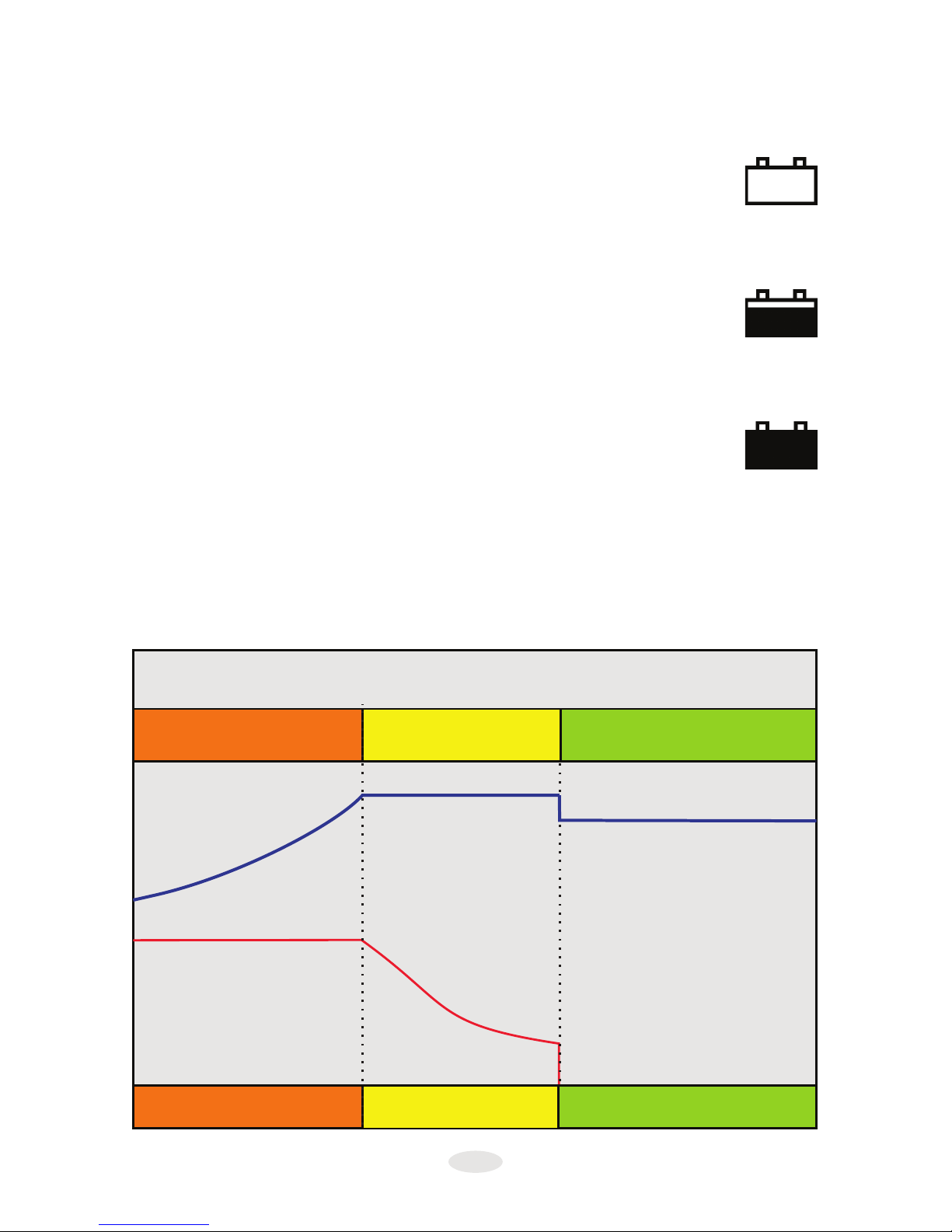

Charging method C
STEP 1 – CONSTANT CURRENT CHARGE
To start a charge cycle; connect the charger to the mains.
The charger is in constant current mode, charging with the maximum current indicated on the
charger, the LED-indication on the charger is ORANGE (or RED 9640). This step allows rapid
charging of your battery until the battery reaches typically 80 - 95% of its capacity.
STEP 2 – CONSTANT VOLTAGE (TIMER) CHARGE
The charger is in constant voltage mode, charging with a decreasing current. The LED-indi-
cation on the charger is YELLOW. The charger is now in timer mode indicated by the YELLOW
LED and will remain in this mode until time interval is completed. The battery is charged to its
full capacity at the end of this step.
STEP 3 - CHARGE COMPLETE
The LED-indication on the charger is GREEN and the battery is fully charged.
For Li-Ion batteries the charge current is zero and the battery has been charged to its
full capacity.
The charge voltage is at standby level which means that the charger can continue to be
connected to the battery. After end of charge battery voltage will remain at “Step 2” level even
if output voltage of charger is indicated as lower in the diagram.
The charger will return to Step 1 if the battery is used. A load larger than the constant current
level in Step 1 will initiate a new charge cycle.
&XW2ϑ&XUUHQWINDICATOR:
<(//2:
,1',&$725*5((1
&KDUJH9ROWDJH&KDUJH&XUUHQW
,1',&$72525$1*(&KDUJH9ROWDJHStep 2
CV Charge
Step 3
Charge complete
Step 1
CC Charge
'LDJUDP&
Orange
Orange
Green

10
Charging method D
STEP 1 - CONSTANT CURRENT CHARGE
Charge cycle starts automatically when input is connected to mains and battery is
connected to the output.The charger is in constant current mode (CC), charging with
the maximum current indicated on the charger. The LED-indication on the charger is YELLOW.
This step allows rapid charging of your battery until the battery reaches typically 80-95% of
its capacity.
Note: If battery is less than 3V/cell,caharger will apply low current start up.If noraml
voltage is not reached during start timer period, charge will terminate and 4 red blinks
error will be indiacted.
STEP 2 - CONSTANT VOLTAGE (TIMER) CHARGE
The charger is in constant voltage mode (CV).Charge current is decreasing. The LED-
indication on the charger is changed to FLASHING YELLOW shortly after entering this
mode.The cahrger will remain in this mode until the current has decreased to end of
charge detection level or until CV timer runs out.The battery is charged to its full
capacity at the end of this step.
STEP 3 - CHARGE COMPLETE
The LED-indication on the charger is GREEN and the battery is fully charged.The charge
current is zero and the battery has been charged to its full capacity. Charger may remain
connected to the battery. A new charge cycle will be initiated if battery voltage decrease
with 0.1V/cell.
BATTERY NOT CONNECTED INDICATIONS
Battery not connected is indicated by FLASHING GREEN. In this mode charger will apply
short pulses attempting to wake up deeply discharged batteries.
ERROR INDICATIONS
• 2 red blinks: Battery is connected to charger with wrong polarity!
• 3 red blinks: Charger output is shorted.Check output cable connection!
• 4 red blinks: Battery voltage is low. Check battery status or voltage.
• 5 red blinks: Safety timer has run out. Check battery status or capacity.
• LED off: Battery voltage is too high. Check battery voltage.
WAIT MODE INDICATIONS
• Yellow with 1 red blink: Battery temperature is too low (<0°C)
• Yellow with 2 red blinks: Battery temperature is too high (>45°C)

11
INDICATOR:
FLASHING YELLOW
INDICATOR: GREEN
Charge Current
INDICATOR: YELLOW
Charge Voltage
Battery Voltage
Cut-Off Current
Step 2
CV Charge (max1 h)
Safety Timer (72 hours)
Step 3
Charge complete
Step 0
Start Timer
(10 min)
Step 1
CC Charge
Start Current
Low Current Start-Up at Vbatt <3V/cell
Error Mode if <3V/cell after 10 minutes
Diagram: D
No voltage,
no current
from charger!
Battery Voltage
No current (0A)

12
Charge diagram A
Input voltage Charge LED
indicator 1 cell (3.6V) 2 cell (7.2V) 3 cell (10.8V) 4 cell (14.4V) 5 cell (18V)
2240(P) 2241(P)
100-240Vac
50-60Hz
max 0.35A
Orange CC ch.: Orange CV ch.: Green ch. complete: Rec. batt. capacity:
1.3A < 4.2V
4.2V > 100mA
<100mA
1.3Ah – 10Ah
1.3A < 8.4V
8.4V >100mA
<100mA
1.3Ah – 10Ah
1.2A < 12.6V
12.6V >100mA
< 100mA
1.2Ah – 10Ah
0.9A <16.8V
16.8V >100mA
< 100mA
0.9Ah – 10Ah
0.7A < 21V
21V >100mA
<100mA
0.7Ah – 10Ah
2740 100-240Vac
50-60Hz
Orange CC ch.: Orange CV ch.: Green ch. complete: Rec. batt. capacity:
1.0A < 4.2V
4.2V > 100mA
< 100mA
1Ah – 10Ah
1.0A < 8.4V
8.4V > 100mA
< 100mA
1Ah – 10Ah
0.7A < 12.6V
12.6V >100mA
< 100mA
0.7Ah – 10Ah
0.6A < 16.8V
16.8V > 100mA
< 100mA
0.6Ah – 10Ah
0.5A < 21V
21V > 100mA
< 100mA
0.7Ah – 10Ah
Input voltage Charge LED
indicator 6 cell (21.6V) 7 cell (25.2V) 8 cell (28.8V) 9 cell (32.4V) 10 cell (36V)
2240(P) 2241(P)
100-240Vac
50-60Hz
max 0.35A
Orange CC ch.: Orange CV ch.: Green ch. complete: Rec. batt. capacity:
0.6A < 25.2V
25.2V > 100mA
< 100mA
0.6Ah – 10Ah
0.56A < 29.4V
29.4V > 100mA
< 100mA
0.56Ah – 10Ah
0.49A < 33.6V
33.6V > 100mA
< 100mA
0.49Ah – 10Ah
0.43A < 37.8V
37.8V > 100mA
< 100mA
0.43Ah – 10Ah
0.39A < 42V
42V > 100mA
< 100mA
0.39Ah – 10Ah
2740 100-240Vac
50-60Hz
Orange CC ch.: Orange CV ch.: Green ch. complete: Rec. batt. capacity:
0.4A < 25.2V
25.2V > 100mA
< 100mA
0.4Ah – 10Ah
0.35A < 29.4V
29.4V > 100mA
< 100mA
0.35Ah – 10Ah
0.3A < 33.6V
33.6V > 100mA
< 100mA
0.3Ah – 10Ah
0.27A < 37.8V
37.8V > 100mA
< 100mA
0.27Ah – 10Ah
0.25A < 42V
42V > 100mA
< 100mA
0.25Ah – 10Ah
Technical data (If not appearing in table see marking on the product)

13
Input voltage Charge LED
indicator 11 cell (39.6V) 12 cell (43.2V) 13 cell (46.8V) 14 cell (50.4V) 16 cell (57.6V)
2240(P) 2241(P)
100-240Vac
50-60Hz
max 0.35A
Orange CC ch.: Orange CV ch.: Green ch. complete: Rec. batt. capacity:
0.35A < 46.2V
46.2V > 100mA
< 100mA
0.35Ah – 10Ah
0.32A < 50.4V
50.4V > 100mA
< 100mA
0.32Ah – 10Ah
0.30A < 54.6V
54.6V > 100mA
< 100mA
0.3Ah – 10Ah
0..27A < 58.8V
58.8V > 100mA
< 100mA
0.27Ah – 10Ah
0.22A < 67.2V
67.2V > 100mA
< 100mA
0.2Ah – 10Ah
2740 100-240Vac
50-60Hz
Orange CC ch.: Orange CV ch.: Green ch. complete: Rec. batt. capacity:
0.22A < 46.2V
46.2V > 100mA
< 100mA
0.2Ah – 10Ah
0.2A < 50.4V
50.4V > 100mA
< 100mA
0.2Ah – 10Ah
0.18A < 54.6V
54.6V > 100mA
< 100mA
0.2Ah – 10Ah
0.17A < 58.8V
58.8V > 100mA
< 100mA
0.15Ah – 10Ah
0.15A < 67.2V
67.2V > 100mA
< 100mA
0.15Ah – 10Ah
Charge diagram A
Technical data (If not appearing in table see marking on the product)
Charge diagram B
Input voltage Charge LED indicator 1 cell (3.6V) 2 cell (7.2V) 3 cell (10.8V) 4 cell (14.4V) 5 cell (18V)
2541(P) 2542(P)
100-240Vac
50-60Hz
max 0.9A
Orange CC ch.: Orange CV ch.: Yellow CV ch.: Green ch. complete: Rec. batt. capacity:
2.7A < 4.2V
4.2V >1.15A
4.2V < 1.15A
< 100mA
2.7Ah – 10Ah
2.7A < 8.4V
8.4V > 1A 8.4V < 1A
< 100mA
2.7Ah – 10Ah
2.3A < 12.6V
12.6V >1.0A
12.6V < 1.0A
< 100mA
2.3Ah – 10Ah
2.0A < 16.8V
16.8V > 0.85A 16.8V < 0.85A
< 100mA
2Ah – 10Ah
1.6A < 21V 21V > 0.7A 21V < 0.7A
< 100mA
1.6Ah – 10Ah
(20-60Vdc)
max 2A
2544 10-30Vdc
Orange CC ch.: Orange CV ch.: Yellow CV ch.: Green ch. complete: Rec. batt. capacity:
3.0A < 4.2V
4.2V > 1.15A 4.2V < 1.15A
< 100mA
3Ah – 10Ah
2.7A < 8.4V
8.4V > 1.15A 8.4V < 1.15A
< 100mA
2.7Ah – 10Ah
2.3A < 12.6V 12.6V > 0.9A 12.6V < 0.9A
< 100mA
2.3Ah – 10Ah
2.0A < 16.8V
16.8V > 0.85A 16.8V < 0.85A
< 100mA
2Ah – 10Ah
1.6A < 21V 21V > 0.7A 21V < 0.7A
< 100mA
1.6Ah – 10Ah

14
Input voltage Charge LED indicator 1 cell (3.6V) 2 cell (7.2V) 3 cell (10.8V) 4 cell (14.4V) 5 cell (18V)
3044 10-30Vdc
Orange CC ch.: Orange CV ch.: Yellow CV ch.: Green ch. complete: Rec. batt. capacity:
4.0A < 4.2V
4.2V > 2A 4.2V < 2A
< 250mA
4Ah – 25Ah
4.0A < 8.4V
8.4V > 2A 8.4V < 2A
< 250mA
4Ah – 25Ah
4.0A < 12.6V
12.6V > 2A 12.6V < 2A
< 250mA
4Ah – 25Ah
3.5A < 16.8V 12.6V > 1.7A 12.6V < 1.7A
< 250mA
3.5Ah – 25Ah
2.8A < 21V 21V > 1.5A 21V < 1.5A
< 250mA
2.8Ah – 25Ah
2641
per
channel
100-240Vac
50-60Hz
Orange CC ch.: Orange CV ch.: Yellow CV ch.: Green ch. complete: Rec. batt. capacity:
2.7A < 4.2V
4.2V > 1.15A 4.2V < 1.15A
< 100mA
2.7Ah – 10Ah
2.7A < 8.4V
8.4V > 1.15A 8.4V < 1.15A
< 100mA
2.7Ah – 10Ah
2.3A < 12.6V 12.6V > 0.9A 12.6V < 0.9A
< 100mA
2.3Ah – 10Ah
1.8A < 16.8V
16.8V > 0.85A 16.8V < 0.85A
< 100mA
1.8Ah – 10Ah
1.4A < 21V 21V > 0.6A 21V < 0.6A
< 100mA
1.4Ah – 10Ah
2440(P) 2441(P) 2442(P)
100-240Vac
50-60Hz
max. 1.6A
Orange CC ch.: Orange CV ch.: Yellow CV ch.: Green ch. complete: Rec. batt. capacity:
4.5A < 4.2V 4.2V > 1.8A 4.2V < 1.8A
< 300mA
4Ah – 30Ah
4.5A < 8.4V 8.4V > 1.8A 8.4V < 1.8A
< 300mA
4Ah – 30Ah
4.5A < 12.6V 12.6V > 1.8A 12.6V < 1.8A
< 300mA
4Ah – 30Ah
3.5A < 16.8V 16.8V > 1.6A 16.8V < 1.6A
< 300mA
3.5Ah – 30Ah
3.3A < 21V 21V > 1.6A 21V < 1.6A
< 300mA
3.3Ah – 30Ah
284X(P) 220-240Vac
50-60Hz
max.1.2A Orange CC ch.:
Orange CV ch.: Yellow CV ch.: Green ch. complete: Rec. batt. capacity:
8.5A < 4.2V 4.2V > 3.8A 4.2V < 3.8A
< 300mA
8.5Ah – 30Ah
8.5A < 8.4V 8.4V > 3.5A 8.4V < 3.5A
< 300mA
8Ah – 30Ah
7.9A < 12.6V 12.6V > 3.1A 12.6V < 3.1A
< 300mA
7Ah – 30Ah
6A < 16.8V
16.8V > 2.7A 16.8V < 2.7A
< 300mA
6Ah – 30Ah
4.7A < 21V 21V > 1.9A 21V < 1.9A
< 300mA
4.5Ah – 30Ah
324X(P) 110-120Vac/
220-240Vac
50-60Hz
max. 2.1A
3240B
3240BP N.A. N.A. N.A. N.A.
3340 220-240Vac N.A. N.A. N.A. N.A. N.A.
Charge diagram B
Technical data (If not appearing in table see marking on the product)

15
Input voltage Charge LED indicator 6 cell (21.6V) 7 cell (25.2V) 8 cell (28.8V) 9 cell (32.4V) 10 cell (36V)
2541(P) 2542(P)
100-240Vac
50-60Hz
max 0.9A
Orange CC ch.: Orange CV ch.: Yellow CV ch.: Green ch. complete: Rec. batt. capacity:
1.4A <25.2V 25.2V >0.6A 25.2V <0.6A
<100mA
1.4Ah – 10Ah
1.2A <29.4V 29.4V >0.5A 29.4V <0.5A
<100mA
1.2Ah – 10Ah
1.0A <33.6V 33.6V >0.4A 33.6V <0.4A
<100mA
1Ah – 10Ah
0.9A <37.8V
37.8V >0.35A 37.8V <0.35A
<100mA
0.9Ah – 10Ah
0.8A <42V
42V >0.35A 42V <0.35A
<100mA
0.8Ah – 10Ah
(20-60Vdc)
max 2A
2544 10-30Vdc
Orange CC ch.: Orange CV ch.: Yellow CV ch.: Green ch. complete: Rec. batt. capacity:
1.4A <25.2V 25.2V >0.6A 25.2V <0.6A
<100mA
1.4Ah – 10Ah
1.2A <29.4V 29.4V >0.5A 29.4V <0.5A
<100mA
1.2Ah – 10Ah
1.0A <33.6V 33.6V >0.4A 33.6V <0.4A
<100mA
1Ah – 10Ah
0.9A <37.8V
37.8V >0.35A 37.8V <0.35A
<100mA
0.9Ah – 10Ah
0.8A <42V 42V >0.4A 42V <0.4A
<100mA
0.8Ah – 10Ah
3044 10-30Vdc
Orange CC ch.: Orange CV ch.: Yellow CV ch.: Green ch. complete: Rec. batt. capacity:
2.3A <25.2V 25.2V >1.1A 25.2V <1.1A
<250mA
2.3Ah – 25Ah
2.0A <29.4V
294V >1A
29.4V <1A
<250mA
2Ah – 25Ah
1.7A <33.6V 33.6V >0.8A 33.6V <0.8A
<250mA
1.7Ah – 25Ah
1.6A <37.8V 37.8V >0.8A 37.8V <0.8A
<250mA
1.6Ah – 25Ah
1.5A <42V 42V >0.7A 42V <0.7A
<100mA
1.5Ah – 10Ah
2641
per
channel
100-240Vac
50-60Hz
Orange CC ch.: Orange CV ch.: Yellow CV ch.: Green ch. complete: Rec. batt. capacity:
1.2A <25.2V 25.2V >0.6A 25.2V <0.6A
<100mA
1.4Ah – 10Ah
1.0A <29.4V 29.4V >0.5A 29.4V <0.5A
<100mA
1.0Ah – 10Ah
0.9A <33.6V 33.6V >0.4A 33.6V <0.4A
<100mA
0.9Ah – 10Ah
0.8A <37.8V
37.8V >0.35A 37.8V <0.35A
<100mA
0.8Ah – 10Ah
0.7A <42V 42V >0.3A 42V <0.3A
<100mA
0.7Ah – 10Ah
2440(P) 2441(P) 2442(P)
100-240Vac
50-60Hz
max. 1.6A
Orange CC ch.: Orange CV ch.: Yellow CV ch.: Green ch. complete: Rec. batt. capacity:
2.8A <25.2V 25.2V >1.6A 25.2V <1.6A
<300mA
2.8Ah – 30Ah
2.5A <29.4V 29.4V >0.8A 29.4V <0.8A
<300mA
2.5Ah – 30Ah
2.1A <33.6V 33.6V >0.8A 33.6V <0.8A
<300mA
2.1Ah – 30Ah
1.9A <37.8V 37.8V >0.8A 37.8V <0.8A
<200mA
1.9Ah – 20Ah
1.8A <42V 42V >0.8A 42V <0.8A
<200mA
1.8Ah – 20Ah
Charge diagram B
Technical data (If not appearing in table see marking on the product)

16
Input voltage Charge LED indicator 6 cell (21.6V) 7 cell (25.2V) 8 cell (28.8V) 9 cell (32.4V) 10 cell (36V)
284X(P) 220-240Vac
50-60Hz
max. 1.2A Orange CC ch.:
Orange CV ch.: Yellow CV ch.: Green ch. complete: Rec. batt. capacity:
3.9A <25.2V 25.2V >1.7A 25.2V <1.7A
<300mA
3.9Ah – 30Ah
3.5A <29.4V 29.4V >1.6A 29.4V <1.6A
<300mA
3.5Ah – 30Ah
3A <33.6V
33.6V >1.4A 33.6V <1.4A
<300mA
3Ah – 30Ah
2.7A <37.8V 37.8V >1.3A 37.8V <1.3A
<300mA
2.7Ah – 30Ah
2.4A <42V 42V >1.2A 42V <1.2A
<300mA
2.4Ah – 30Ah
324X(P)
3240B
3240BP
110-120Vac/
220-240Vac
50-60Hz
max. 2.1A
3340 220-240Vac
Orange CC ch.: Orange CV ch.: Yellow CV ch.: Green ch. complete: Rec. batt. capacity:
25A < 25.2V 25.2V > 10A 25.2V < 10A
< 3A
25Ah – 300Ah
22A < 29.4V
29.4V > 7A 29.4V < 7A
< 3A
22Ah – 300Ah
19A < 33.6V
33.6V > 7A 33.6V < 7A
< 3A
19Ah – 300Ah
17A < 37.8V
37.8V > 7A 37.8V < 7A
< 3A
17Ah – 300Ah
15A < 42V
42V > 7A 42V < 7A
< 3A
15Ah – 300Ah
Charge diagram B
Technical data (If not appearing in table see marking on the product)
Input voltage Charge LED indicator 11 cell (39.6V) 12 cell (43.2V) 13 cell (46.8V) 14 cell (50.4V) 15 cell
(54V ) 16 cell (57.6V)
2541(P) 2542(P)
100-240Vac
50-60Hz
max 0.9A
Orange CC ch.: Orange CV ch.: Yellow CV ch.: Green ch. complete: Rec. batt. capacity:
0.7A < 46.2V 46.2V > 0.3A 46.2V < 0.3A
< 100mA
0.7Ah – 10Ah
0.7A < 50.4V 50.4V > 0.3A 50.4V < 0.3A
< 100mA
0.7Ah – 10Ah
0.6A < 54.6V
54.6V > 0.25A 54.6V < 0.25A
< 100mA
0.6Ah – 10Ah
0.6A < 58.8V
58.8V > 0.25A 58.8V < 0.25A
< 100mA
0.6Ah – 10Ah
N.A.
0.5A < 67.2V 67.2V > 0.2A 67.2V < 0.2A
< 100mA
0.5Ah – 10Ah
(20-60Vdc)
max 2A
2544 10-30Vdc
Orange CC ch.: Orange CV ch.: Yellow CV ch.: Green ch. complete: Rec. batt. capacity:
0.7A < 46.2V 46.2V > 0.3A 46.2V < 0.3A
< 100mA
0.7Ah – 10Ah
0.7A < 50.4V 50.4V > 0.3A 50.4V < 0.3A
< 100mA
0.7Ah – 10Ah
0.6A < 54.6V
54.6V > 0.25A 54.6V < 0.25A
< 100mA
0.6Ah – 10Ah
0.6A < 58.8V
58.8V > 0.25A 58.8V < 0.25A
< 100mA
0.6Ah – 10Ah
N.A.
0.5A < 67.2V 67.2V > 0.2A 67.2V < 0.2A
< 100mA
0.5Ah – 10Ah

Input voltage Charge LED indicator 11 cell (39.6V) 12 cell (43.2V) 13 cell (46.8V) 14 cell (50.4V) 15 cell (54V ) 16 cell (57.6V)
3044 10-30Vdc
Orange CC ch.: Orange CV ch.: Yellow CV ch.: Green ch. complete: Rec. batt. capacity:
1.3A < 46.2V 46.2V > 0.6A 46.2V < 0.6A
< 100mA
1.3Ah – 10Ah
1.2A < 50.4V 50.4V > 0.5A 50.4V < 0.5A
< 100mA
1.2Ah – 10Ah
1.1A < 54.6V
54.6V > 0.45A 54.6V < 0.45A
< 100mA
1.1Ah – 10Ah
1A < 58.8V
58.8V > 0.4A 58.8V < 0.4A
< 100mA
1Ah – 10Ah
N.A.
0.8A < 67.2V
67.2V > 0.35A 67.2V < 0.35A
< 100mA
0.8Ah – 10Ah
2641
per
channel
100-240Vac
50-60Hz
Orange CC ch.: Orange CV ch.: Yellow CV ch.: Green ch. complete: Rec. batt. capacity:
0.6A < 46.2V
46.2V > 0.25A 46.2V < 0.25A
< 100mA
0.6Ah – 10Ah
0.6A < 50.4V
50.4V > 0.25A 50.4V < 0.25A
< 100mA
0.6Ah – 10Ah
0.5A < 54.6V
54.6V > 0.25A 54.6V < 0.25A
< 100mA
0.5Ah – 10Ah
0.5A < 58.8V
58.8V > 0.25A 58.8V < 0.25A
< 100mA
0.5Ah – 10Ah
N.A.
0.45A < 67.2V
67.2V > 0.2A 67.2V < 0.2A
< 100mA
0.45Ah – 10Ah
2440(P) 2441(P) 2442(P)
100-240Vac
50-60Hz
max. 1.6A
Orange CC ch.: Orange CV ch.: Yellow CV ch.: Green ch. complete: Rec. batt. capacity:
1.6A < 46.2V 46.2V > 0.8A 46.2V < 0.8A
< 200mA
1.6Ah – 20Ah
1.45A < 50.4V
50.4V > 0.6A 50.4V < 0.6A
< 200mA
1.45Ah – 20Ah
1.35A < 54.6V
54.6V > 0.6A 54.6V < 0.6A
< 100mA
1.35Ah – 10Ah
1.3A < 58.8V 58.8V > 0.6A 58.8V < 0.6A
< 100mA
1.3Ah – 10Ah
1.15A <
63.0V
63.0V > 0.6A 63.0V < 0.6A
< 100mA
1.15Ah –
10Ah
1A < 67.2V
67.2V > 0.6A 67.2V < 0.6A
< 100mA
1Ah – 10Ah
284X(P)
220-240Vac
50-60Hz
max. 1.2A Orange CC ch.:
Orange CV ch.: Yellow CV ch.: Green ch. complete: Rec. batt. capacity:
2.2A < 46.2V 46.2V > 0.9A 46.2V < 0.9A
< 300mA
2.2Ah – 30Ah
2A < 50.4V
50.4V > 0.9A 50.4V < 0.9A
< 300mA
2.2Ah – 30Ah
1.8A < 54.6V 54.6V > 0.8A 54.6V < 0.8A
< 300mA
1.8Ah – 30Ah
1.7A < 58.8V 58.8V > 0.7A 58.8V < 0.7A
< 300mA
1.7Ah – 30Ah
1.6A < 63.0V 63.0V > 0.6A 63.0V < 0.6A
< 300mA
1.6Ah – 30Ah
1.5A < 67.2V 67.2V > 0.6A 67.2V < 0.6A
< 200mA
1.5Ah – 20Ah
324X(P)
3240B
3240BP
110-120Vac/
220-240Vac
50-60Hz
max. 2.1A
3340 220-240Vac
Orange CC ch.: Orange CV ch.: Yellow CV ch.: Green ch. complete: Rec. batt. capacity:
14A < 46.2V
46.2V > 5A 46.2V < 5A
< 2A
14Ah – 200Ah
13A < 50.4V
50.4V < 5A 50.4V < 5A
< 2A
13Ah – 200Ah
12A < 54.6V
54.6V < 5A 54.6V < 5A
< 2A
12Ah – 200Ah
11A < 58.8V
58.8V > 4A 58.8V < 4A
< 2A
11Ah – 200Ah
N.A.
10A < 67.2V
67.2V > 4A 67.2V < 4A
< 2A
10Ah – 200Ah
Charge diagram B
Technical data (If not appearing in table see marking on the product)

18
Input voltage Charge LED
indicator 1 cell (3.6V) 2 cell (7.2V) 3 cell (10.8V) 4 cell (14.4V) 5 cell (18V)
9640 9641
220-240Vac
50-60Hz
Red/Orange CC ch.: Yellow Timer CV ch.: Green ch. complete: Rec. batt. capacity:
N.A.
2.7A < 8.4V
8.4V < 2.7A (4h)
complete
2,7Ah –108Ah
2.7A < 12.6V
12.6V < 2.7A (4h)
complete
2.7Ah – 108Ah
2.4A < 16.8V
16.8V < 2.4A (4h)
complete
2.4Ah – 96Ah
1.5A < 21V
21V < 1.5A (4h)
complete
1.5Ah – 60Ah
9940 9941
100-240Vac
50-60Hz
Orange CC ch.: Yellow Timer CV ch.: Green ch. complete: Rec. batt. capacity:
N.A. N.A.
2.3A < 12.6V
12.6V < 2.3A (4h)
complete
2.3Ah – 92Ah
2A < 16.8V
16.8V < 2A (4h)
complete
2Ah – 80Ah
1.3A < 21V
21V < 1.3A (4h)
complete
1.3Ah – 52Ah
2040(P) 2041(P) 2042(P) 2140(P)
100-240Vac
50-60Hz
max.1.2A
Orange CC ch.: Yellow Timer CV ch.: Green ch. complete: Rec. batt. capacity:
N.A. N.A.
4A < 12.6V
12.6V < 4A (4h)
complete
4Ah – 400Ah
3.5A < 16.8V
16.8V < 3.5A (4h)
complete
3.5Ah – 140Ah
2A < 21V
21V < 2A (4h)
complete
2Ah – 80Ah
Input voltage Charge LED indicator 6 cell (21.6V) 7 cell (25.2V) 8 cell (28.8V) 9 cell (32.4V) 10 cell (36V)
9640 9641
220-240Vac
50-60Hz
Red/Orange CC ch.: Yellow Timer CV ch.: Green ch. complete: Rec. batt. capacity:
1.5A < 25.2V
25.2V < 1.5A (4h)
complete
1.5Ah – 60Ah
1.5A < 29.4V
29.4V < 1.5A (4h)
complete
1.5Ah – 60Ah
1.3A < 33.6V
33.6V < 1.3A (4h)
complete
1.3Ah – 52Ah
1.1A < 37.8V
37.8V < 1.1A (4h)
complete
1.1Ah – 44Ah
1A < 42V
42V < 1A (4h)
complete
1Ah – 40Ah
9940 9941
100-240Vac
50-60Hz
Orange CC ch.: Yellow Timer CV ch.: Green ch. complete: Rec. batt. capacity:
1.3A < 25.2V
25.2V < 1.3A (4h)
complete
1.3Ah – 52Ah
1.3A < 29.4V
29.4V < 1.3A (4h)
complete
1.3Ah – 52Ah
1A < 33.6V
33.6V < 1A (4h)
complete
1Ah – 40Ah
0.9A < 37.8V
37.8V < 0.9A (4h)
complete
0.9Ah – 36Ah
0.9A < 42V
42V < 0.9A (4h)
complete
0.9Ah – 36Ah
2040(P) 2041(P) 2042(P) 2140(P)
100-240Vac
50-60Hz
max.1.2A
Orange CC ch.: Yellow Timer CV ch.: Green ch. complete: Rec. batt. capacity:
2A < 25.2V
25.2V < 2A (4h)
complete
2Ah – 80Ah
2A < 29.4V
29.4V < 2A (4h)
complete
2Ah – 80Ah
1.7A < 33.6V
33.6V < 1.7A (4h)
complete
1.7Ah – 68Ah
1.5A < 37.8V
37.8V < 1.5A (4h)
complete
1.5Ah – 60Ah
1.4A < 42V
42V < 1.4A (4h)
complete
1.4Ah – 56Ah
Charge diagram C
Technical data (If not appearing in table see marking on the product)

19
Input voltage Charge LED indicator 11 cell (39.6V) 12 cell (43.2V) 13 cell (46.8V) 14 cell (50.4V) 16 cell (57.6V)
9640 9641
220-240Vac
50-60Hz
Red/Orange CC ch.: Yellow Timer CV ch.: Green ch. complete: Rec. batt. capacity:
N.A. N.A. N.A. N.A. N.A.
9940 9941
100-240Vac
50-60Hz
Orange CC ch.: Yellow Timer CV ch.: Green ch. complete: Rec. batt. capacity:
N.A. N.A. N.A. N.A. N.A.
2040(P) 2041(P) 2042(P) 2140(P)
100-240Vac
50-60Hz
max.1.2A
Orange CC ch.: Yellow Timer CV ch.: Green ch. complete: Rec. batt. capacity:
1.3A < 46.2V
46.2V < 1.3A (4h)
complete
1.3Ah – 52Ah
1.2A < 50.4V
50.4V < 2A (4h)
complete
1.2Ah – 48Ah
1.1A < 54.6V
54.6V < 1.1A (4h)
complete
1.1Ah – 44Ah
1A < 58.8V
58.8V < 1A (4h)
complete
1Ah – 40Ah
N.A.
X = 0,1,2 (P) = 2MOPP version (B) =Special open frame PCB (All standard versions are also available as open frame units)
Charge diagram C
Technical data (If not appearing in table see marking on the product)

20
Charge diagram D
Technical data (If not appearing in table see marking on the product)
Input voltage Charge LED indicator 1 cell
3745
100-240Vac
50-60Hz
max.0.25A
Yellow CC ch.: Yellow CV ch.: Yellow flash CV ch.: Green ch. complete: Batt. capacity:
EasyPack S
0.45A < 4.2V 4.2V > 0.36A 4.2V < 0.36A
< 25mA
0.66Ah
EasyPack L
0.85A < 4.2V 4.2V > 0.67A 4.2V < 0.67A
< 55mA
1.2Ah
EasyPack XL
1.5A < 4.2V 4.2V > 1.2A 4.2V < 1.2A
< 125mA
2.4Ah
EasyPack PLUS
1.5A < 4.2V 4.2V > 1.2A 4.2V < 1.2A
< 260mA
5.2Ah
Input voltage Charge LED indicator 1-cell 2-cell 3-cell 4-cell 5-cell 6-cell 7-cell
3546
100-240Vac
50-60Hz
max.0.7A
Yellow CC ch.: Yellow CV ch.: Yellow flash CV ch.: Green ch. compl.: Rec. batt. capacity:
2.5A < 4.2V 4.2V > 2.2A 4.2V < 2.2A
< 100mA
2.5Ah – 100Ah
2.5A < 8.4V 8.4V > 2.2A 8.4V < 2.2A
< 100mA
2.5Ah – 100Ah
2.2A < 12.6V
12.6V >1.9A
12.6V < 1.9A
< 100mA
2.2Ah – 88Ah
1.6A < 16.8V 16.8V > 1.3A 16.8V < 1.3A
< 100mA
1.6Ah – 64Ah
1.35A < 21V
21V > 1.1A 21V < 1.1A
< 100mA
1.35Ah – 54Ah
1.15A < 25.2V
21V > 0.9A 21V < 0.9A
< 100mA
1.15Ah – 46Ah
1.0A < 29.4V 29.4V > 0.8A 29.4V < 0.8A
< 100mA
1Ah – 40Ah
3743
100-240Vac
50-60Hz
max.0.5A
Yellow CC ch.: Yellow CV ch.: Yellow flash CV ch.: Green ch. compl.: Rec. batt. capacity:
1.5A < 4.2V
4.2V > 1.35A 4.2V < 1.35A
< 100mA
1.5Ah – 60Ah
1.5A < 8.4V
8.4V > 1.35A 8.4V < 1.35A
< 100mA
1.5Ah – 40Ah
1.2A < 12.6V
12.6V >1A
12.6V < 1A
< 100mA
1.2Ah – 48Ah
1A < 16.8V
16.8V > 0.8A 16.8V < 0.8A
< 100mA
1Ah – 40Ah
0.8A < 21V
21V > 0.65A 21V < 0.65A
< 100mA
0.8Ah – 32Ah
0.66A < 25.2V
21V > 0.55A 21V < 0.55A
< 100mA
0.66Ah – 26.4Ah
0.56A < 29.4V 29.4V > 0.49A 29.4V < 0.49A
< 100mA
0.56Ah – 22.4Ah
Input voltage Charge LED indicator 8-cell 9-cell 10-cell 11-cell 12-cell 13-cell 14-cell
3546
100-240Vac
50-60Hz
max.0.7A
Yellow CC ch.: Yellow CV ch.: Yellow flash CV ch.: Green ch. compl..: Rec. batt. capacity:
0.85A < 33.6V
33.6V > 0.7A 33.6V < 0.7A
< 100mA
0.85Ah – 34Ah
0.75A < 37.8V 37.8V > 0.65A 37.8V < 0.65A
< 100mA
0.75Ah – 30Ah
0.7A < 42V 42V > 0.6A 42V < 0.6A
< 100mA
0.7Ah – 28Ah
0.6A < 46.2V 46.2V > 0.5A 46.2V < 0.5A
< 100mA
0.6Ah – 24Ah
0.55A < 50.4V 50.4V > 0.45A 50.4V < 0.45A
< 100mA
0.55Ah – 22Ah
0.5A < 54.6V 54.6V > 0.4A 54.6V < 0.4A
< 100mA
0.5Ah – 20Ah
0.5A < 58.8V 58.8V > 0.4A 58.8V < 0.4A
< 100mA
0.5Ah – 20Ah
3743
100-240Vac
50-60Hz
max.0.5A
Yellow CC ch.: Yellow CV ch.: Yellow flash CV ch.: Green ch. compl.: Rec. batt. capacity:
0.5A < 33.6V 33.6V > 0.4A 33.6V < 0.4A
< 100mA
0.5Ah – 20Ah
0.45A < 37.8V 37.8V > 0.35A 37.8V < 0.35A
< 100mA
0.45Ah – 18Ah
0.4A < 42V 42V > 0.3A 42V < 0.3A
< 100mA
0.4Ah – 16Ah
0.37A < 46.2V
46.2V > 0.3A 46.2V < 0.3A
< 100mA
0.37Ah – 14.8Ah
0.33A < 50.4V 50.4V > 0.26A 50.4V < 0.26A
< 80mA
0.33Ah – 13.2Ah
0.3A < 54.6V
54.6V > 0.25A 54.6V < 0.25A
< 80mA
0.3Ah – 12Ah
0.3A < 58.8V
58.8V > 0.25A 58.8V < 0.25A
< 80mA
0.3Ah – 12Ah
