Lake Lite LL-SML-X User manual

LIGHT CHARACTERISTICS
Light Source 6-Ultra-High intensity LEDs.
Lumens Output 12 Lumens
Available LED Colors White, Blue, Green, Amber, Red
Light Mode Options (user switchable) Constant & 1/sec. Flash or 4/sec. Flash
Visible Range Constant Light Mode 0.5 –0.75 nm (Run Time 30 hrs Max)
Visible Range Flashing 1/sec Mode 1.0 –1.25 nm (Run Time 40-45 hrs Max)
Horizontal Output (degrees) 360°
Vertical Divergence (degrees) 7-10°
Intensity Adjustment Automatic for Constant & Flashing
LED Life Expectancy (hours) > 100,000 hrs
ELECTRICAL CHARACTERISTICS
Circuit Protection Integrated
Nominal Voltage (v) 1.2v
Autonomy (hours) Constant Mode 30 hrs Constant Mode
Autonomy (hours) Flashing 1/sec Mode 40-45 hrs Flashing Mode
Temperature Range -22 -176°Fahrenheit
SOLAR CHARACTERISTICS
Solar Module Type Multicrystalline
Power (watts) 0.45 watts
Solar Module Efficiency (%) 14-16%
POWER SUPPLY
Battery Type High Grade NiMh –ECO Friendly
Battery Capacity (mAh) 2200 mAh
Nominal Voltage (v) 1.2v
Battery Service Life 1-3 years (Varies with local Environment)
Battery Service Access Yes: User Changeable / Replaceable
PHYSICAL CHARACTERISTICS
Body Material UV Stabilized Poly Carbonate
Lens Material UV Stabilized Poly Carbonate
External Lens Design Fresnel Lens
Internal Lens design 360°Lenticular
Water Proof Rating IP 68
Mounting 4 x 5mm mounting holes
Height 4-1/2”
Width / Diameter 5-1/4”
Weight 1.4 lbs
OPTIONS
Custom Mounting & Hardware Please Contact
Custom Flash Patterns and IALA Codes Please Contact
* Informationsubject tochange without notice
Solar Marine Dock Light: Model LL
-SML-X
The Solar Marine Light is an industrial strength solar
powered light designed for harsh environments.
Available in five colors and changes easily between
constant & flashing mode
. High intensity
LED’s and
powerful solar panel provide all night illumination.
Perfect
for dock lighting, marinas, boat houses,
safety lighting, channel markers, buoys, obstruction
lighting, mooring lights, or anywhere a light may be
needed. M
ounts virtually anywhere in minutes
providing a fast & cost effective lighting solution.
Lake Lite Inc.
PO Box 414
LaOtto, IN 46763
Phone: [phone]
Fax: [phone]
E-mail [email protected]
www.lakelite.com
Solar Marine Light
MODEL: LL-SML-X

CAUTION: CONTAINS NICKEL-CADMIUM BATTERIES. BATTERY MUST BE RECYCLED OR DISPOSEDOF PROPERLY.
NOTE:
1. LED Light inside is activated by darkness, Unit must be in a dark area before light will activate. Place in dark room to test unit.
2. Battery must be charged in order for the LED Light to turn on. Make sure battery is connected inside and then place in sunlight to charge.
NOTE: BATTERY MUST BE INSTALLED & CONNECTED TO FUNCTION
Mounting your Light to a Surface
1. Purchase desired mounting screws or bolts
2. Place/Space Marine Light in desired locations on surface
3. Use pencil to mark mounting holes
4. Use electric drill with small drill bit to make pilot holes
5. Use Screw Driver or Electric Screw Driver to mount unit
Recommended Screw size #10 or #12 x 1” or Longer
2-Screws/Bolts
For each light
Tools Required
Solar Marine Light
MODEL: LL-SML-X
Connect Battery
Mounting Surface Mounting Surface
INSIDE BUTTONS STORAGE MODE
1. Remove Battery Cover from bottom of unit.
2. Connect both sides of the battery connector together
3. Internal Switch, Changes between Flashing or Constant Modes.
4. Install or check that the silicone O-Ring seal is in place and
correctly in position
5. Attach and tighten the battery cover with the provided 6-screws.
Be sure to work your way around to each screw to fully tighten.
WARNING: LONG TERM STORAGE DIRECTIONS:
1. Charge the Light on a Sunny Day.
2. Before Nightfall Disconnect Battery & store battery in climate controller
area for long term storage. You may also use the magnet to disconnect
the battery for storage. Make sure the magnet will not fall out during
storage or the battery may be damaged. Use a piece of tape to secure
the magnet in place during storage
INSTALLING THE BATTERY
Flash/Constant Switch
Insert Magnet into slot
Use a piece of tape to secure magnet in place
(the magnet will disconnect the battery for storage)
NEW: Watch Online
Installation Video!
1nm
Lake Lite Inc.
PO Box 414
LaOtto, IN 46763
Phone: [phone]
Fax: [phone]
E-mail [email protected]
www.lakelite.com
Remove Screws Replace Screws

Owner Registration Card
Please fill out and affix proper postage and return this owner
registration card within 10 days to insure that your new Solar Marine
Light is covered by the limited warranty.
Purchaser’s Name .
Address .
State . Zip .
Purchase Date: . Number of Lights: .
Where Purchased (Store Name): .
Model No. LL-SML-X
UPC No. Varies On Different Models
Lake Lite Inc.
P.O. Box 414, Laotto, IN 46763
Lake Lite Inc. 1-Year Limited Warranty
The retailer warrants the Solar Marine Light to be free from defects in workmanship and material
present at time of shipment from the factory for a period of one year after the date of purchase by
the original purchaser. We agree to correct such defects without charge or at our option replace
with a comparable or superior model if the product is returned to the retailer. To obtain warranty
service, you must present a copy of the receipt as proof of purchase. All costs of removing and
reinstalling the product are you responsibility. Damage to any part such as by accident or misuse
or improper installation or by affixing any accessories, is not covered by this warranty. There is no
other express warranty. The retailer hereby disclaims any and all warranties, including but not
limited to, those of merchantability and fitness for a particular purpose to the extent permitted by
law. The duration of any implied warranty, which cannot be disclaimed, is limited to the time
period as specified in the express warranty. Some states do no allow limitation on how long an
implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be
liable for incidental, consequential, or special damages arising out of or in connection with
product use or performance except as may otherwise be accorded by law. Some states do not allow
the exclusion of incidental or consequential damage, so the above exclusion or limitation may
apply to you. This warranty gives specific legal rights, and you may also have other rights, which
vary from state to state. This warranty supersedes all prior warranties.

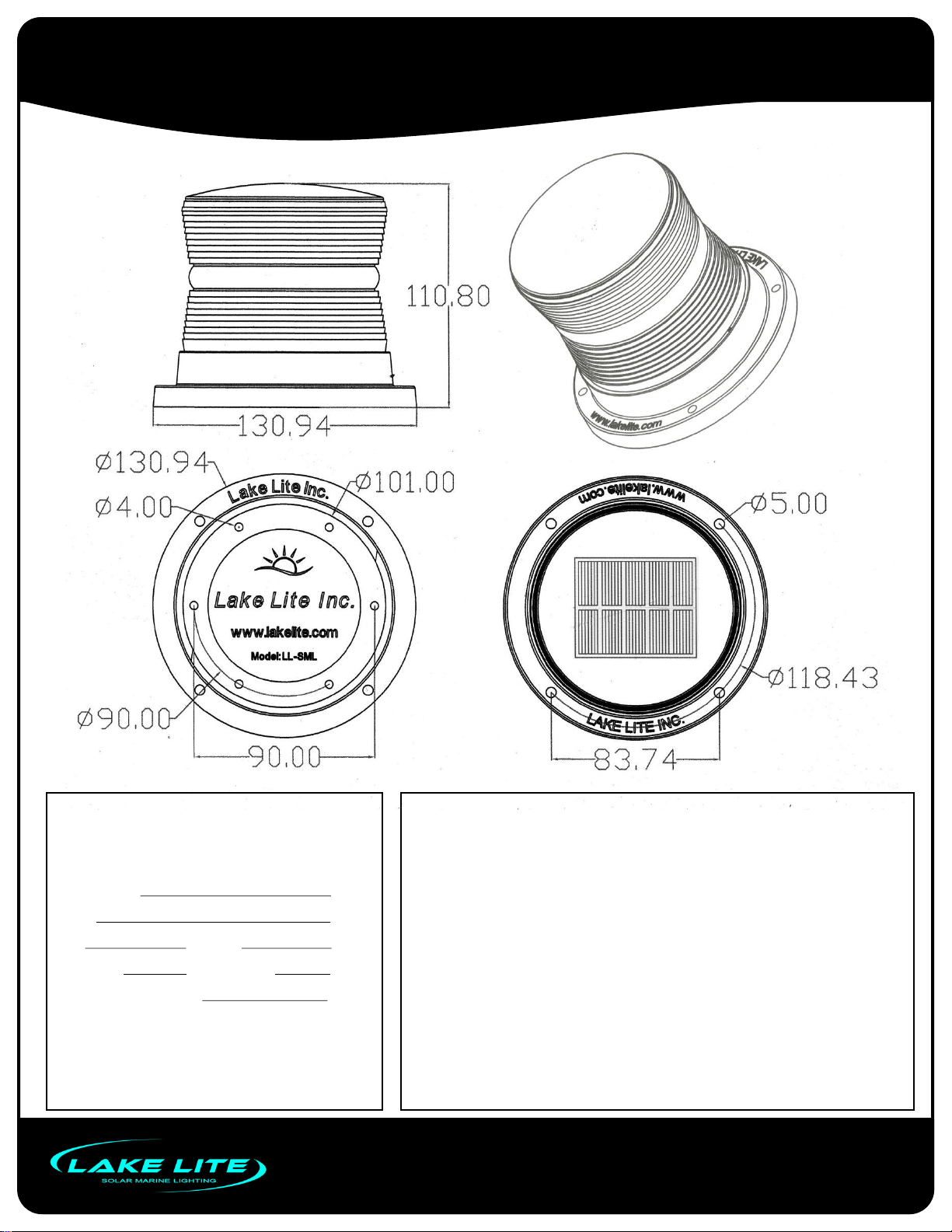

Dimensions = mm
1 nm
Lake Lite Inc.
PO Box 414
LaOtto, IN 46763
Phone: [phone]
Fax: [phone]
E-mail [email protected]
www.lakelite.com
Solar Marine Light
MODEL: LL-SML-X

Lake Lite Inc.
PO Box 414
LaOtto, IN 46763
Phone: [phone]
Fax: [phone]
E-mail [email protected]
www.lakelite.com

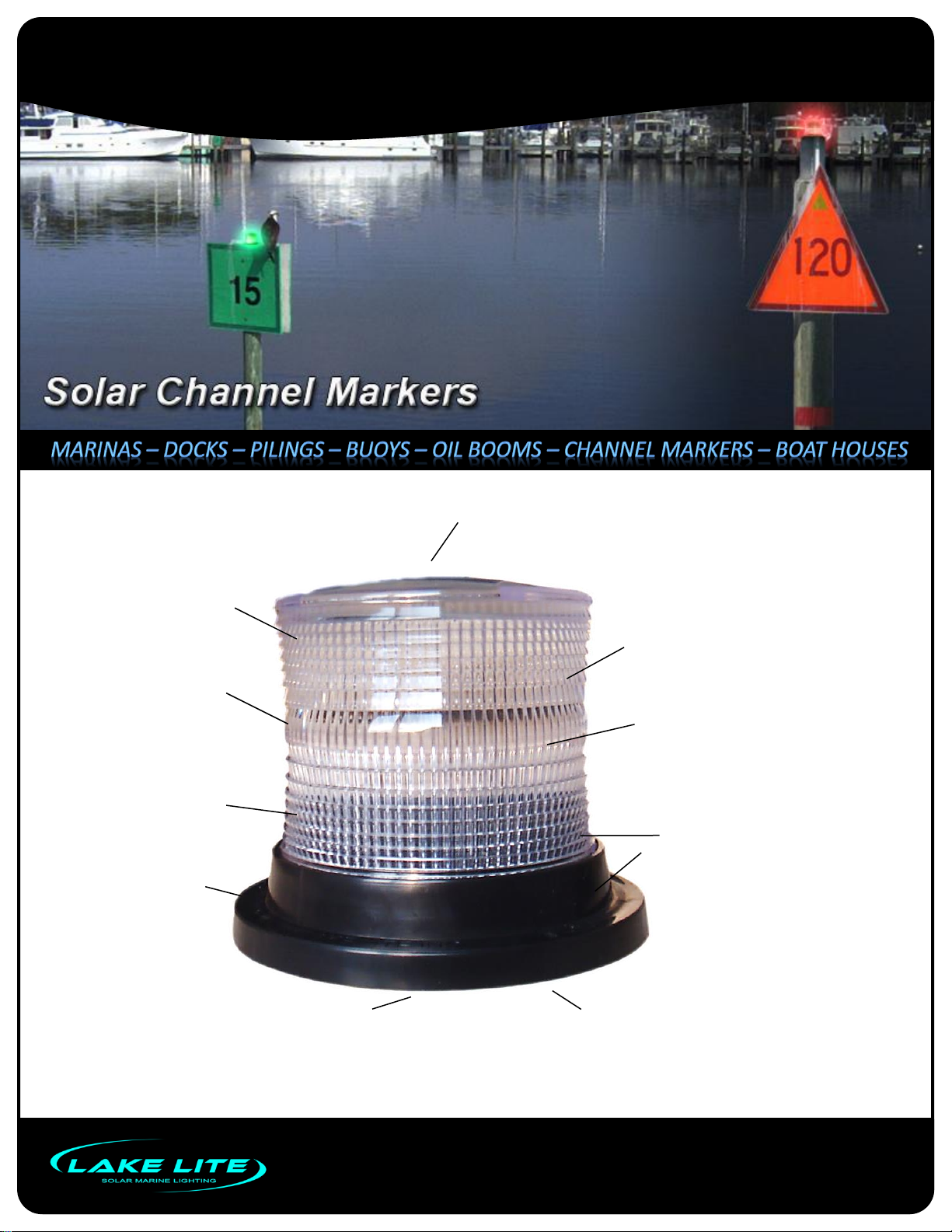

Fully encapsulated solar panel for increased
efficiency during off peak charging hours
Automatic night
activation
Internal user changeable
flash/steady option
UV stabilized
polycarbonate
6 High Intensity
LEDs
Internal user-replaceable
Battery in sealed
compartment
360 Degree
Internal
Lenticular lens
External
Fresnel Lens
Easy Mount
Base unit
Sealed
IP 68
construction
1 nm
Solar Marine Light
MODEL: LL-SML-X

Specifications
LIGHT CHARACTERISTICS
Light Source 6-Ultra-High intensity LEDs.
Available LED Colors White, Blue, Green, Amber, Red
Light Mode Options (user switchable) Constant & 1/sec. Flashing or 4/sec. Flashing
Visible Range Constant Light Mode 0.5 –0.75 nm (Run Time 30 hrs Max)
Visible Range Flashing 1/sec Mode 1.0 –1.25 nm (Run Time 40-45hrs Max)
Horizontal Output (degrees) 360°
Vertical Divergence (degrees) 7-10°
Intensity Adjustment Automatic for Constant & Flashing Mode
LED Life Expectancy (hours) > 100,000 hrs
ELECTRICAL CHARACTERISTICS
Circuit Protection Integrated
Nominal Voltage (v) 1.2v
Autonomy (hours) Constant Mode 30 hrs in Constant Mode
Autonomy (hours) Flashing 1/sec Mode 40-45 hrs in Flashing Mode
Temperature Range -22 -176°Fahrenheit
SOLAR CHARACTERISTICS
Solar Module Type Multicrystalline
Power (watts) 0.45 watts
Solar Module Efficiency (%) 14-16%
POWER SUPPLY
Battery Type High Grade NiMh –ECO Friendly
Battery Capacity (mAh) 2200 mAhr
Nominal Voltage (v) 1.2v
Battery Service Life 1-3 years (Varies with local Environment)
Battery Service Access Yes: User Changeable / Replaceable
PHYSICAL CHARACTERISTICS
Body Material UV Stabilized Poly Carbonate
Lens Material UV Stabilized Poly Carbonate
External Lens Design Fresnel Lens
Internal Lens design 360°Lenticular
Water Proof Rating IP 68
Mounting 4 x 5mm mounting holes
Height 4-1/2”
Width / Diameter 5-1/4”
Weight 1.4 lbs
OPTIONS
Custom Mounting & Hardware Please Contact
Custom Flash Patterns and IALA Codes Please Contact
* Information subject to change without notice.
Lake Lite Inc.
PO Box 414
LaOtto, IN 46763
Phone: [phone]
Fax: [phone]
E-mail [email protected]
www.lakelite.com
1 nm
Solar Marine Light
MODEL: LL-SML-X
