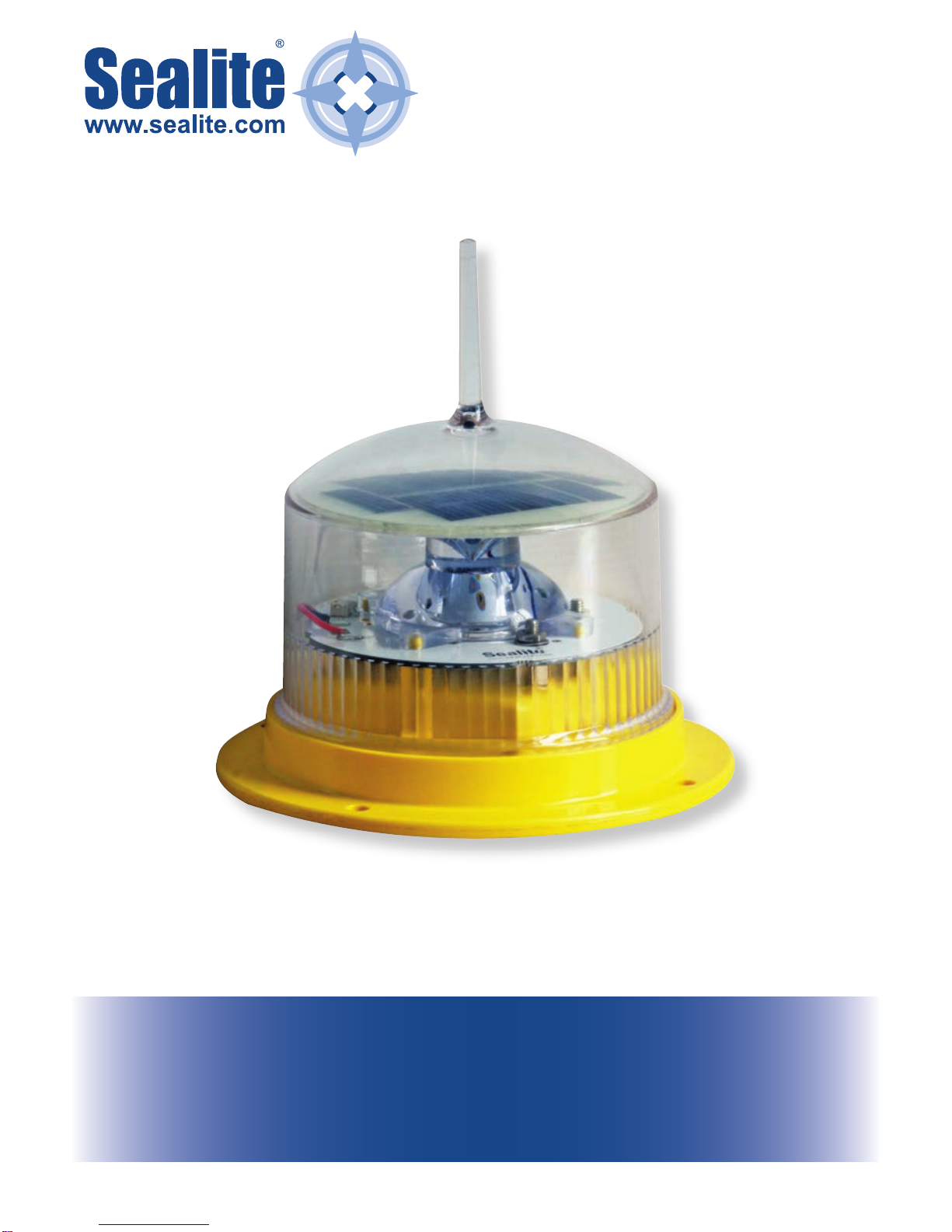

Sealite SL-15 Supplement

Version 3.6
SL-15
with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
Installation & Service Manual

SL-15
with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
Bird deterrent spike
Single LED Optic
Internal
user-replaceable
battery in sealed
compartment
Internal solar module
Automatic night
activation
Lens and base
moulded from
UV-stabilised
LEXAN®
polycarbonate
Internal user-adjustable
ash settings

Latest products and information available at www.sealite.com
3
SL-15 with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
Table of Contents
Introduction..........................................................................................Page 4
Operating Principle .............................................................................Page 4
Technology...........................................................................................Page 4
SL-15 Model .........................................................................................Page 5
Installation............................................................................................Page 6
Flash Codes.........................................................................................Page 6
Flash Code Table.................................................................................Page 8
IR Remote...........................................................................................Page 14
Maintenance and Servicing..............................................................Page 19
Trouble Shooting...............................................................................Page 20
Optional ON/OFF Switch...................................................................Page 21
SL-15 Accessories.............................................................................Page 22
Sealite LED Light Warranty ..............................................................Page 24
Version No. Description Date Author Approved
1.0 Manual re-launch June 2009 K. Paton
2.0 Flash Adjustment July 2009 K. Paton
2.1 Logo Update May 2010 K. Paton
2.2 Warranty Update July 2010 K. Paton
3.0 Update: New Design Sept 2011 J. Dore
3.1 General update June 2012 J. Dore
3.2 Update: Replacing the battery July 2012 J. Dore
3.3 External switch operation December 2015 Y. Chambers
3.4 Update: Contact details January 2016 J. Dore
3.5 Update: Battery details October 2016 M.Aslam M.Nicholson
3.6 General Update November A.Dixon M.Nicholson

Latest products and information available at www.sealite.com
4
SL-15 with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
Introduction
Introduction
Congratulations! By choosing to purchase a Sealite lantern you have become the owner of
one of the most advanced LED marine lanterns in the world.
Sealite Pty Ltd has been manufacturing lanterns for over 25 years, and particular care has been taken to
ensure your lantern gives years of service.
As a commitment to producing the highest quality products for our customers, Sealite has been independently
certied as complying with the requirements of ISO9001:2008 quality management system.
Sealite lanterns comply with requirements of the US Coast Guard in 33 CFR part 66 for Private Aids To
Navigation.
By taking a few moments to browse through this booklet, you will become familiar with the versatility of your
lantern, and be able to maximise its operating function.
Operating Principle
The solar module of the lantern converts sunlight to an electrical current that is used to charge the battery. The
battery provides power to operate the lantern at night.
The asher unit has very low current requirements. A microprocessor drives an ultra bright LED through a
DC/DC converter, which enables the LED’s to operate within the manufacturer’s specications. The battery is
protected from over-charging within the circuit to ensure maximum battery life.
On darkness, the microprocessor will initiate a program check and after approximately 1 minute begin ashing
to the set code
Technology
Sealite is the world’s fastest growing manufacturer of marine aids to navigation. We
employ leading mechanical, optical, hardware & software engineers to create innovative
products to service the needs of our customers worldwide, and offer the widest range of
solar-powered LED lanterns in the marketplace.
Electronics
Sealite employs leading in-house electronic engineers in the design and development of software and related
circuitry. All individual electronic components are sourced directly by Sealite procurement staff ensuring that
only the highest quality components are used in our products.
LED Technology
All marine lanterns use the latest advancements in LED (Light Emitting Diode) technology as a light source.
The major advantage of LED’s over traditional light sources is well established in that they typically have an
operational life in excess of 100,000 hours, resulting in substantial savings to maintenance and servicing
costs.
Precision Construction
Commitment to investing in the design and construction of injection-moulded parts including optic lenses, light
bases and a range of other components ensures that all Sealite products are of a consistent & superior quality.
Optical Performance
Sealite manufactures a range of marine LED lenses moulded from multi-cavity dies. Complex shapes such as
the SL70, BargeSafe™ and 16-segment multi-focus lenses are a testament to the company’s superior
in-house lens manufacturing capabilities and outstanding optical performance.
Award-winning, Patented Technology
Several United States and Australian patent registrations are held on Sealite’s range of innovative designs,
with other regional patents pending in Canada, United Kingdom and Europe.

Latest products and information available at www.sealite.com
5
SL-15 with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
SL-15 Model
The Sealite SL-15 1–2NM+ LED compact light incorporates some of the most advanced
technology available. Made from tough, durable polycarbonate and using the latest high-
intensity LEDs, no expense has been spared in the design and development of this lantern.
Installation takes just minutes, and a permanent ON/OFF, accessible through the battery
compartment, switch allows for easy storage. The SL-15 is designed to be maintenance-free
and have a service life of over 3 years.
•Specications subject to change or variation without notice *Subject to standard terms and conditions †Intensity setting subject to solar availability
SPECIFICATIONS•* SL-15
Light Characteristics
Light Source LED
Available Colours Red, Green, White,Yellow, Blue
Typical Maximum Intensity (cd)† Red - 6.2 Green - 7.6 White - 6.8 Yellow - 5.9
Visible Range (NM) AT @ 0.74: 1–2+
AT @ 0.85: 1.1–2.3+
Horizontal Output (degrees) 360
Vertical Divergence (degrees) 7
Reector Type Single LED Optic
Available Flash Characteristics 16 user-adjustable IALA ash characteristics (other ash patterns available
on request)
Intensity Adjustments 32 automatic step-down settings based on power demand of ash code
selection
LED Life Expectancy (hours) >100,000
Electrical Characteristics
Current Draw (mA) Refer to Sealite Power Calculator
Circuit Protection Integrated
Nominal Voltage (V) 3.6
Autonomy (days) >50 (14 hour darkness, 12.5% duty cycle)
Temperature Range -40 to 80°C
Solar Characteristics
Solar Module Type Multicrystalline
Output (watts) 0.45
Power Supply
Battery Type High grade NiMH
Battery Capacity (Ah) 2.4
Nominal Voltage (V) 3.6
Physical Characteristics
Body Material LEXAN® Polycarbonate – UV-stabilised
Lens Material LEXAN® Polycarbonate – UV-stabilised
Lens Diameter (mm/inches) 98 / 37/8
Lens Design Single LED Optic
Mounting 4 x 6mm mounting holes
Height (mm/inches) 141 / 51/2
Width (mm/inches) 136 / 53/8
Mass (kg/lbs) 0.5 / 11/8
Product Life Expectancy Up to 12 years
Certications
CE EN61000-6-3:1997. EN61000-6-1:1997
IALA Signal colours compliant to IALA E-200-1
Quality Assurance ISO9001:2008
Waterproof IP68
Intellectual Property
Patents US Pat. No. 6,667,582.AU Pat. No. 778,918
Trademarks SEALITE® is a registered trademark of Sealite Pty Ltd
Warranty * 3 years
Options Available • ON/OFF switch
• Custom ash patterns
• 50mm pole mount adapter plate

Latest products and information available at www.sealite.com
6
SL-15 with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
Charging the Battery
New lanterns should be left in the sun for 1-2 days to ensure battery is charged before placing
in service. Please note, lantern will re-charge even when switch is turned to ‘OFF’ position.
Preferred Installation Location
For best lantern performance, ensure solar modules are not covered and are in clear view
of the sky with no shadows.
1. The SL-15 will be supplied preset to the requested ash code.
2. The light can be directly positioned in your desired location. Secure it, utilising the 4 x holes in the
ange. Ensure the light is bolted to an even, at surface.
Adjusting the Flash Code
1. Remove the 4 x battery cover screws and lift the cover and battery out of the compartment to
expose the adjustment plug.
2. Unscrew the adjustment plug.
3. Using a small at bladed screwdriver adjust the Flash Code to the desired setting.
4. Cover the light, in darkness, for at least 30 seconds to activate the light sensor. Make sure the
light is ashing correctly.
5. Uncover the light and wait at least 30 seconds to make sure the light turns off in daylight.
6. Insert the adjustment plug and replace the battery.
7. Replace the cover and secure using the 4 x screws. Do Not over tighten screws.
8. Position the light in your desired location and secure, utilising the 4 x holes in the ange. Ensure
the light is bolted to an even, at surface.
+-
4
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
Battery
Position
User
Replaceable
Battery
Lantern
Base
Installation
4
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
OFF ON
Battery
Terminals
Adjustment
Switches
Flash Codes

Latest products and information available at www.sealite.com
7
SL-15 with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
Selecting an Intensity/Power Setting
Using the latest technology in software, the SL-15 automatically adjusts the Intensity Setting when
Flash Code is set.
Selecting a Flash Code- Rotary Switch
All SL-15 Lights are tted with a rotary switch. Turning the small arrow to the appropriate number or
letter will set the code (see ‘Flash Codes’ section of this manual). The unit may take up to one minute
to activate a new ash code. A comprehensive list of available ash codes is listed In the ‘Flash Code
Table’ section of this manual.
Rotary
Switch
4
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
A
B

Latest products and information available at www.sealite.com
8
SL-15 with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
Sealite marine lanterns may be set to any of IALA recommended flash settings. These can be set via
rotary switches inside the lantern or the IR remote or via the Sealite Configuration Tool.
Symbols
SEALITE® code reference is listed by number of flashes
For the latest version of this document visit www.sealite.com
or email i[email protected]
FL Flash followed by number Eg. FL 1 S, one flash every second
F Fixed
Q Quick flash
VQ Very quick flash
OC Occulting; greater period on than off
ISO Isophase; equal period on and off
LFL Long flash long
MO Morse code ( ) containsletter
For example, VQ (6) + LFL 10 S means 6 very quick flashes followed by a long flash, during a
10-second interval.
The amount of power your lantern draws through the night depends on the duty cycle, i.e. the amount of
time on as a proportion to the timing cycle. For example, 0.5 seconds on and 4.5 seconds off equals a
10% duty cycle.
It is best to operate at the lowest duty cycle appropriate to the actual needs of the application.
Recommended Rhythm for Flashing Light - IALA Regions A and B
MARK DESCRIPTION
RHYTHM
Port Hand & Starboard Marks:
Any, other than Composite Group Flashing (2+1)
Preferred Channel Starboard:
Composite Group Flashing (2+1)
Preferred Channel Port:
Composite Group Flashing (2+1)
North Cardinal Mark:
Very quick or quick
East Cardinal Mark:
Very quick (3) every 5 seconds or quick (3) every 10 seconds
South Cardinal Mark:
Very quick (6) + long flash every 10 seconds or quick (6) + long flash every 15 seconds
West Cardinal Mark:
Very quick (9) every 10 seconds or quick (9) every 15 seconds
Isolated Danger Mark:
Group flashing (2)
Safe Water Mark:
Isophase, occulting, one long flash every 10 seconds or Morse Code “A”
Special Marks:
Any, other than those described for Cardinal, Isolated Danger or Safe Water Marks
Flash Code Table

Latest products and information available at www.sealite.com
9
SL-15 with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
SWITCH
IR
Controller
FLASH CODE
ON
OFF
SWITCH
IR
Controller
FLASH CODE
ON
OFF
A
A
0
0
F (Steady light)
-
66
ISO 5 S
2.5
2.5
-
211
VQ 0.5 S
0.2
0.3
-
130
LFL 5 S
2.0
3.0
-
274
VQ 0.5 S
0.25
0.25
-
3
OC 5 S
3.0
2.0
-
227
VQ 0.6 S
0.2
0.4
-
19
OC 5 S
4.0
1.0
-
243
VQ 0.6 S
0.3
0.3
-
35
OC 5 S
4.5
0.5
-
115
Q 1 S
0.2
0.8
-
198
FL 6 S
0.2
5.8
5
131
Q 1 S
0.3
0.7
-
181
FL 6 S
0.3
5.7
-
147
Q 1 S
0.4
0.6
-
197
FL 6 S
0.4
5.6
-
163
Q 1 S
0.5
0.5
4
129
FL 6 S
0.5
5.5
-
132
Q 1 S
0.8
0.2
-
145
FL 6 S
0.6
5.4
-
179
Q 1.2 S
0.3
0.9
-
161
FL 6 S
1.0
5.0
-
293
FL 1.2 S
0.4
0.8
-
117
FL 6 S
1.2
4.8
-
148
Q 1.2 S
0.5
0.7
-
177
FL 6 S
1.5
4.5
-
195
Q 1.2 S
0.6
0.6
-
82
ISO 6 S
3.0
3.0
-
244
FL 1.5 S
0.2
1.3
-
146
LFL 6 S
2.0
4.0
-
16
FL 1.5 S
0.3
1.2
-
100
OC 6 S
4.0
2.0
-
5
FL 1.5 S
0.4
1.1
-
51
OC 6 S
4.5
1.5
1
4
FL 1.5 S
0.5
1.0
-
67
OC 6 S
5.0
1.0
-
32
FL 2 S
0.2
1.8
-
280
FL 7 S
0.4
6.6
7
48
FL 2 S
0.3
1.7
-
164
FL 7 S
1.0
6.0
-
64
FL 2 S
0.4
1.6
-
150
FL 7 S
2.0
5.0
-
80
FL 2 S
0.5
1.5
-
86
OC 7 S
4.5
2.5
-
96
FL 2 S
0.7
1.3
-
213
FL 7.5 S
0.5
7.0
-
112
FL 2 S
0.8
1.2
-
193
FL 7.5 S
0.8
6.7
-
18
ISO 2 S
1.0
1.0
-
229
FL 8 S
0.5
7.5
8
128
FL 2.5 S
0.3
2.2
-
180
FL 8 S
1.0
7.0
9
144
FL 2.5 S
0.5
2.0
-
98
ISO 8 S
4.0
4.0
-
214
FL 2.5 S
1.0
1.5
-
162
LFL 8 S
2.0
6.0
-
21
FL 3 S
0.2
2.8
-
102
OC 8 S
5.0
3.0
A
160
FL 3 S
0.3
2.7
-
294
OC 8 S
6.0
2.0
-
37
FL 3 S
0.4
2.6
-
178
LFL 8 S
3.0
5.0
B
176
FL 3 S
0.5
2.5
-
245
FL 9 S
0.9
8.1
-
53
FL 3 S
0.6
2.4
-
196
FL 9 S
1.0
8.0
C
192
FL 3 S
0.7
2.3
-
118
OC 9 S
6.0
3.0
-
208
FL 3 S
1.0
2.0
-
6
FL 10 S
0.2
9.8
-
34
ISO 3 S
1.5
1.5
-
22
FL 10 S
0.3
9.7
-
84
OC 3 S
2.0
1.0
-
281
FL 10 S
0.4
9.6
-
226
OC 3 S
2.5
0.5
-
209
FL 10 S
0.5
9.5
-
70
OC 3.5 S
2.5
1.0
-
38
FL 10 S
0.8
9.2
-
69
FL 4 S
0.2
3.8
-
225
FL 10 S
1.0
9.0
-
85
FL 4 S
0.3
3.7
-
20
FL 10 S
1.5
8.5
-
224
FL 4 S
0.4
3.6
-
194
LFL 10 S
2.0
8.0
2
240
FL 4 S
0.5
3.5
-
210
LFL 10 S
3.0
7.0
-
101
FL 4 S
0.6
3.4
-
114
ISO 10 S
5.0
5.0
-
1
FL 4 S
0.8
3.2
-
36
LFL 10 S
4.0
6.0
-
17
FL 4 S
1.0
3.0
-
134
OC 10 S
6.0
4.0
-
33
FL 4 S
1.5
2.5
-
83
OC 10 S
7.0
3.0
-
50
ISO 4 S
2.0
2.0
-
99
OC 10 S
7.5
2.5
-
54
OC 4 S
2.5
1.5
-
303
FL 11 S
1.0
10.0
-
242
OC 4 S
3.0
1.0
-
302
FL 12 S
1.0
11.0
-
49
FL 4.3 S
1.3
3.0
-
241
FL 12 S
1.2
10.8
-
133
FL 5 S
0.2
4.8
-
212
FL 12 S
2.5
9.5
-
65
FL 5 S
0.3
4.7
-
52
LFL 12 S
2.0
10.0
-
279
FL 5 S
0.4
4.6
-
2
FL 15 S
1.0
14.0
D
81
FL 5 S
0.5
4.5
-
68
LFL 15 S
4.0
11.0
-
149
FL 5 S
0.9
4.1
-
116
OC 15 S
10
5.0
E
97
FL 5 S
1.0
4.0
-
166
LFL 20 S
2.0
18.0
113
FL 5 S
1.5
3.5
228
FL 26 S
1.0
25.0

Latest products and information available at www.sealite.com
10
SL-15 with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
SWITCH
IR
Controller
FLASH CODE
ON
OFF
ON
OFF
A
-
10
FL (2) 4 S
0.5
1.0
0.5
2.0
-
235
VQ (2) 4 S
0.2
1.0
0.2
2.6
-
26
FL (2) 4.5 S
0.3
1.0
0.3
2.9
-
42
FL (2) 4.5 S
0.4
1.0
0.4
2.7
-
58
FL (2) 4.5 S
0.5
1.0
0.5
2.5
-
277
FL (2) 4.6 S
0.3
0.3
0.3
3.7
-
249
FL (2) 5 S
0.2
0.8
0.2
3.8
-
44
FL (2) 5 S
0.2
1.2
0.2
3.4
-
74
FL (2) 5 S
0.4
0.6
0.4
3.6
-
282
FL (2) 5 S
0.4
1.1
0.4
3.1
-
7
FL (2) 5 S
0.5
1.0
0.5
3.0
-
23
FL (2) 5 S
1.0
1.0
1.0
2.0
-
257
FL (2) 5 S
0.3
1.0
0.3
3.4
-
155
Q (2) 5 S
0.3
0.7
0.3
3.7
-
41
Q (2) 5 S
0.5
0.5
0.5
3.5
-
305
FL (2) 5 S
0.5
0.7
0.5
3.3
-
90
FL (2) 5.5 S
0.4
1.4
0.4
3.3
-
120
FL (2) 6 S
0.3
0.6
1.0
4.1
-
170
FL (2) 6 S
0.3
0.9
0.3
4.5
-
106
FL (2) 6 S
0.3
1.0
0.3
4.4
-
122
FL (2) 6 S
0.4
1.0
0.4
4.2
-
283
FL (2) 6 S
0.4
1.2
0.4
4.0
-
153
FL (2) 6 S
0.5
1.0
0.5
4.0
-
40
FL (2) 6 S
0.8
1.2
0.8
3.2
-
256
FL (2) 6 S
0.8
0.8
0.8
3.6
-
55
FL (2) 6 S
1.0
1.0
1.0
3.0
-
57
Q (2) 6 S
0.3
0.7
0.3
4.7
-
295
LFL + FL 6 S
3.0
1.0
1.0
1.0
-
273
FL (2) 6.5 S
0.5
1.0
0.5
4.5
-
283
FL (2) 7 S
0.4
1.2
0.4
5.0
-
311
FL (2) 7 S
0.5
1.5
0.5
4.5
-
169
FL (2) 7 S
1.0
1.0
1.0
4.0
-
123
FL (2) 8 S
0.4
0.6
2.0
5.0
-
138
FL (2) 8 S
0.4
1.0
0.4
6.2
-
285
FL (2) 8 S
0.4
1.7
0.4
5.5
-
71
FL (2) 8 S
0.5
1.0
0.5
6.0
-
297
FL (2) 8 S
0.5
0.5
1.5
5.5
-
136
FL (2) 8 S
0.8
1.2
2.4
3.6
-
87
FL (2) 8 S
1.0
1.0
1.0
5.0
-
76
OC (2) 8 S
3.0
2.0
1.0
2.0
-
92
OC (2) 8 S
5.0
1.0
1.0
1.0
-
251
VQ (2) 8 S
0.2
1.0
0.2
6.6
-
286
FL (2) 9 S
0.4
1.7
0.4
6.5
-
154
FL (2) 10 S
0.4
1.6
0.4
7.6
-
287
FL (2) 10 S
0.4
2.2
0.4
7.0
-
103
FL (2) 10 S
0.5
1.0
0.5
8.0
-
119
FL (2) 10 S
0.5
1.5
0.5
7.5
-
105
FL (2) 10 S
0.5
2.0
0.5
7.0
-
298
FL (2) 10 S
0.5
0.5
1.5
7.5
-
135
FL (2) 10 S
0.8
1.2
0.8
7.2
-
185
FL (2) 10 S
1.0
1.0
1.0
7.0
-
151
FL (2) 10 S
1.0
1.5
1.0
6.5
-
73
Q (2) 10 S
0.6
0.4
0.6
8.4
-
186
FL (2) 12 S
0.4
1.0
0.4
10.2
-
201
FL (2) 12 S
0.5
1.0
0.5
10.0
-
217
FL (2) 12 S
1.5
2.0
1.5
7.0
-
168
FL (2) 15 S
0.5
1.5
2.0
11.0
-
167
FL (2) 15 S
1.0
2.0
1.0
11.0
-
139
Q (2) 15 S
0.2
0.8
0.2
13.8
-
202
FL (2) 20 S
1.0
3.0
1.0
15.0
-
218
FL (2) 25 S
1.0
1.0
1.0
22.0
SWITCH
IR
Controller
FLASH CODE
ON
OFF
ON
OFF
ON
OFF
A
-
121
Q (3) 5 S
0.5
0.5
0.5
0.5
0.5
2.5
-
89
VQ (3) 5 S
0.2
0.3
0.2
0.3
0.2
3.8
-
12
VQ (3) 5 S
0.3
0.2
0.3
0.2
0.3
3.7
-
233
VQ (3) 5 S
0.3
0.3
0.3
0.3
0.3
3.5
-
308
FL (3) 5 S
0.3
0.7
0.3
0.7
0.3
3.7
-
60
FL (3) 6 S
0.5
1.0
0.5
1.0
0.5
2.5
-
43
FL (2+1) 6 S
0.3
0.4
0.3
1.2
0.3
3.5

Latest products and information available at www.sealite.com
11
SL-15 with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
SWITCH
IR
Controller
FLASH CODE
ON
OFF
ON
OFF
ON
OFF
A
-
171
Q (3) 6 S
0.3
0.7
0.3
0.7
0.3
3.7
-
250
FL (3) 8 S
0.5
1.0
0.5
1.0
0.5
4.5
-
301
FL (3) 8 S
1.5
0.5
0.5
0.5
0.5
4.5
-
266
Q (3) 9 S
0.5
0.5
0.5
1.0
0.5
6.0
-
11
FL (3) 9 S
0.3
1.0
0.3
1.0
0.3
6.1
-
306
FL (3) 9 S
0.5
1.5
0.5
1.5
0.5
4.5
-
183
FL (3) 9 S
0.8
1.2
0.8
1.2
0.8
4.2
-
184
FL (3) 10 S
0.3
0.7
0.3
0.7
0.9
7.1
-
200
FL (3) 10 S
0.4
0.6
0.4
0.6
1.2
6.8
-
290
FL (3) 10 S
0.4
0.8
0.4
0.8
0.4
7.2
-
203
FL (3) 10 S
0.5
0.5
0.5
0.5
0.5
7.5
-
199
FL (3) 10 S
0.5
1.5
0.5
1.5
0.5
5.5
-
219
FL (3) 10 S
0.6
0.6
0.6
0.6
0.6
7.0
-
278
FL (3) 10 S
0.9
1.1
0.9
1.1
0.9
5.1
-
215
FL (3) 10 S
1.0
1.0
1.0
1.0
1.0
5.0
-
261
FL (3) 10 S
0.35
0.65
0.35
0.65
0.35
7.65
-
56
FL (2+1) 10 S
0.5
0.7
0.5
2.1
0.5
5.7
-
137
OC (3) 10 S
5.0
1.0
1.0
1.0
1.0
1.0
-
187
Q (3) 10 S
0.3
0.7
0.3
0.7
0.3
7.7
-
216
FL (2 + 1) 10 S
0.5
0.5
0.5
0.5
1.5
6.5
-
288
FL (3) 12 S
0.4
2.1
0.4
2.1
0.4
6.6
-
27
FL (3) 12 S
0.5
1.5
0.5
1.5
0.5
7.5
-
234
FL (3) 12 S
0.5
2.0
0.5
2.0
0.5
6.5
-
231
FL (3) 12 S
0.8
1.2
0.8
1.2
0.8
7.2
-
182
FL (3) 12 S
1.0
1.0
1.0
3.0
1.0
5.0
-
72
FL (2+1) 12 S
0.8
1.2
0.8
2.4
0.8
6.0
-
88
FL (2+1) 12 S
1.0
1.0
1.0
4.0
1.0
4.0
-
272
FL (3) 12.5 S
0.5
1.0
0.5
1.0
0.5
9.0
-
289
FL (3) 13 S
0.4
2.1
0.4
2.1
0.4
7.6
-
296
LFL + FL(2) 13 S
6.0
1.0
2.0
1.0
2.0
1.0
-
24
FL (2+1) 13.5 S
1.0
1.0
1.0
4.0
1.0
5.5
-
307
FL (3) 14.5 S
0.5
1.0
1.5
3.0
0.5
9.0
-
247
FL (3) 15 S
0.3
1.7
0.3
1.7
0.3
10.7
-
157
FL (3) 15 S
0.4
1.0
0.4
1.0
0.4
11.8
-
8
FL (3) 15 S
0.5
1.5
0.5
1.5
0.5
10.5
-
259
FL (3) 15 S
0.5
2.0
0.5
2.0
0.5
9.5
-
260
FL (3) 15 S
1.0
1.0
1.30
1.0
1.0
10.0
-
248
FL (2+1) 15 S
0.6
0.3
0.6
0.3
1.4
11.8
-
9
FL (2+1) 15 S
0.7
0.5
0.7
0.5
1.9
10.7
-
25
FL (2+1) 15 S
0.7
0.7
0.7
0.7
2.1
10.1
-
104
FL (2+1) 15 S
1.0
2.0
1.0
5.0
1.0
5.0
-
265
FL (2+1) 15 S
1.3
0.7
1.3
0.7
3.3
7.7
-
264
FL (2+1) 15.75 S
0.55
0.35
0.55
0.35
1.45
12.5
-
28
VQ (3) 15 S
0.1
0.5
0.1
0.5
0.1
13.7
-
313
FL (2) + LFL 16 S
2.0
2.0
2.0
2.0
6.0
2.0
-
75
FL (3) 20 S
0.5
3.0
0.5
3.0
0.5
12.5
-
59
FL (3) 20 S
0.5
1.5
0.5
1.5
0.5
15.5
-
263
FL (3) 20 S
0.5
2.0
0.5
2.0
0.5
12.0
-
91
FL (3) 20 S
0.8
1.2
0.8
1.2
0.8
15.2
-
107
FL (3) 20 S
1.0
1.0
1.0
1.0
1.0
15.0

Latest products and information available at www.sealite.com
12
SL-15 with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
SWITCH
IR
Controller
FLASH CODE
ON
OFF
ON
OFF
ON
OFF
ON
OFF
A
-
271
VQ (4) 2 S
0.10
0.13
0.10
0.13
0.10
0.13
0.10
1.21
-
191
VQ (4) 4 S
0.3
0.3
0.3
0.3
0.3
0.3
0.3
2.3
-
189
Q (4) 6 S
0.3
0.7
0.3
0.7
0.3
0.7
0.3
2.7
-
141
Q (4) 6 S
0.4
0.6
0.4
0.6
0.4
0.6
0.4
2.6
-
299
FL (1+3) 8 S
1.5
0.5
0.5
0.5
0.5
0.5
0.5
3.5
-
309
FL (4) 7 S
0.3
0.7
0.3
0.7
0.3
0.7
0.3
3.7
-
29
FL (4) 10 S
0.5
1.0
0.5
1.0
0.5
1.0
0.5
5.0
-
45
FL (4) 10 S
0.8
1.2
0.8
1.2
0.8
1.2
0.8
3.2
-
254
Q (4) 10 S
0.3
0.7
0.3
0.7
0.3
0.7
0.3
6.7
-
300
FL (4) 10 S
1.5
0.5
0.5
0.5
0.5
0.5
0.5
4.5
-
312
FL (4) 11 S
0.5
1.5
0.5
1.5
0.5
1.5
0.5
4.5
-
190
FL (4) 12 S
0.3
1.7
0.3
1.7
0.3
1.7
0.3
5.7
-
79
FL (4) 12 S
0.5
0.5
0.5
0.5
0.5
0.5
0.5
8.5
-
206
FL (4) 12 S
0.5
1.5
0.5
1.5
0.5
1.5
0.5
5.5
-
61
FL (4) 12 S
0.8
1.2
0.8
1.2
0.8
1.2
0.8
5.2
-
173
Q (4) 12 S
0.3
0.7
0.3
0.7
0.3
0.7
0.3
8.7
-
77
FL (4) 15 S
0.5
1.5
0.5
1.5
0.5
1.5
0.5
8.5
-
142
FL (4) 15 S
1.0
1.0
1.0
1.0
1.0
1.0
1.0
8.0
-
125
FL (4) 15 S
1.5
0.5
0.5
0.5
0.5
0.5
0.5
10.5
-
222
FL (4) 16 S
0.5
1.5
0.5
1.5
0.5
1.5
0.5
9.5
-
314
FL (3+1) 18 S
1.5
1.5
1.5
1.5
1.5
4.5
1.5
4.5
6
304
FL (4) 19 S
0.3
0.7
0.3
0.7
0.3
0.7
0.3
15.7
-
205
FL (4) 20 S
0.3
3.0
0.3
3.0
0.3
3.0
0.3
9.8
-
93
FL (4) 20 S
0.5
1.5
0.5
1.5
0.5
1.5
0.5
13.5
-
13
FL (4) 20 S
0.5
1.5
0.5
1.5
0.5
4.5
0.5
10.5
-
63
FL (4) 20 S
1.5
1.5
1.5
1.5
1.5
1.5
1.5
9.5
-
15
Q (4) 20 S
0.5
0.5
0.5
0.5
0.5
0.5
0.5
16.5
-
263
FL (4) 20 S
0.5
2.0
0.5
2.0
0.5
2.0
0.5
12.0
-
238
Q (4) 28 S
0.5
0.5
0.5
0.5
0.5
0.5
0.5
24.5
-
111
FL (4) 30 S
0.5
0.5
0.5
0.5
0.5
0.5
0.5
26.5

Latest products and information available at www.sealite.com
13
SL-15 with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
SWITCH
IR
Controller
FLASH CODE
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
A
-
221
Q (5) 7 S
0.3
0.7
0.3
0.7
0.3
0.7
0.3
0.7
0.3
2.7
-
310
Q (5) 9 S
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
4.5
-
237
Q (5) 10 S
0.3
0.7
0.3
0.7
0.3
0.7
0.3
0.7
0.3
5.7
-
232
FL (5) 12 S
0.5
1.5
0.5
1.5
0.5
1.5
0.5
1.5
0.5
3.5
-
276
FL (5) 16 S
0.5
1.5
0.5
1.5
0.5
1.5
0.5
1.5
0.5
7.5
-
95
FL (5) 20 S
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
15.5
-
159
FL (5) 20 S
0.8
1.2
0.8
1.2
0.8
1.2
0.8
1.2
0.8
11.2
-
158
FL (5) 20 S
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
11.0
SWITCH
IR
Controller
FLASH CODE
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
A
-
253
Q (6) 10 S
0.3
0.7
0.3
0.7
0.3
0.7
0.3
0.7
0.3
0.7
0.3
4.7
-
175
FL (6) 15 S
0.3
0.7
0.3
0.7
0.3
0.7
0.3
0.7
0.3
0.7
0.3
9.7
-
127
FL (6) 15 S
0.5
1.0
0.5
1.0
0.5
1.0
0.5
1.0
0.5
1.0
0.5
7.0
SWITCH
IR
Controller
FLASH CODE
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
A
-
110
VQ (6) + LFL 10 S
0.2
0.3
0.2
0.3
0.2
0.3
0.2
0.3
0.2
0.3
0.2
0.3
2.0
5.0
-
126
VQ (6) + LFL 10 S
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
2.0
4.4
-
47
Q (6) + LFL 15 S
0.2
0.8
0.2
0.8
0.2
0.8
0.2
0.8
0.2
0.8
0.2
0.8
2.0
7.0
-
46
Q (6) + LFL 15 S
0.3
0.7
0.3
0.7
0.3
0.7
0.3
0.7
0.3
0.7
0.3
0.7
2.0
7.0
-
62
Q (6) + LFL 15 S
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
2.0
5.8
-
258
FL (6 + 1) 15 S
0.35
0.65
0.3
5
0.65
0.3
5
0.6
5
0.3
5
0.6
5
0.35
0.65
0.3
5
0.65
1.0
5
7.95
-
292
FL (6) + LFL 15 S
0.4
0.8
0.4
0.8
0.4
0.8
0.4
0.8
0.4
0.8
0.4
0.8
2.0
5.8
-
262
FL (6) + LFL 15 S
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
2.0
7.0
-
143
VQ (6) + LFL 15 S
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
2.0
9.4
SWITCH
IR
Controller
FLASH CODE
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
A
-
275
FL (3+5) 12.2 S
0.9
0.3
0.9
1.0
0.9
0.3
0.3
0.3
0.3
1.0
0.3
0.3
0.3
0.3
0.3
4.5
-
-
-
78
VQ (9) 10 S
0.2
0.3
0.2
0.3
0.2
0.3
0.2
0.3
0.2
0.3
0.2
0.3
0.2
0.3
0.2
0.3
0.2
5.8
-
94
VQ (9) 10 S
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
4.9
-
31
Q (9) 15 S
0.2
0.8
0.2
0.8
0.2
0.8
0.2
0.8
0.2
0.8
0.2
0.8
0.2
0.8
0.2
0.8
0.2
6.8
-
14
Q (9) 15 S
0.3
0.7
0.3
0.7
0.3
0.7
0.3
0.7
0.3
0.7
0.3
0.7
0.3
0.7
0.3
0.7
0.3
6.7
-
267
Q (9) 15 S
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
6.5
-
30
Q (9) 15 S
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.6
4.8
-
291
FL (9) 32.92 S
0.4
0.8
0.4
0.8
0.4
0.8
0.4
0.8
0.4
0.8
0.4
0.8
0.4
0.8
0.4
0.8
0.4
22.9
SWITCH
IR
Controller
FLASH CODE
ON
OFF
ON
OFF
ON
OFF
ON
OFF
A
MORSE CODE ( ) INDICATES LETTER
-
120
MO (A) 6 S
0.3
0.6
1.0
4.1
-
123
MO (A) 8 S
0.4
0.6
2.0
5.0
-
136
MO (A) 8 S
0.8
1.2
2.4
3.6
-
184
MO (U) 10 S
0.3
0.7
0.3
0.7
0.9
7.1
-
200
MO (U) 10 S
0.4
0.6
0.4
0.6
1.2
6.8
-
216
MO (U) 10 S
0.5
0.5
0.5
0.5
1.5
6.5
-
152
MO (A) 10 S
0.5
0.5
1.5
7.5
-
137
MO (D) 10 S
5.0
1.0
1.0
1.0
1.0
1.0
-
168
MO (A) 15 S
0.5
1.5
2.0
11.0
-
248
MO (U) 15 S
0.6
0.3
0.6
0.3
1.4
11.8
-
9
MO (U) 15 S
0.7
0.5
0.7
0.5
1.9
10.7
-
25
MO (U) 15 S
0.7
0.7
0.7
0.7
2.1
10.1
-
125
MO (B) 15 S
1.5
0.5
0.5
0.5
0.5
0.5
0.5
10.5

Latest products and information available at www.sealite.com
14
SL-15 with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
The IR remote is used to communicate with Sealite lighting products that have
an IR sensor tted. The remote control is used for the following functions:
• Flash Code: read the current ash code, congure a new ash code.
• Lamp Intensity: read the current lamp intensity, congure a new intensity
level.
• Ambient Light Thresholds: read the current light thresholds, congure new
ambient light thresholds.
• Perform a battery health check.
On receiving a valid key signal from the IR Remote, the light will ash once.
The user should wait until the light responds to each keypress before pressing
another key. If there is no response to the keypress after 3 seconds, it has not
been detected by the light and the key can be pressed again.
If an invalid key is detected, the light will ash quickly 5 times. In this case, the
command will have to be restarted.
T/CT/C
Read Lux
Flash Code Intensity Battery Status
Test / Congure
R L
FC I B
3
4 5 6
7 8 9
0
1 2
Optional IR Remote Control
Sealite IR Controller / Universal Remote Compatibility
If you lose your Sealite IR Controller, the following Universal Remote Controller has been tested for
compatibility: RCAType RCR312WR programmed for Phillips TV Type Code 10054
Sealite Key Universal
Remote Key
T/C Power
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
9 9
0 0
R Channel+
L Mute
FC Volume+
IVolume-
B Channel-

Latest products and information available at www.sealite.com
15
SL-15 with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
Test Mode / Congure
Pressing the T/C button for upto 5 seconds places the light in Test Mode. The light will ash once in
response to the T/C button being pressed and then turn off.
T/CT/C
R L
FC I B
3
4 5 6
7 8 9
0
1 2
Normal Operation
The light will return to normal operation once it has not detected a valid key press for 30 seconds. The
light will ash once to indicate it is returning to normal operation.
Read
Pressing the Read followed by one of the conguration keys shall cause the light to ash the
congured value.
Example Key Sequences:
The light ashes the ‘IR Remote’ number belonging to the currently set Flash
Code. Refer to the Flash Code tables to match the ‘IR Remote’ ash number
to the Flash Code.
The light ashes the current intensity setting: 1 ash for 25%, 2 for 50%, 3 for
75% and 4 for 100%.
The light ashes the current battery status.
The light ashes the sunset level in Lux, followed by a 2 second gap, followed
by the sunrise level. Levels are in the range of 1 to 9.
T/CT/C
R
L
FC I B
3
4 5 6
7 8 9
0
1 2
T/CT/C
R
L
FC I B
3
4 5 6
7 8 9
0
1 2
T/CT/C
R
L
FC I B
3
4 5 6
7 8 9
0
1 2
T/CT/C
R L
FC
I
B
3
4 5 6
7 8 9
0
1 2
T/CT/C
R L
FC I
B
3
4 5 6
7 8 9
0
1 2
T/CT/C
R L
FC
I B
3
4 5 6
7 8 9
0
1 2
T/CT/C
R
L
FC I B
3
4 5 6
7 8 9
0
1 2
T/CT/C
R
L
FC I B
3
4 5 6
7 8 9
0
1 2
T/CT/C
R L
FC I B
3
4 5 6
7 8 9
0
1 2
T/CT/C
R L
FC I B
3
4 5 6
7 8 9
0
1 2
T/CT/C
R L
FC I B
3
4 5 6
7 8 9
0
1 2
T/CT/C
R L
FC I B
3
4 5 6
7 8 9
0
1 2
IR Controller Functions

Latest products and information available at www.sealite.com
16
SL-15 with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
T/CT/C
R L
FC
I
B
3
4 5 6
7 8 9
0
1 2
T/CT/C
R L
FC
I
B
3
4 5 6
7 8 9
0
1 2
T/CT/C
R L
FC I B
3
4 5 6
7 8 9
0
1
2
T/CT/C
R L
FC I B
3
4 5 6
7 8 9
0
1 2
T/CT/C
R L
FC I
B
3
4 5 6
7 8 9
0
1 2
T/CT/C
R
L
FC I B
3
4 5 6
7 8 9
0
1 2
T/CT/C
R L
FC I
B
3
4 5 6
7 8 9
0
1 2
T/CT/C
R L
FC I B
3
4 5 6
7 8 9
0
1 2
Flash Code
This key sets the ash code on the light.
Example Key sequence:
This sets the ash code to value 123. The light responds by ashing the ash code value.
Flash Code Numbers
The lamp ashes numbers as follows: Hundreds, Tens, Ones. A value of 125 will be ashed as: 1 ash,
followed by a delay, 2 ashes, followed by a delay, 5 ashes.
The ash for number 0 is one long ash.
For example if the current Flash Code is set to 51 via the AB switches, the lamp will ash number 081.
For a ash code set to 01, the lamp will ash 001.
T/CT/C
R L
FC
I B
3
4 5 6
7 8 9
0
1 2
T/CT/C
R L
FC I B
3
4 5 6
7 8 9
0
1 2
T/CT/C
R L
FC
I B
3
4 5 6
7 8 9
0
1 2
T/CT/C
R L
FC I B
3
4 5 6
7 8 9
0
1 2
Intensity
This function sets the light intensity. Valid intensity values are 1 for 25%, 2 for 50%, 3 for 75% and
4 for 100%.
Example Key sequence:
This sets the light intensity to 25%.
Battery Status
This function reads the battery status. The response from the light is High Voltage: 4 ashes,
Good Voltage: 3 ashes, Low Voltage 2 ashes, Cutoff Voltage or below: 1 ash.
Example Key sequence:

Latest products and information available at www.sealite.com
17
SL-15 with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
3
1
2
BI
BI
BT/CT/C
RI
T/CT/C
T/CT/C
BIT/CT/C
Operational Mode
Sets the Lanterns Operation mode:
• Dusk to Dawn ,
• Always On,
• Standby
Dusk to Dawn Mode: at Dusk the light sensors will turn on the light and then synchronise to every
other light with the same selected ash code.
Always On: the light sensor is disabled and the light is turned on and then synchronised to every other
light with the same selected ash code.
Standby Mode: manually forces the lantern to turn off, disables the GPS but with access to daylight it
will still charge the battery pack.
Read Operation Mode
Set Operation Mode to Always on
Set Operation Mode to Standby Mode
Set Operation Mode to Dusk to dawn
Error / Acknowledge Indication
If the key sequence is invalid, or an out of bounds value is attempted to be set, the light ashes 5 times
for 1 second. (The command then needs to be sent from the start.)
Example key sequence: (Set the intensity level to 5 – undened.)
The light ashes 5 times for 1 second.
When a key sequence has been entered successfully the light will respond acknowledgement with a
long 1 second ash.
T/CT/C
R L
FC I B
3
4
5
6
7 8 9
0
1 2
T/CT/C
R L
FC
I
B
3
4 5 6
7 8 9
0
1 2
T/CT/C
R L
FC I B
3
4 5 6
7 8 9
0
1 2

Latest products and information available at www.sealite.com
18
SL-15 with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
Conguration Settings
The intensity and ash codes can be changed using the switches on the lamp circuit board or with the
IR Remote Control. The lamp intensity and ash code settings are set to the last detected change,
carried out with the IR Remote Control or by changing the switch positions.
Example #1: If the intensity is set at 100% with the intensity switches, and is then set to 50% using
the IR Remote Control, the intensity setting will change to 50%. If the intensity is then set to 75% using
the switches, the new intensity value will be 75%.
In order to change intensity settings using the IR Remoter Control, the lamp must be powered.
The lamp can detect a change in switch settings if they are changed while the light is powered down.
1
T/CT/C
LB3
T/CT/C
LB
Storage Mode (Advanced users)
For situations where the lantern is put into storage but with access to daylight, the IR Remote control
can be used to congure the lantern into Storage Mode.
This mode manually forces the lantern to turn off, but with access to daylight it will still charge battery
pack. However the lantern will not keep track of the date.
In Storage Mode, the GPS is disabled however the lantern will still respond to IR commands.
The lantern will automatically enter Storage Mode, if it is hibernating and it has not detected any light
for 20 hours.
Enter Storage Mode
By pressing the following key sequence the lantern will enter Storage Mode:
The lantern will leave storage mode when exposed to daylight or if the power switch is turned OFF and
ON again.

Latest products and information available at www.sealite.com
19
SL-15 with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
Maintenance and Servicing
Designed to be maintenance free, the SL-15 requires minimal attention, though the following
maintenance and servicing information is provided to help ensure the life of your Sealite product.
1. Cleaning Solar Panels - occasional cleaning of the solar panels may be required. Using a cloth and
warm soapy water, wipe off any foreign matter before rinsing the panels with fresh water.
2. Battery Check - inspection of batteries should be performed every two years (minimum) to ensure
that the charger, battery and ancillary electronics are functioning correctly. Using a voltage meter,
check that the battery voltage is at least 3.6 volts under 50mA load, and ensure all terminals are
clear of foreign matter.
Replacing the battery
The SL-15 lantern is the only compact marine lantern with a double sealed battery compartment. This
provides the user with the ability to change the battery after years of operation.
1. Remove the 4 x battery cover screws and lift the cover and battery out of the compartment to expose
the adjustment plug.
2. Unscrew the adjustment plug.
3. Use a small at bladed screwdriver to turn unit OFF.
4. Unscrew positive and negative battery leads.
5. Discard old battery in a safe manner. Please remember to recycle where possible.
6. Reattach positive and negative leads to new battery and then place back into case.
7. Switch lantern ‘ON’ via internal switch.
8. Cover the light, in darkness, for at least 30 seconds to activate the light sensor. Make sure the light is
ashing correctly.
9. Uncover the light and wait at least 30 seconds to make sure the light turns off in daylight.
10. Insert the adjustment plug and replace the battery.
11. Replace the cover and secure using the 4 x screws.
Care must be taken to observe the polarity of the battery before the leads are re-connected, and
ensure the replacement battery is correctly tted. Always discard old batteries in a safe manner.
Long Term Storage Instructions (>4 weeks)
If light is required to be stored for longer than 4 weeks, please turn the light off using the internal
ON/OFF switch (and external ON/OFF switch where tted).
1. Remove the 4 x battery cover screws and lift the cover and battery out of the compartment to expose
the adjustment plug.
2. Unscrew the adjustment plug.
3. Using a small at bladed screwdriver switch the ON/OFF switch to the OFF position.
4. Insert the adjustment plug and replace the battery.
5. Replace the cover and secure using the 4 x screws. Do Not over tighten screws.
6. Repeat these steps to re-activate your light when it is removed from storage.
Note: when tted with the optional EXTERNAL ON/OFF switch, for correct operation of the EXTERNAL
switch, the INTERNAL switch must be set in the OFF position.
If the INTERNAL switch is set to the ON position, the operation of the EXTERNAL switch is
bypassed and the lantern is ON.

Latest products and information available at www.sealite.com
20
SL-15 with User-Adjustable Flash Settings
1–2NM+ Solar Marine Light
Trouble Shooting
Problem Remedy
Lantern will not activate. • Ensure internal switch (or external switch where tted) is set to the ‘ON
position.
• Ensure lantern is in darkness.
• Wait at least 45 seconds for the program to initialise in darkness.
• Ensure switch setting is on a valid code (See Flash Codes section of this
manual).
• Ensure battery terminals are properly connected.
• Ensure battery voltage is above 3.6 volts.
Timing codes will not change. • Turn rotary switch several times to ensure contacts are clear.
Lantern will not operate for the
entire night. • Expose lantern to direct sunlight and monitor operation for several days. Sealite products typically require 1.5 hours of direct sunlight per day to
retain full autonomy. From a discharged state, the lantern may require
several days of operational conditions to ‘cycle’ up to full autonomy.
• Ensure solar module is clean and not covered by shading during the day.
