Glamox aqua signal TX20 Series User manual

SERVICE MANUAL
TX20
- effective solutions for Ex Zones

2
TX20-R / TX20-S
NO
Tilslutt ikke armaturen til midlertidig
byggestrøm. Dette kan skade elektronikken.
SE
Anslut inte armaturen till tillfällig
byggström. Detta kan skada elektroniken.
UK
Do not connect to a temporary electricity
supply. This may damage the electronics.
FI
Älä kytke väliaikaiseen virtalähteeseen.
Tämä voi vioittaa elektroniikkaa.
DE
Nicht an unsauberes Netz (Baustrom)
anschliessen. Die elektronischen Bauteile
können dadurch beschädigt werden.
WASTE HANDLING
This is an electric product and shall not be collected
together with other type of waste but be delivered to
a disposal for this type of products.
Glamox ASA er medlem i RENAS som administrerer
en innsamlings- og behandlingsordning for
næringselektroavfall. Produktet leveres kostnadsfritt til
mottaksstedet.

3
II 2G
Ex demb IIC T4
NEMKO 09ATEX1224X
IECEx NEM 090011X
Description:
Recessed mounting
Ex luminaire with or without
Emergency light for Zone 1
Temperature limits (ta): 214: - 25ºC to + 45ºC
314: - 25ºC to + 40ºC
228: - 25ºC to + 40ºC
Protection: IP65
Line voltage: 110 - 127V or 220 - 250V / 0 - 50 - 60Hz
Supplied current (mains mode 230V): 0.14A (2 x 14W), 0.21A (3 x 14W) or 0.27A (2 x 28W)
0.14A (2 x 14W E), 0.22A (3 x 14W E) or
0.28A (2 x 28W E)
Power factor: 0.96
Light tube type: T16(T5) 14W, 28W
Other markings:
CE0470
137
L
C1
B
130
Product BB1 LL1 C1
TX20-RS3 214 320 614 410
TX20-RS3 228 320 1214 1010
TX20-RC3 214 282 263 614 590 410
TX20-RC3 228 282 263 1214 119 0 1010
TX20-RW3 214 312 263 614 590 410
TX20-RW3 228 312 263 1214 119 0 1010
TX20-RT3 214 297 597 410
TX20-RT3 228 297 1197 1010
TX20-RL3 214 305 614 410
TX20-RL3 228 305 1214 1010
TX20-RC4 314 357 338 614 590 410
TX20-RT6 314 597 597 410
Frame types see page 11.
X: Condition for safe use.
TX20-R
B1 x L1
h1 h2
h1 h2
RS3 0 - 50 50 - 80
RL3 10 - 60 60 - 90

4
TX20-R
PART NO.
C60052395
A
B
C
D
E

5
TX20-R
A

6

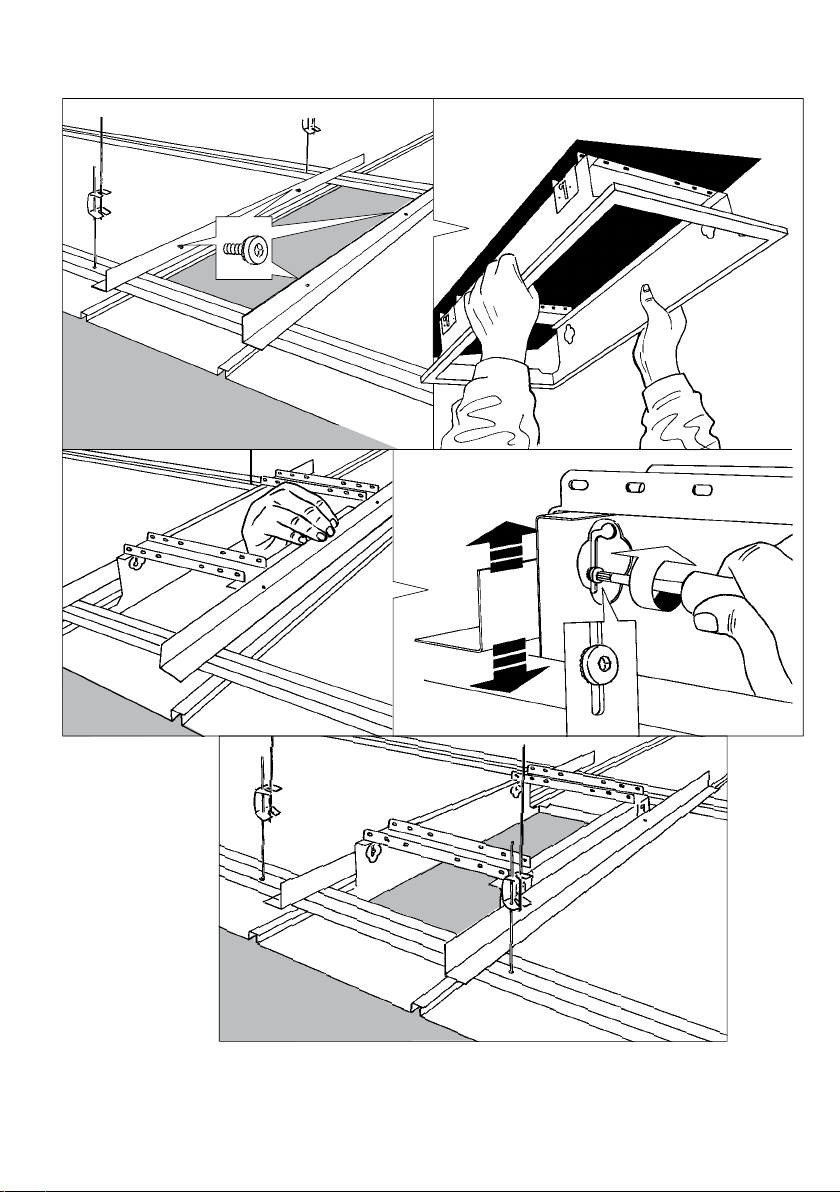

TX20-R alternative suspension
0 - 70 mm
70 - 130 mm

7
NB!
TX20-R
B
D

8
TX20-R
C
C

9
CLICK!
TX20-R

10
II 2G
Ex de IIC T6
NEMKO 09ATEX1223U
IECEx NEM 090010U
Description:
Battery box BX09
Material housing: 1.0 mm Zinc galvanizeed steel plate
Material cover: LEXAN 500 R colour RAL9016
Cable MPRX 3 x 1.5 mm2 1.4 m
Cable entry: BRASS GLAND M20 Ex e 8-13
Temperature limits (ta): - 30ºC to + 50ºC
Protection: IP65
Other markings:
CE0470
Ø126
108
85
15
175
TX20-R Battery box for recessed intallation
Ø128
Spare battery:
Glamox, part no.:TX20062321 (8.4V) or TX20062324 (4.8V).

11

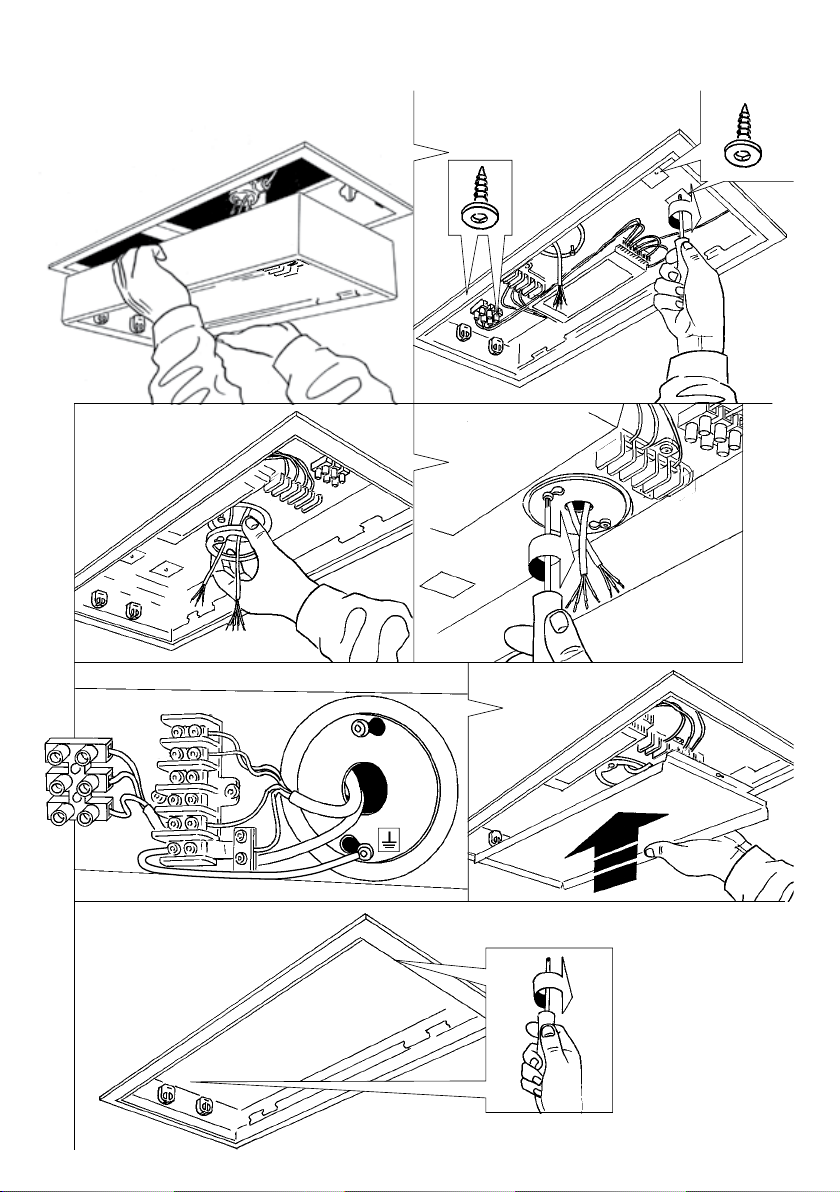

Easy mounting
The TX20-R version consist of a standard modular housing that fits into recessed mounting frames.
These frames are made to fit the most common ceiling types for marine and offshore installations.
The terms we have used in the item description for the different ceilings are:
RS3 = Shadow, panel ceiling. 300 mm width (275 mm + 25 mm/25 mm).
RL3 = Shadow, panel ceiling. 300 mm width (280 mm + 20 mm/15 mm).
RC3 = Concealed modular ceiling or solid,ceiling. Frame 282 mm wide.
RC4 = Concealed modular ceiling or solid ceiling. Frame 357 mm wide.
RW3 = Wide panel ceiling. 312 mm width.
RT3 = T profile ceiling. 297 mm width.
RT6 = T-profile ceiling. 597 mm width.
RS3
275 25
25
RC4
357
RT3
297
RC3
282
RW3
312
RT6
597
RS3 RL3
RT6
TX20-R ceiling
RL3
280 20
15
RC3 RC4
RT3 RW3

12
Declaration of Conformity
(Directive 2006/95/EEC and EMC directive 2004/108/EEC and
ATEX directive 94/9/EEC)
Manufacturer: Glamox ASA
Adress: Birger Hatlebakksveg15
N-6405 Molde
NORWAY
Product: Recessed Ex Luminaires for fluorescent lamps
Product name: TX20-R series and TX20-R -E series
II2G Ex e d mb IIC T4
We declare under sole responsibility that above listed products confirms with the standards
listed.
Reference Date of issue Name
IEC/EN 60079-0 2004 General requirements (Ex)
IEC/EN 60079-7 2006 Increased safety (Ex-e)
IEC/EN 60079-1 2004 Flameproof enclosure (Ex-d)
IEC/EN 60079-18 2004 Encapsulation (Ex-m)
EN 60598-1 2008 General requirements (lighting)
EN 60598-2-2 1997 Luminaires for recessed mount
ing
EN60598-2-22 2008 Emergency luminaires
EN 61000-3-2 2006 EMC-Harmonic currents
EN 61547 1995/A1:2000 EMC-Immunity requirements
EN 55015 2006 EMC-Emission requirements
IEC 60068-2-6 1982 Vibration
IEC 60092-306 1982 Electrical installations in ships
Place and date: Molde, 08. Mar. 2010
Name and signature of
autorized persons:
Robert Svendsen Geir Sylte
Factory Manager Laboratory Manager

13
II 2G
Ex demb IIC T4
NEMKO 09ATEX1224X
IECEx NEM 090011X
Description:

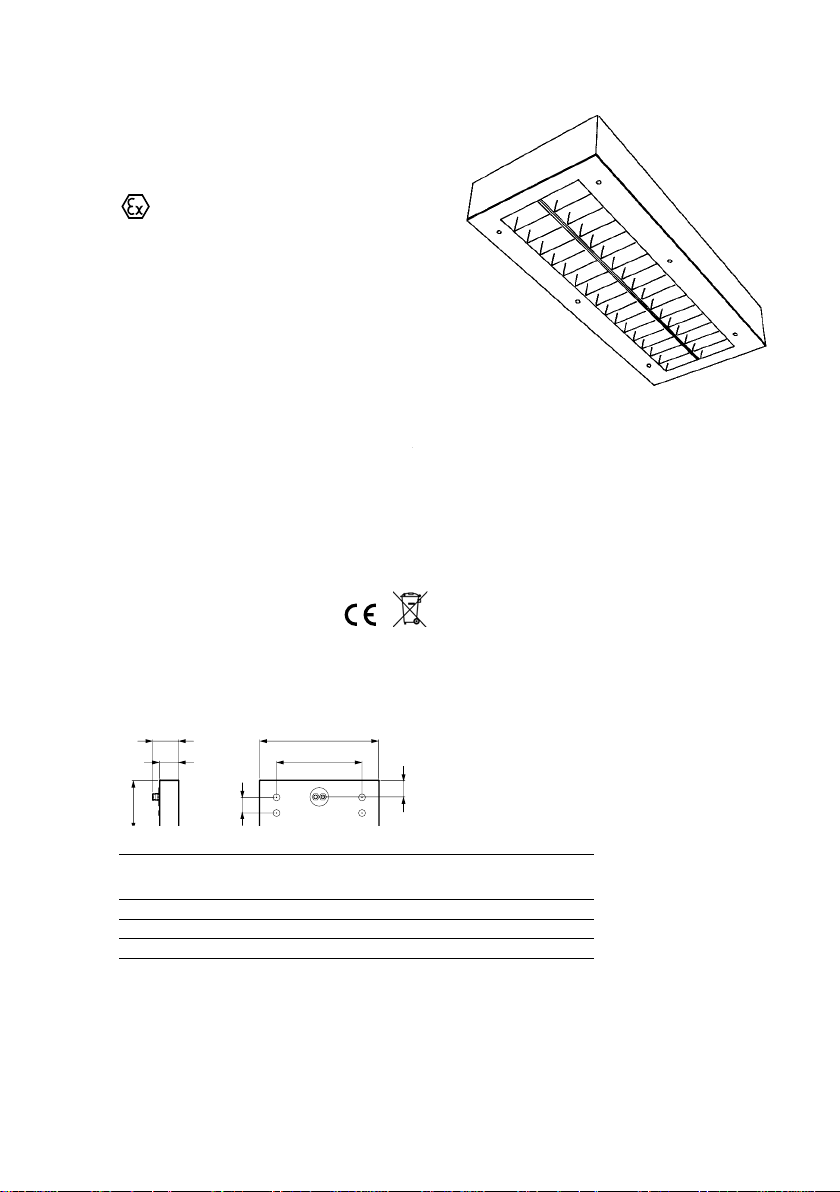

Surface mounted
Ex luminaire with or without
Emergency light for Zone 1
Temperature limits (ta): - 25ºC to + 45ºC
Protection: IP65
Line voltage: 110 - 127V or 220 - 250V / 0 - 50 - 60 Hz
Supplied current (mains mode230): 0.14A (2 x 14W), 0.21A (3 x 14W) or 0.27A (2 x 28W)
0.14A (2 x 14W E), 0.22A (3 x 14W E) or
0.28A (2 x 28W E)
Power factor: 0.96
Light tube type: T16 (T5) 14W, 28W
Other markings:
CE0470
L
C1
129
100
B
C
E
B L C C1 E
TX20-S 214 240 573 75 410 80
TX20-S 228 240 1173 75 1010 80
TX20-S 314 315 573 150 410 158
X: Condition for safe use.

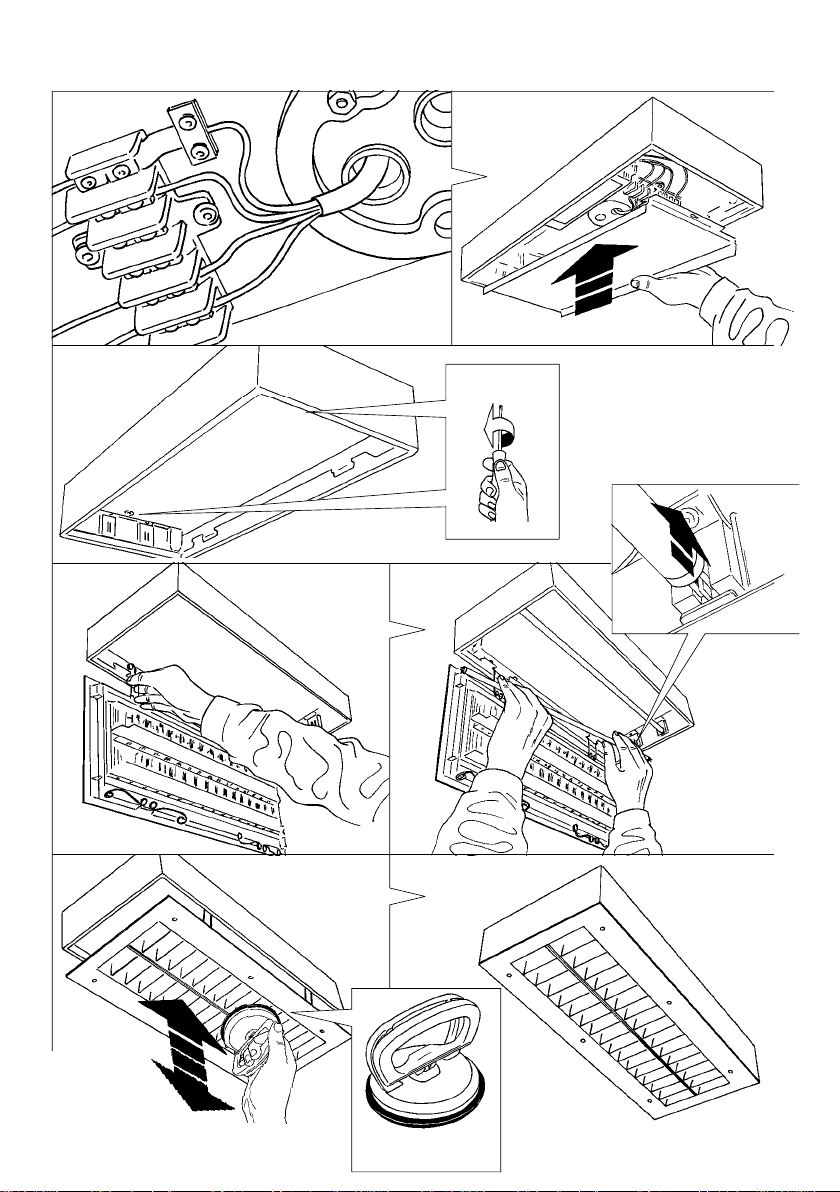

TX20-S

14
TX20-S

15
CLICK!
TX20-S

16
Declaration of Conformity
(Directive 2006/95/EEC and EMC directive 2004/108/EEC and
ATEX directive 94/9/EEC)
Manufacturer: Glamox ASA
Adress: Birger Hatlebakksveg15
N-6405 Molde
NORWAY
Product: Ex Luminaires for fluorescent lamps
Product name: TX20-S series and TX20-S -E series
II2G Ex e d mb IIC T4
We declare under sole responsibility that above listed products confirms with the standards
listed.
Reference Date of issue Name
IEC/EN 60079-0 2004 General requirements (Ex)
IEC/EN 60079-7 2006 Increased safety (Ex-e)
IEC/EN 60079-1 2004 Flameproof enclosure (Ex-d)
IEC/EN 60079-18 2004 Encapsulation (Ex-m)
EN 60598-1 2008 General requirements (lighting)
EN 60598-2-1 1989 General purpose luminaires
EN60598-2-22 2008 Emergency luminaires
EN 61000-3-2 2006 EMC-Harmonic currents
EN 61547 1995/A1:2000 EMC-Immunity requirements
EN 55015 2006 EMC-Emission requirements
IEC 60068-2-6 1982 Vibration
IEC 60092-306 1982 Electrical installations in ships
Place and date: Molde, 08. Mar. 2010
Name and signature of
autorized persons:
Robert Svendsen Geir Sylte
Factory Manager Laboratory Manager

17

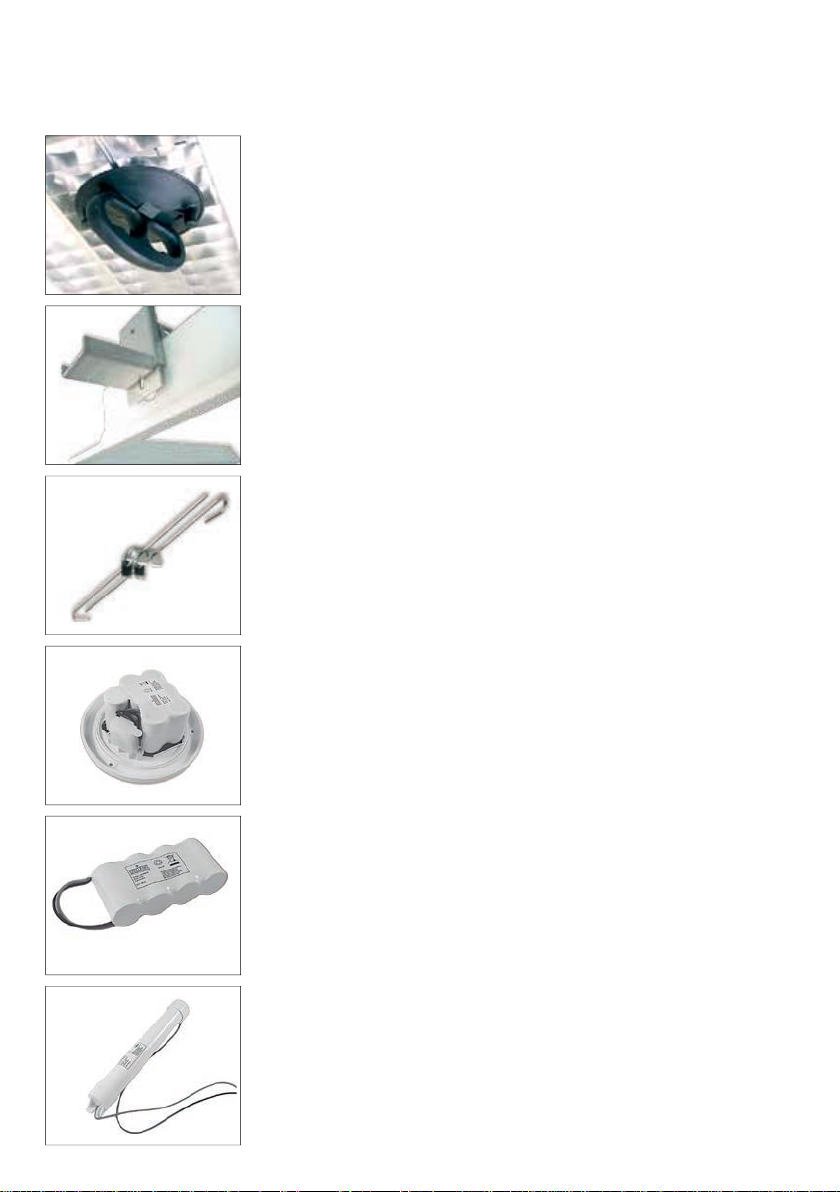

TX20-R/S Accessories
TX20 GLASS SUCTION PAD Part no. 46500175
TX20 MNT CEILING (4 pcs) Part no. C60052395
TX20-R SUSPENSION ROD
(1 pcs.) 0,3 - 0,6 m Part no. 79000020
TX20-R SUSPENSION ROD
(1 pcs.) 0,6 - 1,0 m Part no. 79000030
214 - E1.5 Part no. 19596547
314 - E1.5 Part no. 19596514
228 - E1.5
314 - E3.0 Part no. 19596501
228 - E3.0
External battery
214 - E1.5 Part no. TX20062324
314 - E1.5
228 - E1.5
214 - E3.0 Part no. TX20062321
314 - E3.0
228 - E3.0
Integrated battery

18
Mains
L
N
L4
3
N
L1
2
L4
3
N
L1
2
HFE
L4
3
N
L1
2
HFE
HF
Wiring without switch for main light
Connection of TX20
HF-E = Emergency luminaire
HF = Luminaire without emergency
For HF-E unswitched power supply to L4 - N is needed
Earthing the luminaire
TX20 must be earthed in the terminal block. It can also be earthed exter-
nally, to the contact on the luminaire house. The shielded cable must be
earthed as in figure:
1. Earthing of earth-wire
2. Earthing of cable-shield
N
1.
2.
3 2L1 L4
TX20 installation
Battery connection see page 8.
Mains
L
N
L4
3
N
L1
2
L4
3
N
L1
2
L4
3
N
L1
2
HFE HFE
HF
Wiring with 1-poled switch for main light
Mains
L
N
L4
3
N
L1
2
L4
3
N
L1
2
HFE HFEHF
L4
3
N
L1
2
Wiring with 2-poled switch for main light

19

20

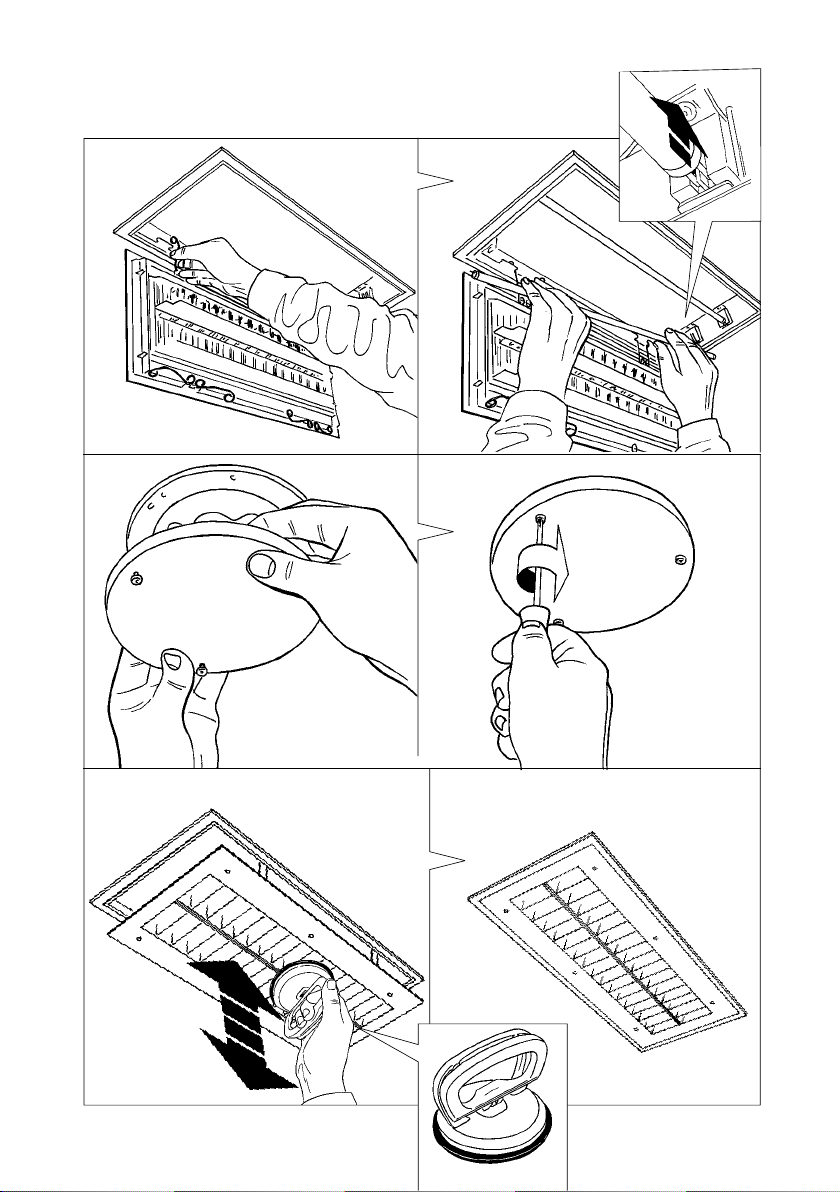

Relamping
The front cover is locked by springs, and has to be opened by
using a suction pad (Part. no 46500175) see also page 9.
The light tubes have to be removed from lamp holder by pull-
ing the tube straight out. (The lamp holder has no rotating part)
New light sources to be pushed straight into the fixing position
on lamp holders. The front cover is operating micro switch(es)
that switch off mains and battery voltage when the front cover
is removed from fix position. Re-lamping is thereby possible
without switching off the whole circuit.
Optional SelfTest
TX20 HF-E is also available with emergency Self Test System.
The Self Test fixture do have a bi-coloured LED indicating status
of the emergency system. The ballast/emergency unit will auto-
matically run a short monthly function test, and an annually full
discharge test operating the emergency lamp from the battery.
The test sequence will follow the IEC/EN 62034/2006.
“Automatic test System for battery powered escape light”.
There are five different statuses for the unit indicated by the
status LED as follows:
- Continious Green: Everything OK
- Intermittent blinking Red: Lamp Error
- Continious blinking Red: Battery Capacity Error
- Continious Red: Battery Charging Error
- No Light in LED: No power or malfunction
of the emergency unit
Cables
Mains supply cable must be approved for fixed installation.
The external diameter should be 8 ® 13 mm (M20 gland) or
12 ® 19 mm (M25 gland). Cross sectional area of the wires
should be between 1.5 and 6.0 mm².
The cable must have an earth wire and a shielded cable is
recommended.
Operation of TX20 HF (without emergency light)
TX20 without battery back up do light when mains are
conected to N and L1. The fixture can be switched on/off by
switching the L1 conductor (1-pole switch), or by switching L1
and N (2-pole switch).
Operation of the TX20 HF-E (emergency light)
In emergency mode, one of the fixture tube is operating from
the battery, and is lighting with approximately 20% of the
normal light output.
When uninterrupted charging voltage is present (N and L4) the
charging indicater (green LED) is lighting up, indicating that
the battery is being charged. If the connection to the battery is
disrupted, the indicator will not light. A new or a discharged
battery must be charged for 24 hours to be fully charged. For
switching main light see connection diagram page 18.
Control
The function of the emergency light should be controlled at
least once a month. Full emergency test (switching off N, L1
and L4 to the luminaire) should be performed once a year and
the specified emergency lighting time should be observed
(1.5 or 3 hours for standard luminaire).
TX20 operation
