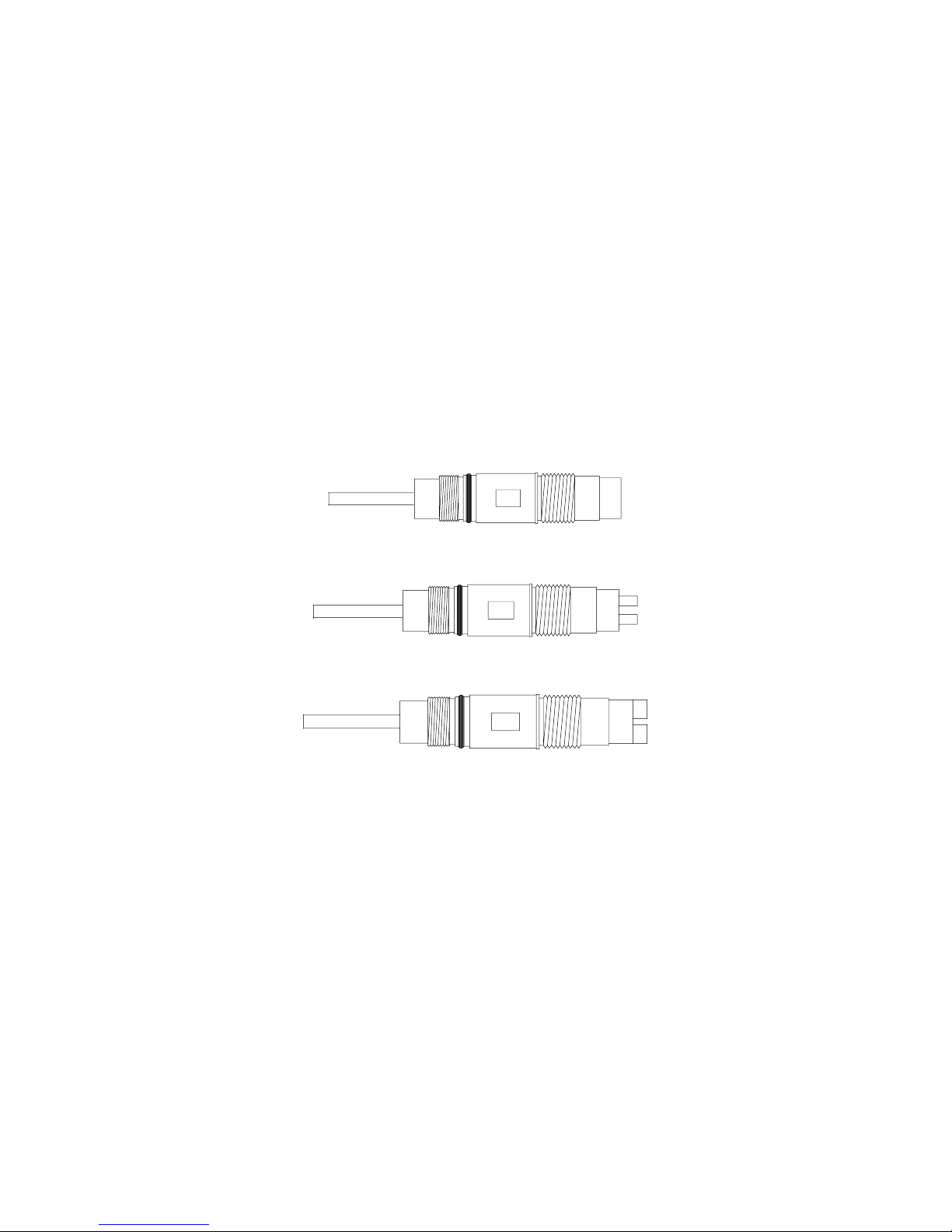

LAKEWOOD INSTRUMENTS
MODEL 543
4-ELECTRODE CONDUCTIVITY
SENSORS
INSTALLATION & OPERATION MANUAL
543-M
543-L
543-LL
Lakewood Instruments
7838 North Faulkner Road, Milwaukee, WI 53224 USA
Phone [phone] • Fax [phone]
http://www.lakewoodinstruments.com

Lakewood Instruments
Congratulations on your purchase of a Lakewood Instruments product. We would
like to take this opportunity to welcome you to the Lakewood Instruments product
family.
With proper care and maintenance, your product should give you trouble-free
service. Please take the time to read and understand the operation manual,
paying special attention to the sections on INSTALLATION and MAINTENANCE.
If, in the future, any parts or repairs are required, we strongly recommend that only
original replacement parts be used. Our Customer Service Department would be
happy to assist you with your parts or service requests.
We thank you for your selection and purchase of an Lakewood Instruments
product.
1

2

MODEL 543
Table of Contents
INTRODUCTION 5
Features, Benefits, Specifications 5
Ordering Information 6
INSTALLATION 7
Installation 7
Storage 8
SensorLife 8
Cleaning 8
REPLACEMENT PARTS 9
Replacement tips 9
Accessories 9
MAINTENANCE AND TECHNICAL SERVICE 10
DRAWINGS 11
3

4

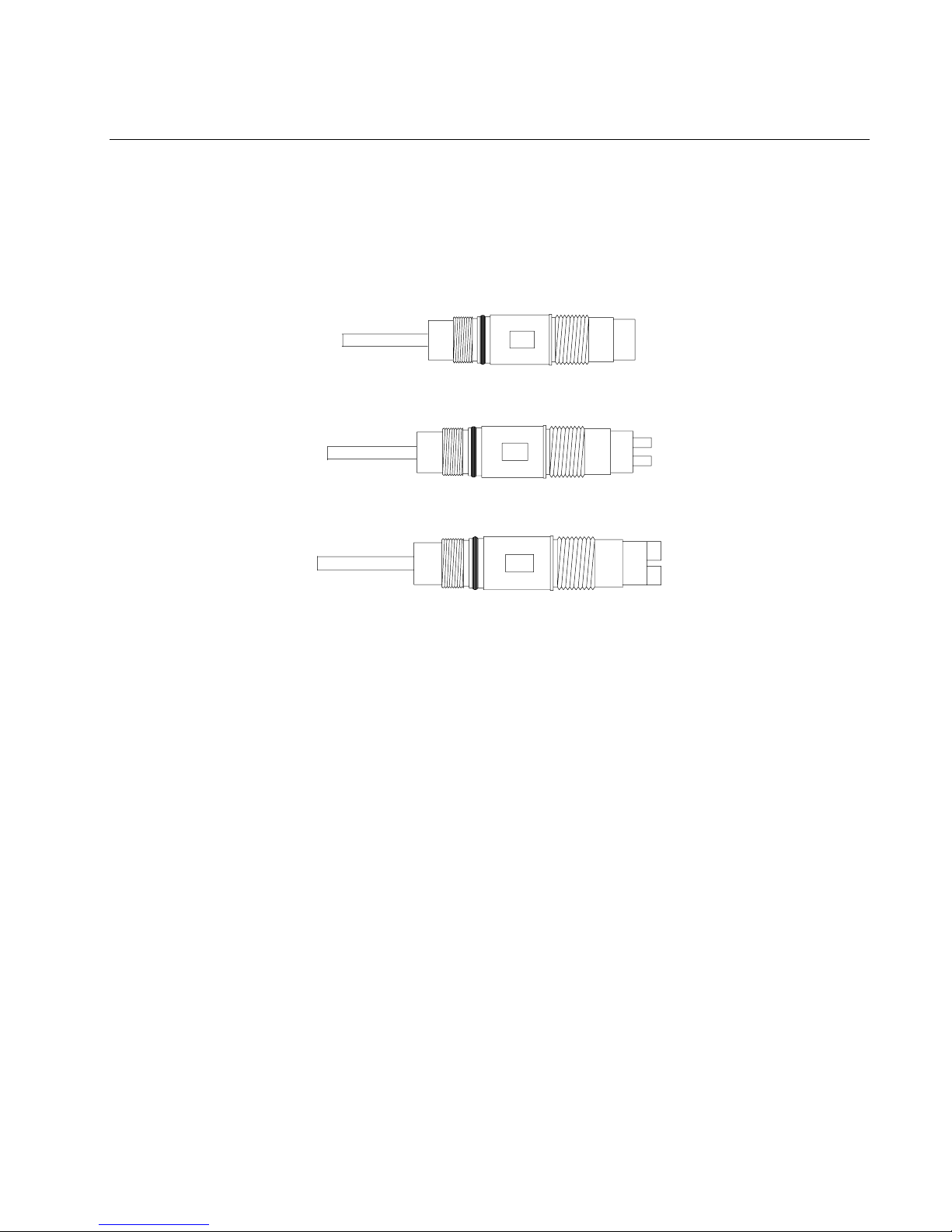

Features, Benefits, Specifications
543 SERIES
4-ELECTRODE CONDUCTIVITY SENSORS
543-M
543-L
543-LL
Body Specifications
Option Body Material Max Temp Pressure Wetted Materials
-5x CPVC 150°F (66°C) 100 psi (7 bar) CPVC, Glass, Carbon, Viton
-8x 316 SS 260°F (127°C) 150 psi (10 bar) 316 SS, Glass, Viton
Electrode Specifications
Electrode Conductivity Range Temp Compensator Max Temp Max Pressure
543-M 500-100,000 µS 4K NTC 392°F (200°C) 250 psi (17 bar)
543-L 100-1,000 µS 4K NTC 392°F (200°C) 250 psi (17 bar)
543-LL 10-500 µS 1K NTC 392°F (200°C) 250 psi (17 bar)
5

Enclosures
-1 NEMA-4X w/amplifier* -2 Cl I, II w/amplifier*
-5 NEMA-4X -3Cl I, II
In-line Mounting Options
(All sensors have ¾ NPT on sensor tip)
-8I 1 inch NPT 316 SS Swagelock
-8R 1½ inch NPT 316 SS Ball valve
Ordering Information
Cond
Sensor Cable Length or Enclosure Material, In-line Fitting Body Length Electrode
543-M -0 ½ in NPT adapter -4T 4 in steel adapter (must use 5.5 Option) -5.5 in -STD
543-L -1 NEMA-4X
w/amplifier* -5S CPVC no fitting -10 in =
543-LL -2 Aluminum encl w/amp* -8S 316 SS no fitting -18 in
-3 Aluminum enclosure -8I 316 SS w/Swagelock fitting 1 in NPT -48 in
-4 240 in of cable -8R 316 SS w/ball valve 1½ in NPT
-5 NEMA-4X enclosure
Example
543-M -4 -8R -18 -STD
* Amplifier options -1 and -2 are only available with Model 175-RP, 843 and 1040 controllers.
=10 in body not available with -8R Option.
6

INSTALLATION
Installation
The Conductivity sensor may be mounted in any position as long as water is always in contact when
measuring process water. Avoid connections in “dead leg” sections of pipe. An air pocket around
the electrode tips will cause erroneous readings. The sensor electrodes should be in direct contact
with the process flow (see DWG #04259 in the back of this manual).
The 543 series sensors have 6 wires. They are as follows:
•Black wire Electrode
•Red wire Electrode
•White wire Electrode
•Green wire Electrode
•Black wire Temp compensation 4K NTC or 1K PTC
•Black wire Temp compensation
Cable length of Conductivity sensors is measured from the electrode tips to the end of the wire.
Twenty (20) feet is the maximum cable length. Lakewood Instruments guarantees operation up to
20 feet. If a cable extension is used, Lakewood Instruments will not guarantee operation of the
sensor.
7

Storage
Conductivity sensors may be stored for years. No special handling procedures are required for
storage.
Sensor Life
Conductivity sensor life varies with the following:
•Type of process water and chemicals used.
•Temperature of water.
•Pressure of water.
Ambient temperatures, low pressures, and water with no chemicals are ideal for longest life.
Cleaning
Conductivity sensors may be cleaned with a nylon brush or clean paper towel. Cleaning frequency
will vary with the type of process water. Cleaning should be done at least once a month or if
conductivity readings become unstable.
