Lamarche ODUPS User manual

La Marche Manufacturing Company
www.lamarchemfg.com
ODUPS
Outdoor UPS
Installation and Operation Manual
This manual is subject to change without notice. You may obtain the newest version of the manual at www.lamarchemfg.com
106 Bradrock Dr. Des Plaines, IL 60018-1967 CPN 144266 Instruction Drawing Number: P25-LACUPS-2
Tel: [phone] Fax: [phone] Revision A01 Rev. Date: 01/21 ECN:2279

ii
Important Safety Instructions
Before using this equipment read all manuals and other documents related to this UPS and other equipment
connected to this UPS. SAVE THESE INSTRUCTIONS –This manual contains important safety and operating
instructions for the CUPS. If a replacement copy of a manual is needed, it can be found at www.lamarchemfg.com.
Electrical Safety
WARNING: Hazardous Voltages are present at the input of power systems. The output from UPS and
from batteries may be low in voltage, but can have a very high current capacity that may cause severe
or even fatal injury.
When working with any live battery or power system, follow these precautions:
•Never work alone on any live power system; someone should always be close enough to come to your aid.
•Remove personal metal items such as rings, bracelets, necklaces, and watches.
•Wear complete eye protection (with side shields) and clothing protection.
•Always wear gloves and use insulated hand tools.
WARNING: Lethal Voltages are present within the power system. Parts inside the UPS may still be
energized even when the UPS has been disconnected from the AC input power. Check with a meter
before proceeding. Do not touch any uninsulated parts.
•A licensed electrician should be used in the installation of any UPS.
•Always disconnect the UPS from the supply, batteries, and loads before performing maintenance, replacing
parts, or cleaning.
•Always assume that an electrical connection is live and check the connection relative to ground.
•Be sure that neither liquids nor any wet material comes in contact with any internal components.
•Do not operate this UPS outside the input and output ratings listed on the UPS nameplate.
•Do not use this UPS for any purpose not described in the operation manual.
Mechanical Safety
•This UPS or parts of the UPS may get very hot during normal operation, use care when working nearby.
•Do not expose equipment to rain or snow. Always install in a clean, dry location.
•Do not operate equipment if it has received a sharp blow, been dropped, or otherwise damaged in any way.
•Do not disassemble this UPS. Incorrect re-assembly may result in a risk of electric shock or fire.
Battery Safety
WARNING: Follow all of the battery manufacturer’s safety recommendations when working with or
around battery systems. DO NOT smoke or introduce a spark or open flame in the vicinity of a battery.
Some batteries generate explosive gases during normal battery operation.
•When charging Lithium-Ion batteries, a B.M.S. must be utilized.
•To reduce risk of arc, connect and disconnect the battery only when the UPS is off.
•If it is necessary to remove battery connections, always remove the grounded terminal from the battery first.
•Remove personal metal items such as rings, bracelets, necklaces, and watches.
•Always wear rubber gloves, safety glasses, and a rubber lined vest/apron when working near a battery.
•Have plenty of fresh water and soap nearby in case the battery electrolyte contacts skin, clothing, or eyes.
•If the battery electrolyte contacts skin or clothing, wash immediately with soap and water.
•If the electrolyte enters the eye, immediately flood the eye with running cold water for at least ten (10)
minutes and seek medical attention immediately.
•Do not drop or place any materials on a battery. A spark or short-circuit could cause an explosion.

iii
UPS Location
•Allow at least 6 inches of free air on all vented surfaces for proper cooling
•Allow sufficient clearance to open the front panel for servicing.
•Do not operate this UPS in a closed-in area or restrict ventilation in any way.
•Do not place UPS below battery.
•Never allow battery electrolyte to drip on this UPS when reading the specific gravity or filling the battery.
•Never place this UPS directly above a standard flooded battery. Gases from the battery will corrode and
damage equipment.
•A sealed maintenance free or valve regulated lead acid (VRLA) battery may be placed below this equipment.
Check for Damages.
Prior to unpacking the product, note any damage to the shipping container and take pictures. Unpack the product
and inspect the exterior and interior of product for damage. If any damage is observed, take pictures and contact
the carrier immediately to file a damage claim. Contact La Marche for a Return Material Authorization number to
have the UPS sent back for evaluation and repair.
CAUTION: Failure to properly file a claim for shipping damages, or provide a copy of the claim to La
Marche, may void warranty service for any physical damages reported for repair.
Returns for Service
Save the original shipping container. If the product needs to be returned for service, it should be packaged in its
original shipping container. If the original container is damaged/unavailable, make sure the product is packed
with at least three inches of shock-absorbing material to prevent shipping damage. La Marche is not responsible
for damage caused by improper packaging of returned products.
Handling
Equipment can be very heavy with uneven distribution of weight. Use adequate manpower or equipment for
handling. Until the equipment is securely mounted, care must be used to prevent equipment from being accidently
tipped over or dropped.

iv
Important Safety Instructions .................................................................................................................. ii
Electrical Safety .................................................................................................................................................................ii
Mechanical Safety .............................................................................................................................................................ii
Battery Safety....................................................................................................................................................................ii
UPS Location.....................................................................................................................................................................iii
Check for Damages...........................................................................................................................................................iii
Returns for Service ...........................................................................................................................................................iii
Handling ...........................................................................................................................................................................iii
1.0 Installation and Setup.................................................................................................................... 6
1.1 UPS Model ............................................................................................................................................................ 6
1.2 PTS Module (Optional) ......................................................................................................................................... 7
1.3 Installation of UPS ................................................................................................................................................ 8
1.4 Mounting the PTS (Optional)................................................................................................................................ 8
1.5 Wiring the UPS...................................................................................................................................................... 9
1.5.1 Wiring the PTS to the UPS ................................................................................................................................ 9
1.5.2 Sensor cable wiring to the UPS......................................................................................................................... 9
1.5.3 Wiring External Batteries................................................................................................................................ 10
2.0 Operation ................................................................................................................................... 11
3.0 Menu Page.................................................................................................................................. 13
3.1 Status Menu ....................................................................................................................................................... 13
3.2 Event Menu ........................................................................................................................................................ 14
3.3 Setting Menu ...................................................................................................................................................... 14
3.4 Control Menu ..................................................................................................................................................... 16
3.5 Help Menu.......................................................................................................................................................... 16
4.0 Trouble Shooting......................................................................................................................... 17
4.1 For PTS Module .................................................................................................................................................. 17
4.2 For UPS Module.................................................................................................................................................. 18
5.0 Approximate Back-up Time.......................................................................................................... 19
6.0 Specifications.............................................................................................................................. 20
6.1 Line Mode Specifications.................................................................................................................................... 20
6.2 Battery Mode Specifications .............................................................................................................................. 20
6.3 Charger Mode Specifications.............................................................................................................................. 21
6.4 General Specification.......................................................................................................................................... 21
Appendix A: Manufacture Warranty ...................................................................................................... 22
Appendix B: Document Control and Revision History.............................................................................. 23
Table of Contents

5
Model Scope/General Description
The La Marche model Outdoor UPS (ODUPS) is high frequency switching UPS. These models are designed with an
LCD Digital Display. The La Marche model ODUPS is configured with external battery connection to achieve more
backup time. It has ± 1% regulation from no load to full load over the specified input voltage, frequency, and
ambient temperature range. Optional Power Transfer Switch (PTS) that provide backup power when the UPS is
under maintenance. These components should be mounted inside an enclosure to provide protection from most
weather conditions.
Understanding the Model Number
The ODUPS model number is coded to describe the options that are included. Find the model number on the
nomenclature nameplate of the UPS. Follow the chart to determine the configuration of your UPS.

6
1.0 Installation and Setup
NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. Please
keep the original package in a safe place for future use.
1.1 UPS Model
The UPS module provides utility power to load when a line is qualified. And an automatic voltage regulator
(AVR) is embedded to provide stable power to the load. It will instantly switch to emergency backup power
during utility power failure or interruption. The front panel view is shown below.

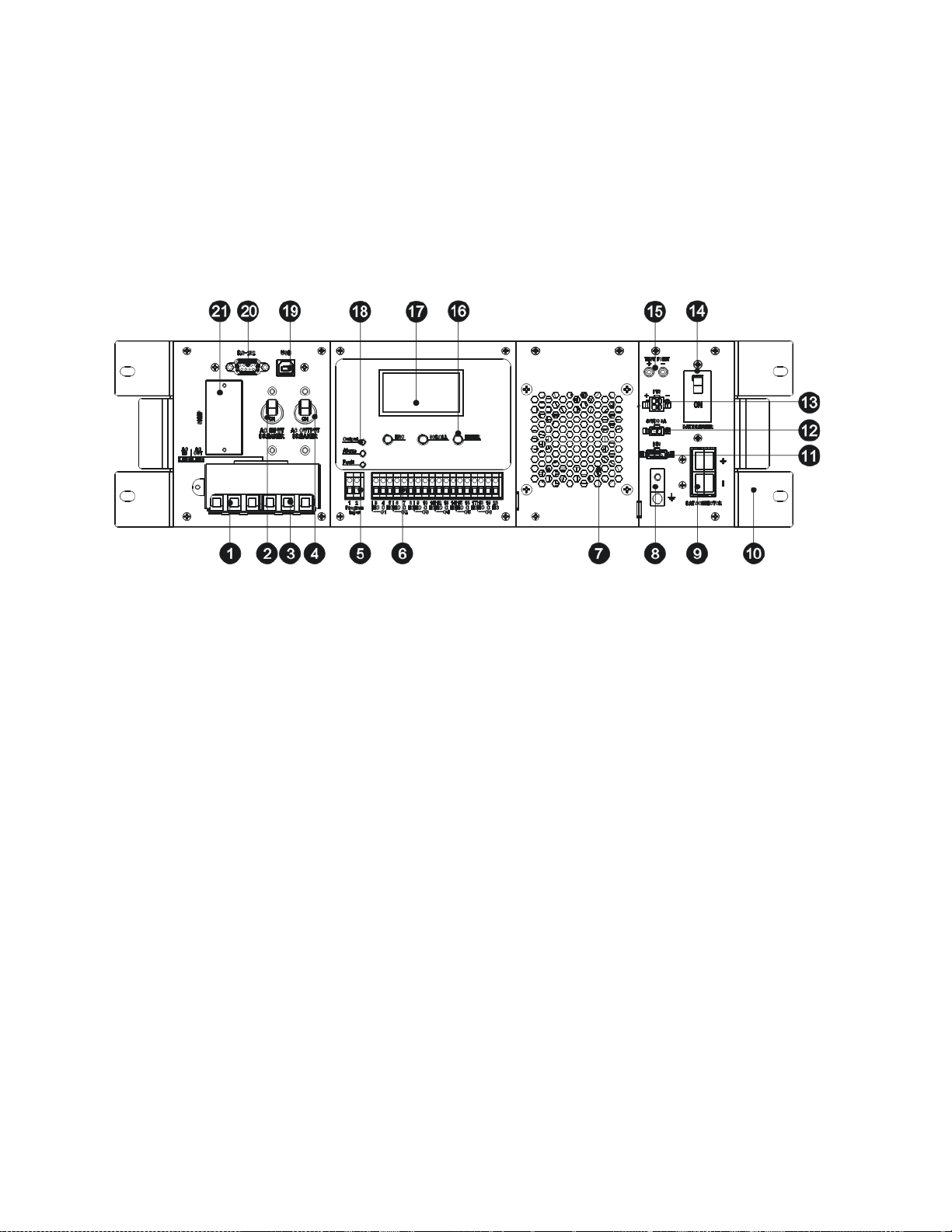

Figure 1: Front Panel of UPS
1. AC Input Terminal Block
-This terminal block is the UPS AC line power input.
2. AC Input Breaker
-This circuit breaker is an ON/OFF switch for the line power into the UPS that also provides input
protection. It must be switched ON for proper UPS operation.
3. AC Output Terminal Block
-This terminal block is the UPS AC power output.
4. AC Output Breaker
-This circuit breaker is a resettable protective thermal circuit breaker to protect UPS output from
overload and short circuits.
5. Input Contact
-To activate a programmable alarm by shorting this input contact.
6. Dry Contact
-Six sets of dry contacts will energize when programmable event occurs.
7. Internal Fan
-It’s to cool down inside temperature of the UPS. The fan is flexibly replaced for maintenance.
8. GND
-This connector is permanent ground of the UPS.
9. Battery Connector
-The battery connector is to connect external batteries.
10. Mounting Bracket & Handle
-This part is for unit mounting on the size of 19’’ cabinet and for people moving unit conveniently.
11. Battery Temperature Connector
-This is used to monitor battery temperature. The temperature probe connector must be plugged in
UPS for normal operation. The other end should be firmly attached to the terminal of the battery.
12. External FAN Connector
-To provide DC Power (48Vdc, 3 Amp Max) to an optional 48Vdc fan.

7
13. PTS Control Connector
-This connector provides power to control the PTS unit.
14. Battery Breaker
-This over-current protection is used as an on/off switch for the battery power. It must be switched
on for proper UPS operation.
15. Battery Voltage Test Points
-The test points allow you to measure battery voltage. They accept 2 mm diameter test probe tips.
The battery circuit breaker must be turned on before measuring voltage.
CAUTION: The battery voltage test points are NEVER be used as a power outlet.
16. Function Keys
-These buttons are used to operate and control the LCD panel.
17. LCD Display Panel
-It shows the UPS information in four-line texts.
18. Indicator LEDs
-Three LEDs show the information of output status, alarm and fault.
19. USB Connector
-This is used to connect the UPS to the computer for remote control and monitoring.
20. RS232 Connector
-A straight-through DB-9 to DB-9 connector cable can be connected in. It is used to connect the UPS
to the computer for remote control and monitoring.
21. Intelligent Slot
-This optional slot is for SNMP card insertion to communicate with UPS. The UPS can be monitored
and controlled via a web browser or with SNMP protocols.
1.2 PTS Module (Optional)
The Power Transfer Switch (PTS) shown below allows the UPS to be removed for service, replacement or
maintenance without interrupting power to the outdoor equipment.

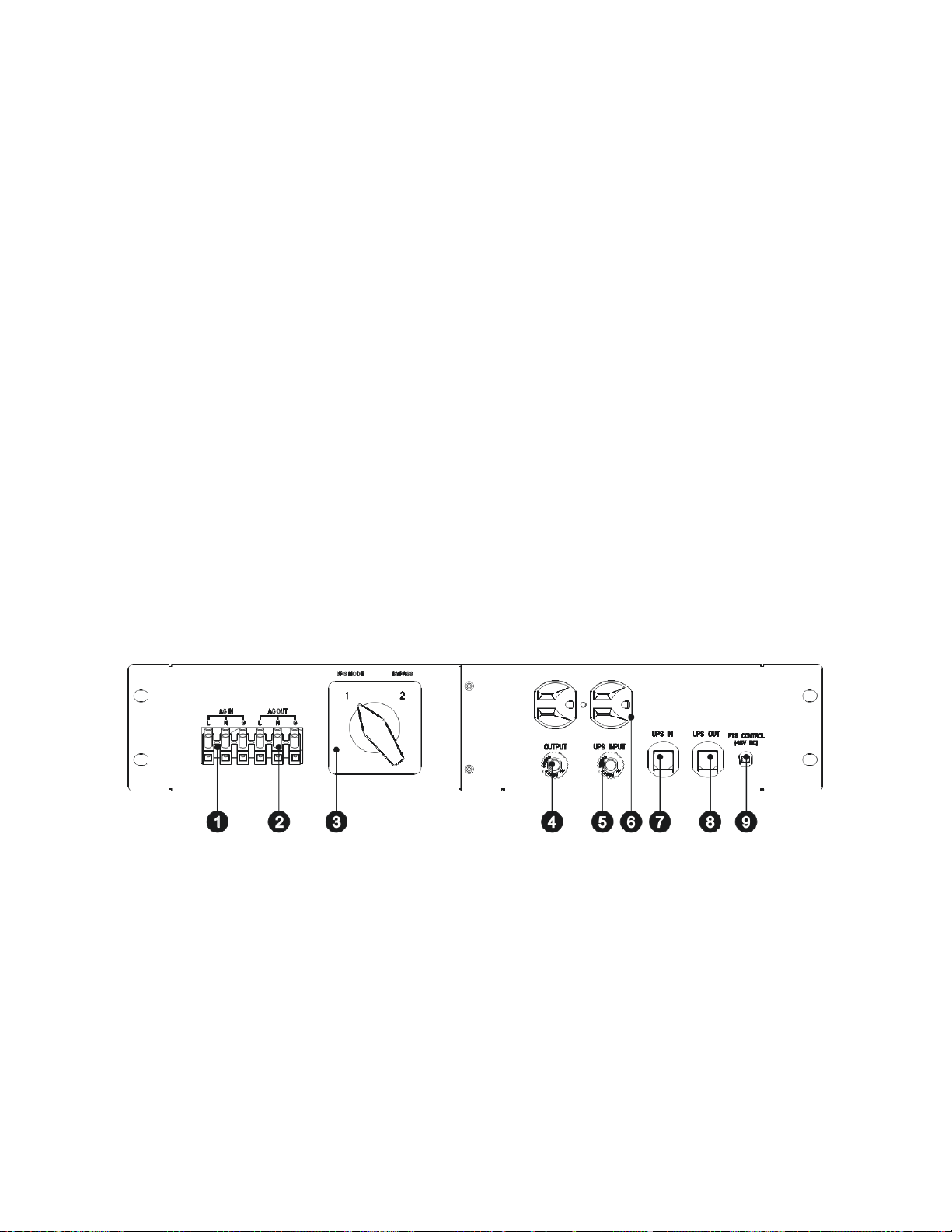

Figure 2: Front Panel of PTS with terminal block
1. AC Input Terminal Block
-The line input power is connected to the terminal block marked with “AC IN”.
2. AC Output Terminal Block
-The output power is connected to the terminal block marked with “AC OUT”.
3. Switch
-UPS or bypass output can be selected by this switch.
4. AC Output Breaker
-This circuit breaker marked with “OUTPUT’’ is a resettable protective thermal circuit breaker to protect
the output from overloads and short circuits.
5. AC Input Breaker
-This circuit breaker marked with “UPS INPUT’’ provides input power protection for the UPS.
6. AC Output Receptacles
-These receptacles are ready to use for optional battery heating pads or a PC for maintenance.

8
7. UPS Input Connector
-This “UPS IN” power cord is connected to AC input connector or terminal blocks on UPS.
8. UPS Output Connector
-This “UPS OUT” power cord is connected to the AC output connector or terminal blocks on UPS.
9. PTS Control Wiring
-The Black and Red PTS control wires are used to connect to PTS control connector on UPS.
1.3 Installation of UPS
The UPS unit can be placed on a shelf with no other parts needed. It can be rack mounted or secured to a shelf
such as in an outdoor cabinet, with the mounting brackets shown in the following figure. The brackets and the
screws to attach them to the UPS case are available as part of the standard packaging.
Figure 3: UPS with Bracket for rack mounting
1.4 Mounting the PTS (Optional)
The power transfer switch (PTS) is designed and factory-installed with a 19" rack mounting bracket accessory
shelf. It can be rack mounted or placed on a shelf. The fixing screws and washers are packaged as accessories
of PTS.
Figure 4: PTS with Bracket for rack mounting

9
1.5 Wiring the UPS
WARNING: All electrical wiring must be performed by qualified electrician or trained personnel. Make
sure the line power is off. Switch off all input and output circuit breakers on the UPS unit before making
any electrical connections.
1.5.1 Wiring the PTS to the UPS
Wire the PTS to the UPS according to the schematic shown in Figure 5.
1. The PTS is pre-wired with 2 cables marked as “UPS IN” and “UPS OUT”. Connect these cables from PTS to the
respective connectors on the UPS.
2. Connect the AC input wires to the AC input terminal blocks on the PTS. Ensure proper polarity (Line, Neutral
and Ground to the respective terminal).
3. Connect AC output wires to the AC output terminal blocks on the PTS. Ensure proper polarity (Line, Neutral
and Ground to the respective terminal).

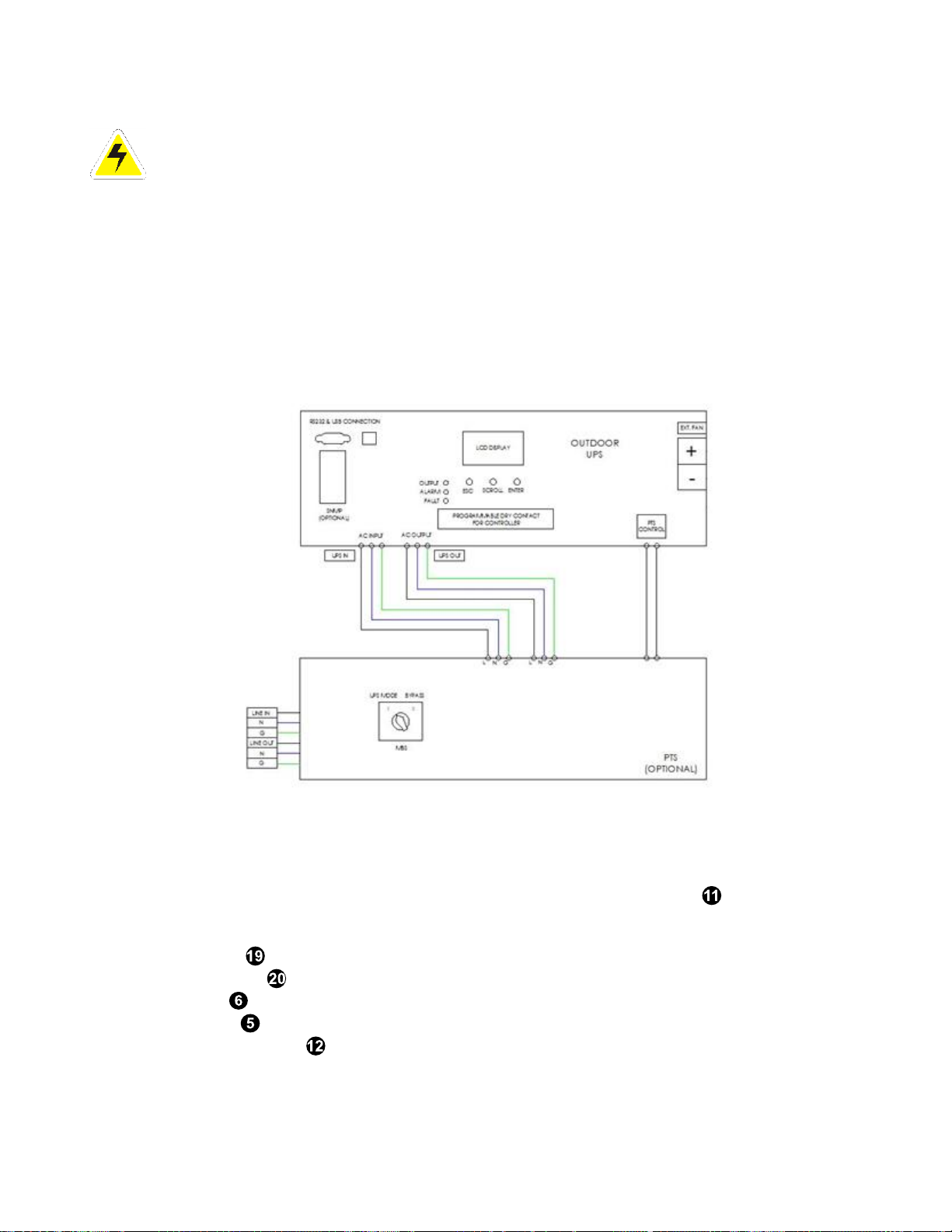

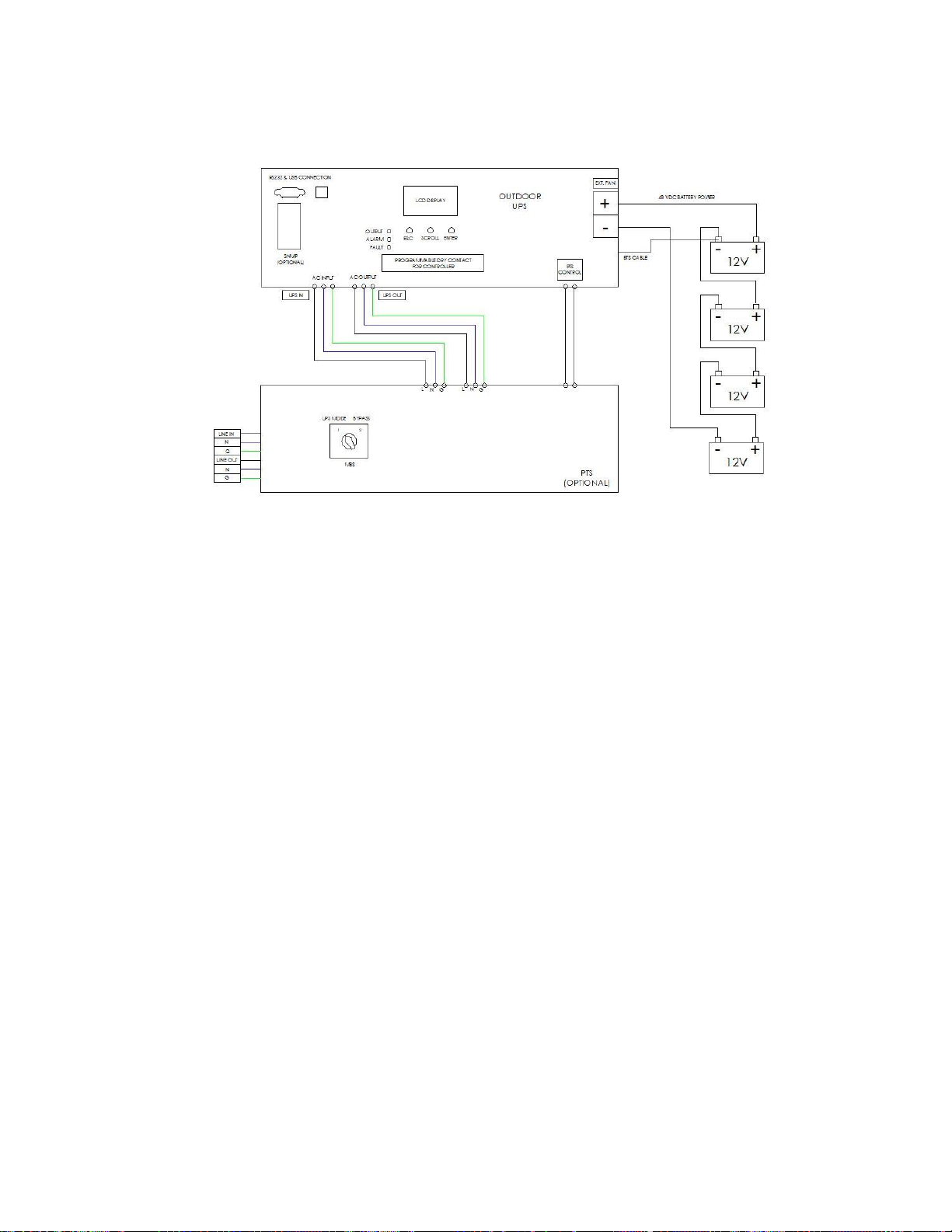

Figure 5: Wiring the PTS to the UPS
1.5.2 Sensor cable wiring to the UPS
1. Connect the temperature sensor to the UPS unit (Battery Temperature connector ). The other end is
connected to the batteries later in the procedure.
2. Refer to Figure 1 & 2, connect the following ports if used.
•USB Connector .
•RS-232 Connector .
•Dry contacts .
•Program input .
•External FAN Connector .

10
1.5.3 Wiring External Batteries
Unit supports 48Vdc battery. Connect all battery packs as below chart. It’s suggested to connect at least 100Ah
capacity battery.
Figure 7: Battery Connection Chart

11
2.0 Operation
To power up the UPS, commissioning to make sure batteries are fully charged and line power is qualified.
Switch on UPS in Line mode
1. Switch on battery circuit breaker. All LEDs will be on and LCD will display Startup page, and fan will
be on.
2. Switch on AC input breaker. After line power is qualified, the LCD will display normal, buck or boost
according to line voltage range and line threshold setting.
Note: AVR function default setting is disabled. You may activate it via LCD panel or USB/RS232/SNMP
communication.
Switch the UPS from line mode to battery mode
UPS will operate in battery mode if manually switch the input circuit breaker OFF. The LCD will display “Battery”
and output LED will flash to show the UPS is running on backup battery power.
Switch from battery mode to line mode
After switching on the input circuit breaker, if line input is qualified, UPS will transfer to line mode with output LED
on to show UPS is running from utility power.
Note: If UPS keeps switching between inverter and line mode because of a noisy line, the setting of “UPS Sense
type”should be changed from Normal to Generator.
Switch off procedure
For any reason you need to switch off UPS, please follow below procedure.
1. Switch off output circuit breaker.
2. Switch off input circuit breaker.
3. Switch off battery circuit breaker. The output LED will turn off and LCD display will shut off.
Operation the Control panel

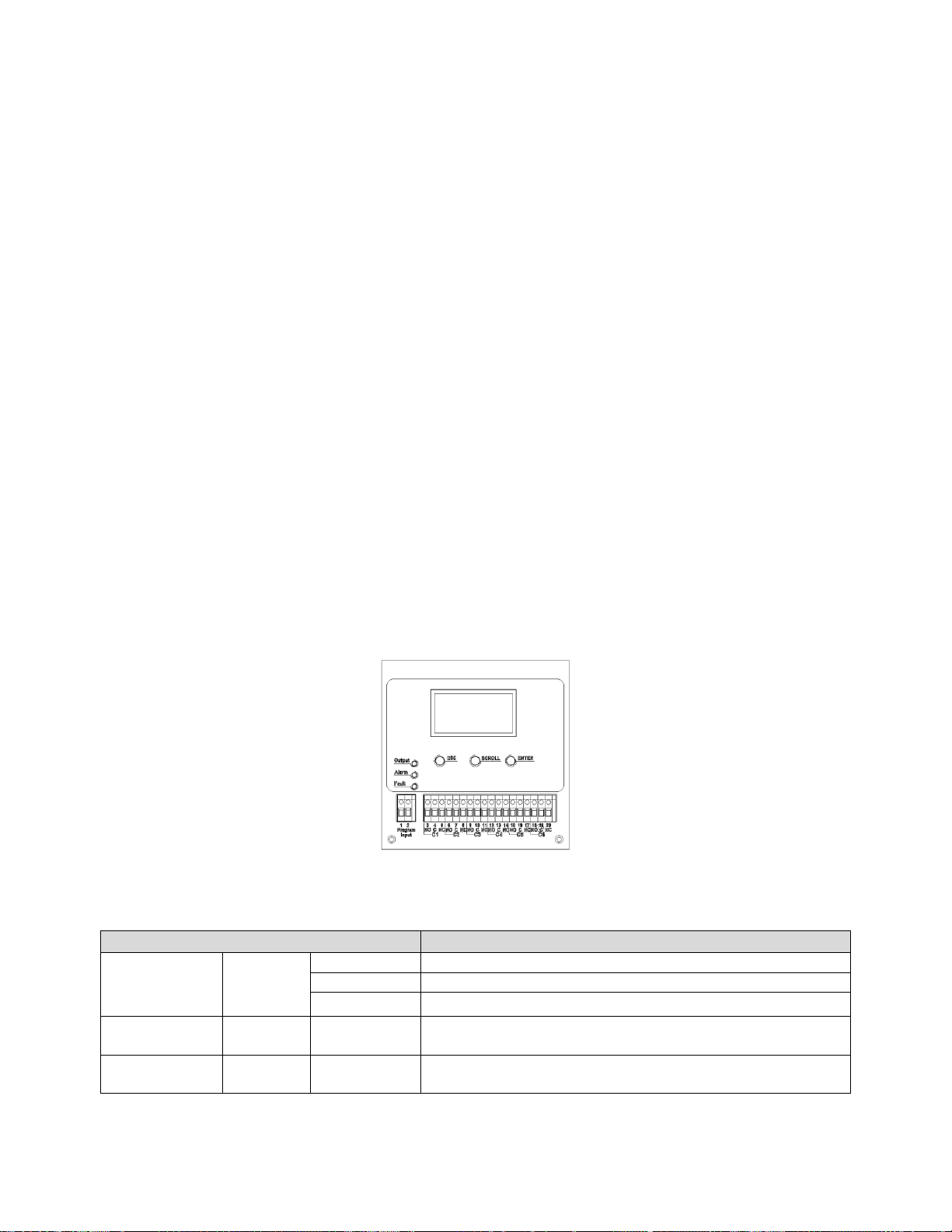

The control panel includes four-line LCD display, three indicators, three function keys, input contacts and six sets
of dry contacts. It can be rotated 90 degree for vertical installation.
Figure 8: Control Panel
LED Indicator
LED Indicator
Messages
Output
Green
Solid On
Output is available in line mode
Flashing
Output is available in battery mode
Off
Output is not available
Alarm
Yellow
Solid On
Alarms occur in the system, indicating a condition not
serious enough to stop it from providing output power.
Fault
Red
Solid On
Faults occur in the system, indicating a condition where
backup power is not available.

12
Function Keys
Function Key
Description
ESC
Back to previous menu/page
SCROLL
Jump to next page or next selection
ENTER
Enter submenu or confirm selection
Default page
After power on, Startup page will display. It will automatically switch to default page after 6 seconds.
Default page
Explanation
yy-mm-dd hh:mm
Mode: xxxxx
OP-V: xxx.xV
Load : xxx%
Date and time
UPS current operation mode
UPS output voltage
UPS load percent
Operation mode
The LCD automatically displays the following texts when the UPS changes status.
LCD Display
UPS status and Explanation
Normal
The normal operating mode. Input line is qualified and bypasses to power the
loads. At the same time, batteries are charging.
Boost
The unit automatically transfers to Boost mode to raise the lower input line
voltage when output voltage drops to the user programmable preset limit.
Buck
The unit automatically transfers to Buck mode to reduce the higher input line
voltage when output voltage achieves the user programmable preset limit.
Battery
The unit automatically transfers to battery mode when input line power is
unqualified or not present. Batteries provide power to the loads.
Self-Test
When “Self-Test” is executed, the unit will enter “Battery Mode” automatically
to test output voltage and waveform. After testing, the unit will return back to
“Line Mode”. Users may program Test Timer in Setting menu to configure a
longer time for self-test. Default testing time is 1 minute.
Standby
No output power from UPS to the loads.

13
3.0 Menu Page
After pressing ENTER button in default page, it will enter menu page.
►1. Status ▼
2. Event log
3. Setting
4. Control
5. Help
▲
Menu Page
Scroll
Figure 11: Menu Page
Press SCROLL button to browse all 5 submenus below.
Menu Screen
Explanation
Status
Indicates input and output information, and other values monitored in UPS.
Event log
Indicates the active event log and the history event log which users can inquiry or
clear.
Setting
Indicates the parameters of UPS can be adjusted.
Control
Indicates the operational conditions of UPS can be controlled.
Help
Indicates the Model name
3.1 Status Menu
Status menu shows the basic measured information of UPS. Users can select displayed parameters by pressing
ENTER key. Press ESC button in any page will return to default page.
Menu item
LCD display
Explanation
Page 1
1. Serial No. ▼
xxxxxxxxxxxxxx
2. I/P-V:xxx.xV
3. I/P-F: xx.xHz
The Serial number of UPS
The input line (utility) voltage
The input line (utility) frequency
Page 2
4. BAT V: xx.x V ▼
5. BAT T: xx°C
6. O/P-V: xxx.x V
7. O/P-F: xx.xHz
The average battery voltage
The temperature of battery terminal
The output voltage (true RMS)
The output frequency
Page 3
8. O/P-P: xxxxVA▼
9. O/P-P: xxxxWatt
10. Load: xxx%
11. Mode: xxxxx
The output power in VA
The output power in watt
The percentage of connected load
The operation mode of UPS
Page 4
12. InvEV: xxxxx▼
13. InvTM: xxxx.xH
14. BukEV: xxxxx
15. BukTM: xxxx.xH
The number of times the unit has been in battery mode
The total time duration the unit has been in battery mode
since the latest reset.
The number of times the unit has been in buck mode
The total time duration the unit has been in buck mode
since the latest reset.
Page 5
The number of times the unit has been in boost mode

14
16. BstEV: xxxxx ▼
17. BstTM: xxxx.xH
18. C1:Off C2:Off
19. C3:Off C4:Off
The total time duration the unit has been in boost mode
since the latest reset.
The status of the dry contact C1 and C2.
The status of the dry contact C3 and C4.
Page 6
20. C5:On C6:On
21. MainFW: xx.xx
22. LCDFW: xx.xx
23. HW : xx.xx ▲
The status of the dry contact C5 and C6.
The firmware version of Main CPU in UPS.
The firmware version of LCD panel in UPS.
The hardware version of UPS.
3.2 Event Menu
User can view the active event log and history event log via this menu. After pressing ESC button in Event page,
it will return to default page.
Event Log Page
Explanation
►1. Active Log
2. History Log
Active event log enquiry.
History event log enquiry and clear. Maximum log number is 200.
Active Log Page
Explanation
yy-mm-dd hh:mm
Over Load
In xxxxxx Mode
xx/xx ▼
Date and time when this event occur
Event type
UPS operation mode when this event occurs
Viewing event index/Total active event number
3.3 Setting Menu
User can set various critical parameters in this menu. Choose the desired function on the screen by pressing
ENTER button. Press ESC button to return to default page. (To enter in Setting menu use default password:
11111)
Setting page
Explanation
►Dry Contact ▼
Input Contact
AVR Feature
Line Qualify
Dry Contact: It indicates programmed values of C1-C6 contacts.
Factory default settings: C1, C2=On battery; C3, C4=battery low; C5,
C6=Timer.
Illustrations for each programmed value as below.
-On battery: Energized when Unit in INV mode.
-Battery low: Energized when the battery voltage is lower than the
configurable battery low voltage. The default value is 46VDC.
-Timer: Energized after the unit has been in INV mode for the setting
backup time. The factory default value is 2 hours.
-Alarm: Energized when any alarm occurs in UPS.
-Fault: Energized when any fault occurs in UPS.
-Off: Energized while the UPS is off.
-Disable: The dry contacts become invalid.
Input Contact: It indicates selectable options for input contacts.
Factory default setting is “Ext Fan Failed”.
Selectable options are listed as below.
-User program
-Ext Alarm
-Ext Battery Alarm

15
-Ext Fan Failed
-Door Unlocked
AVR Feature: Enable or disable Buck and Boost function. Factory default
setting is “disable”.
Line Qualify: Set AC recovery time after the line is qualified. It’s to make sure
the line is stable. The selectable options are: 3 seconds, 10 seconds or 30
seconds. Default value is “30 seconds”.
Line Detect ▼
Sense Type
Bat Temp Comp
Ext. Fan
Line Detect: It allows users to set up detection levels for AC input voltages,
setting points to go in and out from battery mode, boost or buck modes.
-Line High: When input voltage exceeds this level, unit will transfer from
Line Mode to Battery Mode.
-Line Low: When input voltage is lower than this level, unit will transfer
from Line Mode to Battery Mode.
-High Gap: The voltage gap between Line High and High Back, Buck High
and Buck Back.
-Low Gap: The voltage gap between Line Low and Low back, Boost Low
and Boost Back.
-Boost Low: When AVR function is enabled and input voltage drops between
Boost Back point and this level, unit will transfer to Boost Mode.
-Buck High: When AVR function is enabled and input voltage increase
between Buck Back point and this level, unit will transfer to Buck Mode.
Sense Type: Users can change the Sense Type according to operation
condition. Two types for selection:
-Normal mode: The UPS can operate successfully with general line
conditions. The maximum transfer time is 12ms.
-Generator mode: This setting allows UPS to work with the fluctuations
caused by a generator or noisy line. The maximum transfer time is 25ms.
Bat. Temp Comp: It adjusts the battery temperature compensated voltage to
2.5, 3.0, 3.5 or 4.0 mV/°C/Cell. The factory default setting is 3.0 mV/°C /Cell.
Ext. Fan: It indicates ambient temperature setting to switch on the external
fan. The default value is 25°C.
Bat Low Volt ▼
Charger I
Backup Timer
Default UPS
Bat. Low Volt: It’s allowed to set the low battery warning voltage. The default
value is 46V.
Charger I: It’s to configure the charger current. There are 2, 4, 6, 8 or 10Amp
for selection. The default value is 10A.
Backup Timer: It’s to configure the warning time for backup time. This
function is available only when timer is set in dry contact. The adjustable range
is 0 to 480 minutes. The default value is 120 minutes.
Default UPS: Restore factory settings of UPS.
Default SNMP
Test Timer
Set Date/Time
Password ▲
Default SNMP: Restore factory settings of SNMP.
Test Timer: It’s to define the time of Self-Test. The adjustable range is 1 to
255 minutes.
Set Date/Time: It indicates setting for date and time.
Password: The Password to access Setting and Control Menu can be changed
here. Use the SCROLL key with ENTER keys to enter a correct Password. Re-
entry is required if an error occurs when entering the password.

16
3.4 Control Menu
Press SCROLL button to switch desired option in Control menu and press ENTER button to confirm new option.
Pressing ESC button will return to default page. (To enter in Setting menu use default password: 11111)
Control page
Explanation
Self Test:
⊙Start
○Stop
Starts the Self-Test.
CAUTION: The unit must be in Normal, Boost or Buck Mode before starting
the self-test.
Dry Test:
⊙On
○Off
○Cancel
Starts the dry contact test.
-On: All dry contacts are energized. This action will be finished
automatically after 1 minute.
-Off: All dry contacts are ineffective. This action will be finished
automatically after 1 minute.
-Cancel: Cancel this test immediately.
Ext Fan Test:
⊙On
○Off
○Cancel
Starts the external fan test.
-On: The external fan has power from battery. This action will be finished
automatically after 1 minute.
-Off: Cut off battery power. This action will be finished automatically after
1 minute.
-Cancel: Cancel this test.
UPS Output:
⊙On
○Off
UPS output can be turned ON or OFF. This option is available when the UPS is
in INV, Boost, Buck or Normal Mode.
Reset Event/TM?
⊙Yes
○No
It resets all event numbers and time duration to zero.
3.5 Help Menu
It shows UPS model name in Help menu.
Help page
Explanation
Indicates UPS model name.
UPS-2000A

17
4.0 Trouble Shooting
4.1 For PTS Module
Problem
Possible Cause
Remedy
No output available from
PTS.
External AC circuit breaker may be
OPEN.
Close the external AC input breaker.
Line AC power is not available.
Check if utility is available with the AC
voltmeter and contact Utility Company.
Wiring error on PTS terminal
blocks.
Correct wirings on PTS.
PTS fault.
If utility power voltage is present at AC
IN “L” and “N” on the PTS terminal
blocks, replace the PTS.
PTS is not allowed to
transfer to battery mode.
UPS output power is not connected
to PTS.
Verify if power cord from “UPS OUT” on
PTS is properly connected to the AC
output terminal blocks on UPS.
“UPS INPUT” circuit breaker on
PTS is open status.
Reset breaker.
Black and red control wires from
PTS are not connected to PTS
control connector of UPS.
Connect black and red control wires
from PTS-to-PTS control connector of
UPS.
48VDC signal not available at the
PTS control connector on the UPS.
Replace UPS.
PTS fault.
Replace PTS
UPS does not return back
to Line mode.
Line power is missing.
Verify if power cord from “UPS IN” on
PTS is properly connected to the AC
input terminal blocks on UPS.
Verify if the “UPS INPUT” circuit breaker
on PTS is closed status.
Verify if AC input circuit breaker on UPS
is closed status.
Ensure that Line input is present.

18
4.2 For UPS Module
Problem
Possible Cause
Remedy
No output.
AC input and output circuit
breakers are off.
Turn on input and output circuit
breakers.
No line power input.
Turn on AC input breaker.
Red LED is lit solid on front panel
indicating fault.
Read fault event under Event Log in LCD
display. Manually restart UPS. Contact
the factory if fault persists.
Output LED is off.
Line power or battery power is not
available.
Apply qualified input power and make
sure if battery breaker is closed.
UPS fault.
Return to repair center.
UPS does not transfer to
battery mode during a
power failure or backup
time is shorter than
expected.
Battery is not connected.
Connect batteries (48VDC nominal).
Battery circuit breaker is off.
Turn on battery breaker
Battery is not fully charged.
Recharge the battery and then test
discharge time.
Dead battery.
Replace with new batteries.
UPS fault.
Return to repair center.
Alarm LED is lit.
Abnormal conditions are detected.
Solve the problem according to alarm
information in Figure 21.
Batteries will NOT charge.
Battery circuit is open.
1. Check if battery cable is connected
firmly and make sure battery
connection is correct. Any
connection error, lose or open
connection will cause circuit open.
2. Check if proper battery voltage is
detected on battery connector of
UPS.
3. Check if battery breaker is closed.
4. If battery is bad, replace it.
Wrong or bad temperature probe
connected.
Only use factory-supplied temperature
probe reading approximately 15,000
OHMS @ 25°C (77°F)
LCD text is not readable.
UPS fault.
Return to repair center.
Password access is NOT
available.
Password is LOST or forgotten.
Contact repair center for resetting the
new password.

19
5.0 Approximate Back-up Time
Model
Load
(VA)
Backup Time @ 48Vdc 100Ah
(Minutes)
Backup Time @ 48Vdc 200Ah
(Minutes)
2KVA
200
1581
3161
400
751
1581
600
491
1054
800
331
760
1000
268
615
1200
221
508
1400
172
387
1600
136
335
1800
120
295
2000
106
257

20
6.0 Specifications
6.1 Line Mode Specifications
Rated Power
2000VA/1600W
Power factor
0.8
Nominal battery voltage
48Vdc
Utility Voltage Waveform
Sinewave (utility or generator)
Nominal Input Voltage
120Vac or 230VAC
AVR function
Enable/ Disable
Utility voltage range
88 - 152 VAC or 176 - 300VAC user programmable.
Defaults set @ 100 - 130VAC or 200 - 260VAC
Nominal Input Frequency
50Hz / 60Hz
Default frequency
Last utility frequency
Utility frequency range
47 - 53 Hz (50Hz mode) / 57 - 63Hz (60Hz mode)
Transfer Time
UPS without PTS
Normal mode
12ms maximum
Generator mode
25ms maximum
Overload Protection
5seconds ≥125 - 150% load;
60seconds >110 - 125% load
Output short circuit
Input/Output Breaker
Site fault detection
Yes
Efficiency (Line mode)
95%
Efficiency (AVR mode)
90%
External PTS power capacity
30A
6.2 Battery Mode Specifications
Output Waveform
Pure sine wave
Output Voltage Regulation
120 or 230VAC ± 5%
Output Frequency
50/60Hz ± 0.1%
DC voltage range
42.5 ~ 60Vdc(48V)
Low DC warning voltage
42 ~ 55Vdc adjustable
Peak Efficiency
>90%
THD (Bat. mode)
<3% (Full resistive load)
Load crest factor
3:1 @ rated load
Output short circuit protection
Output breaker/ Electronic current limit
Surge Capacity
200% * rated power for 5 seconds
Back feed protection
Yes
