CONTENTS
Vehicle Introduction
Dimensions
Ignition –Warmup
Pre-Race Checks
Set Up Vettura
Mileage-Based Checks
Fluids and Quantities Table
Fire Extinguisher + Center Console Controls
Steering Wheel Controls
Instrument Panel - C 185 Display
Fuses and Relays –Protection and Service
ABS
Wiring Diagram
Fuel Tank
Engine Oil –Checking, Level, Topping Up
Engine Oil –Changing
Gearbox Oil –Checking, Level, Topping Up
Gearbox Oil –Changing
Engine Replacement
Gearbox Replacement
GCC Actuator Replacement
Clutch - Flywheel Replacement
Front Suspension Assembly Replacement
Rear Suspension Assembly Replacement
Removing/Installing the Front Bumper and Splitter
Removing/Installing the Rear Bumper and Diffuser
Removing/Installing and Adjusting the Rear Wing
Removing/Installing the Center Floor Panel
Power Steering Box and Pump Operation
Power Steering Box and Pump Replacement

-4-
® Automobili Lamborghini S.p.A.
The procedures and information published herein are strictly confidential and are intended exclusively for recognized professionals and persons who are authorized to receive said
information. All copyrights are the property of Automobili Lamborghini S.p.A pursuant to copyright law. All PDF chapters comprising the WEB workshop manuals described herein are based
on information that were available at the time of publication. The company reserves the right to make updates and modifications as needed. The reprinting, reproduction, distribution to
unauthorized persons and/or to third parties, and the partial or complete translation of the material contained herein are prohibited without the express written consent of Automobili
Lamborghini S.p.A. Huracán ST
Huracán ST
Brake Mount Preassembly

-5-
Huracán ST - Vehicle Introduction
Vehicle Introduction
® Automobili Lamborghini S.p.A.
The procedures and information published herein are strictly confidential and are intended exclusively for recognized professionals and persons who are authorized to receive said
information. All copyrights are the property of Automobili Lamborghini S.p.A pursuant to copyright law. All PDF chapters comprising the WEB workshop manuals described herein are based
on information that were available at the time of publication. The company reserves the right to make updates and modifications as needed. The reprinting, reproduction, distribution to
unauthorized persons and/or to third parties, and the partial or complete translation of the material contained herein are prohibited without the express written consent of Automobili
Lamborghini S.p.A. Huracán ST
VEHICLE INTRODUCTION

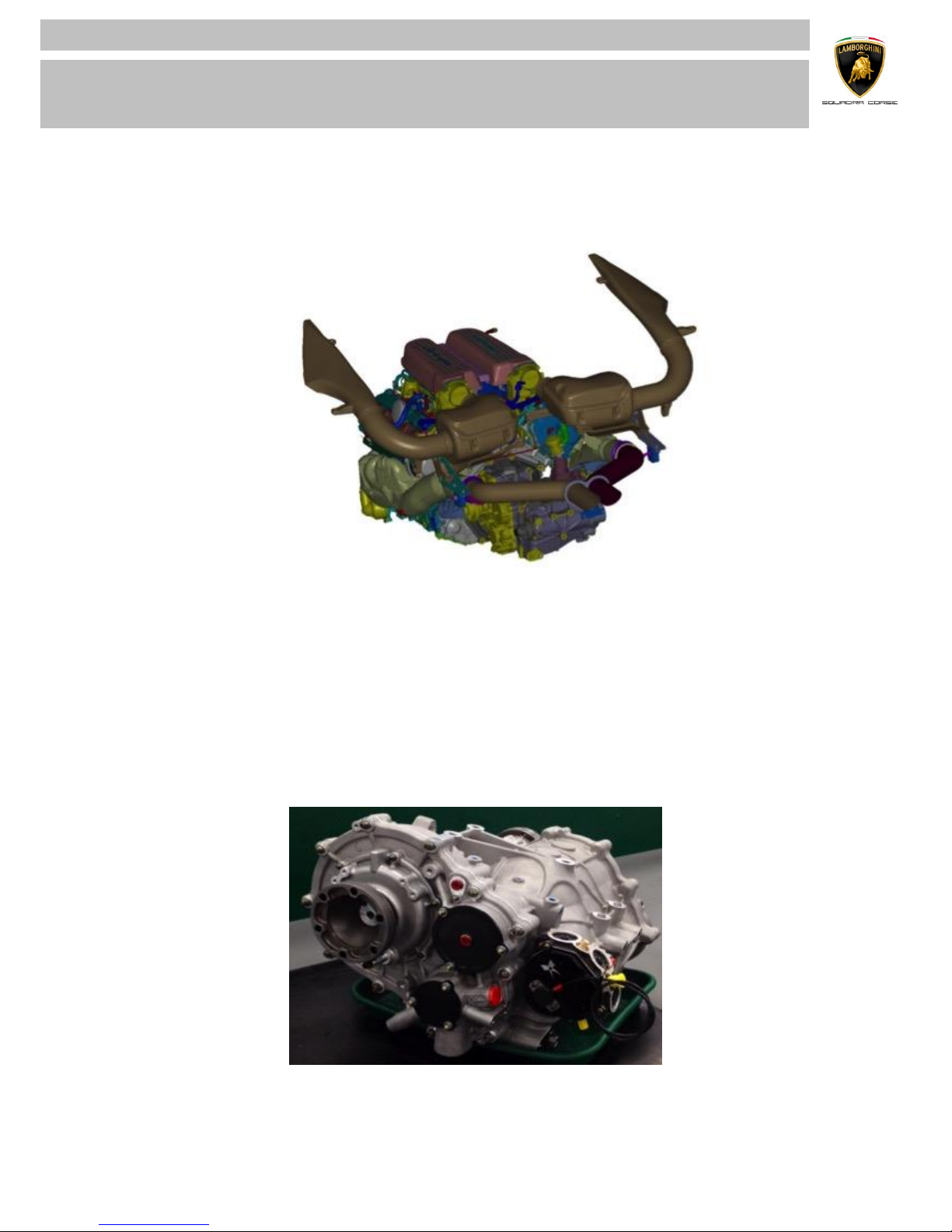

Powertrain
•Standard HURACÁN engine (direct injection)
•Power : 620 HP without restrictions
•Rigid mountings on chassis
•Air Filter System
•Exhaust pipes
•Rear Wheel Drive
•6 gear gearbox –Sequential (65 kg)
•Electric Gearbox Actuator

-6-
Huracán ST - Vehicle Introduction
Vehicle Introduction
® Automobili Lamborghini S.p.A.
The procedures and information published herein are strictly confidential and are intended exclusively for recognized professionals and persons who are authorized to receive said
information. All copyrights are the property of Automobili Lamborghini S.p.A pursuant to copyright law. All PDF chapters comprising the WEB workshop manuals described herein are based
on information that were available at the time of publication. The company reserves the right to make updates and modifications as needed. The reprinting, reproduction, distribution to
unauthorized persons and/or to third parties, and the partial or complete translation of the material contained herein are prohibited without the express written consent of Automobili
Lamborghini S.p.A. Huracán ST
•Lightweight flywheel (3 kg)
•3 clutch discs (140 mm)

-7-
Huracán ST - Vehicle Introduction
Vehicle Introduction
® Automobili Lamborghini S.p.A.
The procedures and information published herein are strictly confidential and are intended exclusively for recognized professionals and persons who are authorized to receive said
information. All copyrights are the property of Automobili Lamborghini S.p.A pursuant to copyright law. All PDF chapters comprising the WEB workshop manuals described herein are based
on information that were available at the time of publication. The company reserves the right to make updates and modifications as needed. The reprinting, reproduction, distribution to
unauthorized persons and/or to third parties, and the partial or complete translation of the material contained herein are prohibited without the express written consent of Automobili
Lamborghini S.p.A. Huracán ST
Body
•Lightweight body (composite material)
•Quick fixing system for the body panels
•High performance water radiator
•High performance engine/gearbox oil radiator

-8-
Huracán ST - Vehicle Introduction
Vehicle Introduction
® Automobili Lamborghini S.p.A.
The procedures and information published herein are strictly confidential and are intended exclusively for recognized professionals and persons who are authorized to receive said
information. All copyrights are the property of Automobili Lamborghini S.p.A pursuant to copyright law. All PDF chapters comprising the WEB workshop manuals described herein are based
on information that were available at the time of publication. The company reserves the right to make updates and modifications as needed. The reprinting, reproduction, distribution to
unauthorized persons and/or to third parties, and the partial or complete translation of the material contained herein are prohibited without the express written consent of Automobili
Lamborghini S.p.A. Huracán ST
Suspension
•HURACÁN reworked arms with rigid flamblock
•HURACÁN reworked wheel carrier
•Adjustable 2 way-dampers by Ohlins
•Front anti roll bar (Adjustable)
•Rear anti roll bar (Adjustable)
•Hydraulic power steering (with electric pump)
•Monolock system
•18 inch rims
•Pirelli tyres

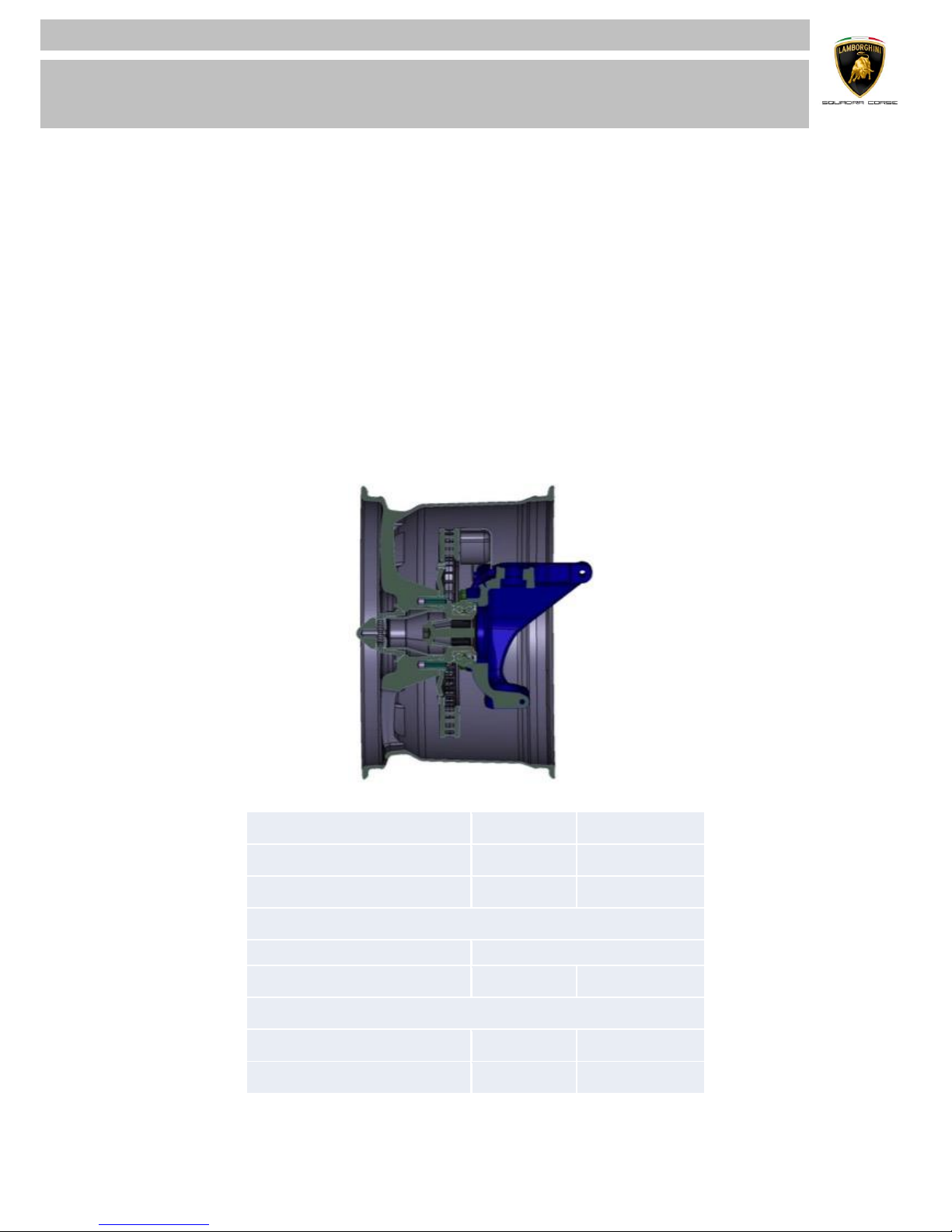

Front
Rear
Rims
11 x 18’’
12 x 18’’
Tyres (Pirelli)
305/645
315/680
General
Wheelbase (mm)
2620
Track (mm)
1695
1660
Brakes
Discs
380x35
355x32
Racing Caliper
6 pot
4 pot

-9-
Huracán ST - Vehicle Introduction
Vehicle Introduction
® Automobili Lamborghini S.p.A.
The procedures and information published herein are strictly confidential and are intended exclusively for recognized professionals and persons who are authorized to receive said
information. All copyrights are the property of Automobili Lamborghini S.p.A pursuant to copyright law. All PDF chapters comprising the WEB workshop manuals described herein are based
on information that were available at the time of publication. The company reserves the right to make updates and modifications as needed. The reprinting, reproduction, distribution to
unauthorized persons and/or to third parties, and the partial or complete translation of the material contained herein are prohibited without the express written consent of Automobili
Lamborghini S.p.A. Huracán ST
System
•FT3 Racing fuel tank (120L capacity)
•Quick refueling system
•Carbon fiber external case (10mm thickness)
•Stäubli fuel safety line
•Racing seat 8855
•Fire Extinguisher

-10-
Huracán ST - Dimensions
Vehicle Introduction
® Automobili Lamborghini S.p.A.
The procedures and information published herein are strictly confidential and are intended exclusively for recognized professionals and persons who are authorized to receive said
information. All copyrights are the property of Automobili Lamborghini S.p.A pursuant to copyright law. All PDF chapters comprising the WEB workshop manuals described herein are based
on information that were available at the time of publication. The company reserves the right to make updates and modifications as needed. The reprinting, reproduction, distribution to
unauthorized persons and/or to third parties, and the partial or complete translation of the material contained herein are prohibited without the express written consent of Automobili
Lamborghini S.p.A. Huracán ST

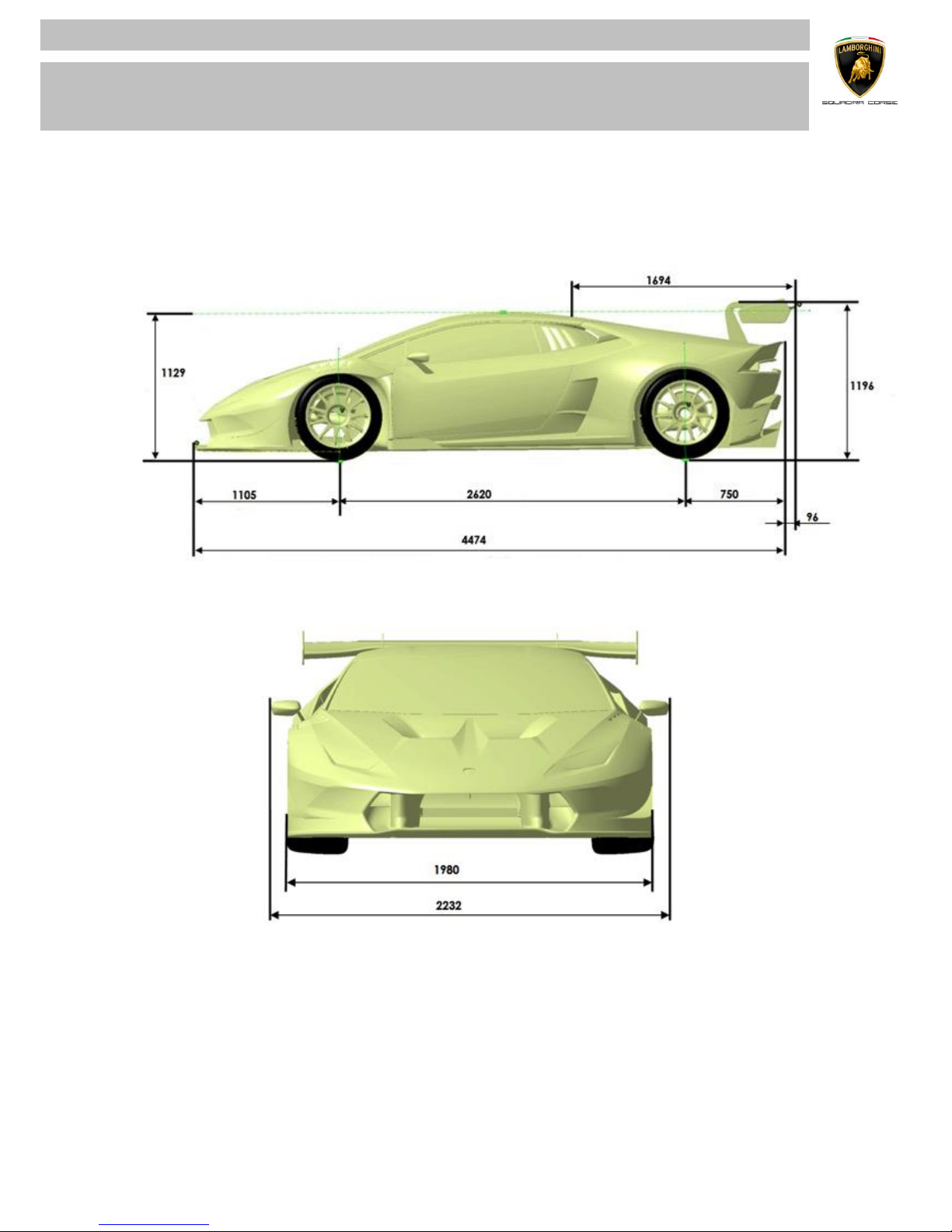

DIMENSIONS

-11-
Huracán ST - Ignition –Warm-up
Vehicle Introduction
® Automobili Lamborghini S.p.A.
The procedures and information published herein are strictly confidential and are intended exclusively for recognized professionals and persons who are authorized to receive said
information. All copyrights are the property of Automobili Lamborghini S.p.A pursuant to copyright law. All PDF chapters comprising the WEB workshop manuals described herein are based
on information that were available at the time of publication. The company reserves the right to make updates and modifications as needed. The reprinting, reproduction, distribution to
unauthorized persons and/or to third parties, and the partial or complete translation of the material contained herein are prohibited without the express written consent of Automobili
Lamborghini S.p.A. Huracán ST
VEHICLE WARM-UP –IGNITION
Safety Measures to adopt during the heating phase
Inserire icone Sicurezza vers. USA
•Lift the car with the jacks
•Use the Air Jack piston stops to stop the vehicle falling or in the event of
leaks (or operator error)
•To rotate the wheels use the rims with tyres fitted, ensuring that the retaining
nuts are properly tight.
•Otherwise, use the specific counterweights supplied by Lamborghini, always
fixed with the single fixing nut properly tight.
•Absolutely do not rotate the gearbox and rear hubs without the wheels or the
counterweights: this could cause serious damage to people or property.
•During this procedure, it is essential that people should be at a due distance
and in safety to avoid serious damage to people or property.
Gbox Warm-up
Inserire icone Sicurezza vers. USA
-60° coolant temp minimum
-ABS knob pos 1: ABS OFF
-Drive in all gears from 1 to 6 (remember to use the clutch just to engage and
disengage 1st gear)
-Spinning wheels by high gears create a little load on the transmission by brake
pedal
-At the end to complete the right procedure remember to do a power recycle for
ABS, switching off the power by the master switch and increase the ABS knob
position.
-Red led ABS stays on even you roll the wheels driving on the pit road
-If the warning is still on after pitlane take care, slow down, because ABS probably
doesn’ t work.

-12-
Huracán ST - Ignition –Warm-up
Vehicle Introduction
® Automobili Lamborghini S.p.A.
The procedures and information published herein are strictly confidential and are intended exclusively for recognized professionals and persons who are authorized to receive said
information. All copyrights are the property of Automobili Lamborghini S.p.A pursuant to copyright law. All PDF chapters comprising the WEB workshop manuals described herein are based
on information that were available at the time of publication. The company reserves the right to make updates and modifications as needed. The reprinting, reproduction, distribution to
unauthorized persons and/or to third parties, and the partial or complete translation of the material contained herein are prohibited without the express written consent of Automobili
Lamborghini S.p.A. Huracán ST
Engine Warm-up
Inserire icone Sicurezza vers. USA
•Activate main battery switch.
•Activate the ECU button. (the green LED lights up)
•Position the ABS switch in position 1ABS OFF. This will light up both the warning
light on the dashboard and an alarm light, also on the dashboard.
•Hold down the start button until you see the engine oil pressure on the dashboard
rise to about 2 bar.
•Press the ignition button. (the green LED lights up)
•Press the start button (don't push accelerator pedal) until the engine starts, and
then release it.
•Bring the H2O temperature displayed on the dashboard up to about 40°.
•Engage first gear and all the others until you reach 6th gear (see "Safety
precautions to be taken as the car warms up").
•Run the engine with 6th gear engaged until the H2O temperature reaches 90°.
•Take the transmission back into neutral.
•Switch the car off by pressing the Ignition button again.
•After warming up the gearbox, perform a power cycle and move the rotary switch to
the position required for track use (from 2 to 12).
•The alarm light will remain on until 12 km/h is reached on all 4 wheels. When this
consistency check has been passed, the light will turn off.
IMPORTANT:
Alla fine di ogni gara eseguire sempre:
•Check engine oil level
•Empty the catch tank everyday.

-13-
Huracán ST - Pre-race Checks
Vehicle Introduction
® Automobili Lamborghini S.p.A.
The procedures and information published herein are strictly confidential and are intended exclusively for recognized professionals and persons who are authorized to receive said
information. All copyrights are the property of Automobili Lamborghini S.p.A pursuant to copyright law. All PDF chapters comprising the WEB workshop manuals described herein are based
on information that were available at the time of publication. The company reserves the right to make updates and modifications as needed. The reprinting, reproduction, distribution to
unauthorized persons and/or to third parties, and the partial or complete translation of the material contained herein are prohibited without the express written consent of Automobili
Lamborghini S.p.A. Huracán ST
PRE-RACE CHECKS
Pre-Race Checks to Perform
Mechanics
Brake Pads Check
Brake Discs Check
Suspension tightening fixing Check and Tightening torques
Gearbox and engine support Check and Tightening torques
Brake pipes Check
Clutch Check
Air filters Cleaning
Engine oil filter Replace at oil change
Gearbox oil filter Check at every 1500 km and replace 6000 km
Liquids
Engine oil Level
Gearbox oil Level
Power steering oil Level
Brake oil Level
Water Level

-14-
Huracán ST - Pre-race Checks
Vehicle Introduction
® Automobili Lamborghini S.p.A.
The procedures and information published herein are strictly confidential and are intended exclusively for recognized professionals and persons who are authorized to receive said
information. All copyrights are the property of Automobili Lamborghini S.p.A pursuant to copyright law. All PDF chapters comprising the WEB workshop manuals described herein are based
on information that were available at the time of publication. The company reserves the right to make updates and modifications as needed. The reprinting, reproduction, distribution to
unauthorized persons and/or to third parties, and the partial or complete translation of the material contained herein are prohibited without the express written consent of Automobili
Lamborghini S.p.A. Huracán ST
PRE-RACE CHECKS
Pre-Race Checks to Perform
Mechanics
Brake Pads Check
Brake Discs Check
Suspension tightening fixing Check and Tightening torques
Gearbox and engine support Check and Tightening torques
Brake pipes Check
Clutch Check
Air filters Cleaning
Engine oil filter Replace at oil change
Gearbox oil filter Check at every 1500 km and replace 6000 km
Liquids
Engine oil Level
Gearbox oil Level
Power steering oil Level
Brake oil Level
Water Level

-15-
Huracán ST - Mileage Checks
Vehicle Introduction
® Automobili Lamborghini S.p.A.
The procedures and information published herein are strictly confidential and are intended exclusively for recognized professionals and persons who are authorized to receive said
information. All copyrights are the property of Automobili Lamborghini S.p.A pursuant to copyright law. All PDF chapters comprising the WEB workshop manuals described herein are based
on information that were available at the time of publication. The company reserves the right to make updates and modifications as needed. The reprinting, reproduction, distribution to
unauthorized persons and/or to third parties, and the partial or complete translation of the material contained herein are prohibited without the express written consent of Automobili
Lamborghini S.p.A. Huracán ST
SET-UP VETTURA (Cambiare intestazione)
Ammortizzatori
In aggiornamento
Ride Height
No sprung part of the car (chassis, bodywork, mechanical parts, etc.) is permitted
lower than the underfloor.
Minimum height Front and Rear: 75mm
At any time, it must be possible to check the static minimum height of the car
measured at the positions shown below:
FRONT REAR

-16-
Huracán ST - Mileage Checks
Vehicle Introduction
® Automobili Lamborghini S.p.A.
The procedures and information published herein are strictly confidential and are intended exclusively for recognized professionals and persons who are authorized to receive said
information. All copyrights are the property of Automobili Lamborghini S.p.A pursuant to copyright law. All PDF chapters comprising the WEB workshop manuals described herein are based
on information that were available at the time of publication. The company reserves the right to make updates and modifications as needed. The reprinting, reproduction, distribution to
unauthorized persons and/or to third parties, and the partial or complete translation of the material contained herein are prohibited without the express written consent of Automobili
Lamborghini S.p.A. Huracán ST
Motio ratio
FRONT: 1 complete pushrod rotation (360°) = 1,54mm variation on ride height
REAR: 1 complete pushrod rotation (360°) = 1,14mm variation on ride height
AVAILABLE SPRING RATE:
250Nm –270Nm –290Nm –310Nm –330Nm
It will not be possible to remove, add, cut or modify the bump stop!

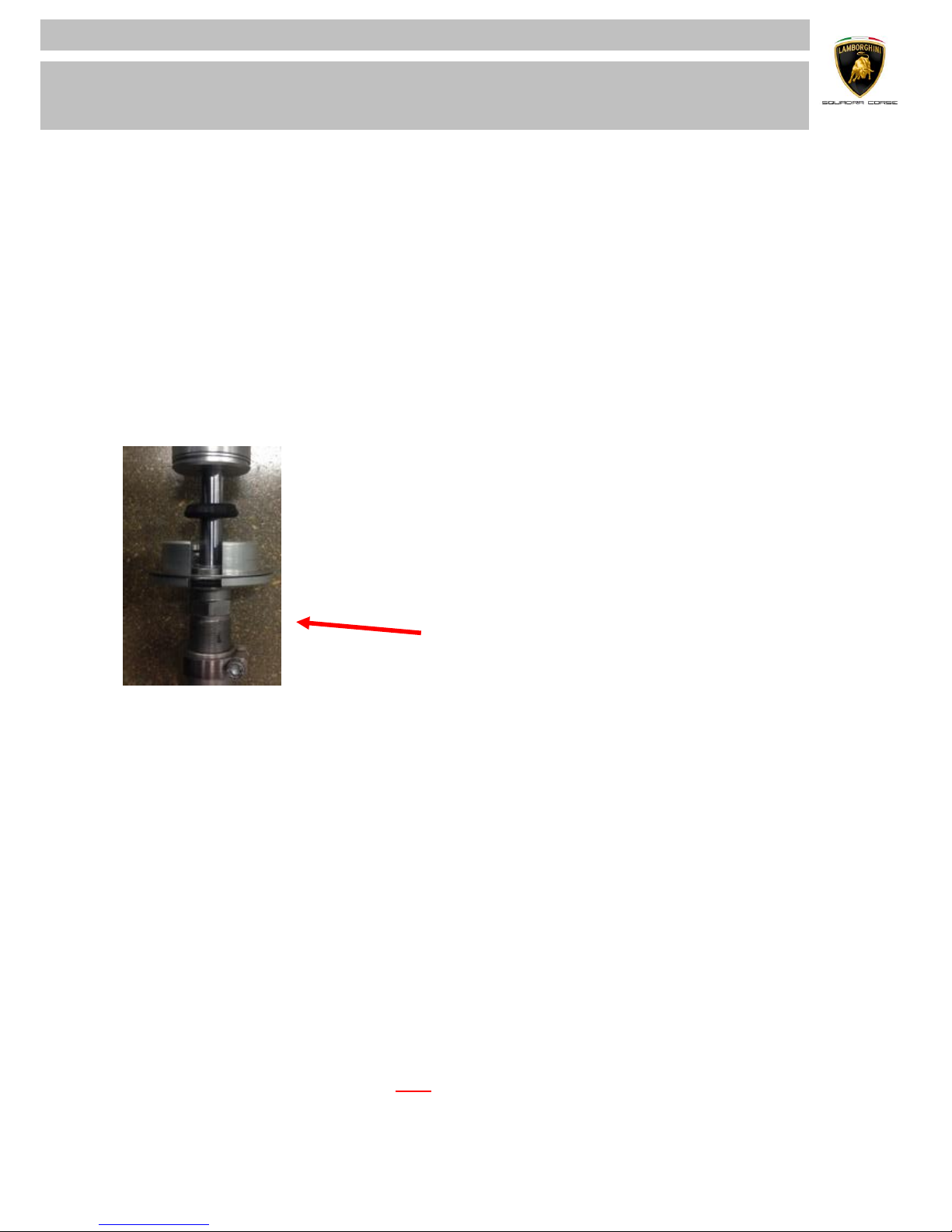

length pushrod
Camber adjustment
Under no circumstances the Camber shall exceed the maximum values of:
Front: 0° up to -3,0° (tolerance +/- 5’)
Rear: 0° up to -3,5° (tolerance +/- 5’)
It is also allowed to adjust the camber, within the permitted limit values, by adding
and removing the steel spacers, only between the suspension upper levers and the
frame.
Variation: 4mm of shims upper levers (front/rear) = 1° of camber

-17-
Huracán ST - Mileage Checks
Vehicle Introduction
® Automobili Lamborghini S.p.A.
The procedures and information published herein are strictly confidential and are intended exclusively for recognized professionals and persons who are authorized to receive said
information. All copyrights are the property of Automobili Lamborghini S.p.A pursuant to copyright law. All PDF chapters comprising the WEB workshop manuals described herein are based
on information that were available at the time of publication. The company reserves the right to make updates and modifications as needed. The reprinting, reproduction, distribution to
unauthorized persons and/or to third parties, and the partial or complete translation of the material contained herein are prohibited without the express written consent of Automobili
Lamborghini S.p.A. Huracán ST
MILEAGE-BASED CHECKS
Components mileage
Brake Caliper 4000 km (overhaul)
Brake bells 2500 km
Hub transmission pin 2500 km
Hub 8000 km
Wheel bearing 4000 km
Dampers 4000 km (overhaul A)
Dampers 6000 km (overhaul B)
Suspension Bushes 7000 km
Suspension ball joint 7000 km
Wheel nut 4000 km
Engine silent block 4000 km
Gearbox silent block 4000 km
Gearbox 3500 km (minor overhaul)
Gearbox 10000 km (main overhaul)
EGA 5000 km
Engine 10000 km
Sostituzione Dischi frizione 3500 Km

-18-
Huracán ST - Fluids and Quantities Table
Vehicle Introduction
® Automobili Lamborghini S.p.A.
The procedures and information published herein are strictly confidential and are intended exclusively for recognized professionals and persons who are authorized to receive said
information. All copyrights are the property of Automobili Lamborghini S.p.A pursuant to copyright law. All PDF chapters comprising the WEB workshop manuals described herein are based
on information that were available at the time of publication. The company reserves the right to make updates and modifications as needed. The reprinting, reproduction, distribution to
unauthorized persons and/or to third parties, and the partial or complete translation of the material contained herein are prohibited without the express written consent of Automobili
Lamborghini S.p.A. Huracán ST
FLUIDS –QUANTITIES TABLE
Fluids
All Competitors must only use the following lubricants for the related parts, namely:
Engine Oil CASTROL EDGE SPORT 10W60 9 L (dry)
Gearbox Oil CASTROL SYNTRAX LONGLIFE 75W90 2.7 L (dry)
Brake System Oil CASTROL SRF or BREMBO HTC64T 1.5 L (dry)
Hydraulic Power
Steering Oil LIQUI MOLY ATF III 1 L (dry)
Cooling system WATER approx. 19L +
+ 5% WATER WETTER (2 bottles)

-19-
Huracán ST - Center Console Controls + Fire Extinguisher
Vehicle Introduction
® Automobili Lamborghini S.p.A.
The procedures and information published herein are strictly confidential and are intended exclusively for recognized professionals and persons who are authorized to receive said
information. All copyrights are the property of Automobili Lamborghini S.p.A pursuant to copyright law. All PDF chapters comprising the WEB workshop manuals described herein are based
on information that were available at the time of publication. The company reserves the right to make updates and modifications as needed. The reprinting, reproduction, distribution to
unauthorized persons and/or to third parties, and the partial or complete translation of the material contained herein are prohibited without the express written consent of Automobili
Lamborghini S.p.A. Huracán ST

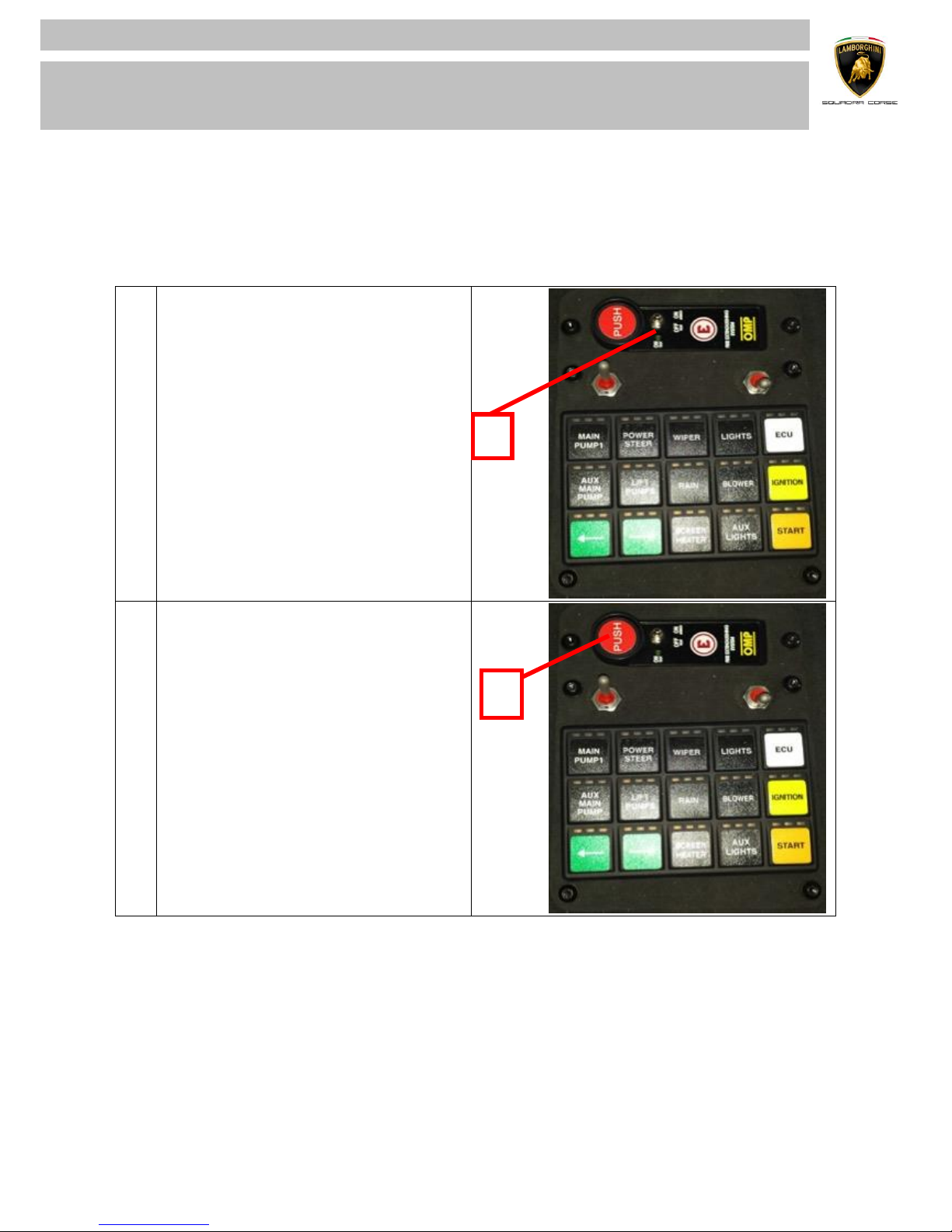

FIRE EXTINGUISHER + CENTER CONSOLE CONTROLS
(SWITCH PANEL)
DESCRIPTION
1
FIRE EXTINGUISHER SWITCH
ON –Activates Red Button
OFF - Deactivates Red Button
2
FIRE-EXTINGUISHER BUTTON
When pressed with switch 1 in the ON
position, this activates the fire
extinguisher
When pressed with switch 1 in the
OFF position, this checks the correct
operation of the system (the red LED
comes on)
1
2

-20-
Huracán ST - Center Console Controls + Fire Extinguisher
Vehicle Introduction
® Automobili Lamborghini S.p.A.
The procedures and information published herein are strictly confidential and are intended exclusively for recognized professionals and persons who are authorized to receive said
information. All copyrights are the property of Automobili Lamborghini S.p.A pursuant to copyright law. All PDF chapters comprising the WEB workshop manuals described herein are based
on information that were available at the time of publication. The company reserves the right to make updates and modifications as needed. The reprinting, reproduction, distribution to
unauthorized persons and/or to third parties, and the partial or complete translation of the material contained herein are prohibited without the express written consent of Automobili
Lamborghini S.p.A. Huracán ST
3
ABS SWITCH
Activates/deactivates the ABS ECUs
(Reset)
4
POWER SUPPLY SWITCH
Activates/deactivates the vehicle
power supply
5
CONTROL UNITS BUTTON
Activates/deactivates the power
supply to all ECUs
3
4
5
