Microwave Oven LAM7200
User Instructions and Installation
ISSUE v1.0 290622
l Please read this User & Installation Manual to ensure safe tting and use of the appliance.
l The appliance should be tted by a suitably competent and qualied person.
l Please keep these instructions in a safe place for future reference.
l Danger of suffocation, keep packaging material away from children.

www.howdens.com
Microwave Oven LAM7200
2

Instructions and Installation
3
Welcome
Dear customer,
Congratulations on your choice of microwave oven.
This user and installation manual will help you use your product quickly and safely.
• Please read this manual before installing and using the microwave.
• Always follow the safety instructions.
• Keep this manual within easy reach for future reference.
• Register your appliance to access a digital copy of your user and installation
manual for future reference.
• Please read any other documents supplied with the product.
The CE & UKCA marks on this product, confirm compliance to all relevant
UK & European safety, health & environmental requirements which are
applicable in legislation for this product.

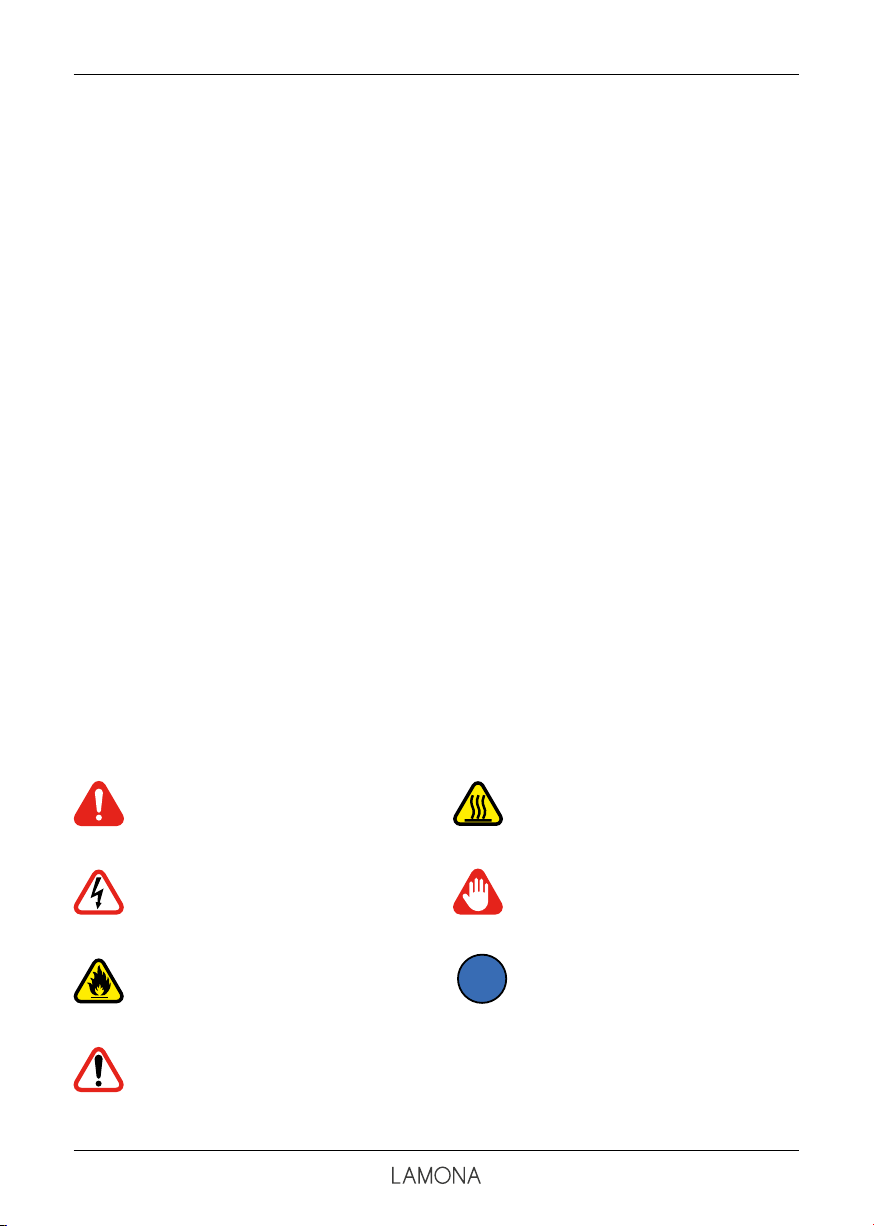

Throughout this manual the following symbols are used.
i
Warning for serious injury or
death risk.
Warning, possible injury or
property damage risk.
Warning, hot surfaces.
Surface temperature may rise
above
60°C.
Important note for operating the
system correctly. and safely.
Warning for electric shock.
Warning for risk of re /
inammable materials.
Important information or useful
usage tips.

www.howdens.com
Microwave Oven LAM7200
4
Contents
1. Warnings & safety information 5
Intended application 5
General safety 5
Safety with children 7
Electrical safety 7
Safety in use 8
Precautions to avoid possible exposure
to excessive microwave energy 9
2.Microwave cooking - a general
guide 9
Defrosting meat, poulty and fish 10
Defrosting butter and gateau 10
Defrosting ready meals 10
Cookware you can use... 11
Avoid using these materials 11
3. Microwave and accessories 12
Microwave and accessories 12
Turntable installation 12
4. Control Panel 13
Control panel and display 13
5. Before first use 13
Clean and setting the clock 13
6. Microwave cooking 14
Select the power setting 15
Set the cooking time 15
Quick start 15
Defrost by weight 15
Defrost by time 17
Kitchen timer 17
Auto menu 18
2 stage cooking 19
Enquire function 20
Child lock 20
7. Trouble shooting 20
Observations that are normal 20
Problem, cause and remedy 20
8. Care & maintenance 22
Cleaning the cooking compartment 22
Door contact surfaces and
neighbouring parts 22
Cleaning the accessories 23
Utensils test 23
Service 23
9. Installation 23
Electrical connections 24
Built-in furniture 24
Minimum installation height 25
Mounting the microwave 25
Cabinet dimensions 25
Exhaust venting and service void 26
10. Technical Specifications 27
Rated voltage 27
Rated input power 27
Rated output power 27
Oven capacity 27
Turntable diameter 27
External dimensions 27
Net weight 27
11. Environmental Care 28
Disposing of your old appliance 28
12. Your Guarantee 29

Instructions and Installation
5
1. Warnings & safety information
Please read these instructions.
The manufacturer is not
responsible if an incorrect installation
and / or improper use causes injury and
/ or damage. Failure to follow these
instructions shall void any warranty.
• Please take care when installing,
maintaining, cleaning and operating
the microwave.
WARNING: Misuse may create a
fire hazard.
• Keep these instructions in a safe and
accessible place for future reference.
Intended application
This microwave is intended for use in
household and domestic applications
such as...
• staff kitchen areas in shops ,offices
and other working environments;
• use by clients in hotels, and...
• other residential type environments.
• Farm houses and bed and breakfast
type environments.
This microwave is not intended for
outdoor or commercial use.
• The microwave may be used by
people with reduced physical,
sensory or mental capabilities, or
lack of experience or knowledge, if
they are supervised whilst using it or
have been shown how to use it safely
and recognise and understand the
consequences of incorrect operation.
• See guarentee for definition of
domestic use.
General safety
This microwave is intended for
heating food and beverages only.
Drying of food or clothing and
heating of warming pads, slippers,
sponges, damp cloths and similar
may lead to risk of injury, ignition
or fire.
Only a suitably qualified person
must install this appliance or
replace the mains cable.
WARNING! Accessible parts may
become hot during use.
Always use oven gloves to
remove or put in accessories or
oven-ware.
Do not heat liquids and other foods in
sealed containers. They are liable to
explode.

www.howdens.com
Microwave Oven LAM7200
6
Microwave heating beverages can
result in delayed eruptive boiling.
Care must be taken when handling
the liquids’ container.
Contents of feeding bottles and
baby food jars must be stirred
or shaken and the temperature
checked before consumption, in
order to avoid burns.
Eggs in their shell and whole hard-
boiled eggs should not be heated
in the microwave since they may
explode, even after microwave
heating has ended.
Only use utensils that are suitable
for use in microwave ovens.
When heating food in plastic or
paper containers, monitor the
appliance due to the possibility of
ignition.
If smoke is emitted, swith off or
unplug the appliance. Keep the
door closed in order to stifle any
flames.
Before carrying out any
maintenance, disconnect the
appliance from the power supply.
Ensure that the appliance is
switched off before replacing the
lamp to avoid the possibility of
electric shock.
If the mains power supply cable
is damaged, it must be replaced
by the manufacturer, Authorised
Service Centre or similarly
qualified persons to avoid
electrical hazard.
Do not use the appliance when it
is empty. Metal parts inside the
cooking compartment can create
arcing and damage the oven.
Metalic containers for food and
beverages must not be used
for microwave cooking.(This
requirement is not applicable if
the manufcaturer specifies size
and shape of metallic containers
suitable for microwave cooking).
WARNING: If the door or door seals
are damaged, the appliance must
not be operated until it has been
repaired by a qualified person.
Only a qualified person can
carry out any service or repair
operation that involves the
removal of a cover that gives
protection against exposure to
microwave energy.
Do not attemt to use the appliance
with the door open. This can result
in harmful exposure to microwave
energy. DO NOT tamper or break
the safety interlocks.
If the appliance is not maintained
in a good state of cleanliness,
its surfaces could degrade and
affect the lifespan of the product
and may lead to malfunction.
Do not place any object between
the oven front face and door or
allow soiling or cleaning residue
to accumulate on these closing,
sealing surfaces.

Instructions and Installation
7
Safety with children
This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand the
hazards involved.
Children aged 3 years and under
must be kept away at all times
from the appliance when it is in
operation.
• Children must not be allowed to
clean or maintain the microwave
unsupervised.
• The appliance is not to be used
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been
given supervision or instruction.
• Please supervise children in the
vicinity of the microwave and do not
let them play with it.
• Please keep all packaging away
from children and dispose of it
appropriately.
This appliance has a child safety
device, Please use when required.
Keep children and pets away from
the appliance when it operates or
when it cools down. Accessible
parts may be hot.
Electrical safety
Touching some of the internal
components can cause serious
personal injury or death.
WARNING: Do not disassemble
this appliance. Improper use
of the grounding can result in
electric shock.
Grounding
• The appliance must be grounded. In
the event of an electrical short circuit
grounding reduces the risk of electric
shock by providing an escape wire for
the electric current.
• Only connect the microwave to a
grounded outlet/line with the voltage
and protection as specified in the
“Technical Specifications” on page 27.
Power cord & extensions
• This appliance is equiped with a
power cord, having a grounding wire
with a grounding plug.
The plug must be plugged
into an outlet that is properly
installed and grounded.

www.howdens.com
Microwave Oven LAM7200
8
• If it is necessary to use an extension
cord, use only a 3-wire extension cord.
• A short power-supply cord is provided
to reduce the risks resulting from
becoming entangled in or tripping
over a longer cord.
If a long cord set or extension cord
is used:
• The marked electrical rating of the
cord set or extension cord should
be at least as great as the electrical
rating of the appliance.
The extension cord must be a
grounded-type 3-wire cord.
• The long cord should be arranged so
that it will not drape over the counter
top or tabletop where it can be pulled
on by children or tripped over.
Safety in use
Use oven gloves when placing or
removing cookware.
Do not operate the appliance when
it is empty.
The appliance and its accessible
parts may become hot during
use. Take care when removing or
installing accessories.
If the microwave is mounted at
height, take care removing hot
cookware, especially with liquids.
Open the door carefully. Use of
ingredients containing alcohol
can come into contact with hot
surfaces or mix with air and ignite.
Take care when opening the door,
hot air / steam may be released.
Do not operate the appliance
with wet hands or if it has been in
contact with water.
Do not put flammable products or
items that are wet, in or near the
microwave.
Ensure ventilation openings are
clear from blockage.
Set the timer to 0 after each
use to prevent the microwave
operating when empty.
• Do not use the microwave function to
pre-heat the oven.
• Do not leave the appliance
unattended during operation.
• Do not put pressure on the appliance
door when it is open.
• Do not let sparks / open flames come
in contact with the microwave when
you open the door.
• Do not put aluminium foil directly
under the appliance.
• Do not put water directly into the hot
appliance.

Instructions and Installation
9
• Do not keep moist dishes and food
in the appliance after you have
finished cooking.
Precautions to avoid
possible exposure to
excessive microwave
energy
Do not attempt to operate
this oven with the door open
since this can result in harmful
exposure to execessive
microwave radiation.
Do not place any object
between the oven front face
and door or allow soiling or
cleaning residue to accumulate
on these closing, sealing
surfaces.
WARNING: If the door or door
seals are damaged the oven must
not be operated until it has been
repaired by a competent person.
If the appliance is not
maintained in a good state of
cleanliness, its surface could be
degraded which may affect the
lifespan of the product and lead
to malfunction.
2.Microwave cooking,
a general guide
Remove aluminum foil packaging
from metal containters, etc. before
you prepare the food for heating.
• Put the food on a plate on the
turntable unless specified differently.
• After cooking let food stand for some
time.
• If possible, always stir the food before
serving.
• Where possible, cook food covered
with material suitable for microwave
use. Only cook food without a cover if
you want to keep a crust.
• Do not overcook dishes by setting the
power and time too high. The food
can dry out, burn or catch fire.
• Do not use the appliance to cook eggs
in their shells, as thet can explode.
With fried eggs, pierce the yolks first.
• Pierce skin or peel potatoes,
tomatoes, sausages and similay
types of food with a fork, several
times before cooking to prevent food
bursting open.
• For chilled/frozen food, set a longer
cooking time at a lower power.

www.howdens.com
Microwave Oven LAM7200
10
• Dishes containing sauce must be
stirred from time to time.
• Turn larger pieces of food over after
half the cooking time.
• If possible, cut vegetables into similar
sized pieces.
• Use flat, wide dishes.
Do not use cookware made of
porcelain, ceramic or earthenware
with unglazed bottoms, or small
holes for example on handles.
Moisture can penetrate the
holes and cause the cookware
to become very hot and possibly
crack.
iDefrosting meat, poultry & fish:
• Put the frozen,unwrapped food on a
small upturned plate with a container
below it or on a defrosting rack or
plastic sieve so that the defrosting
liquid can run off.
• Turn the food after half the defrosting
time. If possible divide and then
remove pieces that have started to
defrost.
iDefrosting butter & portions of
gateau:
• Do not fully defrost in the appliance,
but let them defrost completely
at room temperature. This gives a
more even result. Remove all metal
or aluminium packaging or parts
before defrosting.
iDefrosting fruit & vegetables:
• If fruit and vegetables are not to
be cooked completely, do not defrost
them fully in the microwave but
let them defrost completely at room
temperature.
• To cook fruit and vegetables without
defrosting them first, you can use a
high microwave power.
Ready meals:
Ready meals in metal packaging
or plastic trays with metal covers
can only be defrosted or heated
in the microwave if they are
expressly designated as suitable
for use in the microwave.
You must follow the manufacturer’s
instructions printed on the
packaging (e.g. remove cover /
pierce the plastic film).
i

Instructions and Installation
11
Utensils Remarks
Browning dish Follow manufacturer’s instructions. The bottom of a browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the
turntable to break.
Dinnerware Microwave-safe only. Follow the manufacturer’s instructions. Do not use
cracked or chipped dishes.
Glass jars Always remove the lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Oven cooking
bags
Follow manufacturer’s instructions. Do not close with metal tie.
Make slits to allow steam to escape.
Paper plates/cups Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a
short-term cooking only.
Parchment paper Use as a cover to prevent splattering or a wrap for steaming.
Plastic Microwave-safe only. Follow the manufacturer’s instructions. These should be
labelled “Microwave Safe”. Some plastic containers soften, as the food inside
gets hot. “Boiling bags” and tightly closed plastic bags should be slit, pierced
or vented as directed by the product instructions.
Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture.
Do not allow the plastic wrap to touch food.
Thermometers Microwave-safe only.
Wax paper Use as a cover to prevent splattering and retain moisture.
Utensils Remarks
Aluminium tray /foil May cause arcing. Transfer food into a microwave-safe dish.
Food carton with metal handle May cause arcing. Transfer food into a microwave-safe dish.
Metal or metal-trimmed
utensils
Metal, shields the food from microwave energy. Metal trim may
cause arcing.
Metal twist ties May cause arcing and could cause a re in the oven.
Paper bags May cause a re in the oven.
Plastic foam Plastic foam may melt or contaminate the liquid inside when
exposed to high temperature.
Wood Wood, will dry out when used in the microwave oven and may
split or crack.
Cookware you can use in the microwave
Avoid using these materials

www.howdens.com
Microwave Oven LAM7200
12

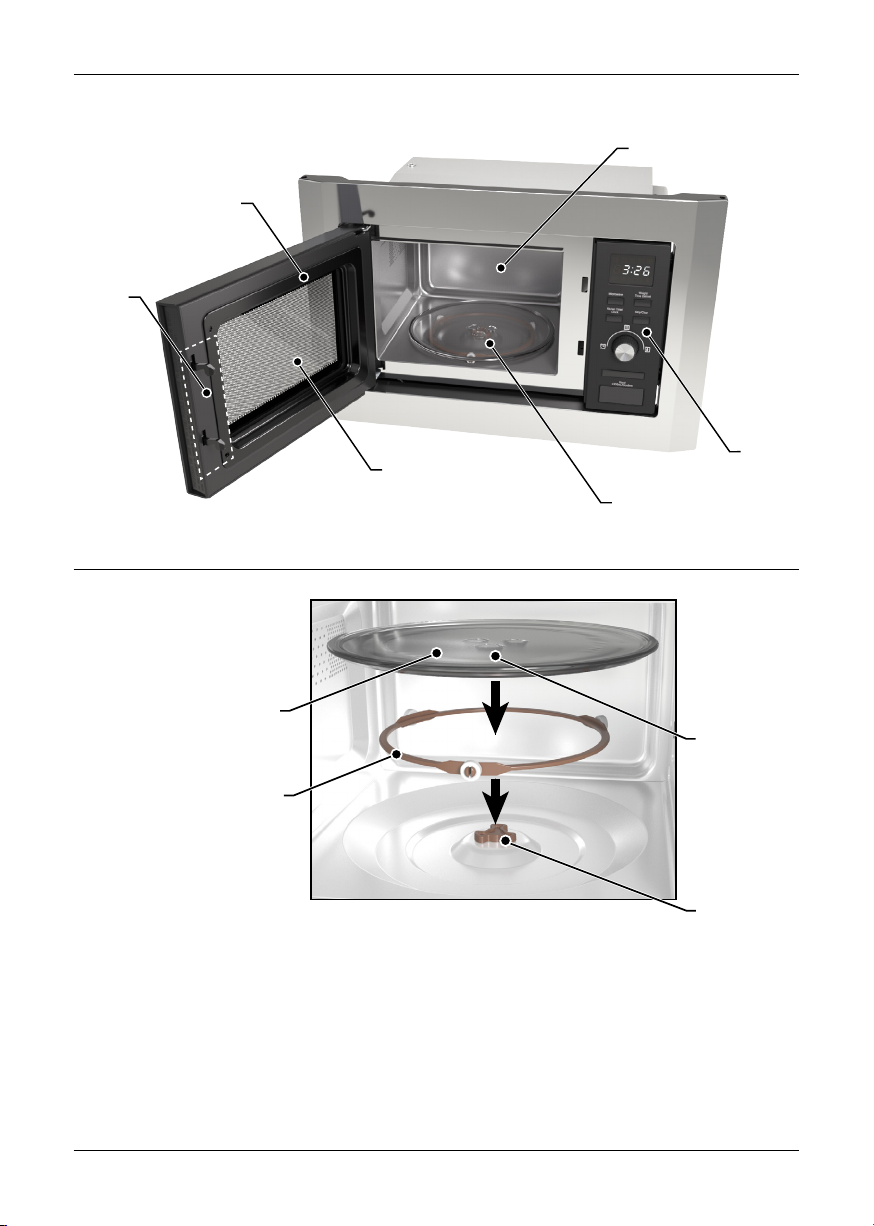

3.Microwave and accessories
Control
Panel
Glass Tray
Door Assembly
Observation
Window
Safety
Interlock
System
Cooking Compartment
Door Open Button
(Interlock Release)
Start / Confirm
Repeated presses of this
button while cooking increases
cooking time in 30 seconds
increments.
Rotary Selector Dial
Auto Menu functions
A1 - A-8.
It also allows for
rapid input of
weight/time.
Digital Display
Stops cooking or
clears the current
input.
Pressing after cooking
initiates the child lock.
Provides access to the
kitchen timer alarm.
Use to set the clock when
first powered on.
Sets the microwave
power level (%).
Pressing while cooking shows the
current power setting.
Allows defrosting by
time or weight
Provides access to
multi-section cooking
functions.
Turntable Installation
• Never place the glass tray upside down. Its movement must not be restricted.
• Both glass tray & turntable ring assembly must always be used during cooking.
• All food & containers of food are always placed on the glass tray for cooking.
• If the glass tray or turntable ring assembly cracks or breaks, contact your nearest
authorised service centre.
Hub
(underside)
Glass
Tray
Turntable
Shaft
Turntable
Ring

Instructions and Installation
13
Door Open Button
(Interlock Release)
Start / Confirm
Repeated presses of this
button while cooking increases
cooking time in 30 seconds
increments.
Rotary Selector Dial
Auto Menu functions
A1 - A-8.
It also allows for
rapid input of
weight/time.
Digital Display
Stops cooking or
clears the current
input.
Pressing after cooking
initiates the child lock.
Provides access to the
kitchen timer alarm.
Use to set the clock when
first powered on.
Sets the microwave
power level (%).
Pressing while cooking shows the
current power setting.
Allows defrosting by
time or weight
Provides access to
multi-section cooking
functions.
4.Control Panel
5.Before first use
Please read the safety information on page 5 of this booklet.
Before using the microwave for the rst time, please clean the cooking
compartment and accessories.

www.howdens.com
Microwave Oven LAM7200
14
Setting the clock
The clock displays time in 24 hour format. It will not work if it is has not been
set at power on.
When the microwave is switched on, it will beep and display
1. Press twice....to select the clock function, (hour digits ash) .
2. Rotate ...........................................................to enter the hour (0 - 23) .
3. Press .................................to select minutes (minute digits ash)
4. Rotate ..............................................................to enter minutes (0-59)
5. Press again...................................... The time is set and displayed
During clock setting, pressing will revert the oven to its previous state.
6.Microwave Cooking
This microwave has 5 selectable
power settings.
i
i
Order Displayed Power
1 P100 100%
2 P80 80%
3P50 50%
4P30 30%
5P10 10%
Example
Example
Example
Example

Instructions and Installation
15
(A) Select the power setting
1. Press .......to access power setting The display ashes
2. Press repeatedly or rotate to cycle through the settings
3. Press to conrm the selected power setting.
The display stops ashing.
(B) Set the cooking time
4. Rotate ...................to set the cooking time, up to 95 minutes
5. Press again to start cooking.
Example: Cooking at 80% microwave power for 20 minutes...
Press once, then press again or use to
set . Press to conrm. The display stops ashing.
Use to set the time Press to start cooking.
Example
Example

www.howdens.com
Microwave Oven LAM7200
16
Quick start
• Quick start allows rapid selection of cooking time at 100% power.
• This function can only be used when the microwave is in a non-cooking state.
Method A
1. Press .......to start cooking (100% power)
2. Press again repeatedly to increase cooking time in 30 second
intervals (up to 95 minutes).
At any time during cooking or defrosting,
the cooking time can be increased in 30
second intervals by repeatedly pressing
the Start/+30Sec./Conrm button.
Method B
1. Turn ............................................. to set the cooking time.
2. Press to start cooking at 100% microwave power.
Defrost by weight
1. Press ............................................................The display shows
2. Rotate ...................to set the food weight (100 to 1000g)
Example
Example

Instructions and Installation
17
3. Press to start defrosting.
Defrost by time
1. Press twice..........................................The display shows
2. Rotate ..........to set the defrost time (up to 95 minutes)
3. Press to start defrosting.
NOTE: The defrost power is P30 and cannot be changed.
Kitchen timer
1. Press .......................................................the display shows
2. Rotate ......................to set the timer (up to 95 minutes)
3. Press to conrm the setting. The countdown will begin.
When the time has elapsed the display goes blank, the oven beeps 5 times
If the clock has been set, the display will show the current time.
Example
Example

www.howdens.com
Microwave Oven LAM7200
18
Auto menu
*Menu **Weight Display
Pizza 200g 200
400g 400
Meat
250g 250
350g 350
450g 450
Vegetable
200g 200
300g 300
400g 400
Pasta
50g (with 450 ml cold water) 50
100 g (with 800 ml cold water) 100
Potato
200g 200
400g 400
600g 600
Fish
250g 250
350g 350
450g 450
Beverage
1 cup (120 ml) 1
2 cups (240 ml) 2
3 cups (360 ml) 3
Popcorn
50g 50
100g 100

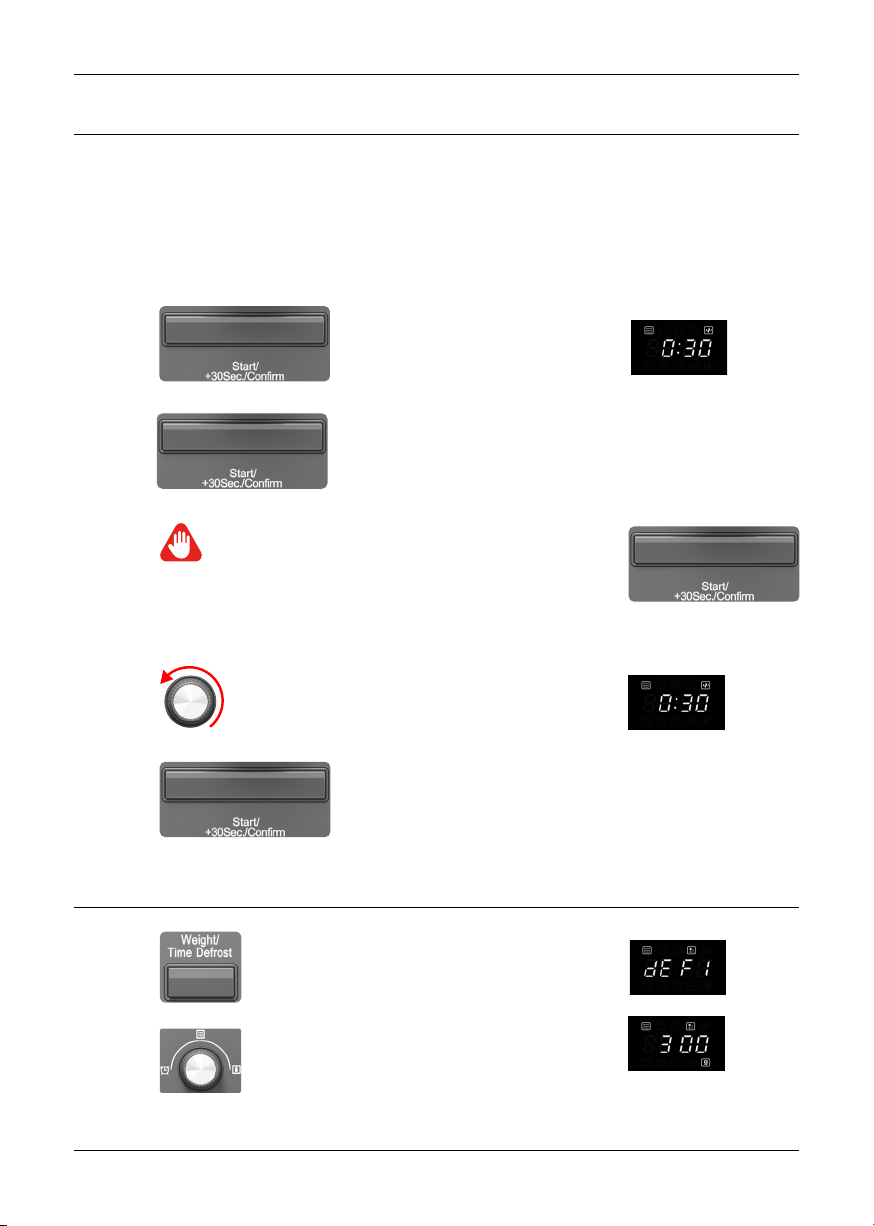

1. Rotate right to select a menu* .......
2. Press to conrm. Turn to choose the weight**
3. Press to start cooking.

Instructions and Installation
19

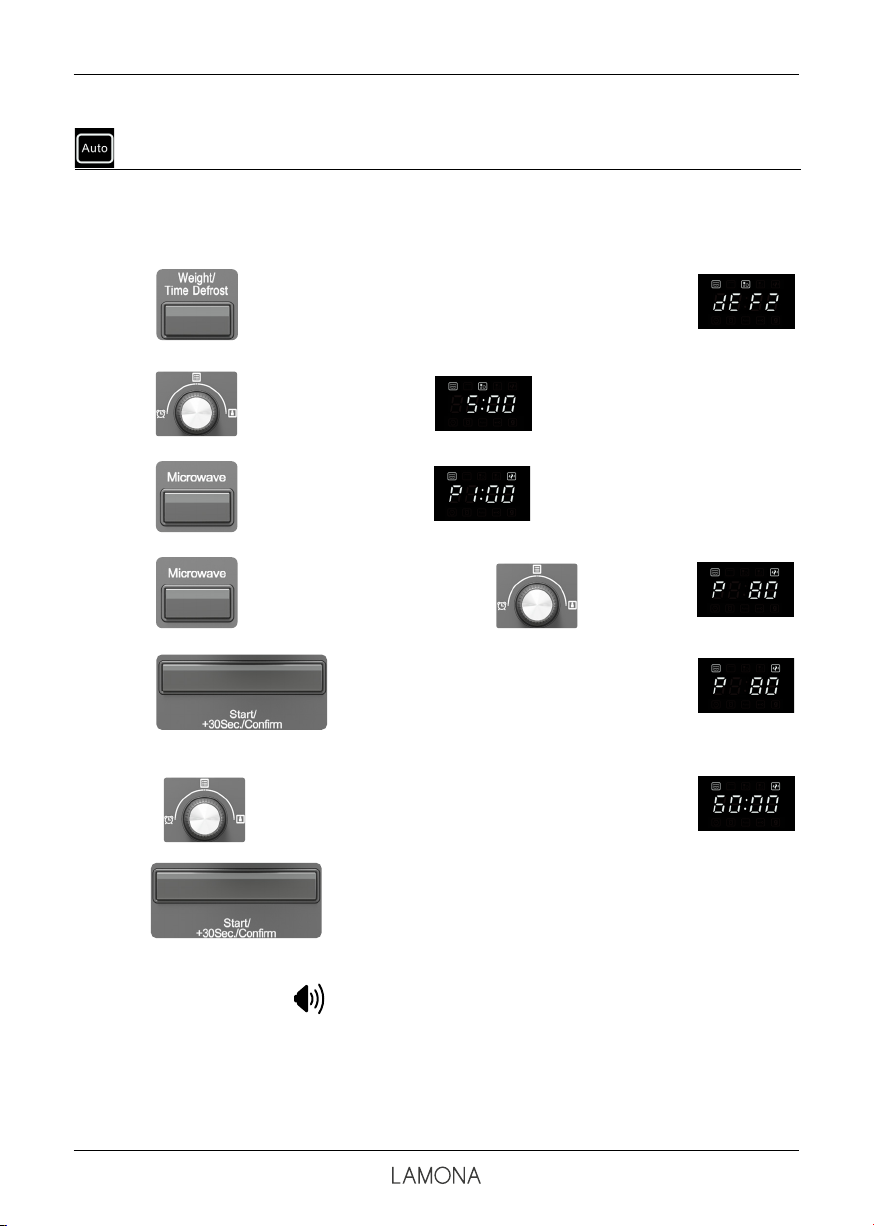

2 Stage cooking
This function allows a two stage cooking process. Defrost (1), then cook (2).
1. Press twice........................................................ the display shows
2. Turn to set the defrost time
3. Press , the display shows
4. Press again / repeatedly or rotate to set power
5. Press to conrm........ The display stops ashing
6. Rotate ....................to set the cooking time (up to 95 minutes)
7. Press to start cooking.
The microwave will beep at the start of each cooking stage.
Example
Example
Example

www.howdens.com
Microwave Oven LAM7200
20
Enquire function
While cooking, to show the current power setting:
Press ...The current power setting is displayed for 3 seconds
While cooking, to show the clock:
Press ........The current time (if set) is displayed for 3 seconds

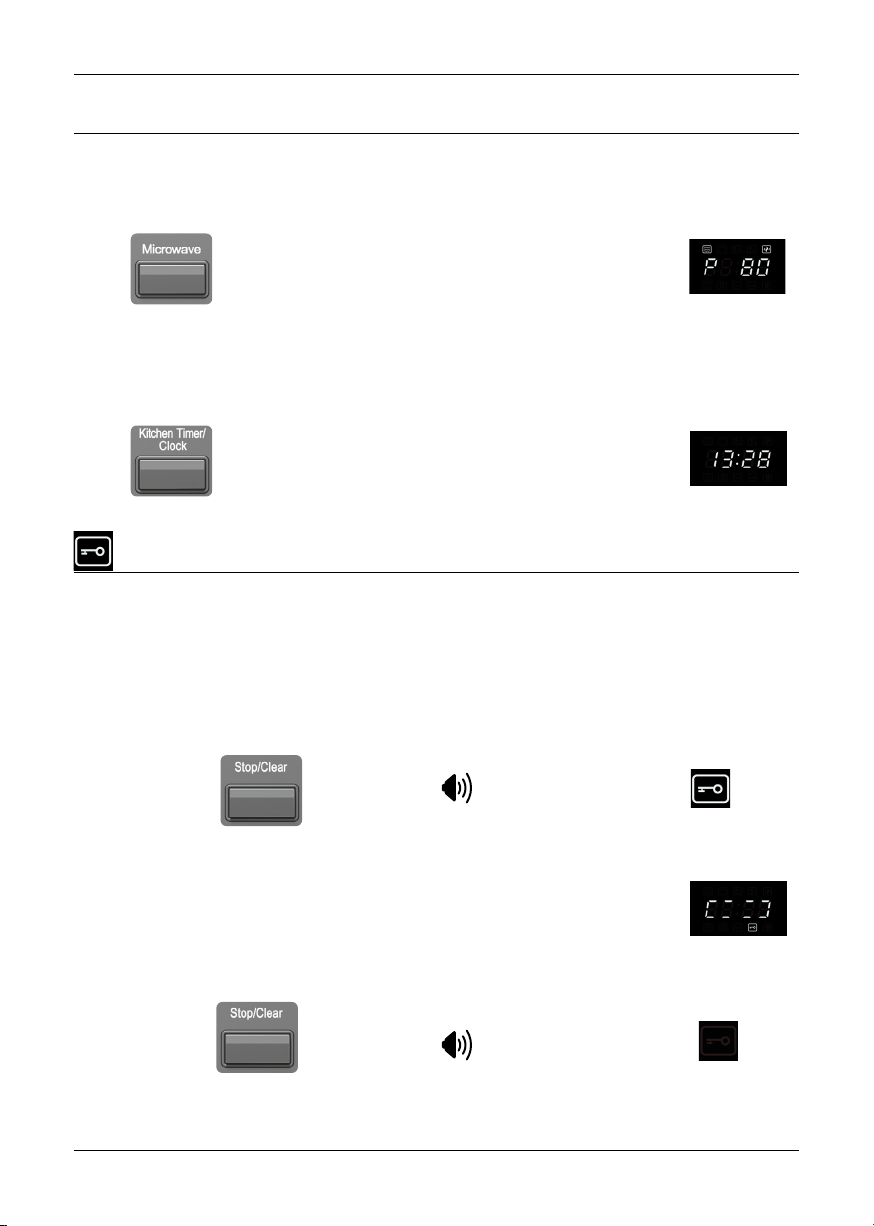

Child lock
The child lock function can be used prevent children operating of the microwave.
This function can only be used while the microwave is not cooking/defrosting.
To lock:
Press and hold for 3 seconds The lock icon appears
If the clock has been set, the current time is displayed.
If the clock has not been set the display shows..................................................
To unlock:
Press and hold for 3 seconds . the lock symbol goes off
Example
Example
