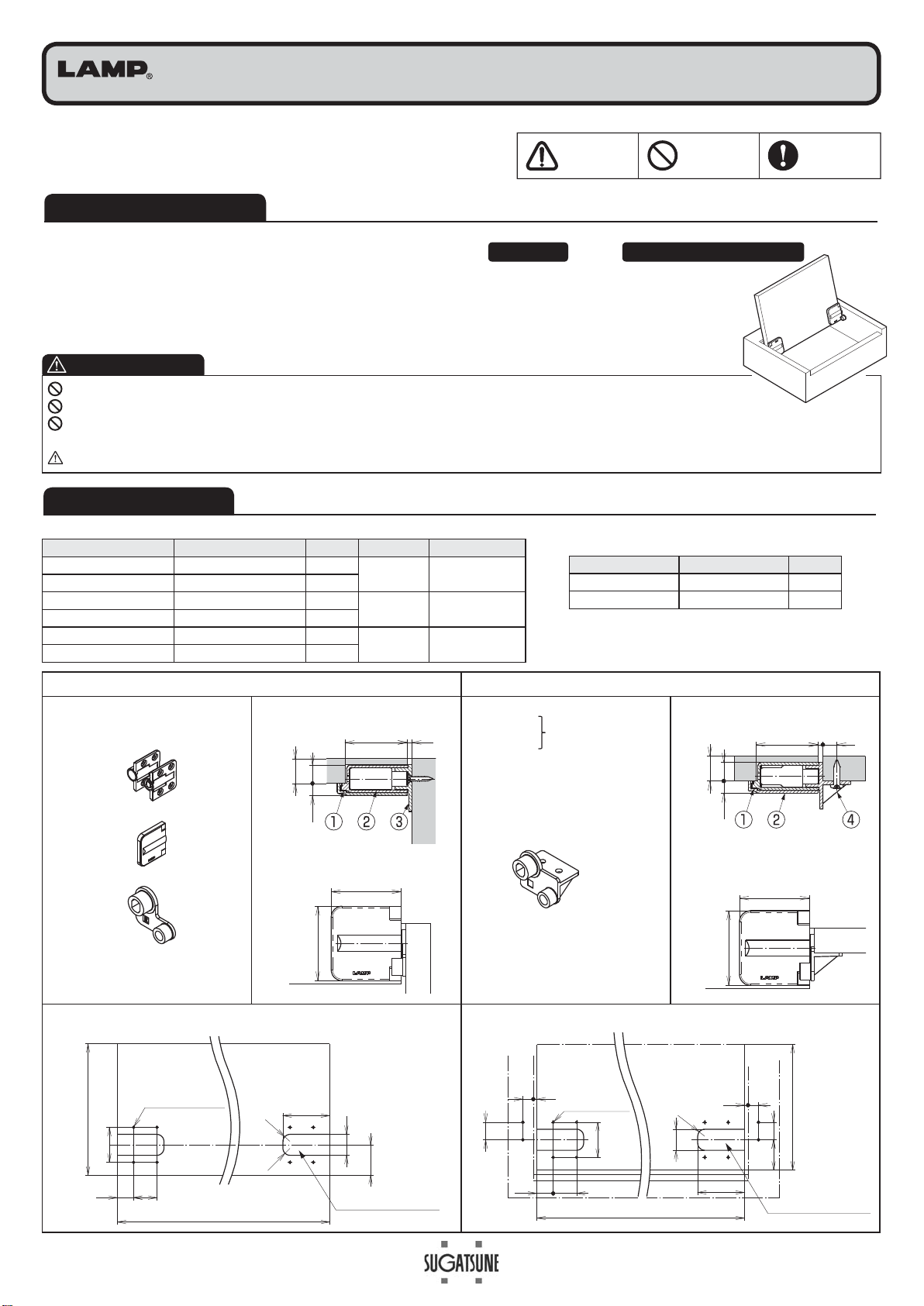

Lamp HG-JHM14 Service manual

1
Side-mounted type Rear-mounted Type
■Component Parts
①
Bracket with damper
・・・ 1 pc
Bracket
・・・ 1 pc
②Cover ・・・
2 pcs
③Side bracket
・・・
L/R 1 each
・
Screws (to be supplied by the user)
8 x M4 binding head screw
[0ÀDWFRXQWHUVXQNKHDGVFUHZ
Closed position (elevation view)
Opened position (90ﾟ)
■Component Parts
①Bracket
②Cover
Use the parts for Side-mounted
type
④Side bracket ・・・
L/R 1 each
(Sold separately)
・
Screws (to be supplied by the user)
12 x M4 binding head screw
Closed position (elevation view)
Opened position (90ﾟ)
Hole location of lid (Seen from rear) Hole location of lid (Seen from rear)
HG-JHM14 DAMPER HINGE INSTALLATION INSTRUCTIONS
Thank you for purchasing Sugatsune products.
5HDGWKHLQVWUXFWLRQVFDUHIXOO\¿UVWWRHQVXUHFRUUHFWLQVWDOODWLRQ
After reading the instructions and installing the product, keep this guide
at hand for easy reference at any time.
○Parts set of Side-mounted type
Order code Part No. Colour Torque N·m Colour of shaft hole
170-031-930 HG-JHM14-S-8BL Black 0.5 – 0.8 Purple
170-031-931 HG-JHM14-S-8WT White
170-031-932 HG-JHM14-S-15BL Black 0.8 – 1.5 Blue
170-031-933 HG-JHM14-S-15WT White
170-031-934 HG-JHM14-S-20BL Black 1.5 – 2.0 Green
170-031-935 HG-JHM14-S-20WT White
○Side bracket for Rear-mounted type
(sold separately)
Order code Part No. Colour
170-031-936 UKZ14-BL Black
170-031-937 UKZ14-WT White
※When making Rear-mounted type, order above parts
additionally.
In this guide, “left” refers to the left side when looking at the cabinet from the front.
PrecautionsforUse
This product is for indoor use only. Do not use outside or anywhere where it will be exposed to water.
'RQRWXVHIRUSXUSRVHVRWKHUWKDQWKHLQWHQGHGSXUSRVHRUIRUOLGVZLWKVSHFL¿FDWLRQVRWKHUWKDQWKRVHVKRZQKHUHLQ
Do not use excessive force to the damper as this may result in damage.
If the operating temperature increases, the door movement becomes quicker. If the temperature decreases, movement becomes slower. This is not a mechanical problem.
If the released angle is less than 60 degree, damper may not work properly.
The possibility of injury or property damage only is assumed.
●
Prohibited
Warning
Caution Required
Meaning of symbols
ABOUT THE PRODUCT
SPECIFICATIONS
40
12
7.8
16
3
45
48
40
12
7.8
16
39
45
48
Routing depth : 12
40
R6
R6
20
14
30
A
18
D
Hole for screw
W = Cabinet inner width measurement – 6 mm
Routing depth : 12
339 9
14 20 40
15
30
18
15A
D
Hole for screw
W = Cabinet inner width measurement – 6 mm
R6
●Use: dresser lids, conference table lids (for cable grommet), etc.
●Range of use:
Lids of a size and weight less than the damper torque (See the 6SHFL¿FDWLRQV table and Maximum Lid Torque Calculation)
●Operating temperature range: 0-40ﾟC
●Merits:・Damper hinge equipped with Lapcon: UDH-14, Appearance of butt hinge
 ・
Soft downward movement when released, Smooth movement when opening
 ・
Simple appearance thanks to the cover which hides screws
 ・
Mount hole can be drilled easily by router.

2

T=m×9.8×L
T
：
Maximum lid torque (N·m)
m
：
Lid weight (kg)
L
：
Distance from rotation centre to lid centre of gravity (m)
/ 'í$
D
：
Lid length (m)
A
：
Length of lid back from rotation centre (m)
(Recommended range for A: 26 to 30)
(Calculation example)
When D=0.18 m, A=0.026 m, m=0.96 kg
T=0.96 x 9.8 x (0.18/2-0.026)=0.6 (N·m)
Side-mounted Type Rear-mounted Type
1. Install the side brackets③.
※1 : The above shows the lid and frame height in an aligned
position when the lid is closed.
Be sure to install the left and right brackets correctly.
(The plates are marked L and R)
1. Install the side brackets④(sold separately).
Be sure to install the left and right brackets correctly.
(The plates are marked L and R)
2.Install the brackets①and lid 2.Install the brackets①and lid
・Above example shows the lid of 16 mm thickness.
・Make sure that the gap B when the lid is open is 1 mm or more.
・Provide a stopper to hold the lid at the closed position.
INSTALLATION EXAMPLE
MAXIMUM LID TORQUE CALCULATION
INSTALLATION PROCEDURE
SUGATSUNE KOGYO CO.,LTD
Tokyo, JAPAN
Phone: [phone] E-mail:[email protected]
SUGATSUNE KOGYO (UK) LTD
Reading, UK
Phone: [phone] E-mail:[email protected]
SUGATSUNE EUROPE GmbH
Dusseldorf, GERMANY
Phone: [phone] E-mail:[email protected]
SUGATSUNE SHANGHAI Co., LTD
Shanghai, CHINA
Phone: [phone] E-mail:[email protected]
Guangzhou, CHINA
Phone: [phone] E-mail:[email protected]
SUGATSUNE KOGYO INDIA PRIVATE LIMITED
Mumbai, INDIA
Phone: [phone] E-mail:[email protected]
SUGATSUNE AMERICA, INC
California, USA
Phone: [phone] E-mail:[email protected]
Chicago, USA
Phone: [phone] E-mail:[email protected].
SUGATSUNE CANADA, INC.
Phone: [phone] E-mail:[email protected]
2017.12 0899-4
A=26
（4）
D
L
19
13
3
15
(B = 1 mm gap or more)
（16）
m
Lid rotation centre
Stopper for lid when open
13
19
※1
15
Lid rotation centre
Stopper for lid when open
15
16
13
9
