Lancaster Water Treatment X FACTOR LX15 Series Service manual

PAGE 1
F I L T E R
™
Congratulations on purchasing your new Lancaster Water Filter. This unit is designed to give you
many years of trouble free service. For servicing and future inspection purposes, please le this
booklet with your important documents.
In the event that you need assistance for servicing your water softener, please rst contact the
professional contractor who installed the system.

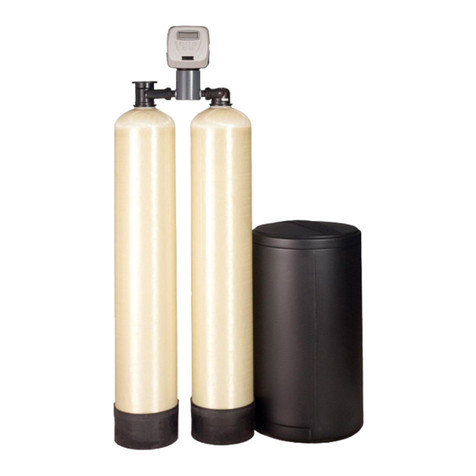

ELECTRONIC WATER SOFTENER WITH
THE X-FACTOR CONTROL VALVE
COMMERCIAL SERIES
LX15, LX2 & LX2QC
INSTALLATION, OPERATING AND
SERVICE MANUAL

PAGE 2
MODEL NO.
JOB SPECIFICATIONS
WATER TEST AT TIME OF INSTALLATION
Hardness CaCo3(gpg)
Iron (ppm)
pH
Other:
SIZING INFORMATION
All Water is Filtered Except:
Rear Hose Bib Front Hose Bib Kitchen Cold Toilets All Cold
Other
INSTALLATION DATE
SERIAL NUMBER
INSTALLER NAME PHONE
ADDRESS
TABLE OF CONTENTS
Job Specications ......................................................................................................................... 2
Inspection, Mineral Loading and Assembly ................................................................................... 3
Pre-Installation Review ................................................................................................................. 4
General Installation and Service Warnings .................................................................................. 4
Bypass Valve Operation ............................................................................................................... 5
Installation Instructions, Diagrams ................................................................................................ 6-9
Placing Filter into Service ............................................................................................................. 10
General Operation ........................................................................................................................ 10
Set Time of Day ............................................................................................................................ 11
Adjust Days Between Backwash or Time of Backwash ................................................................ 11-12
Low Battery.................................................................................................................................... 12
Contact Screen Programming ...................................................................................................... 12
Specications ............................................................................................................................... 13
Parts Diagrams ............................................................................................................................. 14-23
Service Instructions ...................................................................................................................... 24-26
Troubleshooting ............................................................................................................................ 27-30

PAGE 3
MINERAL
RISER PIPE
BOTTOM
HUB & LATERAL
DISTRIBUTOR
CONTROL VALVE
TOP DIFFUSER
MINERAL TANK
U1007 FUNNEL
WATER LEVEL
INSPECTION, MINERAL LOADING AND ASSEMBLY
Commercial water filters are shipped in multiple cartons:
- mineral tank with bottom distributor and riser pipe
- control valve
- optional alternator valve or no hard water bypass valve
- bag(s) of gravel support bed (for 21" diameter and larger mineral tanks)
- bags of water mineral
Quantity of components are specific for the individual type filtering system ordered. Refer to specification
data sheet and/or drawing or consult factory.
Inspect the shipping cartons and equipment for possible shipping damage or lost parts. If damage is present,
notify the transportation company. The manufacturer is not responsible for damage or lost parts in shipment.
Do not mistakenly discard any small parts bags when unpacking the system.
BEFORE LOADING THE MINERAL TANK WITH GRAVEL FOLLOWED BY MINERAL,
INSPECT THE BOTTOM LATERALS FOR ANY DAMAGE THAT MAY HAVE OCCURRED DURING SHIPPING.
THE LATERALS MUST BE REPLACED IF THERE IS ANY DAMAGE.
LOADING AND ASSEMBLING THE MINERAL TANK:
1. Place the mineral tank where you want to install it, making sure it is
on a clean, level and firm surface.
2. PLUG OR TAPE THE TOP OF THE RISER PIPE to keep gravel
and mineral from entering. Gravel and mineral must not enter riser pipe.
3. BEFORE LOADING THE GRAVEL AND MINERAL, FILL THE
MINERAL TANK APPROXIMATELY 1/3 FULL OF WATER.
The water will act as a cushion to protect the bottom laterals from
damage while filling the tank with gravel and mineral.
4. Using a U1007 commercial tank funnel is recommended (funnel is
ordered separately). The U1007 funnel snaps into 4" and 6"
mineral tank openings for stability when pouring gravel and mineral.
The neck of the funnel allows air to escape the mineral tank while
gravel and mineral are poured in.
5. Load the gravel support bed first, followed by the mineral. While filling,
be careful to keep the riser pipe centered as best you can.
Filling slowly with a small scoop to pour the mineral into the funnel,
using water SPARINGLY to speed flow through the funnel if necessary,
will work better than trying to fill too fast.
6. After the loading is complete, remove the funnel, clean the tank
opening to remove mineral granules from the tank opening. Note that
the mineral will only fill the mineral tank approximately 1/2 to 3/4 full.
The mineral tank should NEVER be filled to the top with mineral.
This remaining open space is called freeboard and is necessary for the
mineral to have room to move during the backwash cycle.
7. REMOVE THE PLUG OR TAPE FROM THE TOP OF THE RISER
PIPE.
8. FINISH FILLING THE MINERAL TANK WITH WATER. This will
eliminate air space and prevent excessive air-head pressure when
the water filter is pressurized.
9. The control valve must now be screwed onto the mineral tank.
Be sure the mineral tank's o-ring sealing surface is clean. NO pipe
dope should be used on threads. As you start to screw the control
valve onto the tank, make sure the hole in the center of the control
valve fits over the riser pipe. The control valve should be hand-
tightened, snugly, clockwise.
GRAVEL
SUPPORT BED
#20 FLINT
NOTE- 14" AND 16" DIAMETER MINERAL TANKS ARE BOTTOM
VORTECH DISTRIBUTOR PLATE DESIGN; NO GRAVEL SUPPORT
BED IS REQUIRED.
Click to buy NOW!
P
D
F
-
X
C
H
A
N
G
E
w
w
w
.
d
o
c
u
-
t
r
a
c
k
.
c
o
m
Click to buy NOW!
P
D
F
-
X
C
H
A
N
G
E
w
w
w
.
d
o
c
u
-
t
r
a
c
k
.
c
o
m
If your control valve is a top or side-
mount clamp connection, or uses a ange base, consult factory if
you have questions.
mineral
DISTRIBUTOR PLATE DESIGN; NO GRAVEL SUPPORT BED IS
REQUIRED.

PAGE 4
The control valve and ttings are not designed to support
the weight of the system or the plumbing.
Do not use Vaseline, oils, other hydrocarbon lubricants or
spray silicone anywhere. A silicone lubricant may be used
on black o-rings but is not necessary. Avoid any type of
lubricants, including silicone, on the clear lip seals.
Hydrocarbons such as kerosene, benzene, gasoline,
etc., may damage products that contain o-rings or
plastic components. Exposure to such hydrocarbons
may cause the products to leak. Do not use the
product(s) contained in this document on water
supplies that contain hydrocarbons such as kerosene,
benzene, gasoline, etc.
The optional water meter should not be used as the
primary monitoring device for critical or health e󰀨ect
applications.
Do not use pipe dope or other sealants on threads. Use
of pipe dope may break down the plastics in the control
valve. Use Teon tape on the threaded inlet, outlet and
drain ttings.
After completing any valve maintenance involving the
drive assembly or the drive cap assembly and pistons,
unplug power source jack from the printed circuit board
(black wire) and plug back in or press and hold NEXT
and REGEN buttons for 3 seconds. This resets the electronics
and establishes the service piston position. The display
should ash the software version and then reset the valve
to the service position.
Solder joints near the drain must be done prior to
connecting the drain line ow control tting. Leave at least
6” between the drain line control tting and solder joints
when soldering pipes that are connected on the drain
line control tting. Failure to do this could cause interior
damage to the drain line ow control tting.
Install grounding strap on metal pipes.
This water lter is not to be used for treating water
that is microbiologically unsafe or of unknown
quality without adequate disinfection before or after
treatment.
GENERAL INSTALLATION
AND SERVICE WARNINGS
PRE-INSTALLATION
REVIEW
This water lter is not to be used for treating water
that is microbiologically unsafe or of unknown
quality without adequate disinfection before or after
treatment.
WATER PRESSURE: Maximum 125 psi. CAUTION:
the lter cannot be subject to a vacuum due to loss of
pressure (such as a water main break or submersible well
pump check valve failure).
WATERTEMPERATURE:Therangeofwatertemperature
is 40°F to 110°F. DO NOT install any water lter with less
than 10 feet of piping between its outlet and the inlet of a
water heater.
AMBIENT TEMPERATURE: DO NOT locate lter where it
or its connections (including the drain and overow lines)
will ever be subject to room temperatures under 40°F.
ELECTRICITY: An uninterrupted 120 volt 60Hz outlet,
within 15 feet of the lter, is required. Make sure electrical
source is not on a timer or switch. All electrical connections
must be connected according to local codes. The plug-in
transformer is for dry locations only. Surge protection is
recommended with all electrical connections.
DRAIN: All plumbing should be done in accordance with
local plumbing codes. The distance between the drain and
the water lter should be as short as possible. Correctly
size drain line for the control valve’s drain line ow control
GPM rating (see installation instructions). Avoid elevating
the drain line above the control valve where possible (see
installation instructions).
BYPASS: A bypass valve should be installed so that
water will be available if it should be necessary to shut o󰀨
the pressure in order to service the lter.
NORMAL OPERATION BYPASS OPERATION
DIAGNOSTIC MODE
IN OUT IN OUT
IN OUT
INLET VALVE
OPEN
OUTLET VALVE
OPEN
BYPASS VALVE
CLOSED
INLET VALVE
CLOSED
OUTLET VALVE
CLOSED
BYPASS VALVE
OPEN
INLET VALVE
OPEN
OUTLET VALVE
CLOSED
BYPASS VALVE
OPEN
Click to buy NOW!
P
D
F
-
X
C
H
A
N
G
E
w
w
w
.
d
o
c
u
-
t
r
a
c
k
.
c
o
m
Click to buy NOW!
P
D
F
-
X
C
H
A
N
G
E
w
w
w
.
d
o
c
u
-
t
r
a
c
k
.
c
o
m

PAGE 5
NORMAL OPERATION BYPASS OPERATION
DIAGNOSTIC MODE
IN OUT IN OUT
IN OUT
INLET VALVE
OPEN
OUTLET VALVE
OPEN
BYPASS VALVE
CLOSED
INLET VALVE
CLOSED
OUTLET VALVE
CLOSED
BYPASS VALVE
OPEN
INLET VALVE
OPEN
OUTLET VALVE
CLOSED
BYPASS VALVE
OPEN
Click to buy NOW!
P
D
F
-
X
C
H
A
N
G
E
w
w
w
.
d
o
c
u
-
t
r
a
c
k
.
c
o
m
Click to buy NOW!
P
D
F
-
X
C
H
A
N
G
E
w
w
w
.
d
o
c
u
-
t
r
a
c
k
.
c
o
m
BYPASS VALVE
Normal Operation: Water ows through the control valve during service and also allows the control valve to isolate the
media bed during the regeneration cycle.
Bypass Operation: The control valve is isolated from the water pressure contained in the plumbing system. Untreated
water is supplied to the plumbing system.
Diagnostic Operation: Water pressure is allowed to the control valve and the plumbing system while not allowing water
to exit from the control valve to the plumbing system.
(valves shown with optional meters)

PAGE 6
(All electrical & plumbing should be done in accordance to all local codes)
1. LOCATION: Place the lter where you want to install it, making sure it is on a clean, level and rm surface. The plug-in
power adaptor is for dry locations only. Use an uninterrupted electrical outlet installed within 15 feet of the lter. Locate the
lter so the distance between the drain and the lter is as short as possible. Do not install the lter with less than 10 feet of
piping between its outlet and the inlet of a water heater. Do not locate the lter where it or its connections (including the drain
and overow lines) will ever be subject to room temperatures under 40°F.
2. INLET/OUTLET: Connect to a supply line downstream of outdoor spigots. Install an inlet shuto󰀨 valve and plumb to
the unit’s inlet located at the left front as you face the unit. Installation of a bypass valve is recommended. If using plastic
ttings ground the water lter per local electric codes. If a water meter is used, install the water meter on the outlet side
of the control valve. It is recommended that the meter assembly be installed horizontally or in a downow vertical position
to reduce turbine bearing wear. The turbine assembly may be oriented in any direction, but is usually oriented pointing up
to reduce drainage out of the pipes during service. Remove the cover and drive bracket and thread the water meter cord
through the hole in the back plate. Reinstall the drive bracket. Weave the cord through the hooks on the right hand side of
the drive bracket and connect the end to the three prong connector labeled METER on the printed circuit board. Replace
the cover.
3. A jumper ground wire should be installed between the inlet and outlet pipe whenever the metallic continuity of a
water distribution piping system is interrupted. Install grounding strap on metal pipes.
4. DRAIN: The drain must be able to handle the backwash rate of the lter. Correctly size the drain line for the lter’s drain
line ow control gpm rating. An adapter tting is supplied with the valve that can connect a 3/4” tting to be used with drain
line ow controls up to 10 gpm, a 1” tting to be used with drain line ow controls up to 25 gpm, or a 1-1/2” tting to be used
with drain line ow controls up to 60 gpm. If soldering, joints near the drain must be done prior to connecting the drain line
ow control tting. Leave at least 6” between the drain line control tting and solder joints when soldering pipes that are
connected on the drain line control tting. Failure to do this could cause interior damage to the drain line ow control tting.
Avoid elevating the drain line above the control valve where possible. Never insert a drain line directly into a drain, sewer
line, or trap. Always allow an air gap between the drain line and the wastewater receptacle to prevent the possibility
of sewage being back-siphoned into the lter.
INSTALLATION INSTRUCTIONS

PAGE 7
1.93
1.86
.99
Outlet
1 1/2 Thread
Inlet
1 1/2 Thread
TOT
C
L
Injector
4-8 UN
3.25
6.44
8.60
.03
1.50
Regenerant
Drain Port
1 1/4 NPT
Drain Flow
Control
3.25
.61
Series LX15
LXCV15 Control Valve
.62
.27
2.14
4.00 4.50
Outlet
2" Threads
Inlet
2" Threads
Drain Port 1 1/2 NPT
Units Are Shipped
Without A DLFC Installed
Injector
Regenerant
Line
TOT
C
L
3.50
3.50
9.02 7.85
Drain Port
1 1/2 NPT
Drain Flow
Control
Series LX2
LXCV2 Control Valve
Specic model
overall dimensions
are available-
Consult factory.
Specic model
overall dimensions
are available-
Consult factory.
Note: Series LX2QC uses
LXCV2QC Quick Connect
control valve (not shown).
Dimensions are available-
Consult factory.

PAGE 8
TOP VIEW
WITH OPTIONAL NO HARD
WATER BYPASS VALVE SHOWN
OPTIONAL METER
OPTIONAL NO HARD WATER BYPASS VALVE (NHBP) CAN
BE INSTALLED BEFORE OPTIONALMETERAS SHOWN OR
AFTER OPTIONAL METER (SEE NEXT PAGE)
IN OUT
BYPASS VALVE
TO
DRAIN
DRAIN LINE
AIR GAP
ADAPTER
METER
AIR GAP
OR
TO
FLOOR
DRAIN
WATER FILTER
INLET
VALVE
OUTLET
VALVE
LOCATE WATER FILTER
CLOSE TO A DRAIN.
AVOID OVERHEAD DRAIN
LINES IF POSSIBLE.
READ INSTALLATION
INSTRUCTIONS.
SINGLE: ONE WATER FILTER WITH OPTIONAL METER.
BACKWASH INITIATION CHOICES: METER IMMEDIATE, METER DELAYED, METER DELAYED + IMMEDIATE (WITH OPTIONAL METER ONLY),
DAYS OVERRIDE (1-28), AUXILIARY INPUT (SEE CUSTOM PROGRAMMING AND APPLICATION MANUAL).
READ
INSTALLATION
INSTRUCTIONS
REGARDING
METER
CONNECTION
FLEXIBLE CONNECTORS
ARE RECOMMENDED
BETWEEN
WATER FILTER
AND
SYSTEM HARD PIPING.
UNION TYPE CONNECTORS
ARE RECOMMENDED
ON THE INLET AND OUTLET
CONNECTIONS.
OPTIONAL
Click to buy NOW!
P
D
F
-
X
C
H
A
N
G
E
w
w
w
.
d
o
c
u
-
t
r
a
c
k
.
c
o
m
Click to buy NOW!
P
D
F
-
X
C
H
A
N
G
E
w
w
w
.
d
o
c
u
-
t
r
a
c
k
.
c
o
m

PAGE 9
IN
TYPICAL TWIN PARALLEL SYSTEM INSTALLATION DIAGRAM
TWIN PARALLEL: TWO IDENTICAL SOFTENERS, EACH WITH ITS OWN METER, ONLY ONE BRINE TANK.
METER DELAYED REGENERATION USED WITH OFFSET REGENERATION TIMES.
BOTH WATER SOFTENERS ARE ONLINE FOR DOUBLE THE SERVICE FLOW RATE AND EXCHANGE CAPACITY OF A SINGLE WATER SOFTENER.
OUT
BYPASS VALVE
OPTIONAL
NO HARD WATER
BYPASS VALVE
OPTIONAL
NO HARD WATER
BYPASS VALVE
METERMETER
FLOOR DRAIN
AIR GAP
DO NOT TEE TOGETHER DRAIN LINES
OPTIONAL NHBP:
ROUTE THE NHBP MOTOR CABLE TO THE
WATER SOFTENER CONTROL VALVE.
FACING THE CONTROL VALVE KEYPAD
AND DISPLAY, REMOVE THE COVER AND
LOCATE THE CIRCULAR KNOCKOUT ON
THE LOWER LEFT SIDE OF THE BACK-
PLATE. PUNCH OUT THE CIRCULAR KNOCK-
OUT PIECE WITH MILD FORCE USING A
PUNCH OR PHILLIPS-HEAD SCREW DRIVER.
REFER TO MAV INSTALLATION GUIDE FOR
UTILIZING STRAIN RELIEF ON THE BACK-
SIDE OF THE BACKPLATE.
IN
TYPICAL TWIN ALTERNATOR SYSTEM INSTALLATION DIAGRAM
TWIN ALTERNATING: TWO IDENTICAL SOFTENERS, ONLY ONE METER AND BRINE TANK, AND ONE MOTORIZED ALTERNATING VALVE (MAV).
METER IMMEDIATE REGENERATION WITH HARD WATER USED.
ONE SOFTENER ONLINE, ONE SOFTENER ON STANDBY.
OUT
BYPASS VALVE
FLOOR DRAIN
AIR GAP
DO NOT TEE TOGETHER DRAIN LINES
A B
C
METER
SYSTEMS ORDERED WITH NHBP OPTION
ARE FACTORY PRE-PROGRAMMED FOR
NHBP. CONNECT NHBP MOTOR CABLE TO
THE PC BOARD TWO PIN CONNECTOR
LABELED MAV MTR BEFORE PLUGGING IN
CONTROL VALVE. A NHBP PROGRAMMED
CONTROL VALVE MUST RECOGNIZE THE
NHBP CONNECTION OTHERWISE ERROR
CODE 106 WILL DISPLAY. IF PROGRAMMING
IS NECESSARY, REFER TO CUSTOM
PROGRAMMING AND APPLICATION MANUAL.
ALT A ALT B
"A"
PORT
"B"
PORT
"C"
PORT
MAV
MAV
MOTOR
CABLE
3-WIRE
INTER-
CONNECT
CABLE
METER
CABLE TWIN ALTERNATOR SYSTEMS ARE FACTORY
PRE-PROGRAMMED AND LABELED. MAKE SURE
ALL CABLES ARE CONNECTED TO PROPER
PC BOARD CONNECTIONS BEFORE PLUGGING
IN CONTROL VALVES. MAV PROGRAMMED
CONTROL VALVES MUST RECOGNIZE THE MAV
CONNECTIONS OTHERWISE ERROR CODE 106
WILL DISPLAY. REFER TO MAV INSTALLATION
GUIDE FOR 1.5" AND 2" SINGLE METER
APPLICATIONS REGARDING PROPER CABLE
IF PROGRAMMING IS NECESSARY, REFER TO
CUSTOM PROGRAMMING AND APPLICATION
MANUAL.
ROUTING, CONNECTIONS AND USE OF THE
BACKPLATE STRAIN RELIEF FOR CABLE.
FLEXIBLE CONNECTORS
ARE RECOMMENDED
BETWEEN EACH
WATER SOFTENER
AND
SYSTEM HARD PIPING
(REFER TO SINGLE SYSTEM
INSTALLATION DIAGRAM
ON PREVIOUS PAGE)
FLEXIBLE CONNECTORS
ARE RECOMMENDED
BETWEEN EACH
WATER SOFTENER
AND
SYSTEM HARD PIPING
(REFER TO SINGLE SYSTEM
INSTALLATION DIAGRAM
ON PREVIOUS PAGE)
Click to buy NOW!
P
D
F
-
X
C
H
A
N
G
E
w
w
w
.
d
o
c
u
-
t
r
a
c
k
.
c
o
m
Click to buy NOW!
P
D
F
-
X
C
H
A
N
G
E
w
w
w
.
d
o
c
u
-
t
r
a
c
k
.
c
o
m
TWIN PARALLEL: TWO IDENTICAL FILTERS , EACH WITH ITS OWN OPTIONAL METER (IF ORDERED)
DAYS OVERRIDE OR METER DELAYED REGENERATION USED WITH OFFSET BACKWASH TIMES.
BOTH WATER FILTERS ARE ONLINE FOR DOUBLE THE SERVICE FLOW RATE.
FLEXIBLE CONNECTORS
ARE RECOMMENDED
BETWEEN EACH
WATER FILTER
AND
SYSTEM HARD PIPING
(REFER TO SINGLE SYSTEM
INSTALLATION DIAGRAM
ON PREVIOUS PAGE) ROUTE THE NHBP MOTOR CABLE TO THE
WATER FILTER CONTROL VALVE.
OPTIONAL
METER
OPTIONAL
METER

PAGE 10
Do not plug the transformer into the receptacle yet. Make sure inlet and outlet valves are to their closed positions. If using
optional bypass, open bypass valve. Turn on main water supply. Open a cold water faucet. This will clear the line of any
debris (solder, pipe dope, etc.) that may be in the line. Let water run at faucet for a couple minutes, or until clear. Turn o󰀨
faucet. Now plug the transformer into a 120 volt receptacle (be certain the receptacle is uninterrupted). Within 5 seconds
the control display and buttons will illuminate and the time of day screen will appear.
• Press and hold the REGEN button for approximately 5 seconds until the motor starts.
• Wait until display reads BACKWASH and numbers start counting down.
SLOWLY open inlet valve to DIAGNOSTIC mode (See page 5) to allow water to slowly ll Filter and expel air. CAUTION:
If water ows too rapidly, there could be a loss of mineral out of the drain.
When water is owing steadily to drain without the presence of air, momentarily press REGEN again. Display will read
RINSE. Close the bypass valve and open the outlet valve of the lter, for NORMAL OPERATION (see page 5). Allow
control to nish the RINSE cycle. Allow the control to automatically advance to the FILTERING position.
PLACING FILTER INTO SERVICE
GENERAL OPERATION
User Displays
When the system is in normal service mode, one of up to ve
available User Displays will be shown. Pressing NEXT will
alternate between the following displays:
• Current time of day
• Treated water ow rate (if optional meter is used)
• Service contact name and phone number (if entered)
• Remaining Capacity of treated water available (if optional
meter is used)
• Remaining days to backwash (if Day Override is
programmed)
Pressing the button while in the Capacity Remaining or
Days Remaining displays will decrease the capacity remaining
in ten gallon increments or the days remaining in one day
increments.
To clear the Service Call reminder, press the and
buttons simultaneously while the number and banner text
screen is displayed.
If the system has called for a backwash that will occur at
the preset time of backwash, the words REGEN TODAY will
alternate with the header on the display.
Utilizing the control valve’s optional water meter, a water drop
ashes on the display when water is being treated (i.e. water is
owing through the system).
Drop will ash while water
is being treated. Optional
meter required.
NEXT
NEXT
NEXT
Contact Screen
NEXT
Note: As an energy saving feature, the control will automatically turn o all SOLID BLUE or SOLID GREEN display
illumination and keypad illumination after about 5 minutes of the last keypad button push. Any further keypad touch will
cause the re-illumination of the display and keypad, and re-activate keypad control.

PAGE 11
Current time of day needs to be entered during initial installation, and adjusted when daylight saving time begins or ends.
If an extended power outage occurs and depletes the on-board non-rechargeable coin cell battery, when power resumes
the time of day should be reset and battery replaced.
STEP 1
STEP 2
STEP 3
STEP 1 – Press CLOCK
STEP 2 - Current Time (hour): Set the hour of the day using or buttons. AM/PM toggles
after 12. Press NEXT to go to Step 3.
STEP 3 - Current Time (minutes): Set the minutes of the day using or buttons. Press
NEXT to exit Set Time of Day. Press REGEN to return to previous step.
RETURN TO NORMAL MODE
SET TIME OF DAY
ADJUST DAYS BETWEEN BACKWASHES,
OR TIME OF BACKWASH
STEP 1
STEP 2
STEP 4
STEP 1 - Press NEXT and simultaneously for 3 seconds to access Installer Display Settings.
STEP 2 – Day Override: Set the maximum number of days between backwashes. If value set to
“OFF”, backwash initiation is based solely on volume used. If value is set as a number (allowable
range from 1 to 28) a backwash initiation will be called for on that day even if su󰀩cient volume of
water were not used to call for a backwash. Set Day Override using or buttons:
• number of days between backwash (1 to 28); or
• “OFF”.
Press NEXT to go to step 3. Press REGEN to return to previous step.
STEP 3 – Set Backwash Time (hour): Set the hour of day for backwash using or buttons.
AM/PM toggles after 12. The default time is 2:00 AM. Press NEXT to go to Step 4. Press REGEN to
return to previous step.
STEP 3
STEP 4 – Set Backwash Time (minutes): Set the minutes of day for backwash using or
buttons. Press NEXT to return to normal operation. Press REGEN to return to previous
step.
RETURN TO NORMAL MODE

PAGE 12
CONTACT SCREEN PROGRAMMING
STEP 1 - Press NEXT and simultaneously for 3 seconds to access Installer Display
Settings.
STEP 2 - Press NEXT to go to step 3.
From Step 3, while hour is ashing, press and hold both the CLOCK and button to
change phone number and banner text.
Phone Number - Set phone number using the or arrow. Press NEXT to forward
to the next digit. Press REGEN to return to previous digit.
Banner Text - Set the banner text up to a maximum of 44 characters. Use the or
to select letters of the alphabet, numbers, ampersand (&), or a space in the banner text.
Press NEXT to forward to the next character or to exit the Installer Display Settings.
STEP 1
STEP 2
STEP 3
A non-rechargeable coin cell battery is located on the circuit board, used only to maintain the time of day during power
outages (all other information will be stored in memory no matter how long the power outage). The screen displays LOW
BATTERY when the battery needs to be replaced. The screen will remain illuminated solid blue when LOW BATTERY is
displayed. Initially LOW BATTERY display will alternate with the User display, nally displaying only LOW BATTERY. User
displays are still accessible by pressing NEXT .
LOW BATTERY

PAGE 13
X FACTOR COMMERCIAL SERIES
GENERAL SPECIFICATIONS
Operating Pressure;
Max (PSI) 125
CAUTION: the lter cannot be subject to a vacuum due to loss of pressure (such as a water main break or submersible
well pump check valve failure).
Water Operating Temp;
Min to Max (°F) 40 to 110
CAUTION: do not locate the lter where it or its connections (including the drain line and overow lines) will ever be
subject to room temperatures under 40°F
AC Adaptor Input;
Voltage - Hertz 120V AC - 60 Hz
AC Adaptor Output;
Voltage - Current 12V AC - 500 mA
3 Volt Lithium Coin Cell
Battery; type 2032
PC Board Relay
Terminal Block DC
Output; Voltage
12V DC **
** Relay Specications: 12V DC Relay with a coil resistance not less than 80 ohms. If mounting the relay under the con-
trol valve cover, check for proper mounting location dimensions on the backplate.
No user serviceable parts are on the PC board, motor, or the power adapter. The means of disconnection from the main
power supply is by unplugging the power adapter from the wall.
Control Valve;
Inlet/Outlet/ Drain Port NPT size See page 7
Optional Meter Accuracy ± 5%
Optional Meter Flow Range 1.5”: 0.5-75 gpm, 2”: 1.5-150 gpm
SPECIFIC MODEL # SPECIFICATIONS ARE AVAILABLE. PLEASE CONSULT FACTORY.
CONTROL VALVE, OPTIONAL METER PARTS DIAGRAMS ON NEXT PAGES.
CONTROL VALVE
METER
TOP DIFFUSER
MINERAL TANK
RISER PIPE
ION EXCHANGE
RESIN
SUPPORT BED
#20 FLINT
BOTTOM
HUB & LATERAL
DISTRIBUTOR
NOTE-
14" AND 16" DIAMETER
MINERAL TANKS ARE
BOTTOM VORTECH
DISTRIBUTOR PLATE
DESIGN; NO SUPPORT
BED IS REQUIRED.
CONTROL VALVE, METER AND BRINE VALVE ASSEMBLY PARTS DIAGRAMS ON NEXT PAGES.
BRINE
POLYTUBING
BRINE TANK
WITH
COVER
2-PIECE
OVERFLOW
FITTING
BRINE WELL
BRINE WELL
CAP
BRINE VALVE ASSEMBLY
Click to buy NOW!
P
D
F
-
X
C
H
A
N
G
E
w
w
w
.
d
o
c
u
-
t
r
a
c
k
.
c
o
m
Click to buy NOW!
P
D
F
-
X
C
H
A
N
G
E
w
w
w
.
d
o
c
u
-
t
r
a
c
k
.
c
o
m
OPTIONAL METER
FILTERING
MINERAL
BOTTOMDISTRIBUTOR
PLATE DESIGN; NO
SUPPORT BED IS
REQUIRED WITH MOST
FILTERING MINERALS.

PAGE 14
Drawing No. Order No. Description Quantity
1V3692-02LW LP Front Cover Assembly 1
2 V3107-01 Motor 1
3 V3106-01 Drive Bracket, Spring Clip, Drive Gear 12x36 and
Drive Gear Cover 1
4 V3757LP-BOARD PC Board 1
AC Adapter
Order No.
(Not shown)
V3186
Supply Voltage 120V AC
Supply Frequency 60 Hz
Output Voltage 12V AC
Output Current 500 mA
Battery Fully Seated
When replacing the battery, align
positives and push down to fully seat.
X-FACTOR FRONT COVER AND DRIVE ASSEMBLY
After completing any valve maintenance involving the drive assembly or the drive cap assembly and pistons, unplug
power source jack from the printed circuit board (black wire) and plug back in or press and hold NEXT and REGEN buttons
for 3 seconds. This resets the electronics and establishes the service piston position. The display should ash the
software version and then reset the valve to the service position.
Battery replacement is
3 volt lithium coin cell
type 2032.
Correct
Battery
Orientation
1
23
4

PAGE 15
LXCV15 Control Valve Drive Cap Assembly, Downow Piston,
Spacer Stack Assembly and Main Body
Drawing No. Order No. Description Quantity
1 V3004 Drive Cap Assembly 1
2 V3135 O-ring 228 1
3 V3407 Piston Downow Assembly 1
4 V3423 Backplate Dowel 1
5 V3430 Spacer Stack Assembly 1
6 V3178LP Back Plate 1
7 V3419 O-ring 347 1
8 V3641 O-ring 225 for valve bodies with NPT threads 1
9 V3950-01 1.5 NPT Valve Body, Gen 2 1
10 V3468 Test Port Plug, 1/4” NPT 2
11 D1300 Top Ba󰀪e Di󰀨user, 1.5/50MM 1
LX15 SERIES
11
4
31
10
9
8
2
7
5
6

PAGE 16
LX2 SERIES
LXCV2 Control Valve Drive Cap Assembly, Downow Piston, Regenerant Piston,
Spacer Stack Assembly and Main Body
Drawing No. Order No. Description Quantity
1 V3729 Brine Piston Assembly 1
2 V3725 Piston Downow Assembly 1
3 V3452 O-ring 230 1
4 V3728 Drive Cap Assembly 1
5 V3724 Washer Flat SS 1/4 4
6 V3642 Bolt BHCS S/S 1/4-20X1.25 4
7 V3178LP Back Plate 1
8 V3729 Stack Assembly 1
9 V3419 O-ring 347 1
10 V3641 O-ring 225 for valve bodies with NPT threads 1
11 V3700-01 2 NPT Valve Body 1
12 V3468 Plug, 1/4” NPT 2
13 D1300 Top Ba󰀪e Di󰀨user, 1.5/50MM 1
A
A
13
9
10
11 8
7543
6
2
12
Drive bracket can be removed
by squeezing (2) lock tabs
& rotating counter clockwise.
1

PAGE 17
LX2QC SERIES
LXCV2QC Quick Connect Control Valve Drive Cap Assembly, Downow Piston, Regenerant Piston,
Spacer Stack Assembly and Main Body
Drawing No. Order No. Description Quantity
1 V3726 Brine Piston Assembly 1
2 V3725 Piston Downow Assembly 1
3 V3452 O-ring 230 1
4 V3728 Drive Cap Assembly 1
5 V3724 Washer Flat SS 1/4 4
6 V3642 Bolt BHCS S/S 1/4-20X1.25 4
7 V3178LP Back Plate 1
8 V3729 Stack Assembly 1
9 V3279 O-ring 346 1
10 V3280 O-ring 332 for valve bodies with NPT threads 1
11 V3737-01 2 NPT QC Valve Body 1
12 V3054* 4IN Base Clamp Assembly 1
13 V3276 Bolt Hex 5/16 - 18 x 1-3/4 1
14 V3269 Nut 5/16 - 18 SS Hex 1
15 V3468 Plug, 1/4” NPT 2
Not Shown D1300-01 Top Ba󰀪e Di󰀨user, 2/63MM 1
* V3054 4IN Base Clamp Asy includes a V3276 Bolt Hex 5/16 - 18 X 1-3/4 and V3269 Nut 5/16 - 18 SS Hex
A
Drive bracket can be removed
by squeezing (2) lock tabs
& rotating counter clockwise.
Install D1300-01 upper di󰀨user (not shown) when using the
4” Quick Disconnect (V3064).
9
10
11 8
7543
6
2
15
12
14
13
1

PAGE 18
LX2QC SERIES
V3064 4 Inch Base Asy
Drawing No. Order No. Description Quantity
1 V3202-01 Base 1
2 V3281 O-Ring 348 1
V3055 Flange Base Asy
Drawing No. Order No. Description Quantity
1 V3444 Screw Hexcap 5/16-18 x 2 SS 12
2 V3293 Washer SS 5/16 Flat 24
3 V3445 Washer Split Lock 5/16 SS 12
4 V3447 Nut Hex 5/16-18 Full SS 12
5 COR60FL O Ring 6 Flange Adapter (Park) 1
6 V3261-01 Flange Base 1
V3260-02 Side Mount Base NPT
2
1
3
6
5
1
2
4

PAGE 19
LX15 SERIES
LXCV15 Injector Valve Body and Injector
Drawing No. Order No. Description Quantity
1 V3967 Injector Body, Welded Assembly 1
2 V3441 O-ring -226 1
3 V3968*** Injector Feed Tube 1
4 V3177-01 Injector Screen 1
5 V3969**** Injector Draw Tube 1
6 V4349 Injector Cap (V3176 on valves prior to 4./5/2020) 1
7 V3152 O-ring -135 1
8 V3010-152 Injector Plug 1
9 H4615 Retaining Clip 1
10 V3724 Washer, Flat Stainless Steel 4
11 V3642 Bolt, BHCS Stainless Steel 1/4-20x 1 1/4 4
12 V3195-01 Rell Port Plug 1
*** V3968 contains one D1240 O-RING 111 and two V3155 O-RING 112
**** V3969 contains one V2638 O-RING 113 and two V3157 O-RING 115
3
5
4
2
18
6
71
8
16
12
19
17
9
14
13
10
11
15
3
5
4
2
18
6
71
8
16
12
19
17
9
14
13
10
11
15
9
10
11
12

PAGE 20
LX2 & LX2QC SERIES
LXCV2 and LXCV2QC Injector Valve Body
Drawing No. Order No. Description Quantity
1 V3477 Injector Cap 1
2 V3152 O-Ring 135 1
3 V3727 Injector Body Assembly 1
4 See page 22 Injector 1
5 V3731 Inj Draw Tube Down Assembly 1
6 V3730 Inj Feed Tube Down Assembly 1
7 V3315 O-Ring 231 1
8 V3724 Washer Flat SS 1/4 4
9 V3643 Bolt BHCS S/S 1/4-20x2.25 4
10
V3162-022 2.2 gpm ow control for Models LX2 & LX2QC - 120
thru 300 1
V3162-053 5.3 gpm ow control for Models LX2&LX2QC - 450 thru
1200 1
11 V3231 Rell FLOWCNTRL Retainer 1
12 V3277 O-Ring 211 1
13 V3105 O-Ring 215 1
14 V3150 Split Ring 1
15 V3151 Nut 1 QC 1
16 V3149** FTG 1 PVC Male NPT Elbow for Models LX2 & LX-
2QC-450 thru 1200 1
Not Shown V3189* FTG 3/4&1 PVC SLVNT 90 for Models LX2 &LX-
2QC-120 thru 300 1
17 V3499 Cap 1
* Use H4915 tting kit for 1/2” O.D. polytube connection.
If brine tube length exceeds 6 feet, use H4916 tting kit
for 5/8” polytube connection, increasing polytube size to
5/8” O.D. Refer to installation section.
** Use 1” pipe to connect to brine tank. Refer to
installation section.
A V3731 INJ DRAW TUBE DOWN ASY contains one
D1262 O-RING 118 and two V3639 O-RING 119.
A V3730 INJ FEED TUBE DOWN ASY contains three
V3638 O-RING 113. 9
8
12
4 3
5
6
7
10
11
12
13
14
15
Page 32 WS1.5", 2" and 2"QC Drawings and Service Manual
WS2 Injector Valve Body, Rell Flow Control and Injector
Drawing No. Order No. Description Quantity
1 V3477 WS2H INJECTOR CAP 1
2 V3152 O-RING 135 1
3 V3727 WS2 INJECTOR BODY ASSEMBLY 1
4 See page 33 WS2/2H INJECTOR ASSY 1
5 V3731 WS2 INJ DRAW TUBE DOWN ASSEMBLY 1
6 V3730 WS2 INJ FEED TUBE DOWN ASSEMBLY 1
7 V3315 O-RING 231 1
8 V3724 WASHER FLAT SS 1/4 4
9 V3643 BOLT BHCS S/S 1/4-20x2.25 4
10 V3162-022* WS1 DLFC 022 FOR 3/4 1
11 V3231 WS2H REFILL FLOWCNTRL RETAINER 1
12 V3277 O-RING 211 1
13 V3105 O-RING 215 1
14 V3150 WSI SPLIT RING 1
15 V3151 WS1 NUT 1 QC 1
16 V3149 WS1 FTG 1 PVC MALE NPT ELBOW 1
Not Shown V3189 WS1 FTG 3/4&1 PVC SLVNT 90 Optional
Not Shown H4915** FTG KIT 494 BV 1/2 POLYTUBE Optional
Not Shown V3499 WS2H FITTING CAP 1 IN THREADED Optional
Not Shown V3797*** WS1 FTG 1 PVC MALE BSPT ELBOW BSPT Only
*Any V3162-XXX ow control may be used. WS2 valves are
shipped with a V3162-022 (2.2 gpm) ow control. Flow control
sizes range from 0.7 up to 10 gpm. WS2 valves can only be set for
minutes of ll because various sizes of ow controls can be used.
To calculate for pounds or kilograms of salt, take minutes of ll
times the ow rate of the ow control being used to arrive at the
number of gallons of water be added to the brine tank. Each gallon
of water will dissolve approximately 3 pounds of salt.
**Use of H4915 may severely reduce brine draw rates.
*** BSPT Valves also include a V3797 WS1 FTG 1 PVC
MALE BSPT ELBOW
A V3731 WS2 INJ DRAW TUBE DOWN ASY contains one
D1262 O-RING 118 and two V3639 O-RING 119.
A V3730 WS2 INJ FEED TUBE DOWN ASY contains three
V3638 O-RING 113.
Backwash Only Valves include a V3499 but do not include the
following parts: V3189, H4915, V3162-022, V3231 and V3277.
3
4
2
1
9
8
Proper RFC orientation
directs rell water ow
toward the washer face
with radius and text. Water Flow
14
13
12
11
7
5
10
16
15
6
Backwash Only
V3499 Cap
installed from
factory.
16
17
