Lancia Fulvia Coupe User manual

-, ,
- INSTRut:TIDN ' BC - CK
6tta Ed. -1969

FULVIA COUPE
818.130 LHD
818.131 RHD
FULVIA COUPE RALLYE 1,3
818.330 LHD
818.331 RHD
FUL VIA COUPE RALL YE 1,3 S
818.360 LHD
818.361 RHD
FULVIA SPORT ·1,3 S
818.362 LHD
818. 363 RHD
FULVIA COUPE RALLYE 1,3 HF
818.340 LHD
818.341 RHD

NOTICE
, Dear Sir,
You have received the guarantee certificate ensuring the car you pur-
chased the assistance from our entire Organization.
Together with the above certificate, you will find three coupons entitling
you to the free inspections stated herein, after the car has totalled respectively:
1,500 to 2,001;> km (930 to 1,240 miles)
7,000 to 7,500 km (4,350 to 4,660 miles)
and 14,000 to 15,000 km (8,700 to 9,320 miles)
We wish particularly to recommend you the use of this Service in order
to ensure the best operation and efficiency to the car. We think it fair, however,
to inform you that the non-carrying out of the specified inspections will
result in the cancellation of the contract guarantee.
If the execution of the service does not meet your requirements,
please let us know.
~With regards,
LANCIA & C.
Customer Assistance Dpt.

PRECAUTIONS DURING THE RUNNING-IN
OF THE CAR
A correct use of the car during the 1St thousands kms. is necessary for a
good bedding of the moving parts and to ensure their life.
For a gradual running-in, therefore, it is necessary to proceed as follows:
- when starting the engine, gradually warm-up it without reaching the
max. r.p.m.
on fiat roads, never exceed the following engine r.p.m.:
up to 1,500 km (930 miles): 4,300 r.p.m.
from 1,500 to 3,000 km (930 to 1,900 miles): ~ ,ooo r.p.m.
on long runs, from time to time, release the accelerator pedal even for
a few seconds only.
- when climbing, never depress the accelerator pedal fully, and shift to
the lower gear, if necessary.
This is also recommended for an overhauled engine with replaced pistons,
rings and bearings.
- avoid hard and extended brake applications.
Do not change the engine oil later than the 1St 1,500 to :z,ooo km (930 to 1,:Z40
miles), as the first filling has been carried out with oil special for the
running-in.
Should it be necessary to restore the level during the first 1,500 to :z,ooo km
(930 to 1,:Z40 miles) use:
AGIP FI SUPERMOTOROIL 10 W-40;
ESSO UNIFLO 10 W-40;
MOBILOIL SUPER 10 W-50.

•
I •
I
FREE INSPECTIONS TO BE CARRIED
OUT AFTER THE CAR HAS TOTALLED:
1,500 -2,000 km (930 to 1,240 miles)
Check ignition distributor (max. contact gap) .
Check tightening of exhaust manifolds and pipes.
Check tightening of cylinder head.
Adjust valve clearance.
Check sealing of brake system pipes.
Change engine oil (and cooler oil on the cars
equipped with oil cooler).
Change gearbox and propelling unit oil.
Check levels of: battery, brake reservoir, wind-
screen washer reservoir and coolant radiator.
Check tyre pressures and restore, if required.
Road test.

7,000 -7,500 km (4,350 to 4,660 miles)
Road test.
Remove air cleaner, ignition distributor and spark
plugs.
Check ignition distributor and spark plugs.
Check tightening of rear suspension.
Check tightening of hand brake linkage.
Check tightening of front suspension.
Check clearance between hand brake discs and
friction pads.
Refit ignition distributor, adjust ignition timing
and check tension of fim and dynamo drive belt.
Adjust valve clearance.
Check tightening of front leaf spring bolts.
Check sealing of brake system pipes .
.Clean carburettors.
Clean air cleaner element and refit the cleaner.
Check engine starting and slow running adjust-
ment.
Lubricate engine bonnet and luggage compart-
ment release and locking controls, door hinges,
ventilator window control, front seat sliders and
locks.
Remove oil filter and replace.

Change engine oil (and cooler oil on cars equipped
with oil cooler).
Grease the car.
Check levels of: battery, brake reservoir, wind-
screen washer reservoir and coolant radiator.
Check tyre pressures and restore, if required.
Road test.
14,000 -15,000 km (8,700 to 9,320 miles)
Road test.
Remove air cleaner, ignition distributor and spark
plugs.
Check ignition distributor and spark plugs.
Check tightening of rear suspension.
Check tightening of hand brake linkage.
Check wear of rear brake friction pads.
Refit ignition distributor, ignition timing ad-
justment and check tension of fan and dynamo
drive belt.
Adjust valve clearance.
Check wear of front brake friction pads.
Check sealing of brake pipes.

Clean air cleaner element and refit.
Clean carburettors.
Check engine starting and slow running adjust-
ment.
Lubricate engine bonnet and luggage compart-
ment release and locking controls, door hinges,
ventilator window controls, front seat sliders
and locks.
Remove oil filter and replace.
Change engine oil (and cooler oil on cars equipped
with oil cooler).
Change gearbox and propelling unit oil.
Grease the car.
Check levels of: battery, brake reservoir, wind-
screen washer reservoir and coolant radiator.
Check tyre pressures and restore, if required.
Road test.

FOREWORD
An the instructions, specifications, details and diagrams considered
necessary for the normal maintenance and good performance of
the car will be found in this book.
This book is not a complete description of the various units, nor
a detailed explanation of their functions, but the owner will find all
he normally requires for a profitable exploitation of the car and
for preservation of the various parts.
The maintenance instructions cover the normal operational require-
ments which, of course, may vary according to the different
conditions of use of the car. Regular running, long life and, therefore,
the maximum economy in the maintenance of the car will be
obtained by following the instructions and strictly observing the
recommendations given for the use of the car when new. Neglect
of the instructions given and a careless use of the car may result in
the cancellation of the guarantee terms granted by the manufacturers
for their products.
I

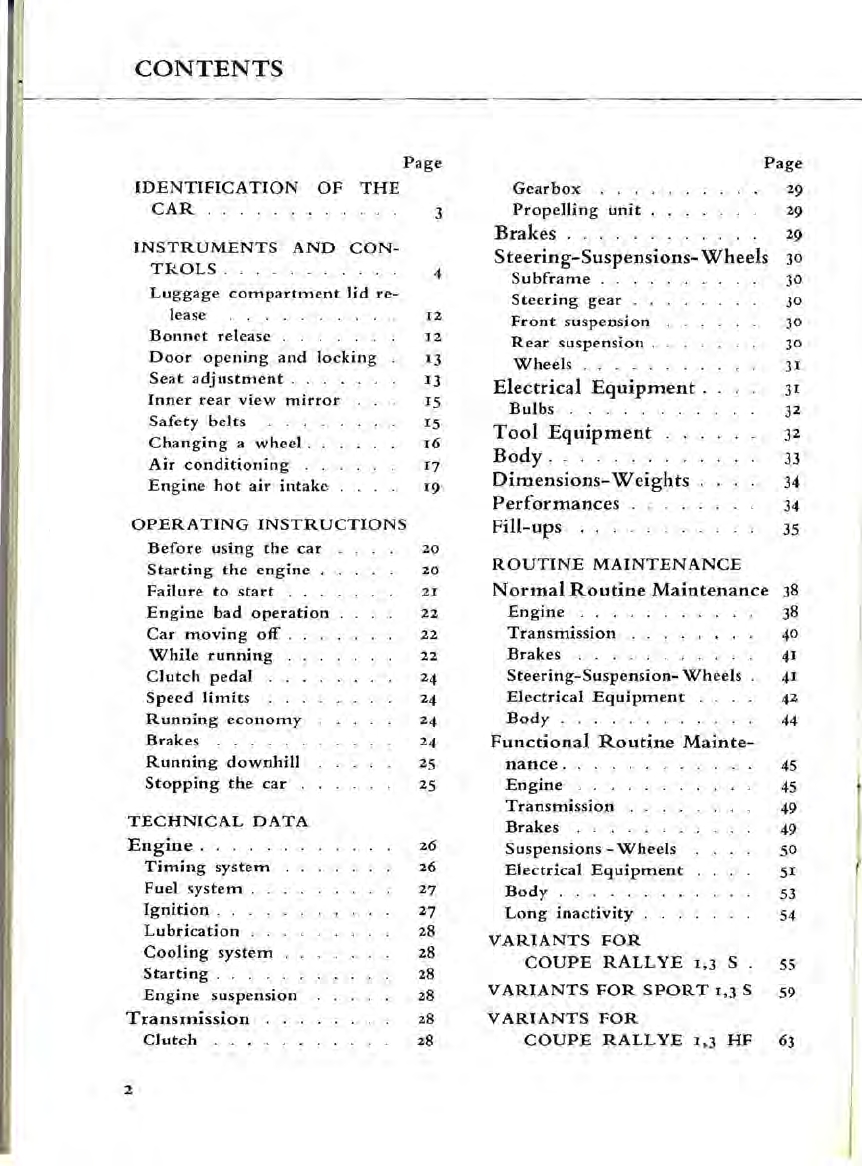

CONTENTS
Page
IDENTIFICATION OF THE
CAR . . . . . 3

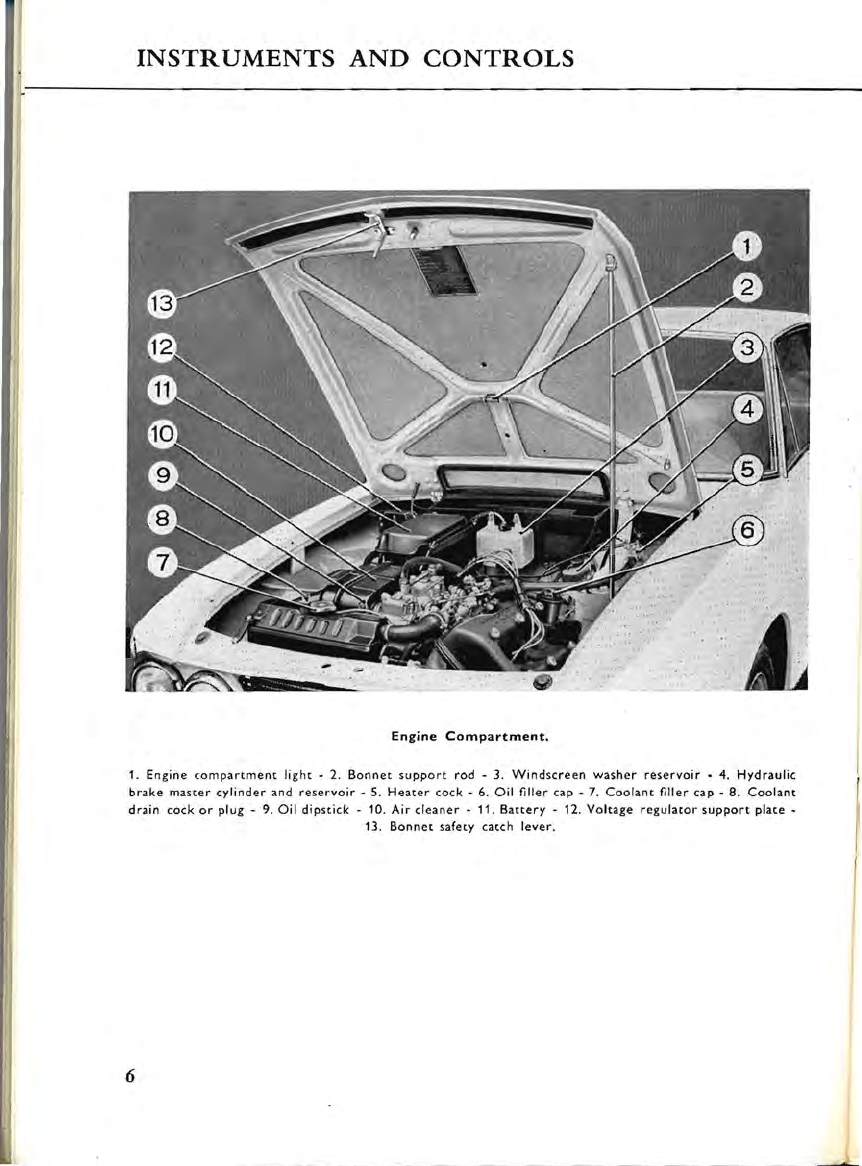

INSTRUMENTS AND CON-
TROLS .. . . . . . . . .. 4
Luggage compartment lid re-
lease 12
Bonnet release . 12
Door opening and locking 13
Seat adjustment. 13
Inner rear view mirror 15
Safety belts 15
Changing a wheel. . 16
Air conditioning . . 17
Engine hot air intake 19
OPERATING INSTRUCTIONS
Before using the car 20
20
2I
22
22
22
24
24
24
24
25
25
Starting the engine .
Failure to start . . .
Engine bad operation
Car moving off .
While running
Clutch pedal . .
Speed limits
Running economy
Brakes .....
Running downhill
Stopping the car .
TECHNICAL DATA
Engine . . . . .
Timing system
Fuel system .
Ignition . ...
Lubrication ..
Cooling system
Starting.
Engine suspension
Transmission
Clutch .. ... .
2
26
26
27
27
28
28
28
28
28
28
Gearbox
Propelling unit
Brakes ... . .
Page
29
29
29
Steering-Suspensions- Wheels 30
Subframe . . . . 30
Steering gear . .
Front suspension
Rear suspension.
Wheels
Electrical Equipment.
Bulbs .....
Tool Equipment
Body ...... .
Dimensions- Weights
Performances
Fill-ups
30
30
30
31
31
32
32
33
34
34
35
ROUTINE MAINTENANCE
Normal Routine Maintenance 38
Engine . . . 38
Transmission . . . . . . .. 40
Brakes . . . 41
Steering-Suspension- Wheels. 41
Electrical Equipment . 42
Body .. . . ' . . . . . . .. 44
Functional Routine Mainte-
nance. . . . 45
Engine 45
Transmission
Brakes
49
49
Suspensions - Wheels 50
Electrical Equipment 51
Body . . . . . . 53
Long inactivity . . . 54
VARIANTS FOR
COUPE RALL YE 1,3 S 55
VARIANTS FOR SPORT 1,3 S 59
V ARIANTS FOR
COUPE RALL YE 1,3 HF 63
