Landscape Vibrations LV-500A User manual

LV-500A
OWNER’S MANUAL
Multi Zone Amplier
ZONE
LANDSCAPE
VIBRATIONS
Hi-Fidelity Sight & Sound

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT
BLADE EXPOSURE.
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
TO PREVENT ELECTRICAL SHOCK, MATCH WIDE BLADE PLUG TO WIDE SLOT, FULLY INSERT.
Warning: To reduce the risk of
Electric shock, do not remove
Cover (or back) no user
Servicing to qualified service
Personnel.
The exclamation point within the
Equilateral triangle is intended to
Alert the user tothe presence of
Important operating and
Maintenance (servicing)
Instructions in the literature
Accompanying suppliance.
1. Read these instructions.
2. Keep these instructions.
3 Read all warnings.
4 Follow all Instruction.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturers instructions.
8. Do not install near heat sources such as radiators, heat registers, stoves, or other apparatus
( Including amplifiers) that Produce heat.
9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two
Blades with one wider than the other. A grounding type plug has two blades and a third grounding
Prong. If the provided plugs does not fit Into your outlet, consult an electrician for replacement of
The obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at the plugs, convenience
Receptacles, and at the point where they exit form the appliance.
11. Only use attachments or accessories specified by the manufacturer.
12. Unplug the apparatus during lightning storms or when unused for long periods of time.
13. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been
Damaged in anyway, such as power supply cord or plug is damaged, liquid has been spilled or
Objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does
Not operate normally, or has been dropped.
This appliance shall not be exposed to dripping or splashing water and no object filled with liquids
Such as vases shall be placed on apparatus.
This Lighting flash with arrowhead
Symbol, within an equilateral triangle,
Is intended to alert the use tothe
Presence of un-insulated dangerous
Voltage within the products enclosure
That may be of sufficient magnitude
To constitute a risk of electric shock
To persons.
2
LANDSCAPE
VIBRATIONS
Hi-Fidelity Sight & Sound

General Information and Features
Front Panel
Power Switch: This is used to turn the unit on or off.
LED Indicators: There is one LED indicator for the power
and each of the six zones. When first turning the power on,
the power LED will come on red and then switch to blue to
indicate the amplifier is in a ready mode. If there is no
audio active to any of the inputs, after approximately 5
minutes the power light will turn red to indicate it is in sleep
mode. Zone LED lights will come on blue as each zone
senses an audio source to the zone input. In case of a fault
to a particular zone, the LED changes to RED. If the fault
remains, the corresponding LED remains red. If the short
circuit is momentary then the zone LED that changed to
red will switch to solid blue after a few seconds. Once all
zones are cleared of faults, the front LED indicators will
turn blue as long as they are active. If no audio source in
present the lights will turn off to indicate the zones are in
sleep mode.
Rear Panel
BUS 1 and 2 Inputs: There are “right” and “left” RCA style
connections labeled as “1” & “2”. These inputs are used for
sending a single audio source (i.e. CD player, tuner, MP3,
etc.) to more than one zone. For using this feature
correctly, see “Amplifier Connection” later in this manual.
BUS 1 & 2 Outputs: There are “right” and “left” RCA style
connectors labeled as “1” & “2”. These outputs are used to
loop the audio source that is connected to the “BUS
INPUTS” out to a second MX1260.
Individual Zone Line Inputs: These RCA style input
connections are the audio inputs for each individual
channel of the amplifier. These inputs are to have audio
sources dedicated to a single channel or zone on the
amplifier. We suggest using a good quality RCA patch
cable for best performance. The RCA inputs are labeled
“Left” and “Right”.
Mode Switch: This is used to switch each individual zone
between stereo or bridged.
BUS/LINE IN Switch: This is used to indicate which input
the individual channel or zone will receive audio source
from.
Sensitivity Adjustment: There is an adjustment for the
different voltage inputs with each source
(75mVrms-3Vrms). Set the control so that the speakers are
not distorting.
Speaker Terminals: These Phoenix type terminal
connectors are used to connect the speaker to each zone.
3-Conductor AC Cord Receptacle: A standard male
receptacle that fits a 3-conductor power cord.
Speaker Phasing
To obtain proper phasing and correct bass response, it is
necessary for all channels be in correct phase. The correct
phasing occurs when speakers move in and out in unison
(in phase) on mono audio. Speakers connected in phase
ensure proper imaging while an out-of-phase connection
causes indistinct imaging. Identify the positive (+) and
negative (-) polarity on the speaker cable being used and
the corresponding connections on the speakers. Make
sure the positive terminal of the speaker is connected to
the positive terminal of the amplifier. Do the same with the
negative and then follow the same procedure with all
channels.
Amplifier Connection
Always turn off the power of your amplifier, processor -
preamp, and all input/playback units before any
connections are made.
Before turning your amplifier and preamp back on, make
sure your volume is turned all the way down.
Remember the cooling issues mentioned earlier in this
manual. Improper airflow will reduce the life of the
amplifier.
When deciding on the final location, keep in mind that there
needs to be adequate space behind the amp to fit the
speaker cables and patch cables.
Stereo Connection: Use a good quality RCA type patch
cord. Connect the right and left output from the processor
to the right and left input jacks on the back of the amplifier.
Repeat this for each channel and/or zone.
The “Mode” switch should be in the “Stereo” position.
Connect the speaker cable coming from each pair of
speakers to the “Speaker Input” connector on the back of
the amplifier. This connector is removable to make
connection easier. When connecting the cable to the
connector, check for any wire strands that might be sticking
out of the connection terminal that could cause a short.
When connecting the speaker cable, make sure the
speaker and amplifier are in “phase” (positive (+) and
negative (-) are matched properly). See the above section
on “Speaker Phasing”.
These amplifiers are stable down to 4 ohms. The
impedance with the connected speakers should not be
lower than 4 ohms.
Bridged Connection: The bridging mode is meant for a
single speaker within a high powered application such as a
home theater. In the bridged mode the speakers should be
8 ohm minimum.
Make sure the amplifier power is OFF before making
connections.
3
LANDSCAPE
VIBRATIONS
Hi-Fidelity Sight & Sound

Connect the right or left output from the audio source to the
right or left input of the zone you are bridging. Repeat this
for each zone you want in bridged mode.
The “BR/ST” switch should be in the bridged (BR) position.
Make sure the switch is in this mode only on the zones you
want bridged.
Connect the speaker cables coming from one speaker to
the “speaker input” connector on the back of the amplifier.
For bridging, one speaker will connect to one connector.
Make sure to follow the labeling on the back of the amp
where the speaker input connector is labeled for the
bridged zone. The speaker input connector is removable
to make connection easier. When connecting the cable to
the connector, check for any wire strands that might be
sticking out of the connection terminal that could cause a
short.
BUS 1 & 2 Connection: The BUS inputs are used to input
audio sources such as a preamp, CD, tuner, and MP3
player over multiple zones. For example, you could have a
CD player on BUS 1 that goes to zones 1 and 2 and an
MP3 player on BUS 2 going to zones 3 and 4. The other
two zones could have independent input sources. When
designing a single-source, multiple-zone system, this
mode is perfect. Use a good quality RCA type patch cord.
Connect the right and left outputs from the preamp to the
right and left input connectors on the back of the amplifier.
Repeat this for each channel and or zone. Then, with the
zones on which you want to access one of the BUS
sources, put the input switch into the appropriate setting (1
or 2) position. Proceed to connect the speaker cable to
the amplifier as per the instructions in the “Stereo
Connection” section of this manual.
General Maintenance and Service
The front panel is finished with a high-grade anodizing
process to ensure that it maintains a flawless appearance.
Occasionally, you should wipe off any dust build up with a
damp, soft cloth.
DO NOT use any kind of cleaning solution or cleanser on
these units.
If for some reason the amplifier needs to be repaired,
please contact us immediately. We will issue a Return
Authorization Number (RA#) as well as a UPS call tag for

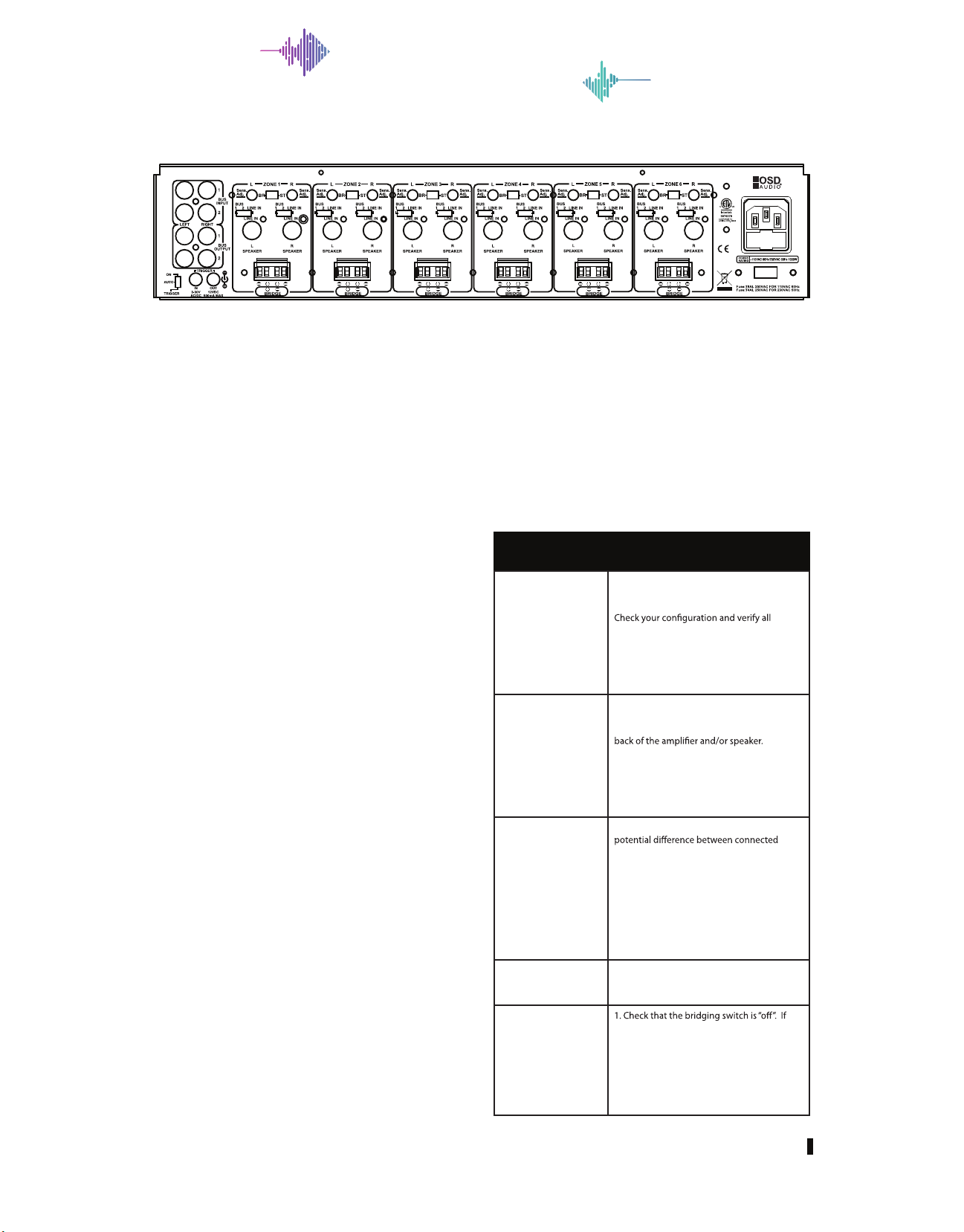

SYMPTOM POSSIBLE CAUSE AND
TEST PROCEDURE
Very little or no sound
on some or all channels.
1. Check the SEN/ ADJ knob that it is not
turned down.
2. Check input switch is in correct position
settings.
3. Audio cable to the input is bad. Connect
the nonworking channel to a cable known to
be good.
4. Bridging switch is in the wrong position.
No sound on one
channel pair and zone
LED is red.
1. Check that connections are secure and that
there are no loose strands of wire crossing
from positive to negative terminals at the
2. Disconnect the speaker wire at both ends.
Separate the two conductors at both ends
and test with a meter for a short circuit. If
there is no short, connect the two conductors
at one end and test for continuity.
Hum from all the
speakers.
1. Hum can be caused due to a ground
components (especially those connected to
antenna or cable TV feeds).
2. Check for faulty cables, faulty source
signals, an ungrounded phono system, cable
feed, and/or a defective component.
3. Reverse the AC plug of the components
with non-polarized plugs.
4. Test the AC receptacle using a ground
tester.
Bass is weak and stereo
sound is “phasey”. two adjacent channels are connected
normally but the bridging switch is set to the
bridged position, the two speakers will be out
of phase.
2. The speakers may be wired out of phase.
Recheck polarity and reverse the connections
on the back of one speaker if necessary.
Sound is distorted on
one or more channels at
normal volume.
1. Check the setting on the SEN/ADJ knob.
You may need to turn down controls.
the return. This unit should not be shipped back to
OSD Audio without the RA#.
DO NOT attempt to open or dismantle
this amplifier. THIS WILL VOID THE
WARRANTY!
MX 1260
4
LANDSCAPE
VIBRATIONS
Hi-Fidelity Sight & Sound

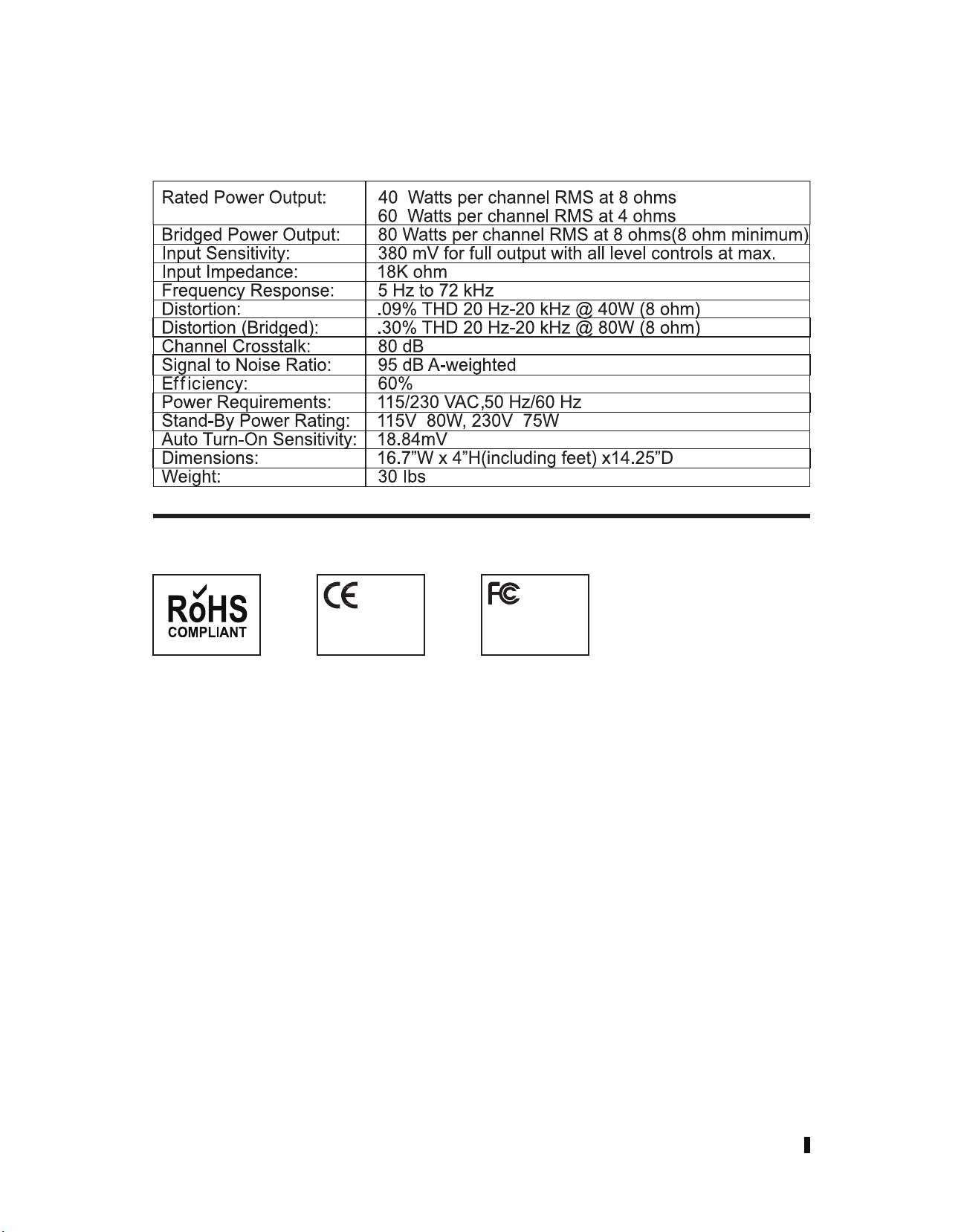

Conforms to
UL Std 6500
Certified to
CAN/CSA Std
C22.2 No. 1
Tested to Comply
with FCC Standards
HOME OR OFFICE
LV-500A Multi Zone Amplifier
5
Limited Warranty
Landscape Vibrations warrants its audio products against defects in material
and workmanship for a limited period of time.For a period of two years from
date of original purchase,we will repair or replace the product,at our option,
without charge for parts and labor.Customer must pay all parts and labor changes
after the limited warranty period expiries.The limited warranty period
for factory refurbished products expires ninety days from date of original purchase.
This limited warranty applies only to purchases from authorized Landscape Vibrations
electronics retailers.This limited warranty is extended only to the original
purchaser and is valid only to consumers in the United States.
Consumers are required to provide a copy of the original sales invoice from
an authorized Landscape Vibrations dealer when making a claim against this limited
warranty.this limited warranty only covers failures due to defects in materials
or workmanship that occur during normal use.It does not cover failures
resulting from accident,misuse,abuse,neglect,mishandling,misapplication,
alteration,faulty installation,modification,service by anyone other than
Landscape Vibrations or damage that is attributable to Acts of God.It does not
cover costs of transportation to Landscape Vibrations or damage in transmit.The
customer should return his defective product,freight prepaid and insured,to
Landscape Vibrations only after receiving a Return Authorization.
This warranty will become void if the serial number identification has been
wholly or partially removed,altered or erased.Repair or replacement under
the terms of this warranty does not extend the terms of this warranty.Should
a product prove to be defective in workmanship or material,the consumer's
sole remedies will be repair or replacement as provided under the terms
of this warranty.Under no circumstance shall Landscape Vibrations be liable for
loss or damage,direct,consequential or incidental,arising out of the use of
or inability to use the product.There are no express warranties other than
described above
Technical Support
If any part of this product is damaged or missing, please call your dealer or
Landscape Vibrations directly at 800.414.5109.
