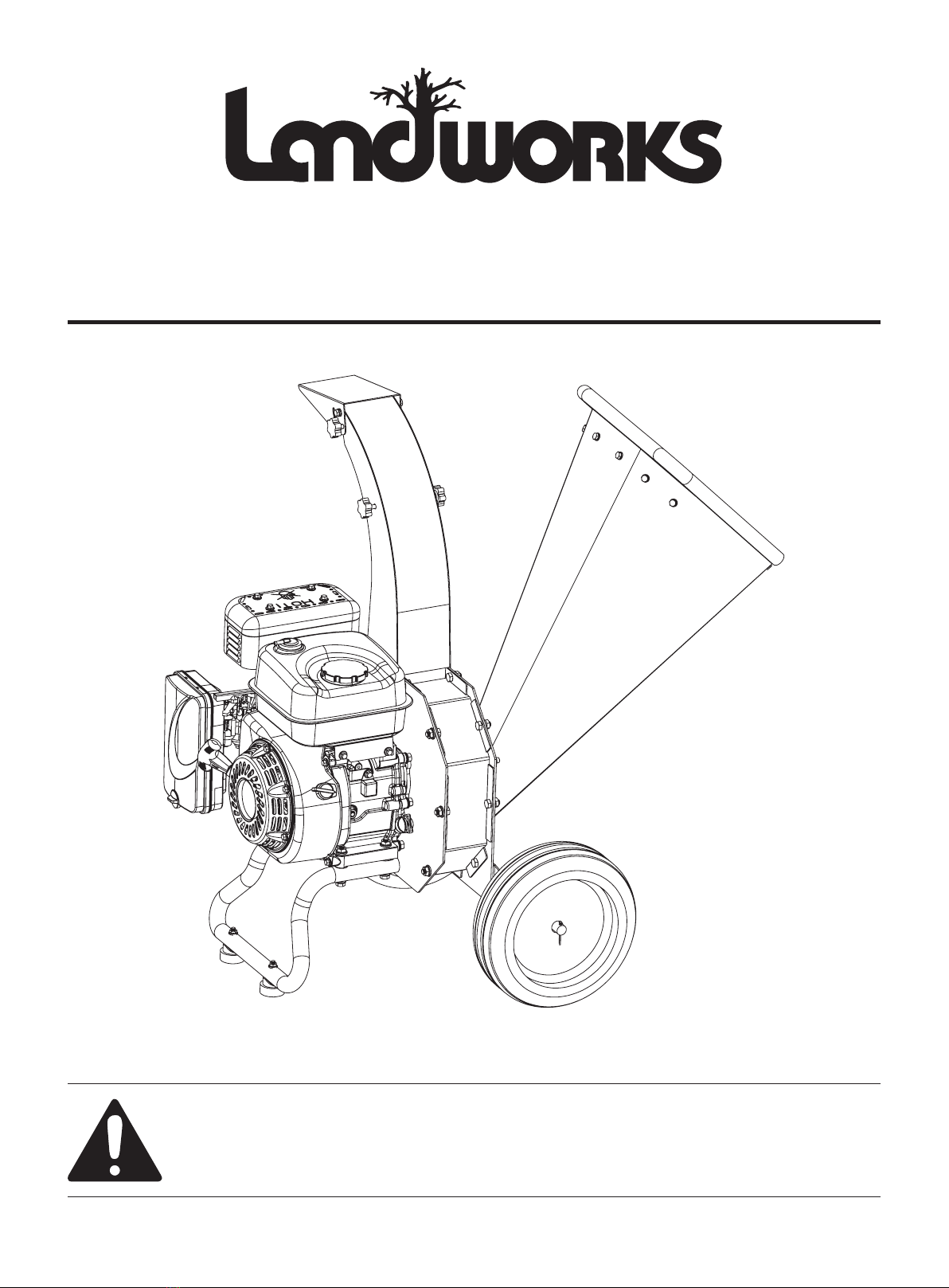

Landworks LCE12 User manual

REV 08/16/19
Instruction Manual
Wood Chipper
WARNING:
Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules
and other basic safety precautions may result in serious personal injury.
Save these instructions in a safe place and on hand so that they can be read when required. Keep
these instructions to assist in future servicing.

WARNING SYMBOL
WARNING: This is the warning symbol to get your high attention
for the instruction notice, which should be followed to avoid the
potential serious personal injury. Anyone to use this equipment
should read all the instructions of this manual. Keep this
instruction manual for future reference.
Do not allow children to operate this wood chipper. Keep small children away from the
area while wood chipper is in use. Do not allow adults to operate the wood chipper
without proper instruction.
WARNING SYMBOLS AND DEFINITIONS
Intended Use
Foreseeable Misuse
This is a petrol engine-powered wood chipper that breaks up leaves and wooded
pieces such as tree branches, brush, and limbs into smaller volume via a high-speed
rotor containing chipping blades and shredding hammers. It shall not be used for any
other purpose.
WARNING
1. You must read, understand and comply with all safety and operating instructions in
this manual before attempting to setup and operate your wood chipper.
2. Failure to comply with all safety and operating instructions can result in loss of
machine control, serious personal injury to you and/or bystanders, and risk of
equipment and property damage. The triangle in the text signifies important
cautions or warnings which must be followed.
WARNING
1. Engine exhaust, wood dust, and gasoline vapors from this product contains chemi-
cals known to the state of california
2. To cause cancer, birth defects, or other reproductive harm.
DANGER
WARNING
CAUTION
IMPORTANT
DANGER INDICATES A SERIOUS INJURY OR FATALITY WILL RESULT
IF THE SAFETY INSTRUCTIONS THAT FOLLOW THIS SIGNAL WORD
ARE NOT OBEYED.
WARNING INDICATES A HAZARD WHICH, IF NOT AVOIDED, COULD
RESULT IN DEATH OR SERIOUS INJURY AND/OR PROPERTY
DAMAGE.
CAUTION INDICATES YOU CAN OR YOUR EQUIPMENT CAN BE HURT
IF THE SAFETY INSTRUCTIONS THAT FOLLOW THIS SIGNAL WORD
ARE NOT OBEYED.
IMPORTANT INDICATES HELPFUL INFORMATION FOR PROPER
ASSEMBLY, OPERATION, OR MAINTENANCE OF YOUR EQUIPMENT.

INDEX
Features ----------------------------------------------------------------------------------------------------------------------------------------- 1
Specifications --------------------------------------------------------------------------------------------------------------------------------- 1
Safety ------------------------------------------------------------------------------------------------------------------------------------------ 2-4
Assembly ------------------------------------------------------------------------------------------------------------------------------------- 5-7
Operation ------------------------------------------------------------------------------------------------------------------------------------- 7-8
Transportating and Storage ------------------------------------------------------------------------------------------------------------ 8-9
Maintenance ------------------------------------------------------------------------------------------------------------------------------- 9-10
Trouble Shooting ----------------------------------------------------------------------------------------------------------------------- 10-11
Parts Breakdown ----------------------------------------------------------------------------------------------------------------------- 12
FEATURES
Item No.
Chipping Capacity
Chipping Knives
Reduction Rate
Chipper Knife Material
Hopper Dimensions (IN)
Limb Chute
Wheel Size (IN)
Wheel Material
Wheel Type
Net Weight (LB)
Gross Weight (LB)
Assembled Dimension (IN)
Packing Dimension (IN)
LCE12
Max. 3”
2
15:1
CR12MoV
13.1x10.8
YES
10x3
PU
SOLID
87.5
99
34.6x32.2x22.8
30.3x28.7x18.1
Engine Brand
Engine Type
Power
Displacement
Starting
RPM
Fuel Capacity
Oil
EPA3 Approval
CARB Approval
Rato
OHV
7HP
212CC
Recoil
3600
0.7Gal
SAE 30W
YES
YES
SPECIFICATIONS
Engine Specifications
1
Handle
Handle
Wheel
Discharge chute
Engine
Supporting stand
Guard plate
In-feed Bin

GENERAL OPERATING SAFETY
1.Read, understand, and follow all instructions in the manual and on the unit before starting.
2. Locate the Chipper/Shredder on a flat, level, sturdy surface capable of supporting the weight of the Chipper /
Shredder and any additional tools and equipment.
3. Do not attempt to use the machine on a slope or slick surface.
4. Dress appropriately when operating the chipper shredder. Always wear sturdy footwear and safety goggles.Nev-
er wear sandals, sneakers or open shoes, and never operate the chipper shredder with bare feet. Do not wear
loose clothing that might get caught in moving parts.
5. Never place your hands, fingers, feet, or any other part of your body close to the Discharge Opening while the
Chipper/Shredder is in operation.
6 .Do not look into the Hopper, Chipper Chute or Discharge Opening when the machine is running.
7. Only allow responsible adults, who are familiar with the instructions, to operate the unit. Keep children away from
the equipment, especially while it is operating.
8. Be sure the area is clear of other people before operating. Stop the unit if anyone enters the area.
9. Always maintain secure footing and solid balance while starting or operating the chipper shredder. Never lean
directly over the machine.
10. Operate the machine only in daylight or good artificial light.
11. Do not operate the unit while under the influence of alcohol or drugs.
12. Always wear eye and hearing protection when operating this unit.
13. Keep in mind the operator is responsible for accidents occurring to other people or property.
14. Never operate the machine without proper guards, plates, or other safety protective devices in place.
15. Thoroughly inspect where equipment is to be used and remove all foreign objects.
16. Exercise extreme caution when operating on or crossing gravel drives, walks or roads. Stay alert for hidden
hazards or traffic.
PRODUCT SPECIFIC SAFETY
DANGER: THE CHIPPER SHREDDER HAS SPINNING BLADES THAT CAN AMPU-
TATE HANDS AND FEET. DO NOT PLACE HANDS OR FEET IN THE HOPPER OR
CHIPPER CONE, OR DISCHARGE CHUTE.
WARNING: THIS UNIT DISCHARGES DEBRIS AT HIGH SPEEDS. ALWAYS WEAR
PROTECTIVE GOGGLES AND DO NOT OPERATE WITHOUT THE DEBRIS BAG IN
PLACE.
Do not allow anyone in the area while the unit is running. If someone does enter the area, shut the unit off immedi-
ately until they leave. Organize the work area prior to starting work.
1. Do not operate without the debris bag in place because this unit discharges debris at high speeds. If the unit is
operated on hard ground, asphalt, concrete, or other hard surfaces without the collection bag in place. Material-
can ricochet off of the hard surface and cause an unsafe condition for users and bystanders.
2. Never leave the machine running unattended. Always turn off the engine, wait for the rotor to come to a com-
plete stop, and disconnect the spark plug before leaving the area. Always move the unit to a safe storage area
when not in use.
3. Never direct discharge material toward anyone. Avoid discharging material against a wall or obstruction. Material
may ricochet back toward the operator.
4. Always stand to the side of the chipper cone when feeding tree limbs and branches into the unit, as tree limbs,
branches, and harder woods may kick back while being chipped.
5. Always keep hands out of the chipper cone and shredder hopper when feeding materials. Never wrap fingers
tightly around branches as you are feeding them into the unit, as a sudden inward surge could pull your hands
and arms into the unit.
6. Never allow material to build up in the discharge area or shredding chamber, as this may cause new material
being fed into the machine to kickback with sufficient force to injure you or other bystanders.
7. Never allow material to build up around the engine during chipper shredder operation. This could result in a
fire,or overheating of the engine.
2

8. Never attempt to reposition or move the chipper shredder unit while it is running. Doing so could cause the
machine to tip over, and reaching to steady the unit could result in accidental insertion of your hands into the
chipper cone or shredder hopper areas.
9. Never continue to operate the machine if it starts making unusual noise or vibration. Shut the engine off immedi-
ately,allow the rotor to stop, disconnect the spark plug wire and secure the wire away from the spark plug.Inspect
the unit for any signs of damage or foreign material in the chipping or shredding areas. Remove any solid
material that may be preventing the unit from operating properly.
10. Never attempt to clear clogs from the chipper cone, shredder hopper or discharge chute while the unit is
running. Always shut the engine off, allow the rotor to come to a complete stop, and remove the spark plug wire
from the spark plug before removing excess materials.
11. Never attempt to perform any maintenance, repairs, or attachment of accessories while the unit is running.
Always shut the unit off, allow the rotor to come to a complete stop, and remove the spark plug wire from the
spark plug before beginning these activities.
12. Always make sure that the shredding chamber, shredder hopper, and chipper cone are empty before starting
the unit after it has been idle. Attempting to start the unit with material in these areas could cause the engine
starting cord to stop suddenly, injuring your hand and fingers, or toppling the unit over. Vibration is generally
awarning sign of trouble.
13. Use only attachments and accessories approved of by the manufacturer of the machine.
14. Make sure chipper shredder is free of debris before starting the engine.
15. Never attempt to make any adjustments while the engine is running.
16. After striking a foreign object, stop the engine, remove spark plug wire, and wait for all moving parts to come to
a complete stop. Thoroughly inspect the machine for any damage, repair the damage before restarting and
operating the machine.
ENGINE SPECIFIC SAFETY
Before cleaning, repairing, or inspecting, shut off the engine and make certain that all moving parts have come to a
complete stop. Disconnect the spark plug wire and secure the wire away from the spark plug to prevent accidental
starting.
DANGER
1. ENGINES GIVE OFF CARBON MONOXIDE, AN ODORLESS, COLORLESS, POISON GAS. CARBON
MONOXIDE MAY BE PRESENT EVEN IF YOU DO NOT SMELL OR SEE ANY ENGINE EXHAUST. BREATH-
ING CARBON MONOXIDE CAN CAUSE NAUSEA, FAINTING OR DEATH, IN ADDITION TO DROWSINESS,
DIZZINESS AND CONFUSION. IF YOU EXPERIENCE ANY OF THESE SYMPTOMS, SEEK FRESH AIR AND
MEDICAL ATTENTION IMMEDIATELY.
2. IF YOUR MACHINE COMES WITH A SEPARATE ENGINE MANUAL, BE SURE TO READ AND FOLLOW ALL
SAFETY AND WARNING PRECAUTIONS OUTLINED THERE, IN ADDITION TO ANY IN THIS MANUAL.
Handle fuel with care; it is highly flammable.
a. Use an approved fuel container.
b. Never add fuel to a running engine or hot engine.
c. Fill fuel tank outdoors with extreme care. Never fill fuel tank indoors.
d. Replace gasoline cap securely and clean up spilled fuel before restarting.
Preventing Carbon Monoxide Poisoning
1. Always start and run engine outdoors. Do not start or run engine in an enclosed area, even if doors or windows are open.
2. Never try to ventilate engine exhaust indoors. Carbon monoxide can reach dangerous levels very quickly.
3. Never run engine outdoors where exhaust fumes may be pulled into a building.
4. Never run engine outdoors in a poorly ventilated area where the exhaust fumes may be trapped and not easily
taken away. (Examples include: in a large hole or areas where hills surround your working area.)
5. Never run engine in an enclosed or partially enclosed area. (Examples include: buildings that are enclosed on
one or more sides, under tents, car ports or basements.)
6. Always run the engine with the exhaust and muffler pointed in the direction away from the operator.
7. Never point the exhaust muffler towards anyone. People should always be many feet away from the operation of
the engine and its attachments.
8. Do not change the engine governor settings or over-speed the engine.
9. Do not operate the engine in a confined space where dangerous carbon monoxide fumes can collect.
3

Gasoline Fires and Handling Fuel Safely
Use extra care in handling gasoline and other fuels. They are flammable and vapors are explosive.
1. When storing extra fuel be sure that it is in an appropriate container and away from any fire hazards.
2. Prevent fire and explosion caused by static electric discharge. Use only nonmetal, portable fuel containers
approved by the Underwriter’s Laboratory (U.L.) or the American Society for Testing &Materials.
3. Always fill fuel tank outside in a well ventilated area. Never fill your fuel tank with fuel indoors. (Examples
include: basement, garage, barn, shed, house, porch, etc.) Never fill tank near appliances with pilot lights,
heaters, or other ignition sources. If the fuel has to be drained, this should be done outdoors. The drained fuel
should be stored in a container specifically designed for fuel storage or it should be disposed of carefully.
4. Never remove the fuel cap or add fuel with the engine running. Stop engine and allow to cool before filling.
5. Do not smoke while refueling or operating engine.
6. Never drain fuel from the engine in an enclosed area.
7. Always wipe up excess (spilled) fuel from engine before starting. Clean up spilled fuel immediately. If fuel is
spilled, do not start the engine but move machine and fuel container from area. Clean up spilled fuel and allow to
evaporate and dry after wiping and before starting.
8. Allow fuel fumes/vapors to escape from the area before starting engine.
9. Test the fuel cap for proper installation before starting and using engine.
10. Always run the engine with fuel cap properly installed on the engine.
11. During storage, keep machine so gas cap is up.
12. Never siphon fuel by mouth to drain fuel tank.
13. Always have an adult fill the fuel tank and never allow children to fill the engine.
14. Never allow an adult or anyone under the influence of drugs or alcohol to fill engine.
15. When storing gasoline or equipment with fuel in the tank, store away from furnaces, stoves, water heaters or
other appliances that have a pilot light or other ignition source because they can ignite gasoline vapors.
16. Never fill containers inside a vehicle or on a truck bed with a plastic bed liner. Always place containers on the
ground away from your vehicle before filling.
17. Remove gas-powered equipment from the truck or trailer and refuel it on the ground. If this is not possible, then
refuel such equipment on a trailer with a portable container, rather than from a gasoline dispenser nozzle.
Burns and Fires
The muffler, muffler guard and other parts of the engine become extremely hot during the operation of the engine.
These parts remain extremely hot after the engine has stopped.
Prevention of Burns and Fires
1. Never remove the muffler guard from the engine.
2. Never touch the muffler guard because it is extremely hot and will cause severe burns.
3. Never touch parts of the engine that become hot after operation.
4. Always keep materials and debris away from muffler guard and other hot parts of the engine to avoid fires.
Children and Bystanders
Tragic accidents can occur if the operator is not alert to the presence of children and/or bystanders. Never assume
that others will remain where you last saw them.
1. Keep the area of operation clear of all persons, especially small children and pets. Keep children under the
watchful care of a responsible adult.
2. Be alert and turn the machine off if children enter the area.
3. Before and while moving backwards, look behind and down for small children.
4. Never allow children to operate the machine
4

5
ASSEMBLY
Install Stand (See Figure 1)
1. Position the stand (A) underneath the engine base
2. Using the four M8x60 bolts (B) and four nuts (D) with 8 flat washer（C）to tight the stand with the engine base
plate.
3. Fix the wheel bracket (E) on the housing with three M8x20 bolts (G) and three M8 nuts.(F)
Install the Wheels (See Figure 2)
1. Put the wheel (B)onto the axle(C), Make sure the wheel disc flat side face to machine.
2. Insert the cotter pin (A) into the hole to secure the wheel on the axle.
Figure 1
Figure 2

6
In-feed bin installation (see Figure 3)
1. Place the Infeed bin (A) on four M8 bolts;
2. Fix the bolt with four M8 flange nuts (B).
Fixed the discharge chute (see Figure 4)
1. Place the discharge chute (A) on the housing and align the fixed hole.
Fix the discharge chute with three M8*16 bolts (B) on the housing. (see Figure 4)
2. Place the discharge chute (A) on the housing and align the fixed hole.
Figure 3
Figure 4

7
Fixed the discharge chute guide (see Fig. 5)
1. The guide (A) is placed at the fixed holes of the discharge chute
2 .Fix the discharge chute guide with 2 M6*12 (D), 2 elastic washers (C), 1 flat washer (B) and 1 M6*16 star handle
(E)
GENERAL OPERATION
1. Be sure to read all information in the Safety and Operation sections before attempting to operate this unit.
Become familiar with all of the controls and how to stop the unit.
2. Check all hardware (bolts, screws, etc) before every use for tightness to be sure machine is in safe working condition.
3. Overloading the equipment will shorten its life, and can cause mechanical failures.
Chipper Operation
The chipper is designed to handle tree limbs and branches up to approximately 3” (7,6 cm) in diameter. The
chipping knives also permit the processing of course organic matter like corn stalks. Tree branches must be
inserted large-end first into the chipper cone. Since occasional kick-backs may occur, always stand off to the side
of the unit. Allow the self-feeding action of the unit to draw the sticks in.
Operating Location
1. Select an area with firm, level ground, covered by dirt or grass.
2. Do not operate on wet or slick surfaces, or near bystanders.
3. Locate and organize the materials to be processed so that you don’t have to walk in front of the inlet or discharge
openings, and so you have adequate room to work safely.
Adding Oil
Refer to engine manual for information on adding oil.
DANGER
1. THE EXHAUST FROM THIS PRODUCT CONTAINS CARBON MONOXIDE GAS. CARBON MONOXIDE IS A
COLORLESS, ORDERLESS AND TASTELESS GAS THAT CAN CAUSE DIZZINESS, NAUSEA, UNCON-
SCIOUSNESS OR EVEN BRAIN DAMAGE AND DEATH IF INHALED FOR PROLONGED PERIODS.
2. OPERATE THE UNIT OUTDOORS IN A WELL VENTILATED LOCATION ONLY. KEEP CHILDREN, PETS
AND BYSTANDERS AWAY.
3. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN SERIOUS INJURY OR DEATH.
Figure 5

8
WARNING
1. GASOLINE IS HIGHLY FLAMMABLE AND MUST BE HANDLED WITH CARE. NEVER FILL THE TANK
WHEN THE ENGINE IS STILL HOT FROM RECENT OPERATION.
2. DO NOT ALLOW OPEN FLAME, SMOKING OR MATCHES IN THE AREA. AVOID OVER-FILLING AND
WIPE UP ANY SPILLS.
WARNING: TO AVOID SERIOUS PERSONAL INJURY FROM ROTATING CUTTING BLADES, KEEP
HANDS OUT OF INLET WHILE MACHINE IS RUNNING.
WARNING: DO NOT USE GASOLINE CONTAINING METHANOL, GASOHOL CONTAINING MORE
THAN 10% ETHANOL, GASOLINE ADDITIVES OR WHITE GAS BECAUSE ENGINE/FUEL SYSTEM
DAMAGE COULD RESULT.
IMPORTANT: ENGINE IS SHIPPED FROM FACTORY WITHOUT OIL. YOU MUST ADD ENGINE OIL
BEFORE STARTING ENGINE.
Adding Fuel
To add fuel:
1. Remove the fuel cap.
2. Fill the tank. Do not overfill. Leave room in the tank for fuel expansion. Refer to your engine manual for specific fuel
recommendations.
3. Install and hand tighten the fuel cap.
Starting the Engine
1. See engine manual for starting up instructions.
2. Ensure engine is running full throttle before beginning chipping operation. On some engines, the throttle may not
be adjustable.
Stopping the Engine
1. See engine manual for shut down procedure.
2. Stopping the engine is the only way to stop the rotor from turning. With engines equipped with an adjustable
throttle, move the throttle to the SLOW position and wait for engine to be running a slow RPM. Then switch to
STOP ENGINE as shown in the engine manual.
TRANSPORTING AND STORAGE
1. Always observe safe refueling and fuel handling practices when refueling the unit after transportation or storage.
2. Never store the unit (with fuel) in an enclosed poorly ventilated structure. Fuel vapors can travel to an ignition source
(such as a furnace, water heater, etc.) and cause an explosion. Fuel vapor is also toxic to humans and animals.
3. Always use the hopper handle and built-in wheels to move the chipper shredder. Never lift the unit using the fuel
tank for support. If the unit must be lifted , always use at least two people, and always grip the unit securely
using the front leg and hopper handle.
4. Always follow the engine manual instructions for storage preparations before storing the unit for both short and long
term periods.
5. Always follow the engine manual instructions for proper start-up procedures when returning the unit to service.
6. Never store the unit or fuel container inside where there is an open flame or pilot light, such as in a water heater.
Allow unit to cool before storing.
Storage
Perform engine maintenance and storage measures listed in the engine owner’s manual. This includes draining the
fuel system, or adding stabilizer to the fuel. NOTE: Do not store a fueled unit in an enclosed structure. (SEE
GASOLINE FIRES AND HANDLING FUEL SAFETY)
Before starting the unit after it has been stored:
1. Check all fluid levels. Check all maintenance items.
2. Perform all recommended checks and procedures found in the engine owner’s manual.
3. Allow the engine to warm up for several minutes before use.

MAINTENANCE
Schedule & Procedures
The following schedule should be followed for normal care of your unit.
Engine Maintenance
Refer to the engine manual included in your package for information on engine maintenance. Your engine manual
provides information and a maintenance schedule for performing the following tasks:
1. Always check oil level before starting engine. Refer to engine manual for capacity and type of oil to use.
2. Change oil after first 5-8 hours of operation. Change oil while engine is warm. Refill with new oil of recommend-
ed grade.
4. Check spark plug yearly or every 50 hours of operation.
5. Service air cleaner.
6. Keep engine and parts clean.
7. Check engine and equipment often for loose nuts and bolts, keep these items tightened.
Check for Loose Hardware
1. Service Interval: Every 5 hours; every spring and fall.
2. Inspect the unit, checking for loose hardware or components.
3. Pay special attention to the hardware attaching the chipper cone, hopper, axle, and front leg.
Check Safety Labels
1. Service Interval: Every spring and fall.
2. Check that the safety labels are in place and undamaged.
3. Sample illustrations and part numbers of the decals can be found on page 6. Replace any damaged or missing
decals.
Inspect Cone, & Guards
1. Service Interval: before using the machine.
2. Check that the chipper cone, and discharge guards are in place, undamaged, and secure. Replace any dam-
aged or missing parts.
Clean Debris from Engine & Chipper
1. Service Interval: Before each use and every 100 hours.
2. The engine requires air flow to cool itself and for combustion.
3. Before each use, clean any debris from the unit especially from around the air shroud intake, air filter, and
muffler. Every 100 hours, remove the engine air shroud and clean out any debris from the engine cooling fins.
We recommend having this service performed by an authorized dealer.
IMPORTANT: Engine is shipped from factory without oil. You must add engine oil before
starting engine.
9
SAFETY ITEMS BEFORE
EACH USE
EVERY
5 HOURS
EVERY
25 HOURS
EVERY
100 HOURS
EVERY
250 HOURS
SPRING
& FALL
Clean debris from engine and chipper
Inspect/Rotate Shredding Hammers
Inspect/Rotate Chipping Knives
Check for loose hardware
Check all safety labels
Inspect cone, hopper, and guards
CHIPPER MAINTENANCE ITEMS
X X
X
X
X
X
X
X

CAUTION
1. FOR THE SAFETY OF THE USER, AND TO MAXIMIZE THE LIFE OF THE ENGINE, IT IS CRUCIAL TO
TAKE TIME TO CHECK THE CONDITION OF THE ENGINE.
2. PROBLEMS MUST BE CORRECTED BEFORE OPERATING.
3. AVOID INJURY! ENGINE OIL IS HAZARDOUS TO YOUR HEALTH. DISPOSE OF OIL APPROPRIATELY.
4. USE A SAFE DISPOSAL/RECYCLING CENTER.
TROUBLESHOOTING CHART
1. While normal care and regular maintenance will extend the life of your equipment, prolonged or constant use
may eventually require that service be performed to allow it to continue operating properly.
2. The troubleshooting guide below lists the most common problems, their causes, and remedies.
3. See the information on the following pages for instructions on how to perform most of these minor adjustments
and service repairs yourself. If you prefer, all of these procedures can be performed for you by your local autho-
rized dealer.
WARNING
1. TO AVOID SERIOUS INJURY, PERFORM MAINTENANCE ON THE UNIT ONLY WHEN THE ENGINE IS
STOPPED.
2. ALWAYS DISCONNECT THE SPARK PLUG WIRE AND FASTEN IT AWAY FROM THE PLUG BEFORE
BEGINNING THE MAINTENANCE, TO PREVENT ACCIDENTAL STARTING OF THE ENGINE.
10
Problem(s)
Engine won't start
Engine exhaust is black
Engine stops suddenly
Engine runs but no
material is discharged
Chipping action slow,
or engine stalling
Unusual noise or
vibration when
chipping materia
Possible Cause
1. No fuel.
2. Choke not in START position.
3. Low quality or deteriorated, old gasoline.
4. Dirty fuel passageways.
5. Spark plug cap not connected securely.
6. Spark plug fouled.
7. No compressions. Problem after long storage
periods.
8. Low engine oil.
1. Dirty air filter.
2. Choke closed.
1. Fuel tank empty or full of impure or low quality
gasoline.
2. Low oil shutdown.
3. Disconnected or improperly connected spark
plug cap.
4. The limb is too long.
1. Discharge chute clogged.
2. Engine not running at full speed.
1. Branch diameter is too thick.
2. Throttle set is too slow.
3. Tree limbs are extremely hard or dried out.
1. Rotor overloaded with material.
2. Hammers are broken, bent, or loose.
3. Hammers frozen in place.
Corrective Action
1. Add fuel.
2. Turn choke to START position.
3. Use fresh unleaded gasoline.
4. Clean out passageways using fuel additive.
Heavy deposits may require further cleaning.
5. Connect spark plug cap properly.
6. Remove spark plug. Clean/replace as
recommended in engine manual.
7. Lubricate the cylinder, pour tablespoon of oil
into spark plug hole. Crank engine a few times
and try to start again.
8. Add engine oil to proper level.
1. Replace air filter.
2. Open choke.
1. Add fuel tank with fresh unleaded gasoline.
2. Fill engine oil to proper level.
3. Secure spark plug cap.
4. If the limb diameter for the side chute in 2"-3"
and the length over 31" long, suggest the
operator should help the limb feeding by
slightly holding to keep the rotate speed.
1. Clean out debris.
2. Set throttle control to FAST if equipped.
1. Do not process branches over 3" diameter.
2. Adjust throttle to increase engine speed.
3. Material is not suitable for chipping.
1. Allow unit to clear itself before adding more
material to the hopper.
2. Check assembly. Tighten or replace as
necessary.
3. Check for obstructions and debris. Repair or
replace as necessary.

11
Chipping Knives Sharpening and Replacement
1. The chipping knives should be sharpened or replaced when tree limbs require extra force to feed into the chipper cone.
2. The chipping knives may be sharpened at a 39 degree angle until the distance between the edge of the blade
bevel and the mounting hole is less than 1/16” (1.6mm). See Figure 6.
Parts Breakdown
Figure 6
Part No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Description
Back of side plate
Front of side plate
Knife assembly
Window plate
Wheel bracket
Discharge chute
Discharge chute guide
Bearing Seat
In-feed bin
Hopper guard
Guard plate
Engine
Engine support
Stand pad
Wheel
Q’ty
1
1
1
1
1
1
1
2
1
1
1
1
1
2
2
Part No.
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Description
Screw M6x40
Locking nuts M6
Flange Bolt M8*60
Flat washer
Flange Locking Nut M8
Split pin
Bolt M8*16
Cowl panel
Cowl panel
Locking nut M6
Bolt M6x20
Flat washer φ6
Star handle
Bolt M6*12
Elastic washer
Q’ty
2
2
8
8
20
2
17
1
1
8
6
8
3
2
2
Size：210x285mm 157G铜版纸 REV 08/16/18
