LANDY S-GT1830-LD User manual

72" Hydraulic Roto Tiller
MODEL: S-GT1830-LD

General
For us, the long lifecycle and efficiency of your new equipment is a priority. To keep the roto tiller in top working
condition,read this manual carefully before using the equipment.
Never let anyone operate or maintain the device without reading this manual carefully! Always make sure that
safety precautions are observed in use and maintenance. Keep this manual for future reference and make sure to
hand it over to a new owner.
The cornerstones of the product development of LANDY attachments are quality, durability and economy. The
products are engineered to be high-performing, safe and durable in professional use. Any feedback on our
products is welcome and contributes to the further development of our products. If you have any questions about
the use or maintenance of the roto tiller , please contact us by e-mail: [e-mail]
The manufacturer reserves the right for structural and technical changes without prior notice. Therefore, some
pieces of information given in the manual may have changed after printing this manual.
Read before use
Make sure you know your equipment before you start using it.
Equipment may be operated only by an individual who is thoroughly familiar with its use.
All operators must be properly instructed before use and maintenance of the equipment. Use by individuals with
insufficient instructions may pose serious risks to the operators themselves, to the environment and the
equipment.
When coupling the attachment to the base machine, make sure:
- that all locking cotters are intact and in order
- there is no pressure in the hydraulic system
- that hydraulic hoses are intact
- there is no skin contact to hydraulic oil when connecting hydraulic hoses
- not to pull by the hydraulic hoses, but only by the hydraulic fitting
During operation, pay attention to:
- safe, appropriate travel speed
- other traffic, people and animals
- danger zones and objects that block your view
- children
NEVER use the machine, if there is someone in the danger zone.
NEVER go under the attachment.
Check all bolts, nuts and hydraulic fittings for tightness after the first day of operation!
If the equipment is not likely to be used for a longer period of time, clean it thoroughly after use and lubricate as
instructed.

Table of contents
1. PURPOSE OF USE ...................................................................................................................................................................... 4
2. SAFETY PRECAUTIONS ............................................................................................................................................................ 4
3. PARTS OF THE ROTO TILLER .................................................................................................................................................5
4. USING THE ROTO TILLER ........................................................................................................................................................ 6
5. OPERATING THE ROTO TILLER ............................................................................................................................................. 6
6. MAINTENANCE OF THE ROTO TILLER .................................................................................................................................7

1. PURPOSE OF USE
Skid Steer Roto tiller that will fit most skid steers, this is a very perfect tools for those gardens or breaking up the
soil or sub soil.
2. SAFETY PRECAUTIONS
Make sure you know your equipment before you start using it. Equipment may be operated
only by an individual who is thoroughly familiar with its use.
Before connecting hydraulics to the base machine, make sure that:
- there is no-one between the attachment and the base machine
- the base machine is turned off and the parking brake is on.
When coupling the attachment to the base machine, make sure that:
- all locking cotters are intact and in order
- hydraulic hoses are intact
- there is no skin contact to hydraulic oil when connecting hydraulic hoses
- you do not to pull by the hydraulic hoses, but only by the hydraulic fitting.
During operation, pay attention to:
- safe, appropriate travel speed
- other traffic, people and animals
- danger zones and objects that block your view
- children
- use of turn signal when driving
NEVER use the machine, if there is someone in the danger zone
NEVER go under the attachment
During maintenance, the hydraulics of the base machine MUST be turned off. The base machine MUST also be
turned off and the parking brake MUST be applied. The equipment must be properly supported, if maintenance
can only be performed by going under the equipment. Never go under the equipment if it is not properly
supported.
Daily maintenance:
- check general condition of structures, make repairs if needed
- check the hydraulic hoses and fittings, and replace damaged parts
After every 50 hours of operation:
- lubricate points specified in later section of this manual
- check all bolts and nuts for tightness
WARNING! Pressurized hydraulic hoses and components!

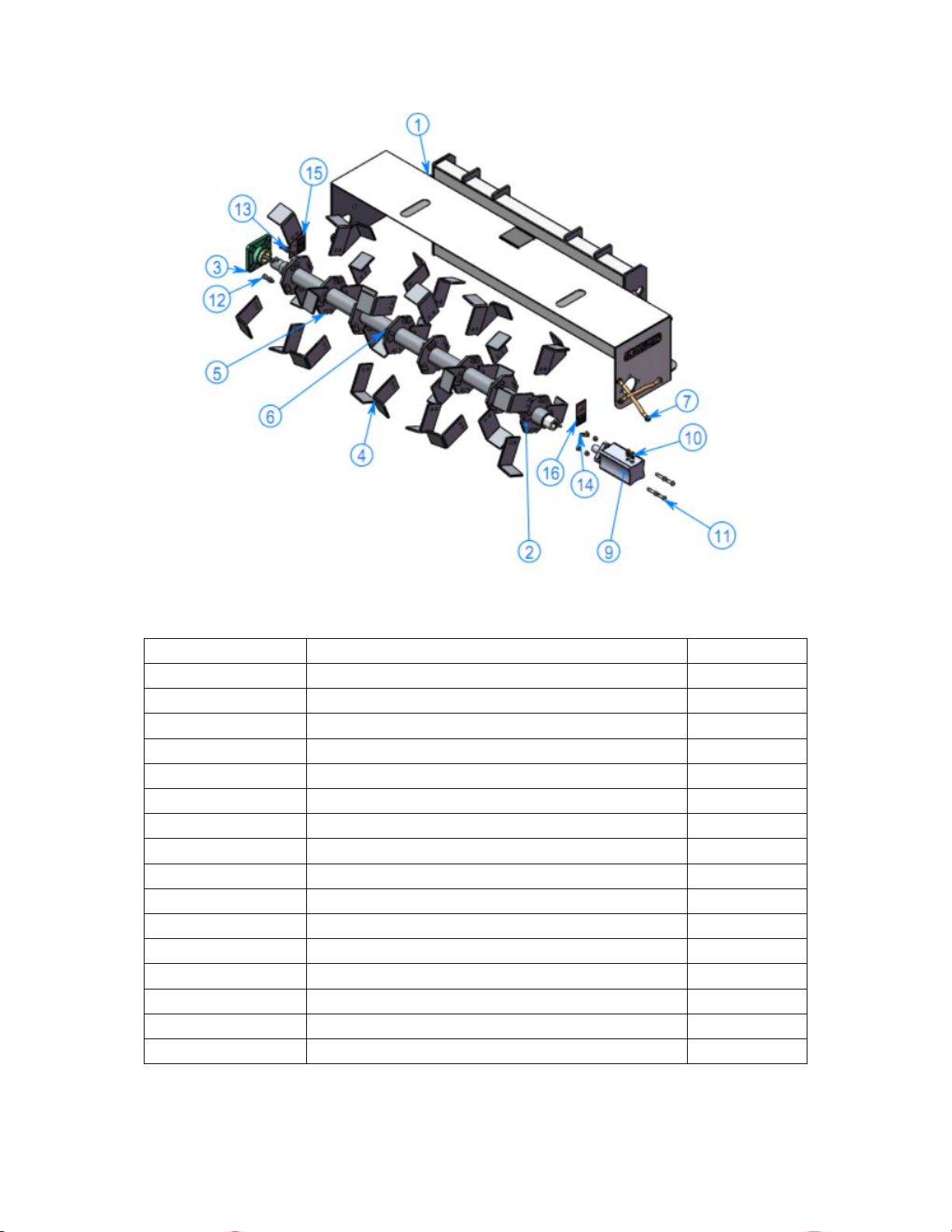

3. PARTS OF THE ROTO TILLER
DIAGRAM NO.
DESCRIPTION
QTY
1
Frame
1
2
Holder of Cutting Blade
1
3
Bearing Pedestal
1
4
Blade
32
5
Hex Bolt
64
6
Hex Nut
68
7
Hose
2
8
GB-T-1096-8×12×70
1
9
Motor
1
10
Fitting
2
11
Hex Bolt
4
12
Hex Bolt
4
13
Hex Nut
4
14
Bonded Washer
2
15
Stick
1
16
Stick
1

4. USING THE ROTO TILLER
When attaching the roto tiller for the first time, make sure it is compatible with the base machine by following the
instructions below. Always check the compatibility when attaching the collecting sweeper to a new base machine.
4.1. Attaching the roto tiller to the base machine
The grapple bucket is attached to the base machine by welded or bolted quick hitches. The machine is connected to
connected to a hydraulic system.
Before using the roto tiller, MAKE SURE all locking cotters are secured and intact.
When coupling roto tiller to the base machine, please pay attention to the instructions on the use of the base
machine.
1. Make sure that the attachment and the base machine are compatible in terms of mechanical solutions, hydraulics
and electricity.
2. Apply parking brake. The roto tiller is attached to the coupler on the base machine. Attach the roto tiller to the base
machine, and make sure the locking cotter are secured.
3. Turn off the base machine and make sure the parking brake is applied.
4. Make sure there is no pressure in the base machine hydraulic system. When connecting, always make sure the
hydraulic connectors are clean and the hoses are intact.
5. Check carefully the attachment’s, the base machine’s and the fitting’s trajectory for collision. Make sure that the
needed space for hydraulic hoses and -attachments is adequate. Check that the brush roll rotates outwards from the.
If not, switch hoses in the base machine.
6. During first hours of operating the attachment, bolts, nuts and connectors might loosen up. Retighten them after
the first day of operating the attachment.
5. OPERATING THE ROTO TILLER
Check following before using the roto tiller:
- Roto tiller is installed properly to the base machine
- All locking cotters are in place
- Hydraulic hoses are attached properly
- Hoses are intact
- There are no oil leaks in attachment
- All functions are in order
- Learn the functions of the roto tiller in an enclosed area before actual usage.
- Observe all unusual activity and oil leaks when operating the roto tiller.
5.1. Using the roto tiller
1. Make sure that the attachment and the base machine are compatible in terms of mechanical solutions, hydraulics
and electricity.
2. Apply parking brake. The roto tiller is attached to the coupler on the base machine. Attach the grapple bucket to the
base machine, and make sure the locking cotters are secured.
3. Turn off the base machine and make sure the parking brake is applied.
4. Make sure there is no pressure in the base machine hydraulic system. When connecting, always make sure the
hydraulic connectors are clean and the hoses are intact.
5. Check carefully the attachment’s, the base machine’s and the fitting’s trajectory for collision. Make sure that the
needed space for hydraulic hoses and -attachments is adequate. Check that the brush roll rotates outwards from the.
If not, switch hoses in the base machine.

6. Lift roto tiller front and back support legs. Lock them in upward position with locking cotters.
7. Keep the grapple bucket in suitable distance from ground. The attachment could be damaged!
8. Stay alert for any abnormal behaviour and oil leaks also during driving.
5.2. Detaching the grapple bucket from the base machine
1. Turn off the base machine, apply the parking brake and depressurize the system.
2. Detach the hydraulic hoses and protect hose ends with plugs.
3. Unlock the coupling mechanism and detach the device.
4. If the equipment is not likely to be used for a longer period of time, clean it thoroughly after operating and lubricate
as instructed. Remove water from irrigation system’s hoses. If possible, store the unit inside.
6. MAINTENANCE OF THE ROTO TILLER
6.1. General safety precautions for the use and maintenance
- Comply with existing laws and regulations and the instructions given in this manual.
- Never go under an unsecured device.
- Always apply the parking brake of the base machine before performing any actions on the device.
- Only use tools that are in proper working order.
- Be careful with the pressurized hydraulic hoses and components.
- Make sure there is no pressure in the hydraulic system. Take into account the pressure accumulator.
- Make sure hydraulic fluids or greases do not leak to the ground.
- Use all necessary personal protectors.
6.2. Daily maintenance
In order to prevent further damages, it is important to inspect the device visually for possible defects. Inspect at least
the following daily:
- hydraulic hoses and components for possible leaks
- general mechanical functioning
6.3. Maintenance after first 10 hours of operation
- Lubricate, preferably with a grease or equivalent.
- Check all bolts and nuts for tightness.
6.4. Maintenance at 50-working hour intervals or on a weekly basis
- Lubricate, preferably with a grease or equivalent.
- Check the mechanical condition of the device for bends, distortions or breaches
- Check fastening bolts for tightness.
