FW-3600 Series
Mini Desktop Intel IXP 42x
Network Security Platforms
User’s Manual

ii
Copyright and Disclaimers
© Copyright 2004 - Lanner Electronics Inc.
All Rights Reserved
The contents in this publication have been thoroughly checked and considered accurate. The
publisher and manufacturer of this product, Lanner Electronics, is not responsible for any
violation of patents or other rights of third parties resulting from its use. Neither does Lanner
Electronics assume any responsibility for any inaccuracies contained in this manual, nor make
any commitment to keep the information in this document up-to-date.
Lanner reserves the right to make improvements to this document and/or this product at any
given time without notice.
No part of this document may be reproduced, stored in a retrieval system, or transmitted in any
form or by any means (electronic, mechanical, photocopying, recording, or otherwise, without
the formal consent from Lanner.
Trademark Acknowledgments
IXP is a trademark of Intel Corp.
All products and/or brand names stated in this publication are the trademarks of their rightful
and associated companies.
Radio Frequency Emissions Notice
This equipment has been tested and found to comply with the digital device limits pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when operate in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of
this equipment in a residential area may cause harmful interference, in which case the user will
be required to correct the interference at his expense.

iii
Safety Instructions
The following information relates to the safety of installation and maintenance personnel. Read
all instructions before attempting to unpack, install or operate this equipment, especially before
connecting the power adapter.
Please keep the following in mind as you unpack and install this equipment:
 Always follow basic safety precautions to reduce the risk of fire, electrical shock and
injury to persons.
 Do not apply power into FW-3600 before installation or when disconnecting this
product from its original system setup.
 Use only the specified power adapter (output voltage: 5VDC/3A) and make sure the
power adaptor’s plug matches your electrical wall outlet.
 To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this
product near water.
 Locate a safe and dry location to place this product. Keep it away from wet
surfaces/surroundings.
 Never push an object of any kind into this product through openings or empty slots, as
you may damage parts.
 Do not attach the power supply cabling to building surfaces. Do not allow anything to
rest on the power cabling or allow it to be abused by persons walking on it.
 Distance your working area from moist floors, ungrounded power extension cables, and
unavailable safety grounds.
 Avoid installation of this product during a lighting storm.
 Damages caused by electrostatic discharge may result in total or intermittent system
failures. To minimize the possibility of ESD damage, an anti-static strap is highly
recommended.
 When cleaning or servicing this unit, avoid using highly toxic or aerosol cleaners. Use a
clean damp cloth when wiping its surfaces.
 Do not place this device in a tight and sealed location. Place the unit where it can access
sufficient airflow to its vent holes (openings along its sides). Never block or cover these
openings.
 Do not disassemble this product on your own.

iv
Getting Technical Assistance
Should you encounter questions or problems with your FW-3600, Lanner Electronics is ready
to assist you within the guidelines of our product support programs. First, check the electronic
product documentation for assistance. If you still cannot find the solution to your problem,
contact Lanner sales team with the following information handy:
 FW-3600 model name
 Part number
 Local network configuration details
 The abnormal behavior and/or error messages reported by your network system
 Your questions, or a description of the problem you are experiencing
Call, fax, or e-mail Lanner Electronics for technical support.
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
About this Manual
This target audience of this manual includes users, administrators and technicians. This
publication is a useful reference when installing, configuring, operating and managing the
FW-3600. This breakdown and short descriptions of this manual’s contents are as follows:
 Chapter 1 – Introduction provides an overview of the FW-3600 mini
desktop firewall platform, including its related features, application
usage and technical specifications list. The chapter also guides users
through the pre and post installation process by listing safety tips plus an
overall detailed description of the control board and system and their vital
components.
 Chapter 2 – Image Download and Test Procedure points out the basic
steps when upgrading your FW-3600 via command line interface.
 Appendix A – summarizes all drivers contained in the FW-3600 Drivers
and Documentation Disk.

v
Table of Contents
Copyright and Disclaimers..................................................................................ii
Trademark Acknowledgments............................................................................ii
Radio Frequency Emissions Notice....................................................................ii
Safety Instructions.............................................................................................iii
Getting Technical Assistance............................................................................iv
About this Manual..............................................................................................iv
Chapter 1 Getting Started.....................................................................................................1
1.1 Introduction................................................................................................ 1
1.1.1 Features.............................................................................................................................1
1.2 Technical Specifications............................................................................ 2
1.3 Packing Contents...................................................................................... 3
1.4 EM-434 System Board.............................................................................. 3
1.4.1 Mechanical Dimensions .....................................................................................................3
1.4.2 Board Layout......................................................................................................................4
1.4.3 Jumper Settings.................................................................................................................4
1.4.4 Connector PinAssignments...............................................................................................4
PS4S1:4-Pin Power Connector (Small-4P) ........................................................ 4
GPIOA1:2x4 GPIO Pin Header.......................................................................... 5
EJC1: EJPROB Connector ................................................................................. 5
LANA1~ LANA3: Type 1 (RJ-45)..................................................................... 5
COMA1: RS-232 Serial Port #1 Connector (D-Sub) ......................................... 5
LAN4PA1: 4 x RJ-45 Ports................................................................................ 6
PCIB1~2:124-pin Mini PCI Sockets .................................................................. 7
RSW1: 4-pin Software Reset Switch.................................................................. 8
RSW2: 4-pin Hardware Reset Switch ................................................................ 8

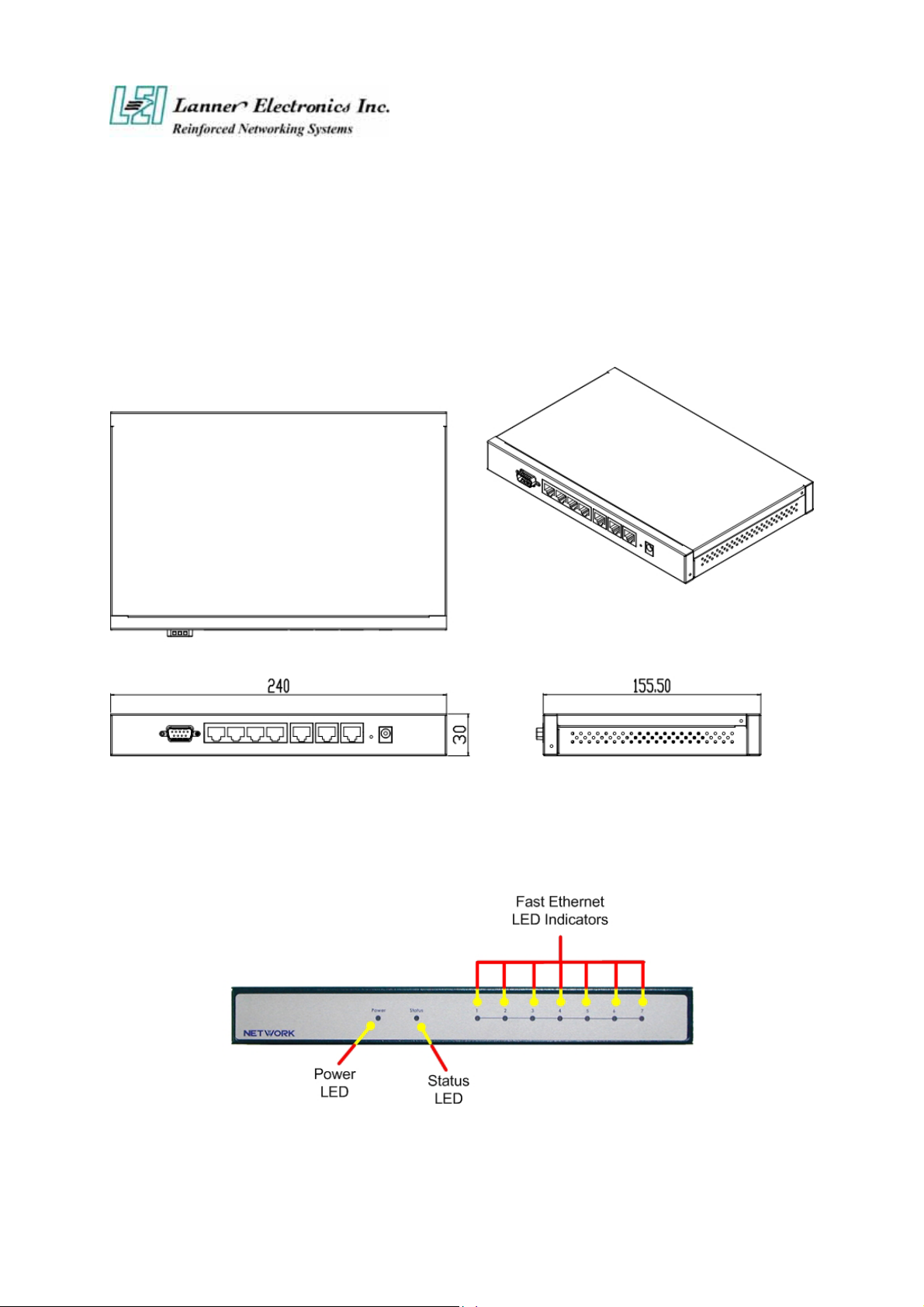

1.5 FW-3600 Mini Desktop Firewall Mechanisms........................................... 9
1.5.1 Mechanical Dimensions .....................................................................................................9
1.5.2 Face Panel.........................................................................................................................9
Face Panel LED Status and Behavior............................................................... 10
1.5.3 Rear View.........................................................................................................................10
Chapter 2 EM-434 Image Download.................................................................................11
2.1 Pre-installed Linux Software.................................................................... 11
2.2 Boot-up Conditions.................................................................................. 12
2.3 Downloading Redboot............................................................................. 14
2.3.1 Hardware Requisites........................................................................................................14
2.3.2 Procedures.......................................................................................................................14
2.4 Downloading Linux and Ramdisk............................................................ 15
2.4.1 Procedures.......................................................................................................................15
Appendix A Driver Information.........................................................................................16
Terms and Conditions
Warranty Policy
RMA Service

1
C h a p t e r 1
Getting Started
1.1 Introduction
Figure 1 – FW-3600 Outlook
The FW-3600 is a mini desktop Intel IXP based firewall platform equipped with an Intel IXP
422/425 processor. A cost-effective and fanless solution of its kind, it comes with a
pre-installed Booting Code and Linux Kernel. Its onboard mini PCI slots are tested compatible
with any type of WiFi 802.11g card and IPSec VPNAccelerating card. Software porting on the
FW-3600 is fully compatible with Firewall/VPN Software Applications.
Based on Intel’s Xcale architecture, FW-3600 bundles a 64MB SDRAM and a 16MB NOR
Flash onboard. On top of these are additional features like three FastEthernet ports and one
four-port switch, two mini PCI slots for additional flexibility.
The FW-3600 is a promising platform on various applications including Residential Security
Gateway, Residential Security Wireless Access Point, SOHO/ROBO Firewall/VPN Network
Security Appliance, Wireless 4A (Authentication, Authorization, Accounting, Administration)
Gateway, Hot Spot Accentuation and Billing System, and many more.
1.1.1 Features
Listed below are the key features of FW-3600.
 Intel IXP 42x series RISC core base platform
 Fanless system design
 Slim-desktop form factor
 Two mini-PCI sockets for expansion purposes
 Easy Image Download Procedure for Software Programming

2
1.2 Technical Specifications
 Chassis:
− Construction: Bench top Chassis
− Chassis Material: SPCC 1.0T
− Chassis Color: PMS 877C
 Control Board:
− EM-434
− Dimensions: 147mm x 209mm
 Processor:
− Intel IXP425, 533MHz (FW-3600A)
− IXP422, 266MHz (FW-3600B)
 Flash RAM: Onboard 16MB NOR Flash ROM
 System Memory: Onboard 64MB SDRAM
 Boot Loader: Redboot
 Ethernet Connectors:
− One RTL8305SB switch (MII) with ONE four-port switch and ONE Fast Ethernet RJ45
− Two RTL8100B 10/100 Ethernet controller with two Fast Ethernet RJ45
 PCI Interface: Two mini-PCI sockets onboard
 Real Time Clock: Li battery
 I/O Connectors:
− One DB-9 console connector
− Mini software reset button
 Pin Header:
− One JTAG pin header
− Hardware reset button onboard
− 4-pin power connector onboard
 LED Indicators: Power, Status (programmable by GPIO), Ethernet Ports 1-7
 Power Supply:
− +5V 3A auto-switchingAC power adapter
− One power jack, 5V/3A
− Input Voltage Range: 100~240 V
− Frequency Range: 50Hz~ 60Hz
 Storage Temperature: -20oC~70oC
 Operation Temperature: 0oC ~40oC
 Relative Humidity: 5%~95%, non-condensing
 System Dimensions: 235 x 161.9 x 37.6 mm
 Device Weight: 1 kg
 Certifications: CE/FCC

3
1.3 Packing Contents
Carefully unpack your package and make sure that you have the following items.
 FW-3600 Firewall Platform
 Console cable
 1.8 meters long cross-over Ethernet cable
 1.8 meters long straight-through Ethernet cable
 Face panel name plate label
 Power adapter
 Drivers and User’s Manual Disk
If you find anything missing or damaged, promptly contact your dealer for assistance.
1.4 EM-434 System Board
EM-434 is the system board bundled with the FW-3600 firewall platform. The succeeding
sections list all EM-434 related jumper settings and connector pin assignments.
1.4.1 Mechanical Dimensions
Figure 2 – EM-434 Control Board Dimensions (units in mm)

4
1.4.2 Board Layout
Figure 3 – EM-434 Jumpers and Connectors
1.4.3 Jumper Settings
The onboard jumper settings of EM-434 are custom-tailored to fit the FW-3600 functionality.
Changing the jumper settings may result in system malfunction or unforeseen damages.
1.4.4 Connector Pin Assignments
PS4S1: 4-Pin Power Connector (Small-4P)
Pin No. Description
1 5V
2 Ground
3 Ground
4 12V

5
GPIOA1: 2x4 GPIO Pin Header
Pin No. Description Pin No. Description
1GPIO14 2GND
3GPIO7 4GND
5GPIO6 6GND
7GPIO5 8GND
EJC1: EJPROB Connector
Pin No. Description Pin No. Description
1 GND 2 EJTAG_TCK
3 GND 4 EJTAG_TMS
5 GND 6 EJTAG_TDI
7 GND 8 EJTAG_TDO
LANA1~ LANA3: Type 1 (RJ-45)
Description
Pin No. Fast E-Net Giga Net
1 TX+ MD0+
2 TX- MD0-
3 RX+ MD1+
4 T45 MD2+
5 T45 MD2-
6 RX- MD1-
7 T78 MD3+
8 T78 MD3-
COMA1: RS-232 Serial Port #1 Connector (D-Sub)
Pin No. Description
1 Data Carrier Detect (DCDA#)
2 Receive Data (RXDA)
3 Transmit Data (TXDA)
4 Data Terminal Ready (DTRA #)
5 Ground (GND)
6 Data Set Ready (DSRA#)
7 Request To Send (RTSA #)
8 Clear To Send (CTSA#)
9 Ring Indicator (RIA #)

6
LAN4PA1: 4 x RJ-45 Ports
Pin No. Description
1 RX+ PORT1
2 RX-
3 TX+
4 T45
5 T45
6 TX-
7 T78
8 T78
9 RX+ PORT2
10 RX-
11 TX+
12 T45
13 T45
14 TX-
15 T78
16 T78
17 RX+ PORT3
18 RX-
19 TX+
20 T45
21 T45
22 TX-
23 T78
24 T78
25 RX+ PORT4
26 RX-
27 TX+
28 T45
29 T45
30 TX-
31 T78
32 T78
41 GND
42 GND

7
PCIB1~2:124-pin Mini PCI Sockets
Pin No. Description Pin No. Description
1 TIP 2 RING
3 8PMJ-3 4 8PMJ-1
5 8PMJ-6 6 8PMJ-2
7 8PMJ-7 8 8PMJ-4
9 8PMJ-8 10 8PMJ-5
11 LED1_GRNP 12 LED2_YELP
13 LED1_GRNN 14 LED2_YELP
15 CHSGND 16 RESERVED
17 INT-B 18 +5V
19 +3.3V 20 INT-A
21 RESERVED 22 RESERVED
23 GROUND 24 3.3VAUX
25 CLK 26 RST
27 GROUND 28 +3.3V
29 REO 30 GNT
31 +3.3V 32 GROUND
33 AD31 34 PME
35 AD29 36 RESERVED
37 GROUND 38 AD30
39 AD27 40 +3.3V
41 AD25 42 AD28
43 RESERVED 44 AD26
45 C_BE-3 46 AD24
47 AD23 48 IDSEL
49 GROUND 50 GROUND
51 AD21 52 AD22
53 AD19 54 AD20
55 GROUND 56 PAR
57 AD17 58 AD18
59 C_BE-2 60 AD16
61 IRDY 62 GROUND
63 +3.3V 64 FRAME
65 CLKRUN 66 TRDY
67 SERR 68 STOP
69 GROUND 70 +3.3V
71 PERR 72 DEVSEL
73 C_BE-1 74 GROUND
75 AD14 76 AD15
77 GROUND 78 AD13
79 AD12 80 AD11
81 AD10 82 GROUND
- More -

8
Pin No. Description Pin No. Description
83 GROUND 84 AD9
85 AD8 86 C_BE-0
87 AD7 88 +3.3V
89 +3.3V 90 AD6
91 AD5 92 AD4
93 RESERVED 94 AD2
95 AD3 96 AD0
97 +5V 98 RESERVED-WIP
99 AD1 100 RESERVED-WIP
101 GROUND 102 GROUND
103 AC_SYNC 104 M66EN
105 AC_SDATA_IN 106 AC_SDATA_OUT
107 AC_BIT_CLK 108 AC_CODEC_ID0
109 AC_CODEC_ID1 110 AC_RESET
111 MOD_AUDIO_MON 112 RESERVED
113 AUDIO_GND 114 GROUND
115 SYS_AUDIO_OUT 116 SYS_AUDIO_IN
117 SYS_AUDIO_OUT GND 118 SYS_AUDIO_IN GND
119 AUDIO_GND 120 AUDIO_GND
121 RESERVED 122 MPCIACT
123 VCC5VA 124 3.3AUX
RSW1: 4-pin Software Reset Switch
Pin No. Description
1 Reset signal
2 GND
3 GND
4 GND
RSW2: 4-pin Hardware Reset Switch
Pin No. Description
1 Reset signal
2 GND
3 GND
4 GND

9
1.5 FW-3600 Mini Desktop Firewall Mechanisms
This section of the manual describes the mechanical and device nomenclature of FW-3600.
1.5.1 Mechanical Dimensions
The illustration below identifies the physical measurements of the FW-3600. The measurement
unit used is in millimeters (mm).
Figure 4 – FW-3600 Chassis Dimensions (units in mm)
1.5.2 Face Panel
Figure 5 – FW-3600 Face Panel

10
Face Panel LED Status and Behavior
The following table lists and explains the behavior of each LED on the FW-3600 front panel.
LED Color Status Description
On When FW-3600 power is switched ON
Power Green Off No power connected
On When GPIO 15 is programmed and set to a value of
“0”
Status
(programmable
via GPIO15) Green Off When GPIO 15 is programmed and set to a value of
“1”
Blinking Data packets are being transmitted or received
On Linked/established Ethernet connection present
Ethernet Ports
1~7 Green Off No existing Ethernet port connections to FW-3600
1.5.3 Rear View
Figure 6 – FW-3600 Rear View
 Console Port: via the console port cable, this connector attaches FW-3600 to
the host PC
 Fast Ethernet Ports: Ethernet RJ-45 connector, connected to networking environment
using a RJ-45 Ethernet cable
 DC Power Jack: Power connector, connected to the power adapter packed with
the FW-3600
Faulty or improper use of the power adaptor may cause permanent
damage to the power supply and the FW-3600. Plug the adaptor to an
electrical wall outlet that matches its specifications.

11
C h a p t e r 2
EM-434 Image Download
This chapter explains the procedures when configuring the FW-3600, including its OS and
applications. The following sections and each procedure are highly required to achieve your
technical requirements.
2.1 Pre-installed Linux Software
The pre-installed Linux Kernel in the FW-3600 has the following details:
 Version No.: 02042004
 Software and Hardware Port Matching:
OS Hardware
Ethernet 1 LAN4PA1
Ethernet 2 LANA3
Ethernet 3 LANA1
Ethernet 4 LANA2
Ethernet 5 If one LAN card exists and installed on a mini PCI socket
Illustrated below are the FW-3600 factory default assignments.
Figure 7 – FW-3600 Factory Default Assignments

12
2.2 Boot-up Conditions
Once the FW-3600 console port is connected to a console PC, there will be two choices
available mid-way during the FW-3600 system boot up:
 1 Enter OS (default): “1” allows access into FW-3600 OS and runs the firewall
 2 Enter Redboot: “2” allows entry to Redboot for downloading of boot code / OS from
another PC via TFTP protocol.
The following figure shows the screen after choosing the option “1”.
After the OS completes boot up process, you can now open a browser from a connected PC to
view the Configuration Wizard that allows you to setup and configure your system. Enter the
following address on your browser to launch the Configuration Wizard:
http://192.168.1.254:8090
Follow the onscreen instructions to complete the process. Configure the WAN port type as
static and using the default settings.

13
The displayed screen will show the figure below after selecting option “2”.

14
2.3 Downloading Redboot
There are two standard boot code file names bundled with your FW-3600.
 IXP422-based FW-3600: JFIXP266.exe
 IXP425-based FW-3600: JFIXP533.exe
Downloading the Redboot is required when you intend to perform the following:
 modify the existing Redboot,
 replace the entire Redboot code, and
 recover to original Redboot code of FW-3600.
2.3.1 Hardware Requisites
Before executing any command line, a JTAG cable must connected from the EM-434 control
board of FW-3600 to the parallel port of the console PC. To do this, follow the steps below.
1. Remove the cover of FW-3600.
2. Locate the designated connector, EJC1, onboard EM-434.
3. Connect the pin connector at one end of the JTAG cable onto EJC1.
4. Connect the parallel port connector of the JTAG cable onto the parallel port of the console
PC.
5. Ensure and check the presence of a serial port connection (via console cable) from the
FW-3600 console connector to the console PC.
Reminder: Redboot boot code download for modification/replacement/recovery
purposes requires FW-3600connection to a PC via TFTP protocol.
2.3.2 Procedures
After completing the hardware connections, you are now ready to download the Redboot code.
The following is an example of the download process under Windows 98.
From the Windows98 Start menu;
Open a Hyper terminal program
Configure the Baud rate as 115200, N,8,1, NONE
Run
c:> JFIXP266 Fem434aa.T06, then press <Enter>.

15
2.4 Downloading Linux and Ramdisk
Note: Downloading of Linux and Ramdisk are only possible using the
RTL8305SB Ethernet port: LANA3.
The bundled Linux Kernel of FW-3600 is an open source architecture. This section is of vital
use for programmers who wish to set up the FW-3600 into a TFT server. Downloading of
Linux and Ramdisk are required when you intend to perform the following:
 modify the existing Kernel,
 replace the entire Kernel, and
 recover to original Kernel of FW-3600.
Reminder: Linux and Ramdisk downloads for modification/replacement/recovery
purposes require FW-3600 connection to a PC via TFTP protocol.
2.4.1 Procedures
From the TFTP server’s configured protocol, run the following command lines:
Setup a TFTP server
RedBoot> fconfig set the local ip address and tftp server ip address based on your
preferred settings (mainly to configure FW-3600 as a TFTP server)
Reset the system (using the reset button the FW-3600 rear panel)
Use the following easy commands:
RedBoot>1 <Enter> (fis init –f)
RedBoot>2 xxxx (load -r -v -b 0x10000000 mac.bin) (xxxx = filename)
(fis create -b 0x10000000 -l 0x2000 mac)
RedBoot>3 Fem434aa.K01 (load -r -v -b 0x11600000 zImage)
(fis create -b 0x11600000 -l 0x100000 zimage)
RedBoot>4 Fem434aa.R01 (load -r -v -b 0x10800000 target.gz)
fis create -b 0x10800000 -l 0x600000 ramdisk)
RedBoot>5 fis create -b 0x100000 -l 0x2000 param
Reset the system using the reset button the FW-3600 rear panel)
