IBASE Technology CSB200-897M User manual

www.ibase.com.tw
IBASE Technology Inc.
CSB200-897
User Manual
2015 Aug Ver. A1

1
CSB200-897 User Manual
Copyright © 2014 IBASE Technology Inc. All Rights Reserved.
No part of this manual, including the products and software described in it, may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into
any language in any form or by any means, except documentation kept by the
purchaser for backup purposes, without the express written permission of IBASE
Technology INC. (“IBASE”).
Products and corporate names mentioned in this manual may or may not be
registered trademarks or copyrights of their respective companies, and are used for
identification purposes only. All trademarks are the property of their respective
owners.
Every effort has been made to ensure that the contents of this manual are correct and
up to date. However, the manufacturer makes no guarantee regarding the accuracy of
its contents, and reserves the right to make changes without prior notice.

2
CSB200-897 User Manual
Table of Contents
Setting up your system............................................................................................ 3
Care during use....................................................................................................... 4
Acknowledgments .................................................................................................. 4
CHAPTER 1 INTRODUCTION ................................................................................... 6
1.1 General Description........................................................................................... 6
1.2 System Specifications ........................................................................................ 7
1.2.1 Hardware Specifications ................................................................................. 7
1.2.2 Dimensions .................................................................................................... 9
1.2.3 I/O View ...................................................................................................... 10
1.3 Exploded View of the CSB200-897 Assembly .................................................... 11
1.3.1 Parts Description .......................................................................................... 11
1.4 Packing List ..................................................................................................... 12
1.4.1 Optional Items ............................................................................................. 12
CHAPTER 2 MOTHERBOARD INTRODUCTION ........................................................13
2.1 Introduction.................................................................................................... 13
2.2 Board Dimensions ........................................................................................... 15
2.3 Setting the Jumpers......................................................................................... 16
2.4 Jumper Locations on IB897 .............................................................................. 16
CHAPTER 3 BIOS SETUP ........................................................................................34
CHAPTER 4 DRIVERS INSTALLATION ......................................................................53
4.1 Intel Chipset Software Installation Utility ......................................................... 53
4.2 VGA Drivers Installation................................................................................... 55
4.3 Realtek HD Audio Driver Installation ................................................................ 56
4.4 Intel Trusted Execution Engine Installation ....................................................... 57
Appendix .............................................................................................................59
Wall Mounting Requirements................................................................................ 60
Selecting the Location ........................................................................................... 60

3
CSB200-897 User Manual
Safety Information
Your CSB200-897 is designed and tested to meet the latest standards of safety for
information technology equipment. However, to ensure your safety, it is important that
you read the following safety instructions
Setting up your system
Read and follow all instructions in the documentation before you operate your
system.
Do not use this product near water.
Set up the system on a stable surface. Do not secure the system on any unstable
plane.
Do not place this product on an unstable cart, stand, or table. The product may
fall, causing serious damage to the product.
Slots and openings on the chassis are for ventilation. Do not block or cover these
openings. Make sure you leave plenty of space around the system for ventilation.
Never insert objects of any kind into the ventilation openings.
This system should be operated from the type of power indicated on the marking
label. If you are not sure of the type of power available, consult your dealer or
local power company.
Use this product in environments with ambient temperatures between 0˚C and
40˚C.
If you use an extension cord, make sure that the total ampere rating of the
devices plugged into the extension cord does not exceed its ampere rating.
DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT WHERE
THESTORAGE TEMPERATURE MAY GO BELOW -20°C (-4°F) OR ABOVE
80°C (176°F). THIS COULD DAMAGE THE EQUIPMENT. THE EQUIPMENT
SHOULD BE IN A CONTROLLED ENVIRONMENT.

4
CSB200-897 User Manual
Care during use
Do not walk on the power cord or allow anything to rest on it.
Do not spill water or any other liquids on your system.
When the system is turned off, a small amount of electrical current still flows.
Always unplug all power, and network cables from the power outlets before
cleaning the system.
If you encounter the following technical problems with the product, unplug the
power cord and contact a qualified service technician or your retailer.
The power cord or plug is damaged.
Liquid has been spilled into the system.
The system does not function properly even if you follow the operating
instructions.
The system was dropped or the cabinet is damaged.
Lithium-Ion Battery Warning
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with
the same or equivalent type recommended by the manufacturer. Dispose of used
batteries according to the manufacturer’s instructions.
NO DISASSEMBLY
The warranty does not apply to the products that have been disassembled by users
WARNING
HAZARDOUS MOVING PARTS
KEEP FINGERS AND OTHER BODY PARTS AWAY

Copyright © 2014 IBASE Technology Inc. All Rights Reserved.
5
IBASE Technology Inc.
Acknowledgments
AMI is a registered trademark of AMI Software International, Inc.
AMD and ATI are registered trademarks of AMD Corporation.
Microsoft Windows is a registered trademark of Microsoft Corporation.
FINTEK is a registered trademark of FINTEK Electronics Corporation.
REALTEK is a registered trademark of REALTEK Electronics Corporation.
All other product names or trademarks are properties of their respective owners.

6
CSB200-897 User Manual
CHAPTER 1 INTRODUCTION
1.1 General Description

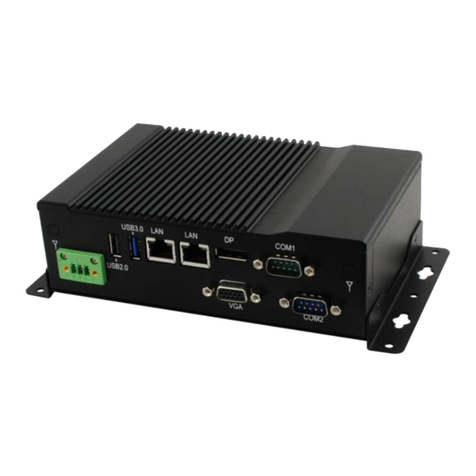

The fanless CSB200-897 system comes with the IB897 3.5-inch SBC
and integrates the Intel® Atom™ E3845 processor that featuring 22nm
microarchitecture and 3-D Tri-Gate transistors. With unparalleled reliability, the
1.91GHz processor allows the CSB200-897 to operate in wide temperatures at -30°C
to +60°C in harsh industrial environments for 24/7 operation. The CSB200-897 is
ideal for IOT (Internet of Things), factory automation, In-vehicle and other rugged
applications that could utilize its 12V to 24V DC wide-range power input.
Incorporating the E3845 system-on-chip (SoC), the CSB200-897 comes on
board with two pieces of 2GB DDR3L-133 SO-DIMM memory. The maximum system
memory capacity is 8GB. Moreover, it comes with a variety of functional interface at
the rear panel including one USB 2.0, one USB 3.0, DisplayPort, CRT VGA, two serial
ports, two Gigabit LAN, and one DC jack connector or a terminal block for 12V~24V
DC input.
Measuring 172mm(w) by 112mm(d) by 52mm(h), the black CSB200-897 unit
comes with a wall mount kit and optional 60W power adaptor. The model is currently
available with either a 2.5-inch 320GB SATA HDD or 64GB industrial grade SSD.
Expansion is provided by two Mini PCI-E slots. All units feature IBASE's iSMART
green technology for power on/off scheduling and power resume functions.

Copyright © 2014 IBASE Technology Inc. All Rights Reserved.
7
IBASE Technology Inc.
1.2 System Specifications
1.2.1 Hardware Specifications
Engineer Specifications
Product Name
CSB200-897
CSB200-897-IT
Motherboard
IB897
CPU type
Intel® AtomTM QC E3845[TDP=10W] (IB897-I45)
Intel® AtomTM DC E3827[TDP=8W] (IB897-I27)
Chipset
Integrated in SoC
Memory
Intel ®Atom TM E3800 SoC processor integrated
memory controller
- DDR3L (1.35V) @1600 MHz , SO-DIMM [204-pin
horizontal type] x 2
- Max. 8GB , Non-ECC
*memory module with heatsink* [opional]
Storage
1 x 2.5”SATA HDD
2.5” 320GB 5400RPM Toshiba MQ01ABF032 HDD
Front Panel I/O
- 1 x HDD LED
- 1 x PWR LED
- 1 x RST Button
- 1 x ON/OFF Button
- 2 x USB2.0 ports
- 1 x Line-out port
- 1 x MIC-in port
2 x DB9 broken hole [reserved]
Rear Panel I/O
2 x Antenna reserved on real panel
1 x COM Port [ thru pin header ]
1 x DB15 for VGA port [thru pin header]
1 x 12V~24V DC-in (Terminal block 3 pins)
1 x DC jack with lock (share Terminal 3 pins space)
1 x DB9 for COM#1(RS232/422/485, select from BIOS)
1 x USB 3.0 port
1 x USB2.0 port
2 x RJ-45 GbE Connector

8
CSB200-897 User Manual
1 x Display Port
Power Adaptor [optional]
DPS-60PBA-A00 60W Power Adapter
Input Voltage: 90~264V
Input Frequency: 47~63Hz
Output Voltage: 12V/5A
Mounting
Desktop or wall mount
Chassis Material
Aluminum & Steel
Chassis Color
Black
External dimensions
172 (W) x ~111.6 (D) x 52 (H) mm
Operating Temperature
-30°C~60°C (22°F~140°F) [with 2.5”SSD]
-10°C~50°C (14°F~122°F) [with 2.5”HDD]
Storage Temperature
-20°C~80°C (-4°F~176°F)
Relative Humidity
5%~90%@45°C (non-condensing)
Vibration
Operating : 0.25Grms / 5~500Hz
Non-operating : 1Grms / 5~500Hz
Shock
Operating : 20G / 11ms
Non-operating : 40G / 11ms
Certification
CE / LVD / FCC / CCC / UL-CB
Regulation
RoHS 2.0
Eup/Erp function
N/A
‧ This specification is subject to change without prior notice.

Copyright © 2014 IBASE Technology Inc. All Rights Reserved.
9
IBASE Technology Inc.
1.2.2 Dimensions

10
CSB200-897 User Manual
1.2.3 I/O View

Copyright © 2014 IBASE Technology Inc. All Rights Reserved.
11
IBASE Technology Inc.
1.3 Exploded View of the CSB200-897 Assembly
1.3.1 Parts Description
Part No.
Description
Part No.
Description
1
CSB200-897 Heatsink
2
DIP PCBA, IB897
3
Bracket for easier assembly
4
DIP PCBA, ID737A
5
BASE
6
CSB200-897_Front
7
Bottom side BASE
8
Wall mount bracket
9
2.5” HDD
10
COM port connector
11
VGA connector
12
Power input connector
13
Sticker_12V~24V
14
Gasket

12
CSB200-897 User Manual
1.4 Packing List
Item No.
Description
Qty
1
Driver CD
1
2
User manual
1
3
Wall mount kit
2
1.4.1 Optional Items
WiFi Solution
Description
WiFi module
WIRELESS;PCI-E MINI CARD 802.11B/G/N
[AW-NE238H] (A008WLAWNE238H000P)
External Antenna
WiFi Antenna (A055RFA02C2M20800P)
Internal cable-1/2
From Wifi module to Rear/Front panel
(A055RFA0000021000P/A055RFA0000032000P)
Bracket
MPCIE-EXT V-B1 Bracket, RoHS; Extend Half to Full
size. (SC2MPCIEEXT0B1100P)
3G Solution
Description
ZU 202
Wireless; 3.75G UMTS/HSPA [ZU202] RoHS
(A008WIRELESS00520P)
ZU 200
Wireless; 3.75G UMTS/HSPA & GPS Module
[ZU200] RoHS (A008WIRELESS00510P)
Cable
Cable; Antenna-2 30CM P 2pcs
(C501ANT0200300000P)
Antenna
Antenna; 3G, P, 2pcs (A055ANT0921Q2P000P)
Power kit
Description
Power Adaptor
P/S; ADAPTER 60W 12V 2 PIN bare wire type,
DPS-60PBA-A00] RoHS (A005PS060W0702000P)
Power Cord
PW CORD; Chinese/American/Japan 3PIN 10A
(A030PCAM040100000P)

Copyright © 2014 IBASE Technology Inc. All Rights Reserved.
13
IBASE Technology Inc.
CHAPTER 2 MOTHERBOARD INTRODUCTION
2.1 Introduction
The IB897 is a 3.5-inch single board computer based on the Intel®AtomTM E3800
series SoC processors.
The IB897 platform is wide temperature for low-power and high-performance designs
in a broad range of markets including Industrial Control & Automation, Digital Signage,
Thin Client, Electronic Gaming Machines, and SMB storage appliances.
IB897 Features:
Onboard Intel® AtomTM E3845/E3827 SoC 1.91GHz / 1.75GHz
Two DDR3L SO-DIMM, 1333 MHz, Max. 8GB memory
Integrated graphics for VGA, DisplayPort and 24 bit dual channel LVDS
2 x SATA II connector
2x COM port connector
2 x Mini-PCIe(x1) slots (1x Full-size, 1x Half size)
Wide temperature operating supporting
1x 12V to 24V DC-IN power connector
Product Name
IB897
Form Factor
3.5”
CPU Type
Intel® AtomTM QC E3845[TDP=10W](IB897-I45)
Intel® AtomTM DC E3827[TDP=8W] (IB897-I27)
Package = FCBGA1170,Type-3, 25mmx27mm, 22nm,
Tj= -40ﾟC to +110ﾟC
CPU Speed
Intel ®Atom TM QC E3845 (1.91GHz, 2MB cache)
Intel ®Atom TM DC E3827 (1.75GHz, 1MB cache)
Cache
Up to 2MB for IB897-I45P
Up to 1MB for IB897-I27P
Chipset
Integratd in Intel ®Atom TM E3800 SoC processor
BIOS
AMI BIOS
Memory
Intel ®Atom TM E3800 SoC processor integrated memory
controller
- DDR3L (1.35V) @1600 MHz , SO-DIMM [204-pin horizontal
type] x 2
- Max. 8GB , Non-ECC

14
CSB200-897 User Manual
Display
Intel® Gen7 w/4EUs graphics engines(Gfx freq @
542MHz/792MHz [Turbo] )
Supports DX 11, OGL 3.0, OCL 1.1, OGLES 2.0,
DP x 1 ; CRT x 1 via pin header
LVDS
- LVDS(Thru eDP, via NXP PTN3460 bridge IC)
24-bit dual channels LVDS interface w/DF20 socket x2
LAN
2 x Intel®I210IT PCIe Gigabit LAN
[9mm x 9mm @64-QFC package, -40 to 85 degree]
USB (Universal Serial Bus)
Intel® AtomTM SoC built-in USB host controller
Support USB 2.0 x 4 ports; USB 3.0 x 1 port,
USB 2.0 HSIC** x 2 ports (Thru SMSC USB2514)
Serial ATA Ports
Intel® AtomTM SoC built-in SATA II controller, supports 2 ports
Audio
Intel®AtomTM SoC built-in HD Audio controller + Realtek
ALC269QHD Codec w/class-D speaker amplifier(2.3W per
channel @ 5V power supply) [7mm x 7mm @ 48-QFN] ; support
2-channel audio out + amp
LPC I/O
Nuvoton NCT5523D [64-pin LQFP, 7x7x1.4mm]
-COM #1 (RS232/422/485) [EXAR SP339EER1 x 1 for
jumper-less]
-COM #2 (RS-232 only)
[Hardware Monitor]
2 x Thermal inputs ; 2 x Voltage monitoring ; 1 x Fan Header(DC
Fan type)
Digital IO
4 in & 4 out
Expansion Slots
Mini PCI-e socket x 2(1xFull-sized+1xHalf-sized, both with USB
HSIC signal)
**Full-sized MiniPCIe(1x) support mSATA**
Edge Connector
DB9 x 1 for COM1
DisplayPort x 1
RJ45 x 2 for LAN 1 & 2
USB 2.0 vertical connector x 1 (from SoC)
USB 3.0 vertical connector x 1 (from SoC)
On Board Header/Connector
DF11 2 x 8 pins headers x 1 for CRT
DF11 2x4 pins header x 1 for 2 x USB 2.0 (from HSIC)
DF20 socket connector x 2 for 24-bit dual channel LVDS
4 pins box header x 1 for backlight/brightness control (PWM
mode)
DF11 2x6 pins box header x1 for Audio

Copyright © 2014 IBASE Technology Inc. All Rights Reserved.
15
IBASE Technology Inc.
4 pins box header x1 for speaker
DF11 2x5 pins box header x 1 for COM2
2x5 pins headers x 1 for LPC(80-port card debugging purpose)
Mini PCI-e(1x) connector x 2
5 pins box header x 1 for smart battery
SATA connector x 2for SATA device
4-pins power connector x 1 (JST type, For SATA device)
2-pins connector x 1 for power input
Micro SD slot x 1(3.3V type only)
Watchdog Timer
Yes (256 segments, 0, 1, 2…255 sec/min)
Power Input
+12V ~ +24V DC-in
RoHS
Yes
Board Size
102mm x 147mm
OS supporting
- Windows 8.1/ Embedded ; Windows 7 / Embedded
- Linux
2.2 Board Dimensions

16
CSB200-897 User Manual
2.3 Setting the Jumpers
Jumpers are used on IB897-I45P to select various settings and features
according to your needs and applications. Contact your supplier if you have doubts
about the best configuration for your needs. The following lists the connectors on
IB897-I45P and their respective functions.
2.4 Jumper Locations on IB897

Copyright © 2014 IBASE Technology Inc. All Rights Reserved.
17
IBASE Technology Inc.
JP2: LVDS Panel Brightness Control Selection
JP2
Brightness Control
(PWM mode)
Open
3.3V
Close
5V(Default)
J5: LVDS Panel Power Selection
J5
Setting
Panel
Voltage
Pin 1-2
Short/Closed
3.3V
(default)
Pin 2-3
Short/Closed
5V
1 2
1
3
3

18
CSB200-897 User Manual
JP5: Clear ME Contents
JP5
Setting
Function
Pin 1-2
Short/Close
d
Normal
Pin 2-3
Short/Close
d
Clear ME
REGISTER
JP6: Clear CMOS Contents
JP6
Setting
Function
Pin 1-2
Short/Closed
Normal
Pin 2-3
Short/Closed
Clear
CMOS
1 3
3
1 3
3
