Lanner HTCA-6200 User manual

HTCA-6200_user manual
1
HTCA-6200
User Manual
Version: 1.0
Date of Release: 2016-08-29
Telecom Datacenter
Appliances

HTCA-6200_user manual
2
This manual describes the overview of the various functionalities of this product and the information you
need to get it ready for operation. It is intended for those who are:
-responsible for installing, administering and troubleshooting this system
-assumed to be qualified in the servicing of computer equipment, such as professional system
integrators, service personnel, and technicians.
The latest version of this document can be found on Lanner’s official website, available either through the
product pages or through the Lanner Download Center page with a login account and password. (Please be
registered for a Lanner Account at http://www.lannerinc.com/ to access published documents and
downloadable resources)
This document utilizes different font types and icons to make the selected text more transparent and
explicable to users. Please note that this document contains the following conventions:
Example
Convention
Usage
iptables –F
Monospace, shaded
A command to be entered at a shell
command-line
Setup page
Bold
A title of a dialog box or a page
<Enter>
Between a pair of inequality signs
A physical keyboard button
“Menu”
Between a pair of quotation marks
A menu option or a software button to be
clicked
Readme.txt
In Italic
A filename or a file path
IPMI User Guide
Underlined
The name of another document or a chapter
in this document
Icon
Usage
Note or Information
This mark indicates that there is something you should pay particular
attention to while using the product.
Warning or Important
This mark indicates that there is a caution or warning and it is
something that could damage your property or product.

HTCA-6200_user manual
3
The listed websites are links to online product information.
In addition to contacting your distributor or sales representative, you could use other available methods to
get support from Lanner:
Visit the Lanner Technical Support page at http://www.lannerinc.com/technical-support where you can
fill in a support ticket to our technical support department.
Toll-Free phone support is offered to our customers in the United States and Canada:
[phone]
This document is copyrighted © 2019 by Lanner Electronics Inc. All rights are reserved. The original
manufacturer reserves the right to make improvements to the products described in this manual at any
time without notice.
No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means
without the prior written permission of the original manufacturer.
Information provided in this manual is intended to be accurate and reliable. However, the original
manufacturer assumes no responsibility for its use, nor for any infringements upon the rights of third
parties that may result from such use.
Intel® , Intel® Pentium® and Intel® Celeron® are registered trademarks of Intel® Corp or its subsidiaries in
the U.S. and/or other countries.
Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp.
All other product names or trademarks are properties of their respective owners.
Resources
URL
Lanner
http://www.lannerinc.com
Product Resource
http://www.lannerinc.com/download-center

HTCA-6200_user manual
4
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Operations in the 5.15-5.25GHz band are restricted to indoor usage only.
This device meets all the other requirements specified in Part 15E, Section 15.407 of the FCC Rules.
Follow these guidelines to ensure general safety:
Keep the chassis area clear and dust-free during and after installation.
Do not wear loose clothing or jewelry that could get caught in the chassis. Fasten your tie or scarf and
roll up your sleeves.
Wear safety glasses if you are working under any conditions that might be hazardous to your eyes.
Do not perform any action that creates a potential hazard to people or makes the equipment unsafe.
Disconnect all power by turning off the power and unplugging the power cord before installing or
removing a chassis or working near power supplies
Do not work alone if potentially hazardous conditions exist.
Never assume that power is disconnected from a circuit; always check the circuit.
Suivez ces consignes pour assurer la sécurité générale :
Laissez la zone du châssis propre et sans poussière pendant et après l’installation.
Ne portez pas de vêtements amples ou de bijoux qui pourraient être pris dans le châssis. Attachez votre
cravate ou écharpe et remontez vos manches.
Portez des lunettes de sécurité pour protéger vos yeux.
N’effectuez aucune action qui pourrait créer un danger pour d’autres ou rendre l’équipement
Note
1. An unshielded-type power cord is required in order to meet FCC emission limits and also to prevent interference
to the nearby radio and television reception. It is essential that only the supplied power cord be used.
2. Use only shielded cables to connect I/O devices to this equipment.
3. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.

HTCA-6200_user manual
5
dangereux.
Coupez complètement l’alimentation en éteignant l’alimentation et en débranchant le cordon
d’alimentation avant d’installer ou de retirer un châssis ou de travailler à proximité de sources
d’alimentation.
Ne travaillez pas seul si des conditions dangereuses sont présentes.
Ne considérez jamais que l’alimentation est coupée d’un circuit, vérifiez toujours le circuit. Cet appareil
génère, utilise et émet une énergie radiofréquence et, s’il n’est pas installé et utilisé conformément aux
instructions des fournisseurs de composants sans fil, il risque de provoquer des interférences dans les
communications radio.
There is risk of Explosion if Battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
Installation only by a skilled person who knows all Installation and Device Specifications which are to be
applied.
Do not carry the handle of power supplies when moving to another place.
Please conform to your local laws and regulations regarding safe disposal of lithium BATTERY.
Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery can result in
an explosion.
Leaving a battery in an extremely high temperature surrounding environment can result in an explosion
or the leakage of flammable liquid or gas.
A battery subjected to extremely low air pressure that may result in an explosion or the leakage of
flammable liquid or gas.
Risque d’explosion si la pile est remplacée par une autre d’un mauvais type.
Jetez les piles usagées conformément aux instructions.
L’installation doit être effectuée par un électricien formé ou une personne formée à l’électricité
connaissant toutes les spécifications d’installation et d’appareil du produit.
Ne transportez pas l’unité en la tenant par le câble d’alimentation lorsque vous déplacez l’appareil.
Electrical equipment generates heat. Ambient air temperature may not be adequate to cool equipment
to acceptable operating temperatures without adequate circulation. Be sure that the room in which you
choose to operate your system has adequate air circulation.
Ensure that the chassis cover is secure. The chassis design allows cooling air to circulate effectively. An
open chassis permits air leaks, which may interrupt and redirect the flow of cooling air from internal
components.
Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. ESD damage occurs
when electronic components are improperly handled and can result in complete or intermittent failures.
Be sure to follow ESD-prevention procedures when removing and replacing components to avoid these
problems.
Wear an ESD-preventive wrist strap, ensuring that it makes good skin contact. If no wrist strap is
available, ground yourself by touching the metal part of the chassis.
Periodically check the resistance value of the antistatic strap, which should be between 1 and 10
megohms (Mohms).

HTCA-6200_user manual
6
L’équipement électrique génère de la chaleur. La température ambiante peut ne pas être adéquate pour
refroidir l’équipement à une température de fonctionnement acceptable sans circulation adaptée.
Vérifiez que votre site propose une circulation d’air adéquate.
Vérifiez que le couvercle du châssis est bien fixé. La conception du châssis permet à l’air de
refroidissement de bien circuler. Un châssis ouvert laisse l’air s’échapper, ce qui peut interrompre et
rediriger le flux d’air frais destiné aux composants internes.
Les décharges électrostatiques (ESD) peuvent endommager l’équipement et gêner les circuits
électriques. Des dégâts d’ESD surviennent lorsque des composants électroniques sont mal manipulés et
peuvent causer des pannes totales ou intermittentes. Suivez les procédures de prévention d’ESD lors du
retrait et du remplacement de composants.
Portez un bracelet anti-ESD et veillez à ce qu’il soit bien au contact de la peau. Si aucun bracelet n’est
disponible, reliez votre corps à la terre en touchant la partie métallique du châssis.
Vérifiez régulièrement la valeur de résistance du bracelet antistatique, qui doit être comprise entre 1 et
10 mégohms (Mohms).
Mounting Installation Precaution
Environment:
Do not install and/or operate this unit in any place that flammable objects are stored or used in.
If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack
environment may be greater than room ambient. Therefore, consideration should be given to installing
the equipment in an environment compatible with the maximum ambient temperature (Tma) specified
by the manufacturer.
Installation of the equipment (especially in a rack) should consider the ventilation of the system’s intake
(for taking chilled air) and exhaust (for emitting hot air) openings so that the amount of air flow required
for safe operation of the equipment is not compromised.
To avoid a hazardous load condition, be sure the mechanical loading is even when mounting.
Consideration should be given to the connection of the equipment to the supply circuit and the effect
that overloading of the circuits might have on over-current protection and supply wiring. Appropriate
consideration of equipment nameplate ratings should be used when addressing this concern.
Reliable earthing should be maintained. Particular attention should be given to supply connections
other than direct connections to the branch circuit (e.g., use of power strips).
Installation & Operation:
The installation of this product must be performed by trained specialists; otherwise, a non-specialist
might create the risk of the system’s falling to the ground or other damages.
Lanner Electronics Inc. shall not be held liable for any losses resulting from insufficient strength for
supporting the system or use of inappropriate installation components.
Before turning on the device, ground the grounding cable of the equipment. Proper grounding
(grounding) is very important to protect the equipment against the harmful effects of external noise and to
reduce the risk of electrocution in the event of a lightning strike. To uninstall the equipment, disconnect
the ground wire after turning off the power. A ground wire is required and the part connecting the
conductor must be greater than 4 mm2 or 10 AWG.

HTCA-6200_user manual
7
Avant d’allumer l’appareil, reliez le câble de mise à la terre de l’équipement à la terre.
Une bonne mise à la terre (connexion à la terre) est très importante pour protéger l’équipement contre
les effets néfastes du bruit externe et réduire les risques d’électrocution en cas de foudre.
Pour désinstaller l’équipement, débranchez le câble de mise à la terre après avoir éteint l’appareil.
Un câble de mise à la terre est requis et la zone reliant les sections du conducteur doit faire plus de 4
mm2 ou 10 AWG.
Loosen the screw of the earthing point.
Connect the grounding cable to the ground.
The protection device for the power source must provide 30 A
current.
This protection device must be connected to the power source
before power.
The cable hould 16 AWG
Desserrez la vis du terminal de mise à la terre.
Branchez le câble de mise à la terre à la terre.
L’appareil de protection pour la source d’alimentation
doit fournir 30 A de courant.
Cet appareil de protection doit être branché à la source
d’alimentation avant l’alimentation.
Le câble doit 16 AWG
This equipment must be grounded.
Cet équipement doit être mis à la terre.
Suitable for installation in Information Technology Rooms in accordance with Article 645 of the National
Electrical Code and NFPA 75.
Peut être installé dans des salles de matériel de traitement de l'information conformément à l'article 645
du National Electrical Code et à la NFPA 75.
The machine can only be used in a restricted access location and has installation instructions by a skilled
person.
Les matériels sont destinés à être installés dans des EMPLACEMENTS À ACCÈS RESTREINT.

HTCA-6200_user manual
8
Key Features ............................................................................................................................... 10
Ordering Information ................................................................................................................. 10
Package Content......................................................................................................................... 10
System Specifications ................................................................................................................. 10

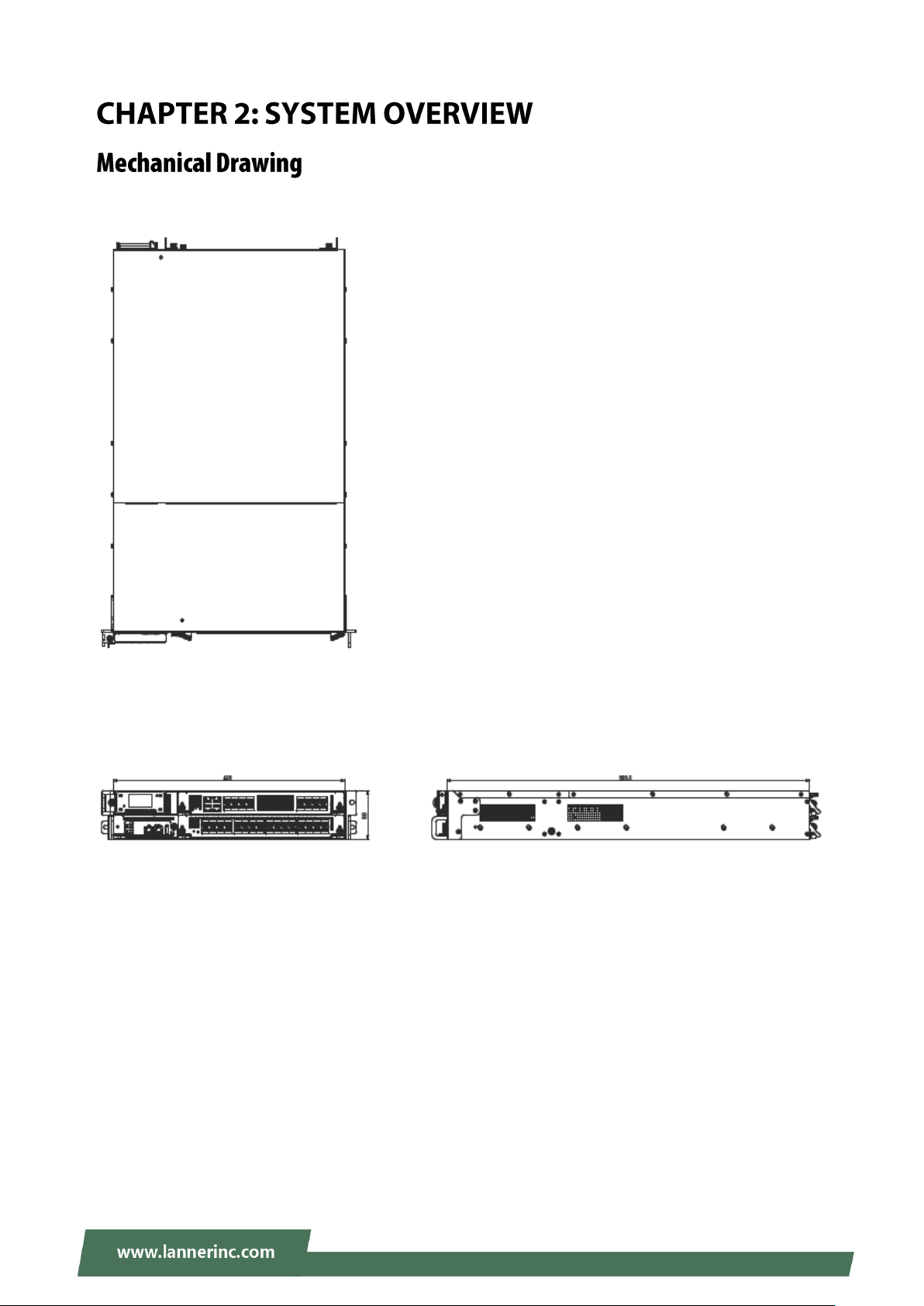

Mechanical Drawing................................................................................................................... 12
Block Diagram............................................................................................................................. 13
Front I/Os.................................................................................................................................... 14
Rear I/Os..................................................................................................................................... 15
Jumpers and Connectors on the Motherboard.......................................................................... 16
Preparing the Hardware Installation .......................................................................................... 24
Accessing the CPU Blade(s) ........................................................................................................ 24
Installing the CPU and Heatsink ................................................................................................. 25
Installing the System Memory.................................................................................................... 27
Installing an IPMI Card................................................................................................................ 28
Replacing Cooling Fans............................................................................................................... 29
Installing Disk Drives................................................................................................................... 30
Replacing Front Network I/O Blades & Switch Boards .............................................................. 31
Replacing Power Supply Units.................................................................................................... 32
Main............................................................................................................................................ 34
Advanced .................................................................................................................................... 35
Chipset........................................................................................................................................ 56
Security....................................................................................................................................... 61
Boot ............................................................................................................................................ 62
Save & Exit .................................................................................................................................. 67

HTCA-6200_user manual
9

HTCA-6200_user manual
10
Thank you for choosing HTCA-6200. The network appliance is designed for high-availability
telecommunication application. Built in 2U form factor chassis, HTCA-6200 integrates the best in class x86
computing power and switching capabilities in a single appliance. The system supports up to 2 Intel x86
motherboards and 2 swappable, front-panel network I/O blades.
Each I/O blade supports 4 x GbE LAN + 16 x 10GbE ports or 32 x 10GbE ports. HTCA-6600 also integrates
switch fabric for enhanced communications between motherboards.
The blades can be alternated with a Broadcom switch which supports up to 16 x SFP+, 4 x GbE RJ45.
Internally, each motherboard of HTCA-6200 is empowered by 2 x Intel Xeon E5-2690 v3/v4 CPUs and 16 x
DDR4 R-DIMMs. Storage wise, each motherboard supports 1 x SATA 2.5” disk drive bay, therefore, there will
be a total of 2 HDD/SSD externally accessible drive bay for HTCA-200. As designed for telecommunication
application, HTCA-6200 is NEBS compliant.
2x Intel Xeon E5-2690 v3/v4 CPUs for each motherboard
PCH: Intel® C612
16x 288-pin DIMM DDR4 up to 2,133MHz registered DIMM sockets on each motherboard
Dual 2011pin-R3 LGA sockets
2x externally accessible SATA 2.5” HDD/SSD drive bays
Ethernet: 2 swappable I/O blades on front panel, each supporting 4x GbE + 16x 10GbE or 32x 10GbE
networking ports
Ethernet controller: Intel XL710
Switch fabric: Broadcom Trident-II Switch BCM56854
SKU No.
Main Features
HTCA-6200A
HybridTCA™ high-performance chassis 2U telecom network appliance with 1 CPU blade
with 2 x Intel® Xeon® E5-2690 series v3/v4 processors + 2 swappable bays for 2.5” HDDs
with 2 switching or NIC blades slots
HMB-1000
x86 compute node with 2 x Intel® Xeon® E5-2690 series v3 (Haswell-EP) processors
HLM-1000
4 port GbE RJ45,16 port 10GbE SFP+ switch blade
HLM-1001
32 port 10GbE SFP+ networking I/O NIC blade
Your package contains the following items:
1x LEC- HTCA-6200
Processor Options
2 x Intel Haswell EP E5-2690 v3/v4 for each
motherboard
PCH
Intel C612
Socket
Dual 2011pin-R3 LGA sockets
CPU TDP
Approximately 135W
Super I/O
NCT6776F

HTCA-6200_user manual
11
System Bus
Intel QuickPath Interconnect up to 9.6GT/s link
speeds
BIOS Features
AMI SPI Flash BIOS
System Memory
16 x 288-pin DIMM DDR4 up to 2,133MHz
registered DIMM sockets (each CPU supports 8
DIMMs), supports up to 32GB each DIMM
USB
1 x USB 2.0 Type-A port
Storage
2 x 2.5” SATA 6.0Gb/s removable
hot-swappable drive bays
Networking
Interface
2 swappable I/O blades on the front.
Each blade supports 4 x GbE + 16 x 10GbE or 32 x
10GbE networking ports
Controller
Intel XL710
Management
Optional with LOM port for IPMI
Console
1 x RJ-45 console port
LOM
1 x LOM port
IPMI
OPMA socket to support IPMI
Switch Node
Switch fabric
Broadcom Trident-II Switch BCM56854
Speed
10Gbps per port, 1Gbps per port
Interface
Up to 16 x SFP+, 4 x GbE RJ45
Fan
5 x Cooling fans per CPU blade
Display
LCM
1x character type LCM
LED
POWER/STATUS/HDD
Keypad
4x Keypads
Operating Systems Requirements
TBD
Buttons
1 x Reset Button 1 x ESD Jack
Thermal
CPU heatsink with fan duct
Physical
Characteristics
Form Factor
6U rackmount
Housing
SPGC
Dimensions
438 x 88 x 685.8 mm
Weight
26 kg
Mounting
Options
Rackmount
Environment
Operating
0℃～40°C

HTCA-6200_user manual
12

HTCA-6200_user manual
13
The block diagram indicates how data flows among components on the motherboard. Please refer to the
following figure for your motherboard’s layout design.

HTCA-6200_user manual
14

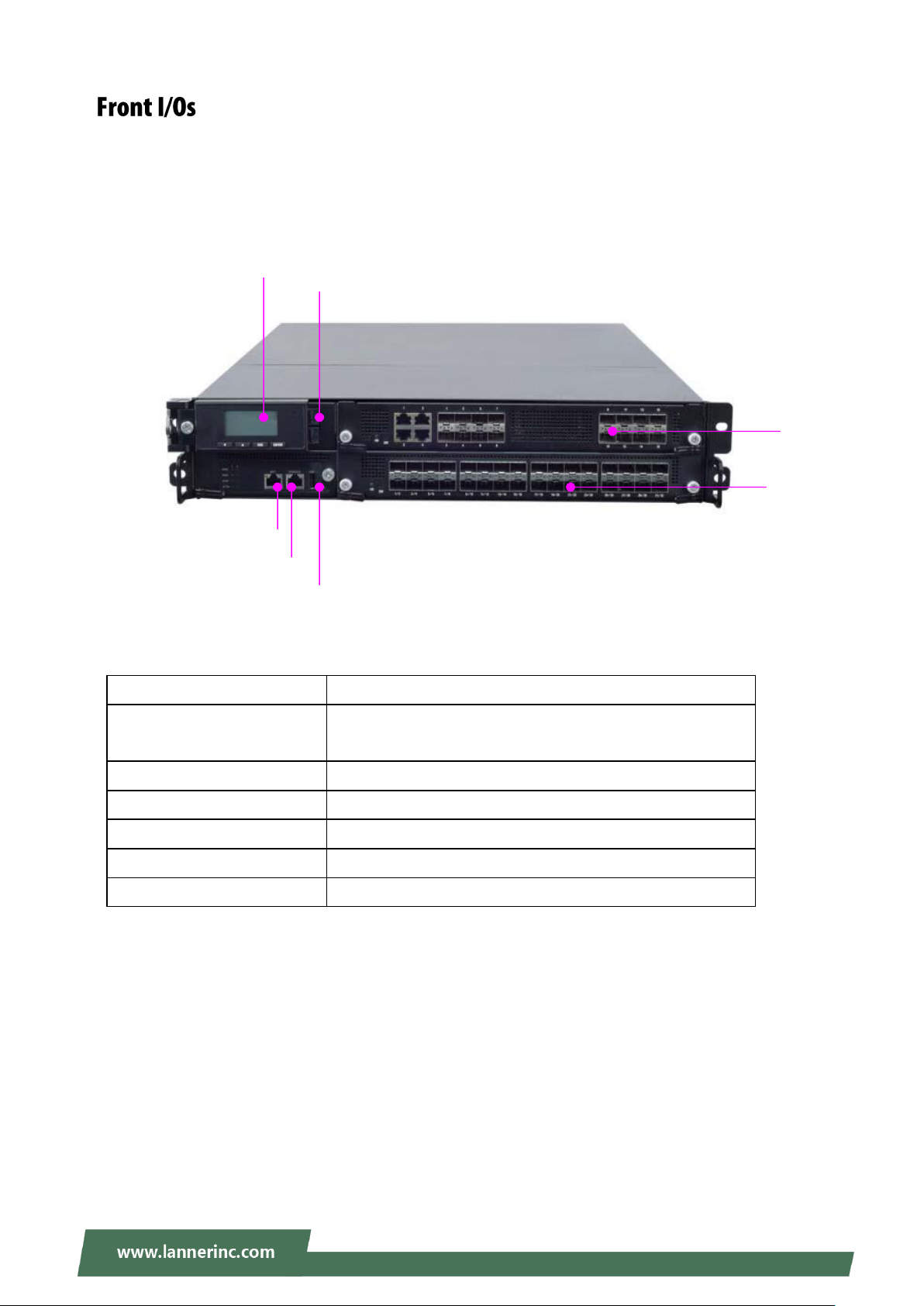

F1
F2
F6
F7
F3
F4
F5
F1 LCM
LCM with 4 x keypads
F2 Removable HDD/SSD
Trays
2 x 2.5” SATA HDD/SSD removable trays
F3 Console
1 x RJ-45 console port
F4 LOM
1 x RJ-45 LOM port
F5 USB
1 x USB 2.0 Type-A port
F6 Switch Blade
1x Switch Boards (swappable)
F7 LAN I/O Blades
Max. 2 LAN I/O Blades (swappable)

15
R2
R1 CPU Blades
2 x Swappable CPU blades
R2 Fans
5 x Cooling fans per CPU blade
R3 Power supply
2 x redundant power supply units
R1
R3

16
The motherboard layout shows the connectors and jumpers on the board. Refer to the following picture as
a reference of the pin assignments and the internal connectors.

17

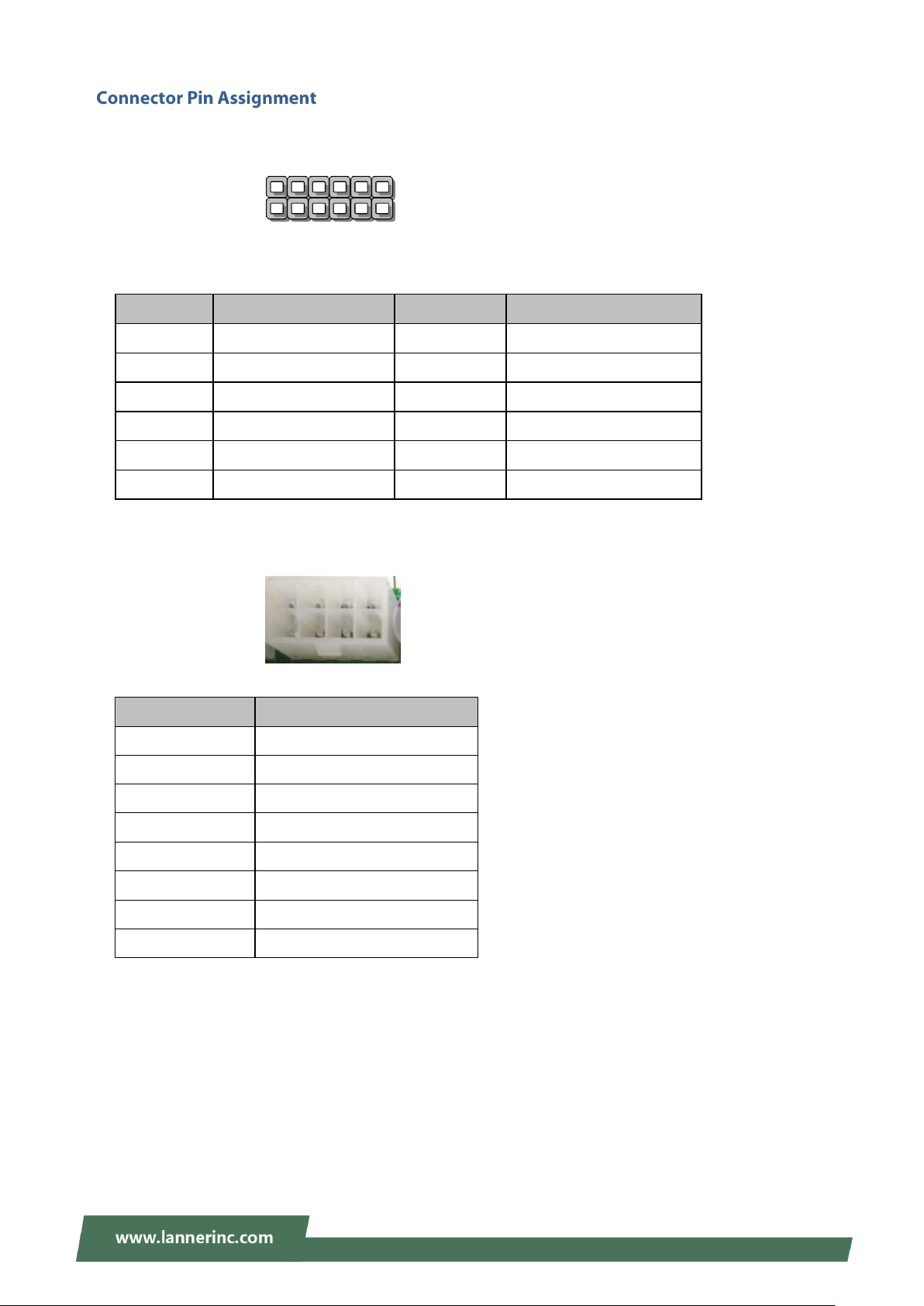

MGT1: 2x6 pin header for RJ-45 LAN management port
2 12
Pin
Description
Pin
Description
1
MGT2_MDIP_0
2
MGT2_MDIN_0
3
MGT2_MDIP_1
4
MGT2_MDIN_1
5
MGT2_MDIP_2
6
MGT2_MDIN_2
7
MGT2_MDIP_3
8
MGT2_MDIN_3
9
MGT_LAN2_100#
10
MGT_LAN2_ACT#
11
MGT_LAN2_1G#
12
P3V3_AUX
ATX1~ATX4: four 8-pin ATX power connectors
Pin
Description
1
GND
2
+12V
3
GND
4
+12V
5
GND
6
+12V
7
GND
8
+12V

18

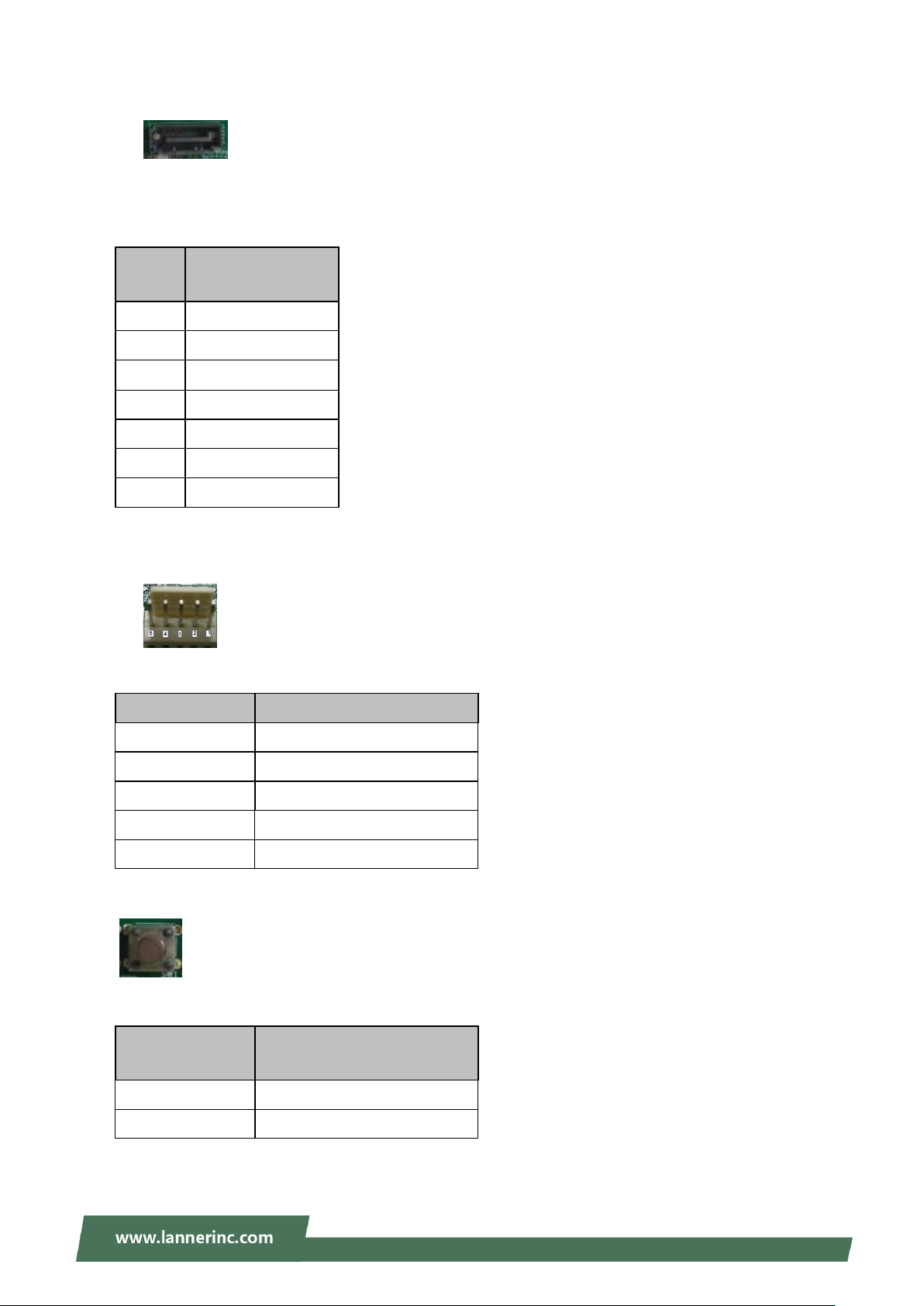

SATA1: 7-pin SATA signal connector for SATA storage device
Pin
Descriptio
n
1
GND
2
TX_P
3
TX_M
4
GND
5
RX_M
6
RX_P
7
GND
FAN1~5: 5-pin FAN connectors
Pin
Description
1
Ground
2
12V
3
RPM Sense
4
RPM Sense
5
PWM Status
SW2: Reset Switch
Pin
Descriptio
n
1-2
GND
3-4
FP_RST_SEL

19

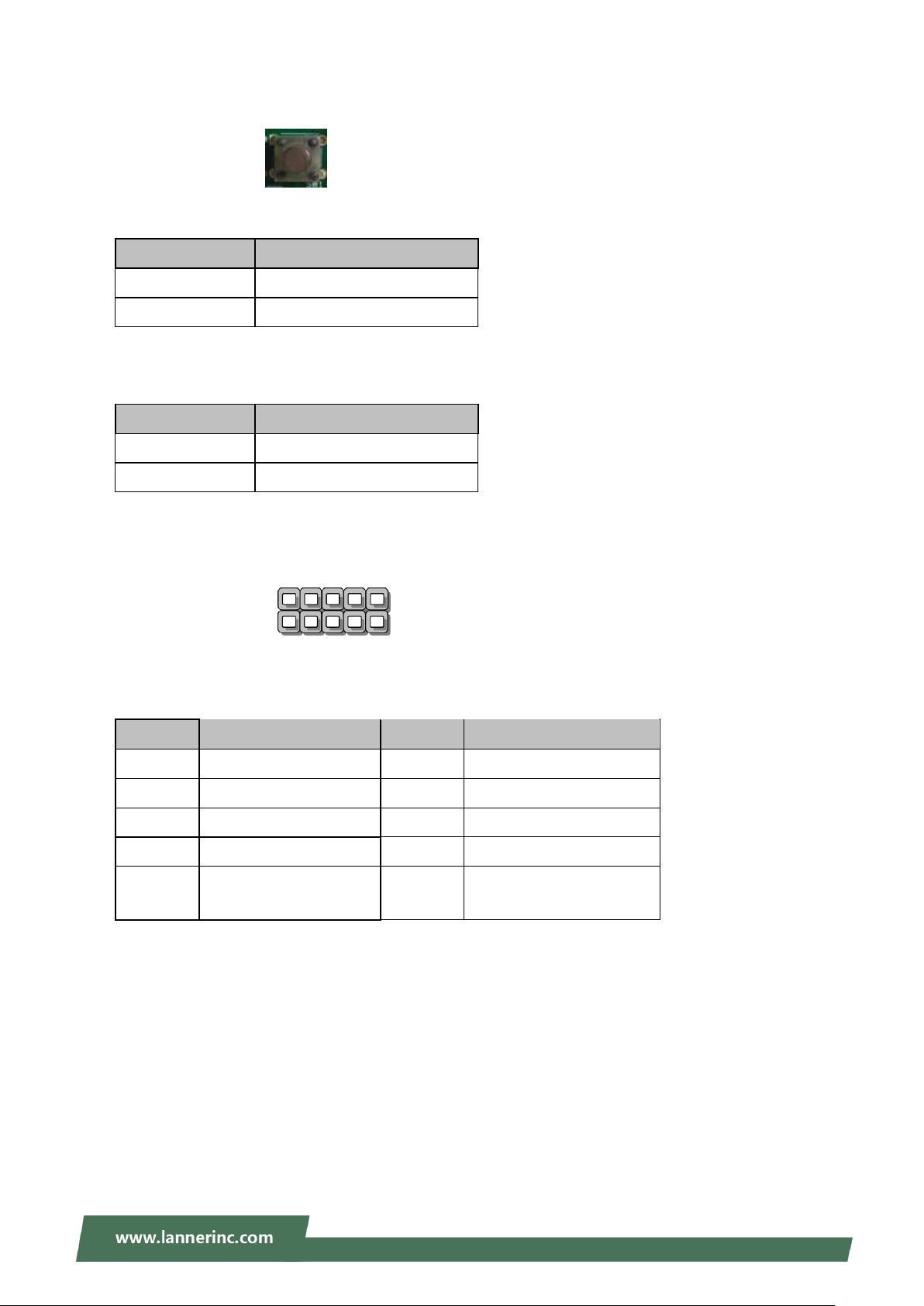

SW1: PSON power switch for debug.
Pin
Description
1-2
GND
3-4
FP_SWIN_R
CONN2: PSON power switch
Pin
Description
1
GND
2
FP_SWIN_R
USB1: 2x5-pin internal USB pin header
2 10
USB1
1 9
Pin
Description
Pin
Description
1
USB_VCC
2
USB_VCC
3
USBD0-
4
USBD1-
5
USBD0+
6
USBD1+
7
Ground
8
Ground
9
USB
Port#1Ground
10
USB Port#2
Ground

20

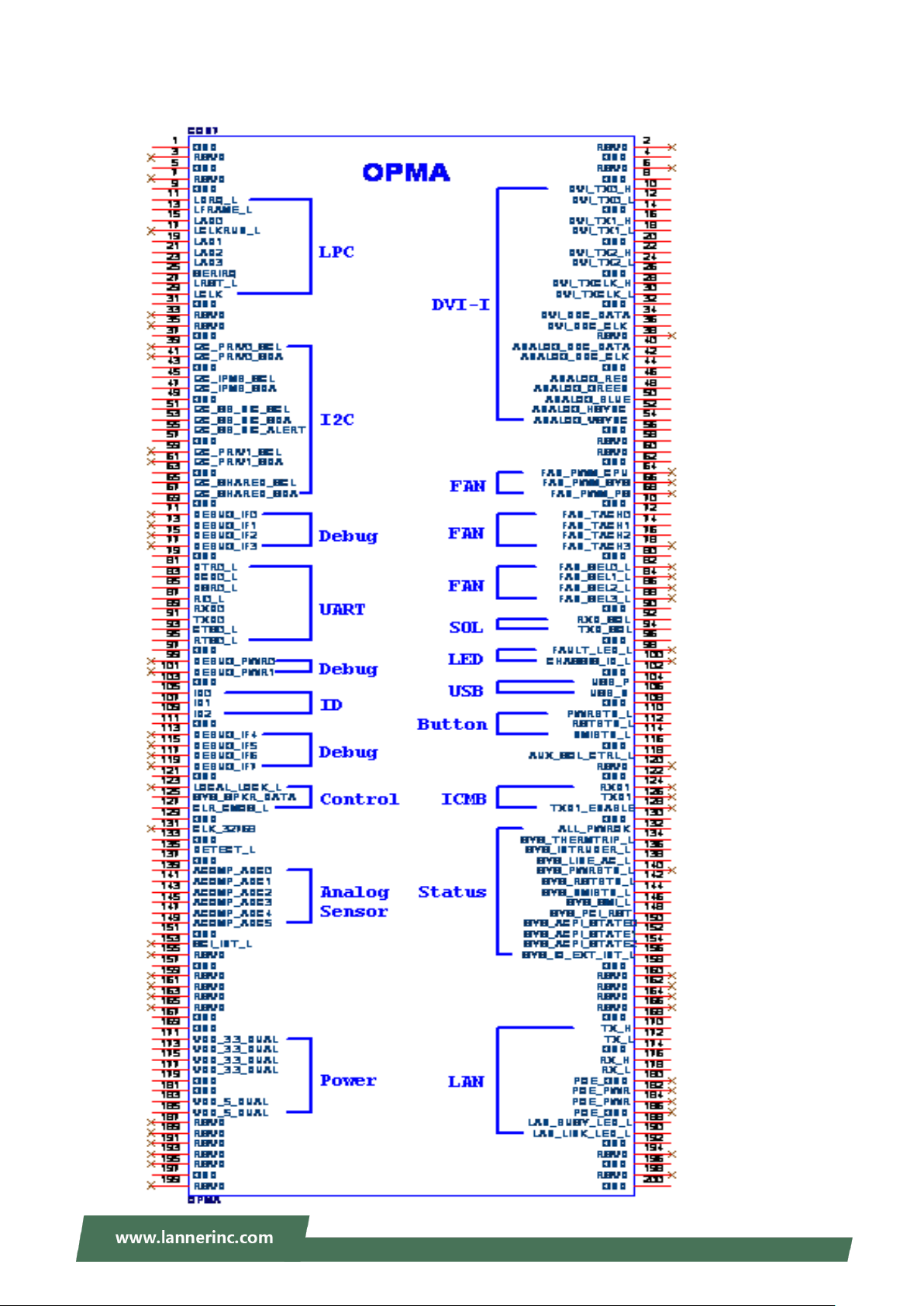

OPMA1: OPMA socket for IPMI card.
