CORDLESS VACUUM CLEANER
USER MANUAL
Elite 7

If you have any questions, please email to [e-mail]
2EN
CONTENTS
1.IMPORTANT SAFETY WARNING - - - - - - - - - - - - - - - - - - - - - 4
1.1 Precautions When Using - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -4
1.2 Notes on the Battery Pack - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -5
1.3 Notes on Charging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -6
1.4 Storage and Maintenance Precautions - - - - - - - - - - - - - - - - - - - - - - - - - - - -7
2.PACKAGE CONTENT - - - - - - - - - - - - - - - - - - - - - - - - - - - 9
3.OVERVIEW - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11
3.1 Overview - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -11
3.2 Animated Screen Indicators - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -12
4.ASSEMBLING & USE - - - - - - - - - - - - - - - - - - - - - - - - - - - 13
4.1 Product Assembling and Use - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -13
4.2 How to Use- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -14
4.3 Abnormal Indicator - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -15
5.CHARGING METHODS - - - - - - - - - - - - - - - - - - - - - - - - - - 16

If you have any questions, please email to [e-mail] 3EN
5.1 Charging Methods - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -16
5.2 Wall Mount- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -17
6.MAINTENANCE- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 18
6.1 Main Body Cleaning - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -18
6.2 Empty the Dust Cup - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -18
6.3 Clean the Filter- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -19
6.4 Brush Roller Cleaning - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -20
7.SPECIFICATION - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20
8.TROUBLESHOOTING - - - - - - - - - - - - - - - - - - - - - - - - - - - 21
9.WARRANTY - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 22

If you have any questions, please email to [e-mail]
4EN
1.IMPORTANT SAFETY WARNING
ATTENTION: Before using this machine, please read all instructions in the manual and
cautionary markings on the machine carefully.
1.1 Precautions When Using
01. This Laresar machine is not intended for use by persons (including children) with reduced physical, sensory or
reasoning capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the machine by a person responsible for their safety.
02. Use only as described in this Laresar User Manual. If the machine is not working as it should, if it has received a
sharp blow, if it has been dropped, damaged, left outdoors, or dropped into water, do not use and contact the Laresar
Support Team.
03. Suitable for dry locations ONLY. Do not install, charge or use this machine outdoors, in a bathroom or within 10 feet (3
meters) of a pool. Do not use on wet surfaces and do not expose to moisture, rain or snow.
04. When using this machine, please keep hair, loose clothing, ngers, and all parts of the body away from openings
and moving parts. Do not point the hose, aluminium alloy tube or other accessories at your eyes or ears or put them in
your mouth.
05. Do not use to pick up hard objects, such as glass slag, needles,nails, etc.
06. Do not touch the charger with wet hands to avoid electric shock.
07. Use only Laresar recommended accessories and replacement parts.
08. Do not use without the dust cup and lter(s) in place.

If you have any questions, please email to [e-mail] 5EN
1.2 Notes on the Battery Pack
09. When removing or replacing a motorized brush bar, be careful not to pull the power button until the cleaner head
has been reassembled.
10. Do not water or spill liquid onto the vacuum cleaner. If that happens, it will increase the risk of electric shock.
11. Use extra care when cleaning on stairs.
12. Please do not use the vacuum cleaner to suck the detergent, kerosene, soot, wet dust, water, sewage, matches and
other items.
13. Please do not use a vacuum cleaner to suck up small particles such as cement, gypsum powder, wall powder, or
large objects such as toy paper balls, otherwise it will cause the vacuum cleaner to block and the motor to burn out.
01. Do not throw the battery pack away, and it should be safely disposed in accordance with local regulations.
02. Do not use a battery pack or machine that is damaged or modied. Damaged or modied batteries may exhibit
unpredictable behavior resulting in re, explosion or risk of injury.
03. Do not incinerate batteries or expose to high temperatures, as they may explode.
04. The battery is a sealed unit and under normal circumstances poses no safety concerns. In the unlikely event that
liquid leaks from the battery, do not touch the liquid as it may cause irritation or burns, and observe the following
precautions：
Skin contact – can cause irritation. Wash with soap and water.
Inhalation – can cause respiratory irritation. Expose to fresh air and seek medical advice.
Eye contact – can cause irritation. Immediately ush eyes thoroughly with water for at least 15 minutes. Seek medical
attention.

If you have any questions, please email to [e-mail]
6EN
Disposal – wear gloves to handle the battery and dispose of immediately, following local ordinances or regulations.
05. When the battery pack is not in use, keep it away from paper clips, coins, keys, nails, screws or other small metal
objects that could make a connection from one terminal to another.
1.3 Notes on Charging
01. Before use, check the charger cord for signs of damage or ageing. A damaged or entangled charger cord increases
the risk of re and electric shock.
02. Never modify the charger in any way.
03. The charger has been designed for a specic voltage. Always check that the mains voltage is the same as that
stated on the rating plate
04. Unplug the charger when not in use for extended periods.
05. When your vacuum cleaner is fully charged , needs to be cleaned or repaired, please unplug the charger in time
and do not pull the power cord directly.
06. Do not pull the cord to disconnect from a socket, grasp the plug and pull to disconnect.
07. Don’t wrap the cord around the charger when storing.
08. Please fully recharge the battery, when rst used or used after long time storage. If the product is not used for long
time, please make sure the battery is recharged and used each three months at least.
09. If smoke or re occurs during charging, unplug the charger immediately, and use a re extinguisher to put out the
re . Do not use water to extinguish the re, it will increase the risk of electric shock.
10. Follow all charging instructions and do not charge the battery pack or the machine outside of the temperature
range specified in the instructions. Charging improperly or at a temperature outside of the specified range may

If you have any questions, please email to [e-mail] 7EN

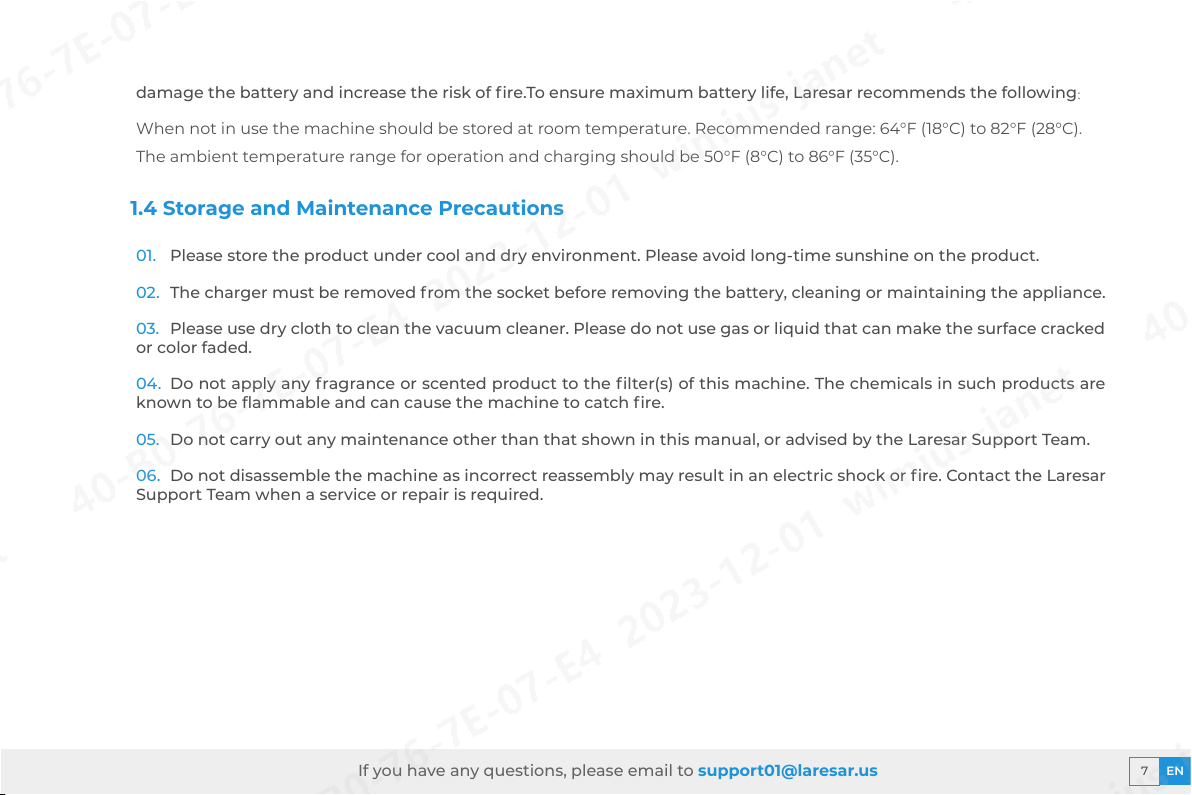

damage the battery and increase the risk of re.To ensure maximum battery life, Laresar recommends the following:
When not in use the machine should be stored at room temperature. Recommended range: 64°F (18°C) to 82°F (28°C).
The ambient temperature range for operation and charging should be 50°F (8°C) to 86°F (35°C).
1.4 Storage and Maintenance Precautions
01. Please store the product under cool and dry environment. Please avoid long-time sunshine on the product.
02. The charger must be removed from the socket before removing the battery, cleaning or maintaining the appliance.
03. Please use dry cloth to clean the vacuum cleaner. Please do not use gas or liquid that can make the surface cracked
or color faded.
04. Do not apply any fragrance or scented product to the lter(s) of this machine. The chemicals in such products are
known to be ammable and can cause the machine to catch re.
05. Do not carry out any maintenance other than that shown in this manual, or advised by the Laresar Support Team.
06. Do not disassemble the machine as incorrect reassembly may result in an electric shock or re. Contact the Laresar
Support Team when a service or repair is required.

If you have any questions, please email to [e-mail]
8EN

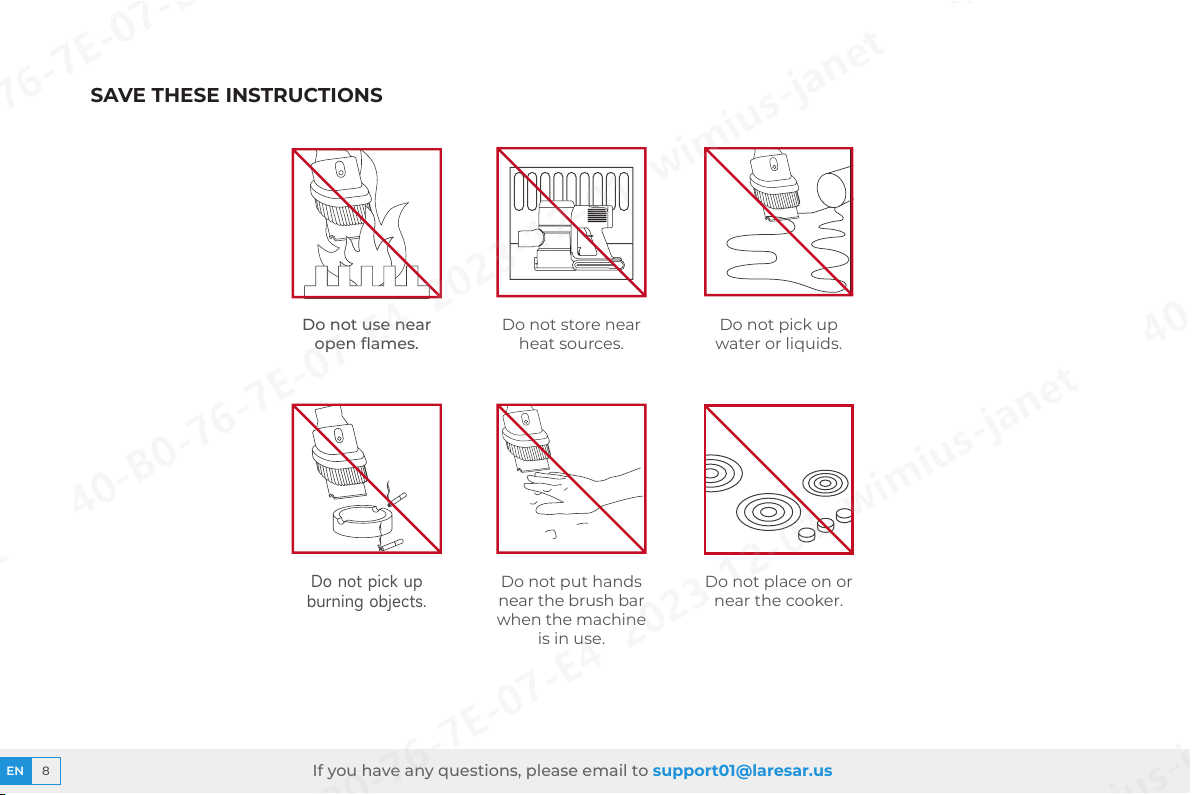

SAVE THESE INSTRUCTIONS
Do not use near
open ames.
Do not pick up
burning objects.
Do not store near
heat sources.
Do not put hands
near the brush bar
when the machine
is in use.
Do not pick up
water or liquids.
Do not place on or
near the cooker.

If you have any questions, please email to [e-mail] 9EN

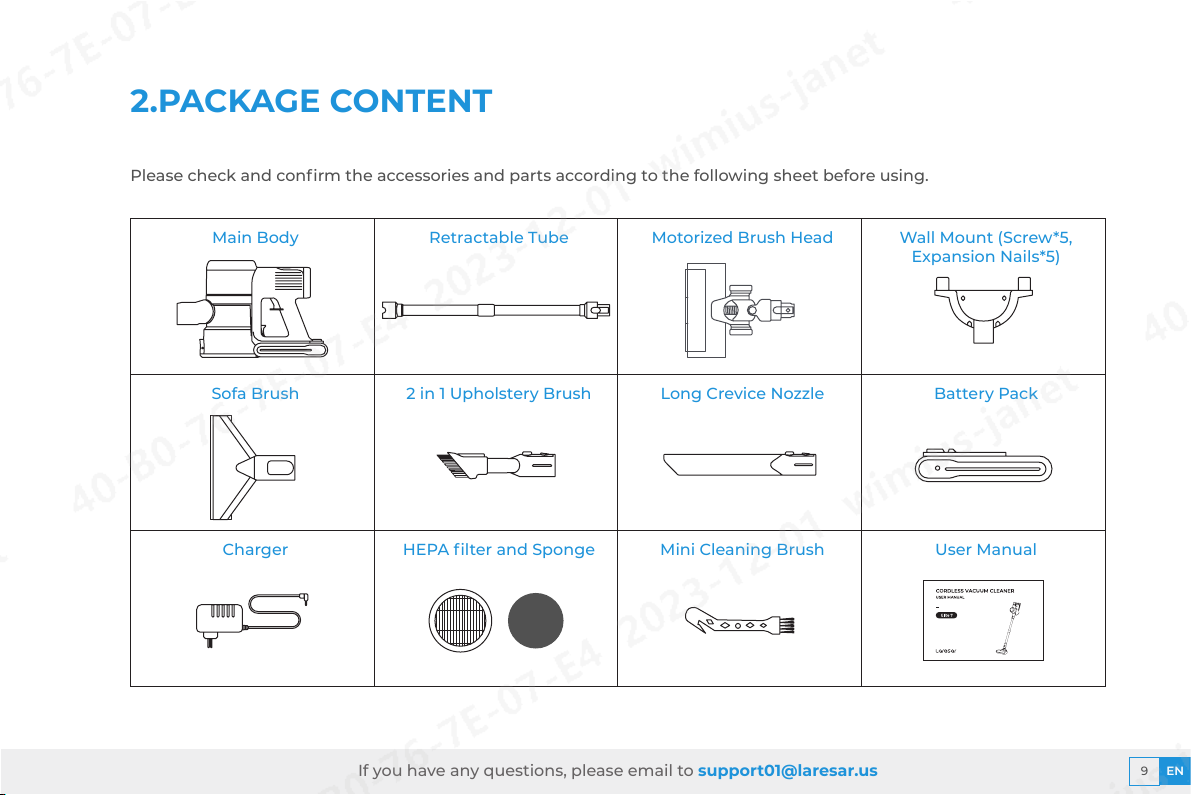

2.PACKAGE CONTENT
Please check and conrm the accessories and parts according to the following sheet before using.
Main Body Retractable Tube Motorized Brush Head Wall Mount (Screw*5,
Expansion Nails*5)
Sofa Brush 2 in 1 Upholstery Brush Long Crevice Nozzle Battery Pack
Charger HEPA lter and Sponge Mini Cleaning Brush User Manual

If you have any questions, please email to [e-mail]
10EN
3.OVERVIEW
3.1 Overview
Introduction of components:
①
②
③
④
⑤
⑥
⑦
⑧
⑨
01. Air Outlet HEPA Filter
02. Touch Screen
03. Main Body Removal Button
04. Battery Removal Button
05. Switch Button
06. Dust Tank Release
07. Dust Release Button
08. Retractable Tube Adjustment Button
09. Electric Floor Brush Removal Button

If you have any questions, please email to [e-mail] 11 EN

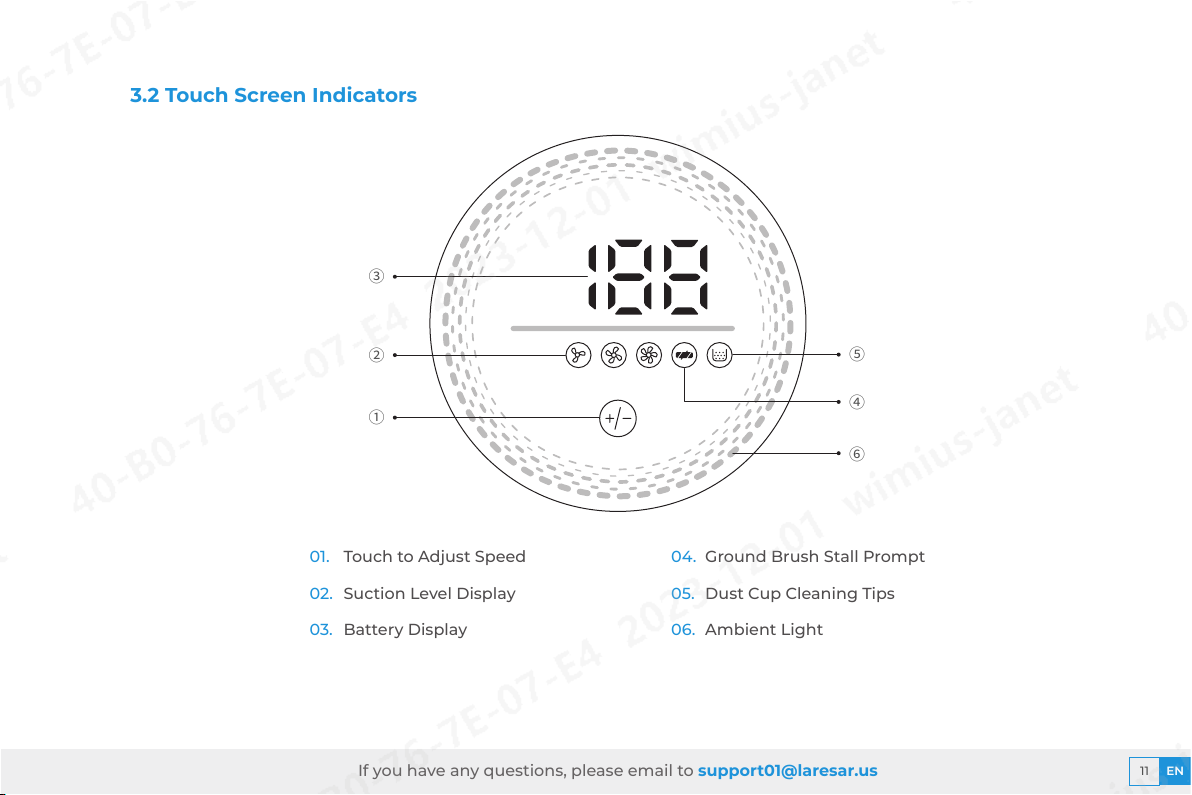

01. Touch to Adjust Speed
02. Suction Level Display
03. Battery Display
04. Ground Brush Stall Prompt
05. Dust Cup Cleaning Tips
06. Ambient Light
3.2 Touch Screen Indicators
①
②
③
④
⑤
⑥

If you have any questions, please email to [e-mail]
12EN
4.ASSEMBLING & USE
4.1 Product Assembling and Use
4.1.1 Install the Battery Pack
4.1.2 Install Cleaning Accessory

If you have any questions, please email to [e-mail] 13 EN
4.2 How to Use
Before use, make sure that
• The battery is fully charged, and xed in place.
• The dust cup and lters are cleaned, dried, and xed in place.
4.2.1 Start to Work
4.2.2 Select Cleaning Mode
Switch button
Press the switch button, the appliance will start to work. Press the button again to shut down the appliance.
• Boot into “Eco” Mode
• Touch to “Standard” Mode
• Touch Again to “Boost” Mode

If you have any questions, please email to [e-mail]
14EN
4.3 Abnormal Indicator
When the battery level is under 10%, the battery indicator on the screen will start to ash in red. The vacuum cleaner
should be charged as soon as possible.
When the brush roller is blocked, the LED light on the motorized brush goes out, and the red brush roller indicator light
keeps ashing until it is manually turned off.
When the host is blocked, the red cup full reminder ashes for 10 seconds and then goes out.

If you have any questions, please email to [e-mail] 15 EN
5.CHARGING METHODS
5.1 Charging Methods
During the work of the machine, when the power display is only 10%, the power display number will ash. This is a
reminder that the battery is low and should be charged in time to avoid affecting the use.
Method 1:
The product can be charged on the storage wall-mount. The digital screen will be showed the charging process ,when
at 100% ,the battery is full.
Method 2:
The battery package can be pulled out and charged separately. The battery indicator light will be ashing in blue, When
the battery is fully charged, the blue light is always on.
• Blue light ashing (Charging)
• Blue light (Fully Charged)

If you have any questions, please email to [e-mail]
16EN

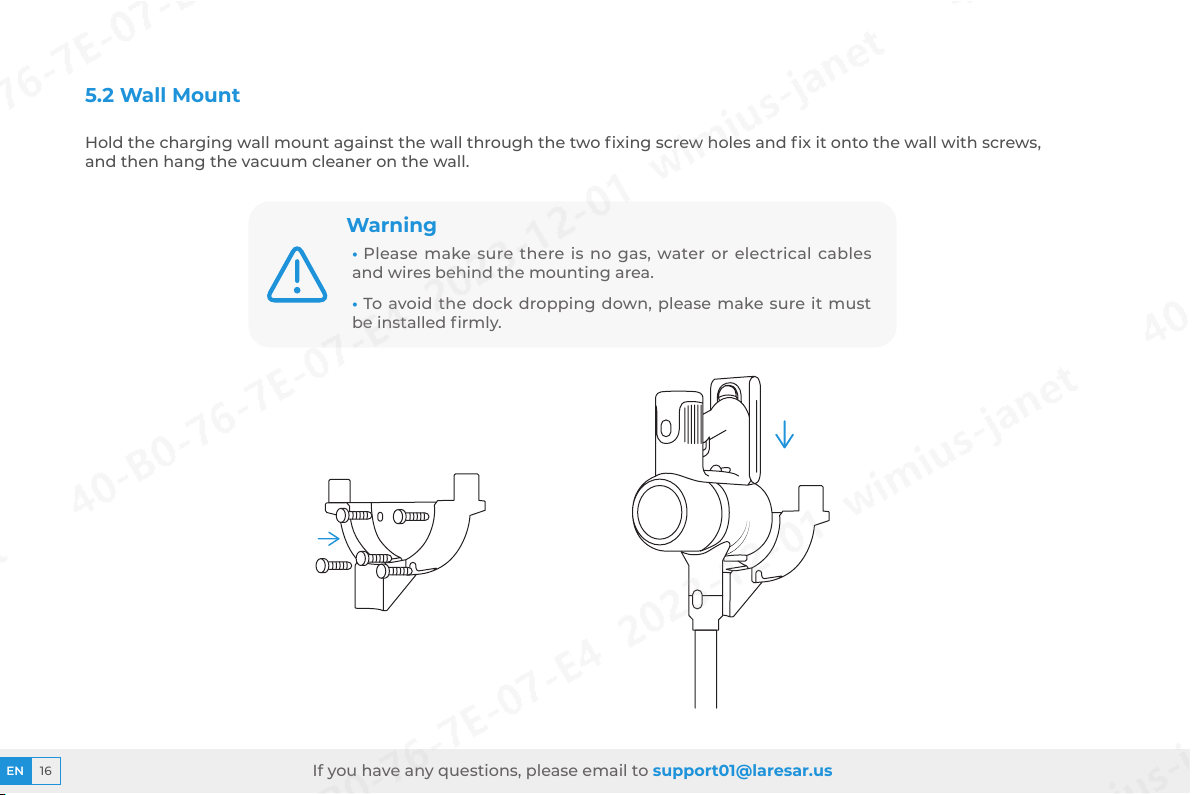

5.2 Wall Mount
Warning
• Please make sure there is no gas, water or electrical cables
and wires behind the mounting area.
• To avoid the dock dropping down, please make sure it must
be installed rmly.
Hold the charging wall mount against the wall through the two xing screw holes and x it onto the wall with screws,
and then hang the vacuum cleaner on the wall.

If you have any questions, please email to [e-mail] 17 EN
6.MAINTENANCE
6.1 Main Body Cleaning
6.2 Empty the Dust Cup
Please clean it regularly to prolong the service life of the vacuum cleaner.
• Turn off the power before cleaning the body.
• Please use a neutral detergent, wipe the body with half-wet cloth.
• Please avoid sun exposure and store in a cool and dry place.
• Press the dust cup release button to empty the dust.
• When using, if the garbage in the dust cup exceeds MAX line, please empty it in time.
MAX

If you have any questions, please email to [e-mail]
18EN

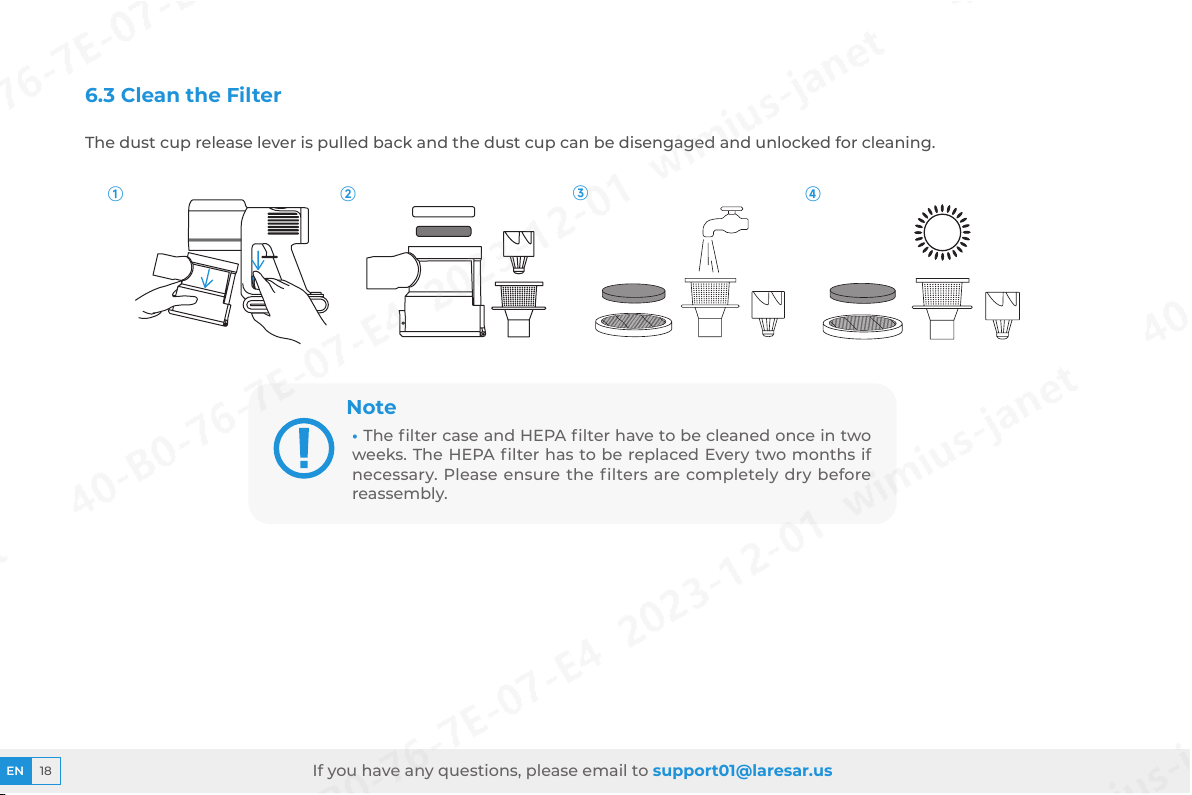

6.3 Clean the Filter
The dust cup release lever is pulled back and the dust cup can be disengaged and unlocked for cleaning.
Note
• The lter case and HEPA lter have to be cleaned once in two
weeks. The HEPA lter has to be replaced Every two months if
necessary. Please ensure the filters are completely dry before
reassembly.
①②③④

If you have any questions, please email to [e-mail] 19 EN

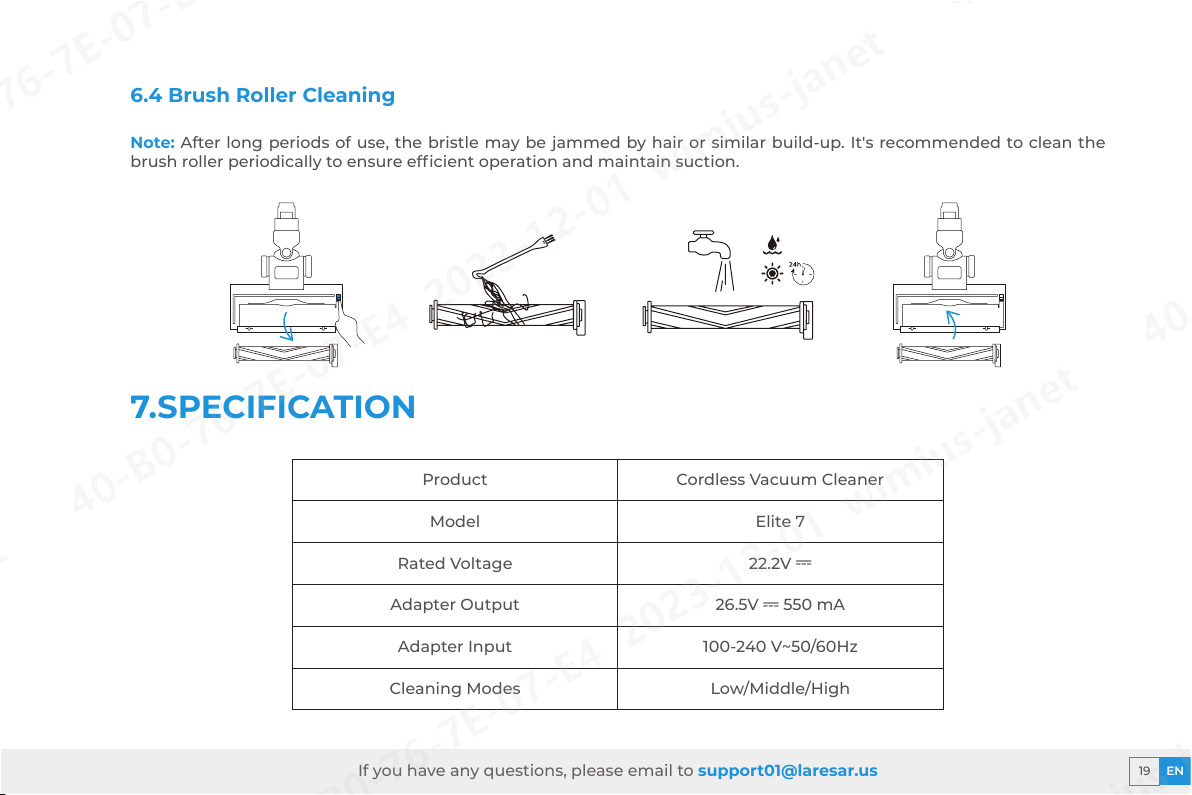

6.4 Brush Roller Cleaning
Note: After long periods of use, the bristle may be jammed by hair or similar build-up. It's recommended to clean the
brush roller periodically to ensure efcient operation and maintain suction.
7.SPECIFICATION
Product Cordless Vacuum Cleaner
Model Elite 7
Rated Voltage 22.2V ⎓
Adapter Output 26.5V ⎓550 mA
Adapter Input 100-240 V~50/60Hz
Cleaning Modes Low/Middle/High

If you have any questions, please email to [e-mail]
20EN
8.TROUBLESHOOTING
ISSUE CAUSE SOLUTION
Weak suction
power
①Filter element blocked/deformed
②The expansion tube is blocked by foreign
objects
③Air leakage from broken brush hose
① Clean/replace the lter
②Clean the telescopic tube
③ Contact customer service to replace the oor
brush
Cannot be turned
on
①The switch of vacuum cleaner is not working
② The lter system is blocked and the main unit
is blocked to trigger automatic protection
③Battery damage/short circuit in other parts
①Contact customer service to replace the
switch
② Clean/replace the lter
③Contact customer service for investigation
The brush does not
rotate
①The brush is entangled with hair
② The electric oor brush is damaged/short-
circuited
③Metal tube short circuit failure
①Clean the hair on the roller
②Contact customer service to replace the
brush
③Contact customer service to replace the
metal tube
Battery cannot be
charged
①Loose charging port
②Wrong adapter
③Adapter/battery damaged
①Reconnect charging
②Use the correct adapter
③Contact customer service to replace the
adapter/battery
Auto shutdown
after power on
①Battery is not fully charged (wrong adapter/
loose charging port)
② The lter system is blocked, the host blockage
triggers automatic protection
③Short circuit of the telescopic tube/folding
tube/electric oor brush
①Reconnect charging / use the correct adapter
② Clean/replace the lter
③Contact customer service for replacement
