Laser DVD-PORTABLE-7B User manual

DVD-PORTABLE-7B USER MANUAL
1

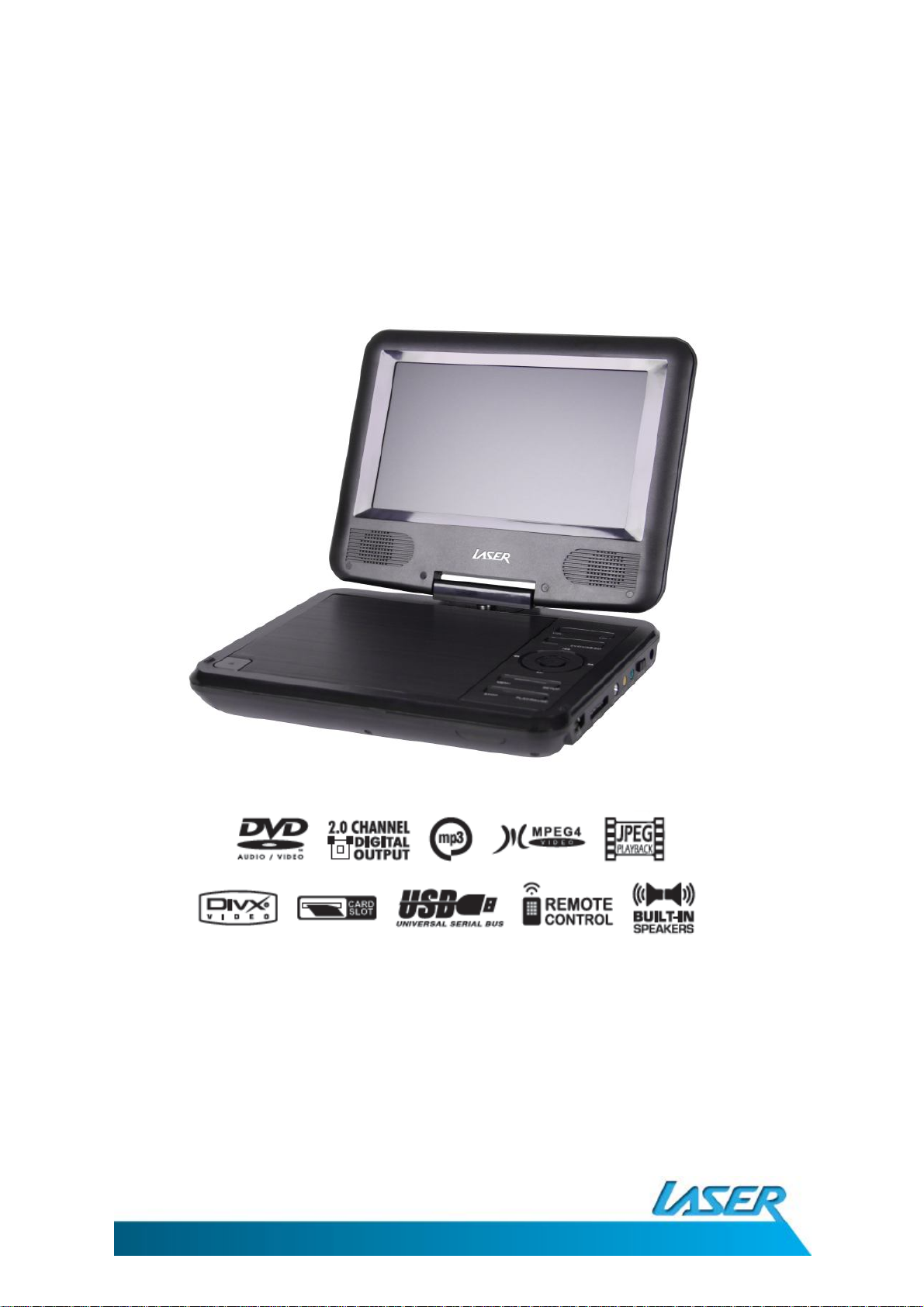

Laser 7” Screen Portable DVD Player
Please read carefully before use

DVD-PORTABLE-7B USER MANUAL
2
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS AND PRECAUTIONS ....................................................4
CARE OF DISCS......................................................................................................................5
WHAT’S IN THE BOX .............................................................................................................6
THE PLAYER ..........................................................................................................................6
INSTALLATION......................................................................................................................7
Indoor Use ........................................................................................................................7
In-car use ..........................................................................................................................7
PLAYBACK.............................................................................................................................8
The Remote Control..........................................................................................................8
Key Functions .................................................................................................................9
Loading andPlaying a Disc.................................................................................................9
Display..........................................................................................................................10

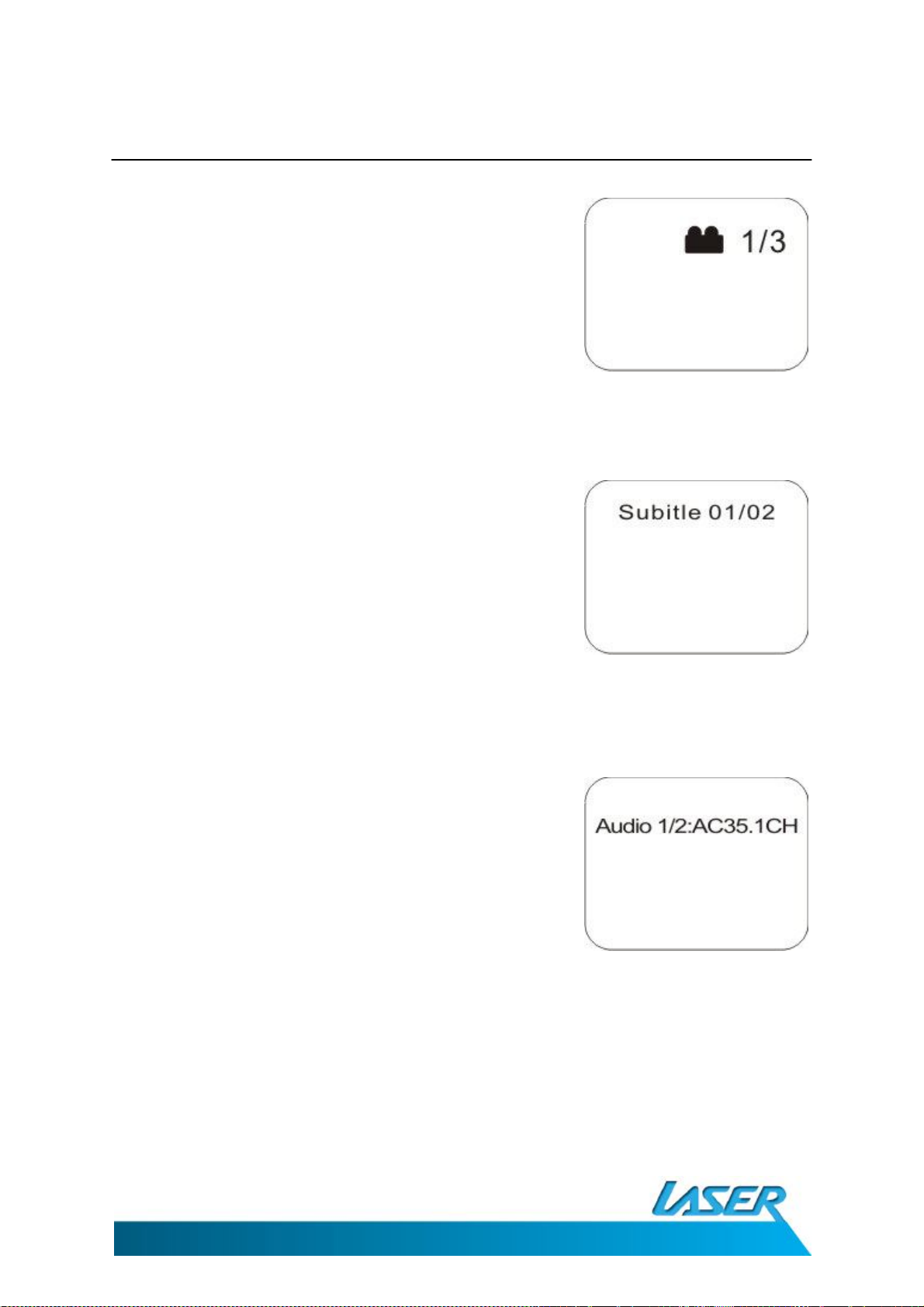

Angle............................................................................................................................11
Subtitle.........................................................................................................................11
Audio............................................................................................................................11
Zoom............................................................................................................................12
A-BRepeat....................................................................................................................12
ALL Repeat....................................................................................................................12
Playback MP3/MPEG-4 Disc..........................................................................................13
Playback of DIVX content..............................................................................................13
Play USB and SD/MMC/MS Card...................................................................................14
SYSTEM SETUP....................................................................................................................14
GeneralSetup Page.........................................................................................................14
TV Display.....................................................................................................................14
Angle Mark...................................................................................................................14
OSD Language...............................................................................................................15
Captions .......................................................................................................................15
Screen Saver.................................................................................................................15
Last Memory.................................................................................................................15

DVD-PORTABLE-7B USER MANUAL
3
Audio ..............................................................................................................................15
Speaker Setup...............................................................................................................15
Dolby...............................................................................................................................15
Dual Mono....................................................................................................................15
Dynamic........................................................................................................................16
Video...............................................................................................................................16
Preferences.....................................................................................................................16
TV Type.........................................................................................................................16
Audio............................................................................................................................16
Subtitle.........................................................................................................................17
Disc Menu.....................................................................................................................17
Parental........................................................................................................................17
Password......................................................................................................................17
Default..........................................................................................................................17
TROUBLESHOOTING...........................................................................................................18
Change the Remote Control Battery .............................................................................19
Charging the DVD Player...............................................................................................19
SPECIFICATIONS..................................................................................................................19
DVD Player......................................................................................................................19
AVAILABLE ACCESSORIES....................................................................................................20
Speakers and earphones...............................................................................................20
ScreenCleaning Products and Protectors......................................................................20
FOR OTHER ACCESSORIES AND PRODUCTS........................................................................20
CONTACT INFORMATION ...................................................................................................20

DVD-PORTABLE-7B USER MANUAL
4
IMPORTANT SAFETY INSTRCUTIONS AND PRECATIONS
IMPORTANT SAFETY INSTRUCTIONS AND PRECAUTIONS
Read all instructions carefully before use.
Retain manuals for future reference.
Use this product only in the manner described.
Only use a water-dampened soft-cloth to clean the surface of this product.
Use electronic devices in well ventilated areas & not exposed to excess vibration.
The following will damage this product: any liquid suchas water or moisture,
extreme heat, cold, humidity, dusty or sandy environments.
Only place this device on stable surfaces and ensure that any attached cables are
secure and will not cause the device to fall.
There are no user serviceable parts in this product.
Un-authorized attempts to dismantle or repair this product will void product
warranty and may result in dangerous electric shock.
Do not use this product if you are in control of dangerous machinery such as a
motorvehicle.
Remove any power or data cords by pulling them fromthe plug and not the cord.
Using this devicenear other electronic devices may cause interference.
Do not open the drive door while disc is spinning.
Ensure that the Portable Dual DVD player is installed in accordance to with the
instructions and illustrations provided in this manual.
It is the responsibility of the driver of the vehicle to ensure that this product is
installed and used in compliance with all Federal and State laws governing products
of this type.
Mount this product with thought for other motorists to reduce the amount of
distraction that they may provide to other road users.
We reserve the right to make changes to this document and/or the product with out
notification.

DVD-PORTABLE-7B USER MANUAL
5
CARE OF DISCS

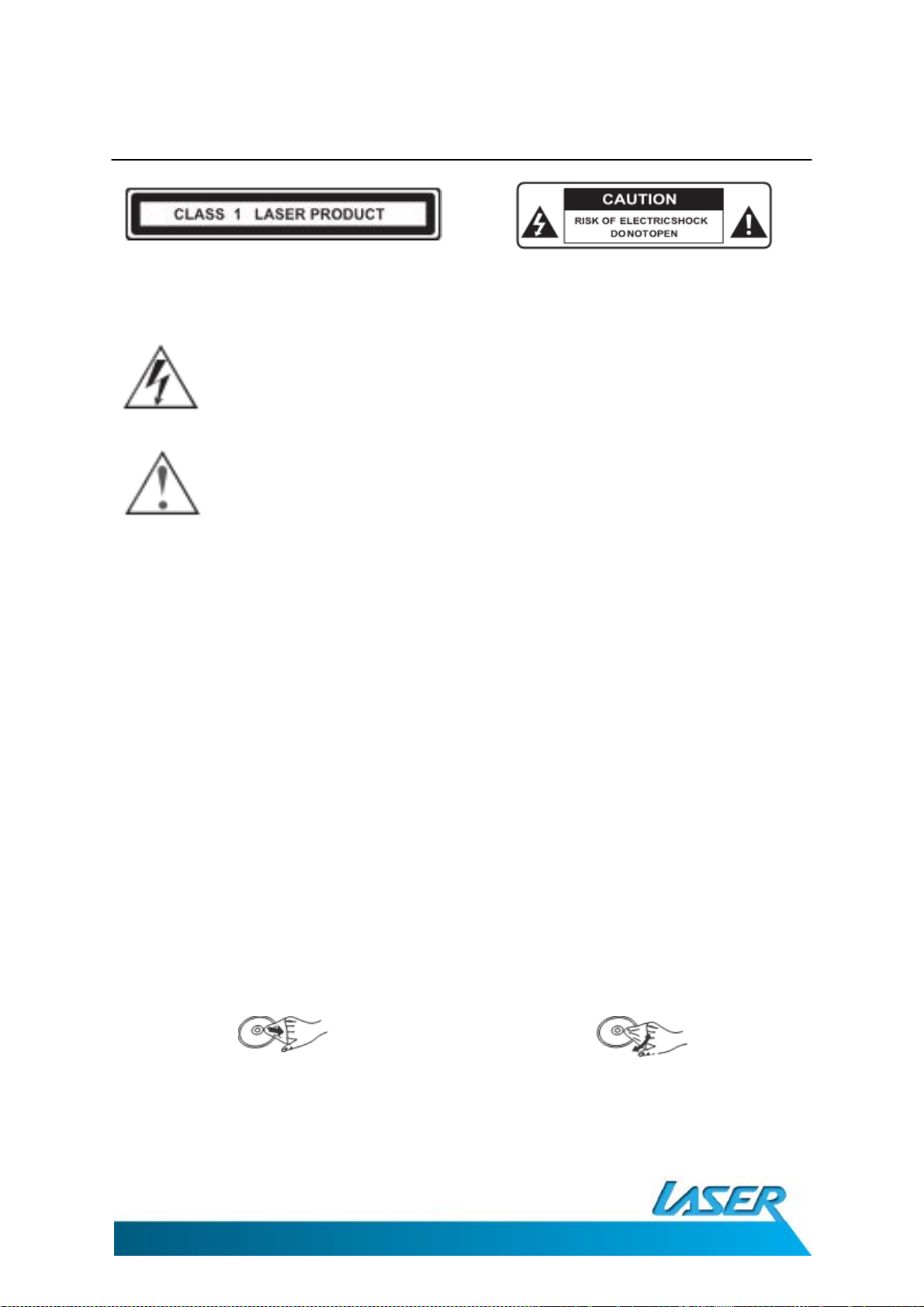

Laser product symbol: located on the rear panel of the unit indicates that this player is a
class 1 laser product; it uses only weak laser and no hazardous radiation outside of the unit.
The lightning flash with arrowhead symbol , within an equilateral triangle, is
intended to alert the user to the presenceof uninsulated “dangerous voltage”
within the product's enclosure that maybe of sufficient magnitude to
constitutea riskofelectricshockto persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operation and maintenance (servicing)
instruction in the literature accompanying the appliance
CARE OF DISCS
Do not place discs near any heat source such as direct sunlight or areas or high
humidity.
Do not touch the readable area or the disc (underside). Always hold discs by the
edges.
Do not use adhesive tape on the disc.
Do notuse commercial cleaner liquids on the discs as they may cause damage.
Do not leave discs in a vehicle that may be subject to strong direct sunlight as the
heat build up in the vehicle may damage the discs even if stored in shaded areas.
To clean the disc, always use a very soft damp cloth and wipe from the inside to the
outside of the disc.
Always return the disc to its enclosure when finished with.
DO
Don’t
Wipe discs with a soft damp cloth and allow to dry before placing disc in the players tray.
Never use alcohol, paint thinner or benzene to clean discs.

DVD-PORTABLE-7B USER MANUAL
6
WHAT’S IN THE BOX
WHAT’S IN THE BOX
1 X Main DVD player with 9” 16:9 LCD display 1 X Remote control (with battery)
1 X 12VDC (car) Power supply 1 X 110-240VAC mains power adaptor
1 X AV Cable 1 X Ear buds
Please check the contents of the packaging carefully.
THE PLAYER
Item
Description
Item
Description
1 Volume +/- 12 Stop Button
2
Audio Button
13
Drive Access Button
3 DVD/SD/USB 14 IR Sensor
4 Left/FastRewind 15 Power LED
5 Up/Previous Button 16 12V DC Input
6 OK/Confirm Button 17 Main Power ON/OFF Switch
7 Right/Fast Forward 18 Coax (SPDIF) Output
8 Down/Next Button 19 3.5mm AV Output
9 Setup Button 20 3.5mm Stereo Headphone Output
10 Menu Button 21 SD/MMC Card Slot (SDHC Compatible
11 Play/Pause Button 22 USB socket

DVD-PORTABLE-7B USER MANUAL
7
INSTALLATION
INSTALLATION

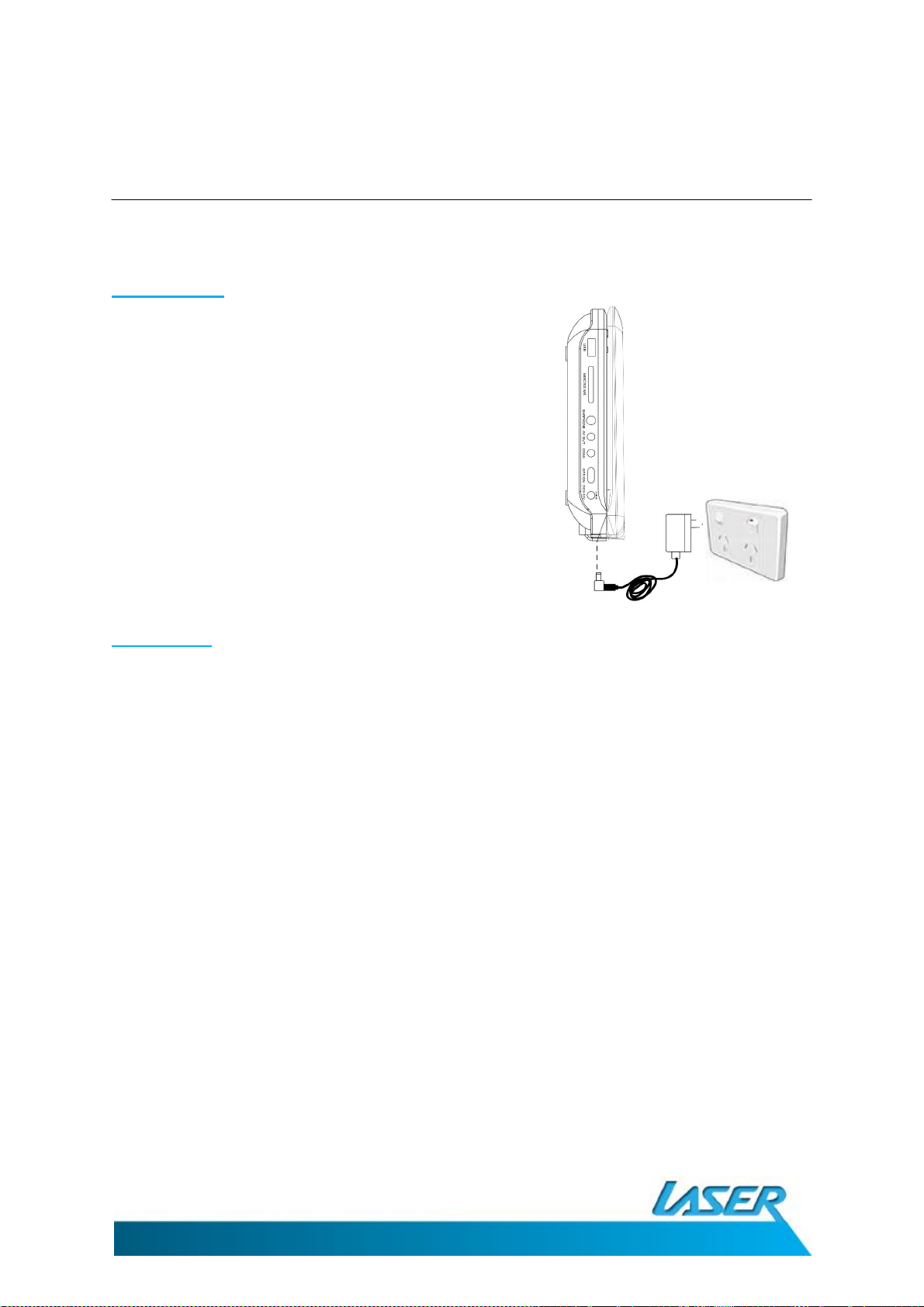

Indoor Use
1. Locate a spare mains outlet and turn it OFF.
2. Plug the supplied AC adaptor in to the outlet.
3. Connectthe other end to the 12VCD input socket.
4. Turn the main outlet ON.
5. Turn the main Power Switch on the Player to the ON
position.
In-car use
1. With the vehicle ignition off, connect the supplied DC adaptor to the vehicle power
outlet.
2. Connect the other end to the DC power input on the side of the DVD player.
3. Turn the vehicle ignition to ON or ACC to power the outlet and slide the DVD player
power switch to the ON position.
Note: Care should be take with all cable and connections with the DVD player.
Please ensure thatthere is no tension on any connection as this may damage the units.
Tidy any excess cabling to trip hazards that may damage the player.

DVD-PORTABLE-7B USER MANUAL
8
PLAYBACK
PLAYBACK

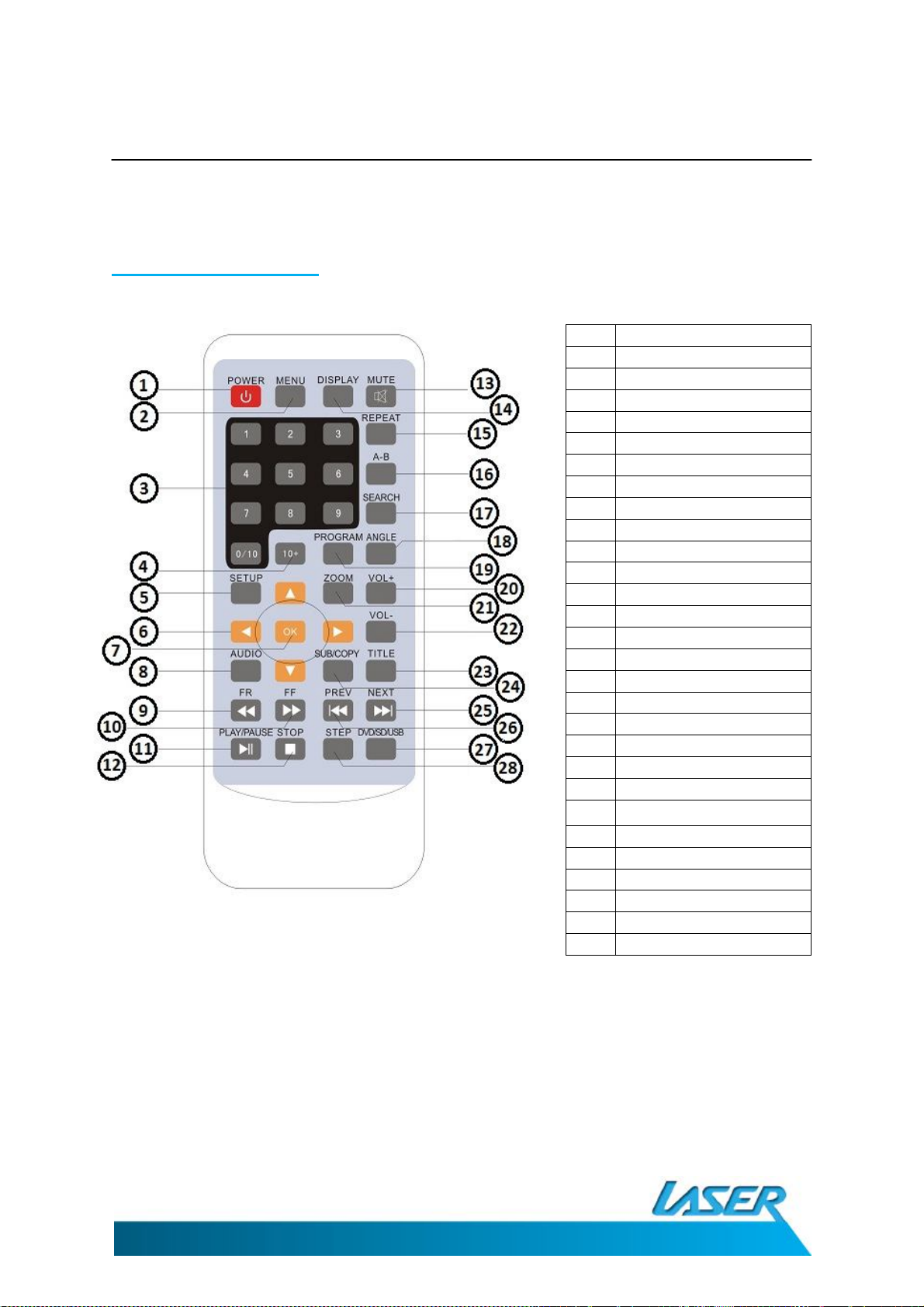

The Remote Control
Item
Function
1
Power
2
Menu
3
Number Pad
4
10+
5
DVD Setup
6
Up/Down/Left/Right
7
OK
8
Audio
9
FastRewind
10
Fast
Forward
11
Play/Pause
12
Stop
13
Mute
14
Display
15
Repeat
16
A
-
B repeat
17
Search
18
Angle
19
Program
20
Volume +
21
Zoom
22 Volume -
23
T
itle
24
Subt
itle
25
Next
26
Previous
27
DVD/SD/USB
28
Step

DVD-PORTABLE-7B USER MANUAL
9
PLAYBACK
Key Functions
Button
Action
Power
Switches the player ON or OFF
DVD/SD/USB
Press to cycle between DVD (Optical Disc), Card reader or USB drive.
Use Up/Down/Left/Right button to navigate and the OK button select.
Setup
Enter or Exit the setup menu.
Number Pad
Use to enter
an item in a menu or to enter a password.
OK (Confirm)
Press to select an option or validate a setting.
A-B Repeat
Used to select a portion of Video/Audio to repeat.
Previous
Press to skip to the previous chapter or track.
Next
Press to skip to the
next chapter or track.
Play/Pause
Press to start playback or to pause playback.
Stop
Press to stop playback.
Program
This button is used to program the favourite songs or chapters when using
VCD, Audio CD or DVD discs.
FastForward/Rewind
Use to Fast
Forward or Rewind at Speeds of 2X, 4X, 8X, 16X and 32X normal
playback speeds.
Mute
Mutes the Au
dio Output on the Player
.
Volume +/-
These buttons are used to increase or decrease the Audio Output.
Audio
Select available audio language for the DVD.
DVD
Title
Return to Disc Main Menu.

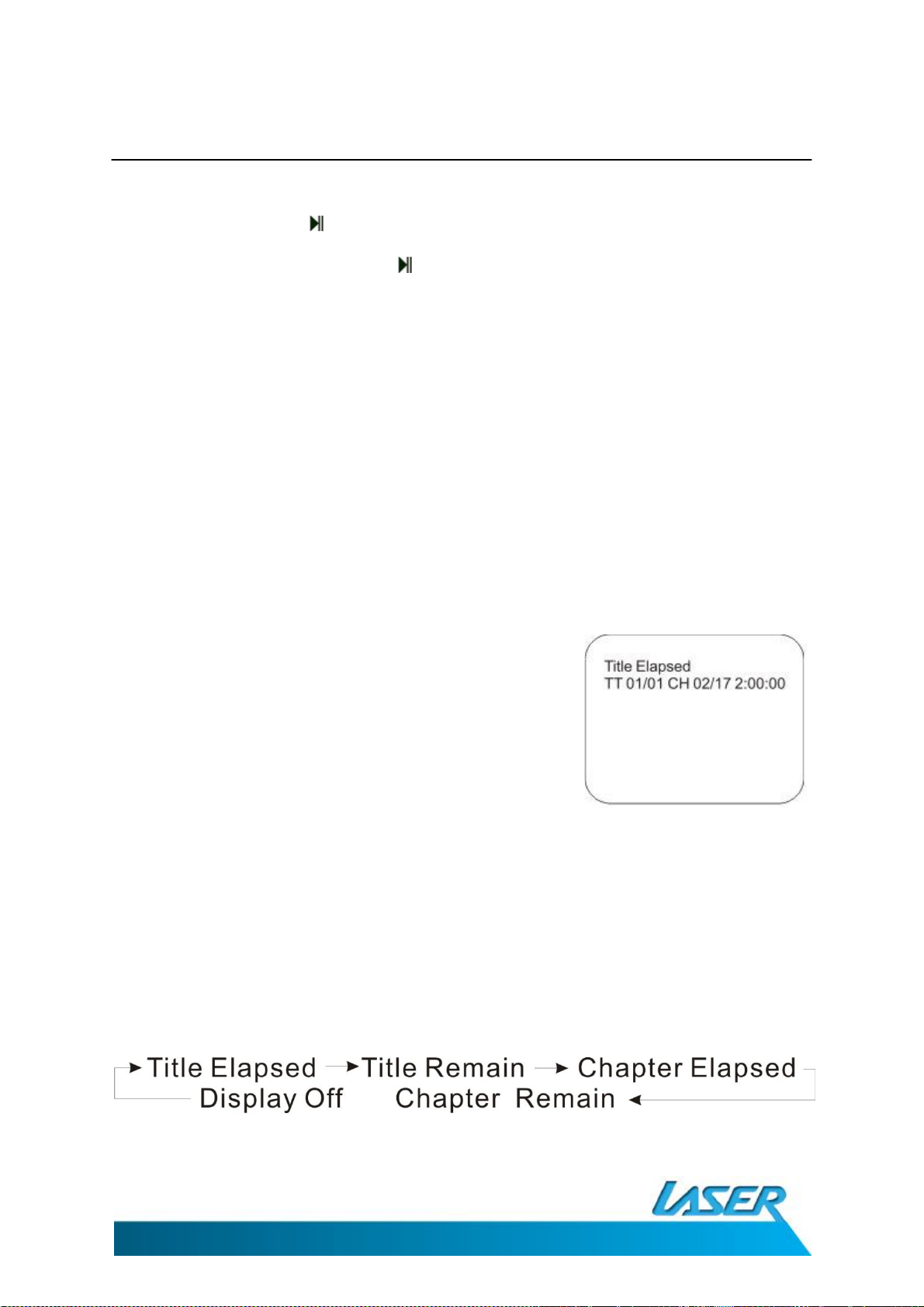

Display
Shows information about the current disc.
Zoom.
Enlarge the image 2X ~ 4X the size of the original image.
Search
Select a title, chapter, track, title time or tracking Time.
Ang
le
Display the available angles
for discs containing multi
-
angles.
Note : Remove the plastic sheet before using the remote control.
Loading andPlaying a Disc.
1. After connecting power to the DVD Player, push the Power On/Off switch to the “on”
position.
2. Place a disc gently into the tray.
-Youshould hear and feel the disc snap firmly into place.
-Place a disc into the tray with the disc’s label facing up.
3. Close the DVD cover until it clicks shut. The unit will now load disc and commence
playback.
4. Stopping Play.
Press the STOP (■) Button during play.

DVD-PORTABLE-7B USER MANUAL
10
PLAYBACK
5. Play/Pause.
Press the Play/Pause ( ) button on the remote during play to pause playback.
To resume, Press the Play/Pause ( ) button once again.
6. Fast Forward/Fast Reverse
Press Fast Forward or Fast Reverse to achieve the place you desired with speed
adjustable during2X, 4X, 8X, 16X, 32X times.
7. Menu
A DVD is divided into sections called titles and chapters. When you play a DVD, a root
menu of the disc will appear on the screen of your DVD player. The contents of the
menu vary from disc to disc. Press MENU during playback to display the menu.
Display
Playing Time and Remaining Time
A.
During playback
,
press the “DISPLAY” button to display the
currentTitle Number, the total Number of Title, The
current Chapter Number, The total Number of Chapters,
and the Playing elapsed Time for the title. The heading will
disappear automatically after 3 seconds if DISPLAY button
is not pressed.
B. Press “DISPLAY” constantly to choose the options below in sequence.
Title Elapsed: The elapsed time of the title.
Title Remain: The remaining time of the title.
Chapter Elapsed: The elapsed time of the chapter.
Chapter Remain: The remaining time ofthe chapter.
Display off: The DVD’s time information will not be displayed.
