Laser DVBT-C30B User manual

3.5” Hand held DVBT-C30B with FM
Radio Function
Users Manual
All manuals and user guides at all-guides.com
all-guides.com

DVBT-C30B USER M NU L
1

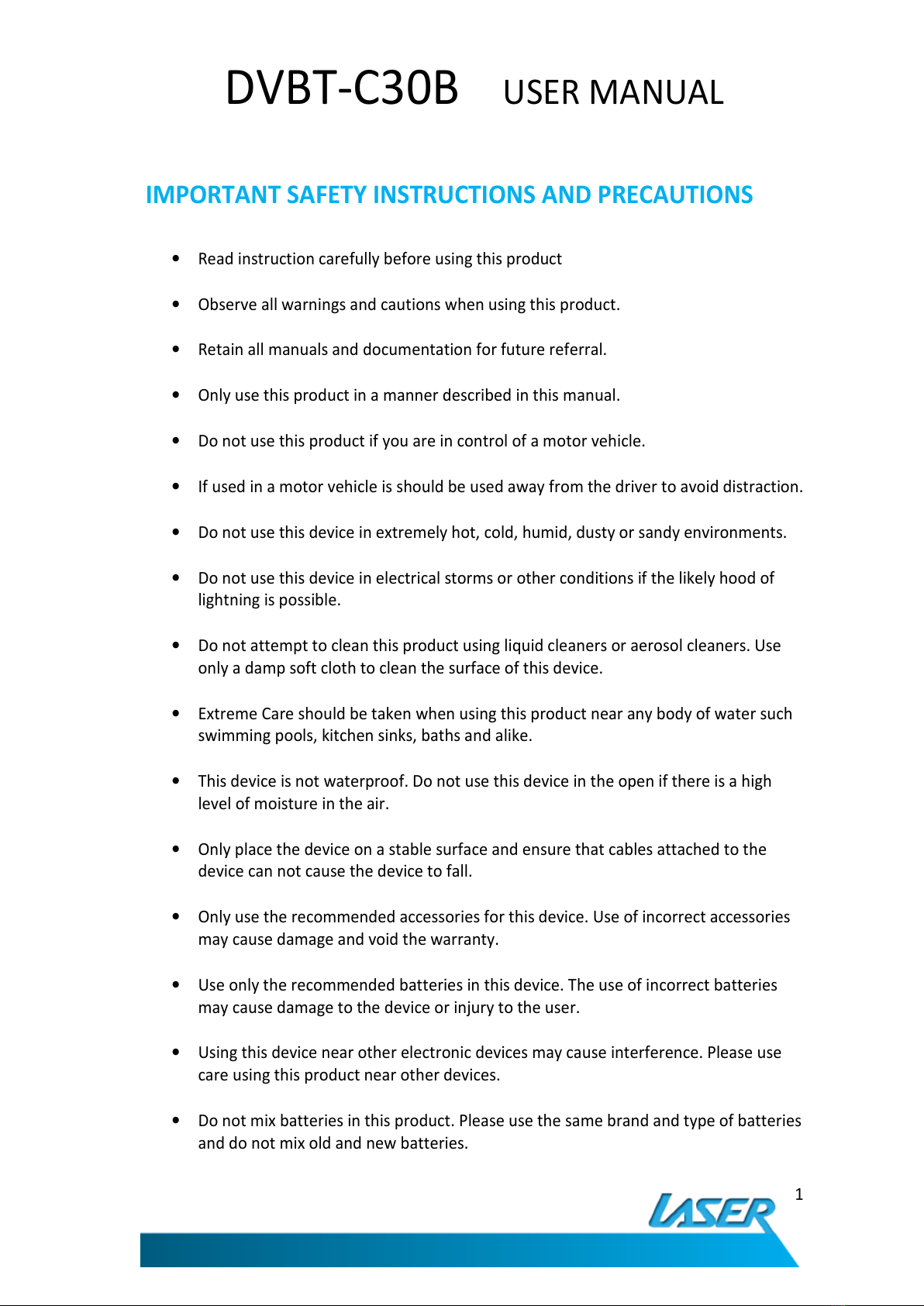

IMPORTANT SAFETY INSTRUCTIONS AND PRECAUTIONS
•Read instruction carefully before using this product
•Observe all warnings and cautions when using this product.
•Retain all manuals and documentation for future referral.
•Only use this product in a manner described in this manual.
•Do not use this product if you are in control of a motor vehicle.
•If used in a motor vehicle is should be used away from the driver to avoid distraction.
•Do not use this device in extremely hot, cold, humid, dusty or sandy environments.
•Do not use this device in electrical storms or other conditions if the likely hood of
lightning is possible.
•Do not attempt to clean this product using liquid cleaners or aerosol cleaners. Use
only a damp soft cloth to clean the surface of this device.
•Extreme Care should be taken when using this product near any body of water such
swimming pools, kitchen sinks, baths and alike.
•This device is not waterproof. Do not use this device in the open if there is a high
level of moisture in the air.
•Only place the device on a stable surface and ensure that cables attached to the
device can not cause the device to fall.
•Only use the recommended accessories for this device. Use of incorrect accessories
may cause damage and void the warranty.
•Use only the recommended batteries in this device. The use of incorrect batteries
may cause damage to the device or injury to the user.
•Using this device near other electronic devices may cause interference. Please use
care using this product near other devices.
•Do not mix batteries in this product. Please use the same brand and type of batteries
and do not mix old and new batteries.
All manuals and user guides at all-guides.com

DVBT-C30B USER M NU L
2

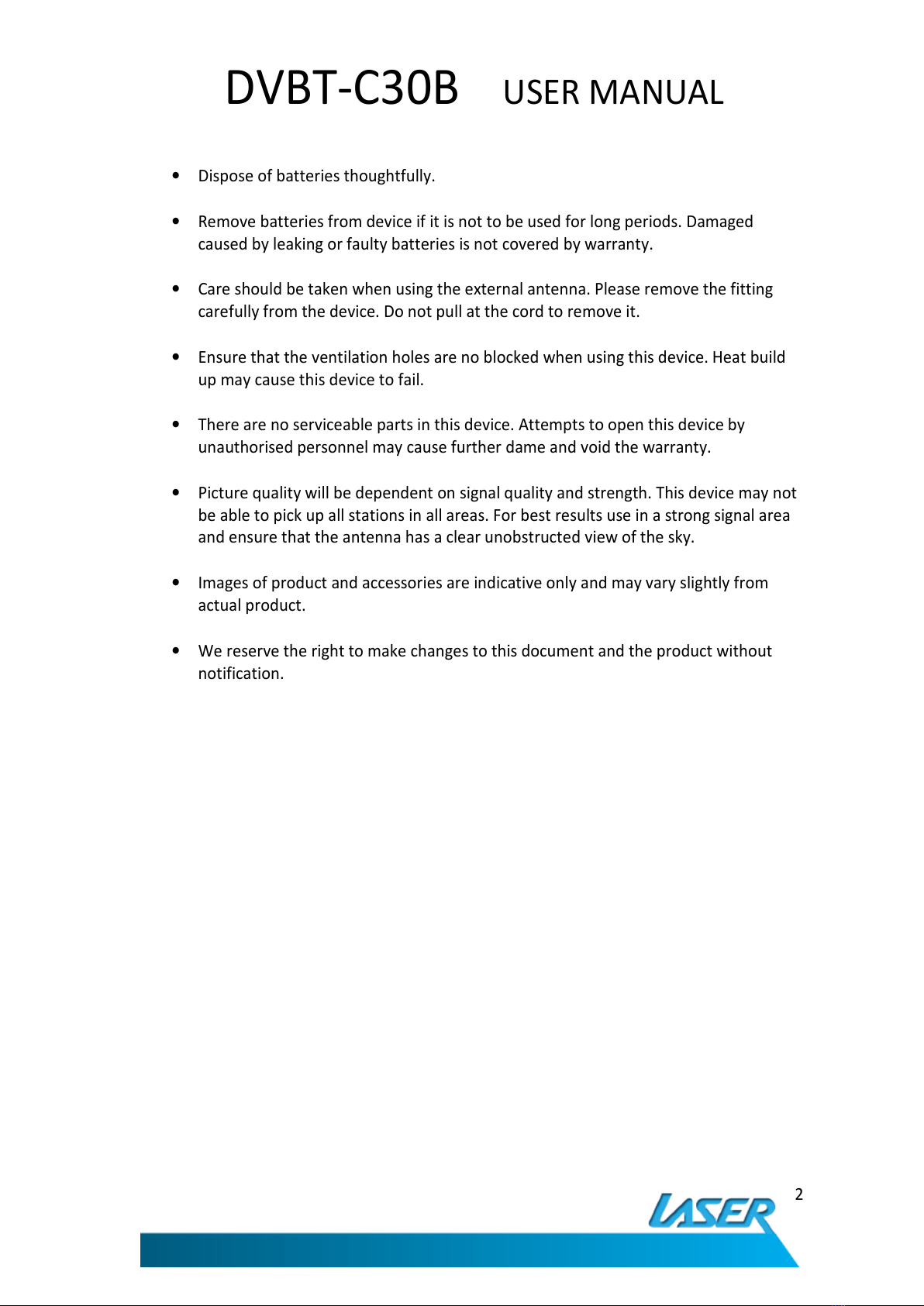

•Dispose of batteries thoughtfully.
•Remove batteries from device if it is not to be used for long periods. Damaged
caused by leaking or faulty batteries is not covered by warranty.
•Care should be taken when using the external antenna. Please remove the fitting
carefully from the device. Do not pull at the cord to remove it.
•Ensure that the ventilation holes are no blocked when using this device. Heat build
up may cause this device to fail.
•There are no serviceable parts in this device. ttempts to open this device by
unauthorised personnel may cause further dame and void the warranty.
•Picture quality will be dependent on signal quality and strength. This device may not
be able to pick up all stations in all areas. For best results use in a strong signal area
and ensure that the antenna has a clear unobstructed view of the sky.
•Images of product and accessories are indicative only and may vary slightly from
actual product.
•We reserve the right to make changes to this document and the product without
notification.
All manuals and user guides at all-guides.com

DVBT-C30B USER M NU L
3
Table of Contents
IMPORT NT S FETY INSTRUCTIONS ND PREC UTIONS ......................................................... 1
CCESSORY LIST ......................................................................................................................... 5
CONNECTION GUIDE .................................................................................................................. 5
PREP RING THE B TTERY P CK FOR USE .................................................................................. 6
ttaching the Battery Pack .................................................................................................... 6
KNOWING YOUR DVB-T ............................................................................................................. 7
B SIC OPER TION ...................................................................................................................... 8
QUICK ST RT FOR FIRST TIME USE ............................................................................................ 9
USING THE M IN MENU .......................................................................................................... 10
M IN MENU IN DET IL ............................................................................................................ 12
Service Type ......................................................................................................................... 12
Program List ......................................................................................................................... 12
utomatic Search ................................................................................................................. 12
Channel Management ......................................................................................................... 13
Skip a Channel .................................................................................................................. 13
Move a Channel ............................................................................................................... 13
Delete a Channel .............................................................................................................. 13
Channel Information ............................................................................................................ 14
ntenna Selection ................................................................................................................ 14
Display Settings .................................................................................................................... 14
Region & Language Settings ................................................................................................ 15
Subtitles ............................................................................................................................... 15
Teletext ................................................................................................................................ 16
udio Settings ...................................................................................................................... 16
System Reset ........................................................................................................................ 16
DVB-T R DIO SERVICE .............................................................................................................. 17
FM R DIO SERVICE................................................................................................................... 18
Favourites list ....................................................................................................................... 18
Load Favourite List ............................................................................................................... 18
Store Favourite List .............................................................................................................. 19
FM R DIO MENU ..................................................................................................................... 19
Service Type ......................................................................................................................... 19
Favourites List ...................................................................................................................... 20
All manuals and user guides at all-guides.com

DVBT-C30B USER M NU L
4
dd to favourite List............................................................................................................. 20
Speakers ............................................................................................................................... 20
TROUBLE SHOOTING ................................................................................................................ 21
SPECIFIC TIONS ....................................................................................................................... 22
V IL BLE CCESSORIES ......................................................................................................... 23
CONT CT INFORM TION ......................................................................................................... 23
All manuals and user guides at all-guides.com

DVBT-C30B USER M NU L
5

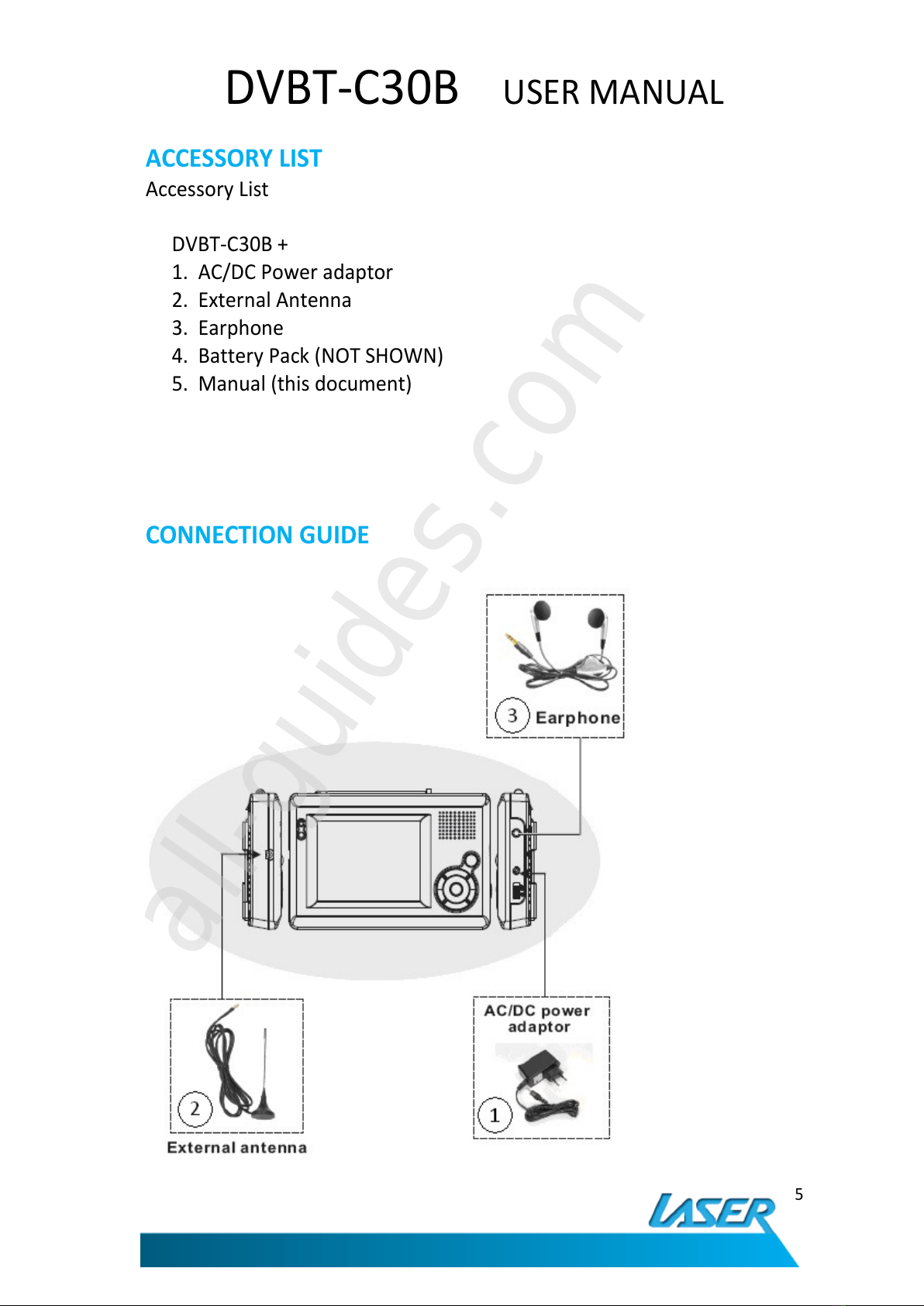

ACCESSORY LIST
ccessory List
DVBT-C30B +
1. C/DC Power adaptor
2. External ntenna
3. Earphone
4. Battery Pack (NOT SHOWN)
5. Manual (this document)
CONNECTION GUIDE
All manuals and user guides at all-guides.com
all-guides.com

DVBT-C30B USER M NU L
6

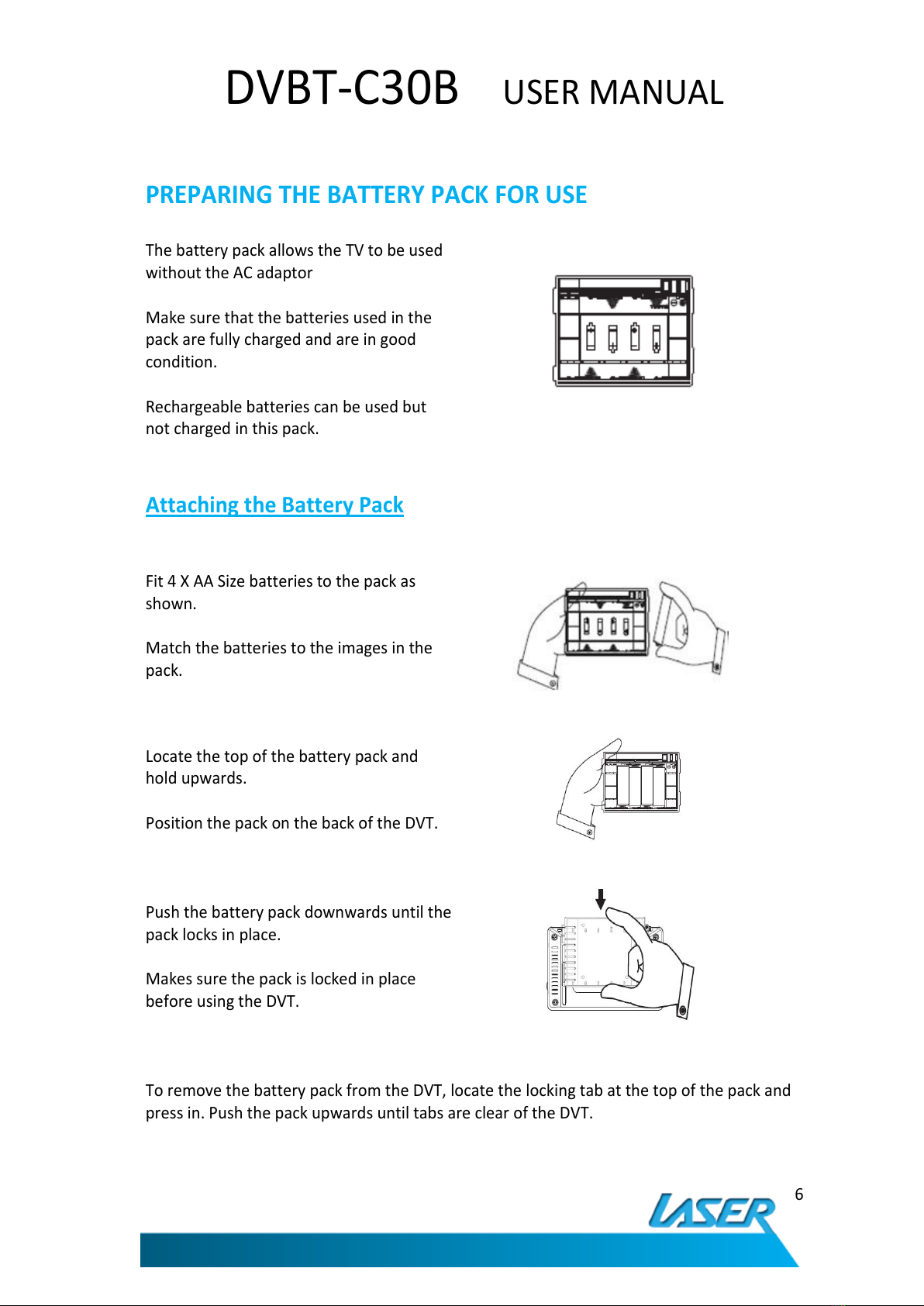

PREPARING THE BATTERY PACK FOR USE
The battery pack allows the TV to be used
without the C adaptor
Make sure that the batteries used in the
pack are fully charged and are in good
condition.
Rechargeable batteries can be used but
not charged in this pack.
Attach ng the Battery Pack
Fit 4 X Size batteries to the pack as
shown.
Match the batteries to the images in the
pack.
Locate the top of the battery pack and
hold upwards.
Position the pack on the back of the DVT.
Push the battery pack downwards until the
pack locks in place.
Makes sure the pack is locked in place
before using the DVT.
To remove the battery pack from the DVT, locate the locking tab at the top of the pack and
press in. Push the pack upwards until tabs are clear of the DVT.
All manuals and user guides at all-guides.com

DVBT-C30B USER M NU L
7

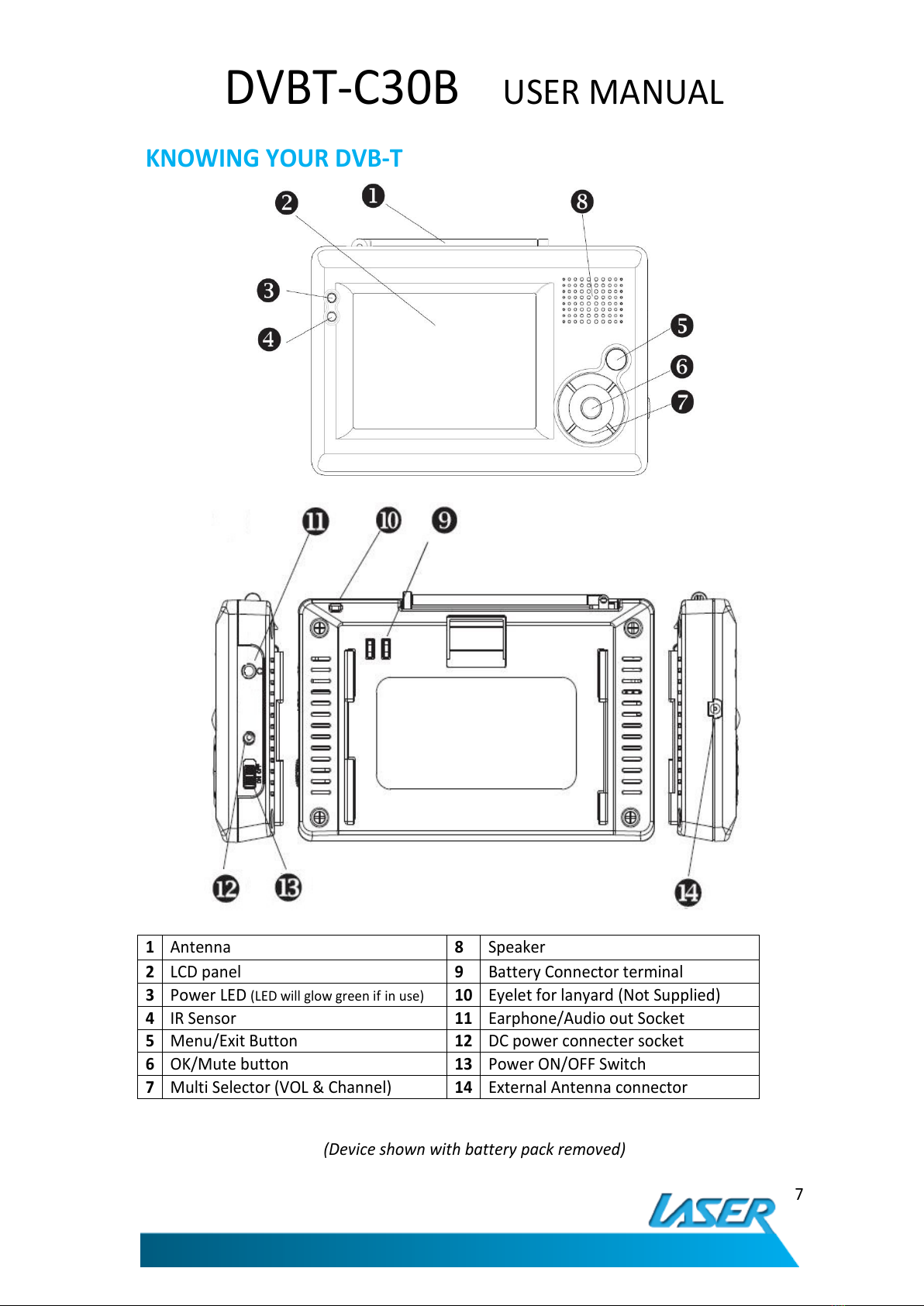

KNOWING YOUR DVB-T
1
ntenna 8 Speaker
2
LCD panel 9 Battery Connector terminal
3
Power LED (LED will glow green if in use) 10
Eyelet for lanyard (Not Supplied)
4
IR Sensor 11
Earphone/ udio out Socket
5
Menu/Exit Button 12
DC power connecter socket
6
OK/Mute button 13
Power ON/OFF Switch
7
Multi Selector (VOL & Channel) 14
External ntenna connector
(Device shown with battery pack removed)
All manuals and user guides at all-guides.com

DVBT-C30B USER M NU L
8
BASIC OPERATION
All manuals and user guides at all-guides.com

DVBT-C30B USER M NU L
9
QUICK START FOR FIRST TIME USE
When turned on for the first time you will be required to check some basic settings for the
DVBT-C30B
1) Turn the DVBT-C30B on and wait for the
following screen to be shown and then
press the OK button.
2) Select your OSD Language, your current
region, whether it’s summer time at
present.
Use [CH+]/[CH-] buttons to highlight the
item.
Use [VOL+] button to set the highlight
item.
Press [CH+]/[CH-] buttons to scroll up and
down the options.
Select one by pressing the [OK] button or
exit the setting by pressing the [MENU]
button.
3) Perform auto search to find available TV
DVB-T channels.
Use [CH+]/[CH-] buttons to highlight the
uto Search item.
Press [OK] button to start.
When the scan is complete you will be able to watch Digital TV channels available in your
current area.
Please note that playback qual ty s subject to s gnal strength and qual ty at the current
locat on. Chang ng locat on may mprove qual ty n some cases.
All manuals and user guides at all-guides.com

DVBT-C30B USER M NU L
10

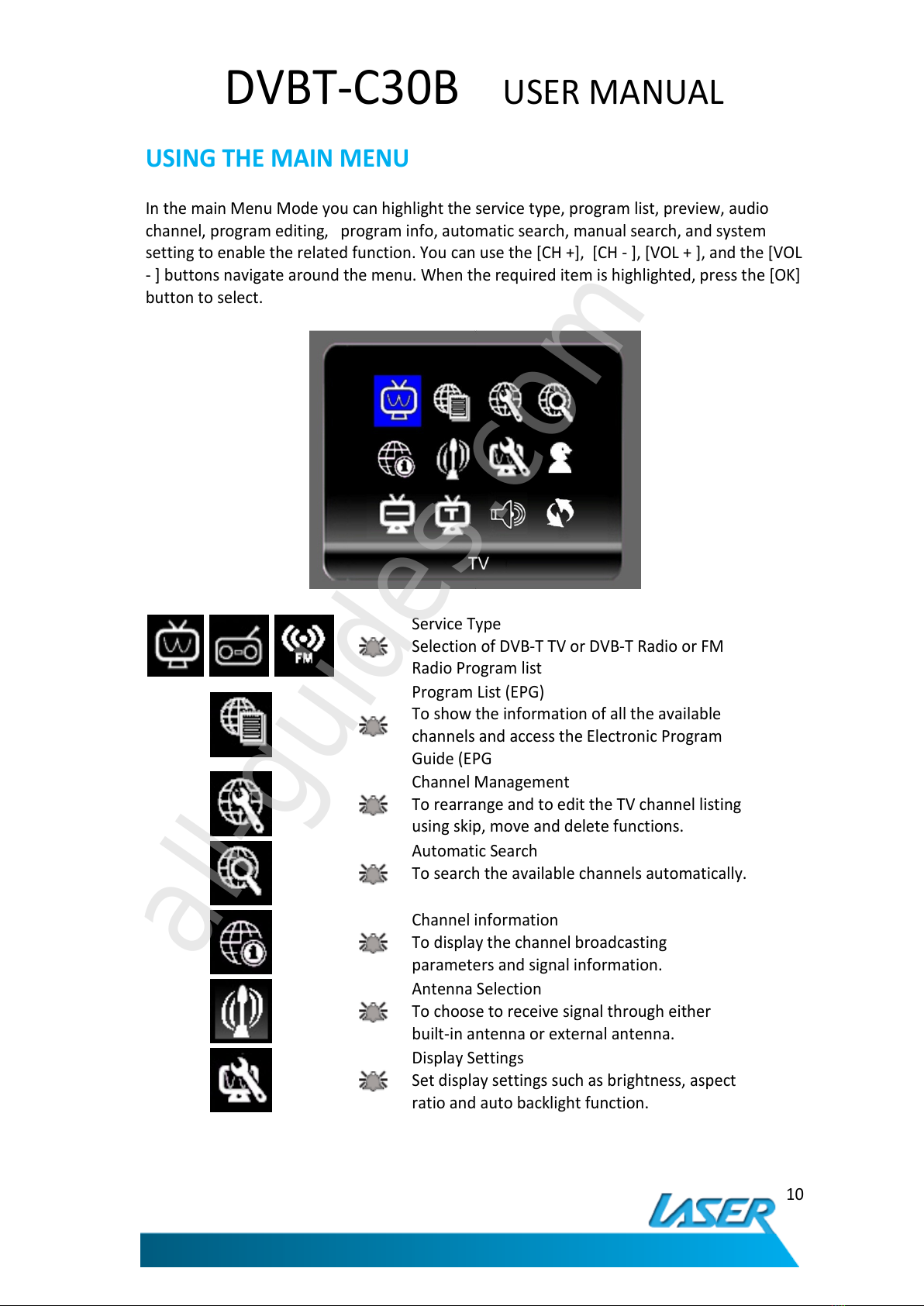

USING THE MAIN MENU
In the main Menu Mode you can highlight the service type, program list, preview, audio
channel, program editing, program info, automatic search, manual search, and system
setting to enable the related function. You can use the [CH +], [CH - ], [VOL + ], and the [VOL
- ] buttons navigate around the menu. When the required item is highlighted, press the [OK]
button to select.
Service Type
Selection of DVB-T TV or DVB-T Radio or FM
Radio Program list
Program List (EPG)
To show the information of all the available
channels and access the Electronic Program
Guide (EPG
Channel Management
To rearrange and to edit the TV channel listing
using skip, move and delete functions.
utomatic Search
To search the available channels automatically.
Channel information
To display the channel broadcasting
parameters and signal information.
ntenna Selection
To choose to receive signal through either
built-in antenna or external antenna.
Display Settings
Set display settings such as brightness, aspect
ratio and auto backlight function.
All manuals and user guides at all-guides.com
all-guides.com

DVBT-C30B USER M NU L
11
Reg on and Language Sett ngs
Set up the OSD language and change region
settings
Subt tle
To turn the subtitle function ON or OFF
(if service is available)
Teletext Funct on
Turns the Teletext function ON or OFF
(if service is available)
Aud o Sett ngs
Selects master or secondary audio language.
(if service is available)
System Reset
To reset system to factory defaults and displays
system software version.
All manuals and user guides at all-guides.com

DVBT-C30B USER M NU L
12
MAIN MENU IN DETAIL
Serv ce Type
Select on of D g tal TV, D g tal Rad o or FM Rad o program
The service type will be switched between
Digital TV, Digital Radio and FM Radio program
as [OK] button is pressed.
Program L st
To d splay channel nformat on, prev ew the program, and to access the Electron c
Program Gu de (EPG)
1. Select “Program List” in the TV menu and
press [OK] button. The “Program List” will
appear on screen.
2. Press [CH+]/[CH-] buttons to scroll up/down
the channel list to preview the program.
3. Press [VOL+] button to show the details of the
channel.
4. Press [MENU] button to exit
Automat c Search
To search the ava lable channels automat cally.
1. Browse the TV menu screen using [CH+]/[CH-
]/[VOL+][VOL-] buttons to highlight the
automatic search option.
2. Press [OK] button to start the channel search.
All manuals and user guides at all-guides.com

DVBT-C30B USER M NU L
13
Channel Management
To rearrange and to ed t the TV channel l st ng us ng sk p, move, lock, and delete
funct ons.
1. Select “Channel Management” in the TV
Menu and press the [OK] button. The
management screen will appear as in the
picture on the right.
2. Press the [CH+]/[CH-] buttons to scroll
up/down the channel list. Press [OK] button to
enter the Editing menu for the selected
channel.
3. Press [MENU] button to exit anytime.


 Skip a Channel
1. fter entering the channel editing menu, select the “SKIP” visual-button on screen by
pressing [VOL+]/[VOL-] buttons.
2. Press [OK] button to activate or deactivate it.
NOTE: this function “temporarily removes the channel from the program list. Users can
restore the channels by deactivating the function.


 Move a Channel
1. fter entering the channel editing menu, select the “MOVE” visual-button on screen
by pressing [VOL+]/[VOL-] buttons and press [OK] button.
2. Use [CH+]/[CH-] buttons to move the channel up or down in the list.
3. Press [OK] button to save the new listing.


 Delete a Channel
1. fter entering the channel editing menu, select the “DELETE” visual-button on
screen by using [VOL+]/[VOL-] buttons.
2. Press [OK] button to delete the channel.
NOTE: this function will “permanently delete the channel from the current program list.
Users restore the channels only by performing auto search.
All manuals and user guides at all-guides.com

DVBT-C30B USER M NU L
14

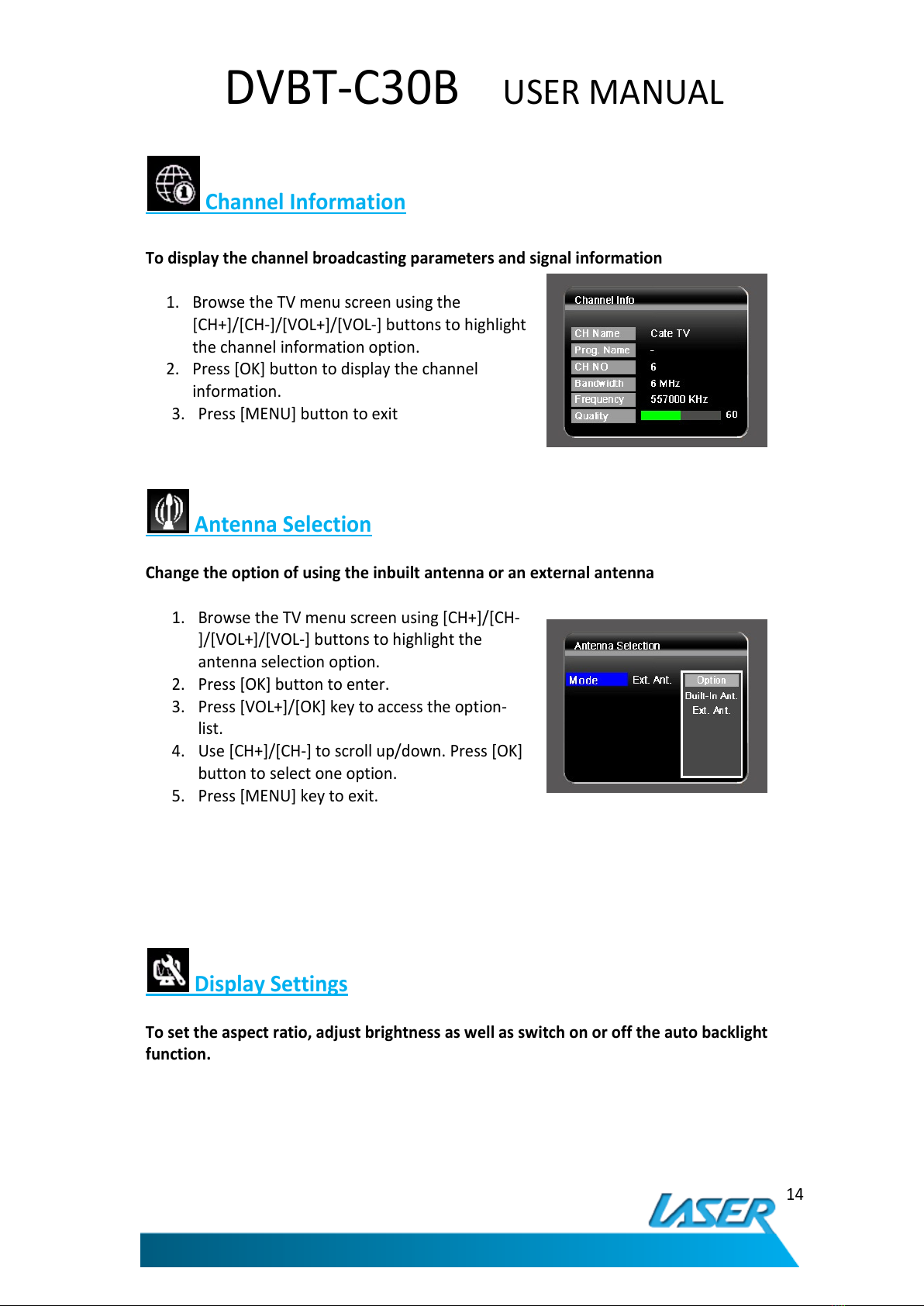

Channel Informat on
To d splay the channel broadcast ng parameters and s gnal nformat on
1. Browse the TV menu screen using the
[CH+]/[CH-]/[VOL+]/[VOL-] buttons to highlight
the channel information option.
2. Press [OK] button to display the channel
information.
3. Press [MENU] button to exit
Antenna Select on
Change the opt on of us ng the nbu lt antenna or an external antenna
1. Browse the TV menu screen using [CH+]/[CH-
]/[VOL+]/[VOL-] buttons to highlight the
antenna selection option.
2. Press [OK] button to enter.
3. Press [VOL+]/[OK] key to access the option-
list.
4. Use [CH+]/[CH-] to scroll up/down. Press [OK]
button to select one option.
5. Press [MENU] key to exit.
D splay Sett ngs
To set the aspect rat o, adjust br ghtness as well as sw tch on or off the auto backl ght
funct on.
All manuals and user guides at all-guides.com

DVBT-C30B USER M NU L
15

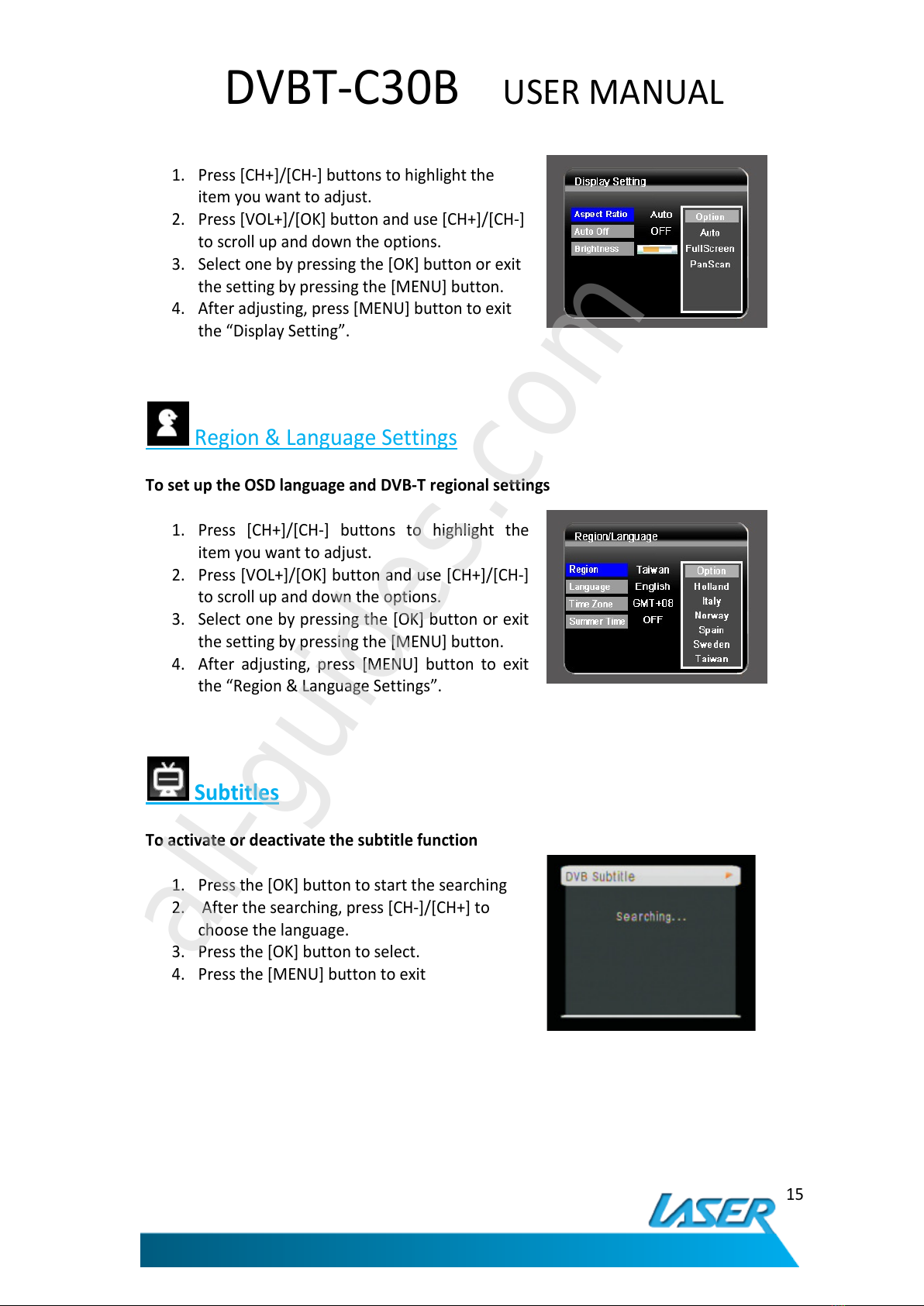

1. Press [CH+]/[CH-] buttons to highlight the
item you want to adjust.
2. Press [VOL+]/[OK] button and use [CH+]/[CH-]
to scroll up and down the options.
3. Select one by pressing the [OK] button or exit
the setting by pressing the [MENU] button.
4. fter adjusting, press [MENU] button to exit
the “Display Setting”.
Region & Language Settings
To set up the OSD language and DVB-T reg onal sett ngs
1. Press [CH+]/[CH-] buttons to highlight the
item you want to adjust.
2. Press [VOL+]/[OK] button and use [CH+]/[CH-]
to scroll up and down the options.
3. Select one by pressing the [OK] button or exit
the setting by pressing the [MENU] button.
4. fter adjusting, press [MENU] button to exit
the “Region & Language Settings”.
Subt tles
To act vate or deact vate the subt tle funct on
1. Press the [OK] button to start the searching
2. fter the searching, press [CH-]/[CH+] to
choose the language.
3. Press the [OK] button to select.
4. Press the [MENU] button to exit
All manuals and user guides at all-guides.com
all-guides.com

DVBT-C30B USER M NU L
16
Teletext
To start the Teletext funct on
Teletext is no longer broadcast in Australia except of the transmission of subtitles
(accessible in Subtitles). This service may be available in other countries and use of this
feature may vary between services.
Aud o Sett ngs
To select master or secondary language when broadcast
1. Browse the TV menu screen using [CH+]/[CH-
]/[VOL+]/[VOL-] buttons to highlight the audio
option. Press [OK] button to enter the audio
menu.
2. Use [VOL+]/[VOL-] buttons to select
stereo/left/right audio channel. Scroll the
available language using [CH+]/[CH-] buttons.
Press [OK] button to select the language.
3. Press [MENU] key to exit.
System Reset
To check the system software vers on and make system reset
1. Press [OK] to enter the system reset menu.
2. Press [OK] again to proceed the resetting.
All manuals and user guides at all-guides.com

DVBT-C30B USER M NU L
17

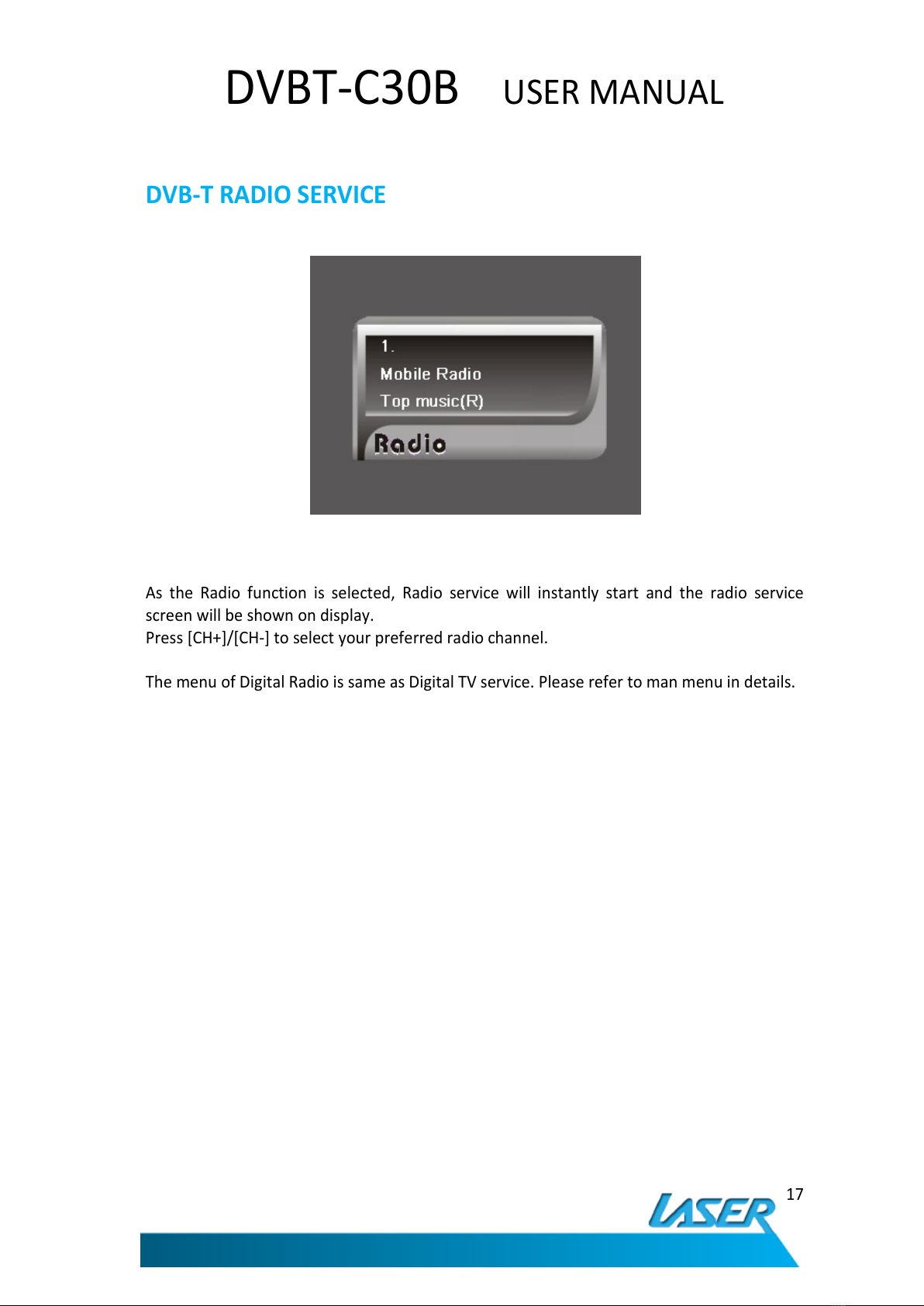

DVB-T RADIO SERVICE
s the Radio function is selected, Radio service will instantly start and the radio service
screen will be shown on display.
Press [CH+]/[CH-] to select your preferred radio channel.
The menu of Digital Radio is same as Digital TV service. Please refer to man menu in details.
All manuals and user guides at all-guides.com

DVBT-C30B USER M NU L
18
FM RADIO SERVICE
Press the [CH+]/[CH-] buttons to manually search FM programs. Pressing [CH+]/[CH-] for
about one second will start the auto channel search feature.
IM ORTANT: lease plug earphone for improved FM reception


 Favour tes l st
1. Press [OK] to open Favourite List
2. In Favourite List, press [VOL+]/[VOL-] to switch loading Favourite list & storing
Favourite list page.
Load Favour te L st
1. Press [CH+]/[CH-] to move between favourite
2. Press [OK] to hearing current Favourite or press
[MENU] to cancel loading Favourite programs.
All manuals and user guides at all-guides.com

DVBT-C30B USER M NU L
19

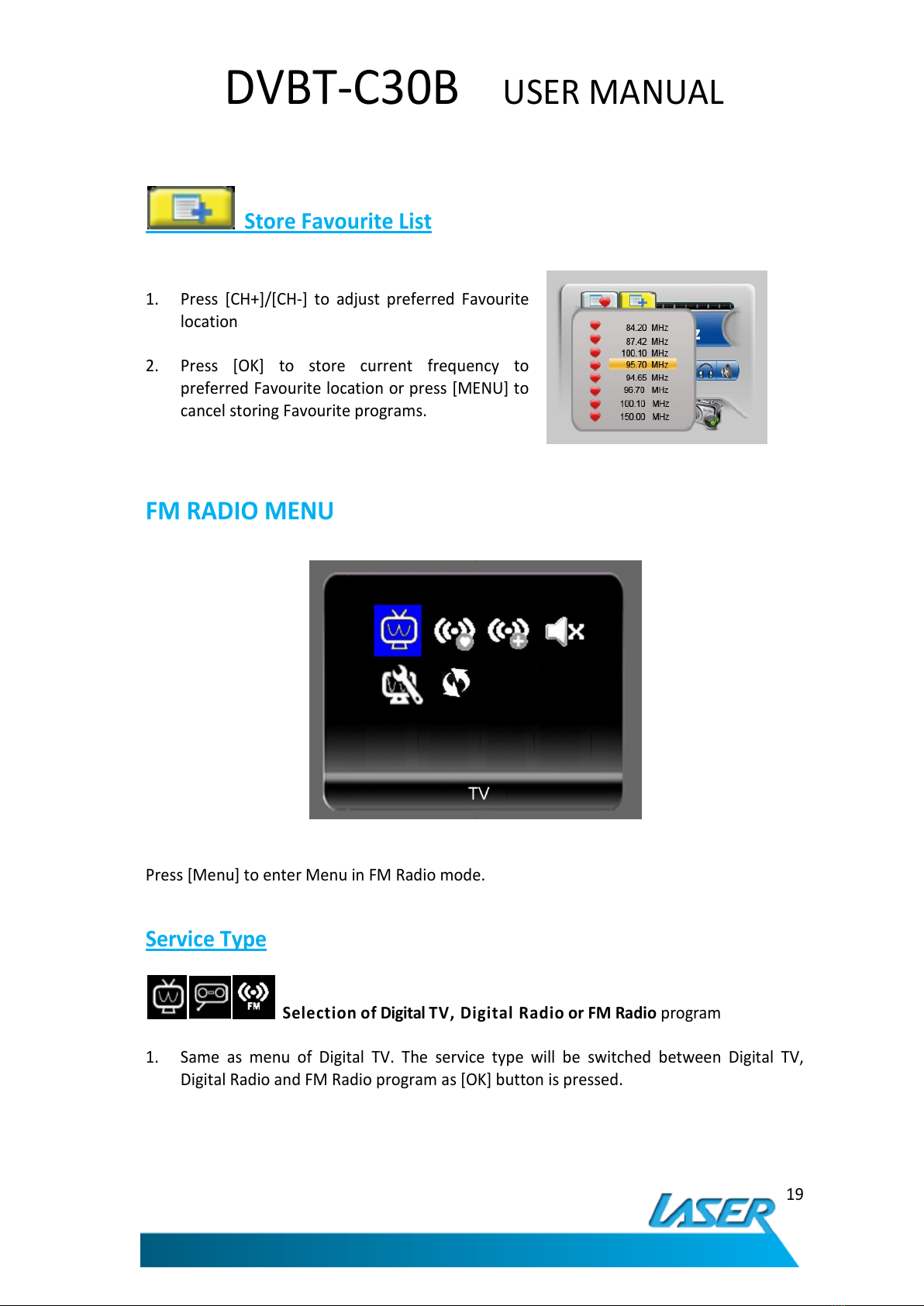

Store Favour te L st
1. Press [CH+]/[CH-] to adjust preferred Favourite
location
2. Press [OK] to store current frequency to
preferred Favourite location or press [MENU] to
cancel storing Favourite programs.
FM RADIO MENU
Press [Menu] to enter Menu in FM Radio mode.
Serv ce Type
Select on of D g tal TV, D g tal Rad o or FM Rad o program
1. Same as menu of Digital TV. The service type will be switched between Digital TV,
Digital Radio and FM Radio program as [OK] button is pressed.
All manuals and user guides at all-guides.com
