lassele LRT-771PC User manual

CAUTION!
PLEASE KEEP POWER SWITCH ON
BEFORE OPERATINGTHE UNIT
ATTENTION!
GARDEZ EN BOUTON ALLUME
AVANT D'OPERER L'UNITE
Refrigerator
Freezer
Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment!
IMPORTANT SAFETY INSTRUCTIONS (SAVE THESE INSTRUCTIONS )
R512A-961
LRT-1471H
LFT-1471H
LRT-1471PC
LFT-1471PC
LRT-771H
LFT-771H
LRT-771PC
LFT-771PC
LRT-72H
LFT-72H
LRT-72T
LFT-72T

SPECIFICATIONS (220V)
CONTENTS
CONTENTS
2
Refrigerators
LRT-1471PC / LRT-1471H
LRT-771PC / LRT-771H
152kg
LRT-72T / LRT-72H
3/4
1/3
1/3
R-134a
R-134a
R-134a
237kg
100kg
TEMP’ RANGE
28˚F ~ 39˚F
(-3˚C ~ 7˚C)
3/4
1/2
LFT-1471PC / LFT-1471H
LFT-771PC / LFT-771H
R-404A
R-404A
155kg
100kg
LFT-72T / LFT-72H
1 R-404A 243kg
TEMP’ RANGE
-9˚F ~ 5˚F
(-24˚C ~ -3˚C)
Freezers
1. SPECIFICATIONS
2. SERIAL NUMBER
3. INSTALLATION
4. CLEANING
5. CAUTION
6. BASIC OPERATION
7.TROUBLE SHOOTING GUIDE
2
3
4
5
5
6 ~ 7
8

3
SPECIFICATIONS (115V)
SERIAL NUMBER
The serial number is located on the rating label which is on the left interior wall.
Please retain the unit's serial number for service purposes.
Refrigerators
3/4
1/2
LRT-1471PC / LRT-1471H
LRT-771PC / LRT-771H
LFT-1471PC / LFT-1471H
LFT-771PC / LFT-771H
R-404A
R-404A
155kg
100kg
152kg
LRT-72T / LRT-72H
3/4
1/3
1/3
R-134a
R-134a
R-134a
237kg
LFT-72T / LFT-72H
1 R-404A 243kg
100kg
TEMP’ RANGE
TEMP’ RANGE
28˚F ~ 39˚F
(-3˚C ~ 7˚C)
-9˚F ~ 5˚F
(-24˚C ~ -3˚C)
Freezers

4
INSTALLATION
1. GOOD AIR CIRCULATION
- Make sure to avoid any object which will interrupt or block the air flow inside the unit.
- Make sure to leave enough space toward the interior rear wall to ensure good air circulation
- Make sure to keep 5 inch space between the back of the unit and the wall.
2. PLACE ON STRONG GROUND
- Place the unit on a floor strong enough to hold
3. DO NOT PLACE NEAR HEAT SOURCE
- Make sure to avoid hot corner or any location near stove, oven, or other heat source.
- High ambient temperature will cause cooling efficiency to drop.
4. INDOOR USAGE ONLY
-This equipment is intended for indoor use only.
5. STABILIZING
- Make sure the unit is installed in a stable condition with the front wheels locked while in use.
6. LEVELING
- Make sure that the unit is leveled well from front to back and side to side.
7. Unit should be connected to a dedicated electrical circuit.
- Do not use extension cords.
- Plug the unit to a dedicated electrical circuit & adequate capacity.
8. Install plastic condensate pan in the bottom of the unit.
- Make sure pads are installed upwards and drain hose is in pan.
9. Install the unit in a place where the air circulation is good.
- Maintain enough spaces around the unit since air
to ensure the best cooling performance
- If air circulation is obstructed, then cooling
performance will drop, thus consuming more electricity as a result.
※Reference
•If a door for left hand is necessary, please contact the sales representative in your area.
•A set of door & Door hinge can be purchased separately to convert between Right Hand and
Left Hand side

5
CLEANING
CAUTION
1. CLEANINGTHE INTERIOR AND EXTERIOR
-The interior and exterior of the unit can be cleaned using warm water with soap.
- Do not use an abrasive cleaner because it will scratch the surface.
2. CLEANINGTHE CONDENSER FINS
-To maintain proper refrigeration performance, the Condenser coil must be free of dust, dirt, and grease.
It will require to clean it periodically. Condenser fins should be cleaned, at least every
three months (90 days) or as needed.
3. CLEANINGTHE GASKET
-The door gasket should be cleaned frequently to maintain proper sealing.
Use warm water and a mild soap.
4. CLEANINGTHE EVAPORATOR
- If you need to clean the evaporator, please contact the qualified service technicians.
5. CHECK AFTER CLEANING
- Check the unit again for safety.
- Check that the unit is operating properly.
1. POWER CORD
- Make sure the power cord is connected to the proper voltage.
- Compressor warranties are void if compressor burns out due to improper voltage.
- A protected circuit of the correct voltage and amperage must be used for connection of the line cord.
-Turn 'off ' the power switch before disconnecting the power cord whenever performing
maintenance functions or cleaning the refrigerated cabinet.
- If the power cord of Refrigerator (Freezer) is damaged, it should be replaced by the
manufacturer or service agent or a similarly qualified person in order to avoid a hazard.
2. RE-STARTING
- If disconnected, wait 5 minutes before re-starting.
WARNING -To reduce the risk of electric shock, unplug before
cleaning or servicing.

6
BASIC OPERATION
1. Plug in and turn on the power switch located on the bottom of the top grille.
The Display panel will be lighted.The compressor will begin to run.
2.The default temperature setting is 0ºF (-18ºC)
3.The compressor is automatically cycled by the electronic controller
(PCB, D-sensor).
4.The Defrost cycle is automatically controlled by the D-sensor and the PCB
5.Temp. Control range -9ºF ~ 5ºF (-24ºC~ -3ºC)
6.The interior light is activated by the door switch at the bottom of the grill when the
door is opened.
7. Evaporator fan motor(s) will run after all doors are completely closed.
FREEZER
LFT-771PC / LFT-771H
LFT-1471PC / LFT-1471H
LFT-72T / LFT-72H
1. Plug in and turn on the power switch located on the bottom of the top grille.
The Display panel will be lighted.The compressor will begin to run.
2.The default temperature setting is 35ºF (+2ºC)
3.The compressor is automatically cycled by the electronic controller (PCB).
4.Temp. Control range 28ºF ~ 39ºF (-3ºC ~ 7ºC)
5.The interior light is activated by the door switch when the door is open.
6. Evaporator fan motor(s) will run after all doors are completely closed.
REFRIGERATOR
LRT-771PC / LRT-771H
LRT-1471PC / LRT-1471H
LRT-72T / LRT-72H

7
BASIC OPERATION
1. UP / DOWN BUTTON (Temperature control button)
- By pushing the up/down button, you can set the cabinet temperature.
2. DEFROST
-The electronic defrost controller is set at the factory to provide a defrost cycle every 8 hours.
- Once all frost is eliminated, the defrost control is changed to the freezer mode.
-The panel displays " dF" during the defrost.
3. DOOR OPENING INDICATOR
- If the door is left open for 3 minutes, the alarm will sound continuously.
-The alarm will stop immediately upon closing the door.

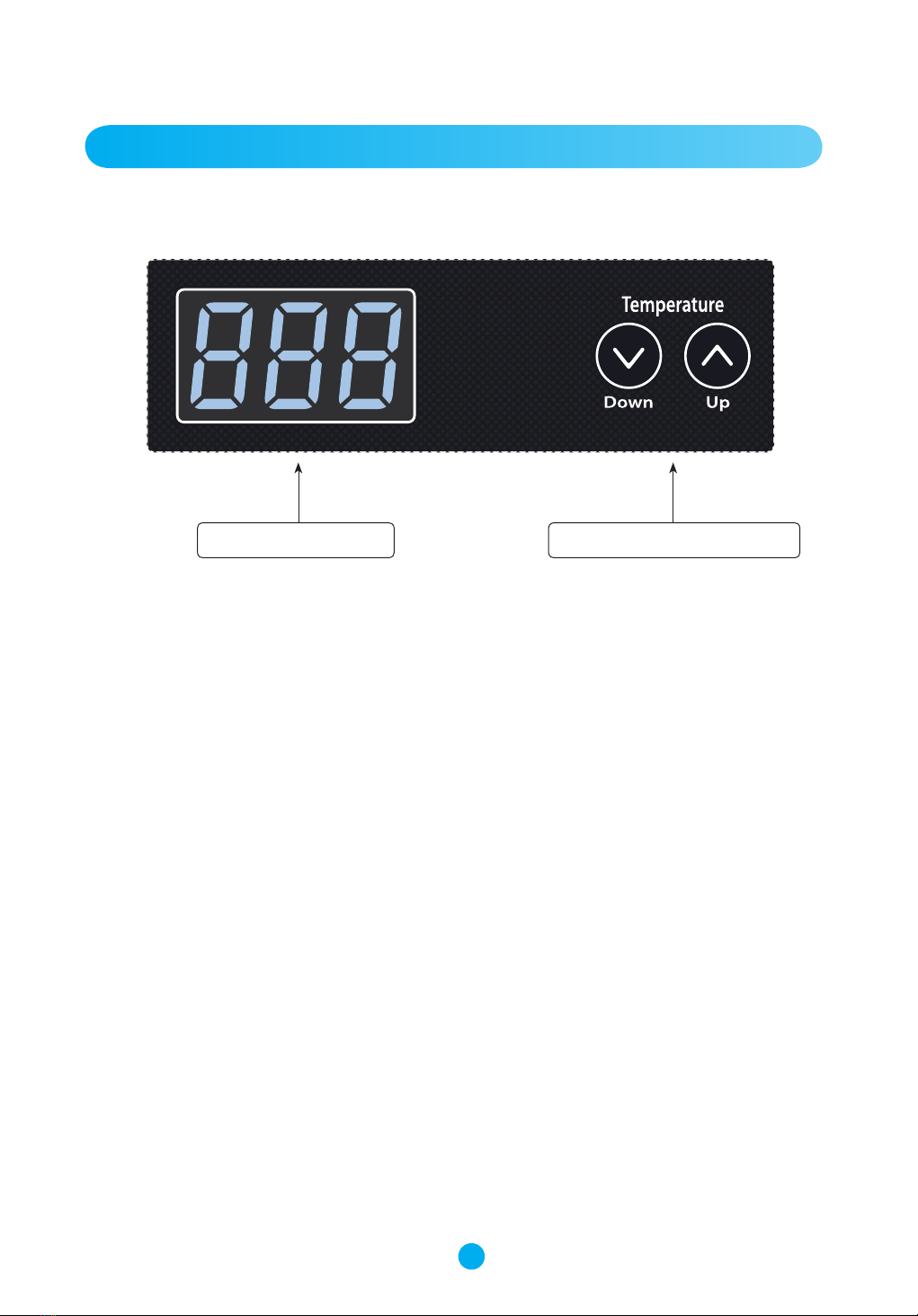

INSIDETEMP. TEMP. CONTROL BUTTON
THERMO DIGITAL DISPLAY

8

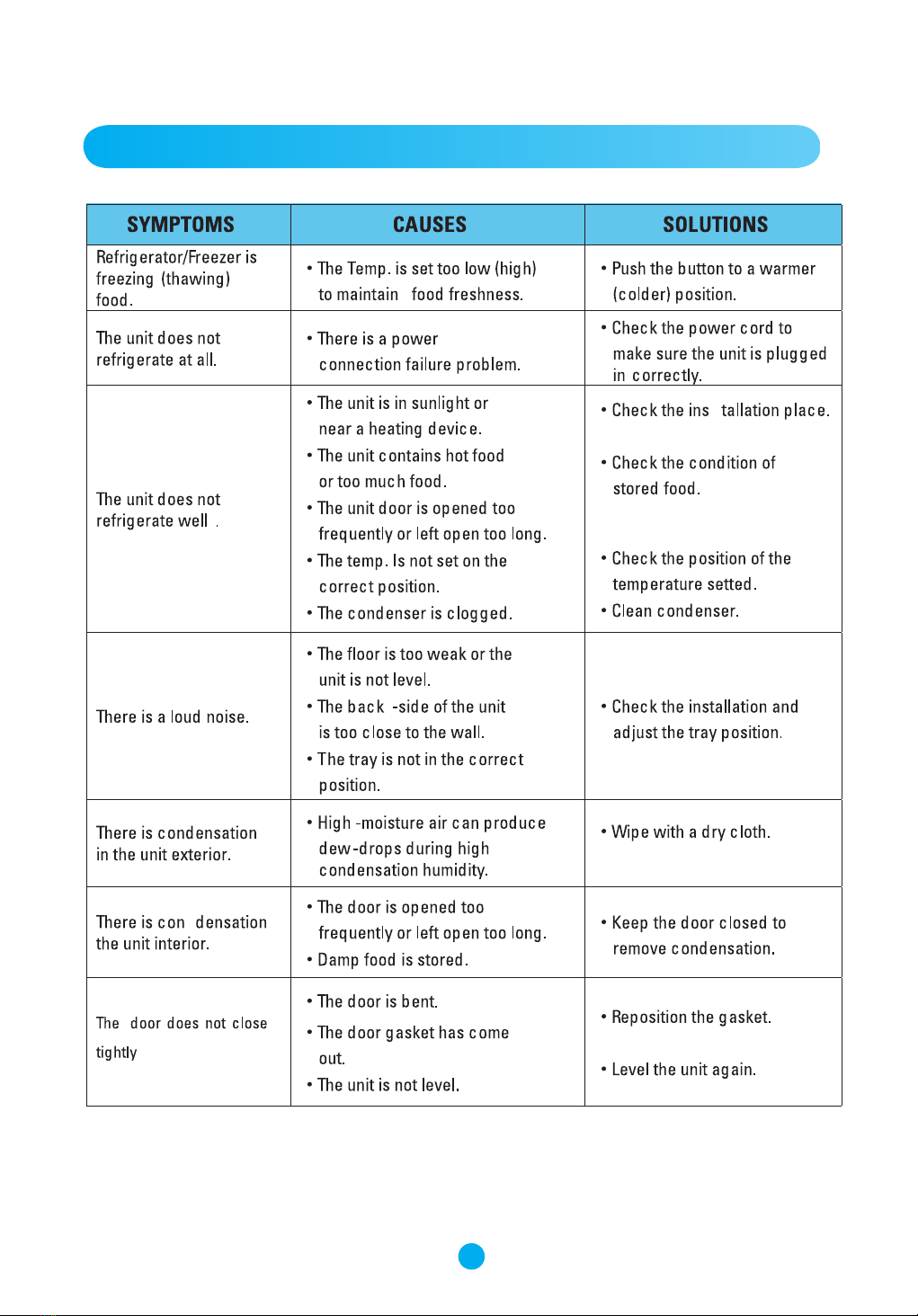

TROUBLE SHOOTING GUIdE
