INSTALLATION GUIDE
ISense, Slide & Lift
March 2023
Version 1.0 Revision 0.0
ISense, Slide & Lift Ports
Laundry Jet
2001 Challenger Avenue
Oroville, CA 95965

+1.800.867.4580 [e-mail] www.laundryjet.com
2
INSTALLATION GUIDE
Document Revisions
Date
Version
Number
Document Changes
3/13/2023
1.0 Rev 0.0
Laundry Jet Installation Guide - Ports
FOR ADDITIONAL HELP INCLUDING
INSTRUCTIONAL VIDEOS

+1.800.867.4580 [e-mail] www.laundryjet.com
3
INSTALLATION GUIDE
Table of Contents
1 Introduction 4
2 Contents 5
3 Pipe Installation Overview 6-9
3 - Components & Tools 6
3.1 - Pipe Installation Standards 7
3.2 - Port Drop Installation 8
3.3 - Port 90 Installation 9
4 ISense Port Installation 10-14
4 - Components & Tools 10
4.1 - Port 90 Mount Bracket & Port Mount Bracket 11-12
4.2 - ISense Port Sheetrock Template 13
4.3 - ISense Port Installation 14
5 Slide Port Installation 15-19
5 - Components & Tools 15
5.1 - Port 90 Mount Bracket & Port Mount Bracket 16-17
5.2 - Slide Port Sheetrock Template 18
5.3 - Slide Port Installation 19
6 Lift Port Installation 20-23
6 - Components & Tools 20
6.1 - Port 90 Mount Bracket 21
6.2 - Lift Port Sheetrock Template 22
6.3 - Lift Port Installation 23
7 Warranty 24

+1.800.867.4580 [e-mail] www.laundryjet.com
4
Introduction
1Introduction
The Laundry Jet installation is comprised of three elements:
▪Laundry Jet Ports mounted in bedrooms, dressing rooms or bathrooms
▪The laundry room Wall mounted or Cabinet Mount Vacuum Unit
▪The PVC pipe and fittings that connect the ports to the laundry room through the attic
space
Vacuum Laundry Pipe
Laundry Jet specifies 6" SDR35 White Solvent Weld PVC pipe and fittings. This piping is light
weight to make install quick and easy.
PVC piping is designed to have a smooth transition in between fittings and connections which
ensures that clothing, bedding and towels will travel smoothly to the laundry room.
Pipe & Fittings
6" SDR35 White Solvent Weld PVC pipe 10′ x 6”
All Fittings are 6" SDR35 White Solvent Weld

+1.800.867.4580 [e-mail] www.laundryjet.com
5
Contents
2Contents
ISense Port Slide Port
Lift Port Sheetrock Template
Lift Port Sheetrock Template
Port Mount Bracket Port 90 Mount Bracket

+1.800.867.4580 [e-mail] www.laundryjet.com
6
Components & Tools
3Pipe Installation Overview
Components
Port 90 Assembly 6 Inch Wye 6 Inch Cleanout Adapter
6 Inch 45° Elbow Sheetrock Template Cable Bundle
Tools
Cordless Drill Sawzall Tape Measure
Clear 2 Part PVC Glue 1" Wood Screw Plumber's Metal Strapping Tape

+1.800.867.4580 [e-mail] www.laundryjet.com
7
Pipe Installation Standards
3.1 Pipe Installation Overview
Pipe Installation Standards
Required Piping Installation Standards
▪All joints must use a minimum entry angle of 45 degrees with a break distance of 18 Inches
(460 MM). See Image below.
▪Pipe cuts must be straight and de burred before seating.
▪Pipe must be completely seated in fitting connections.
▪Seal all joints using standard PVC glue.
Connections must be glued around 360 degrees
to ensure maximum system performance.
▪System must be strapped with “plumbers tape”
(or equivalent) every 6 feet. Port 90 must be
strapped and secured prior to Port installation.
▪Install Cleanout ports every 50 feet on angled runs. Straight trunk lines can run up to 100
feet with cleanouts at either end.

+1.800.867.4580 [e-mail] www.laundryjet.com
8
Port Drop Installation
3.2 Pipe Installation Overview
Port Drop Installation
▪Mount port 90 using the Pipe Bracket and Port Bracket. See Page 11 for Port 90 Installation.
Use a standard SDR 6" Swept 90 for your Port Drop Installation. Block and strap drop line at
midway point

+1.800.867.4580 [e-mail] www.laundryjet.com
9
Port 90 Installation
3.3 Pipe Installation Overview
Port 90 Installation
▪Port 90 must be installed with front face of Port 90 flush with the finished face of interior
wall.
▪Port 90 must be installed on a plum horizontal port drop line.
▪Use the Port 90 Mount Bracket and Pipe Bracket to align and secure the Port 90 to the frame
( unless a remodel)

+1.800.867.4580 [e-mail] www.laundryjet.com
10
ISense Components & Tools
4ISense Port Installation
Components
ISense Port Sheetrock Template
Port 90 Mount Bracket Port 90
Port Mount Bracket Mount Bracket Screws 1-1/2" Sheet Metal Screws 1" Wood Screws

+1.800.867.4580 [e-mail] www.laundryjet.com
11
ISense Port Installation
4.1 Step 1 - Port 90 Mount Bracket
Port 90 Mount Bracket
▪Use the Port 90 Mount Bracket to align and secure the Port 90 to the frame
▪Set Port height
▪Attach 2 pipe clamps
▪Set elevation screws
▪Do not install Ports behind doors

+1.800.867.4580 [e-mail] www.laundryjet.com
12
ISense Port Installation
4.2 Step 1 - Port Mount Bracket
Port Mount Bracket
▪Mount the Port Mount Bracket around the Port 90
▪Make sure the front face of the Port Mount Bracket
is flush with the front face of the Port 90 Mount Bracket
▪Secure the bracket with the 3 provided screws

+1.800.867.4580 [e-mail] www.laundryjet.com
13
ISense Port Installation
4.3 Step 2 - ISense Sheetrock Template
Sheetrock Template
▪Install sheetrock over the Port 90 and Port Mount Brackets
▪Trim around outside edge of the Port 90 and remove material
▪Cut the Port 90 so that it is flush with the sheetrock.
▪Remove the section for ISense ports from the Sheetrock Template
▪Position the round portion on the back of the template into the Port 90
▪Using a level use the top horizontal edge to level the template
▪Trace around the inside edge of the cutout on the template onto the sheetrock
▪Cut and remove this section

+1.800.867.4580 [e-mail] www.laundryjet.com
14
ISense Port Installation

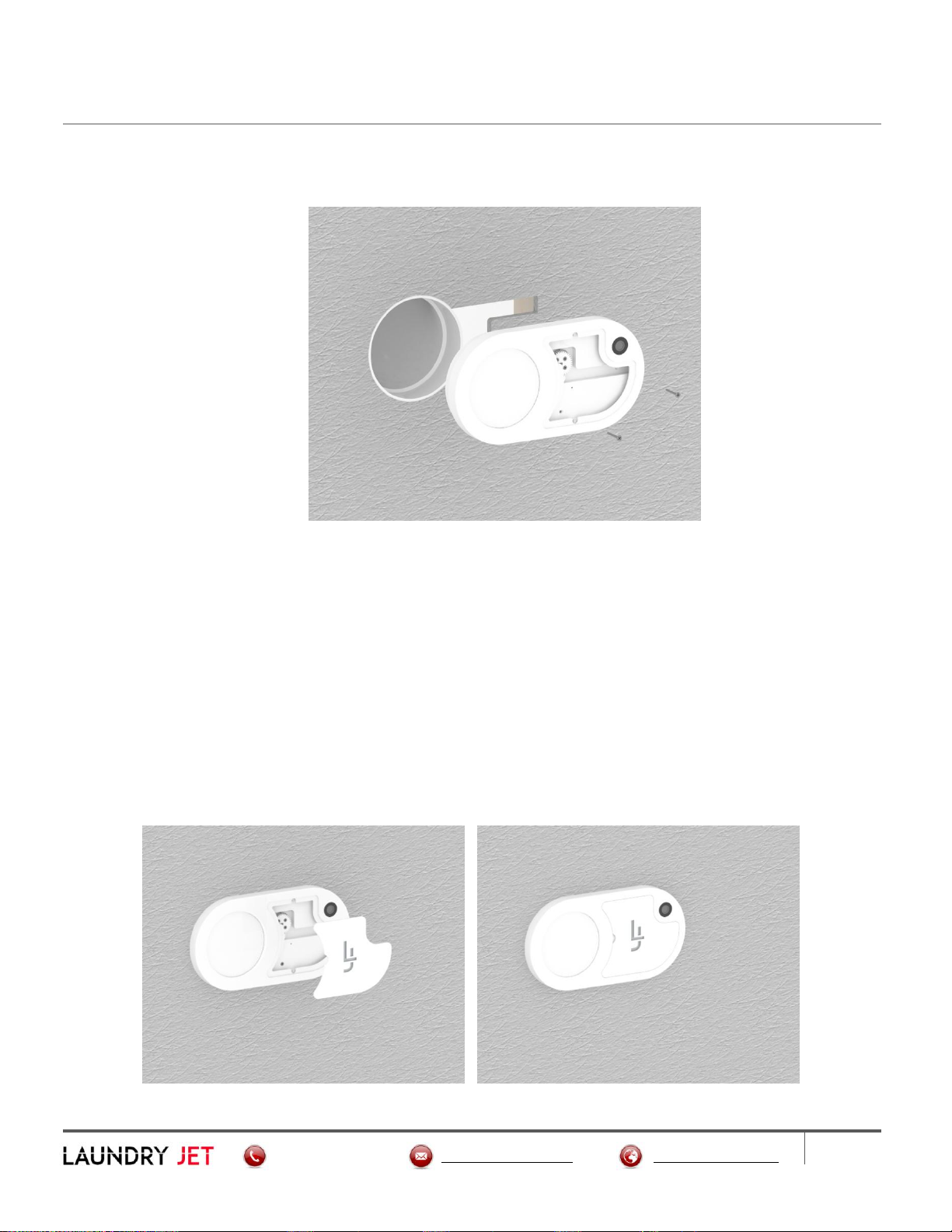

4.4 Step 3 - ISense Port Assembly
ISense Port Assembly
▪Connect RJ45 male connector to female connector on back of port
▪Remove the front logo plate and position the Port into place
▪Align Port for final adjustment using a level
▪Attach port using 2 sheet metal screws. For proper door function, the screws must be flush.
▪Reattach the front logo plate

+1.800.867.4580 [e-mail] www.laundryjet.com
15
Slide Port Components & Tools
5Slide Port Installation
Components
Slide Port Sheetrock Template
Port 90 Mount Bracket Port 90
Port Mount Bracket
Port Mount Bracket Mount Bracket Screws 1" Sheet Metal Screws 1" Wood Screws

+1.800.867.4580 [e-mail] www.laundryjet.com
16
Slide Port Installation
5.1 Step 1 - Port 90 Mount Bracket
Port 90 Mount Bracket
▪Use the Port 90 Mount Bracket to align and secure the Port 90 to the frame
▪Set Port height
▪Attach 2 pipe clamps
▪Set elevation screws
▪Do not install Ports behind doors

+1.800.867.4580 [e-mail] www.laundryjet.com
17
Slide Port Installation
5.2 Step 1 - Port Mount Bracket
Port Mount Bracket
▪Mount the Port Mount Bracket around the Port 90
▪Make sure the front face of the Port Mount Bracket
is flush with the front face of the Port 90 Mount Bracket
▪Secure the bracket with the 3 provided screws

+1.800.867.4580 [e-mail] www.laundryjet.com
18
Slide Port Installation
5.3 Step 2 - Slide Sheetrock Template
Sheetrock Template
▪Install sheetrock over the Port 90 and Port Mount Brackets
▪Trim around outside edge of the Port 90 and remove material
▪Cut the Port 90 so that it is flush with the sheetrock.
▪Remove the section for Slide ports from the Sheetrock Template
▪Position the round portion on the back of the template into the Port 90
▪Using a level use the top horizontal edge to level the template
▪Trace around the inside of the 1" diameter hole in the template
▪Using a 1" hole saw, cut a hole through the sheetrock

+1.800.867.4580 [e-mail] www.laundryjet.com
19
Slide Port Installation
5.4 Step 3 - Slide Port Assembly
ISlide Port Assembly
▪Connect RJ45 male connector to female connector on back of port
▪Remove the front logo plate and position the Port into place
▪Align Port for final adjustment using a level
▪Attach port using 2 Sheet metal screws. For proper door function, the screws must be flush.
▪Reattach the front logo plate

+1.800.867.4580 [e-mail] www.laundryjet.com
20
Lift Port Components & Tools
6Lift Port Installation
Components
ISense Port Sheetrock Template
Port 90 Mount Bracket Port 90
1" Wood Screws
