Laurel Mountain Whirlpools RAMER User manual

Shower Door
RAMER
SHOWER DOOR
INSTALLATION
GUIDE

2
Laurel Mountain | Ramer Shower Door Installation Guide
www.laurelmountain.com
PLEASE REVIEW THIS ENTIRE MANUAL
PRIOR TO INSTALLATION
IMPORTANT!
Laurel Mountain reserves the right to alter, modify or redesign
products at any time without prior notice for the purpose of product
improvement and customer experience. Please refer to the model’s web
page on laurelmountain.com for the latest technical drawings, installation
manuals, warranty information or additional product details.
Do Not Return Product to the Store. Contact Laurel Mountain with any questions.
Questions? Please Call Laurel Mountain Customer Support: (800)-930-0050

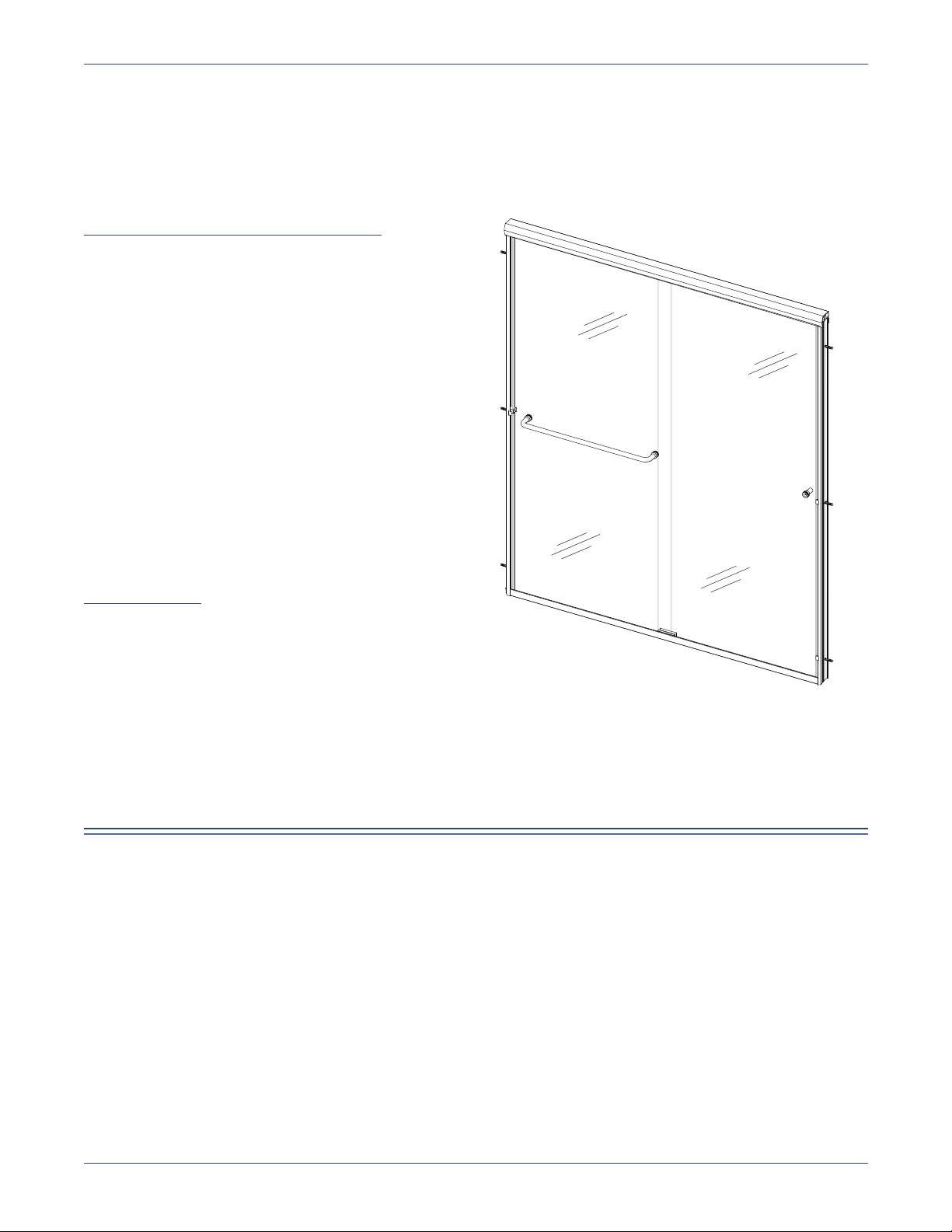

Note: Right side shower head installation shown as example.
Available in Shower and Tub Height.
Installation methods are identical.
Record the following purchase information for your records or in the event you need to contact Laurel Mountain:
Purchase Order Store/Vendor
Number __________________________________________ Purchased From ____________________________________
Installation Date ____________________________________ OD Number ______________________________________
(optional) *found on the shipping box or label if available.
Installed By: _______________________________________ SKU Number ______________________________________
Model #s Covered by This Manual
Ramer
LM3260SHCM1S4PL064/ LM3260SHCM1S4Pr064
LM3260SHBN1S4PL064/ LM3260SHBN1S4PR064
LM3260SHMB1S4PL064/ LM3260SHMB1S4PR064
Ramer With Shower Door
LM3260SHDCM1S4PL064/LM3260SHDCM1S4PR064
LM3260SHDBN1S4PL064/LM3260SHDBN1S4PR064
LM3260SHDMB1S4PL064/LM3260SHDMB1S4PR064

3
Laurel Mountain | Ramer Shower Door Installation Guide
www.laurelmountain.com
Contents
Important Information ......................................................................................................................................................................................................... 4
Tempered Glass Warning ........................................................................................................................................................................................ 4
General Preparation........................................................................................................................................................................................................... 5
WARNING: To Avoid The Risk Of Damage Or Injury....................................................................................................................................... 5
Pre-Installation Planning ............................................................................................................................................................................................ 6

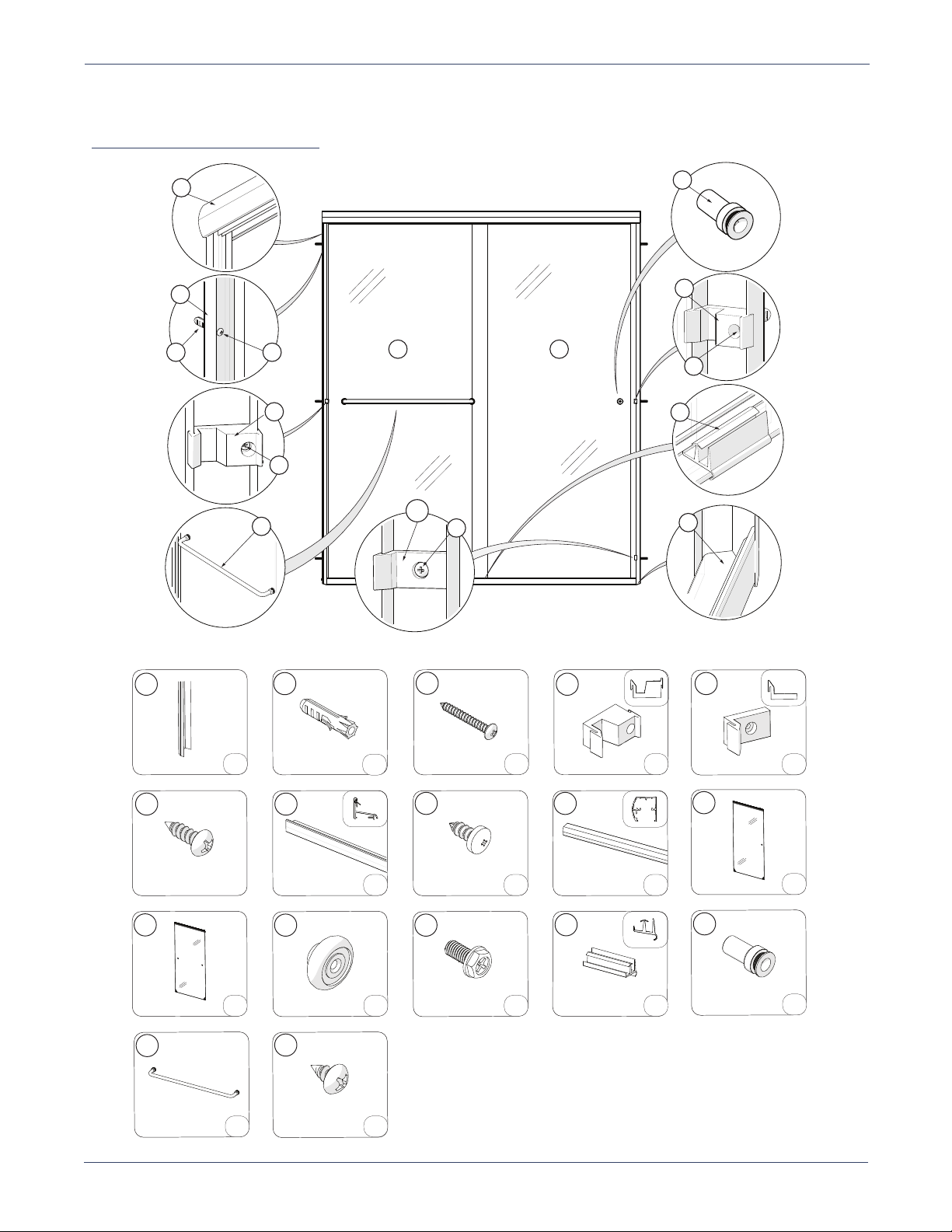

Shower Door Components....................................................................................................................................................................................... 7
Installation Instructions ........................................................................................................................................................................................................ 8

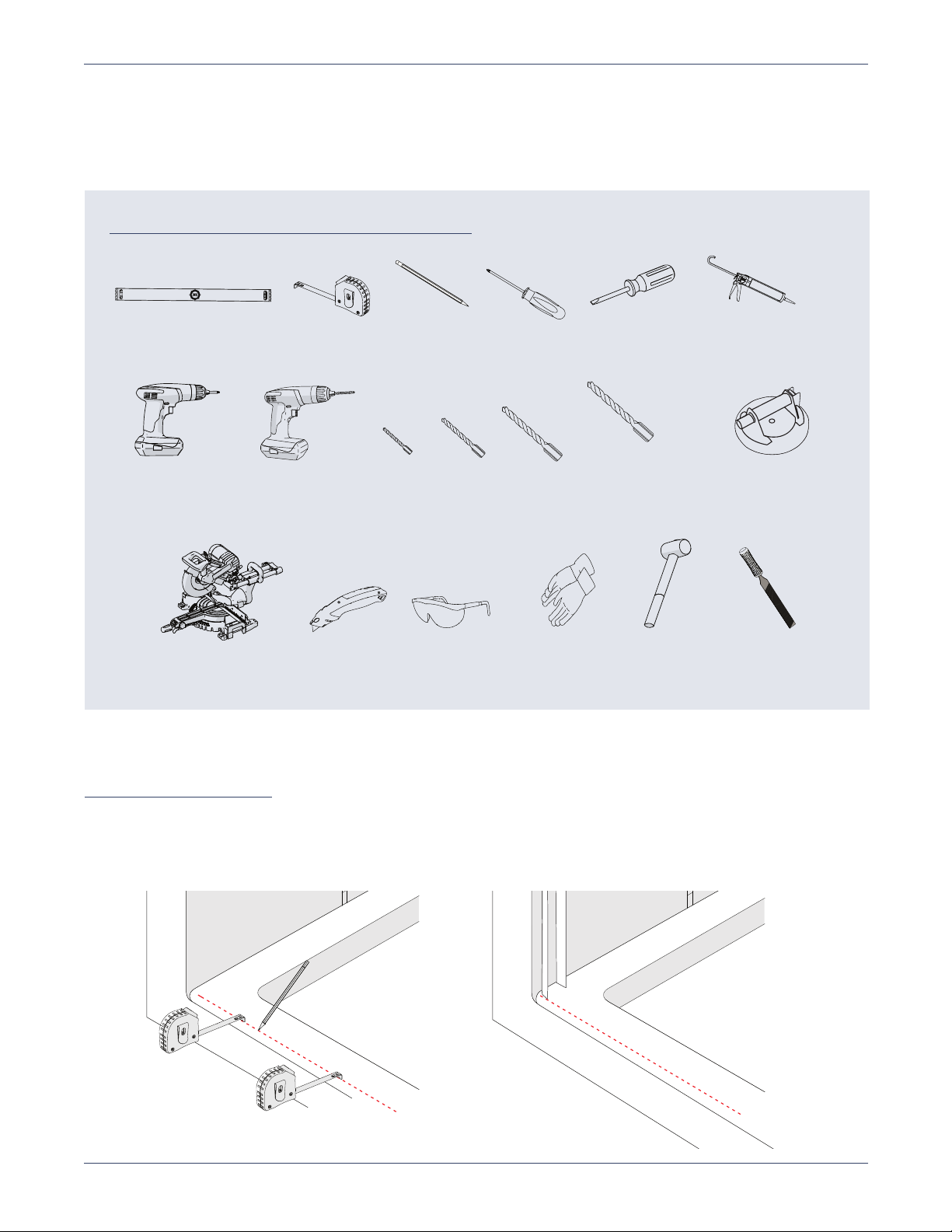

Tools and Materials for Proper Installation .......................................................................................................................................................... 8
Installation Procedure................................................................................................................................................................................................. 8
Product Maintenance....................................................................................................................................................................................................... 16
Bases and Backwalls............................................................................................................................................................................................... 16
Glass............................................................................................................................................................................................................................ 16
Hardware................................................................................................................................................................................................................... 16
Maintenance Checklist............................................................................................................................................................................................ 16
Troubleshooting.................................................................................................................................................................................................................. 17

4
Laurel Mountain | Ramer Shower Door Installation Guide
www.laurelmountain.com
Tempered Glass Warning
YOUR SHOWER DOOR GLASS COULD SHATTER WITHOUT WARNING IF IMPROPERLY INSTALLED OR MISHANDLED.
Do Not install or operate a shower door if the glass has chipped corners, slivered edges or is otherwise damaged and/or has been
dropped or banged into a hard surface such as tile, marble or glass.
The main causes of tempered glass breakage are:
 Improper handling, storage, unpacking or installation
• Corners and edges are the most susceptible area to damage on a lite of tempered glass and should be protected and
handled with care during storage, unpacking, installation and operation. A concentrated point of pressure or impact with
a surface harder than itself may cause the tempered glass to shatter. The tempered glass may release immediately, within
several hours or even days later.
 Misuse/abuse
• Aggressively opening or closing the door may cause trauma to the glass, which can lead to breakage. This may occur
immediately or hours or even days later.
• Additional considerations should be given to the installation of frameless tempered glass products in households with young
children or an elderly person due to an increased chance of improper handling. In such cases, alternatives such as shower
curtains or grab bars should be considered.
 Lack of maintenance/failure to replace damaged glass
• The shower door hardware and glass should be inspected periodically: Instruct the homeowner how to perform a periodic
inspection of the shower hardware and glass - some minor adjustments may be necessary based upon the use (or misuse)
of the shower door. Ensure that the hardware remains tight and that the door alignment and operation are correct. Any
adjustments should be made upon discovery to prevent damage to the product.
 Incorrect installation of door hardware, rollers, hinges, channels, stopper or glass:
• Improper installation may include: loose hardware and/or lack of proper gaskets between the hardware and glass.
Additionally, improper alignment of guide rails, wall profiles or other hardware during installation or operation may place
stress on the glass edges and cause it to break.
• This product must be installed by a professional and experienced installer familiar with the safe handling of tempered glass.
Important Information
Laurel Mountain reserves the right to alter, modify or redesign products any time without prior notice for product improvement and
customer experience. Please refer to the model’s web page on laurelmountain.com for the latest technical drawings, installation
manuals, warranty information or additional product details.
 This product should be installed by someone familiar with the construction requirements for this type of project
and the care necessary for the safe installation and operation of the product.
 The safety of any installation is the responsibility of the installer.
 Professional installation recommended. (All Models)
 To prevent damage or serious injury, Do Not lean against the installed panel/door/glass.
 To prevent damage or serious injury: Do Not attempt to lift or move a heavy lite of glass alone. Use an assistant and/or a
professional grade glass suction cup.
 The installation of some models may require drilling down into the threshold. Contact the manufacturer of the base, tub, or
threshold material with any questions regarding the drilling of holes into their product.
 All drawings in this installation manual are for illustrative purposes only and are not drawn to scale.

5
Laurel Mountain | Ramer Shower Door Installation Guide
www.laurelmountain.com
General Preparation
 After opening all boxes and packages, read this introduction carefully. Check that all the items are included in the package by
marking off the components on the Shower Door Components page. Examine all boxes and packages for shipping damage.
If the unit has been damaged, has a finishing defect, or is missing parts; please contact our Customer Support department within
3 business days of the delivery date.
Please note that Laurel Mountain will not replace any damaged products or missing parts free of charge after 3
business days or if the product has been installed. Please contact Laurel Mountain if you have any questions.
 Please note that you should refer to your local building codes with questions on installation compliance standards.
Building and plumbing codes may vary by location, and Laurel Mountain is not responsible for code compliance
standards for your project and will not accept any returns.
 If this unit is going to be installed in a new construction, install all the required plumbing and drainage before installing the
shower. Use a competent and licensed (if required by local code) plumber for all plumbing installation.
 Make sure that prior to beginning the installation, the surfaces are leveled and solid and will be able to support the total weight
of the unit. Also make sure the walls are at right angles. Irregular installation surface level, radius corners or improper angle of
side walls will result in serious problems for your installation. Please note that some adjustments and drilling will be necessary
during the installation process.
 Protect all primary surfaces of the product during installation. Never set your glass down directly onto a tile floor. Always use a
piece of wood or cardboard to protect the bottom edge and corners of the glass prior to and during installation.
 This unit must be installed upon a finished threshold and against finished walls.
 Laurel Mountain shower doors are not designed to be installed into a fiberglass surround due to the radius corners and lack of
a solid surface to mount the hardware.
WARNING: To Avoid The Risk Of Damage Or Injury
 Follow all recommendations and requirements as shown in the installation instructions.
 Perform a thorough inspection of the glass and all parts for any damage prior to installation. Any damage to tempered glass
can cause breakage. DO NOT install damaged glass!
 Do Not install or operate a shower or tub door if the glass has chipped corners, slivered edges or is otherwise damaged. Do
Not install or operate a shower or tub door that has been dropped or banged into a hard surface such as tile, marble or glass.
 CAUTION: Contact with any hard surface can damage tempered glass and cause it to shatter.
 This product uses tempered glass. Glass cannot be cut after it has been tempered. DO NOT attempt to cut tempered glass.
 Laurel Mountain Glass Shower doors, Tub doors, Inline panels, and Return panels can shatter due to improper handling or lack
of maintenance. Conduct periodic inspections of glass and all parts for possible damage, missing or loose parts.
 Always wear proper safety equipment such as: safety goggles, work gloves and appropriate footwear during the
installation process.
 WARNING. Risk of leakage and/or damage. Follow all instructions regarding the application of silicone sealant or caulk.
Allow 24 hours for the sealant to cure before the initial use of the shower or tub product. Follow the silicone manufacturer’s
recommendations regarding the use of their product.
 Thoroughly read these instructions before installing or using this product.
 Leave this manual for the end-user of the product.
