LawnMaster CLMFT6018A User manual

19" 60V MAX* Lithium-Ion Cordless Mower CLMFT6018A
Read all safety rules and instructions carefully before operating this tool.
Distributed By Cleva North America 601 Regent Park Court Greenville, SC 29607 (866)-384-8432
* Tension batterie de la charge de travail initiale
maximale (mesurée sans charge de travail)
est de 60 volts.
Tension nominale est de 54 volts
* Maximum initial battery workload voltage
(measured without a workload) is 60 volts.
Nominal voltage is 54 volts
Lisez attentivement toutes les consignes de sécurité ainsi que les instructions avant de faire fonctionner cet outil.
Distribué par Cleva North America 601 Regent Park Court Greenville, SC 29607 (866)-384-8432
MNL_CLMFT6018A_V1
EN p. 2
Operators Manual / Manuel D'utilisation
Tondeuse Sans Fil CLMFT6018A 60V MAX* 480mm (19 po)
FR p. 37

2
TABLE OF CONTENTS
SPECIFICATIONS
INTRODUCTION
GENERAL SAFETY RULES
SPECIFIC SAFETY RULES
SYMBOLS
FEATURES
ASSEMBLY
OPERATION
BATTERY PACK AND CHARGER
MAINTENANCE
ENVIRONMENTAL SAFE BATTERY DISPOSAL
TROUBLESHOOTING
LawnMaster® 60V WARRANTY
EXPLODED VIEW / PARTS LIST
NOTES
2
2
3
3-5
6-8
9-10
11-13
13-20
21-23
23
24-30
31
32
33
34-35
36
TABLE OF CONTENTS
SPECIFICATIONS
60V CORDLESS MOWER
Battery Type 60V MAX* Lithium-Ion, 5.0Ah
No-load Speed 3200 r/min
Deck Width 19 inch (48cm)
Cutting Width 18 Inch (46cm)
Height Adjustments 6 Positions (1.4"-3.4") (35-85mm)
Functions 3-in-1: Mulch, Rear Bag, Side Discharge
Wheel Size 6.70" (170mm) / 9.25" (235mm)
Unit Weight (With 5.0Ah Battery) 42.8 Lbs (19.4kg)
* Maximum initial battery workload voltage (measured without a workload) is 60 volts.
Nominal voltage is 54 volts
CHARGER
Model No 60LFC02-ETL
Rated Input Voltage 120V ~ 60Hz
Rated Output 60V DC
Rated Output Current 4A
Charging Time 85min (For 60LB5025-S)

GENERAL SAFETY RULES
3
INTRODUCTION
WARNING
This product has many features for making its use more pleasant and enjoyable.
Safety, performance, and dependability have been given top priority in the design of this product
making it easy to maintain and operate.
This symbol indicates important safety instructions. If these instructions are not followed, it could
endanger the personal safety and/or property of the operator and others. Read and understand all
instructions in this manual before attempting to operate the mower. Failure to comply with these
instructions may result in personal injury.
DANGER
This mower was built to be operated according to the rules for safe operation that are contained in
this manual. As with any type of power equipment, carelessness or error on the part of the operator
can result in serious injury. This mower is capable of amputating body parts and throwing objects.
Failure to observe the following safety rules could result in serious injury or death.
WARNING
Use of this mower should be restricted to individuals who have read and understood and will follow
the warnings and instructions that are printed in this manual and on the mower.
■Carefully read all instructions on the mower and in the manual before attempting to assemble
and operate the mower. Keep this manual in a safe place for future reference, and consult it
regularly.
■Do not use the lawn mower in damp or wet conditions or operate in the rain.
■Become familiar with all controls and their proper operation. Know how to stop the mower and
how to disengage the power in an emergency.
■In order to avoid contact with the blade or injury caused by a thrown object, stay in the
operating zone behind the handles, and keep children and bystanders at least 50 ft. (15 m) away
from the mower while it is in operation. Stop the motor immediately if someone enters the
mowing area.
■Thoroughly inspect the area where the mower is to be used. Remove all stones, sticks, wire,
bones, toys, and other objects that could be tripped over or thrown by the blade. Thrown objects
can cause serious personal injury.

4
GENERAL SAFETY RULES
■Plan your mowing pattern in such a way as to avoid discharging material toward roads,
sidewalks, bystanders, etc. Do not discharge material against a wall or obstruction. Doing so may
cause the discharged material to ricochet back toward the operator.
■ Always wear proper eye protection in order to protect your eyes while operating or performing any
adjustment or repair. Thrown objects that ricochet can cause serious eye injury.
■ Always wear safety glasses with side shields. Everyday glasses have only impact resistant lenses.
They are NOT safety glasses. Following this rule will reduce the risk of eye injury. Use face mask
if operation is dusty.
■ Wear safety glasses or goggles that are marked to comply with ANSI Z87.1 standard when
operating this product.
■Always wear a face mask or a dust mask when operating the mower in a dusty environment.
■Dress properly. Do not wear loose clothing or jewelry that can get caught in moving parts.
The wearing of protective gloves and safety footwear is recommended.
■Many injuries occur as a result of the mower being pulled over the operator’s foot during a fall
caused by slipping or tripping. Do not operate this mower in bare feet, or while wearing sandals
or lightweight (e.g., canvas) shoes. Do not hold on to the mower if you are falling. Release the
handle immediately.
■Never pull the mower back toward you while you are walking. If you must back the mower away
from a wall or an obstruction, first look down and behind in order to avoid tripping, and then follow
these steps:
• Step back from the mower in order to fully extend your arms.
• Be sure that you are well balanced.
• Pull the mower back slowly.
■Do not use the mower for any job except that for which it is intended. Do not force the mower.
■Do not operate the mower while under the influence of alcohol or drugs.
■Stay Alert: Do not operate the mower when you are tired. Pay attention to what you are doing.
Use common sense.
■Do not put hands or feet near rotating parts or under the cutting deck. Contact with the blade can
amputate hands and feet.
■Keep hands and feet away from cutting area.
■ Do not attempt to adjust the wheels or the cutting height while the motor is running.
■ Avoid dangerous environments. Do not operate the mower in the rain or in wet or damp grass.
■ Mow only in daylight or in good artificial light. Do not rush a mowing job.
■ Stop the blade when crossing gravel driveways, walkways, or roads.
■ If the mower starts to vibrate excessively, stop the motor and check for the cause immediately.
Vibration is generally a warning of trouble.
■ Stop the motor and wait until the blade comes to a complete stop before removing the collection
bag or unclogging the chute. The cutting blade will continue to rotate for a few seconds
after the motor is shut off. Do not place any part of your body in the blade area until you are
sure that the blade has stopped rotating.

■ Never operate mower without a proper trail shield, discharge cover, collection bag, switch
control, or other safety device in place and in working order. Do not operate the mower with
damaged safety devices. Doing so can result in injury.
CHILD SAFETY
■ Tragic accidents can occur if the operator is not aware of the presence of children.
■ Keep children out of the mowing area and under the watchful care of a responsible adult.
■ Do not allow children under the age of 14 to operate this mower. Children who are 14 years of age
and older must read and understand the operating instructions and safety rules in this manual, and
must be trained and supervised by a parent.
■ Stay alert, and turn the mower off if a child or any other person enters the mowing area.
■ Look behind and down for small children before and while moving backwards.
■ Use extreme care when approaching blind corners, doorways, shrubs, trees, or other objects that
may obscure your view of a child who may run into the path of the mower.
CAUTION
USE ONLY LawnMaster® APPROVED REPLACEMENT BATTERIES, OTHER BATTERIES
MAY CAUSE INJURY OR DAMAGE TO THE MOWER.
Use with LawnMaster® 60V Lithium-lon battery.
5
GENERAL SAFETY RULES

BATTERY SAFETY RULES
■ Battery tools do not have to be plugged into an electrical outlet; therefore, they are always in
operating condition. Be aware of possible hazards when not using your battery tool or when
changing accessories. Following this rule will reduce the risk of electric shock, fire, or serious
personal injury.
■ Do not place battery tools or their batteries near fire or heat. This will reduce the risk of
explosion and possibly injury.
■ Do not crush, drop or damage battery pack. Do not use a battery pack or charger that has
been dropped or received a sharp blow. A damaged battery is subject to explosion. Properly
dispose of a dropped or damaged battery immediately.
■ Batteries can explode in the presence of a source of ignition, such as a pilot light. To reduce
the risk of serious personal injury, never use any cordless product in the presence of open
flame. An exploded battery can propel debris and chemicals. If exposed, flush with water
immediately.
■ Do not charge battery tool in a damp or wet location. Following this rule will reduce the risk of
electric shock.
■ For best results, your battery tool should be charged in a location where the temperature is
more than 45°F but less than 104°F. To reduce the risk of serious personal injury, do not store
outside or in vehicles.
■ Under extreme usage or temperature conditions, battery leakage may occur. If liquid comes
in contact with your skin, wash immediately with soap and water. If liquid gets into your eyes,
flush them with clean water for at least 10 minutes, then seek immediate medical attention.
Following this rule will reduce the risk of serious personal injury.
■ When battery pack is not in use, keep it away from other metal objects like: paper clips, coins,
keys, nails, screws, or other small metal objects that can make a connection from one terminal
to another. Shorting the battery terminals together may cause sparks, burns, or a fire.
■ Always remove battery pack from your tool when you are assembling parts, making
adjustments, cleaning, or when not in use. Removing battery pack will prevent accidental
starting that could cause serious personal injury.
■ Always remove battery pack before storing the device. When battery becomes fully charged,
unplug the charger from the power supply and remove the battery pack from the charger.
■ Always wear eye protection with side shields marked to comply with ANSI Z87.1, along with
hearing protection. Failure to do so could result in objects being thrown into your eyes and
other possible serious injuries.
■ Keep battery pack dry, clean, and free from oil and grease. Always use a clean cloth when
cleaning. Never use brake fluids, gasoline, petroleum-based products, or any solvents to
clean battery pack.
6
SPECIFIC SAFETY RULES

7
SPECIFIC SAFETY RULES
BATTERY & CHARGER
CAUTION
USE ONLY LawnMaster
®
APPROVED REPLACEMENT BATTERIES, OTHER BATTERIES MAY
CAUSE INJURY OR DAMAGE TO THE MOWER. Use with LawnMaster
®
60V Lithium-lon battery.
Ensure that the device is switched off before inserting the battery. Inserting a battery into a
power tool that is switched on may result in accidents.
Recharge the batteries indoors only because the battery charger is designed for indoor use only.
To reduce the electric shock hazard, unplug the battery charger from the outlet before cleaning
the charger.
Do not subject the battery to strong sunlight over long periods and do not leave it on a heater.
Heat damages the battery and there is a risk of explosion.
Allow a hot battery to cool before charging.
Do not open up the battery and avoid mechanical damage to the battery. Risk of short circuit and
fumes may be emitted that irritate the respiratory tract. Ensure fresh air and seek medical assistance
in the event of discomfort.
Do not use non-rechargeable batteries!
The device must not be used by people (including children) with limited physical, sensory or mental
faculties or who lack the necessary experience and/or knowledge - other than they are supervised
by a person responsible for safety or are being instructed to operate the appliance by such a person.
Children must be supervised in order to ensure that they do not play with the equipment.
To charge the battery, use only the charger supplied. Risk of fire and explosion. This ensures that
the safety of the device is maintained.
Before each use, check the charger, cable and plug and have them repaired by qualified
professionals and only with original parts. Do not use a defective charger and do not open it up
yourself. This ensures that the safety of the device is maintained.
Connect the charger only to a socket that is grounded. Ensure that the outlet voltage matches
specifications on the charger rating plate. Risk of electric shock.
Disconnect the charger from the outlet before closing or opening connection to the battery /
power tool /device.
Keep the charger clean and away from wet and rain. Do not use the charger outdoors. Dirt and
the entry of water increase the risk of electric shock.
Operate the charger only with the appropriate original batteries. Charging other batteries may
result in injuries and risk of fire.
Avoid mechanical damage to the charger. This can result in internal short circuits.

8
SPECIFIC SAFETY RULES
Do not operate the charger on a combustible surface (e.g. paper, textiles). Risk of fire due to
heating during charging.
If the power cord for this equipment is damaged, it must be replaced by the manufacturer, a customer
service agent of the same or qualified person in order to prevent hazards.
The battery of the appliance is not fully charged at the time of delivery. It therefore needs to be fully
recharged before you use it for the first time. For the first recharge cycle, charge the battery pack
fully. Slot the battery into the base and plug the battery charger into an outlet.
When the battery is fully charged, unplug the charger from the outlet and from the appliance.
Charging time is approx. 85 min.
Do not charge the battery continuously since this may damage the battery cells.
NOTE: Repeatedly charging small capacities may damage the battery cells. Recharge the battery
only if the appliance is becoming slow.
Do not use the charger to charge non-rechargeable batteries.

9

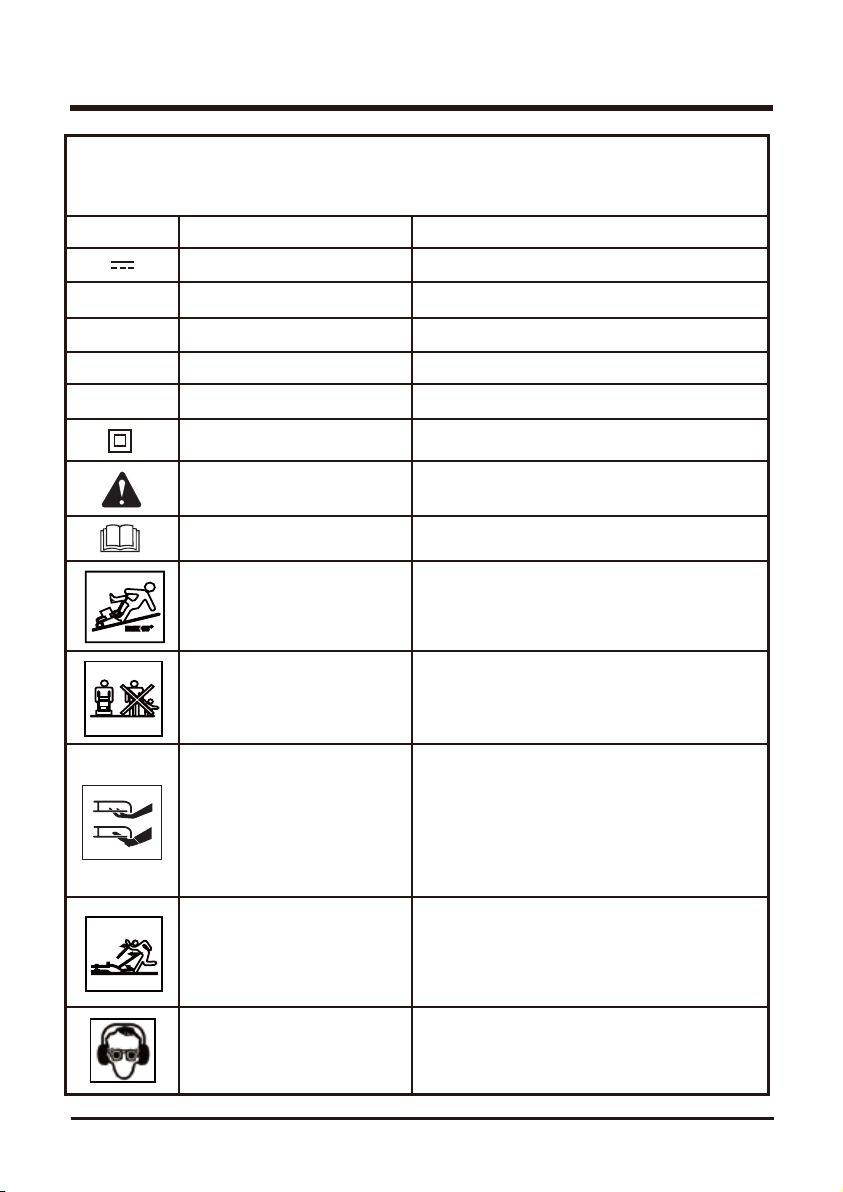

SYMBOLS
Some of the following symbols may be used on this product. Please study them and learn their
meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.
NOITANALPXE/NOITANGISEDEMANLOBMYS
V
A
W
srh
Volts
Do not mow up and down
slopes!
Stay behind the handle when
the motor is running!
Keep hands and feet clear of
mower deck and discharge
opening at all times!
Keep all persons and pets
at a safe distance from the
mower while operating!
Read The Operator’s Manual
Safety Alert
Class II Construction
Hours
Watt
Amperes
You must read the operating instructions carefully.
Precaution that involves your safety.
To avoid the risk of injury do not mow up and
down slopes. Always mow across slopes.
( Angle≤15°
)
To avoid the risk of injury to bystanders keep
all persons and pets at a safe distance from
the mower while operating.
Objects struck by mower blade can cause serious
injury. Stay behind the handle when the moto
is running. Always ensure persons and pets
are clear of the discharge from the mower while
operating.
Rotating blades can cause serious injury.
Keep hands and feet clear of mower deck and
discharge opening at all times. Always be sure
blade has stopped after releasing switch lever
and unplugging before removing and replacing
collection bag, cleaning, servicing, transporting
or lifting the mower.
Voltage
Double-insulated construction
Time
Power
zH Hertz Frequency (cycles per second)
Current
Type or a characteristic of currentDirect Current
Safety Alert Precautions that involve your safety.
Wear hearing and eye
protection when operating this
equipment.

WARNING
10
SYMBOLS
SERVICE
Servicing requires extreme care and knowledge and should be performed only by a qualified service
technician. For service we suggest you return the product to your nearest SERVICE CENTER for
repair. When servicing, use only identical replacement parts.
To avoid serious personal injury, do not attempt to use this product until you read thoroughly and
understand completely the operator’s manual.
If you do not understand the warnings and instructions in the operator’s manual, do not use this
product. Call customer service for assistance (866-384-8432).
WARNING
The operation of any power tool can result in foreign objects being thrown into your eyes,
which can result in severe eye damage. Before beginning power tool operation, always wear
safety goggles or safety glasses with side shields and, when needed, a full face shield.
We recommend Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with
side shields. Always use eye protection which is marked to comply with ANSI Z87.1.
SYMBOL SIGNAL MEANING
DANGER:
Indicates an imminently hazardous situation, which, if not avoided,
will result in death or serious injury.
WARNING:
Indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
CAUTION:
Indicates a potentially hazardous situation, which, if not avoided, may
result in minor or moderate injury.
CAUTION:
(Without Safety Alert Symbol) Indicates a situation that may result in
property damage.
The following signal words and meanings are intended to explain the levels of risk associated with this
product.
Lithium-Ion Battery
Recycling
Designates that this tool is in compliance with
Lithium-Ion battery recycling program requirements
Keep Away From Water Do not dispose of battery packs in rivers or
immerse in water
Keep Away From Fire Do not dispose of battery packs in fire.
They will explode or leak and cause injury.
Heat Alert Do not expose battery packs to heat in excess
of 60ºC (140ºF).
Recycle Symbol
This product uses lithium-ion batteries. Local, state, or
federal laws may prohibit disposal of batteries in ordinary
trash. Consult your local waste authority for information
regarding available recycling and/or disposal options.

1
20
2
20a 20b
3
4
5
6
7
9
9a
8
10
11
12
22
21
13
14
16
17
15
18
19
11
FEATURES
Fig. 1

FEATURES
NOTE: the above parts and their associated number/letters will be used throughout this manual to
identify parts.
Unpack
This product requires assembly.
■ Carefully remove the product and any accessories from the box. Make sure that all items listed in
the packing list are included (p,13). Look under the interior bottom carton flaps for any missing small items.
■ Inspect the product carefully to make sure no breakage or damage occurred during shipping.
■ Do not discard the packing material until you have carefully inspected and satisfactorily operated
the product.
■ If any parts are damaged or missing, please call 866-384-8432.
YOU WILL NEED (ITEMS NOT SUPPLIED)
■ Screwdriver, flat head
■ Suitable personal protective equipment
12
KNOW YOUR LAWN MOWER (See Fig 1)
The safe use of this product requires an understanding of the information on the product and in this
operator’s manual as well as a knowledge of the project you are attempting.
Before use of this product, familiarize yourself with all operating features and safety rules.
1. Start/stop Bale Switch
2. Safety Switch Button
3. Upper Handle Bar
4. Handle Locking Clips X2
5. Lower Handle Bar
6. Locking Levers X2
7. Mower Carry Handle
8. Battery Compartment Cover
9. Side Discharge Door
9a. Side Discharge Chute
10. Front Wheels
11. Front Bumper Guard/Handle
12. Deck
13. Cutting Height Adjustment Lever
14. Rear Wheels
15. Collection Bag
16. Safety Flap
17. Mulching Plug
18. Foam Grip
19. Safety Key
(Inside the Battery Pack Compartment)
20. iPower Control Panel
20a. iPower Mower Mode Indicator
20b. iPower Battery Meter Indicator
21. Battery Pack
22. Battery Charger

19
13
FEATURES
ASSEMBLY
If any parts are damaged or missing do not operate this product until the parts are replaced. Failure
to heed this warning so could result in serious personal injury.
Do not attempt to modify this product or create accessories not recommended for use with this product.
Any such alteration or modification is misuse and could result in a hazardous condition leading to
possible serious personal injury.
Do not connect power supply until assembly is complete. Failure to comply could result in accidental
starting and possible serious personal injury.
Never operate the mower without the proper safety devices in place and working. Never operate the
mower with damaged safety devices. Failure to heed this warning can result in serious personal injury.
WARNING

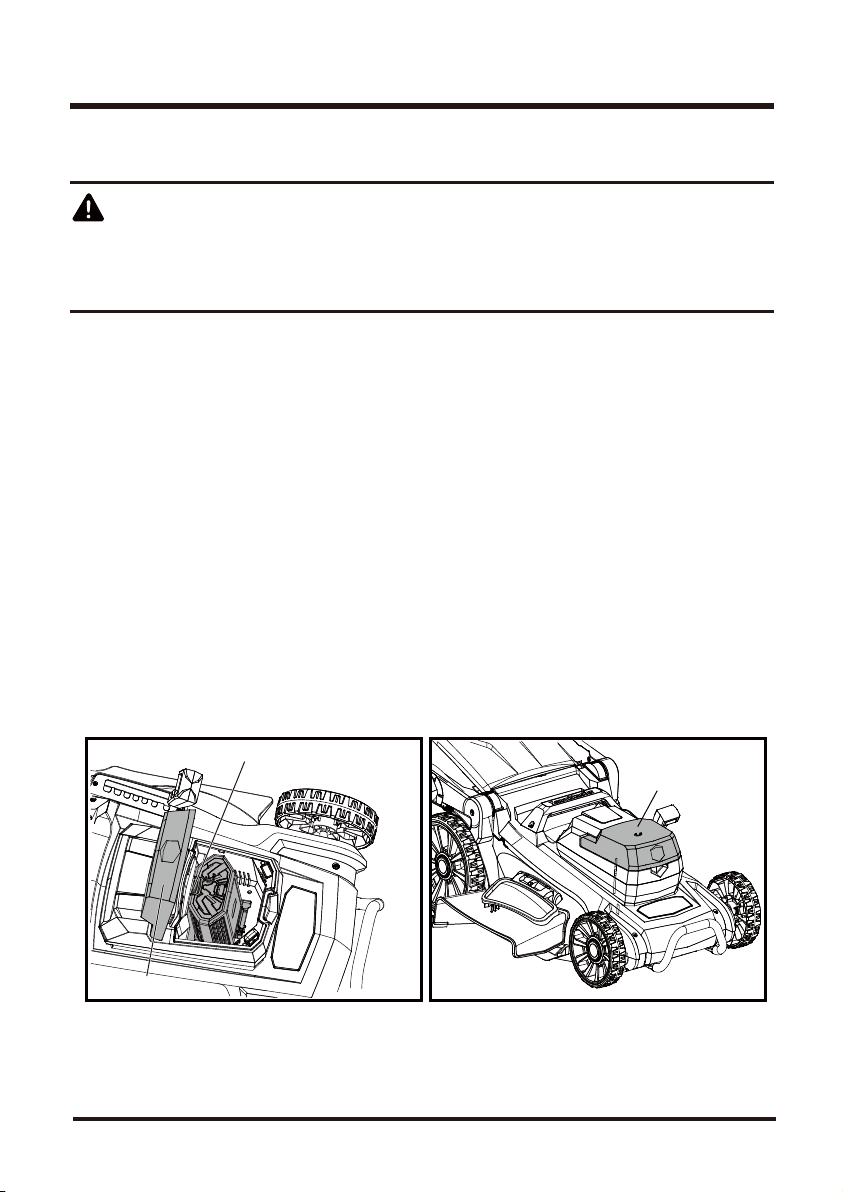

PACKING LIST
Mower
Safety Key (Attached inside the Battery Pack Compartment of Mower)
Mulching Plug - Comes installed from factory at rear of mower
Grass Collection Bag Assembly (Bag & Metal Frame)
Side Discharge Chute
Battery Charger
60V Lithium-Ion Battery
Operator’s Manual
Handle Operation Card (Attached to the Mower)
NOTE: The safety key (19) must be installed for
mower to operate. The safety key only fits into
the switch in one direction.
DO NOT FORCE IT！

Rod
ASSEMBLY
14
ASSEMBLING THE COLLECTION BAG (See Figs. 2-3)
Your LawnMaster® mower comes with a tool-less collection bag.
To assemble:
■ Check the collection bag before assembling to make sure there is no damage.
■ Pull the collection bag over the steel frame as shown.
■ Pry open the soft plastic clamping sleeves with your fingers and insert the steel frame into the
sleeves as shown. Ensure all sleeves are properly clamped with your fingers on the frame.
■ The completely assembled collection bag is shown as below.
INSTALLING THE COLLECTION BAG (See Fig. 4)
NOTE: When using the collection bag, do not install the mulching plug (17). Mulching plug MUST
be removed prior to installing collection bag.
■ Lift the rear safety flap (16) and hold it in position.
■ Lift the collection bag by its handle, hook the rods of collection bag on the mower holder under
rear safety flap.
■ Release the rear safety flap.
■ Make sure both rods are firmly seated on the holder and rear safety flap (16) rests firmly against
the top of the collection bag.
NOTE: Under normal usage, bag material is subject to wear. To
reduce the risk of injury, frequently
inspect the bag assembly and replace if there are any signs of wear or deterioration.
Fig. 2 Fig. 3
Steel Frame
Sleeve
Fig. 4 Holder
Mulching plug must be removed
prior to installing collection bag.
Rods

ASSEMBLY
15
INTENDED USE
This cordless lawnmower is designated with LawnMaster® 60V Lithium-Ion batteries.
The product is intended for mowing and mulching grass in domestic yards only. It must not be used
for mowing unusually high, dry or wet grass, e.g. pasture grass, or for shredding leaves.
This product is intended for private domestic use only, not for any commercial trade use. It must not
be used for any purposes other than those described.

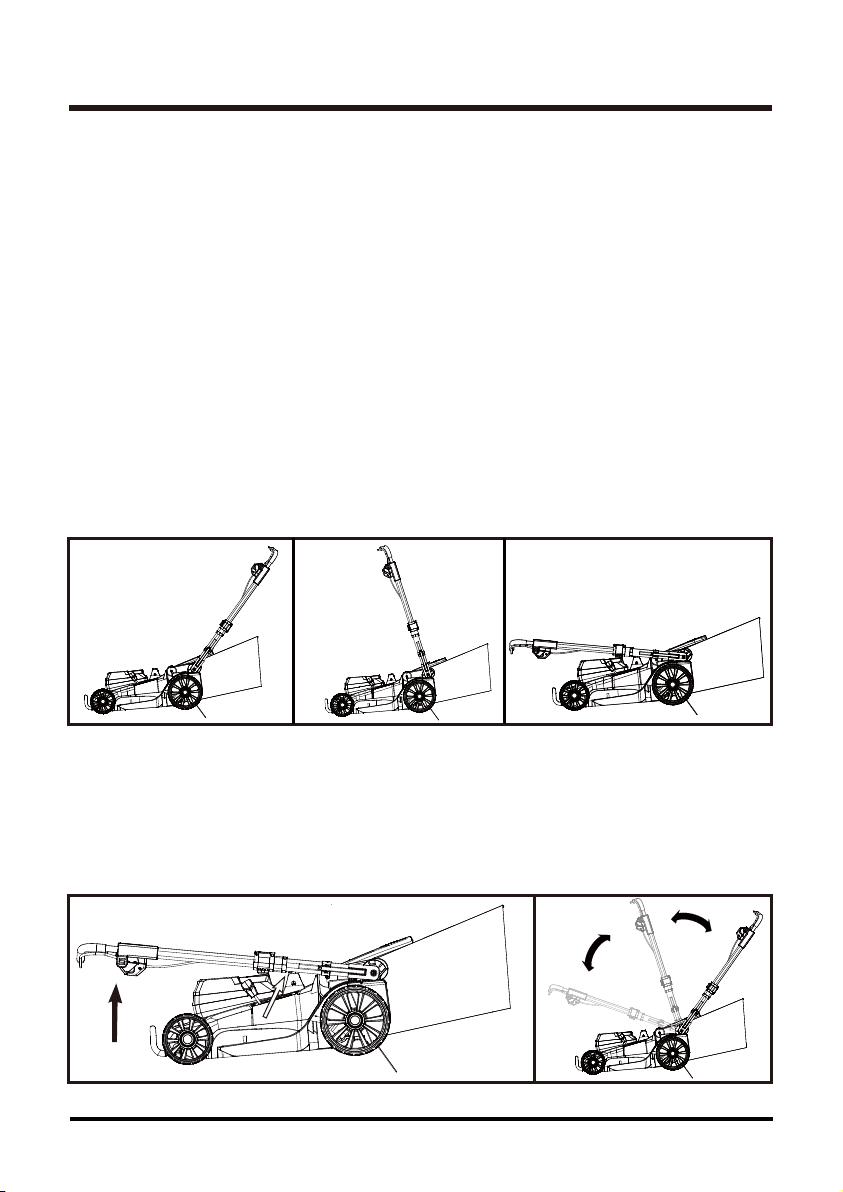

HANDLE BAR TILT ADJUSTMENT (See Figs. 5-7)
The working position is for operating the product. Just install the battery pack and operate it in this
position.
The parking position is an intermediate position, which is used to empty the collection bag. Stop the
machine and remove the battery pack before switching to this position.
The storage position is used to store the product in a space-saving manner when not in use. Stop
the machine and remove the battery pack before switching to this position.
■ When the product is purchased, out of the box the handle bar is in its storage position.
■ Press and hold the locking levers (6) on both sides of handle bar with both your hands to release
handle bar from locked position, then rotate the handle to switch into desired position. Gently
pivot the handle until you hear and feel the locking pin engage in desired position.
■ Release the levers. Make sure they are locked into place.
Working Position
Parking Position Storage Position
Fig. 5
Fig. 6 Fig. 7
Press the Quick
Adjust Lever

ASSEMBLY
Do not at any time make any adjustment to the lawn mower without first stopping the motor and
removing the safety key. Keep your feet away from the deck when adjusting its height.
When shipped, the rear wheels (14) on the mower are set to a low-cutting position. Before using the
mower for the first time, adjust the cutting position to the height best suited for your lawn.
The mower can be set to 6 cutting heights between 1.4” (35mm) and 3.4” (85mm). 6 is the highest setting,
1 is the lowest. Choose the proper cutting height according to the types and conditions of the grass.
To set the cutting height:
■ To raise the cutting height, grasp the cutting height adjustment lever (13), then move it toward the
back of the mower and engage the lever in the desired cutting height position on the mower deck.
■ To lower the cutting height, grasp the cutting height adjustment lever (13), then move it toward the
front of the mower and engage the lever in the desired cutting height position on the mower deck.
WARNING
16

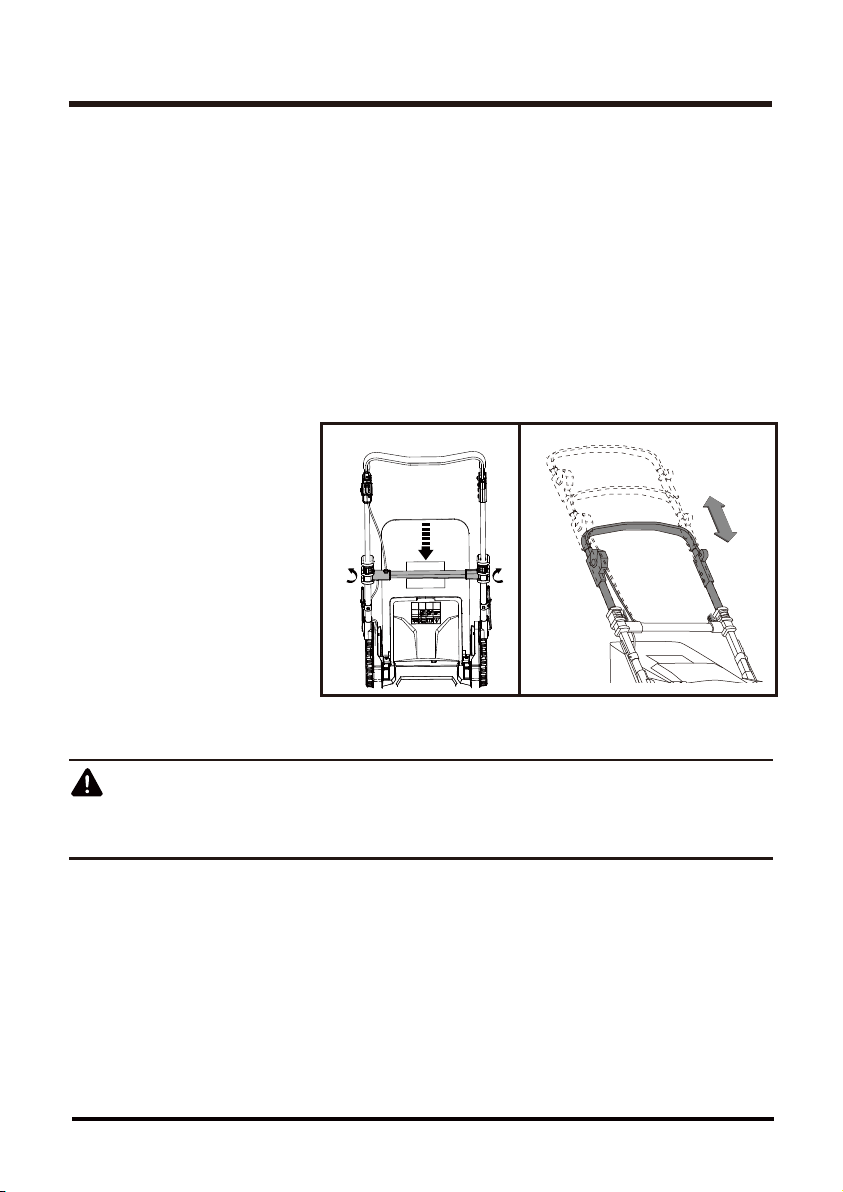

HANDLE BAR HEIGHT ADJUSTMENT (See Figs. 8-9)
To adjust height for working:
■ Rotate handle bar into working position.
■ This mower has 2 working positions for different operation height. Choose the position more
comfortable for you. Adjust handle bar to the desired position by pulling it up, then close the
locking clips (4).
■ Before operating the machine, make sure the handle bars are locked into place with the pins of
locking clips (4) inserted into holes on the bar. If lockings are not closed properly, the unit will
not operate.
NOTE: The handle bar can also be adjusted to a middle height position different from the highest
working position and the lowest storage position. To adjust, first unlock the locking clips and adjust
the handle bar to the middle designed position, then close the locking clips.
To adjust height for storage:
■ Unlock both locking clips, then
push down the handle bar to
the lowest position.
■ Press and hold the locking
levers (6) on both sides of
handle bar with both hands to
release handle bar from locked
position, then pivot the handle
bar all the way to storage position.
Gently pivot the handle until
you hear and feel the locking
pin engage in storage position.
SETTING CUTTING HEIGHT (See Fig. 10)
Fig. 8 Fig. 9

Do not at any time make any adjustment to the lawn mower without first stopping the motor and
removing the safety key (19). Do not attach the collection bag (15) and the mulching plug (17) at the same time.
WARNING
17
ASSEMBLY
COLLECTION BAG VIEW WINDOW (See Fig. 11)
■ The collection bag (15) is equipped with a clear view window through which user can
observe the filling condition during the mowing process.
■ Empty the collection bag in time when there is a sign that collection bag is full or nearly full by
observing the view window.
EMPTYING
■ Lift the collection bag by its handle and lift to remove from mower.
■ Empty grass clippings.
■ Lift the safety flap (16) and reinstall the collection bag as described earlier in this manual.
Fig. 10
Fig. 11
View Window
ATTACHING/REMOVING THE MULCHING PLUG (See Figs. 12-14)
13

Do not at any time make any adjustment to the lawn mower without first stopping the motor and
removing the safety key (19).
The mower is designed to disperse the clippings
back to the lawn. Pull up the side discharge door
and insert the side discharge chute. The side
discharge is optional, if you do not need, you can
take it away.
WARNING
ASSEMBLY
18
The mulching plug (17) prevents grass from being collected by blocking the collection chute.
NOTE: Mulch plug MUST be removed if collection bag is used during mowing operation.
This allows the grass clippings to be deposited back on the lawn during cutting.
■ Lift the safety flap (16) and detach the grass collection bag.
■ Open the safety flap (16), hold it in position and insert the mulching plug into the rear discharge
chute (Fig. 12). Ensure the locking button snaps into place, as picture shown (Fig. 13).
■ Press the locking button to release and remove the mulching plug (Fig. 14).
INSTALLING THE SIDE DISCHARGE CHUTE (See Fig. 15)
Fig. 12 Fig. 13 Fig. 14
17
17 17
16
16 16
Fig.15

If any parts are broken or missing, do not attempt to attach the battery pack to the mower or operate
the mower until the broken or missing parts are replaced. Failure to do so could result in serious injury.
Do not connect the battery and/or the safety key before the product is completely assembled.
8
To install battery pack:
■ Open the plastic battery compartment cover (8) at front of mower.
■ Align the raised ribs on the mower with the grooves in the battery pack (21), and then insert the
battery pack into the compartment.
■ Push the battery pack (21) until you hear a “click”.
■ Close the battery compartment cover (8).
■ Your product is now ready to be used.
NOTE: Make sure that battery pack firmly snaps into place and is secured to the mower before
starting operation.
To remove battery pack:
■ Stop the machine. Lift the battery compartment cover (8) and remove the safety key (19).
■ Press the release button on the battery pack (21), grasp the battery pack firmly and pull out of the
battery compartment (Fig. 16).
■ Close the battery compartment cover (8) (Fig. 17).
WARNING
ASSEMBLY
INSTALLING / REMOVING THE BATTERY PACK (See Figs. 16-17)
19
Fig. 16 Fig. 17
Battery Cover
Battery Cover
Battery-Release
Button

20
ASSEMBLY
A flashing LED on the cutting mode control panel indicates that the current is too high. A flashing
LED on the battery indicates that the voltage is too low. In either case the motor will be shut down
automatically. Do not continue to activate the On/Off switch if the motor has been shut down
automatically. The battery may be damaged.
WARNING
iPOWER MOWER MODE INDICATOR (20a) (See Fig. 18)
Located on upper mower handle
■ By default, the motor power is set to “AUTO” and will automatically
adjust to your lawn.
■ Push the press button repeatedly to cycle through the different
motor power levels.
• Set the motor power to “1”, if your lawn needs only light mowing.
• Set it to “2”, if you are going to mow taller and thicker grass.
• Set it to “3” to utilize the maximum motor power for mowing the
most stubborn grass.
iPOWER BATTERY METER INDICATOR (20b)
(See Fig. 18)
■ Push the press button to check on the battery status.
■ The number of lights lit will depend on the condition of the battery.
■ 4 lights indicate a fully charged battery, 1 light indicates the battery
needs to be charged.
iPower Control Panel (20)
Fig. 18
20a 20b
