LC LED LEKO SPOT 200W WW User manual


User Manual
LED LEKO SPOT 200W WW
( MN750 )

LED LEKO SPOT 200W WW

2
Table of contents
1. Safety instructions .............................................. .............. . …. 3
1.1 Overhead Rigging
............................................................. 3
1.2 Power connection.
............................................. ................ 4
1.3 Cleaning and Maintenance .............................................. ....... 4
2. User’s manual
............................................................... .5
3. MENU structure
................................................................ 5
4. DMX mode
................................................................. 9
5. Technical data
............................................................... 12

LED LEKO SPOT 200W WW

3
1. Safety instructions
FOR SAFE AND EFFICIENT OPERATION
Be careful with heat and extreme temperature Avoid exposing it
to direct rays of the sun or near a heating appliance.
Not put it in a temperature bellow 41°F /5°C, or exceeding 95°F /35°C.
Keep away from humidity, water and dust
Do not place the set in a location with high humidity or lots of dust.
Containers with water should not be placed on the set.
Keep away from sources of hum and noise
Such as transformer motor, tuner, TV set and amplifier.
To avoid placing on un-stable location
Select a level and stable location to avoid vibration.
Do not use chemicals or volatile liquids for cleaning
Use a clean dry cloth to wipe off the dust, or a wet soft cloth for stubborn dirt.
If out of work, contact sales agency immediately
Any troubles arose, remove the power plug soon, and contact with an engineer
for repairing, do not open the cabinet by yourself, it might result a danger of
electric shock.
Take care with the power cable
Never pull the power cable to remove the plug from the receptacle, be sure
to hold the plug. When not using the player for an extended period of time
be sure to disconnect the plug from the receptacle.
1.1 Overhead Rigging
This Item must be built in a way that it can hold 10 times more of its weight for 1
hour without causing any damages.
The installation must be secured with a secondary safety attachment. The safety
attachment has to be constructed in a way that no part of the installation can fall
down
When rigging, de-rigging or servicing the fixture staying in the area below the
installation place, on bridges, under high working places and other endangered
areas is forbidden.
Before taking the device in operation, the installation must be approved by an
expert.
The operator has to make sure that safety‐relating and machine‐technical
installations are
approved by a skilled person once a
year.
Procedure:
The Device must be installed outside areas where persons may walk by or be
seated.
IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE,
including (but not limited to) calculating working load limits, installation material
being used, and periodic safety inspection of all installationmaterial and the

LED LEKO SPOT 200W WW

4
projector. If you lack these qualifications, do not attempt the installation yourself, but
instead use a professional structural rigger. Improper installation can result in bodily
injury and/or damage to property.
Use only professional trussing systems if the Item shall be lowered from the ceiling
or high joists. Never let the Device swing freely in a room.
Caution: Overhead Items may cause serious injuries when crashing down!! If there
is concern about the safety then DO NOT INSTALL the Device!!!!
DANGER OF FIRE!
When installing the device, make sure there is no highly-inflammableMaterial
(decoration articles, etc.) within a distance of min. 0.5 m.
Mount the projector with the mounting-bracketto your trussing system using an
appropriate clamp.
For overhead use, always install a safety-rope that can hold at least 12 times the
weight of the fixture. You must only use safety-ropes with quick links with screw cap.
Pull the safety-rope through the hole in the mounting-bracketand over the trussing
system or a safe fixation spot. Insert the end in the quick link and tighten the safety
screw.
The maximum drop distance must never exceed 20 cm.
A safety rope which already held the strain of a crash or which is defective must not
be used again.
Adjust the desired inclination-anglevia the mounting-bracket and tighten the
fixation screws.
DANGER TO LIFE!
Before taking into operation for the first time, the installation has to be approved
by an expert!
1.2 Power Connection
!! CAUTION!!
Never leave this device running unattended!! Every person that is involved with
this Item has to be qualified!!
Connect item with the main plug. The voltage and frequency must exactly be the
same
as stated on the device. The power plug must always be inserted without force.
1.3 Cleaning and Maintenance
Please make sure that safety-relating and machine-technical installations are
inspected by a skilled person once a year.
1. Make sure before installing that all screws are tightly connected and not corroded.
2. There must be no deformationson the housings, fixations and installations spots.
3. No damages must be showed on the power supply cables, material fatigue and
sediments.
If the device is going to be cleaned, please use moist, lint free cloths. Never use

LED LEKO SPOT 200W WW

5
——> DMX ADDRESS SETTING
“DMX ADDR”: Function Code
“001”: DMX Address
alcohol or solvents!!
The cooling fan must be cleaned monthly!
To clean the interior of the device please use a vacuum cleaner or an air jet.
We recommend cleaning the lenses weekly to keep the light output as long as
possible.
2. User’s manual
You are able to use this device in professionals operating methods.
DMX Mode – this operating method allows running the device with a customary DMX
512 controller.
Program Mode – with this operating method, you are able to choose the internal
programs
Sound Mode – with this operating mode, the device flashed with the tact of the music

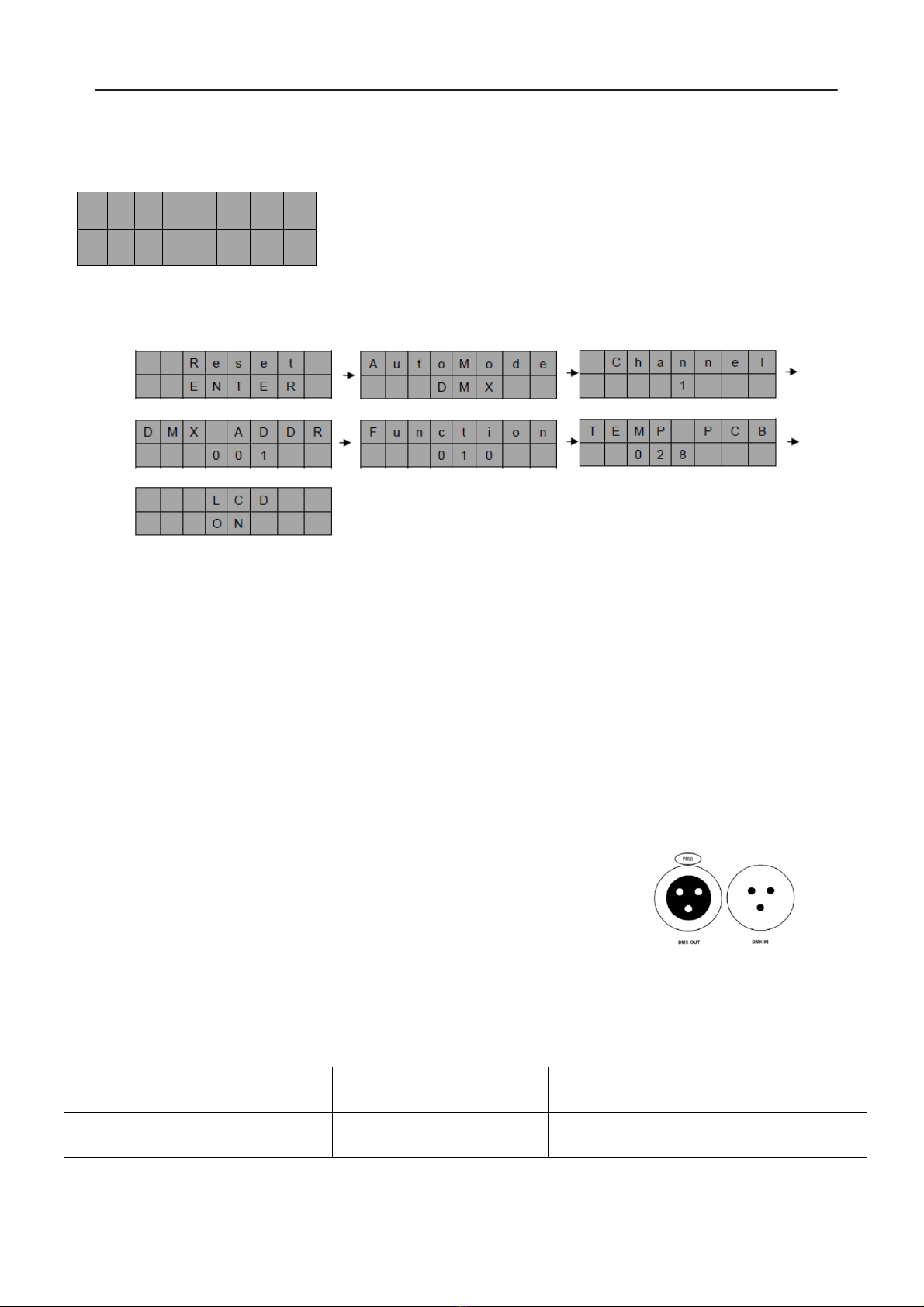

3. MENU Structure
All of the settings are controlled by four buttons: “ MODE, Up, Down and Enter”.
Press “MODE” to switch functions (7 functions can be selected):
R e s et
E N T ER
A u t o M od e
D M X
C h a n ne l
1
D M X A DD R
0 0 1
——>RESET ALL SETTING
“REST”: Function Code, press ENTER to reset all setting.
——>>MASTER-SLAVE MODE SETTING
“AUTOMODE”: Function Code
“DMX” “Master” “Slave”: Choose the mode
——>DMX AMOUNT SETTING
“CHANNEL”: Function Code
“1”: Channel amounts

LED LEKO SPOT 200W WW

6
——>SINGLE MODE SETTING, work only on the situation of
A u t o M o d e
M A S T E R
“FUNCTION”: Function Code
“010”: Function number
——>SINGLE MODE SETTING
“TEMP PCB”: Temperature Code
“000”: Show temperature of LED PCB
Press the “MODE” then press the “ENTER” to begin your setting. Press “UP” and “DOWN” to
switch the modes with the shining Function Code. Be sure to press the “ENTER” button to save
your changing, it won’t be saved if the button has not been pressed. Moreover, the saving data
still exists even after power off and then on.
MASTER SLAVE MODE SETTING
Attention: When connecting DMX512 but receiving no signal, the LCD display will flicker.
F u n c t i o n
0 1 0
T E M P P C B
0 2 8
L C D
O N
A u t o M od e
D M X
A u t o M od e
M A S T ER F u n c t i o n
0 1 0
A u t o M od e
S L A VE
——>Press “MODE” -> “Enter” and Press UP/Down button to setting.
Press “Enter” to confirm the “DMX” condition and forbid the Master Slave
Mode.
——>The machine will send signal to all connected slave-machines.
The machine only accepts the signal from the console. And at this
situation the below function
——>Press “MODE” -> “Enter” and Press UP/Down button to setting.
Press “Enter” to confirm the “D” condition and forbid the Master Slave
Mode.
——>LCD DISPLAY LIGHTING SETTING
“ON”: Function Code, to keep LCD display lighting(default setting);
“OFF”: Function Code, press ENTER to shut off LCD display lighting.

LED LEKO SPOT 200W WW

7
WHILE IN MASTER-SLAVE MODE, ONLY ONE HOST MACHINE CAN BE EXISTED, IF NOT,
IT MAY CAUSE SIGNAL CONFLECTS.
DMX CHANNEL SETTING
C h a n n e l
1
C h a n n e l
2
C h a n n e l
3
C h a n n e l
4
C h a n n e l
5
C h a n n e l
6
C h a n n e l
7
——>Default in CHANNEL 1, DMX Channel: CH. 1
——>DMX Channel: CH. 2
——>DMX Channel: CH. 3
——>DMX Channel: CH. 4
——>DMX Channel: CH. 6
——>DMX Channel: CH. 7
——>DMX Channel: CH. 5

LED LEKO SPOT 200W WW

8
DMX ADDRESS SETTING
SINGLE MODE SETTING:
TEMPERATURE CONTROL
D M X A D D R
0 0 1
F u n c t i o n
0 1 0
F u n c t i o n
0 1 0
F u n c t i o n
0 2 0
F u n c t i o n
0 3 0
F u n c t i o n
1 2 0
T E M P P C B
0 2 8
——>Press “MODE”to begin your setting, and press “ENTER”to select
the mode. Select the UP/DOWN from F010～F120, press “ENTER”to
save your setting.
——>FADE IN/OUT: Adjust the speed from F020(slow)～F029(fast).
——>SOUND ACTIVE MODE: Color jump and Strobe. Adjust the strobe
speed from F030(slow)～F039(fast). Shut down the light in 5 seconds
mute.
——>SINGLE WHITE COLOR strobe, adjust the speed from F010(slow)～
F019(fast).
——>Default in DMX ADDR001, DMX Address from “D001-D512”, Press
“ENTER” to save the setting.
——>In order to protect the temperature of LED PCB, the fan automatically
works when reaching to 61 degrees. While, the fan stop working below
51 degrees. When the temperature reaches to 70 degree, the device
stops to work. While, it falls down to 50 degree, the device begin to work
and keep the data you stored before.
——>WW (full brightness)

LED LEKO SPOT 200W WW

9
RESET TO DEFAULT
Default as following:
MASTER-SLAVE MODE:
Controlled by DMX512 console. The machine accepts DMX512 signals and DMX dimming
signals.
4.
DMX MODE
(Display flashes, if no DMX signal is connected)
Connect the signal output of your DMX controller to the XLR‐socket of your device.
You are able to connect further DMX devices at the XLR out‐
.
DMX Table
MODE1 ：1 Channel
DMX Channel DMX Value Specification
1. W1, W2, W3, W4 Dimming 1~255 Brightness Adjustment 0% - 100%
R e s e t
E N T E R ——>RESET TO DEFAULT: Press “ENTER” to reset all setting.

LED LEKO SPOT 200W WW

10
MODE2：2 Channel
DMX Channel DMX Value Specification
1. W1, W2, W3, W4 Dimming 1~255 Brightness Adjustment 0% - 100%
2. STROBE 1~255 Speed Adjustment from slow to fast.
Channel Value Function
MODE3：3 Channel
MODE4：4 Channel
DMX Channel DMX Value Specification
1. W1, W2, W3 Dimming 1~255 Brightness Adjustment 0% - 100%
2. W1 Dimming 1~255 Brightness Adjustment 0% - 100%
3. W2 Dimming 1~255 Brightness Adjustment 0% - 100%
4. W3 Dimming 1~255 Brightness Adjustment 0% - 100%
MODE5: 5
Channel
DMX Channel DMX Value Specification
1. W1, W2, W3, W4 Dimming 1~255 Brightness Adjustment 0% - 100%
2. STROBE 1~255 Speed Adjustment from slow to fast.
3. Linear and curve lighting
option
0~70 Linear
71~255 Curve
DMX Channel DMX Value Specification
1. W1, W2, W3, W4 Dimming 1~255 Dimming and turn on the light, Color is
adjusted by CH2, 3, 4, 5
2. W1 Dimming 1~255 Brightness Adjustment 0% - 100%
3. W2 Dimming 1~255 Brightness Adjustment 0% - 100%

LED LEKO SPOT 200W WW

11
MODE6：6 Channel
MODE7：7 Channel
4. W3 Dimming 1~255 Brightness Adjustment 0% - 100%
5. W4 Dimming 1~255 Brightness Adjustment 0% - 100%
DMX Channel DMX Value Specification
1. W1, W2, W3 Dimming 1~255 Dimming and turn on the light, Color is
adjusted by CH2, 3, 4
2. W1 Dimming 1~255 Brightness Adjustment 0% - 100%
3. W2 Dimming 1~255 Brightness Adjustment 0% - 100%
4. W3 Dimming 1~255 Brightness Adjustment 0% - 100%
5. STROBE 1~255 Speed Adjustment from slow to fast.
6. Linear and curve lighting
option
0~70 Linear
71~255 Curve
DMX Channel DMX Value Specification
1. W1, W2, W3, W4 Dimming 1~255 Dimming and turn on the light, Color is adjusted
by CH2, 3, 4, 5
2. W1 Dimming 1~255 Brightness Adjustment 0% - 100%
3. W2 Dimming 1~255 Brightness Adjustment 0% - 100%
4. W3 Dimming 1~255 Brightness Adjustment 0% - 100%
5. W4 Dimming 1~255 Brightness Adjustment 0% - 100%
6. STROBE 1~255 Speed Adjustment from slow to fast(Color is
adjusted by CH2, 3, 4, 5)
7. Linear and curve lighting
option
0~70 Linear
71~255 Curve

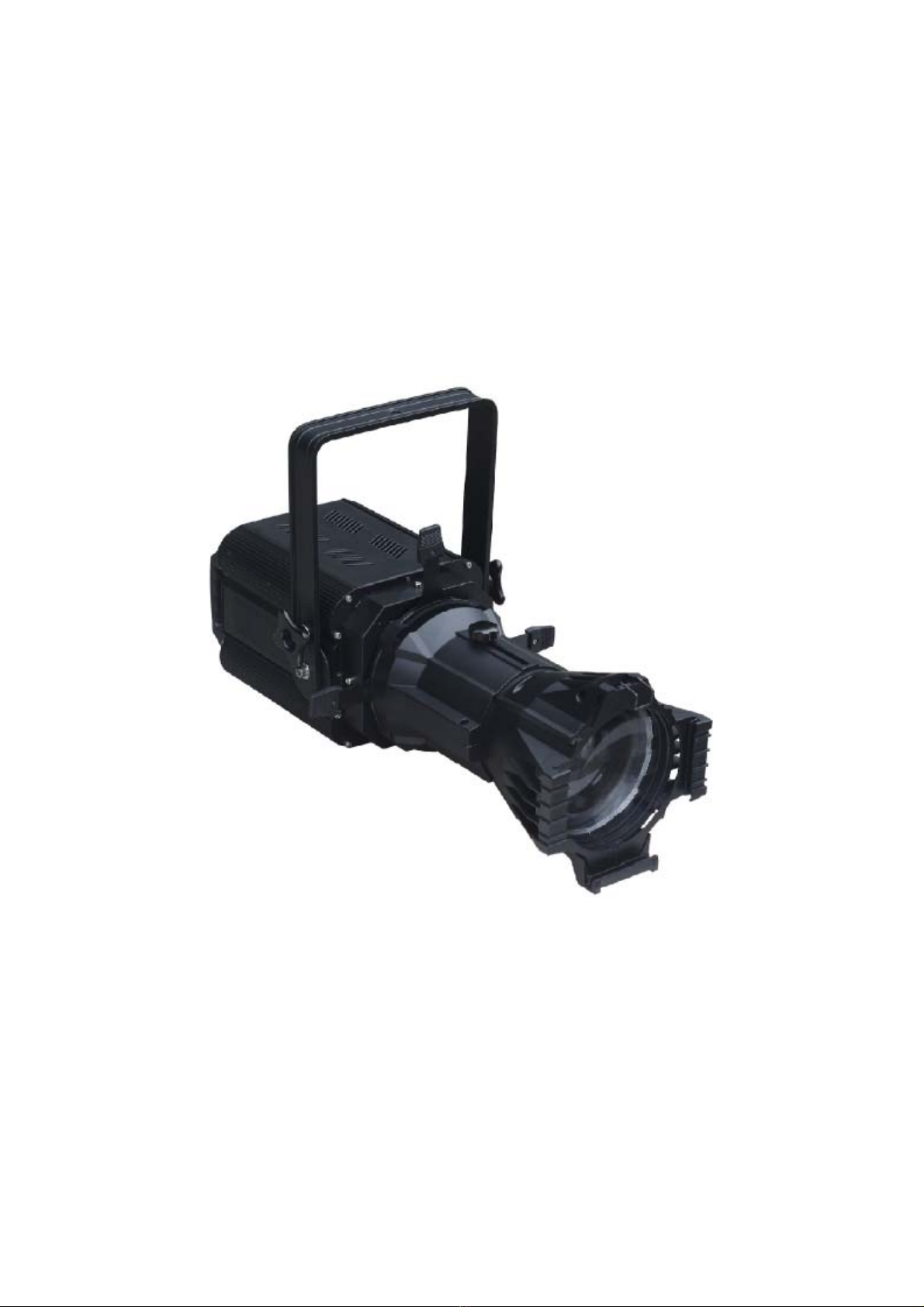

LED LEKO SPOT 200W WW

12
5. Technical
Data
1. 1, 2, 3, 4, 5, 6, 7 DMX channels selectable
2. Sound controlled via built-in microphone
3. Adjustable sound sensitivity
4. Function: Master/slave, built-in program and strobe effect with adjustable speed, dimmer
5. LCD display, easy for understand.
6. Full DMX512 control
7. With Safety loop
8. 3PIN/5PIN XLR Input & Output; POWERCON IN/OUT
9. 1x200W Warm white COB LEDs
10. Beam angle: 10°/ 19°/ 26°/ 36°/ 50°optional
11. Power Max. 250W
12. Power Input AC 100-240V, 50/60Hz
13. Weight: 7.5kgs（L*W*H = 645 x 280 x 220mm）
