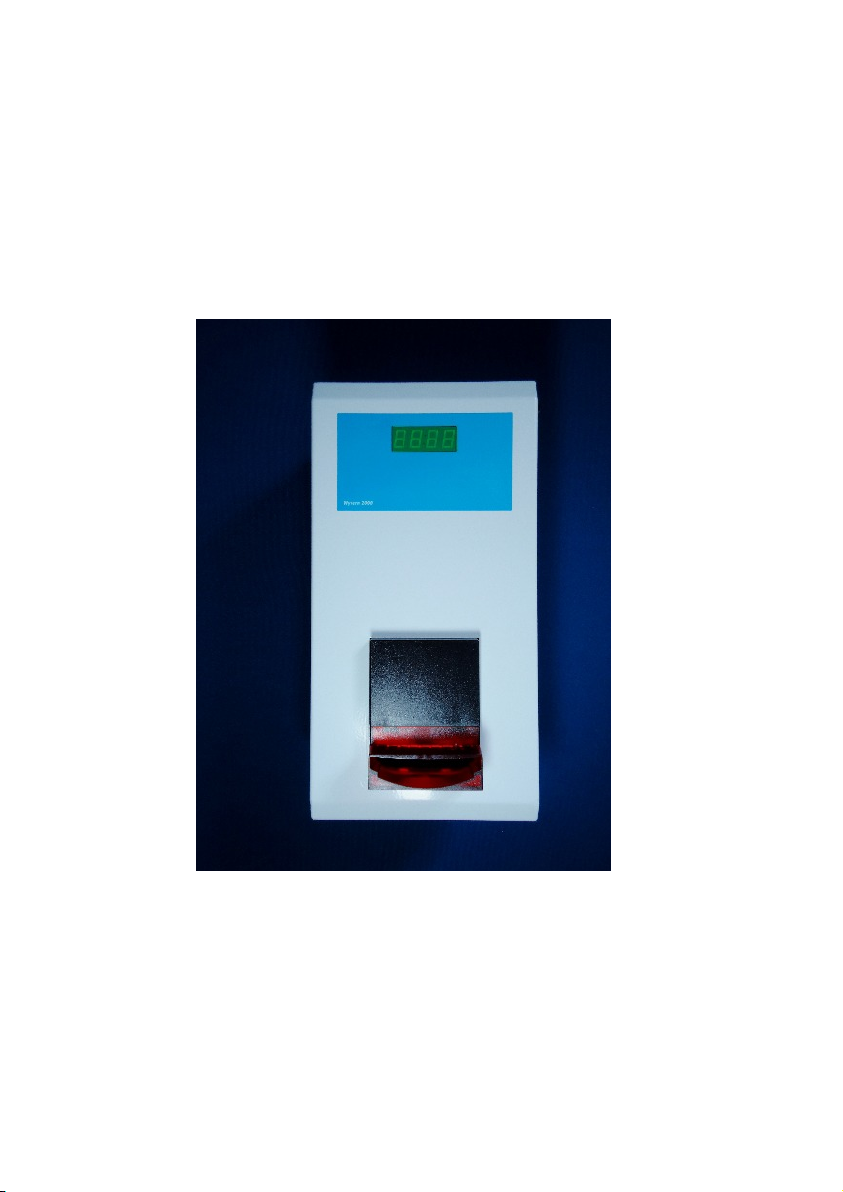

LCI Wyvern 2000N User manual
Handbook for the
Wyvern®2000N Banknote Operated Timer
Part Number 918-000-995 July 2012 Issue 3
Contents
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Interrogation Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Summary Program Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Summary Interrogation Codes . . . . . . . . . . . . . . . . . . . . . . . . .12
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Contacts
Leisure Controls International Ltd
Clump Farm Industrial Estate, Higher Shaftesbury Road,
BLANDFORD FORUM, Dorset. DT11 7TD. United Kingdom
Tel: +44 (o) 1258 489075/455393 (General) or +44 (0) 1258 483577/483574 (Technical support)
Fax: +44 (0) 1258 488526/456410
Web: www.lci.gb.com
©2008 - 2012 Wyvern is a registered trade mark of Leisure Controls International Ltd
Wyvern®2000N Banknote Timer Handbook 1

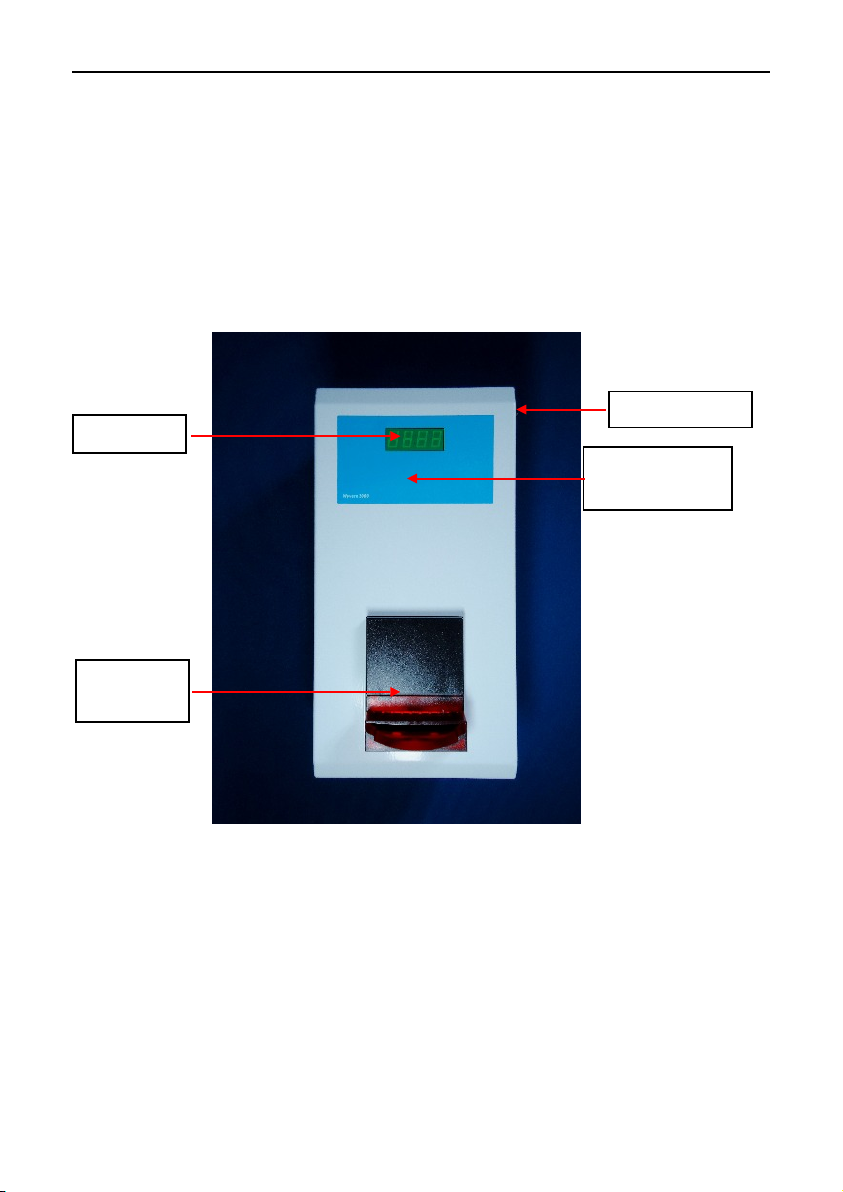

Introduction
Operational Features
Banknote
Entry (3)
Display (1)
Programming
Switches (2)
Cover Lock (4)
1. The 4 digit 7 segment display is used to program the Wyvern®2000N as
well as showing time of day and time remaining.
2. Programming switches, in conjunction with the display, are used to
program the Wyvern®2000N to user requirements.
3. The banknote entry accepts banknotes upto 70mm in width.
4. Access to the cash box is via the cover lock situated at the top of the
Wyvern®2000N.
The Wyvern®2000N offers an extensive range of features to suit many banknote
timer applications. The Wyvern®2000N is supplied as a voltage switching device
but may be used for voltage free applications by removing a wire link.
Figure 1 shows the main operational features and this manual provides all
2 Wyvern®2000N Banknote Timer Handbook
Installation
Mechanical Installation
The Wyvern® 2000N timer should be mounted on a smooth vertical wall away
from corners so the cover lock can be easily accessed. The timer is 350 mm high
by 175 mm wide and has a depth of 140 mm so allow sufficient clearance for the
cover to swing down when opened. Take care to mount the case level in both the
vertical and horizontal axes; failure to do so may prevent correct operation of the
banknote acceptor. Choose an area where an ambient temperature of 40°C is not
exceeded, away from any source of moisture, dust or direct heat.
Open the case using the key supplied and position the case on the wall and mark
the position of the two upper keyhole slots. Plug the wall and fit two No. 8 or 10
screws of not less than 22 mm in length and hang the timer on these screws. Mark
the position of the lower two fixing screws and remove the timer and plug the wall.
Remove the required cable knockouts and fix the timer to the wall.
Electrical Installation
The timer will require a fused double pole switch for the mains input with a fuse
suitable for the load being controlled (maximum 5 amp). Using 20 mm conduit
with a male thread adaptor and lock ring, or a 20 mm nylon compression cable
gland to provide strain relief , wire the unit as shown in Figures 2 and 3. Use
appropriately rated and approved cable relating to the relevant regional standards
up to a maximum current of 5 amp. Remove the safety shield before connecting
any wiring and replace safety shield after all connections are secured.
It is essential that the safety earth is connected to a known good earth. Unless
double insulated the load must be connected to the same bonding point as the main
earth to ensure good noise immunity.
The Wyvern®2000N is supplied as a voltage switching device - that is the
switched output is the same as the mains input voltage. In this case the load is
connected between pins 3 and 4. If a voltage free output is required (for example
to switch a device operating from a different supply) then the black link is
removed from between terminal block pins 5 and 6 and the load connected
between pins 3 and 5. See Figures 2 and 3.
NOTE. The Wyvern®2000N accepts mains voltages in the range 110V - 240V
50/60 Hz.
Wyvern®2000N Banknote Timer Handbook 3
Figure 2 - Mains Wiring
L N L N
Mains Input Switched Output
Earth
1 2 3 4 5 6 1 2 3 4 5 6
L N L N LINK L N LOAD N LOAD L
OUT IN
MAINS INPUT LOAD OUT MAINS INPUT
MAINS VOLTAGE SWITCHING VOLTAGE FREE SWITCHING
Figure 3 - Output Switching Options
4 Wyvern®2000N Banknote Timer Handbook
Programming
To control the operation of the timer it needs to be programmed. This consists of
entering numbers (or options) into memory locations by using the programming
switches and the display (see Figures 1 and 4)

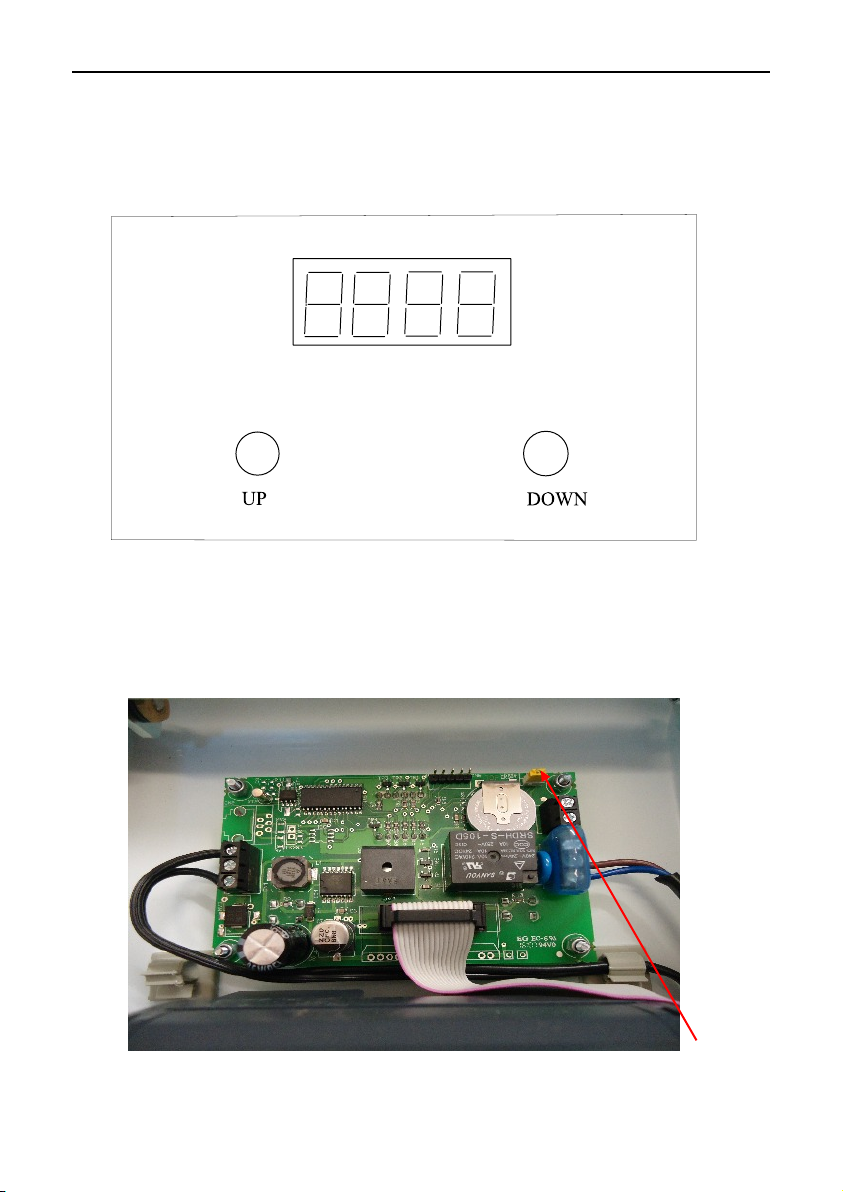

Figure 4 - Programming Template
Initially the Wyvern®2000N needs to be placed into the programming mode by
moving the programming switch LKSW1 to the ON position. This is a yellow
switch located on the printed circuit board just below the locking bar see Figure 5.
Figure 5 - Position of LKSW1
LKSW1
Wyvern®2000N Banknote Timer Handbook 5
With LKSW1 in the ON position press and hold both programming buttons for
approximately 5 seconds to enter the programming menu. Press and release the UP
button to access the option number required. To alter the program settings hold the
UP button for about 4 seconds until the option number flashes and use the UP and
DOWN buttons to change the value. Wait for approximately 10 seconds and a
“beep” for this value to be stored. To leave programming mode press and hold both
programming buttons for approximately 5 seconds. Return LKSW1 to the OFF
position for all settings to take effect.
Setting the Time of Day
A real-time clock is fitted to the Wyvern®2000N. Time is set using program code
d-. Once program code d- is selected, pressing the UP button will start to flash the
first two digits of the 4-digit display. The UP and DOWN buttons can be used to
set the first 2 digits to the required hours. Press and hold both programming buttons
for approximately 5 seconds until the last 2 digits flash when the UP and DOWN
buttons can be used to set these digits to the required minutes. The clock is set by
holding both programming buttons for approximately 5 seconds. The display then
shows Hr: and by using the UP or DOWN button can be toggled between 12 and 24
to allow selection of a 12 or 24 hour clock. Hold both programming buttons for
approximately 5 seconds to exit this option. If the real-time clock is not required set
the time to 00:00. This will not change the count-down operation of the display, but
once zero time has been reached the display will permanently display 00:00.
Session Time Per Note (STPN)
Program code 7 allows a period of time to be allocated to a particular note value.
Remember, these options must match the note order of the note value in option b.
Access the options menu as described earlier and using the UP and DOWN buttons
move to option 7. Hold the UP button until the first digit flashes and the display
shows 71:xx where xx is the time per note. The display will alternate between minutes
and seconds setting. Using the UP and DOWN buttons select the STPN program
Program
Code
Description Maximum
Value
Value Used
d- Setting the real-time clock _
6 Wyvern®2000N Banknote Timer Handbook
code required. Hold the UP button down until the first two digits flash. Use the UP
and DOWN buttons to select the minutes required per note. After a short period a
“beep” occurs allowing seconds required to be programmed. After approximately
10 seconds this value is stored and the first digit flashes allowing another STPN
program code to be selected. Press and hold DOWN button until the display shows
7-. Press and hold both programming buttons for approximately 5 seconds to exit
the options menu.
Currency Value Per Note (CVPN)
Program code b allows a value to be allocated to a particular note. Remember, these
options must match the note order of the note time period in option 7. The note
acceptor is factory pre-programmed so that each channel is assigned to a particular
note. When programming CVPN ensure the correct channel is allocated.
Access the options menu as described earlier and using the UP and DOWN buttons
move to option b. Hold the UP button until the first digit flashes and the display
shows b1:xx where xx is the value per note. Using the UP and DOWN buttons select
the CVPN program code required. Hold the UP button down until the first two digits
flash. Use the UP and DOWN buttons to select the value required per note. After
approximately 10 second this value is stored and the first two digits flash allowing
another CVPN program code to be selected. Press and hold DOWN button until the
display shows b-. Press and hold both programming buttons for approximately 5
seconds to exit the options menu.
Program
Code
Description Maximum
Value
Value Used
71
Note 1 time in minutes and seconds
99m 59s
72
Note 2 time in minutes and seconds
99m 59s
73
Note 3 time in minutes and seconds
99m 59s
74
Note 4 time in minutes and seconds
99m 59s
75
Note 5 time in minutes and seconds
99m 59s
76
Note 6 time in minutes and seconds
99m 59s
77
Note 7 time in minutes and seconds
99m 59s
78
Note 8 time in minutes and seconds
99m 59s
79
Note 9 time in minutes and seconds
99m 59s
Wyvern®2000N Banknote Timer Handbook 7
Minimum Start Credit (MSC)
Program code 5 sets the MSC so that sufficient notes must be inserted to meet a
specified price before the timer turns ON. For example if the Wyvern®2000N
were programmed with an MSC of $3, the timer would only start when notes to
the value of $3 are inserted.
Access the options menu as described earlier and using the UP and DOWN buttons
move to option 5. Hold the UP button until the first digit flashes and the display
shows 5-:xx where xx is the MSC. Hold the UP button down until the first two
digits flash. Use the UP and DOWN buttons to select the MSC value required.
After approximately 10 second this value is stored.
Start Delay time or Pre-Time
This is the time between inserting notes into the timer and the timer turning ON.
As soon as notes are inserted the display shows the time purchased but the load is
not switched on for a time period determined by option 6. Once option 6 times-
out the load is switched on. Setting option 6 to zero disables pre-time.
Program
Code
Description Maximum
Value
Value Used
5 Minimum start credit 99
Program
Code
Description Maximum
Value
Value Used
6 Start Delay Time or Pre-time 10 mins
Program
Code
Description Maximum
Value
Channel
b1 Note 1 value 99
b2 Note 2 value 99
b3 Note 3 value 99
b4 Note 4 value 99
b5 Note 5 value 99
b6 Note 6 value 99
b7 Note 7 value 99
b8 Note 8 value 99
b9 Note 9 value 99
8 Wyvern®2000N Banknote Timer Handbook
Access the options menu as described earlier and using the UP and DOWN buttons
move to option 6. Hold the UP button until the first digit flashes and the display
shows 6-:xx where xx is the pre-time. Hold the UP button down until the first two
digits flash. Use the UP and DOWN buttons to select the pre-time required. After
approximately 10 second this value is stored.
Lockout Time
This safety feature prevents the timer from exceeding a maximum time despite a
customer inserting more notes. Lockout time is particularly useful in setting a limit
to the exposure of UV radiation in tanning bed applications. Lockout is defined by
option 9 and once the lockout time has been exceeded all additional notes are
rejected. If program code 9 is set to zero the lockout is not operative.
Access the options menu as described earlier and using the UP and DOWN buttons
move to option 9. Hold the UP button until the first digit flashes and the display
shows 9-:xx where xx is the lockout time. Hold the UP button down until the first
two digits flash. Use the UP and DOWN buttons to select the lockout time
required. After approximately 10 second this value is stored.
Cool Down Time
Option 8 allows a cool down time to be programmed. This prevents notes being
inserted until after a time lag has occurred. This is especially useful if high intensity
floodlighting is being controlled and the lamps need to cool down before being turned
on again. Setting option 8 to zero disables the cool down time option.
Access the options menu as described earlier and using the UP and DOWN buttons
move to option 8. Hold the UP button until the first digit flashes and the display shows
8-:xx where xx is the pre-time. Hold the UP button down until the first two digits flash.
Use the UP and DOWN buttons to select the cool down time required. After
approximately 10 second this value is stored.
Program
Code
Description Maximum
Value
Value Used
9 Lockout time 99
Program
Code
Description Maximum
Value
Value Used
8 Cool Down Time 10 mins
Wyvern®2000N Banknote Timer Handbook 9
Interrogation Menu
The interrogation menu gives access to various audit functions. To access the
interrogation menu press and hold both UP and DOWN buttons for approximately
5 seconds. Press and release the UP button to access the interrogation number
required. To leave interrogation mode press and hold both UP and DOWN buttons
for approximately 5 seconds. Audit functions are non resettable.
Sessions - Audit Function 1
Audit function 1 displays the total number of sessions that have been activated
since build.
Minutes - Audit Function 2
Audit function 2 displays the total number of minutes that the Wyvern®2000N has
counted down - i.e. the total time the load has been operated.
Total - Audit Function 3
Audit function 3 displays the total number of minutes that the Wyvern®2000N has
been active. This includes total pre-time and cool down time as well as count
down time. If pre-time and cool down time options have been set to zero then
audit functions 2 and 3 will be identical
Currency Total - Audit Function 4
Audit function 4 is selected with audit code c- and shows the total
currency accumulated for accepted notes. When trailing zeros have been
removed when programming currency values (for example $500 note
programmed as 50) then the currency total must be multiplied by the
correct factor. Selecting this function clears “Err4” (page 10).
Audit Code
Description Maximum Comments
1- Session 65535
Audit Code
Description Maximum Comments
2- Minutes 65535
Audit Code
Description Maximum Comments
3- Total 65535
Audit Code
Description Maximum Comments
c- Currency Total (CT) 999999
10 Wyvern®2000N Banknote Timer Handbook
Operating Instructions
When a note is entered either “St:xx”, “Pr:xx” or “ti:xx” will be displayed
depending if the used note exceeds the minimum start credit set in option 5. Until
the required minimum is reached “St:xx” will remain displayed. Once the
minimum is reached the load is activated and timing will begin unless a pre-time
has been programmed. If a pre-time has been set then this will count first. If the
UP button is pressed during pre-time any remaining pre-time is cancelled, the load
activated and timing commences. Notes can be inserted while in pre-time or main
time up to any lockout time programmed. When the lockout time is reached
subsequent notes will be rejected. A session can be ended early by pressing the
DOWN button. This will cancel timing, turn off the load and reset the Wyvern®
2000N for reuse.
Error messages give feedback to the user as shown in table 1. All error messages
will show for 10 seconds on the display before returning to the current task,
however if the cashbox was detected as full or jammed then the display will show
“Err4” for 1 second every 5 seconds no matter what task is occurring until it is
cleared this by viewing option c. While the cashbox is jammed or full the note
reader will be inoperative and about every 5 minutes will try to stack the notes.
When this is achieved, or the cashbox emptied, the note reader will return online
and provided “Err4” has been cleared full operation can be continued.
NOTES.
If the Wyvern®2000N displays “Err4” on screen before the minimum start credit
value has been reached the operation must be cancelled by pressing the DOWN
button, clearing the jam or emptying the cash box and resetting “Err4” by entering
interrogation option c.
Error Description
Err0 Note not recognised
Err1 Note acceptor running slow
Err2 Strimming attempted
Err3 CH5 note rejected (fraud channel)
Err4 Stacker full or jammed
Err5 Abort during escrow (incorrect channel for CVPN)
Err6 Note may have been taken to clear jam
Err9 RS232 error - unknown data
Table 1
Wyvern®2000N Banknote Timer Handbook 11
Summary of Program Codes
Program
Code
Description See Page
Number
Value Used
4 Factory pre-set and cannot be
changed
N/A
5 MSC. Sets the minimum
amount before timing starts
7
6 Pre-time. Set to zero if not
required
7, 8
71-79 STPN. Session time per note.
Set to 00 if not required
5, 6
8 Cool down after session time.
Set to 00 if not required
8
9 Lockout (max session time). Set
to 00 if not required
8
A Not used N/A
b1-b9 CVPN. Currency value per note.
Set to 00 if not required
6, 7
d Real time 12 or 24 hour clock.
Set to 00:00 to turn clock off
5
Wyvern®2000N Banknote Timer Handbook 12
Summary of Interrogation Codes.
Selection
Code
Description Page Maximum
1- Total sessions activated 12 65535
2- Total hours load has been on 12 65535
3- Total hours used including pre
and cool down time
12 65535
c- Total currency value for
accepted notes
12 999999
13 Wyvern®2000N Banknote Timer Handbook
Specifications
Input Voltage: 110 to 240V 50Hz/60Hz 7A
Switching capacity: 1kVA (3.15A resistive)
Power consumption: Less than 10W in standby, no output load active
Colour: White
Time intervals: Programmable minutes (99 minutes 59 seconds max)
Display: 0.6 inch high green LED
Dimensions: H 350mm W 175mm D 140mm
Weight: 4.5kgm
Case: 18swg mild steel epoxy polyester powder coated
Lock: Radial 8 pin with two keys
Note stacker capacity: 300 street grade notes
IMPORTANT The Wyvern®2000N Timer is designed for indoor use only.
Service Information
The Wyvern®2000N Timer has been designed to provide reliable long-term use
for a variety of timing applications. No regular servicing is required, apart from
emptying of the note stacker unit.
WARNING
Remove all sources of power from the timer before attempting any repairs.
Technical Support
Before contacting technical support visit the FAQ section of Leisure Controls
International’s web site at www.lci.gb.com/technical_support.phtml where many
answers to questions may be found.
Alternatively contact technical support with the appropriate country distributor or
by contacting one of the following (support only in English):-
E-mail: [email protected]
Telephone: +44 (0) 1258 483574
Fax:: +44 (0) 1258 488526
© 2008 - 2012 Leisure Controls International Ltd
Table of contents
