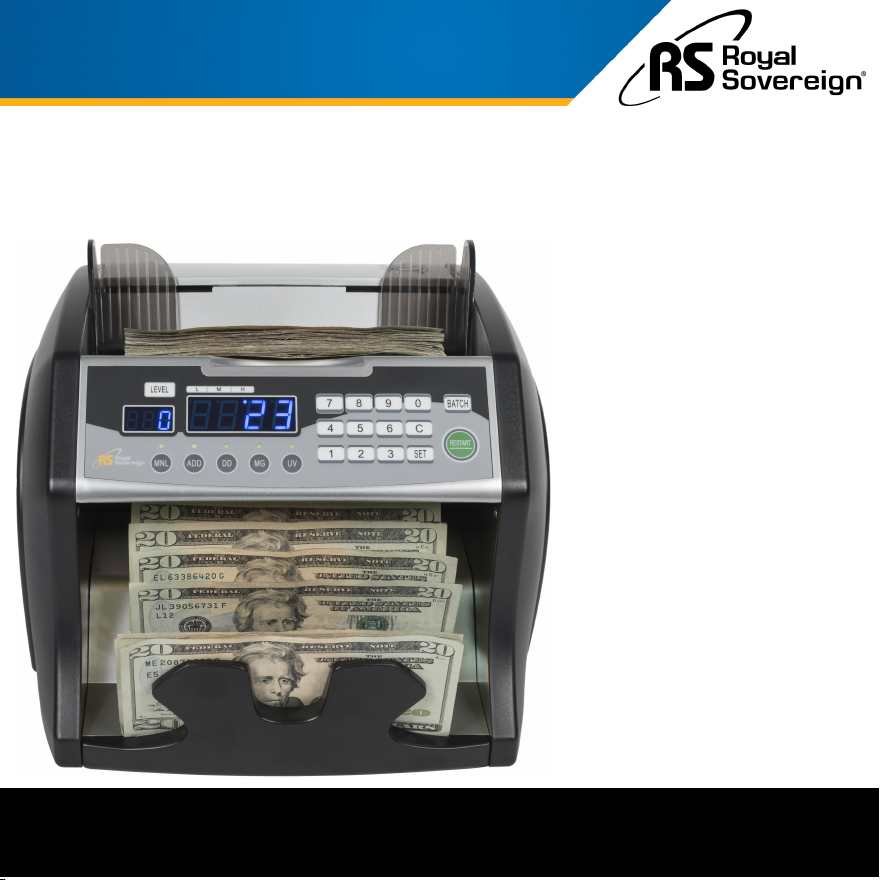

Royal Sovereign RBC-1003BK User manual

BILL COUNTER WITH COUNTERFEIT DETECTION
Owner's Manual
Royal Sovereign International, Inc. Please read and retain these instructions.
To register your product, please go to www.royalsovereign.com
RBC-1003BK

CONTENTS
Thank you for purchasing the Royal Sovereign Bill Counter with
Counterfeit Detection, RBC-1003BK. This manual will provide you with
safety information, instructions for optimal use, and proper care and
maintenance for your product. Please read this manual carefully
before operating.
SAFETY INSTRUCTIONS ............................................................................... 2
BOX CONTENTS & PRODUCT VIEW .................................................................. 3
QUICK START GUIDE ................................................................................... 4
CONTROL PANEL ........................................................................................ 5
PRODUCT OPERATION ................................................................................. 6 - 7
MAINTENANCE OF THE MACHINE ................................................................... 8
SPECIFICATIONS ....................................................................................... 8
TROUBLESHOOTING ................................................................................... 9
ERROR CODE DISPLAY AND SOLUTIONS ............................................................ 10
WARRANTY ............................................................................................. 11
1

SAFETY INSTRUCTIONS
When using this machine follow these basic safety precautions to reduce risk of fire, electric shock, or injury.
WARNING
1. Only use the power cord that comes with the machine. Using a different power cord may result in electric
shock, fire, or cause serious damage to the machine. Plug the power cord into a properly grounded wall outlet.
2. Do not use the machine if the power cord is damaged. This may result in electric shock, fire, or other hazards.
3. Do not place the machine in an area where it may be exposed to water or other liquids.
4. To reduce the risk of electrical shock, do not take apart the machine. When service or repair is needed bring
to a qualified service repair technician.
5. When unplugging the power plug, grip the plug to pull it out. Pulling the cord may result in electric shock, fire,
or damage to the machine.
6. Do not place objects on the power cord and do not bend it excessively. This may result in electric shock, fire,
or other hazards.
CAUTION
1. Before dusting the machine with a brush, unplug the machine from the wall. Do not use liquid or aerosol
cleaners on the machine.
2. Do not use the machine in areas with high temperature or high humidity. This may result in the machine not
working properly.
3. When not using the machine for long periods of time, unplug the power cord from the outlet.
Read & Fully Understand This Owner’s Manual Before Using This Machine.
2

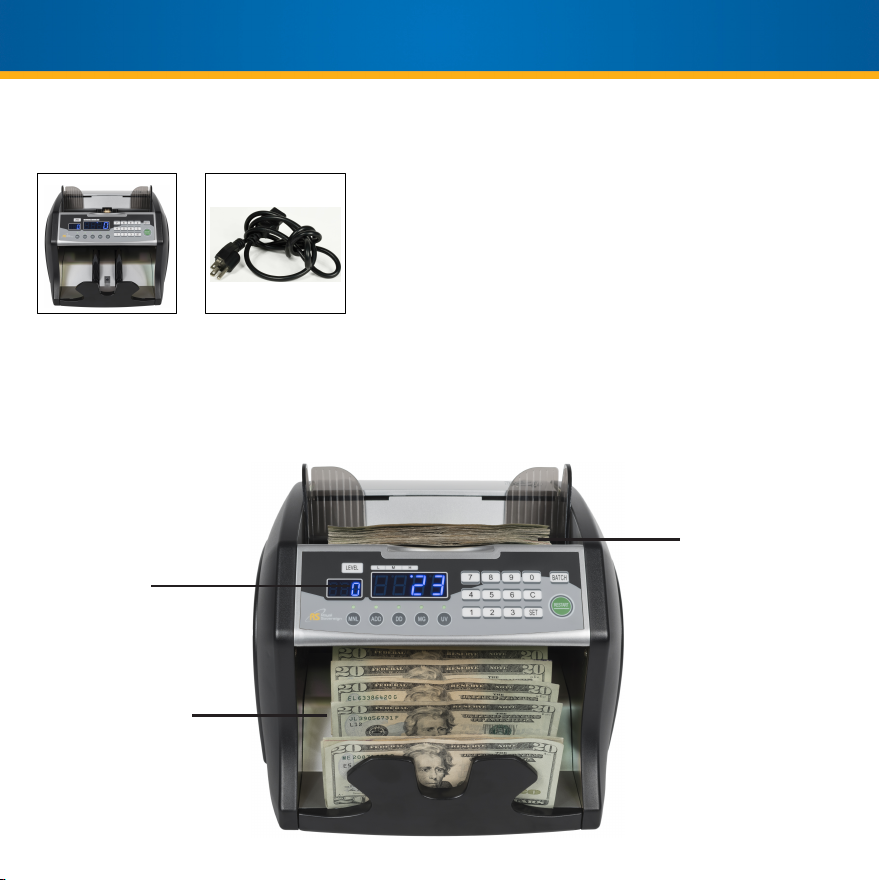

PRODUCT VIEW
Control Panel
Bill Receiving Vanes
Hopper
Bill Counter Power Cord
3
BOX CONTENTS

1. Plug the power cable into the back of the unit and into the wall power outlet.
2. On the back of the machine, flip the power switch to power on.
3. The machine will go through an automatic self-diagnostics test to ensure accurate bill
counting. The counting wheels in the bill counter will spin several times to ensure it is ready for
use. When the machine has completed its test run and "0" displays on the machine, it is now
ready for counting.
4. Place your currency into the hopper to automatically begin counting.
For More Detailed Instructions, Go To Page 6
4

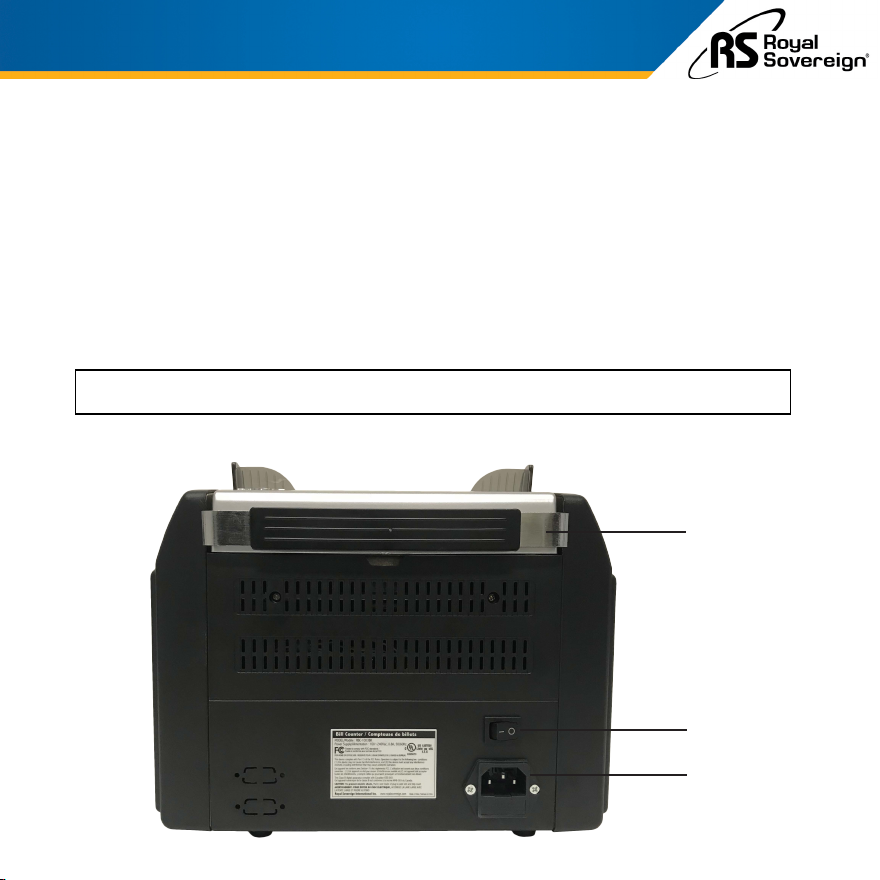

QUICK START GUIDE
Carrying Handle
Power Switch
Power Socket

5
CONTROL PANEL
UV Counterfeit Detection
Counterfeit bills often use white or bleached paper, which will glow under ultraviolet light. To use ultraviolet counterfeit
detection, press the "UV" key . When the UV detector finds a counterfeit bill, the machine will stop counting to allow
removal of the counterfeit bill and will display the error code on the preset display. To resume counting, simply press
"RESTART".
Magnetic Counterfeit Detection
If the magnetic detector does not find the presence of magnetic components th at are standard in authentic bills, the
machine will stop counting to allow removal of the counterfeit bill. The preset display will show the corresponding
error code. To use the magnetic counterfeit detection, press "MG". To adjust the magnetic sensitivity level, press
"LEVEL" for low, medium, and high. To resume counting, simply press "RESTART".
Dimensional Detection
The dimension detector measures the width of the center of each bill by using infrared light. If the detector finds an
odd-sized bill, the machine will stop counting to allow removal of the bill and display the error code on the preset
display. To use dimensional counterfeit detection, press the "DD" key. The dimension (DD) counterfeit detection
sensitivity level is preset on level 1 (highest level).To adjust width sensitivity level, press "SET" and select 1-5, 1 for
lowest, 5 for highest.

6
PRODUCT OPERATION
1. Attach power cable to back of machine, plug into a three prong outlet, and turn power switch on.
-The unit will conduct an automatic self-diagnostic test to ensure accurate counts.
-After five seconds of the counting wheels spinning, the screen will display a "0".
-If there is a problem, the preset display will show an error code. (See ERROR CODE DISPLAYS
-LOCATED ON PAGE 10.)
2. Select bill counting settings: Before counting, select counting settings that are related to your counting
needs:
-ADD mode:
The ADD mode displays the cumulative total of all bills counted. To turn ADD mode on, press "ADD".
-BATCH mode:
The machine is preset to common counting mode, which automatically counts all bills placed into the
hopper. To count bills in batches, press the "BATCH" key. Batching is preset to 100 bills. To change
batch amount, press "C" to clear, and use the keypad to enter a batch number between 1 and 999.
Press "SET" to save the setting. Under the batch counting mode, once the hopper is loaded, the
machine will start counting and will stop when the counted quantity reaches the preset batch
quantity. To repeat the batch counting operation under the same preset batch quantity, simply
remove the counted banknotes from the stacker. The machine will batch the next group of banknotes
under the same settings. If you wish to keep batching without removing the banknotes from the
stacker, press the “RESTART” button.

7
PRODUCT OPERATION (CONTINUED)
-Counterfeit Detection Methods
All methods are automatically on when the unit is powered up. To manually turn off any or all methods
see (CONTROL PANEL - LOCATED ON PAGE 5.)
-AUTO or MANUAL Start
The machine is preset to automatically start counting bills once placed into the hopper. To change to the
manual start mode, press "MNL", and insert the bills into the hopper, and press "RESTART".
3. Place bills into the hopper to begin counting; press "RESTART" if in manual mode
-Bill Counting Mode
The bill counting mode is preset on type 2. To adjust the counting mode, press "SET" twice. Preset
display window will display "F". Use the keypad to select a type 1-3.
•Type 1 will not count counterfeit or irregular bills and will stop counting to allow for the
removal of bill(s) in question, and allow re-insertion of all bills into the hopper to restart
counting from zero.
•Type 2 will stop counting when a counterfeit or irregular bill is detected and include these bills
in the master count (shown on the count display)
•Type 3 will count counterfeit or irregular bills and continue counting, unless there is a jam
error (either EA2 or EA3). In this case, bill(s) in question are counted, and the machine will
stop to allow re-insertion of all bills into the hopper to restart counting from zero.

8
MAINTENANCE OF THE MACHINE
WARNING: Before doing any dusting, turn the power switch off and disconnect the power cord from the machine. It is very
important to clean all the sensors in the machine with a soft brush to avoid any paper particles or dust from sticking to the
light transmitter or the light-receiver sensors. It is important to clean the inside of the machine occasionally. Unplug the
machine and lift the top cover to gain access to the interior.
If necessary, the glass surfaces of the detectors may also be wiped with a soft cloth damped with alcohol.
To get the best results out of your bill counter, Royal Sovereign recommends using Royal Sovereign Cleaning Cards
(RBC-CLN) to remove dirt, dusts, oils, and other contaminates from bill counters. With the machine on, simply run the
cleaning card through the machine like a bill. This cleaning card will run through and clean the sensors of dirt and other
contaminates. Cleaning cards are recommended to be used after every 100 cycles.
CAUTION: DO NOT CHANGE THE POSITION OF THE DETECTORS AND/OR OPTICAL SENSORS
SPECIFICATIONS
Model RBC-1003BK
Power single-phase 100~240V 50/60Hz (1±5%)
Power Consumption <50W
Temperature Range of Operation 0~40°C / 32~104°F
Hopper Capacity 300 notes
Counting Speed 1,200 bills per minute
Accepted Note Size
Display Range Counting: 4 Digits / Batch Counting: 3 Digits
Dimensions 249 × 246 × 269 mm (9.80 x 9.70 x 10.60 in)
Net Weight 10.10 lbs. / 4.60kg
4.3" × 2.0" ~ 9.8" × 7.7" / 110 × 50~185 × 90(mm)

9
TROUBLESHOOTING
Note: when counting and detecting is not accurate, please check the machine as follows:
Problem Reason Solution
Bills get damaged Hopper Tension is
too tight
To loosen the tension, please turn the bill
thickness adjuster (located on the top of the
machine) one notch to the right (+). Repeat bill
counting and adjust if problem continues.
Machine runs slow Hopper Tension is
too tight
To loosen the tension, please turn the bill
thickness adjuster (located on the top of the
machine) one notch to the right (+). Repeat bill
counting and adjust if problem continues.
Bills eject from the machine Hopper Tension is
too loose
To tighten the tension, please turn the bill
thickness adjuster (located on the top of the
machine) one notch to the left (-). Repeat bill
counting and adjust if problem continues.
Display shows miscount Hopper Tension is
too loose
To tighten the tension, please turn the bill
thickness adjuster (located on the top of the
machine) one notch to the left (-). Repeat bill
counting and adjust if problem continues.
Machine stops and shows
EA2, EA3
The position of the
thickness
adjustment know is
not correct.
Adjust the adjustment knob counterclockwise
(towards “-“).
After reaching the batch
number, the machine does
not start when the notes are
taken off the stacker.
Too much dust on
stacker sensor Clean the sensor
Counting display window
displays “0” but does not
count.
Dust on the counting
sensor Clean the sensor
