LCSI BESP-7616W User manual

BESP-7616W
16 Port Nway Fast Ethernet
PoE Web Smart Switch
User’s Manual
www.lcsi.com.tw

Web Smart Switch Configure
Please follow the steps to configure this Web Smart switch.
Step 1: Use a twisted pair cable to connect this switch to your PC.

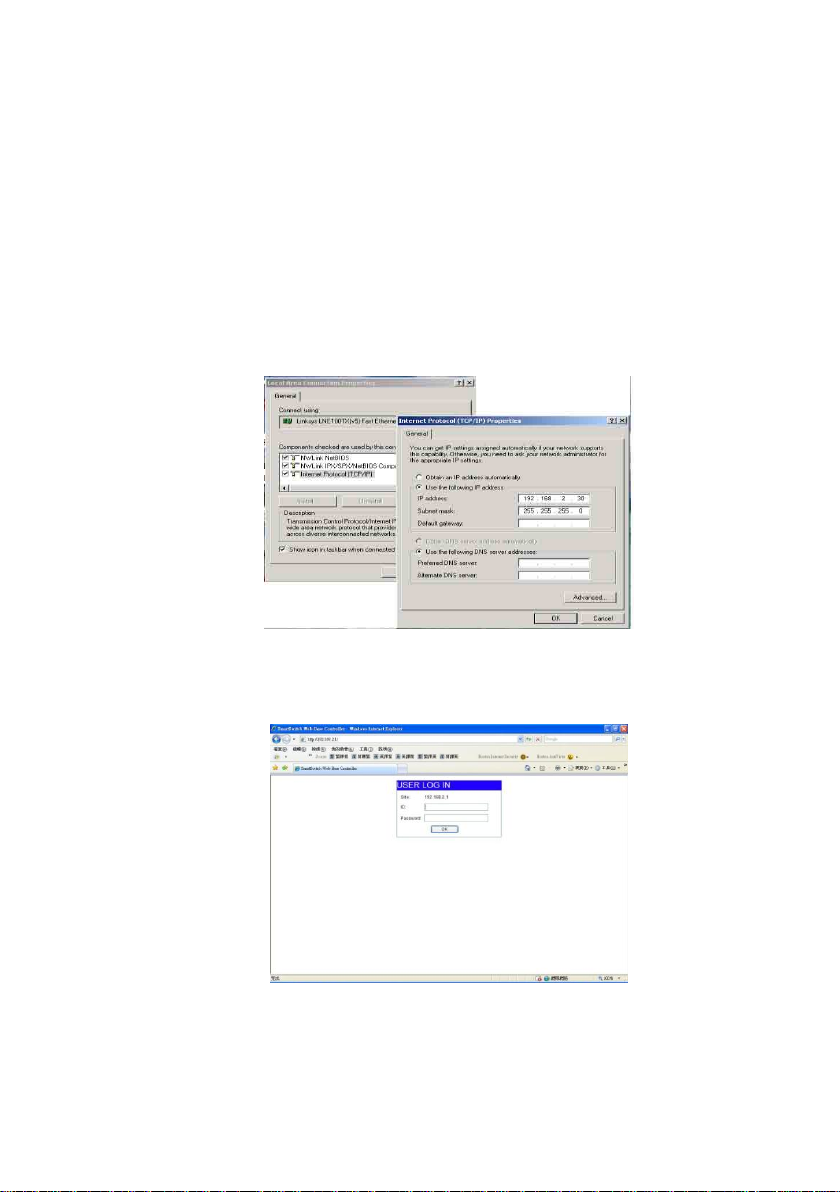

Step 2: Set your PC’s IP to 192.168.2.xx.
Step 3: Open the web browser (like IE…), and go to 192.168.2.1
Then you will see the login screen.
ID and the password: admin

Step 4: After the authentication procedure, the home page shows up.
Select one of the configurations by clicking the icon.
- Administrator
- Port Management
- VLAN Setting
- Per Port Counter
- Trunk Setting
- QoS Setting
- Security Filter
- Configuration Backup/Recovery
- Miscellaneous
- Logout

Administrator: Authentication Configuration
1. Change the user name and the password.
2. Click “Update” to confirm the new change.
3. Turn off the power and reset this switch.
4. After resetting, turn on the switch for the new change.
Now, you can use the new user name and the password.

Administrator: System IP Configuration
1. Change the IP address: type the new IP address or select
DHCP IP configuration.
2. Click “Update” to confirm the new change.
“Setting Process OK!!” will be shown on the screen.
3. Turn off the power and reset this switch.
4. After resetting, turn on the switch for the new change.
Now, the setting of “System IP Configuration” is finished.

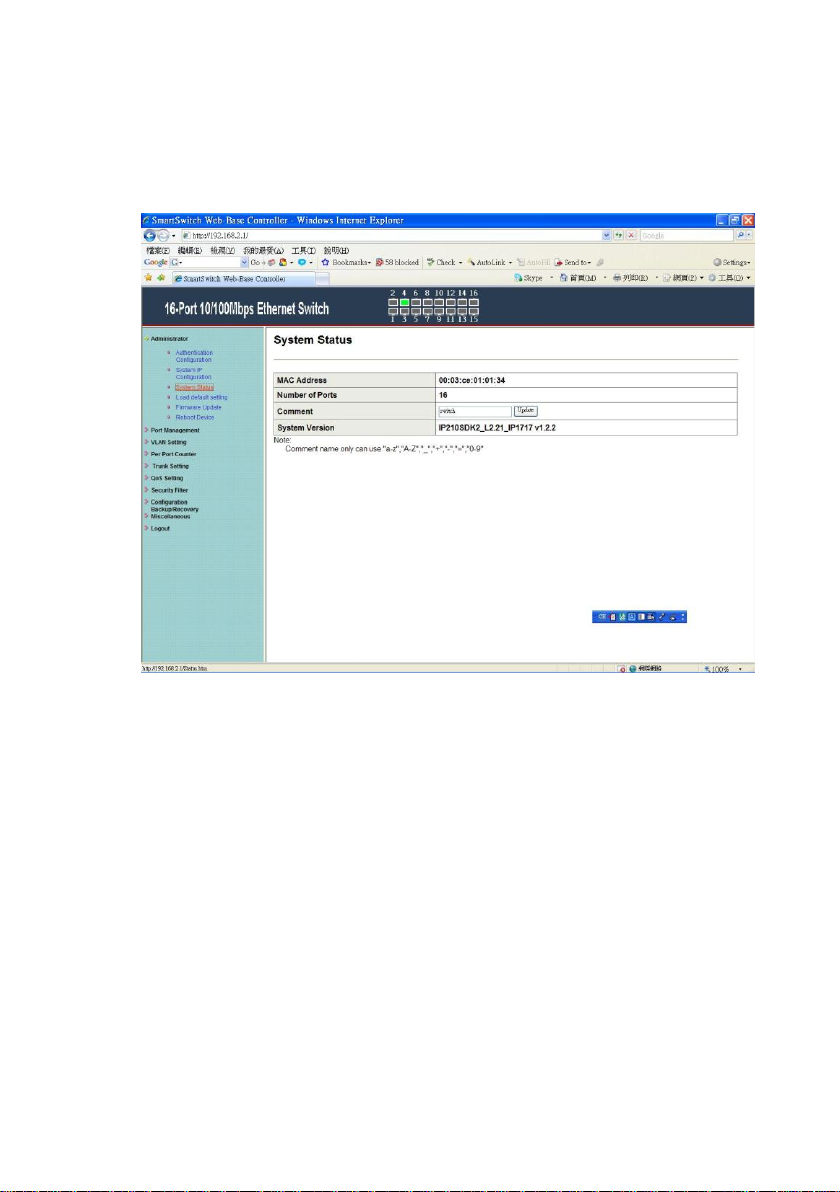

Administrator: System Status
MAC address and system version will be shown on the screen.
1. Change the new comment of this switch by typing the new
comment.
2. Click “Update” to confirm the new change.
Now, the setting of “System Status” is finished.

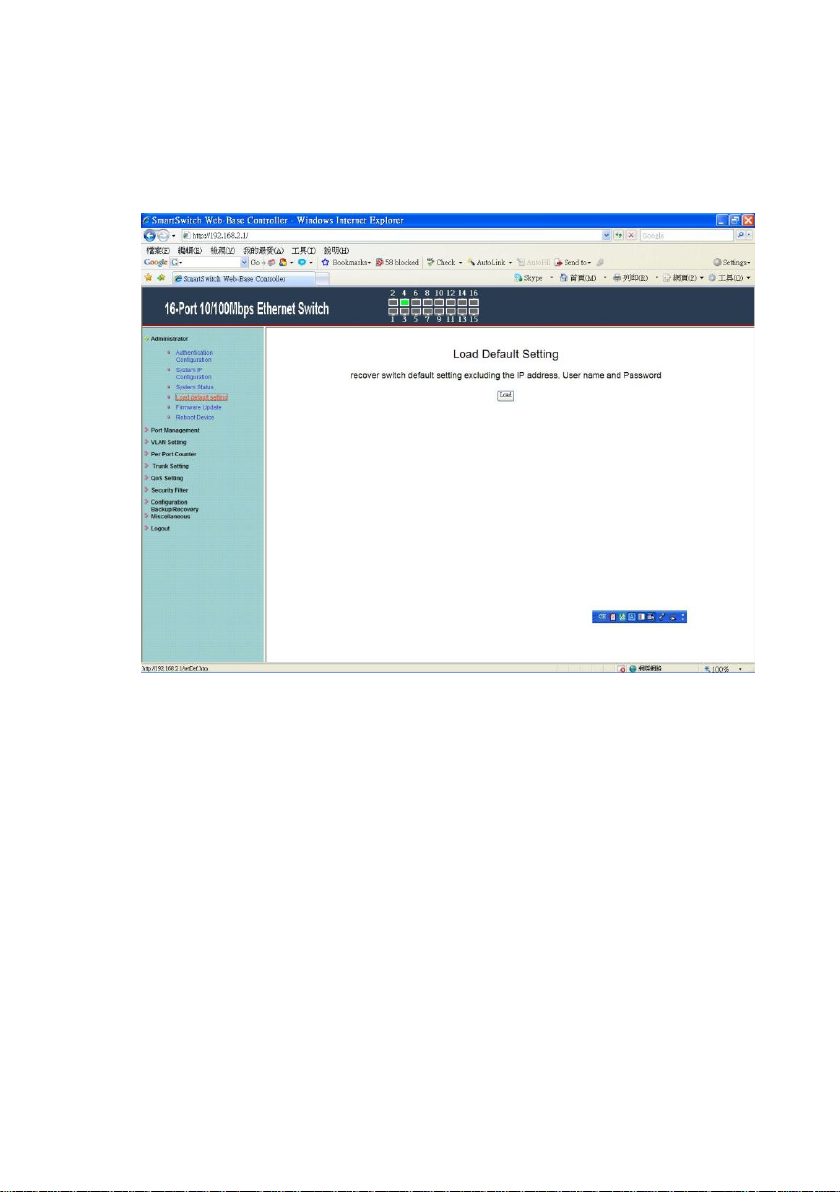

Administrator: Load Default Setting
1. Click “Load” to back to the factory default setting.
2. Turn off the power and reset this switch.
3. After resetting, turn on the switch for the new change.
Now, the default is loaded.

Administrator: Firmware Update
Follow the instruction on the screen to update the new firmware.
Please contact with your sales agents to get the latest firmware
information.

Administrator: Reboot Device
1. Click “Confirm” to reboot the device.
Now, the setting of “Reboot Device” is finished.

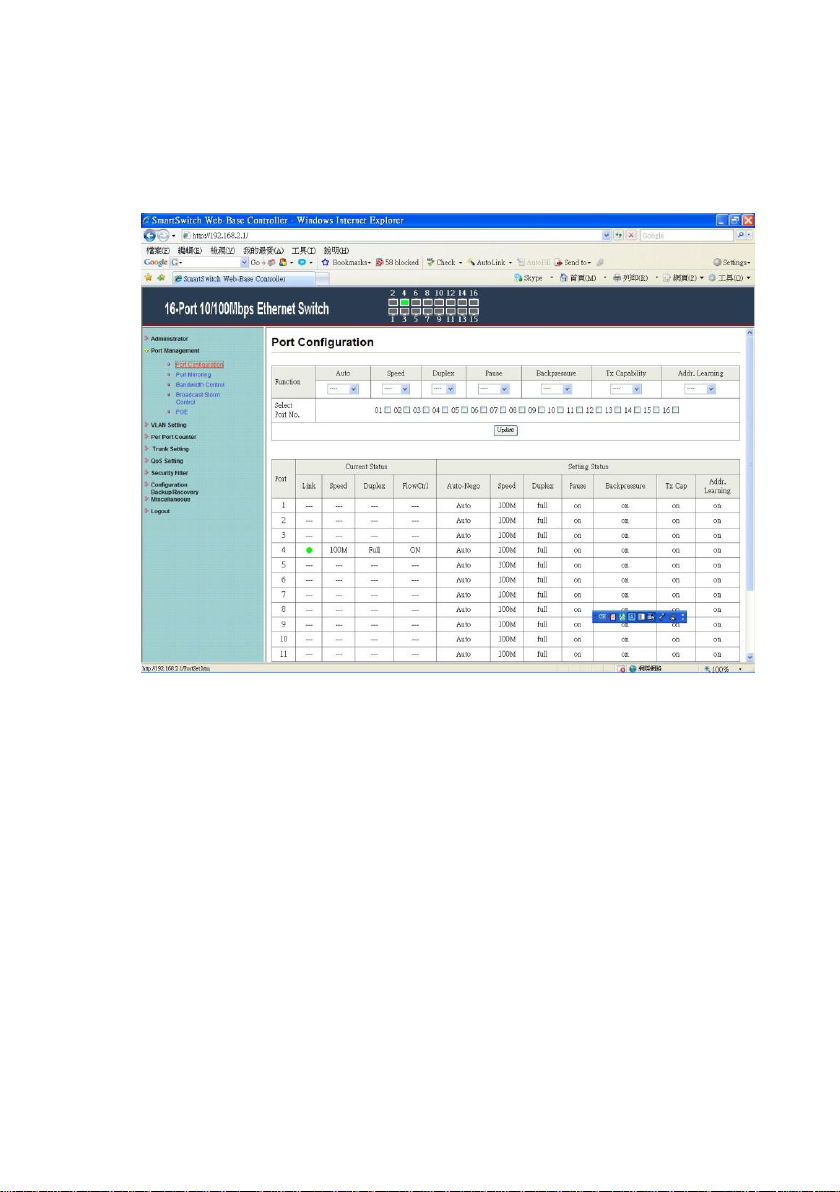

Port Management: Port Configuration
Select the “Port No.” - configure the mode below:
1. “Auto-Negotiation” - enable/disable this function of the port.
2. “Speed” - select the 10M or 100M mode of the port.
3. “Duplex” - select the port is full or half-duplex mode.
4. “Pause” - enable/disable the port.
5. “Backpressure” - enable/disable the backpressure of the port.
6. “Tx Capability” - enable/disable TX capability of the port.
7. “Addr. Learning” - enable/disable this function of the port.

Port Management: Port Mirroring
Port Mirroring is used to mirror traffic, RX, TX or TX&RX, from
Source port to Destination port for analysis.
1. Select the Destination port: you can choose port 1 to port 16
2. Select the Source port: by clicking the checking box of the
port.
3. Click “Update” to save the setting.
Now, the setting of “Port Mirroring” is finished.

Port Management: Bandwidth Control
1. Select the “Port No.”: you can choose port 1 to port 16
2. “TX Rate”: set the different transmission rate of this selected
port and choose the speed from 1~255 based on two speed
levels.
3. “RX Rate”: set the different receiving rate of this selected port
and choose the speed from 1~255 based on two speed levels.
4. Click “Update” to confirm the setting.
Now, the setting of “Bandwidth Control” is finished.

Port Management: Broadcast Storm Control
1. Set the threshold of per port to define the status of broadcast
packets.
2. Click “Update” to confirm the setting.
Now, the setting of “Broadcast Storm Control” is finished.

Port Management: PoE Configuration
Remote access and monitor the attached PD (Powered Device) status
by using Enable/Disable function.
1. Enable: POE of the port is able to supply power to the attached
PD (Powered Device)
2. PSE Current & Minimum Output Power: The status of the
port current and minimum output power.
3. POE class: each POE port will detect the class of the attached
PD (Powered Device)
4. Click “Update” to confirm and finish the setting.

VLAN Setting: VLAN Mode
There are two VLAN modes : Port Based VLAN and Tagged VLAN.
1. Click “Change VLAN mode” to select the mode.
Now, the setting of “VLAN Mode” is finished.

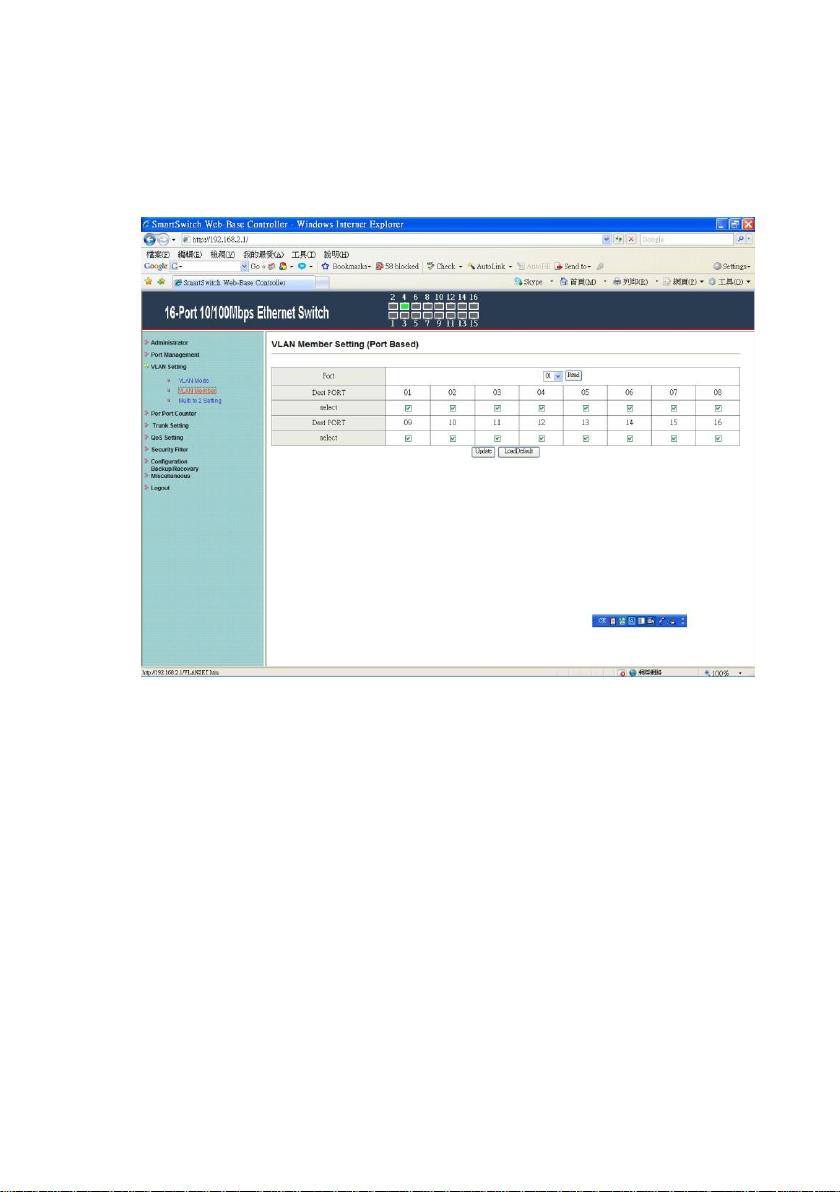

VLAN Setting: VLAN Member Setting (Port Based)
You can select a port group.
1. Click the port numbers: which you want to put them into the
selected VLAN group.
2. Click “Update” to confirm and finish the setting.
3. Click “LoadDefualt” to back to the original factory setting.
Now, the setting of “VLAN Mode” is finished.

VLAN Setting: Multi to 2 Setting
This is a special design for easily setting the switch VLAN into
“VLAN Per Port“.
1. Choose “Destination Port No”.
2. Choose “Disable Port”
3. Click “Update” to confirm and finish the setting.
After this setting, all ports can only connect to the destination port.

Per Port Counter: Counter Category
You can read the transmitting and receiving packet of the connecting
port.
Click “Refresh” or “Clear” the data.

Trunk Setting: Trunk Configuration
There are two groups to choose and max. for each group is 4 ports.
Set up port trunk group mode as below:
1. “Port ID” - you can select port number you want to include into
the same group.
2. “SA” - you can select Source Address of the port you want to
include into the same group.
3. “DA” - you can select Destination Address of the port you want
to include into the same group.
4. “SA & DA” - you can select both Source Address and
Destination Address of the port you want to
include into the same group.
5. Click “Update” to confirm and finish the setting.

QoS Setting: Priority Mode
There are three Priority Modes to select.
1. “First-in-First-Service” - the first receiving packet will be firstly
transmitted.
2. “All-High-before-Low” - packets set in high priority mode will
be firstly transmitted before packets set
in low priority mode.
3. “4 Queue WRR (Weight-Round-Robin)” -you can set the ratio of
the transmitting packet for the low priority to high priority.
**WRR –Q1(Low)/Q2(Middle Low)/Q3 (Middle High)/Q4 (High)
4. Click “Update” to confirm and finish the setting.
