LD U300 IEM Series User manual

USER´S MANUAL
BEDIENUNGSANLEITUNG
MANUEL D´UTILISATION
MANUAL DE USUARIO
INSTRUKCJA OBSŁUGI
MANUALE D´USO
U300®IEM SERIES
WIRELESS IN-EAR MONITORING SYSTEMS

3
4
5
7
8
10
CONTENTS
ENGLISH
SAFETY INFORMATION
INTRODUCTION
CONNECTIONS, CONTROL AND DISPLAY ELEMENTS
TROUBLESHOOTING
SPECIFICATIONS
MANUFACTURER DECLARATION
2

3
ENGLISH
YOU‘VE MADE THE RIGHT CHOICE!
We have designed this product to operate reliably over many years. LD Systems stands for this with its name and many years of experience as
a manufacturer of high-quality audio products. Please read this User‘s Manual carefully, so that you can begin making optimum use of your LD
Systems product quickly.
You can nd more information about LD-SYSTEMS at our Internet site WWW.LD-SYSTEMS.COM
SAFETY INFORMATION
1. Please read these instructions carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.
5. Use the equipment only in the intended manner and for the intended purpose.
6. Use only sufciently stable and compatible stands and/or mounts (for xed installations). Make certain that wall mounts are properly installed
and secured. Make certain that the equipment is installed securely and cannot fall down.
7. During installation, observ e the applicable safety regulations for your country.
8. Never install and operate the equipment near radiators, heat registers, ovens or other sources of heat. Make certain that the equipment is always
installed so that is cooled sufciently and cannot overheat.
9. Never place sources of ignition, e.g., burning candles, on the equipment.
10. Ventilation slits must not be blocked.
11. Keep a minimum distance of 20 cm around and above the device.
12. Do not use this equipment in the immediate vicinity of water (does not apply to special outdoor equipment - in this case, observe the special
instructions noted below. Do not expose this equipment to ammable materials, uids or gases. Avoid direct sunlight!
13. Make certain that dripping or splashed water cannot enter the equipment. Do not place containers lled with liquids, such as vases or drinking
vessels, on the equipment.
14. Make certain that objects cannot fall into the device.
15. Use this equipment only with the accessories recommended and intended by the manufacturer.
16. Do not open or modify this equipment.
17. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards.
18. During transport, make certain that the equipment cannot fall down and possibly cause property damage and personal injuries.
19. If your equipment is no longer functioning properly, if uids or objects have gotten inside the equipment or if it has been damaged in anot her
way, switch it off immediately and unplug it from the mains outlet (if it is a powered device). This equipment may only be repaired by authorized,
qualied personnel.
20. Clean the equipment using a dry cloth.
21. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate plastic and paper/cardboard.
22. Plastic bags must be kept out of reach of children.
23. Please note that changes or modications not expressly approved by the party responsible for compliance could void the user´s authority to
operate the equipment.
FOR EQUIPMENT THAT CONNECTS TO THE POWER MAINS
24. CAUTION: If the power cord of the device is equipped with an earthing contact, then it must be connected to an outlet with a protective ground.
Never deactivate the protective ground of a power cord.
25. If the equipment has been exposed to strong uctuations in temperature (for example, after transport), do not switch it on immediately. Mois-
ture and condensation could damage the equipment. Do not switch on the equipment until it has reached room temperature.
26. Before connecting the equipment to the power outlet, rst verify that the mains voltage and frequency match the values specied on the equip-
ment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains
power values match. If the included power cord or power adapter does not t in your wall outlet, contact your electrician.
27. Do not step on the power cord. Make certain that the power cable does not become kinked, especially at the mains outlet and/or power adapter
and the equipment connector.
28. When connecting the equipment, make certain that the power cord or power adapter is always freely accessible. Always disconnect the equip-
ment from the power supply if the equipment is not in use or if you want to clean the equipment. Always unplug the power cord and power adapter
from the power outlet at the plug or adapter and not by pulling on the cord. Never touch the power cord and power adapter with wet hands.
29. Whenever possible, avoid switching the equipment on and off in quick succession because otherwise this can shorten the useful life of the
equipment.
30. IMPORTANT INFORMATION: Replace fuses only with fuses of the same type and rating. If a fuse blows repeatedly, please contact an authorised
service centre.
31. To disconnect the equipment from the power mains completely, unplug the power cord or power adapter from the power outlet.
32. If your device is equipped with a Volex power connector, the mating Volex equipment connector must be unlocked before it can be removed.
However, this also means that the equipment can slide and fall down if the power cable is pulled, which can lead to personal injuries and/or other
damage. For this reason, always be careful when laying cables.
33. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.

4
CAUTION:
To reduce the risk of electric shock, do not remove cover (or back). There are no user serviceable parts
inside. Maintenance and repairs should be exclusively carried out by qualied service personnel.
The warning triangle with lightning symbol indicates dangerous uninsulated voltage inside the unit, which may cause an electrical
shock.
The warning triangle with exclamation mark indicates important operating and maintenance instructions.
Warning! This device is designed for use below 2000 metres in altitude.
Warning! This product is not intended for use in tropical climates.
• Reliable wireless transmission with a range of up to 100 m
• Low-reaching frequency response
• 12 selectable channels
• Choice of stereo or mono mode
• Up to 6 systems can be used simultaneously
• 10-hour bodypack operating time with two AA batteries
• Unlimited number of bodypacks can be set to the same transmission frequency
• Channel and RF reception displayed on bodypack
• Transmitter in rugged metal casing with stereo level display
• Removable antenna with BNC connection
• 19” rack assembly kit included.
Scope of delivery of LDU30xIEM
transmitter, pocket receiver, BNC antenna, power pack, 2x AA batteries, 19" rack installation kit, operating instructions
Scope of delivery of LDU30xIEMHP
transmitter, pocket receiver, stereo ear receiver, BNC antenna, power pack, 2x AA batteries, 19" rack installation kit, operating instructions
Note
Use of the wireless microphone system may require a license depending on the country where it is used. For detailed information, please contact
the relevant authority in your country.
Unlimited freedom of movement on the stage and always perfect monitor sound directly in your ear – this is why we developed
INTRODUCTION
the wireless U300 in-ear monitoring systems in Germany. With their clear, modern design and easy operation,
they are the perfect choice, and not just for beginners. The reliable range up to 100 m and a frequency response of 50 Hz to 16 kHz
guarantee professional performance. Up to six systems can be used at the same time. U300 in-ear sets are available for use in 5 frequency bands:
LDU 304.7 IEM – in-ear monitoring system 470 - 490 MHz
LDU 305.1 IEM – in-ear monitoring system 514 - 542 MHz
LDU 305 IEM – in-ear monitoring system 584 - 608 MHz
LDU 306 IEM – in-ear monitoring system 655 - 679 MHz
LDU 308 IEM – in-ear monitoring system 823 - 832 MHz + 863 - 865 MHz
CAUTION! HIGH VOLUMES IN AUDIO PRODUCTS!
This device is meant for professional use. Therefore, commercial use of this equipment is subject to the respectively applicable national accident
prevention rules and regulations. As a manufacturer, Adam Hall is obligated to notify you formally about the existence of potential health risks.
Hearing damage due to high volume and prolonged exposure: When in use, this product is capable of producing high sound-pressure levels (SPL)
that can lead to irreversible hearing damage in performers, employees, and audience members. For this reason, avoid prolonged exposure to
volumes in excess of 90 dB.
Adapter shall be installed near the equipment and shall be easily accessible. Adapter, Manufacturer:
JFEC Electronic Technical Product Inc, Model: JF005WR-1200050VH, input 100-240Vac, 50/60Hz, 0.18A;
output: 12Vdc0.5A; The plug considered as disconnect device of adapter.
Sound pressure ≤20mV.

5
1
2 3
5
4
6
4
7
8
9 9 10
11

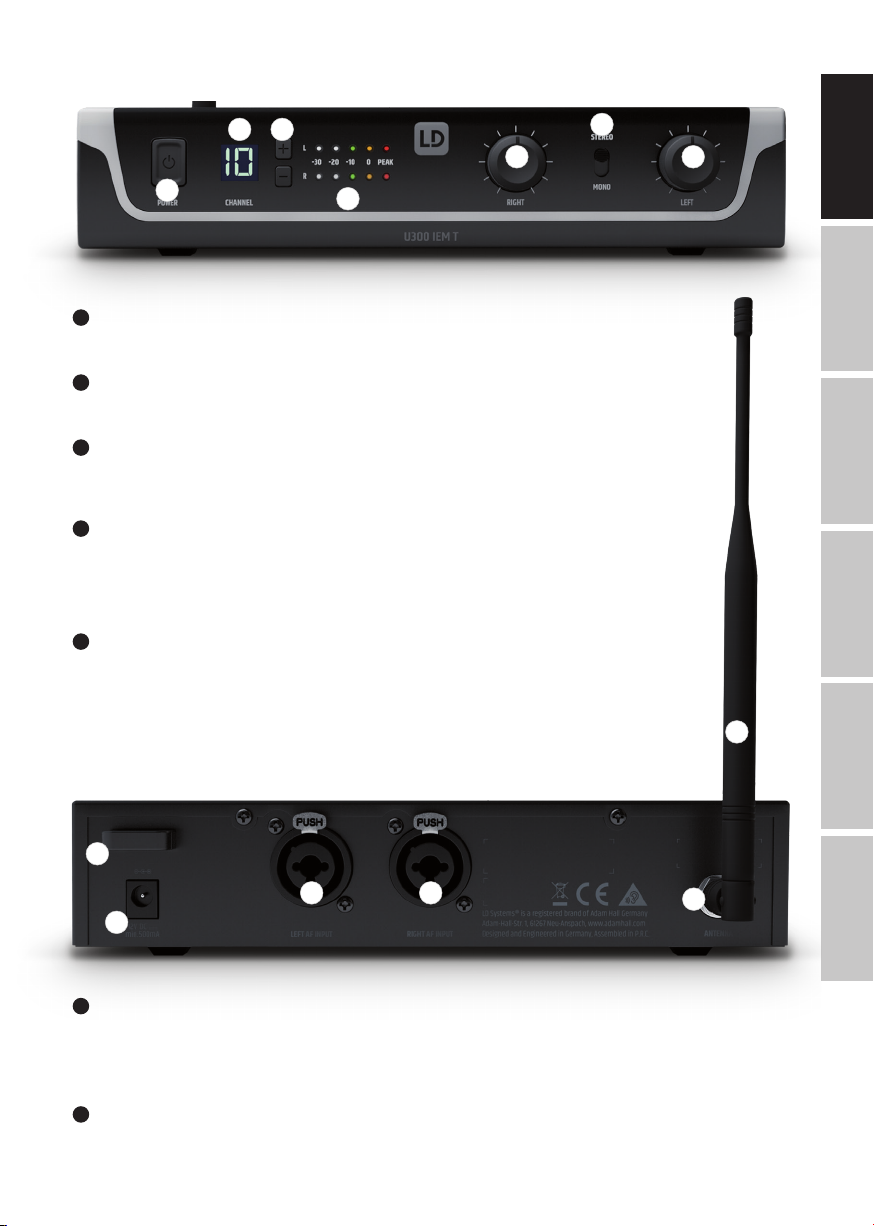

1POWER
On/off switch. Press and hold this button for a duration of approx. 1 second in order to turn the device on or off.
2CHANNEL DISPLAY
Illuminated LC display to show the radio channel.
3CHANNEL + / -
Switch to set the radio channel 1 to 12. In order to establish a radio connection between the transmitter and receiver, the radio
frequency of both devices must match.
4LEFT / RIGHT
Knob to adjust the input signal level of the left and right audio channels. In stereo mode, the signals of the left and right
channel should have the same level in order to have a homogeneous stereo signal in the pocket receiver. Use the equalizer in
mono mode to create a custom mix of the left and right channels, meaning the volume of both channels can be set as needed
(example: left channel = mixer mono sum, right channel = solo vocals).
5LEVEL DISPLAY L / R
5 segment LED chain to display the audio input signal level. For an optimum signal-to-noise ratio, level the left and right signals
as high as possible, but make sure that the red PEAK LED does not light up, or only briey, to avoid signal distortion.
6STEREO / MONO
Switch to set the operating mode.
STEREO: A pending stereo signal is transmitted to the pocket receiver in stereo.
MONO: Pending audio signals are summed internally and transmitted to the pocket receiver in mono.
7DC CONNECTOR
Low-voltage connector to supply power to the device. Please use only the provided power adapter.
CONNECTIONS, CONTROL AND DISPLAY ELEMENTS

6
14
12
15
13
8CABLE STRAIN RELIEF
Use the strain relief for the exible cable of the power adapter to protect the transmitter’s low-voltage connector and the power adapter’s low-volt-
age plug from unintentional damage and to avoid pulling out the connector inadvertently.
9AF INPUT LEFT / RIGHT
XLR/6.3 mm jack combination socket for the left and right input channel (XLR = symmetric, jack = asymmetric).
10 ANTENNA
BNC connector for the provided transmitter antenna.
11 TRANSMITTER ANTENNA
Transmitter antenna with BNC connector.
16 17 18
19
12 DISPLAY
Illuminated DC display with dual functions. When switched on, the display illuminates
for several seconds and shows the channel number currently set. If the batteries have
low power, the display begins to ash red.
13 CHANNEL + / -
Switch to select radio channels 1 to 12. Press and hold one of the two buttons for
approx. 2 seconds in order to change the setting. The currently set channel
number will begin to ash and you can select the desired radio channel using the +
and - buttons. The ashing stops after approx. 5 seconds, the display illumination goes
out, and the selected radio channel is activated. In order to establish a radio connec-
tion between the transmitter and receiver, the channel number or radio frequency of
both devices must match.
14 ANTENNA
Antenna of the pocket receiver. For optimal reception, do not obscure or bend.
15 BATTERY COMPARTMENT
To replace the batteries, open the battery compartment of the
pocket receiver by simultaneously pressing on the markings on both sides of the battery
compartment cover and open the cover towards the front. Remove the used batteries
and insert fresh batteries (2x AA/LR6, alkaline) as depicted in the battery compartment.
Now fold the battery compartment cover back onto the housing until the lid clicks into
place. Do not use the receiver for extended periods of time, and please remove the
batteries in order to prevent damage to the receiver due to leaky batteries.

7
20
16 PHONES
3.5 mm stereo jack socket to connect earphones or headphones.
17 ST
The green ST status LED illuminates when stereo mode is activated on
the transmitter. The LED goes out as soon as mono mode is activated.
18 RF
The yellow RF LED display illuminates when a radio signal is present. If the LED does
not illuminate while in operation, check whether the receiver’s radio channel matches
that of the transmitter, or reduce the distance between the receiver and transmitter.
19 ON / OFF - VOL
Turn the volume knob clockwise over the stop to turn the receiver on and further
to the right to increase the volume. Turn the knob counterclockwise to reduce the
volume and past the stop to turn off the receiver. Always keep the volume at a
comfortable level to avoid hearing damage.

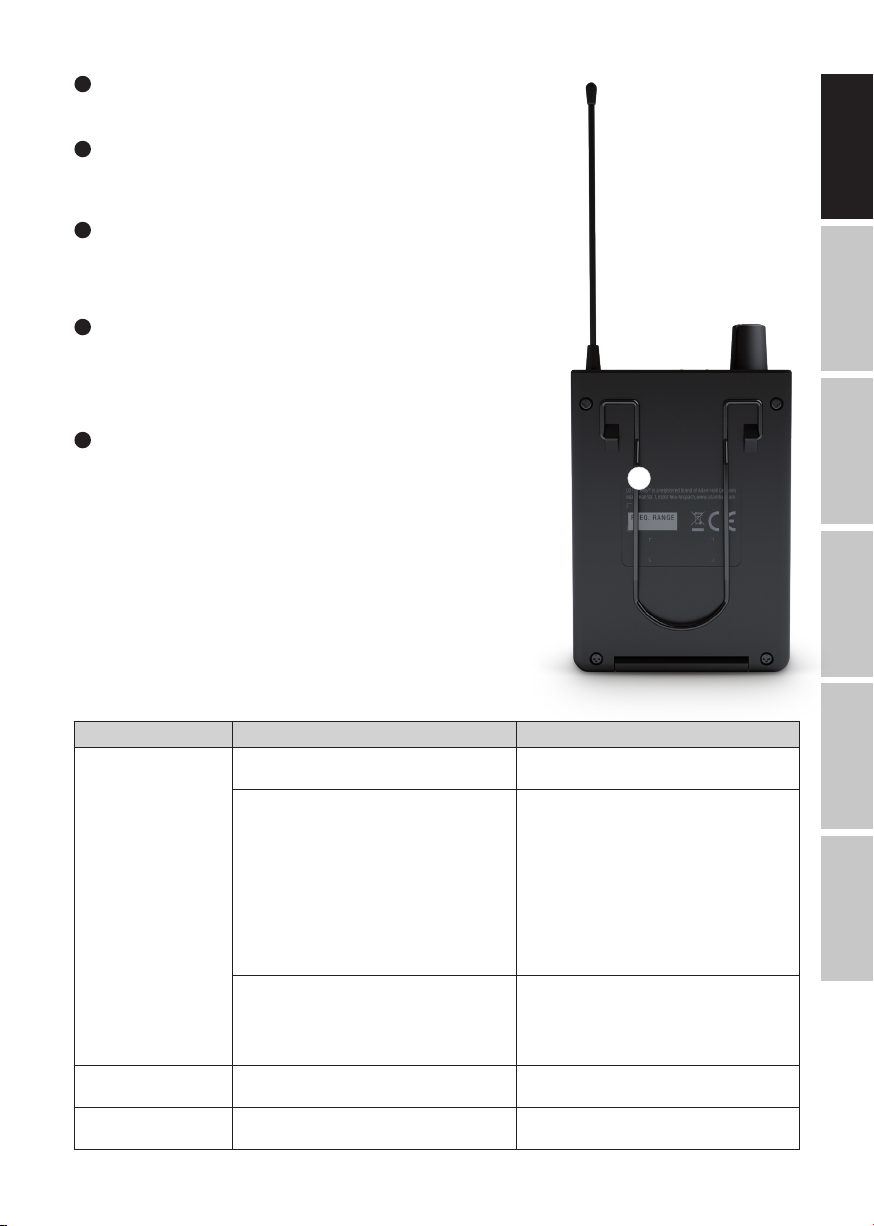

20 BELT CLIP
There is a belt clip on the rear side of the pocket receiver that can be used to attach
the receiver to a waistband, belt, or similar.
TROUBLESHOOTING
PROBLEM DISPLAY SOLUTION
No audio signal or level
too low
Receiver: RF LED is not illuminating. Verify that the transmitter is switched on and
connected.
Receiver: RF LED is not illuminating. Battery levels
are okay.
Transmitter: Device is switched on.
Verify that the radio frequency of the transmitter and
receiver matches.
Reduce the distance between transmitter and
receiver.
Make sure that the transmitter and receiver and
are in a direct line of sight.
Make sure that the receiver antenna is intact and not
obscured.
Receiver: RF LED illuminates. Increase the signal level on the transmitter or
increase the volume of the pocket receiver.
Verify that the headphones are correctly
connected.
Distortions and interference Receiver: RF LED illuminates. Remove possible source of interference (digital
devices, other radio systems).
Distorted sound Transmitter: PEAK LED illuminates.
Receiver: LC display ashes red.
Lower the signal level of the transmitter.
Replace the batteries in the pocket receiver.

8
ENGLISH DEUTSCH FRANCAIS ESPAÑOL POLSKI ITALIANO
Model Number: LDU 304.7 IEMT
In-Ear Monitoring
LDU 305.1 IEMT
In-Ear Monitoring
LDU 305 IEMT
In-Ear Monitoring
LDU 306 IEMT
In-Ear MonitoringProduct Type:
LDU 308 IEMT
In-Ear Monitoring
Type: Transmitter Transmitter Transmitter Transmitter
Transmission frequency
range:
470 - 490 MHz 514 - 542 MHz 584 - 608 MHz 655 - 679 MHz
RF-Channels:
Transmission method:
Rated HF output power:
Antenna gain:
Antenna
connector:
Audio Frequency
response +/- 1,5dB:
50 Hz – 16000 Hz 50 Hz – 16000 Hz 50 Hz – 16000 Hz 50 Hz – 16000 Hz 50 Hz – 16000 Hz
THD+N @ 1kHz: < 0.5% < 0.5% < 0.5% < 0.5% < 0.5%
S/N –Ratio @ 1kHz,
A-weighted:
90 dB 90 dB 90 dB 90 dB 90 dB
Dynamic range @ 1kHz,
non-weighted:
88 dB 88 dB 88 dB 88 dB 88 dB
Input Sensitivity: -4.5 dBu (all gain
controls full, stereo
mode)
-4.5 dBu (all gain
controls full, stereo
mode)
-4.5 dBu (all gain
controls full, stereo
mode)
-4.5 dBu (all gain
controls full, stereo
mode)
-4.5 dBu (all gain
controls full, stereo
mode)
Max. Input Level: +15dBu (all gain
controls set to 9
o´clock, stereo
mode)
+15dBu (all gain
controls set to 9
o´clock, stereo
mode)
+15dBu (all gain
controls set to 9
o´clock, stereo
mode)
+15dBu (all gain
controls set to 9
o´clock, stereo
mode)
+15dBu (all gain
controls set to 9
o´clock, stereo
mode)
CMRR IEC: 45 dB 45 dB 45 dB 45 dB 45 dB
Line inputs: 2 2 2 2 2
Line input
connectors:
XLR (balanced) /
Combo TRS 6.3 mm
XLR (balanced) /
Combo TRS 6.3 mm
XLR (balanced) /
Combo TRS 6.3 mm
XLR (balanced) /
Combo TRS 6.3 mm
XLR (balanced) /
Combo TRS 6.3 mm
Input impedance: 8.5 k ohms 8.5 k ohms 8.5 k ohms 8.5 k ohms 8.5 k ohms
Controls: Input level L + R
controls, mono/ste-
reo –switch, power
on-off -button
Input level L + R
controls, mono/ste-
reo –switch, power
on-off -button
Input level L + R
controls, mono/ste-
reo –switch, power
on-off -button
Input level L + R
controls, mono/ste-
reo –switch, power
on-off -button
Input level L + R
controls, mono/ste-
reo –switch, power
on-off -button
Indicators: 2 Digit backlit
LC-display (channel
number), 2x 5
segment LED VU
Meter
2 Digit backlit
LC-display (channel
number), 2x 5
segment LED VU
Meter
2 Digit backlit
LC-display (channel
number), 2x 5
segment LED VU
Meter
2 Digit backlit
LC-display (channel
number), 2x 5
segment LED VU
Meter
2 Digit backlit
LC-display (channel
number), 2x 5
segment LED VU
Meter
Power
Consumption (nominal):
1.7 W 1.7 W 1.7 W 1.7 W 1.7 W
Operating Voltage: 12 - 18 V DC 12 - 18 V DC 12 - 18 V DC 12 - 18 V DC 12 - 18 V DC
Voltage input connector: 5.3 mm barrel jack,
plus inside
5.3 mm barrel jack,
plus inside
5.3 mm barrel jack,
plus inside
5.3 mm barrel jack,
plus inside
5.3 mm barrel jack,
plus inside
Ambient
Temperature
(in operation):
0°C - 35°C 0°C - 35°C 0°C - 35°C 0°C - 35°C 0°C - 35°C
Relative Humidity: <80%
(non-condensing)
<80%
(non-condensing)
<80%
(non-condensing)
<80%
(non-condensing)
<80%
(non-condensing)
SPECIFICATIONS
12
FM, mono/stereo
7.76mW
2.15 dBi
BNC
12
FM, mono/stereo
7.76 mW
2.15 dBi
BNC
12
FM, mono/stereo
7.76 mW
2.15 dBi
BNC
12
FM, mono/stereo
7.76 mW
2.15 dBi
BNC
Transmitter
823 - 832 MHz &
863 - 865 MHz
12
FM, mono/stereo
3.39 mW
2.15 dBi
BNC

9
Dimensions (W x H x D): 212 x 43 x 123 mm 212 x 43 x 123 mm 212 x 43 x 123 mm 212 x 43 x 123 mm 212 x 43 x 123 mm
Weight: 0.66 kg
(with antenna)
0.66 kg
(with antenna)
0.66 kg
(with antenna)
0.66 kg
(with antenna)
0.66 kg
(with antenna)
Accessories included: Power adapter,
BNC-antenna, 19”
rack mount kit
Power adapter,
BNC-antenna, 19”
rack mount kit
Power adapter,
BNC-antenna, 19"
rack mount kit
Power adapter,
BNC-antenna, 19”
rack mount kit
Power adapter,
BNC-antenna, 19”
rack mount kit
Model Number: LDU3047IEMR LDU3051IEMR LDU305IEMR LDU306IEMR LDU308IEMR
Product Type: In-Ear Monitoring In-Ear Monitoring In-Ear Monitoring In-Ear Monitoring In-Ear Monitoring
Type: Bodypack receiver,
non-diversity
Bodypack receiver,
non-diversity
Bodypack receiver,
non-diversity
Bodypack receiver,
non-diversity
Bodypack receiver,
non-diversity
Transmission frequency
range:
470 - 490 MHz 514 - 542 MHz 584 - 608 MHz 655 - 679 MHz 823 - 832 MHz ,
863 - 865 MHz
RF-Channels: 12 12 12 12 12
Phones output: 3.5 mm Stereo jack 3.5 mm Stereo jack 3.5 mm Stereo jack 3.5 mm Stereo jack 3.5 mm Stereo jack
Phones minimum
impedance:
16 ohms 16 ohms 16 ohms 16 ohms 16 ohms
Phones max output level: 73 mW @ 33ohm
load / 100 mW
@ 16 ohm load
73 mW @ 33ohm
load / 100 mW
@ 16 ohm load
73 mW @ 33ohm
load / 100 mW
@ 16 ohm load
73 mW @ 33ohm
load / 100 mW
@ 16 ohm load
73 mW @ 33ohm
load / 100 mW
@ 16 ohm load
Audio Frequency
response:
50Hz – 16000 Hz 50Hz – 16000 Hz 50Hz – 16000 Hz 50Hz – 16000 Hz 50Hz – 16000 Hz
L/R Crosstalk
100Hz/1kHz/10kHz:
45/60/45 dB´s 45/60/45 dB´s 45/60/45 dB´s 45/60/45 dB´s 45/60/45 dB´s
Residual noise: 42 uVrms 42 uVrms 42 uVrms 42 uVrms 42 uVrms
Antenna gain: 0.5 dBi 0.5 dBi 0.5 dBi 0.5 dBi 0.5 dBi
Antenna connector: Fixed antenna Fixed antenna Fixed antenna Fixed antenna Fixed antenna
Controls: On/off/volume,
channel +, channel -
On/off/volume,
channel +, channel -
On/off/volume,
channel +, channel -
On/off/volume,
channel +, channel -
On/off/volume,
channel +, channel -
Indicators: 2 Digit backlit
LC-Display (channel
number), ST-LED,
RF-LED
2 Digit backlit
LC-Display (channel
number), ST-LED,
RF-LED
2 Digit backlit
LC-Display (channel
number), ST-LED,
RF-LED
2 Digit backlit
LC-Display (channel
number), ST-LED,
RF-LED
2 Digit backlit
LC-Display (channel
number), ST-LED,
RF-LED
Power
Consumption (nominal):
0.5 W 0.5 W 0.5 W 0.5 W 0.5 W
Operating Voltage: 2x 1.5 VDC
AA-Batteries
2x 1.5 VDC
AA-Batteries
2x 1.5 VDC AA-Bat-
teries
2x 1.5 VDC AA-Bat-
teries
2x 1.5 VDC AA-Bat-
teries
Ambient
Temperature
(in operation):
0°C - 35°C 0°C - 35°C 0°C - 35°C 0°C - 35°C 0°C - 35°C
Relative Humidity: <80%
(non-condensing)
<80%
(non-condensing)
<80%
(non-condensing)
<80%
(non-condensing)
<80%
(non-condensing)
Dimensions (W x H x D,
without antenna):
64 x 103 x 24 mm 64 x 103 x 24 mm 64 x 103 x 24 mm 64 x 103 x 24 mm 64 x 103 x 24 mm
Weight: 0.085 kg 0.085 kg 0.085 kg 0.085 kg 0.085 kg
Other Features: Low battery indica-
tion: LCD backlight
blinks red when
battery cell voltage
is below 0.96 VDC
Low battery indica-
tion: LCD backlight
blinks red when
battery cell voltage
is below 0.96 VDC
Low battery indica-
tion: LCD backlight
blinks red when
battery cell voltage
is below 0.96 VDC
Low battery indica-
tion: LCD backlight
blinks red when
battery cell voltage
is below 0.96 VDC
Low battery indica-
tion: LCD backlight
blinks red when
battery cell voltage
is below 0.96 VDC

10
MANUFACTURER´S DECLARATIONS
MANUFACTURER‘S WARRANTY & LIMITATIONS OF LIABILITY
You can nd our current warranty conditions and limitations of liability at: https://cdn-shop.adamhall.com/media/pdf/MANUFACTURERS-DECLARA-
TIONS_LD_SYSTEMS.pdf To request warranty service for a product, please contact Adam Hall GmbH, Adam-Hall-Str. 1,
61267 Neu Anspach / Email: [email protected] / +49 (0)6081 / 9419-0.
CORRECT DISPOSAL OF THIS PRODUCT
(valid in the European Union and other European countries with a differentiated waste collection system)
This symbol on the product, or on its documents indicates that the device may not be treated as household waste. This is to avoid environ-
mental damage or personal injury due to uncontrolled waste disposal. Please dispose of this product separately from other waste and have it
recycled to promote sustainable economic activity. Household users should contact either the retailer where they purchased this product, or their
local government ofce, for details on where and how they can recycle this item in an environmentally friendly manner. Business users should
contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial waste
for disposal.
CE Compliance
Adam Hall GmbH states that this product meets the following guidelines (where applicable):
R&TTE (1999/5/EC) or RED (2014/53/EU) from June 2017
Low voltage directive (2014/35/EU)
EMV directive (2014/30/EU)
RoHS (2011/65/EU)
The complete declaration of conformity can be found at www.adamhall.com.
Model Number: LDIEHP1
Product Type: Stereo In-Ear headphones
Frequency response: 30 Hz - 20000 Hz
Impedance: 16ohms
Audio connector: 3.5 mm stereo plug
Cable: 1.5 m
Weight: 0.12 kg
Accessories included: 3 pairs of ear pads (S, M, L)
LDU30xIEMHP including stereo LDIEHP1 earphones
EU DECLARATION OF CONFORMITY
Hereby, Adam Hall GmbH declares that this radio equipment type is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following
internet address: www.adamhall.com/compliance/

Adam Hall GmbH | Adam-Hall-Str. 1 | 61267 Neu-Anspach | Germany
Phone: +49 6081 9419-0 | adamhall.com
LD-SYSTEMS.COM
REV: 04

FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by manufacturer
could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
RF Exposure Information
The device has been evaluated to meet general RF exposure requirement. The device can
be used in portable exposure condition without restriction.
Other manuals for U300 IEM Series
1
This manual suits for next models
5
Table of contents
Other LD Measuring Instrument manuals
