Leader SC517 User manual

1
English
About this Concise User Guide
This quick guide is a brief introduction to getting your system started. This is a supplement, and not a substitute for the
expanded English language User’s Manual in Adobe Acrobat format on the Device Drivers & Utilities + User’s Manual
disc supplied with your computer. This disc also contains the drivers and utilities necessary for the proper operation of
the computer (Note: The company reserves the right to revise this publication or to change its contents without notice).
Some or all of the computer’s features may already have been setup. If they aren’t, or you are planning to re-configure
(or re-install) portions of the system, refer to the expanded User’s Manual. The Device Drivers & Utilities + User’s
Manual disc does not contain an operating system.
Regulatory and Safety Information
Please pay careful attention to the full regulatory notices and safety information contained in the expanded User’s Man-
ual on the Device Drivers & Utilities + User’s Manual disc.
© August 2021
Trademarks
Intel is a trademark/registered trademark of Intel Corporation.
Windows is a registered trademark of Microsoft Corporation.

FCC Statement
This device complies with Part
15 of the FCC Rules. Operation
is subject to the following two
conditions:
1. This device may not cause
harmful interference.
2. This device must accept any
interference received, includ-
ing interference that may
cause undesired operation.

2
English
Instructions for Care and Operation
The computer is quite rugged, but it can be damaged. To pre-
vent this, follow these suggestions:
•Don’t drop it, or expose it to shock. If the computer falls, the
case and the components could be damaged.
•Keep it dry, and don’t overheat it. Keep the computer and
power supply away from any kind of heating element. This is an
electrical appliance. If water or any other liquid gets into it, the
computer could be badly damaged.
•Avoid interference. Keep the computer away from high capacity
transformers, electric motors, and other strong magnetic fields.
These can hinder proper performance and damage your data.
•Follow the proper working procedures for the computer. Shut
the computer down properly and don’t forget to save your work.
Remember to periodically save your data as data may be lost.
Servicing
Do not attempt to service the computer yourself. Doing so may
violate your warranty and expose you and the computer to
electric shock. Refer all servicing to authorized service person-
nel. Unplug the computer from the power supply. Then refer
servicing to qualified service personnel under any of the fol-
lowing conditions:
• When the power cord or AC/DC adapter is damaged or frayed.
• If the computer has been exposed to any liquids.
• If the computer does not work normally when you follow the
operating instructions.
• If the computer has been dropped or damaged (do not touch the
poisonous liquid if the panel breaks).
• If there is an unusual odor, heat or smoke coming from your com-
puter.
Safety Information
• Only use an AC/DC adapter approved for use with this computer.
• Use only the power cord and batteries indicated in this manual.
Do not dispose of batteries in a fire. They may explode. Check
with local codes for possible special disposal instructions.
• Do not continue to use a battery that has been dropped, or that
appears damaged (e.g. bent or twisted) in any way. Even if the
computer continues to work with a damaged battery in place, it
may cause circuit damage, which may possibly result in fire.
• Make sure that your computer is completely powered off before
putting it into a travel bag (or any such container).
• Before cleaning the computer, make sure it is disconnected from
any external power supplies, peripherals and cables.
• Use a soft clean cloth to clean the computer, but do not apply
cleaner directly to the computer. Do not use volatile (petroleum
distillates) or abrasive cleaners on any part of the computer.
• Do not try to repair a battery pack. Refer any battery pack repair
or replacement to your service representative or qualified service
personnel.
• Note that in computer’s featuring a raised electro-plated logo, the
logo is covered by a protective adhesive. Due to general wear and
tear, this adhesive may deteriorate over time and the exposed logo
may develop sharp edges. Be careful when handling the computer
in this case, and avoid touching the raised electro-plated logo.
Avoid placing any other items in the carrying bag which may rub
against the top of the computer during transport. If any such wear
and tear develops contact your service center.

3
English
Polymer/Lithium-Ion Battery Precautions
Note the following information which is specific to Polymer/
Lithium-Ion batteries only, and where applicable, this over-
rides the general battery precaution information.
• Polymer/Lithium-Ion batteries may experience a slight expansion
or swelling, however this is part of the battery’s safety mechanism
and is not a cause for concern.
• Use proper handling procedures when using Polymer/Lithium-Ion
batteries. Do not use Polymer/Lithium-Ion batteries in high ambi-
ent temperature environments, and do not store unused batteries
for extended periods.
• If you are working in areas of low temperature use the AC/DC
adapter to power the computer.

Battery Disposal & Caution
The product that you have purchased contains a recharge-
able battery. The battery is recyclable. At the end of its use-
ful life, under various state and local laws, it may be illegal
to dispose of this battery into the municipal waste stream.
Check with your local solid waste officials for details in your
area for recycling options or proper disposal.
Danger of explosion if battery is incorrectly replaced. Re-
place only with the same or equivalent type recommended
by the manufacturer. Discard used battery according to the
manufacturer’s instructions.

4
English
System Startup
1. Remove all packing materials.
2. Place the computer on a stable surface.
3. Insert the battery and make sure it is locked in position .
4. Securely attach any peripherals you want to use with the computer
(e.g. keyboard and mouse) to their ports.
5. When first setting up the computer use the following
procedure (as to safeguard the computer during shipping, the
battery will be locked to not power the system until first connected
to the AC/DC adapter and initially set up as below):
• Attach the AC/DC adapter cord to the DC-In jack on the left of
the computer, then plug the AC power cord into an outlet, and
connect the AC power cord to the AC/DC adapter. The battery
will now be unlocked.
6. Use one hand to raise the
lid to a comfortable viewing angle (do not
exceed 130 degrees) ; use the other hand (as illustrated in Figure
1) to support the base of the computer (Note: Never lift the
computer by the lid).
7. Press the power button to turn the computer “on”.
System Software
Your computer may already come with system software
pre-installed. Where this is not the case, or where you are
re-configuring your computer for a different system, you
will find this manual refers to Microsoft Windows 10.
Figure 1 - Opening the
Lid/Computer with AC/
DC Adapter Plugged-In

Shut Down
Note that you should al-
ways shut your computer
down by choosing the
Shut down command in
Windows (see below).
This will help prevent hard
disk or system problems.
1. Click the Start Menu
icon .
2. Click the Power item
.
3. Choose Shut down
from the menu.
130ﾟ

5
English
System Map: Front View with Display Open
Model A
15.6” (39.62cm)
12 33
7
6
5
4
Figure 2 - Front View with Display Open
1. Webcam
2. *Camera LED
*When the camera is in use, the LED will be
illuminated.
3. Built-In Array Microphone
4. Display
5. Power Button
6. Keyboard
7. Touchpad & Buttons
Model B
17.3” (43.94cm)
7
5
4
12 33
6

6
English
LED Indicators
The LED indicators on the computer display helpful information about the current status of the computer.
Table 1 - LED Indicators
Icon Color Description
Orange The AC/DC Adapter is Plugged In
Blinking
Orange*
The AC/DC Adapter is Plugged In and the Powered
USB Port (Factory Option) is On*
Green The Computer is On
Blinking Green The Computer is in Sleep Mode
Orange The Battery is Charging
Green The Battery is Fully Charged
Blinking Orange The Battery Has Reached Critically Low Power Sta-
tus
Green Storage Device Activity

*Powered USB Port (Factory
Option)
The powered USB 3.2 Gen 1 port
(see page 8) may be toggled on /
off by means of the Fn + Power
Button key combination. When
the powered USB port is on it will
supply power (for charging de-
vices only, not for operating de-
vices) when the system is off but
still powered by the AC/DC adapt-
er plugged into a working outlet, or
powered by the battery with a ca-
pacity level above 20% (this may
not work with certain devices - see
page 22).

7
English
Keyboard & Function Keys
The keyboard includes a numeric keypad for easy nu-
meric data input. Pressing Num Lk turns on/off the nu-
meric keypad. It also features function keys to allow you
to change operational features instantly. The function
keys (F1 - F12 etc.) will act as hot keys when pressed
while the Fn key is held down. In addition to the basic
function key combinations, some visual indicators are
available when the Control Center driver is installed.
Keys Function/Visual Indicators Keys Function/Visual Indicators
Fn + Play/Pause (in Audio/Video Programs) Fn + Sleep Toggle
Fn + Touchpad Toggle Number Lock Toggle
Fn + Turn Display Backlight Off
(Press a key to or use touchpad to turn on) Fn + Scroll Lock Toggle
Fn + Mute Toggle Caps Lock Toggle
Fn + Volume Decrease/
Increase Fn + Control Center Toggle (see page 11)
Fn + Change Display Configuration (see page 15)Fn + Fan Automatic Control/
Full Power
Fn + Display Brightness
Decrease/Increase
*Note: It is recommended that you use Maximum fan speed when
playing games.
Fn +
Camera Power
Toggle Fn + Power Modes Toggle
Fn + Airplane Mode Toggle Fn + Power
Button
(Factory Option) Powered USB Port Power Tog-
gle (see page 8)
Table 2 - Function Keys & Visual Indicators
Numeric
Keypad
Fn Key
Windows Logo Key
Scr Lk &
Num Lk
Function Keys

8
English
System Map: Front, Left & Right Views (Model A)
Front
Left
Right
1
2
34567
A
9
8
12
10 11 14
13
12
Figure 3 - Front, Left & Right Views (Model A)
1. LED Indicators
2. Multi-in-1 Card Reader
3. DC-In Jack
4. RJ-45 LAN Jack
5. External Monitor (VGA) Port
6. USB 3.2 Gen 2 Type-C Port with DisplayPort and
Power Delivery (DC-In)
*This port allows you to use a third party adapter/
power bank plugged into the port as a power supply. If
you are using a power bank make sure that it
complies with the USB-C PD (Power Delivery)
standard specification (20V/45W - 20V/100W). If you
are using a third party AC/DC adapter, the rating of the
adapter must be at least 20Volts, 2.25A (45 Watts)
and it should be appropriately certified.
7. Vent
8. HDMI-Out Port
9. USB 3.2 Gen 1 Type-A Port
Or
(Factory Option) Powered USB 3.2
Gen 1 Type-A Port (see Table 1 on
page 6)
10. 2-In-1 Audio Jack (Headphone /
Microphone)
11. Microphone-In Jack
12. USB 2.0 Ports
13. (Factory Option) Dummy ODD/DVD
Writer/2nd HDD/SSD Caddy
14. Security Lock Slot

Disc Emergency Eject
If you need to manually
eject a disc (e.g. due to
an unexpected power
interruption) you may
push the end of a
straightened paper clip
into the emergency eject
hole. Do not use a
sharpened pencil or
similar object that may
break and become
lodged in the hole.
A

9
English
System Map: Front, Left & Right Views (Model B)
Front
Left
Right
1
2
34567
A
9
8
12
10 11 14
13
12
Figure 4 - Front, Left & Right Views (Model B)
1. LED Indicators
2. Multi-in-1 Card Reader
3. DC-In Jack
4. RJ-45 LAN Jack
5. External Monitor (VGA) Port
6. USB 3.2 Gen 2 Type-C Port with DisplayPort and
Power Delivery (DC-In)
*This port allows you to use a third party adapter/
power bank plugged into the port as a power supply.
If you are using a power bank make sure that it
complies with the USB-C PD (Power Delivery)
standard specification (20V/45W - 20V/100W). If you
are using a third party adapter, the rating of the
adapter must be at least 20Volts, 2.25A (45 Watts)
and it should be appropriately certified.
7. Vent
8. HDMI-Out Port
9. USB 3.2 Gen 1 Type-A Port
Or
(Factory Option) Powered USB 3.2
Gen 1 Type-A Port (see Table 1 on
page 6)
10. 2-In-1 Audio Jack (Headphone /
Microphone)
11. Microphone-In Jack
12. USB 2.0 Ports
13. (Factory Option) Dummy ODD/DVD
Writer/2nd HDD/SSD Caddy
14. Security Lock Slot

Disc Emergency Eject
If you need to manually
eject a disc (e.g. due to
an unexpected power
interruption) you may
push the end of a
straightened paper clip
into the emergency eject
hole. Do not use a
sharpened pencil or
similar object that may
break and become
lodged in the hole.
A

10
English
System Map: Bottom & Rear Views

Bottom Cover Removal Warning
Do not remove any cover(s) and/or screw(s) for the purposes of de-
vice upgrade as this may violate the terms of your warranty. If you
need to replace/remove the hard disk/SSD/RAM etc., for any rea-
son, please contact your distributor/supplier for further information.
Overheating
To prevent your computer from overheating make sure nothing
blocks any vent while the computer is in use.
Figure 5
Bottom & Rear Views
1. Battery
2. Vent
3. Speakers
4. Multi-in-1 Card Reader
2
3
1
2
3
1
2
2
33
1
1
Model A
Model B
4
4

11
English
Control Center
Run the Control Center from the Start menu in Windows . You can also press the Fn + Esc key com-
bination, or double-click the icon in the notification area of the taskbar to access the Control Center. The Con-
trol Center provides quick access to Power Modes, Fan settings and LED Keyboard configuration (for the optional
LED keyboard).

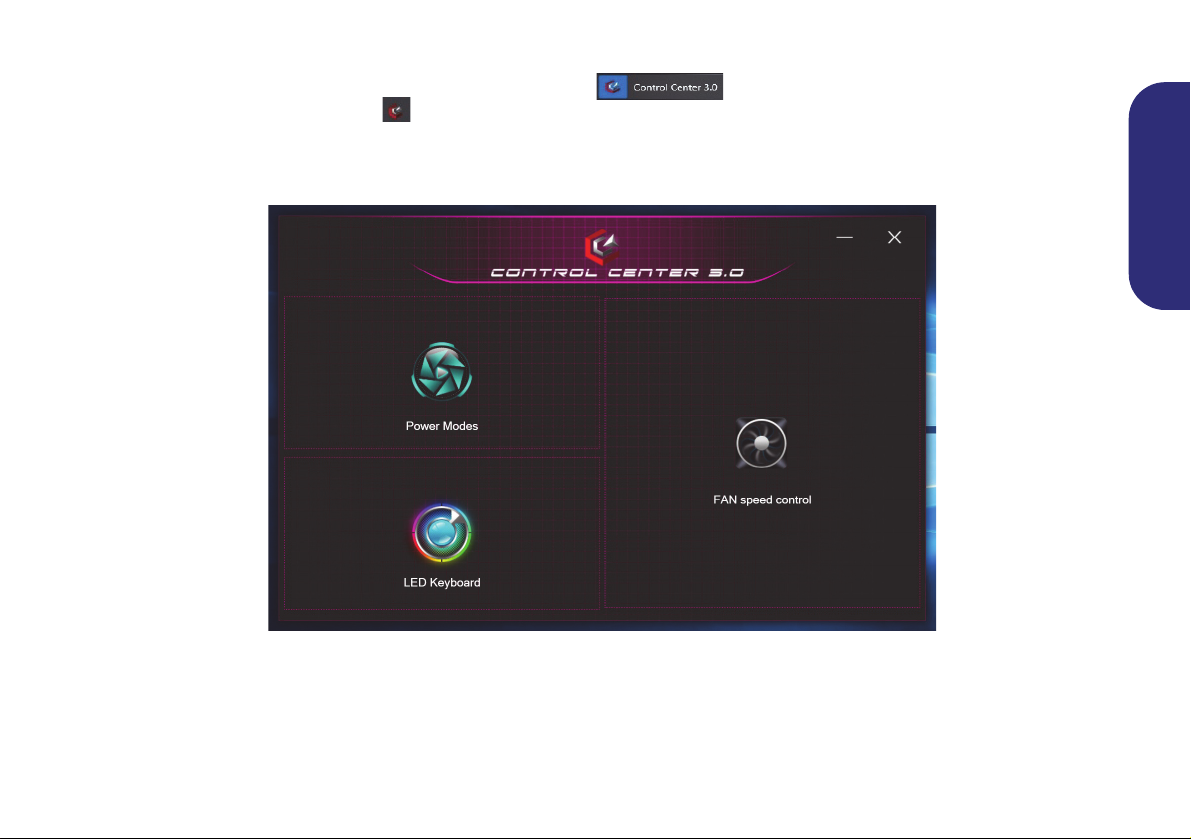

Figure 6 - Control Center
Note the LED Keyboard item will only appear for LED keyboards only.

12
English
Power Modes
Power Modes allows you to adjust the power mode by
clicking the appropriate icon.
•Power Saving mode saves battery life.
•Quiet mode focuses on reducing fan noise and will
decrease both CPU and GPU power.
•Entertainment mode balances CPU and GPU power and
is ideal for watching videos etc.
•Performance mode is ideal for gaming with higher CPU
and GPU performance.
Note: You can use the Fn + 3 key combination to quickly
toggle through, and select, the Power Modes.
Fan Speed Control
You can set the fan speed to Maximum (full power) or
Automatic/Slient. The fan speed will adjust itself auto-
matically to control the heat of the CPU/GPU. You can
use the Offset slider to adjust the settings to your prefer-
ence. However you can adjust the setting to Maximum if
you prefer.
All these settings can be overidden by the system, as a
safety precaution, if it requires heavier use of the fan.

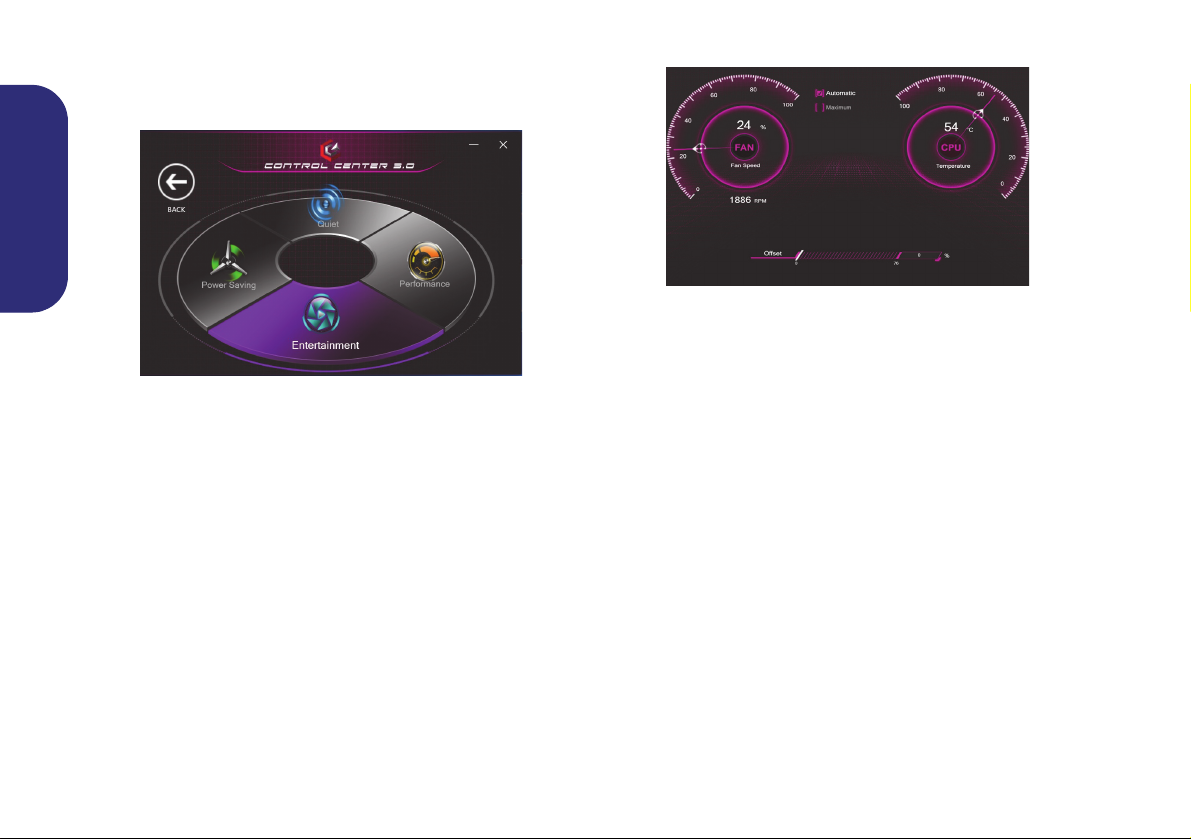

Figure 7 - Power Modes
Figure 8 - Fan Speed Control

13
English
Multi-Color LED Keyboard (Option)
The LED Keyboard application can be accessed by click-
ing LED Keyboard in the Control Center (or by press-
ing the Fn plus key) or from the Start menu in
Windows .
Figure 9 - LED Keyboard Application
The keyboard LED may be configured using the Fn + key
combination outlined in the table below.
Table 3 - Keyboard LEDs
Color Swatch
The color swatch in the middle of the screen allows you to
select a range of colors for your keyboard backlight by
clicking on the color required. Click to select any color
from the swatch to apply to the keyboard.
KB Sleep Timer
Enable and then select the amount of time for which the
system is idle before the keyboard LED enters sleep mode
(i.e. the LED keyboard illumination will turn off to save
power).
KB Brightness
You can adjust the keyboard brightness using the Bright-
ness slider.
Keyboard LED Function key Combinations
Fn + Launch the LED Keyboard Application
Fn + Toggle the Keyboard LED On/Off
Fn + Keyboard LED Illumination Decrease
Fn + Keyboard LED Illumination Increase

14
English
Windows 10 Start Menu, Context Menu,
Taskbar, Control Panel and Settings
Most of the apps, control panels, utilities and programs within Windows 10 can be
accessed from the Start Menu by clicking the icon in the taskbar in the lower
left corner of the screen (or by pressing the Windows Logo Key on the key-
board).
Right-click the Start Menu icon (or use the Windows Logo Key + Xkey
combination) to bring up an advanced Context Menu of useful features such as
Apps and Features, Power Options, Task Manager, Search, File Explorer, Device
Manager and Network Connections etc.
The notification area of the taskbar is in the bottom right of the screen. Some of the
control panels and applications referred to throughout the course of this manual can
be accessed from here.
Throughout this manual you will see an instruction to open the Control Panel. To
access the Control Panel, select Control Panel under the Windows System item in
the Start Menu.
The Settings item in the Start Menu (and also as an App) gives you quick access to
a number of system settings control panels allowing you to adjust settings for Sys-
tem, Devices, Phone, Network & Internet, Personalization, Apps, Accounts, Time
& Language, Gaming, Ease of Access, Search, Cortana, Privacy and Update & Se-
curity.
Figure 10
Start Menu,
Context Menu,
Taskbar, Con-
trol Panel and
Settings

15
English
Video Features
The system features an Intel integrated GPU. You can
switch display devices, and configure display options,
from the Display control panel in Windows as long as the
video driver is installed.
To access the Display control panel in Windows:
1. Right-click the desktop and select Display settings from the
menu.
2. Choose the required display settings from the menus.
To access the Intel®Graphics Command Center:
1. Access the Intel® Graphics Command Center from the Start
menu in Windows .
Display Devices
Note that you can use external displays connected to the
HDMI-Out port and/or external monitor (VGA) port and/
or USB 3.2 Gen 2 Type-C port with DisplayPort. See your
display device manual to see which formats are supported.
In Windows it is possible to quickly configure external
displays from the Project menu (press the Windows
Logo Key and the Pkey or press the Fn + F7 key
combination).
To configure the displays using the Project menu:
1. Attach your external display device to
the appropriate port, and then turn it
on.
2. Press the + P(or Fn + F7) key
combination.
3. Click on any one of the options from
the menu to select PC screen only,
Duplicate, Extend or Second screen
only.
4. You can also click Connect to a
wireless display at the bottom of the
Project screen and follow the steps to
connect to any wireless enabled
display.
Figure 11
Project

16
English
To configure the displays using the Display control panel:
1. Attach your external display(s) to the appropriate port, and turn it
(them) on.
2. Right-click the desktop and select Display settings from the
menu.
3. Click the Detect button.
4. The computer will then detect any attached displays.
5. You can configure up to 3 displays from the Multiple displays
menu.
Audio Features
You can configure the audio options on your computer
from the Sound control panel in Windows.
The volume may be adjusted by means of the Fn + F5/F6
key combination. The sound volume level can also be set
using the volume control within Windows. Click the
Speaker icon in the taskbar to check the setting.
Nahimic Audio
The Nahimic Audio application allows you to configure
the audio settings to your requirements for the best perfor-
mance in games, music and movies.
Nahimic Audio Application
Run the Nahimic Audio control panel from the Start menu
in Windows .
Figure 13 - Nahimic Audio
Figure 12
Display
(Multiple
displays)

17
English
Power Options
The Power Options (Hardware and Sound menu) con-
trol panel icon in Windows allows you to configure power
management features for your computer. You can con-
serve power by means of power plans and configure the
options for the power button, sleep button (Fn + F12),
computer lid (when closed), display and sleep mode (the
default power saving state) from the left menu.
Click Create a power plan in the left menu and select the
options to create a new plan. Click Change Plan Settings
and click Change advanced power settings to access fur-
ther configuration options.
Sleep (Modern Standby)
This system supports Sleep mode as Modern Standby.
In this case the system will continue to download mail,
Windows updates, calendar updates and even VoIP calls
via a Windows Store app, even when the system is in
Sleep (Modern Standby) mode, in much the same way as
a smartphone.
In Sleep (Modern Standby) all of your work, settings and
preferences are saved to memory before the system sleeps.
When you are not using your computer for a certain length
of time, which you specify in the operating system, it will
enter Sleep (Modern Standby) to save power.
The PC wakes from Sleep (Modern Standby) within sec-
onds and will return you to where you last left off (what
was on your desktop) without reopening the application(s)
and file(s) you last used.

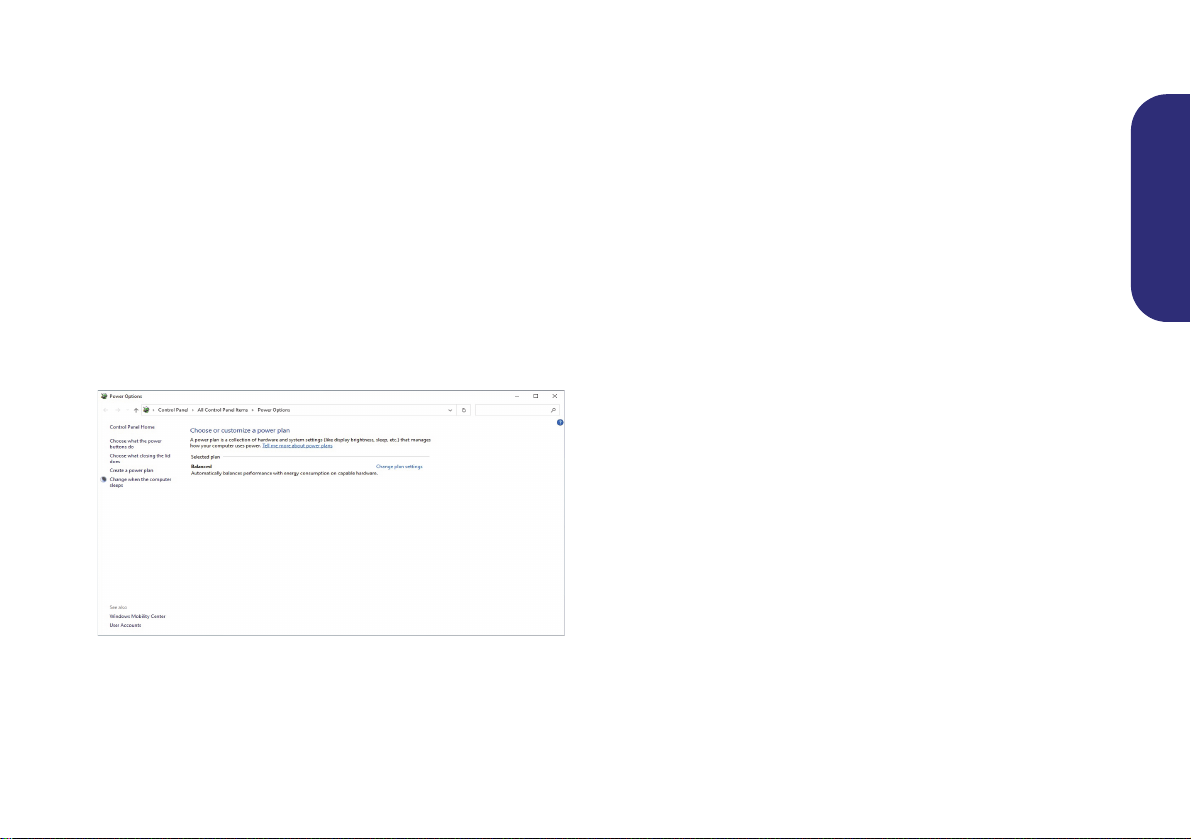

Figure 14 - Power Options

18
English
Driver Installation
The Device Drivers & Utilities + User’s Manual disc contains the drivers and utilities necessary for the proper operation
of the computer. This setup will probably have already been done for you. If this is not the case, insert the disc and click
Install Drivers (button), or Option Drivers (button) to access the Optional driver menu. Install the drivers in the or-
der indicated in Figure 15. Click to select the drivers you wish to install (you should note down the drivers as you
install them). Note: If you need to reinstall any driver, you should uninstall the driver first.
Latest Updates
After installing all the drivers make sure you enable Check for updates (Settings > Update & Security > Check for
updates) and go to the Microsoft Store and click Downloads and updates > Get updates to update all Apps etc.

Driver Installation & Power
When installing drivers make
sure your computer is powered
by the AC/DC adapter connect-
ed to a working power source.
Some drivers draw a significant
amount of power during the in-
stallation procedure, and if the
remaining battery capacity is not
adequate this may cause the
system to shut down and cause
system problems (note that
there is no safety issue involved
here, and the battery will be re-
chargeable within 1 minute).
Figure 15 - Install Drivers

Driver Installation
General Guidelines
As a general guide follow
the default on-screen in-
structions for each driver
(e.g. Next >Next >Fin-
ish) unless you are an
advanced user. In many
cases a restart is required
to install the driver.
Make sure any modules
(e.g. WLAN or Bluetooth)
are ON before installing
the appropriate driver.

19
English
Wireless LAN Module (Option)
Make sure the Wireless LAN module is turned on (and not
in Airplane Mode) before configuration begins.
WLAN Configuration in Windows
1. Click the icon in the notification area of the taskbar.
2. Make sure that Airplane mode is off (the Airplane mode icon
should be gray).
3. A list of available access
points will appear.
4. Double-click an access
point to connect to it (or
click it and click Connect).
5. Enter a network security
key (password) if required,
and click Next.
6. You can choose to find
other devices or not.
7. When you are connected
to the network access
point it will display
Connected.
8. Select any connected
network and click
Disconnect to
disconnect from a
connected access point.
9. You can click the Airplane Mode button to turn the mode On or
Off.
10. Alternatively you can click the Wi-Fi button to turn just the Wi-Fi
On or Off.
Bluetooth Module (Option)
Make sure the Bluetooth module is turned on (and not in
Airplane Mode) before configuration begins.
Bluetooth Configuration in Windows
1. Click the Settings item in the Start Menu and then click Devices.
2. Click Bluetooth & other devices.
3. Click Add Bluetooth & other device > Bluetooth and a list of
discovered devices will appear.
4. Double-click the device you want to pair with the computer and
click Connect.
5. Select a device and click Remove Device > Yes to disconnect
from any device.

Connect Automatically
It is recommended that you
check the box to Connect
automatically.
This will cause the system
to check for the access
point upon startup, and re-
suming from a power-sav-
ing state, and will remove
any necessity to keep con-
necting manually.
