Leadtek GPS 9531 Manual

.
LEADTEK GPS SMART ANTENNA
TECHNICAL SPECIFICATION
GPS 9531
Version 1.05
2 October 2002
All Rights Reserved

.
i
Contents
1. INTRODUCTION...........................................................................................................................1
2. TECHNICAL SPECIFICATIONS ...............................................................................................1
2.1. ELECTRICAL CHARACTERISTICS .............................................................................................1
2.2. ENVIRONMENTAL CHARACTERISTICS .....................................................................................2
2.3. PHYSICAL CHARACTERISTICS..................................................................................................3
2.4. INTERFACES ...................................................................................................................................3
3. MECHANICAL DIMENSIONS....................................................................................................3
4. PIN ASSIGNMENT OF CONNECTOR ......................................................................................4
5. APPLICATIONS ............................................................................................................................4
6. OPERATION AND TEST..............................................................................................................4
7. APPENDIX A ..................................................................................................................................5
8. APPENDIX B ................................................................................................................................12
9. APPENDIX C ................................................................................................................................13

.
- -
1
1. Introduction
Leadtek GPS 9531 is a complete GPS smart antenna receiver, including an embedded
antenna and GPS receiver circuits, designed for a broad spectrum of OEM system applications. The
product is based on the proven technology found in other Leadtek 12 channel GPS receivers and
SIRF chipset solution. The GPS smart antenna will track up to 12 satellites at a time while
providing fast time-to-first-fix, one second navigation updates and low power consumption. Its far
reaching capability meets the sensitivity requirements of car navigation as well as other
location-based applications.
Leadtek GPS 9531 smart antenna is designed to withstand rugged operating conditions and
is completely water resistant. With a clear view of the GPS satellites and a PDA or notebook PC to
provide power source and digital map function, a truly portable navigation system becomes a reality
using the Leadtek GPS 9531 smart antenna. The PDA or notebook PC communicates with the smart
antenna via RS-232 serial communication interface. Internal memory backup allows the device to
retain critical data such as satellite orbital parameters, last position, date and time. End user
interfaces such as displays can be added by the application designer.
The smart antenna design utilizes the latest technology and high level circuit integration to
achieve superior performance while minimizing space and power requirements. This hardware
capability combined with software intelligence makes the smart antenna easy to be integrated and
used in all kinds of navigation applications.
2. Technical Specifications
2.1. Electrical Characteristics
2.1.1 General
Frequency L1, 1575.42 MHz
C/A code 1.023 MHz chip rate
Channels 12
2.1.2 Accuracy
Position 15 meters, 2D RMS
Velocity 0.1 meters/second
Time 1 microsecond synchronized to GPS time
2.1.3 Datum
WGS-84
2.1.4 Acquisition Rate

.
- -
2
Reacquisition 0.1 sec., average
Hot start 8 sec., average
Warm start 38 sec., average
Cold start 48 sec., average
2.1.5 Dynamic Conditions
Altitude 18,000 meters (60,000 feet) max.
Velocity 515 meters/second (1000 knots) max.
Acceleration 4g, max.
Jerk 20meters/second
3, max.
2.1.6 Power
Main power input 5.0 ± 5% VDC input
Power consumption 0.9 W at 5 VDC
Powerconnector Universalconnector(RJ-11)
Backup power 3 V Lithium-Ion rechargeable battery
2.1.7 Serial Port
Electrical interface One UART for Data INPUT (RX) and OUTPUT (TX)
Protocol messages SiRF binary and NMEA-0183, version 2.20 with a baud rate
selection.
SiRF binary-position, velocity, altitude, status, and control NMEA
- GGA, GLL, GSA,GSV, RMC and VTG
Default Message refers to 2.4 Interfaces
2.1.8 Cable Length
GPS9531 for RJ-11 RJ-11 type plug to Smart Antenna: 1500mm
2.1.9 Battery
LithiumRechargeableBattery(Note 1)
2.2. Environmental Characteristics
Operating temperature range -40 deg. C to +85 deg. C
Storage temperature range -55 deg. C to +100 deg. C

.
- -
3
2.3. Physical Characteristics
Length 78 mm (3.07 in)
Width 73.0 mm (2.67 in)
Height 26 mm (1.02 in)
Weight 380 g
Interface connector GPS9531 for RJ-11: Standard RJ-11 type plug
2.4. Interfaces
(1) One channel for RS-232 serial interface, with user selectable baud rate (4800, 9600, 19200,
38400)
(2) NMEA 0183 standard output (Data format is GGA, GLL, GSA, GSV, RMC, VTG)
(3) Universal connector available for different PDA/Pocket PC/Smart Phone.
(4) We strongly suggest that you make use of Leadtek standard NMEA setting, that is, baud rate is
9600 and data output is GGA(output once per 1 sec), GSA(output once per 5 sec), GSV(output
once per 5 sec), RMC(output once per 1 sec), VTG(output once per 1 sec).
(5) You can use Leadtek GMonitor or Winfast Navigator software to test the smart antenna and
change communication baud rate or data protocol on your PC or notebook. And you can also
use Leadtek GPS Monitor for WinCE to do them on your PDA.

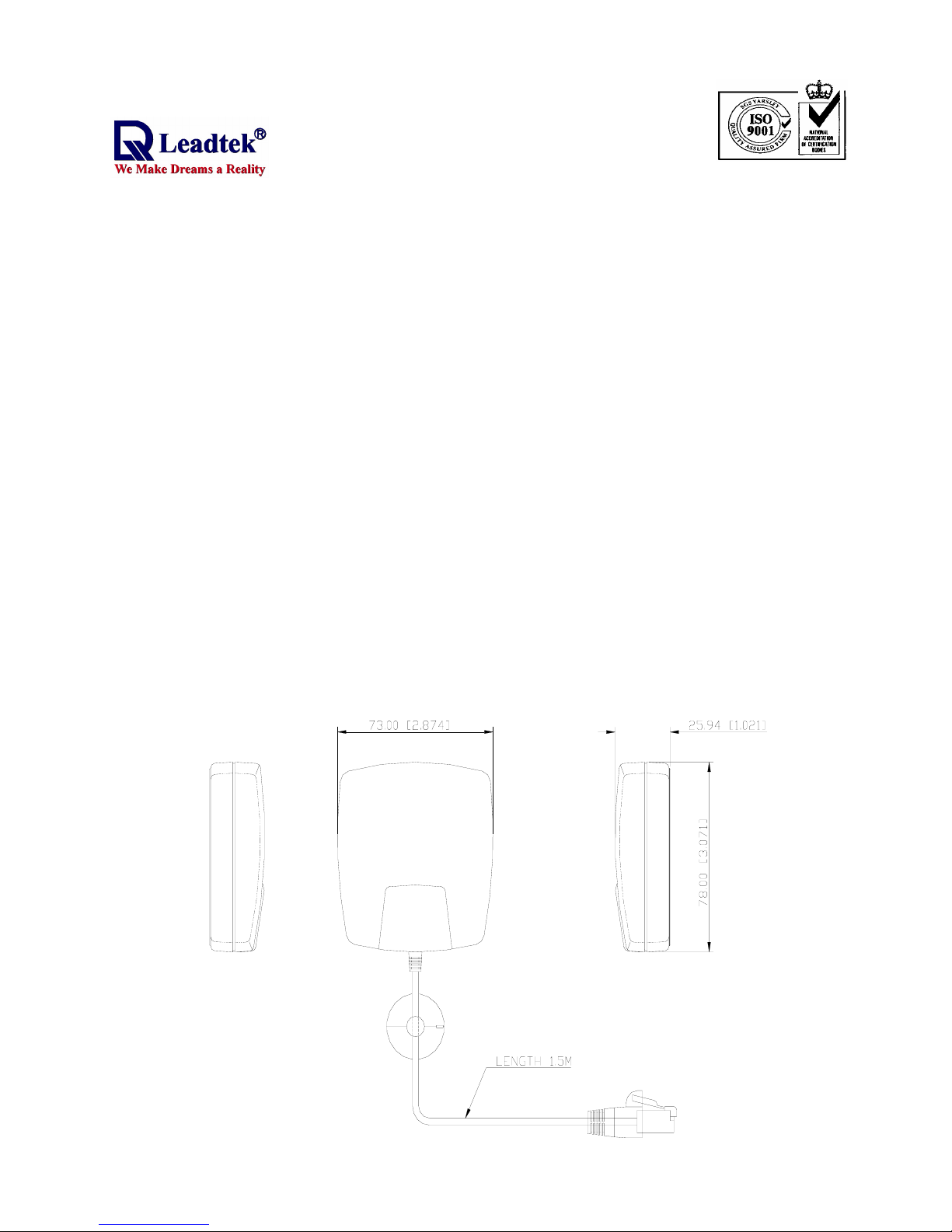

3. Mechanical Dimensions

.
- -
4
4. Pin Assignment of Connector
PIN Signal Name
A1 Ground
A2 Rx (Data Input from PC/Notebook/PDA to GPS.)
A3 Tx (Data Output from GPS to PC/Notebook/PDA.)
A4 Vcc (Power)
5. Applications
The customers can use notebook PC or PDA to display their location data by Leadtek smart
antenna. We supply many types of cable to connect the smart antenna to your PDA or notebook. These
cables are listed as follow.
Part No Device Description
19000001 PALM M500 PDA Including car cigar-lighter charger and for PALMM500 PDA
19000002 IPAQ 38xx series PDA Including car cigar-lighter charger and for IPAQ3800 PDA
19000003 Notebook Including DB9,car cigar-lighter charger and for notebook
19000004 Notebook Including DB9 ,mini dim connector and for notebook
19000005 SAGEM PDA phone
WA3050
Including car cigar-lighter charger and for SAGEM PDA
19000006 Handspring Edge PDA Including car cigar-lighter charger and for EDGE PDA
19000007 PALM V/Vx PDA Including car cigar-lighter charger and for PALM PDA
19000008 CASIO PDA E125 Including car cigar-lighter charger and for CASIO PDA
19000009 IPAQ PDA 36/37 series Including car cigar-lighter charger and for IPAQ PDA
19000010 HP Jonada 5xx Series PDA Including car cigar-lighter charger and for HP PDA
19000011 Handspring Visor PDA Including car cigar-lighter charger and for VISOR PDA
19000012 Notebook Including USB connector
19000013 CASIO E200 PDA Including car cigar-lighter charger and for CASIO E200
19000016 XDA Including car cigar-lighter charger and for XDA
19000018 Pocket Loox PDA Including car cigar-lighter charger and for Pocket Loox PDA
6. Operation and Test
The customers can use Leadtek GMonitor.exe to test the smart antenna. You can change

.
- -
5
the data protocol and communication data baud rate for your application using this software. The
software and manual are available for download from Leadtek website, www.leadtek.com.tw.
7. Appendix A
The following is a list of the cables for smart antenna, you can choose one which you need and
apply it.

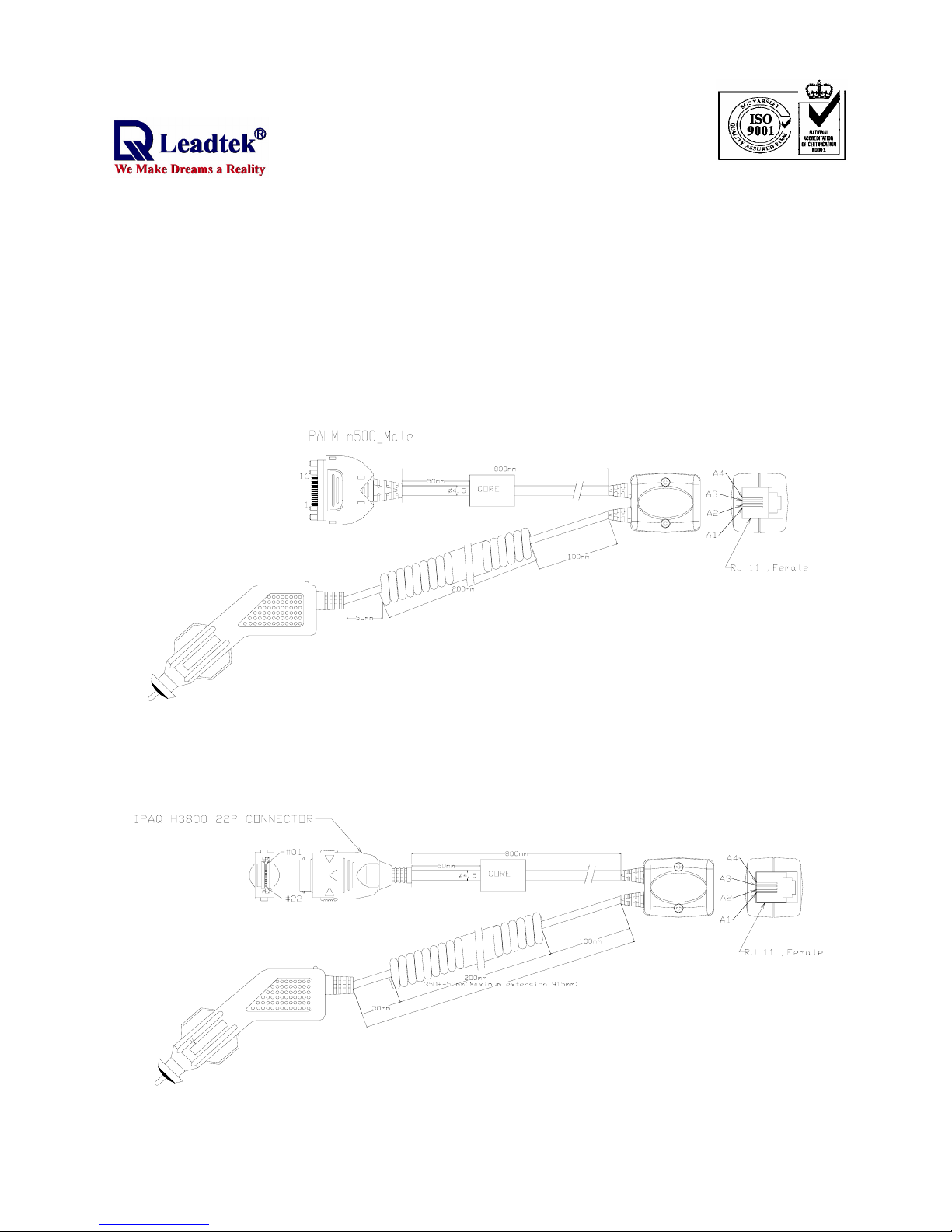

7.1 19000001
This cable is for Palm M500 PDA.
7.2 19000002
This cable is for Compaq iPAQ 38xx series PDA.

.
- -
6
7.3 19000003
This cable is for notebook or regular PC.
7.4 19000004
This cable is for notebook or regular PC.

.
- -
7

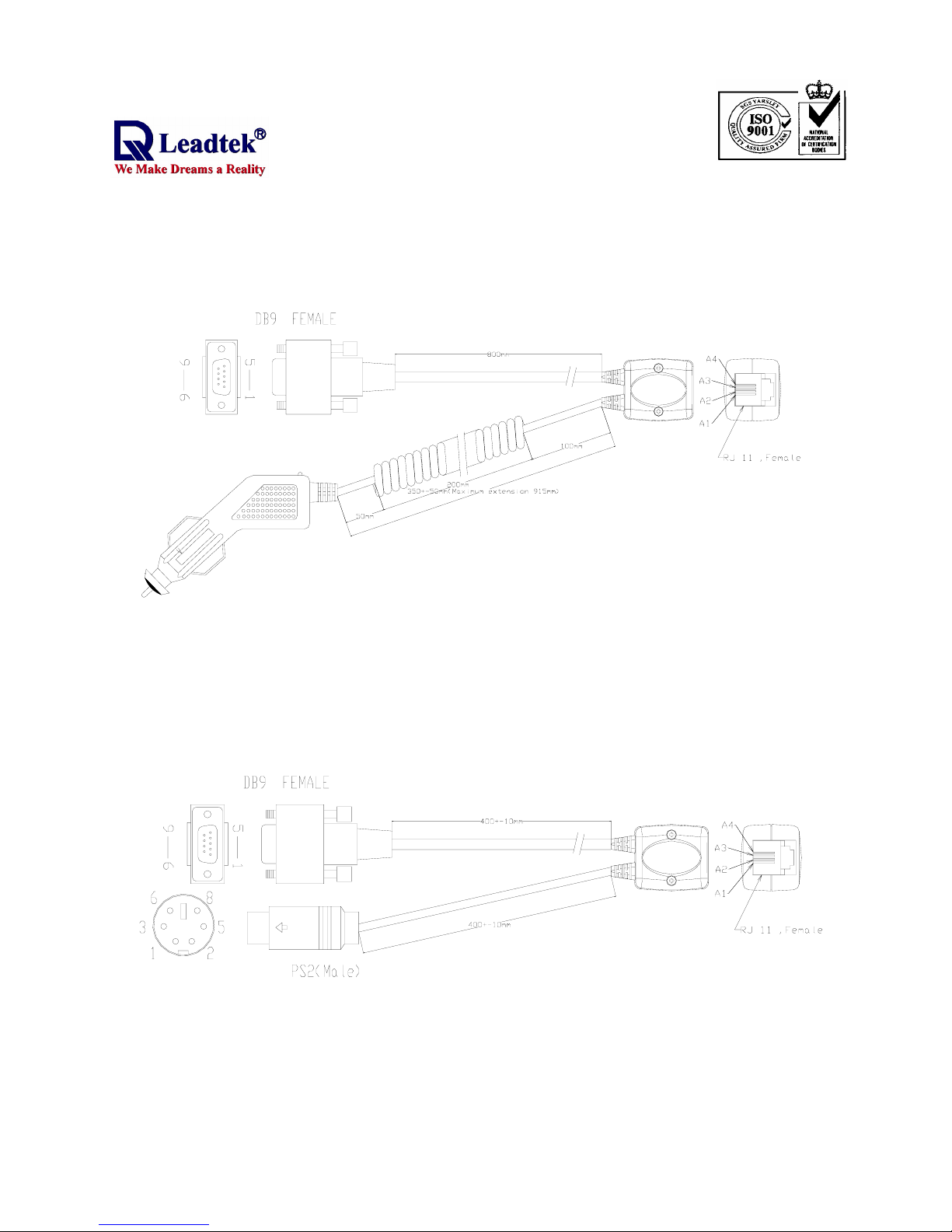

7.5 19000005
This cable is for Sagem WA3050 PDA phone.
7.6 19000006
This cable is for Handspring Edge PDA.

.
- -
8
7.7 19000007
This cable is for Palm V/Vx PDA.
7.8 19000008
This cable is for Casio Cassiopeia E125 PDA.

.
- -
9
7.9 19000009
This cable is for Compaq iPAQ 36/37 series PDA.
7.10 19000010
This cable is for HP Jonada 5xx series PDA.

.
- -
10
7.11 19000011
This cable is for Handspring Visor PDA.
7.12 19000012
This cable is for USB Connector
.
4
3
2
1
180±10
180±10

.
- -
11
7.13 19000013
This cable is for CASIO E200 PDA.
CIGAR-LIGHTER
(PVC 50P,BLACK #3052)
POSITIVE POLE
NEGATIVE POLE
North America
3AG FUSE
6
3
4
LED NOTE
32 1
50±5 200±10 100±10
50±5
800±10

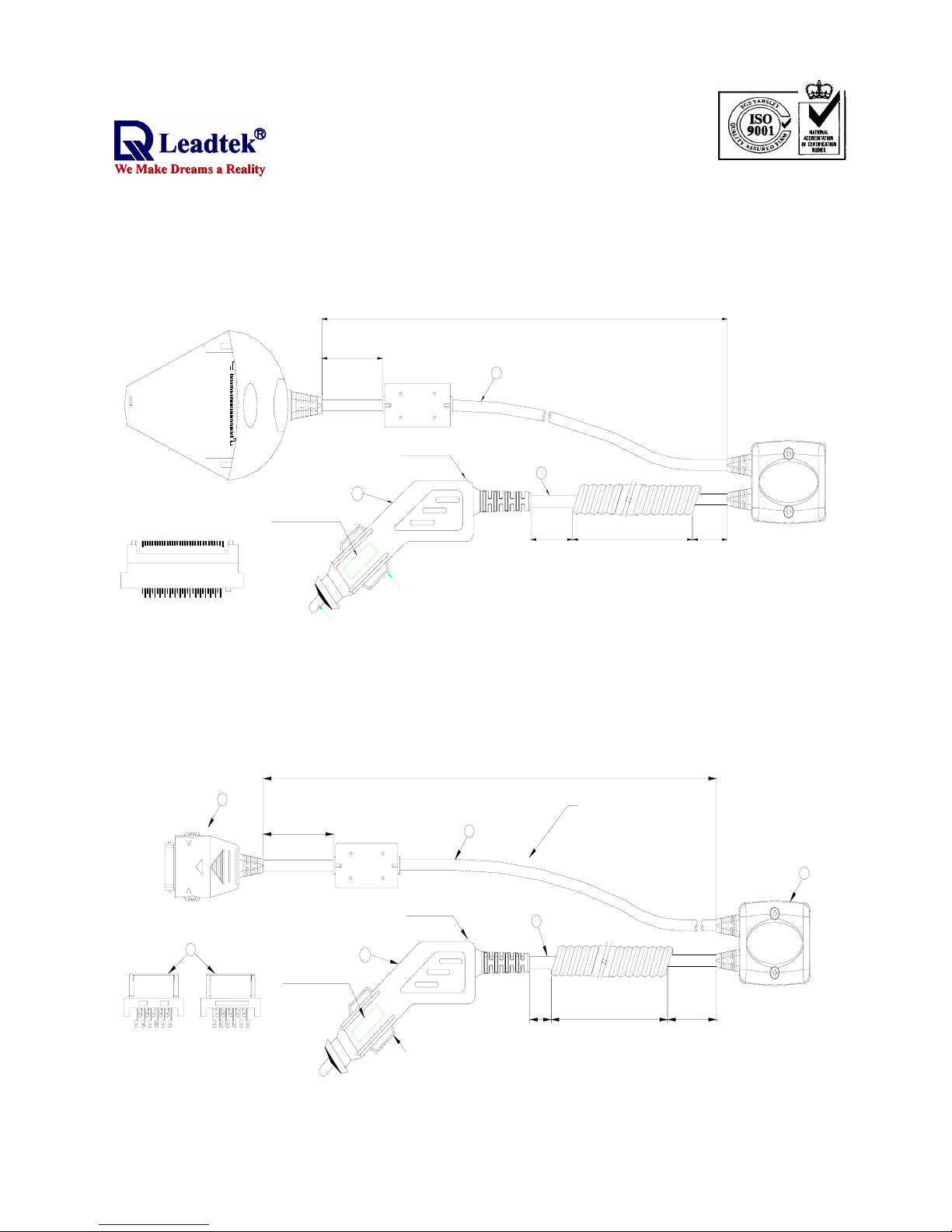

7.14 19000016
This cable is for XDA PDA.
CIGAR-LIGHTER
(PVC 50P,BLACK #3052)
NEGATIVE POLE
North America
1.5AG FUSE
5
3
4
6
LED NOTE
正面
1 5 9 13 17 21
3 7 11 15 19 20 16 12 8 4
22 18 14 10 6 2
反面
1
2
50±5
800±10
50±5 200±10 100±10
CABLE SPECIFICATION:(UL 2725)
1.28AWG*3C(YELLOW.BROWN.ORANGE)
24AWG*2C(RED.BLACK)
3.OD:4.5±0.1mm
4.OUTER JACKET PVC 黑色霧面
5.BRAID RATE 85%
6.外被需白色印字.

.
- -
12
7.15 19000018
This cable is for Pocket Loox PDA.
CIGAR-LIGHTER
(PVC 50P,BLACK #3052)
POSITIVE POLE
NEGATIVE POLE
North America
1.5AG FUSE
LED NOTE
正面
2 6 10 14 18 22 26
4 8 12 16 20 24 23 19 15 11 7 3
25 21 17 13 9 5 1
反面
50±5
800±10
50±5 200±10 100±10
CABLE SPECIFICATION:(UL 2725)
1.28AWG*3C(YELLOW.BROWN.ORANGE)
24AWG*2C(RED.BLACK)
3.OD:4.5±0.1mm
4.OUTER JACKET PVC 黑色霧面
5.BRAID RATE 85%
6.外被需白色印字.
8. Appendix B
Leadtek can also provide the smart antenna using a cable with USB and RS232 DB9
connectors for customers. It can be used in notebook PC with USB or RS232 interface. The
standard length of cable is 2 m.

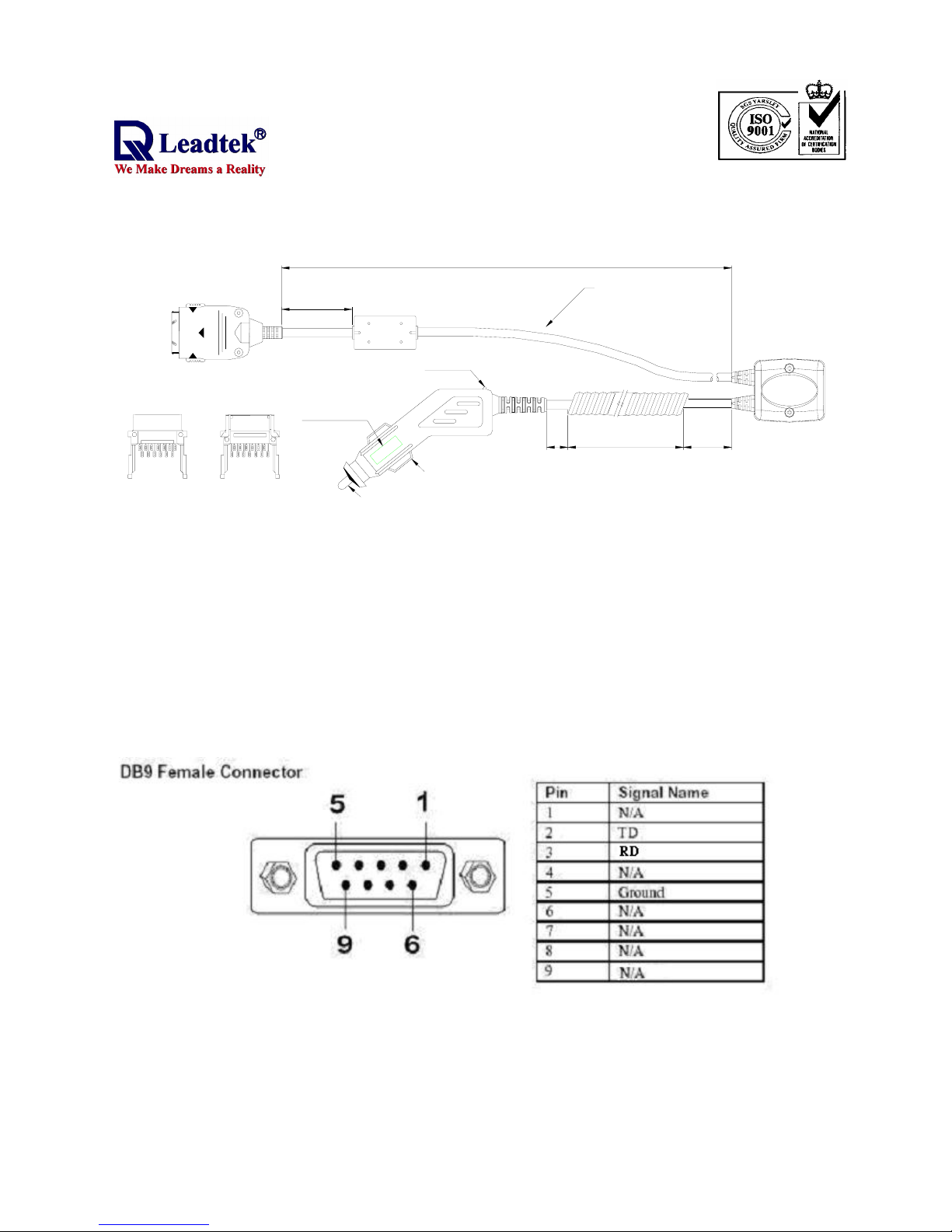

8.1 Pin Assignment of DB9 Connector
8.2 Pin Assignment of USB Connector

.
- -
13
8.3 Mechanical Dimensions
9. Appendix C
Please refer to another operational manual, software installing Manual. The content is as
follows. You can find that this manual will tell you how to install the program, driver and device.
Of course, we suggest you can use GMonitor program to test your device and it is downloaded by
leadtek’s homepage.

.
- -
14
Note 1 : The life of lithium rechargeable battery is dependent on customer how to use it. According to
the data sheet, the important specification is as follow.
Characteristics Item Performance Test condition
20% D.O.D.
(0.3mAh)Depth
of discharge
Over 1000 cycle life Until the discharge capacity
reaches under 0.15mAh
Charge/Discharge
cycle
characteristics
100% D.O.D.
(1.5mAh)Depth
of discharge
Over 200 cycle life Until the discharge capacity
reaches under 0.75mAh
Leadtek Research Inc.: 18F, 166, Chien-Yi Rd., Chung Ho, Taipei Hsien, Taiwan (235)
Phone: [phone] Fax: [phone]
Leadtek U.S.A.: 46721 Fremont Blvd., Fremont, CA94538, U.S.A.
Phone: [phone] Fax: [phone]
Leadtek Research Europe B.V.：Antennestraat 16 1322 AB, Almere – The Netherlands
Tel:[phone] Fax:[phone]
E-mail: [e-mail] HomePage:www.leadtek.com.tw

.
- -
15
M A N U A
L

.
- -
16
Table o
f
C
ontents
Overview ................................................................ 1
Installing 9531 USB Driver .................................... 3
Installing WinFast Navigator ................................ 4
Hardware Installation ............................................ 7
Uninstalling 9531 USB Driver ............................... 8
Uninstalling WinFast Navigator .......................... 8
WinFast Navigator Application ........................... 9
Installing WinFast Navigator for Pocket PC........16
Hardware Installation............................................ 18
WinFast Navigator for PDA with WInCE.............. 19
Appendix A Technical Specifications ................. 27
Appendix B Warranty ........................................... 30
Package Contents ................................................... 2
System Requirements ............................................. 2
Application Main Screen ......................................... 9
Tool Bar ..........................................................10
Satellite Tracking View Window ..................... 10
Satellite Data and Signal ............................... 11
Connection Information ..................................12
Position Data ................................................. 13
Advanced Settings ................................................. 14
Start Navigating ...................................................... 15
Application Main Screen.......................................... 19
Reading Status Bar.................................................. 20
Navigation Messages.............................................. 21
Configuration Tools.................................................. 22
Quick Buttons on Menu Bar..................................... 26
OverviewFOR PCFOR PDAAPPENDIX

.
- -
17
Leadtek GPS 9531 is a complete GPS
smart antenna receiver including an
embedded antenna and GPS receiver
circuits, designed for a broad spectrum
of OEM system applications. The
product is based on the proven
technology also used in other Leadtek
12 channel GPS receivers, and SIRF
chipset solution. The GPS smart antenna tracks up to 12 satellites at a time
while providing fast time-to-first-fix, one second navigation updates and low
power consumption. Its far reaching capability meets the sensitivity
requirements of car navigation as well as other location-based applications.
Leadtek GPS 9531 smart antenna is designed to withstand rugged operating
conditions and is completely water resistant. With a clear view of the GPS
satellites and a PDA or notebook PC to provide power source and digital map
function, a truly portable navigation system becomes a reality using the
Leadtek GPS 9531 smart antenna. The PDA or notebook PC communicates
with the smart antenna via RS-232 serial communication interface. Internal
memory backup allows the device to retain critical data such as satellite orbital
parameters, last position, date and time. End user interfaces can be added by
application designers.
The smart antenna design utilizes the latest technology and advanced circuit
integration to achieve superior performance while minimizing space and
power requirements. Such hardware capability combined with the ingenuity of
the software makes the smart antenna easy for integration and use with all
kinds of navigation applications.
Overview
1GPS 9531Overview
OVERVIEW

.
- -
18
OVERVIEW
Package Contents
PC Version
GPS 9531 unit x 1
RS232-PS2 cable or USB cable x 1
User's Manual x 1
WinFast Navigator CD x 1
Bundled CD x 1
2OverviewGPS 9531
Pocket PC Version
GPS 9531 Unit x 1
Cable for PDA x 1
User's Manual x 1
WinFast Navigator CD x 1
Bundled CD x 1
800x600
System Requirements
PC Version
Pocket PC Version
1. Processor: Pentium 200 or above
2. Memory: 64MB
3. O/S: Windows 95/98/NT4/ME/2000/XP
4. Free HD space 785MB
5. 8x CD-ROM drive
6. Display: Hi-Color (16bits/pixel) with minimum of resolution
1. O/S: Windows CE 3.0 or above
2. Free memory: 1 MB
：
