Instruction Manual
Model: LKCH-9802BGS
Island Hood
Before operating this unit, please read these instructions completely.

CONTENT
INTRODUCTION..................................................................... 3
SAFETY PRECAUTION.......................................................... 3-4
ISLAND MODEL INSTALLATION........................................... 5-7
FITTING CARBON FILTER.................................................... 8
OPERATION........................................................................... 9
MAINTENANCE...................................................................... 10
TROUBLESHOOTING............................................................ 11
ENVIRONMENTAL PROTECTION......................................... 11

3
INTRODUCTION
Thank you for choosing Lebensstil Kollektion Island Hood.
This instruction manual is designed to provide you with all required
instructions related to the installation, use and maintenance of the
appliance.
In order to operate the unit correctly and safely, please read this
instruction manual carefully before installation and usage.
The cooker hood uses high quality materials and is made with a
streamlined design. Equipped with large power electric motor and
centrifugal fan, it also provides strong suction power, low noise
operation, non-stick grease filter and easy assembly and installation.
SAFETY PRECAUTION
Never let children operate the machine.
The cooker hood is for home use only, not suitable for barbecue,
roast shop and other commercial purpose.
The cooker hood and its filter should be cleaned regularly in order
to keep them in good working condition.
Clean the cooker hood according to the instruction manual and
keep the unit from danger of burning. There is a fire risk if cleaning
is not carried out in accordance with the instructions.
Avoid direct heat from the gas cooker.
Please keep the kitchen well-ventilated. There shall be adequate
ventilation of the room when the range hood is used at the same
time as appliances with burning gas or other fuels.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
The air must not be discharged into a flue that is used for
exhausting fumes from appliances with burning gas or other fuels.
Regulations concerning the discharge of air have to be fulfilled.

4
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved.
Children should be supervised to ensure that they do not play with
the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.
Avoid exposed flames under the range hood.
CAUTION: Accessible parts may become hot when used with
cooking appliance.
The warning shall be in the same part of the instructions that
include details of how to mount the equipment.
Electrical Shock Hazard
Only plug this unit into a properly earthed outlet. If in doubt, seek
advice from a suitably qualified engineer.
 Failure to follow these instructions can result in death, fire, or
electrical shock.

5
ISLAND MODEL INSTALLATION

6
1) Position the hanging plate on the
ceiling and mark the position of the
screw holes. The hanging plate should
be securely fixed to the ceiling.
11 x ST6 (40mm) screws for
wooden ceiling
8 x expansion bolts for cement
ceiling
2) Fix the angle bars to the hanging
plate, using the 8 x M5 screws.
3) Extend the angle bars to the
required height and then fix them in
position using the 16 x M5 screws and
nuts with metal washers.
IMPORTANT: The angle bars
must have an overlap of AT LEAST
100mm.
4) If your cooker hood is going to be
used in extraction mode, then you
should connect the ducting hose to the
ceiling adapter at this point.
Fix the upper chimney section to the
hanging plate, using the 4 x self
tapping screws.
Slide the lower chimney section onto
the angle bars and raise it until it sits
just below the upper chimney section.

7
5) If the glass canopy has not been
pre-assembled by the factory, it should
be fixed to the top of the main body of
the cooker hood at this stage.
6) Lift the main body of the cooker
hood towards the angle bar and fix it
into position using the 16 x M5 screws.
IMPORTANT: This stage of the
installation process MUST be
completed by two people.
IMPORTANT: The 16 x M5
screws MUST be securely tightened.
7) If you are going to be using the
hood in extraction mode, you should
fix the ducting hose to the ceiling.
The electrical connection must correspond to the electrical requirement
noted on the rating plate, which is placed inside the cooker hood. The
appliance should now be connected to the electrical supply.
Check that the appliance is operating correctly by selecting each speed and
switching the light bulbs on and off.
Remove the hanging hook and then slide the lower chimney section
downward until it rests against the main body of the cooker hood.
Use a stainless steel cleaner and polish the stainless steel sections of the
appliance.
If you are using the appliance in recirculation mode, you should now fit the
carbon filter. See the “fitting the carbon filter" section.

8

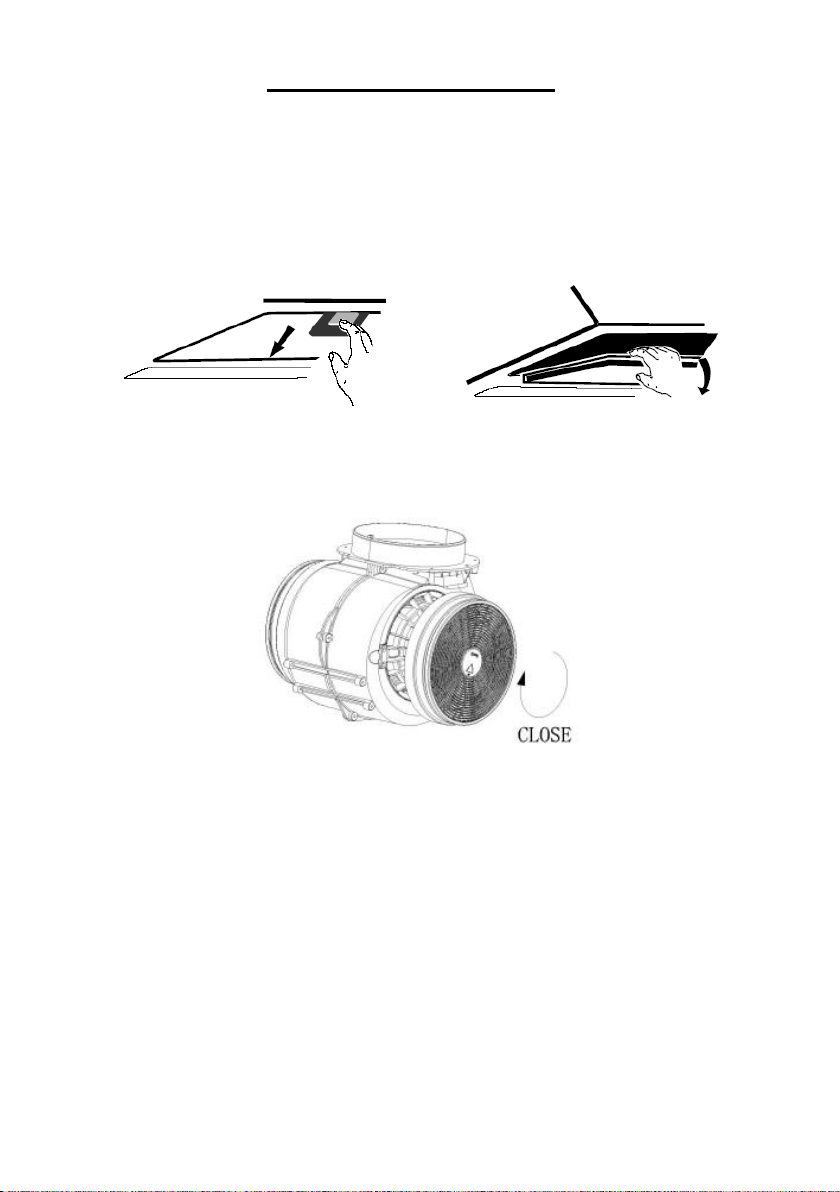

FITTING CARBON FILTER
If you do not have an outlet to the outside, exhaust pipe is not required.
Activated carbon filter can be used to trap odors.
In order to install the activated carbon filter, the grease filter should be
detached first. Press the lock and pull it downward.
Plug the activated carbon filter into the unit and turn it in clockwise direction.
Repeat the same on the other side.

9
OPERATION
Invisible Touch Control
STANDBY MODE
After plugging in, will flash slowly to indicate system is in
STANDBY MODE.
On/Off button
Used for turning off the fan. When plugged into power supply, press this
button for 3 seconds and all buttons will illuminate with all functions ready.
Low Speed button
Used for ventilation in the kitchen. Suitable for simmering and cooking that
does not produce much steam.
Medium Speed button
Airflow speed is ideal for ventilation in standard cooking operation.
High Speed button
When high density of smoke or steam is produced, press high-speed
button for most effective ventilation.
Light button

10
MAINTENANCE
Before cleaning switch the unit off and pull out the plug.
I. Regular Cleaning
Use a soft cloth moistened with warm and mildly soapy water or household
cleaning detergent. Never use metal pads, chemical, abrasive material or stiff
brush to clean the unit.
II. Monthly Cleaning for Grease Filter
IMPORTANT: Clean the filter every month to prevent any risk of fire.
The filter collects grease, smoke and dust, and directly affects the efficiency
of the cooker hood. If not cleaned, the grease residue (potentially flammable)
will saturate on the filter. Clean it with household cleaning detergent.
III. Annual Cleaning for Activated Carbon Filter
Applies SOLELY to unit installed as a recirculation unit (not vented to the
outside). The filter traps odors and must be replaced at least once a year
depending on how frequent the cooker hood is used.
IV. Bulb Replacement
1. Switch the unit off and unplug the appliance.
2. Remove the lamp cover by unscrewing the 2 screws.
3. Unscrew the incandescent bulb.
4. Replace with the same type and rated bulb/lamp.
Halogen lamp (max 20W) and LED lamp (max 1.5W).

11
TROUBLESHOOTING
Fault
Cause
Solution
Light on, but
fan does not
work
The fan blade is jammed.
Switch off the unit and repair by
qualified service personnel only.
The motor is damaged.
Both light and
fan do not work
Light bulb burned.
Replace the bulb with correct rating.
Power cord is loose.
Plug in to the power supply again.
Serious
vibration of the
unit
The fan blade is
damaged.
Switch off the unit and repair by
qualified service personnel only.
The fan motor is not fixed
tightly.
Switch off the unit and repair by
qualified service personnel only.
The unit is not hung
properly on the bracket.
Remove the unit and check whether
the bracket is in proper location.
Suction
performance
not good
Too much distance
between the unit and the
cooking plane.
Readjust the distance to 65-75cm.
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist. Check
with your Local Authority or retailer for recycling advice.
This appliance is marked according to the European directive 2012/19/EU on
Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product.
The symbol on the product indicates that this product may not be treated as
household waste. Instead it shall be handed over to the applicable collection
point for the recycling of electrical and electronic equipment.
Disposal must be carried out in accordance with local environmental regulations
for waste disposal.
For more detailed information about treatment, recovery and recycling of this
product, please contact your local city office, your household waste disposal
service or the shop where you purchased the product.
