Lebensstil Kollektion LKCHi-9120 User manual

Cooker Hood
Instruction Manual
LKCHi-9120
www.lebensstilkollektion.com

Thank you for choosing Lebensstil Kollektion appliance. This
instruction manual is designed to help you through each step of
owning your new appliance, from installation to use and maintain it.
Please read it carefully before you start using your product.
If, however, you should find something missing, or not covered, please
contact the Customer Care Centre immediately. Their number is
located on the back page of this book.
Alternatively, general information, is also available from our website.
The address is located on the back page of this book.
Notes:
Your appliance may not feature some of the functions specified
in this instruction manual.
The product images are schematic, therefore, it may not
represent the actual look of the appliance.
This appliance has been produced in modern environment-
friendly facilities without adversely affecting nature.
Products, Parts and Accessories marked with * are optional.
--- Please read this handbook carefully and keep it for future reference --

Content
Electrical Safety Warnings 1
Electrical Connection 1
Introduction Connection 2
Technical Specification 3
Ventilation modes 4
Installation 5 - 6
Touch Control Panel 7
Troubleshooting 8

Electrical Safety Warnings
DO NOT handle the electricity connection points and plug with
wet hands at all time.
The appliance must be earthed.
The power supply card shall not be in contact with any parts of
the appliance that produce theat.
If the power supply cord is damages. Stop using the appliance
and replace the cord by an authorized service agent to prevent a
hazardous situation.
NEVER wash he appliance b spraying or pouring water on it.
There is a risk of electrocution.
WARNING: Cut off all electrical supply connections before
accessing the terminals or changing the light bulb.
Unplug the appliance during installation, maintenance, cleaning
and repair.
Ensure the power plug is fully inserted into the wall socket or
power point to avoid sparks.
Electrical Connection
This appliance must be installed and connected to its place correctly
according to the manufacturer’s instruction. The company will not be
held responsible for damages resulting from connection of non-
earthed sockets to be appliance.
This cooker has been manufactured as 220 – 240V 50/60Hz. AC
power supply compliant and requires a 13 Amp fuse. If your power
connection is different that the indicated values, please refer to the
Customer Care Centre or the authorized service agent.
1

Introduction Connection
A. Chimney Mounting Bracket
B. Upper Chimney Cover
C. Lower Chimney Cover
D. Flexible Ducting Host
E. Main Body
F. Oil Filter
2

Technical Specification
Input Power : 154 Watt
Supply Voltage : 220 – 240 v 50-60 Hz
LEP Lamp : 4 Watt * 1
Fan Speed : 9 speeds
3

Ventilation modes
You can choose to install the hood as a ducted or recirculation mode.

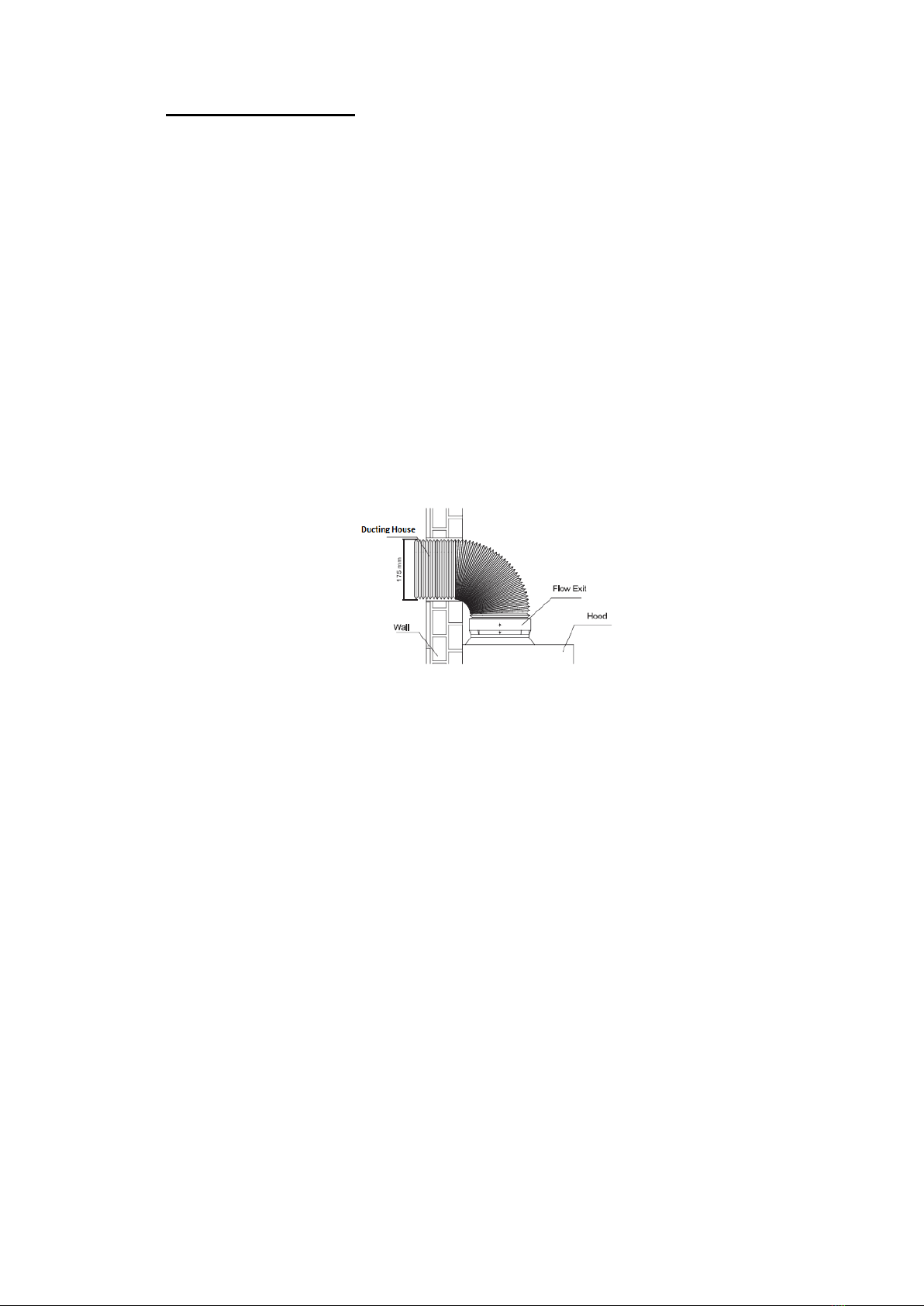

Ducted Mode (Vented Mode)
In the ducted mode, air is drawn into the hood, fat are trapped
by oil filters. Odors, fumes and condensation are then expelled to
the outside. In this mode, only the oil filters are installed.
When installing the ducted mode, connect the hood to the
chimney using either a flexible or rigid hose with Ø 180 mm.
Fix the hose in position using sufficient hose clamps (not
supplied).
Recirculated
Optionally, you can use an optional charcoal filter to fit into the
cooker hood and recirculate the filtered air back into the cooking
area.
Kindly make sure the exhaust holes of the upper chimney are not
block.
The charcoal filter has to be replaced every 6 months or more
frequent if heavy cooking activities are being performed
regularly.
Otherwise, it may reduce the extraction performance of the
cooker hood while possibly increase the noise and vibration of
the appliance.
4

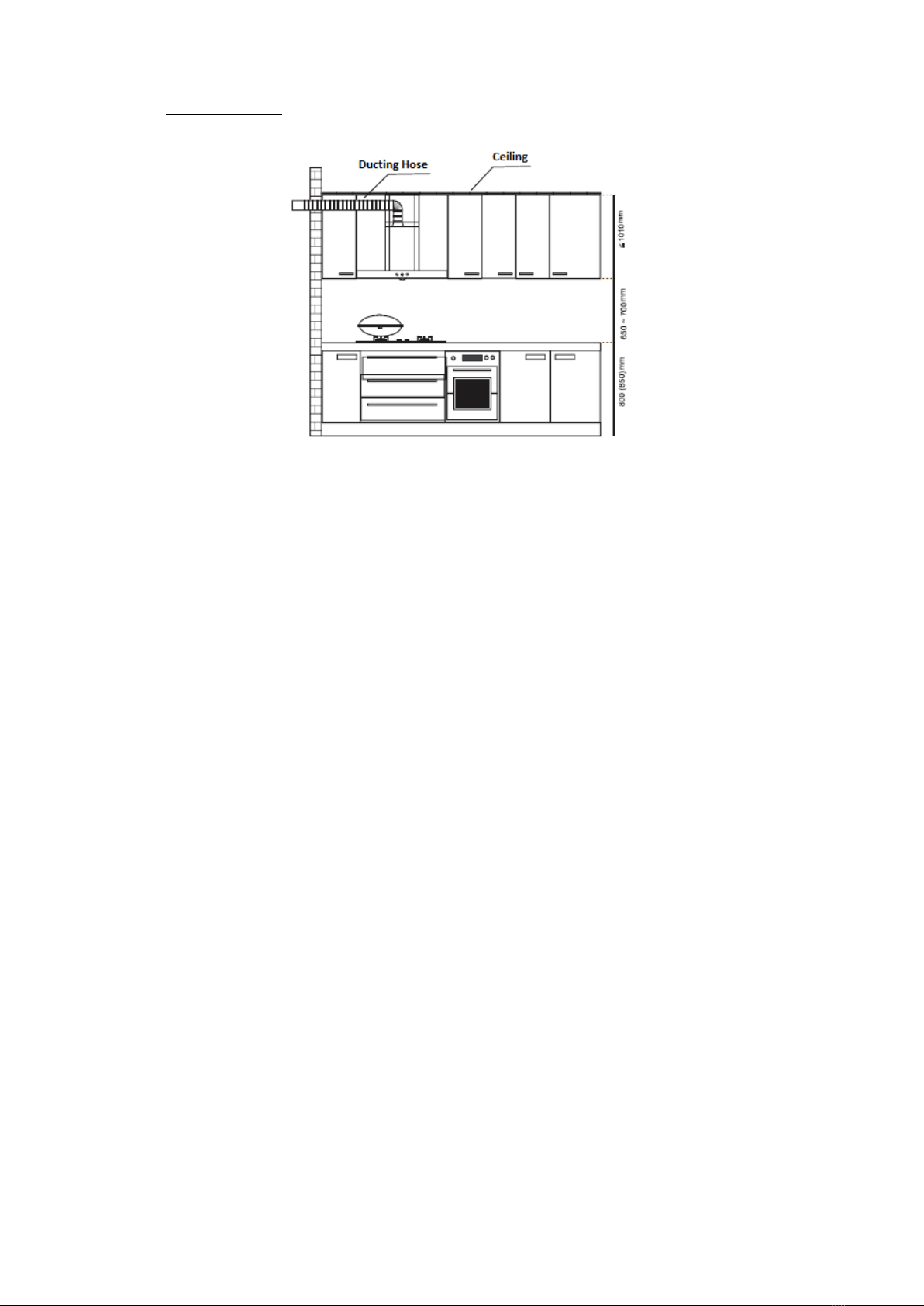

Installation
Wall Mounting
1. Determine height between cooker hob and base of hood.
2. Mark all to suit all bracket locations. Drill holes of 50mm depth
at the selected drilling position.
3. Insert the expansion tubes to fix the bracket onto the wall.
4. Install the flow exit to the hood and follow by connecting the
flexible exhaust duct to the flow exit.
5. Strengthened the connection between the flow exit and the
flexible duct hose with screws.
6. Lift and hang the hood to the wall bracket and please ensure it
sits firmly on the bracket.
7. Direct the other end of the flexible exhaust duct to the outlet or
wall.
8. Fit in the safety baffle of the hood onto the wall to strengthen
the position and to reduce vibration when the hood is switched
on.
9. Chimney extension can be installed to the ceiling or wall. 10.
Ensure the oil collection container is in place before the hood is
being used. To remove it for cleaning, slide the oil collection
container from front to rear, vice versa for inserting it into
position.
5

Chimney assembly
Upper chimney
1. Slightly widen the two sides of the upper chimney and hood
them behind the mounting brackets, ensuring that they are
well seated.
2. Secure the sides of the brackets using screws.
Lower Chimney
1. Slightly widen the two sides of the chimney and hook them
between the upper chimney and the wall, ensuring that
they are well seated.
2. Fix the lower parts laterally to the hood body using screws
6

Touch Control Panel
Light
Up/Down
ON/OFF
ON/OFF: To switch on the appliance. Touch the ON/OFF with your
finger tip. Touch twice On/Off button to switch off the appliance. * All
lights will go off after that.
Up/Down: To adjust the fan speed by slide to the right to increase or
left to reduce the level with your finger tip.
Light: Touch to switch on/off the LED lighting and Clock.
Delay timer: Touch once ON/OFF button, to activate a duration of 3
minutes delay timers.
*This delay timer is only works if the cooker hood is at ÖN condition.
Clock Setting:
a) Hour –touch ON/OFF and hold 3 seconds,
b) Minute –touch ON/OFF again after done hour setting
Please use the UP/DOWN to adjust the increase/decrease the
numbering.
7

Troubleshooting
Symptoms
Possible Cause
Solution
Motor and light do
not operate
Power plug is not inserted completely
Check the plug and insert it
properly
The light bulbs are blown
Replace the bulbs
The wire and / or cable is disconnected
Contact us
The light’s transformer is damaged
Contact Us
Motor cannot
operate but the lights
are working
The impeller has stopped
Contact Us
The capacitor is disconnected and/or
damaged
Contact Us
The motor is damaged
Contact Us
The range hood
vibrates or shakes
while in operation
The Cooker hood is not installed levelly
or the wall which it is installed upon is
not solid
Relocation of the cooker hood
or strengthening the wall is
required
The motor is not properly installed
Contact Us
The damaged impeller is affecting the
levelness of the range hood
Contact Us
Only one or two
buttons can function
while others are not
working
The control panel is not functioning
properly
Contact Us
Connection with the control board is
loose
Contact Us
Weak / Low
Extraction
Performance
The range hood is installed too high
from the cooking hob
Re-install the cooker hood to a
lower position
There are blockages in the ducting hose
Remove the dirt/blockages
inside the duct
Air convection is too strong around the
appliance
Avoid opening too many
windows or doors to improve
the extraction performance
Oil leakage
The cooker hood is not installed levelly
Re-install the hood to a much
level position
8

Customer Careline
1800-881-770
Distributed by
Kollektion Distribution Sdn. Bhd.
11b, Jalan 223, Section 51A
46100 Petaling Jaya Selangor,
Malaysia
