Lebensstil Kollektion LKCHi-9303 User manual

Cooker Hood
Instruction Manual
LKCHi-9303
www.lebensstilkollektion.com

Thank you for choosing Lebensstil Kollektion appliance. This
instruction manual is designed to help you through each step of
owning your new appliance, from installation to use and maintain it.
Please read it carefully before you start using your product.
If, however, you should find something missing, or not covered,
please contact the Customer Care Centre immediately. Their number
is located on the back page of this book.
Alternatively, general information, is also available from our website.
The address is located on the back page of this book.
Notes:
Your appliance may not feature some of the functions specified
in this instruction manual.
The product images are schematic, therefore, it may not
represent the actual look of the appliance.
This appliance has been produced in modern environment-
friendly facilities without adversely affecting nature.
Products, Parts and Accessories marked with * are optional.
--- Please read this handbook carefully and keep it for future reference --

Content
Electrical Safety Warnings & Electrical Connection 1
Introduction Connection 2
Technical Specification 3
Ventilation modes 4
Installation 5 - 6
Touch Control Panel 7
Cleaning and Maintenance 8
Troubleshooting 9

Electrical Safety Warnings
DO NOT handle the electricity connection points and plug with
wet hands at all time.
The appliance must be earthed.
The power supply card shall not be in contact with any parts of
the appliance that produce theat.
If the power supply cord is damages. Stop using the appliance
and replace the cord by an authorized service agent to prevent
a hazardous situation.
NEVER wash he appliance b spraying or pouring water on it.
There is a risk of electrocution.
WARNING: Cut off all electrical supply connections before
accessing the terminals or changing the light bulb.
Unplug the appliance during installation, maintenance, cleaning
and repair.
Ensure the power plug is fully inserted into the wall socket or
power point to avoid sparks.
Electrical Connection
This appliance must be installed and connected to its place correctly
according to the manufacturer’s instruction. The company will not be
held responsible for damages resulting from connection of non-
earthed sockets to be appliance.
This cooker has been manufactured as 220V/50Hz. AC power supply
compliant and requires a 13 Amp fuse. If your power connection is
different that the indicated values, please refer to the Customer Care
Centre or the authorized service agent.
1

Introduction Connection
A. Chimney Mounting Bracket
B. Upper Chimney Cover
C. Lower Chimney Cover
D. Flexible Ducting Host
E. Flow Exit
F. Main Body
G. Oil Filter
2

Technical Specification
Input Power : 233 Watt
Supply Voltage : 220v / 50Hz
LEP Lamp : 3 Watts
Product Size : 895 * 405 * 690 - 1275 (mm)
3

Ventilation modes
Ducted Mode (Vented Mode)
In the ducted mode, air is drawn into the hood, fat are trapped
by oil filters. Odors, fumes and condensation are then expelled
to the outside. In this mode, only the oil filters are installed.
When installing the ducted mode, connect the hood to the
chimney using either a flexible or rigid hose with Ø 190 mm.
Fix the hose in position using sufficient hose clamps (not
supplied).
4

Installation
*Minimum height from hob surface: 300mm (Electric Hob) & 350mm (Gas Hob)
* If installation without chimney cover, at least 3cm gap between ceiling and hood
Wall Mounting
1. Determine height between cooker hob and base of hood.
2. Mark all to suit all bracket locations. Drill holes of 50mm depth at
the selected drilling position.
3. Insert the expansion tubes to fix the bracket onto the wall.
4. Install the flow exit to the hood and follow by connecting the
flexible exhaust duct to the flow exit.
5. Strengthened the connection between the flow exit and the
flexible duct hose with screws.
6. Lift and hang the hood to the wall bracket and please ensure it
sits firmly on the bracket.
7. Direct the other end of the flexible exhaust duct to the outlet or
wall.
8. Fit in the safety baffle of the hood onto the wall to strengthen the
position and to reduce vibration when the hood is switched on.
9. Chimney extension can be installed to the ceiling or wall.
10. Ensure the oil collection container is in place before the hood is
being used. To remove it for cleaning, slide the oil collection
container from front to rear, vice versa for inserting it into
position.
5

Chimney assembly
Upper chimney
1. Slightly widen the two sides of the upper chimney and
hood them behind the mounting brackets, ensuring that
they are well seated.
2. Secure the sides of the brackets using screws.
Lower Chimney
Slightly widen the two sides of the chimney and hook
them between the upper chimney and the wall, ensuring
that they are well seated.
Fix the lower parts laterally to the hood body using screws
6

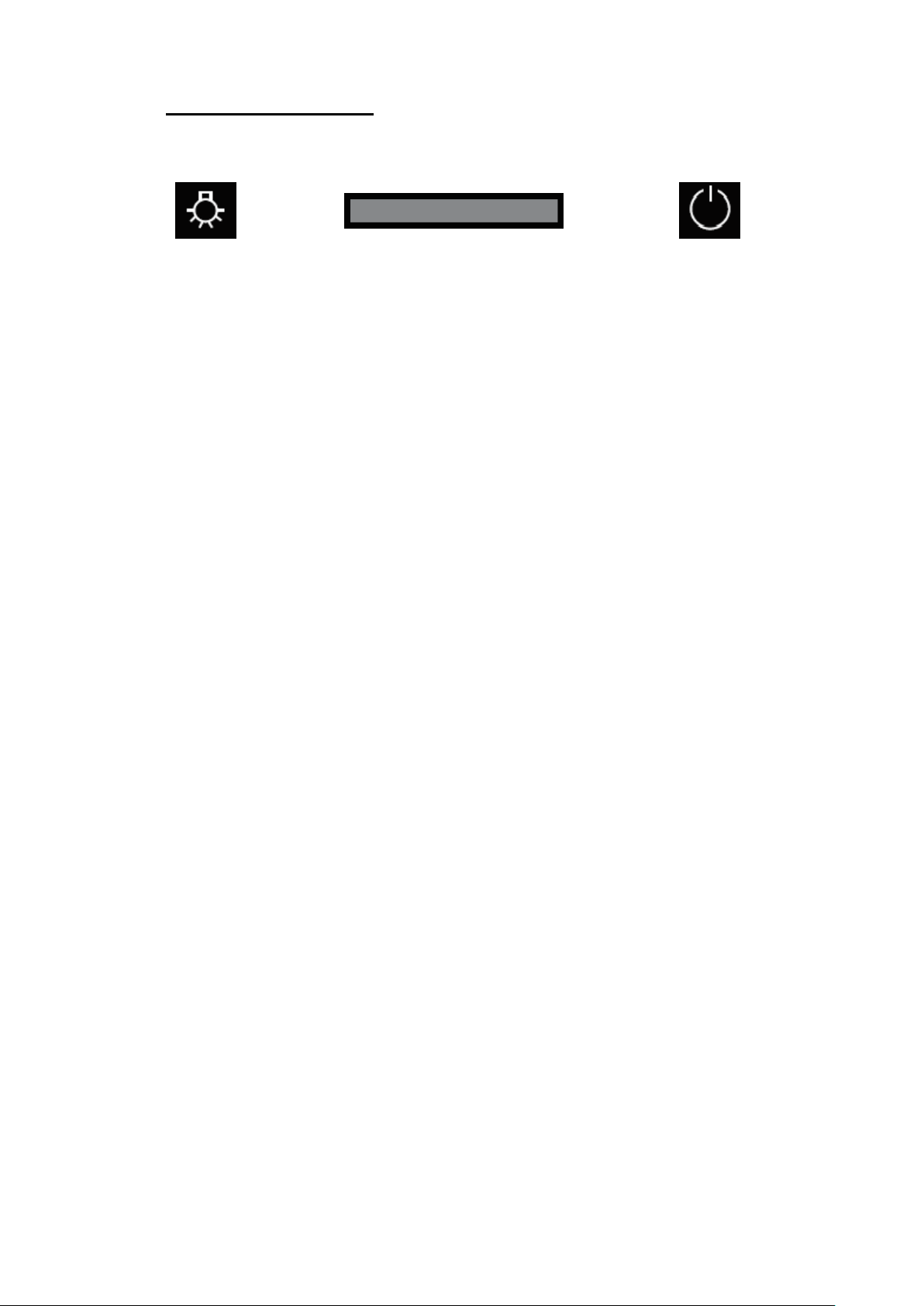

Touch Control Panel
Light
Up/Down
ON/OFF
ON/OFF: To switch on the appliance. Touch the ON/OFF with your
finger tip. Touch twice On/Off button to switch off the appliance. * All
lights will go off after that.
Up/Down: To adjust the fan speed by slide to the right to increase or
left to reduce the level with your finger tip.
Light: Touch to switch on/off the LED lighting and Clock.
Delay timer: Touch once ON/OFF button, to activate a duration of 3
minutes delay timers.
*This delay timer is only works if the cooker hood is at ON condition.
Clock Setting:
a) Hour –touch ON/OFF and hold 3 seconds,
b) Minute –touch ON/OFF again after done hour setting
Please use the UP/DOWN to adjust the increase/decrease the
numbering.
7

Cleaning and Maintenance
It is important to clean the product regularly as a build-up of
grease can affect its performance or damage it and may invalidate
your warranty.
Do not use undiluted bleaches, products containing chlorides, wire
wool or abrasive cleaners on aluminium, stainless steel, or
plastic/painted parts as they can damage the appliance.
Always switch off your appliance and unplug the power plug.
Always wipe the surface of the glass panel with clean cloth.
Regularly removed oil contamination in oil cup and clean the oil
cup.
How to remove the mesh filter:
oRemove the 2 fixing screw at the right and left of mesh filter,
oGrasp the top of the mesh filter by hand,
oLoosen the lock at both end of the top mesh filter,
oAnd remove the mesh filter from the unit.
WARNING: Cleaning of product’s parts (for e.g. Impeller, Motor..Etc.) should handle by
professional.
8

Troubleshooting
Symptoms
Possible Cause
Solution
Motor and light do
not operate
Power plug is not inserted completely
Check the plug and insert it
properly
The light bulbs are blown
Replace the bulbs
The wire and / or cable is disconnected
Contact us
The light’s transformer is damaged
Contact Us
Motor cannot operate
but the lights are
working
The impeller has stopped
Contact Us
The capacitor is disconnected and/or
damaged
Contact Us
The motor is damaged
Contact Us
The range hood
vibrates or shakes
while in operation
The Cooker hood is not installed levelly
or the wall which it is installed upon is
not solid
Relocation of the cooker hood
or strengthening the wall is
required
The motor is not properly installed
Contact Us
The damaged impeller is affecting the
levelness of the range hood
Contact Us
Only one or two
buttons can function
while others are not
working
The control panel is not functioning
properly
Contact Us
Connection with the control board is
loose
Contact Us
Weak / Low
Extraction
Performance
The range hood is installed too high from
the cooking hob
Re-install the cooker hood to a
lower position
There are blockages in the ducting hose
Remove the dirt/blockages
inside the duct
Air convection is too strong around the
appliance
Avoid opening too many
windows or doors to improve
the extraction performance
Oil leakage
The cooker hood is not installed levelly
Re-install the hood to a much
level position
9

Customer Careline
1800-881-770
Distributed by,
Kollektion Distribution Sdn. Bhd.
11B, Jalan 223, Section 51A,
46100 Petaling Jaya Selangor,
Malaysia.
