Leding 260 User manual

LightBeam 260
User Manual

1
Safe Notices .......................................................................................2
Light Introduce ...................................................................................5
Lamp Replacement ...........................................................................7
Line Connection .................................................................................8
Light Introduce ............................................................................. ....10
Power Supply ....................................................................................11
Control Connection ...........................................................................13
Physical Installation ..........................................................................14
DMX Channels ...................................................................................16
Maintain notice ...................................................................................20
Thank you for purchasing the Drastic LightBeam 260, please read carefully and
understand well enough about all the notices from this manual before using our products. To
avoid potential risks of harms to body, wealth loss and products damage may bring to you.
We will not bear responsibilities if not obey this manual notice.
Index

2
Safe symbol for this manual
Dangerous！May cause serious damages or even to death
Dangerous！Read manual before installation and maintain
Dangerous！High voltage, to avoid deadly electric shook
Warning！Be care of fire
Warning！Do not touch hot surface to avoid be scalded
Warning！Be care of radiation to eyes, eyeshade needed
Warning！Be care of hands, gloves needed
This light may case risks of serious damages, dead electric shook, burning, explosion and
fall of the lamp.
Please read the following safe tips carefully and obey the safe notices on the light before
installation, charging and maintain.
Contact us if you have questions about operation, please dial our customer service number
400-690-2226 or 020-61807798
Safe Notices
Notice:
Please read the safe notices before installation, charging and maintain.
Warning:
This fixture is only for professional users, prohibited for home use

3
Electric Shook Protection
Please cut off the power supply before you open or change accessories of the light (such
as lamp and the fuse), if you don’t want to use the light, cut the power off.
Make sure the fixture has ground-connect protection and use AC power supply same as
the light requires.
Please use 3 pins power cable over 5A load
Before using, please make sure the cables are in good condition and suitable for the
electric current which connect with the fixture
If the cable or the plug damaged, light be soaked or the cable is overheat. Please cut off
the power
Don’t make this fixture in the rain or moist environment
Make sure the equipment grounding
L
Lamp safe
It may cause burn damage to eyes and skin if unmask at the charging lamp, please don’t
stare at the charging lamp directly
Don’t use fixture with broken shell, resist-light board, shot lens, protector and resist-heat
board
If any visible damage of screens, lens or ultraviolet screens on fixture, such as cracks or
deep marks should be replaced.
Heat charging lamp with strong air pressure, may cause expression accidently
Maintain the light or change the lamp, protect-glasses and gloves are needed, cut off the
power supply and make sure the light is cool enough
Don’t use lamps of fragmentary, damaged or any other defects
Notice the using time and the status of the lamp, replace the lamp before the service time
marked in this manual or lamp manufacture limits
Lamp installed should fit for the relevant safe demands
Once the quartz part of the lamp broken, it will release static electricity and poison gas. If

4
the space is not large enough, please keep away and keep the space in good air
circulate. Wear protect gloves when clear up the broken lamp, don’t throw the useless
lamps, send the dangerous items to the relevant department
Be care of scalded and fire disaster
The temperature of light face may a bit high, please avoid to touch anybody or any other
items, keep it cool enough before moving it
Keep away the combustible item (such as textile, wood, paper etc) from the light at least
0.2 meters, inflammable items keep away from this item as far as possible, keep 0.1m
space at least for in/out wind
Don’t light directly at facade of item with 12 meters
Covering the shot lens or rotate the shot lens to avoid the direct sunshine in day time
Don’t use the fixture when the temperate is over 40°C (104°F)
Prohibit to re-install the fixture and install any parts original accessories from Drastic,
prohibit to stick any paper of gobo on the lens and other parts, accessories admitted by
Drastic only can used to change the light effect
Prohibit to control the fuse or temperate-control switch illegally, replace the fuse
according to the specified specification and load
Avoid fall injury
Don’t move the fixture alone
Install with 2 clamps when on truss, prohibit using only 1 clamp
Make sure the truss and hanging system can support 10 times of the fixture weight;
Install the light on flat ground or platform
Make sure the external accessories and holder stable enough
Stable platforms needed when install, maintain and move the fixture, safe guard need
Contact our after-service for more information have not mentioned above
Please contact with our after-sales department for the not described operations.

5
Light Introduce

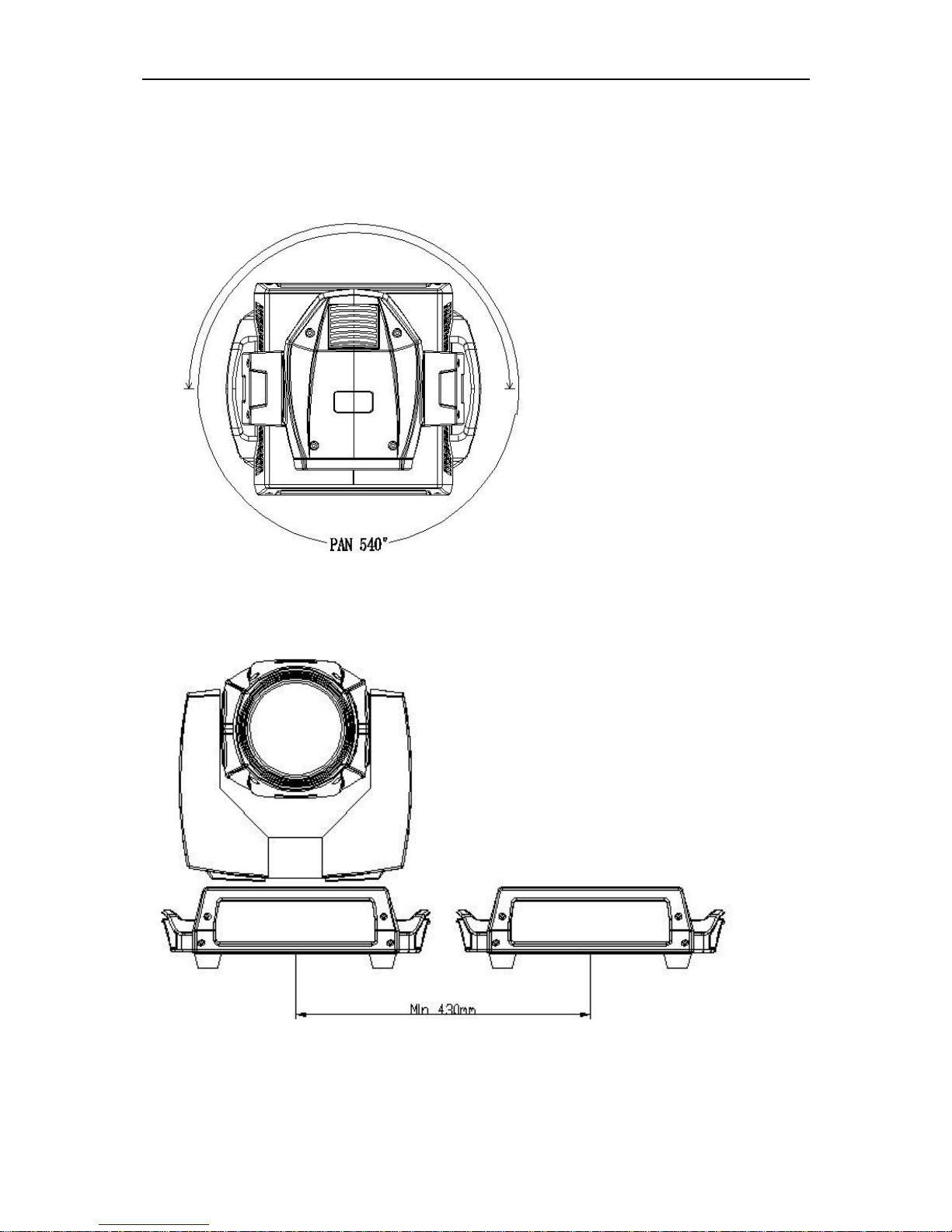

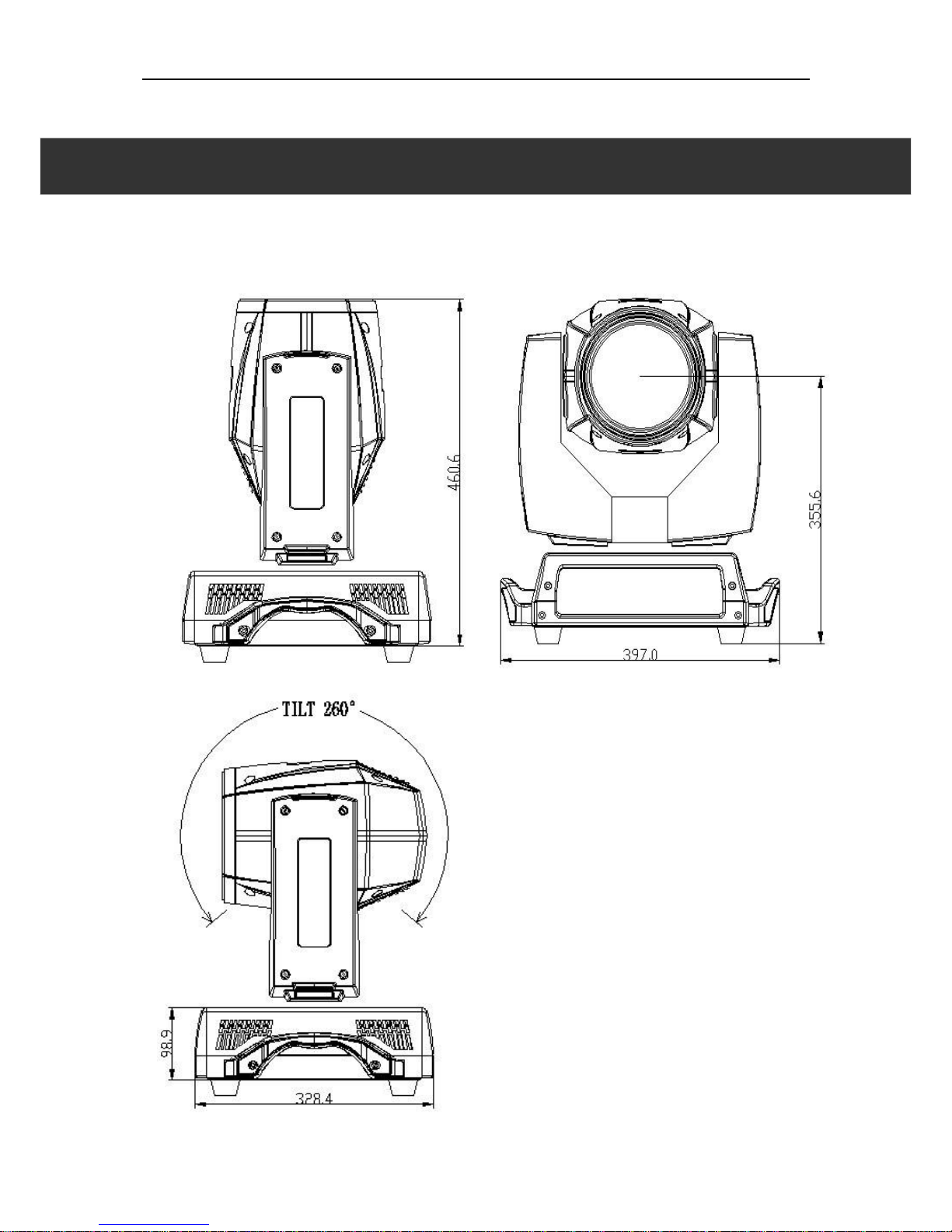

Fixture Diagram

6

7

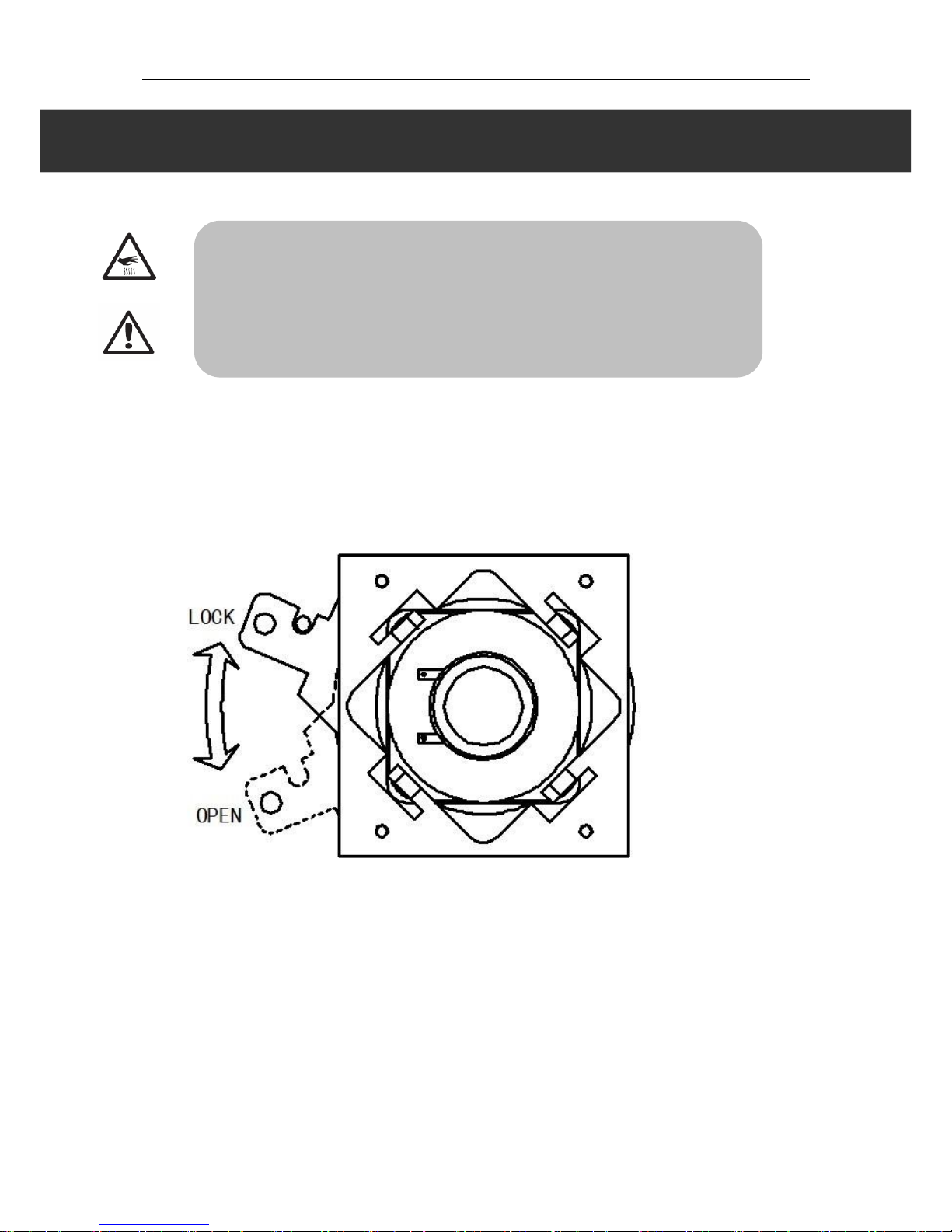

Lamp Replace Diagram
Warning：
Cut off the power before replace the lamp, and uncover it
after 10 minutes cooling;
烫灯泡
Lamp Replacement

8
Function board:
Line Connection

9

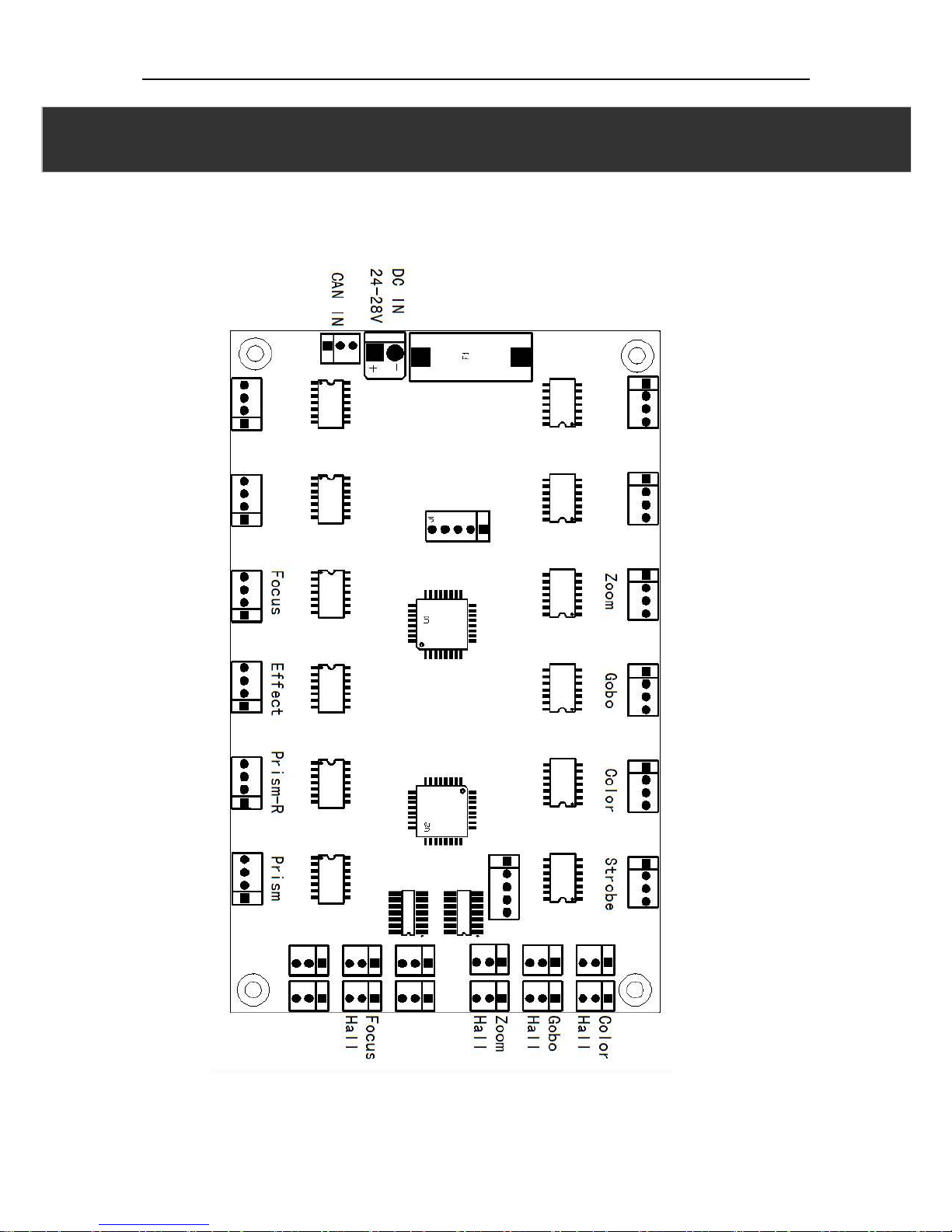

Main board:
XY board:

10
■Thank you for purchasing Drastic moving head LightBeam 260, the light with features as
follows:
Voltage: AC220V-240V 50/60Hz (Optional: AC90V-260V 47-60Hz)
Ballast: Electronic Ballast
Lamp: Philip: 260W
Color temperature: 8500K
Average lifespan: 2000H
Color: 14 colors + empty
Gobos: 17 fixed gobo + open
Prism: 8-facet prism, Bidirectionally variable rotation; Beam effect can be cut into and cut
out.
Frost effect: Adjustable spot angle for frost.
Beam: 7 GradesAdjustor for Beam shot.
Focus: Electric focusing
Dimming: 0-100% linear adjustment
Range: Pan 540°,Tilt 260°16 Bit control mode.Auto re-positioning system.
Beam angle: 0-3.8°
Strobe: 0.5-12 times/second
Control mode: DMX 512
Channels: 16/20 channels
Other functions: LCD Display panel, Chinese and English Display. Remote control on/off
for lamp.
Power saving mode: timer for recording fixture and lamp using status.
Body housing material: Plastic and alloy
PFC≥0.99
IP Grade: IP20
N.W.: 17.5kgs
Up to GB7000.217 - 2008 standard and CE Certification
Light Introduce

11
Fuse
This light use over-load protector: 3Aat 250V;
Checking the power voltage and light inside short circuit or not if the over-load protector
cut off; it will recover automatically after turn on the up-load protector if it’s not cut off
Using the same specification over-load protector if replacement needed
Power supply
Adopt electric ballast and range amend automatically power switch. Can adjust the
voltage and rate with the range of AC220V-240V 50/60Hz
Power connection
One plug is connected at one side of the cable match with the light power connector; one
plug is needed at the other side match with the power supply, 3 pins plug with ground
touch. Installing the light just follow the manual shows. Advices as follows, contact expert
workers if you have doubts. Connecting with the power, please make the switch to “1”
Power Supply
Warning：
In case of electric shook, ground touch needed, fuse and open circuit needed for
the main power supply, power voltage is match to the light marked
Warning:
Checking the installation of the fuse before turn on the power supply
Important:
Connect the light with the AC power supply directly, don’t connect it with the
silicon case to avoid damages to the light
Important:
Please replace the power if there’re scratches, breakages on the protector skin
or the cable is too short

12
Wire color
Pin
Symbol
Screw(us)
brown
live
L
Yellow or brass
blue
Neutral
N
silver
yellow/green
ground(earth)
green

13
Pin Definition
LightBeam 260 use 3 pins XLR plug for DMX signal in/out, just as follows
Pin 1
Shield ground
Pin 2
Signal –
Pin 3
Signal +
Plug base for 3 pins to 5 pins is also available, and match with 5 pins equipment,
it will not affect its functions, because the pin 4/5 are spare pin for the standard
DMX signal
Date connection
1．Connect a DMX signal cable from the connector to the Male XLR plug of
the light
2．Insert a cable to the Female XLR plug and connect to the next light
3．Combine a resistance at the last light
Notice for the reliable of date transfer
Adopt dual cable for RS-485: standard cable is not fit for long distance data
transfer, and the transfer distance of 24AGW cable can reach 300 meters
(1000 inches), thicker cable needed when transfer with long distance, signal
amplifier is good choice for this
The branching driver can use the signal splitter，such as six-channel optically
isolated RS485 distributor from Drastic
Don’t connect over 32 lights at one signal line
Connect a 120Ω1/4w resistance in the middle of “signal+”and “signal-”on
the last light, this method can avoid the reflection interference of signal,
similarly, if use signal splitter, also required to add that resistance at the every
terminals.
Control Connection

14

Hang on the holder
1. Make sure the hook and the accessories are in good condition and can bear 10
times total weight of the cables and the accessories.
2. Notice the front direction marked at the bottom of the light base.
3. Stable platform needed when install, maintain and moving the light, safe guardrail
needed at its bottom.
4. The arrow for front direction at the light base should point at the position need to
light, lock the hook tightly.
5. Across the insurance holder on the light base with confirmed insurance rope, tie to
Physical Installation
Warning：
The movement of light lens may cause the base to move if the light base
is not installed stable enough. Please don’t turn on the light if the fixture is
not stable enough
Warning：
The additional insurance rope needed when hang the lights. This is to
avoid dangers when the main hanging system not working. The insurance
rope should install at its right position, prohibit to tie on the hand shank
Warning：
Non-vertical hanging lamps，Please change the butterfly hook，cannot use
G-shaped hook, Quick draw hook and hook attachment which is not completely
surround the lighthouse lamp after installation
Warning：
Cover the lens or rotate the lens direction to avoid direct sunshine to
avoid fire disaster

15
the holder.
6. Check the vertical lock; make sure there’re no combustible items within 0.2m and
no covers within 2 meters the light can reach, no inflammable items around.
7. Make sure the lights will not touch each other when they are moving.
8. Make sure the light will not shoot directly at the other one, the strong light may
damage the display board.

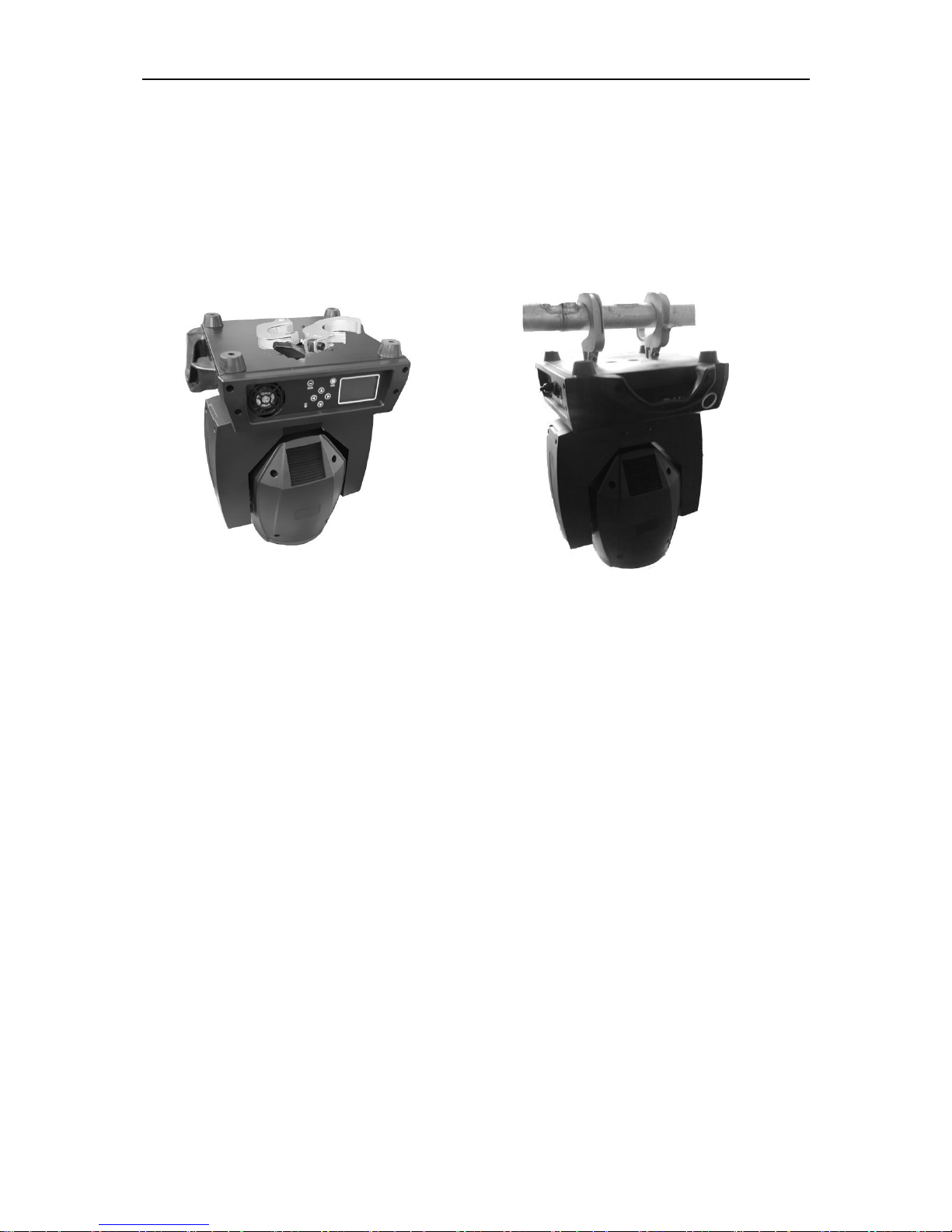

Before Hang On After Hang On
Clamps can be folded before it’s hang-on; and can be placed in the flight case
with fixture; It’s more convenient for installing and dismounting.

16

17

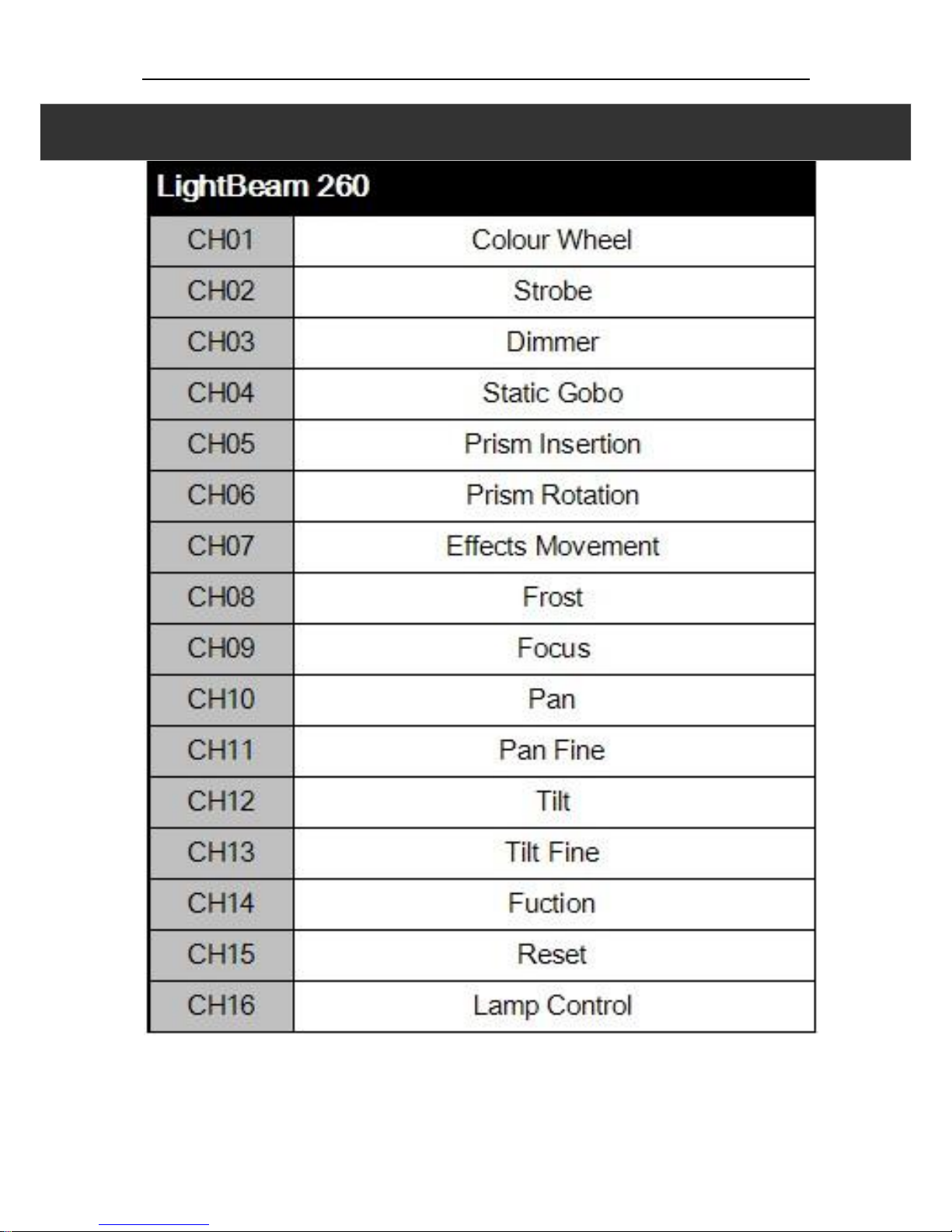

DMX Channels

18
DMX protocol (16 bits mode)
DMX Channel
Value
Percent
Function
1
Color wheel
0 ~ 4
5 ~ 8
9 ~ 12
13 ~ 17
18 ~ 21
22 ~ 25
26 ~ 29
30 ~ 34
35 ~ 38
39 ~ 42
43 ~ 46
47 ~ 51
52 ~ 55
56 ~ 59
60 ~ 63
64 ~ 68
69 ~ 72
73 ~ 76
77 ~ 81
82 ~ 85
86 ~ 89
90 ~ 93
94 ~ 98
99 ~ 102
103 ~ 106
107 ~ 110
111 ~ 115
116 ~ 119
120~ 123
124 ~ 127
128 ~ 255
0 ~ 2
2 ~ 3
4 ~ 5
5 ~ 7
7 ~ 8
9 ~ 10
10 ~ 11
12 ~ 13
14 ~ 15
15 ~ 16
17 ~ 18
18 ~ 20
20 ~ 22
22 ~ 23
24 ~ 25
25 ~ 27
27 ~ 28
29 ~ 30
30 ~ 32
32 ~ 33
34 ~ 35
35 ~ 36
37 ~ 38
39 ~ 40
40 ~ 42
42 ~ 43
44 ~ 45
45 ~ 47
47~ 48
49~ 50
50 ~ 100
FIXED COLOR
white
color 1
color 2
color 3
color 4
color5
color6
color7
color8
color9
color10
color 11
color 12
color 13
color 14
color15
color16
color17
color18
color19
color20
color 21
color 22
color 23
color 24
color25
color26
color27
color28
color29
CONTINUES ROTATION
Rotation slow →fast
2
Shutter,
Strobe
0 ~ 3
4 ~ 103
104 ~ 107
108 ~ 207
208 ~ 212
213 ~ 225
226 ~ 238
239 ~ 251
0 ~ 1
2 ~ 41
41 ~ 42
43 ~ 81
82 ~ 83
84 ~ 88
89 ~ 93
94 ~ 98
Closed
Slow Strobe →Fast Strobe
Open
Slow Pulsation →Fast Pulsation
Open
Random slow Strobe
Random medium Strobe
Random fast Strobe
