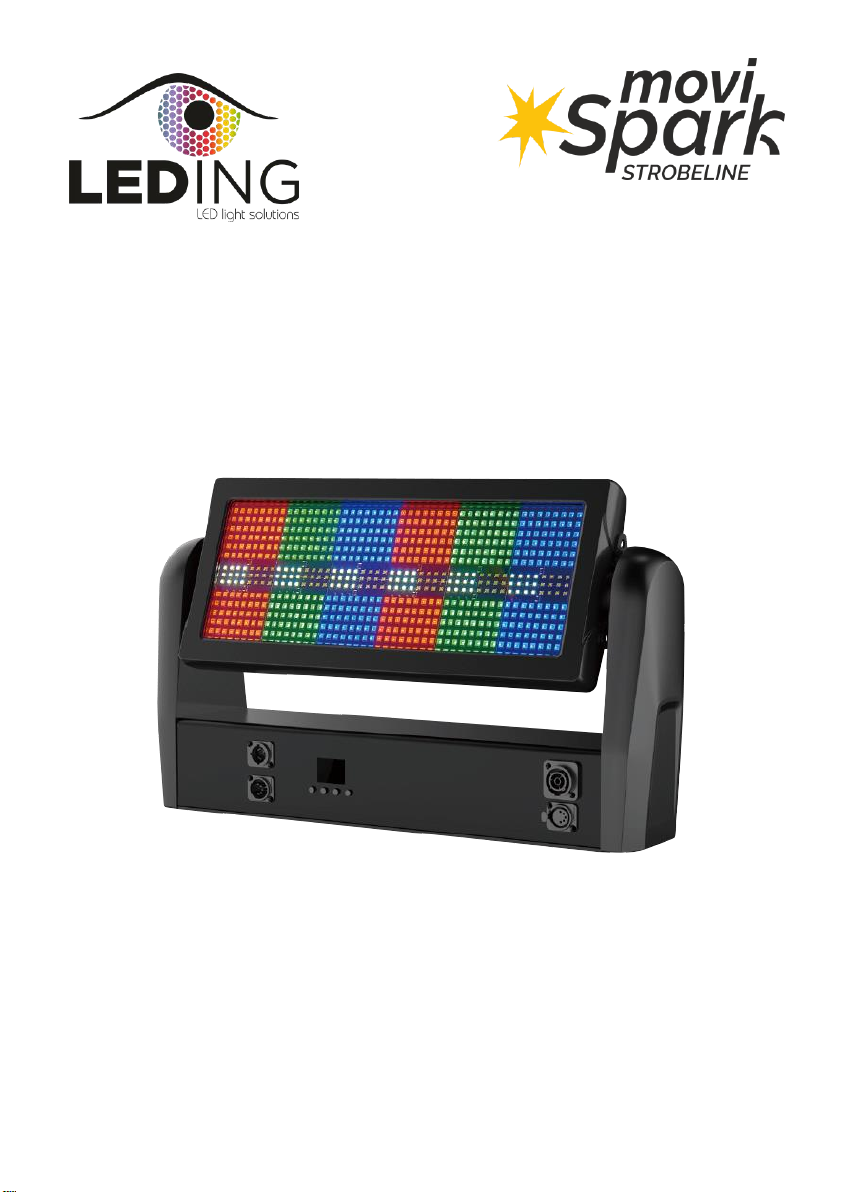

Leding moviSpark StrobeLine User manual

USER MANUAL

1
INTRODUCTION
Thank you for having chosen our LED lighting
Unpack the device, inside the box you should find:
The fixture device
One power cable
One XLR connection cable
This manual
Please check carefully that there is no damage caused by
transportation. Should there be any problems, consult your dealer
and don’t install this device.
DESCRIPTION
Features
572pcs 1W RGB LEDs&144pcs 8W white LEDs，no ultraviolet
radiation.
More than 20,000 hours for the LED light source
100,000 luminous
120 degrees
3/6/12/14/16/28/50/60/75/23 DMX channels
16 Bit Dimmer
DMX Mode/Master-Slave mode/Pixel mode
12-segment RGB +12-segment white pixel modes can be used as
wash (brightness: 300W RGB/ 1000W white)
The 12-segments white LEDs generate a strobe pulse with
brightness equivalent to a 3000W conventional STROBE!
Intense built –in strobe programs
AC200-240V 50/60Hz 1500W
Diecasting heatsink with fans Control
With temperature sensor to extend the lamp's life
8000 Hz LED scan rate
⚫L: 490 W: 313mm D: 123 mm
⚫IP65
SAFETY INSTRUCTIONS
This device has left the factory in perfect condition. In order to
maintain this condition and to ensure a safe operation, it is
absolutely necessary for the user to follow the safety

2
instructions and warning notes written in this user manual.
This device falls under protection-class I. Therefore it is essential that
the device should be earthed.
The electric connection must carry out by qualified person.
If the external flexible cable or cord of this luminaire is damaged, it
shall be exclusively replaced by the manufacturer or his service agent
or a similar qualified person in order to avoid a hazard.
Make sure that the available voltage is not higher than stated at the
end of this manual.
Make sure the power cord is never crimped or damaged by sharp
edges.
If this would be the case, replacement of the cable must be done by
an authorized dealer.
Always disconnect from the mains, when the device is not in use or
before cleaning it. Only handle the power cord by the plug. Never
pull out the plug by tugging the power cord.
Never look directly into the light source, as
sensitive persons may suffer an epileptic shock.
Important:
Damages caused by the disregard of this user manual are not
subject to warranty. The dealer will not accept liability for any
resulting defects or problems.
DMX-512 control connection
The product has a DMX 512 input fitted with 3-pin XLR connectors.
Screened cables in compliance with EIA RS-485 specifications and
the following characteristics must be used for connections:
- 2 conductors plus screen
- 120Ohm impedance
- low capacitance
- max. transmission rate 250kBaud.
DMX-512 connection with DMX terminator
For installations where the DMX cable has to run a long distance or

3
is in an electrically noisy environment, such as in a discotheque, it is
recommended to use a DMX terminator. This helps in preventing
corruption of the digital control signal by electrical noise. The DMX
terminator is simply an XLR plug with a 120 OHM resistor connected
between pins 2 and 3, which is then plugged into the output XLR
socket of the last fixture in the chain.
Display Menu
Menu
Sub-menu
Config Mode
Channel Mode
3/6/12/14/16/28/50/
60/75/23
Keep Screen
On
Enable/Disable
Output Inverse
Normal/Inverse
Keep DMX Data
Enable/Disable
White Balance
Led Red
0 -
255
Led Green
0 -
255
Led Blue
0 -
255
Led White
0 -
255
Fan speed
low/standard/high
Fast Dimmer
Enable/Disable
System Info
Temperature
Head XX ℃
Body XX ℃
Hours Of Use
XXX
Enter Button
XXX
Software Ver
XXX
Art-Net
IP Type
2.X.X.X/10.X.X.X
/DHCP/Custom IP
Universe
0-255

4
Custon IP Addr
X.X.X.X
Custon IP Mark
X.X.X.X
RDM
RDM_Status
Enable/Disable
RDM_UID
XXX
RDM_ID
XXX
RDM_Label
XXX
Led All On
Led All On
Auto Test
Auto Mode 1
Auto Mode 2
Auto Mode 3
Led Test
Led Red
0 - 255
Led Green
0 - 255
Led Blue
0 - 255
Led White
0 - 255
Fan Test
On/Off
Led Load
Defaul
False/True
Main functions
1. Address: Current DMX address
A. Setting DMX address by button
press ENTER button when show the address menu, then adjust
the DMX address by pressing [UP] or [DOWN] button
Press [ENTER] to confirm or press [ESC] to return to main
menu.
B. Setting DMX address by controller
1.Set the DMX value of channel 5 to 10-15,channel 17 to 20-26,
channel 7 to 30-36,channel 8 to 40-46,then the devices
connected to the controller will enter to the setting address
mode
2. Set the DMX value of channel 1 from 0-59,then you will see
the first number of the Address change to (channel 1 value)/10.
For example, when set the value of channel 1 to 20,the first
DMX address number will be 2(20/10=2),
