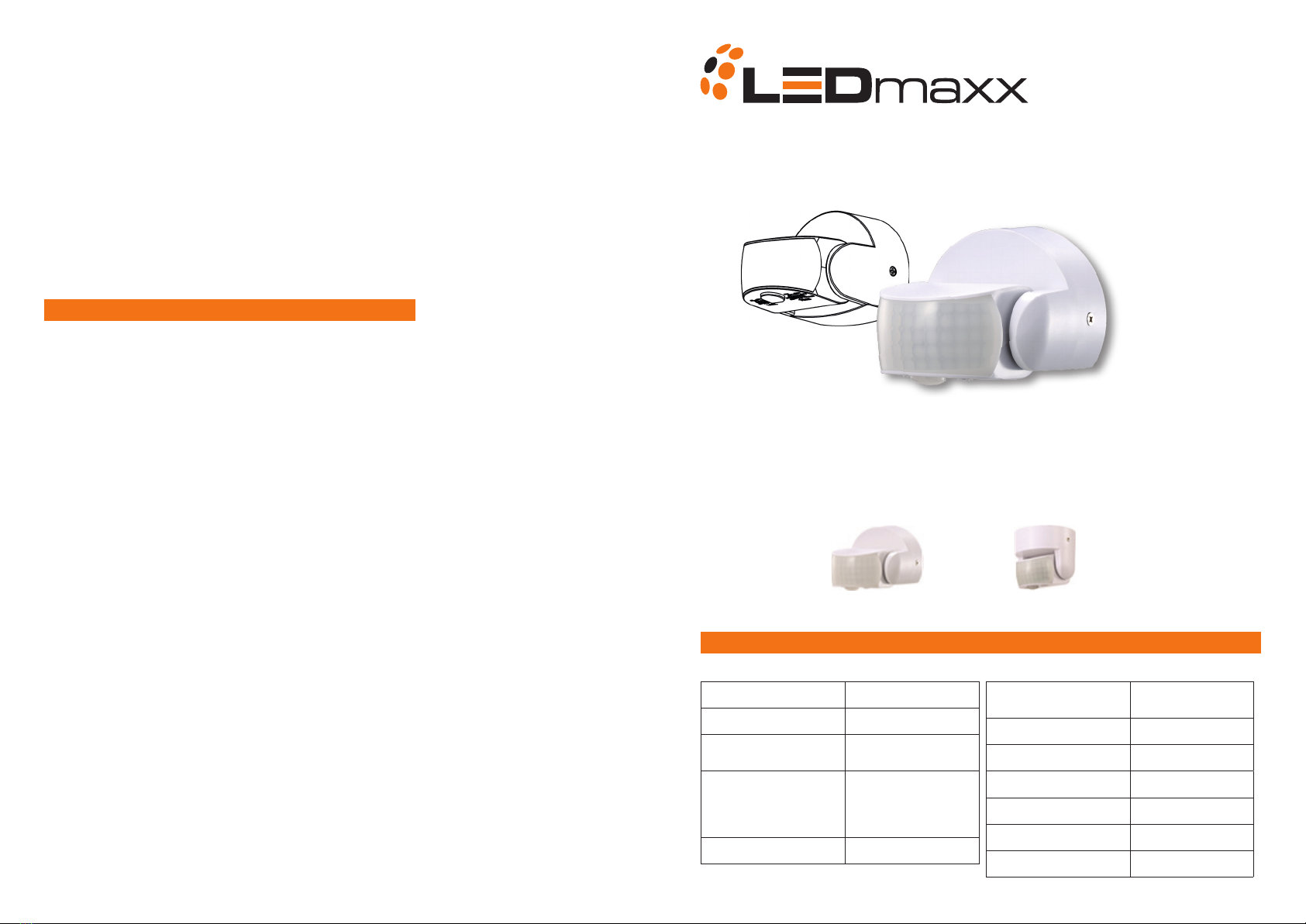

IB121
Infrared Motion Sensor
Problem Shooting
Technical Specication
Welcome to use IB121 Infrared motion sensor!
The product is a new saving-energy switch; it adopts good sensitivity detector, integrated circuit. It is ideally used to control the status of the
lamp. The wide detection eld is consisting of detectors. It works by receiving human motion infrared rays. When one enters the detection
eld, it can start the function at once and automatically identify day and night.
Power Source: 220-240V AC 50 /60 Hz
Ambient Light: <3-2000 LUX (adjustable)
Time Control: min. 10sec+3sec
max. 15min+2min
Rated Load: max. 1200W (Incandescence,
Halogen Light )
max. 600W (Fluorescence, LED
Light, Energy saving lamp)
Detection Moving Speed: 0,6-1,5m/s
Detection Range: 180° (Wall installation)
360° (Ceiling installation)
Detection Distance: 12m max. (<24°C)
Working Temperature: -20~+40C
Working Humidity: <93% RH
Power Consumption: 0,5W
Installation Height: 1,8 - 2,5m
IP Class: IP65
The lighting devices does not work:
a) Please check if the connection of power source and if lighting device is correctly installed.
b) Please check if the lighting device is in good condition.
c) Please check if the settings of working light correspond to ambient light.
The sensitivity is poor:
a) Please check if there is any hindrance in front of the detector to aect it to receive the signals.
b) Please check if the ambient temperature is too high.
c) Please check if the induction signal source is in the detection eld.
d) Please check if the installation height corresponds to the height required in the instruction.
e) Please check if the moving orientation is correct.
The sensor can not shut o the light device automatically:
a) Please check if there is continual signal in the detection eld.
b) Please check if the time delay is set to the maximum position.
c) Please check if the power corresponds to the instruction.
When testing in daylight, please turn LUX knob to (SUN) position, otherwise
the sensor lamp could not work!
• Switch on the power; the sensor and its connected lamp will have no signal at the beginning.
After Warm-up 30sec, the sensor can start work. If the sensor receives the induction signal, the
lamp will turn on. While there is no another induction signal any more, the load should stop
working within 10sec ± 3sec and the lamp would turn o.
• Turn LUX knob anti-clockwise on the minimum (3). If the ambient light is more than 3 LUX, the
sensor would not work and the lamp stop working too. If the ambient light is less than 3 LUX
(darkness), the sensor would work. Under no induction signal condition, the sensor should stop
working within 10sec ± 3sec.
Wall installation Ceiling installation
Sensor Information
Installation
Connection-Wire Diagram
Test
Function
Installation Advice
It can detect the front side, bottom side, and back side.
Danger of death through electric shock!
Bitte Prüfen Sie die folgenden Sicherheitshinweise vor der Installation:
As the detector responds to changes in temperature, avoid the following situations:
• It can identify day and night: consumer can adjust working state in dierent ambient
light. It can work in the daytime and at night when it is adjusted on the “sun” position
(max). It can work in the ambient light less than 3 LUX, when it is adjusted on the “3”
position (min). As for the adjustment pattern, please refer to the testing pattern.
• Time-control is added continually: when it receives the second induction signals
within the rst induction, it will restart to time from the moment.
• Turn the TIME knob anti-clockwise to the minimum (10s); turn the LUX knob clockwise
to the maximum (sun).
• Loosen the screw on the bottom and unload the bottom.
• Pass the power wire through the hole with gasket in the bottom. Connect the
power wire into connection-wire column according to the connection-wire
diagram.
• Fix the bottom with inated screw on the selected position.
• Install back the sensor on the bottom, tighten the screw and then test it.
• Avoid pointing the detector towards objects with highly reective surfaces, such as
mirrors etc.
• Avoid mounting the detector near heat sources, such as heating vents, air conditioning
units, light etc.
• Avoid pointing the detector towards objects that may move in the wind, such as
curtains, tall plants etc.
• Must be installed by professional electrician.
• Disconnect power source before installation.
• Cover or shied any adjacent live components.
• Ensure device cannot be switched on.
Good Sensitivity Poor Sensitivity
