Legend 738JLN Operating instructions

This manual contains instructions to install the
ENGINE ONLY. A front is also REQUIRED to
complete this installation. A barrier screen is pro-
vided with the front. Refer to the manual sup-
plied with the front for installation.
— Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
▪Do not try to light any appliance.
▪Do not touch any electrical switch; do
not use any phone in your building.
▪Leave the building immediately.
▪Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
▪If you cannot reach your gas supplier,
call the fire department.
— Installation and service must be
performed by a qualified installer, service
agency or the gas supplier.
Ce guide est disponible en français sur demande.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certified kit is used.
This appliance is a domestic room-heating
appliance. It must not be used for any other
purposes such as drying clothes, etc.
This appliance is suitable for installation in a
bedroom or bed sitting room.
This appliance may be installed in an
after-market permanently located,
manufactured (mobile) home where not
prohibited by local codes.
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
DANGER
!
A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and shall be
installed for the protection of children and other at-risk
individuals.
!WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
INSTALLER
Leave this manual
with the appliance.
CONSUMER
Retain this manual
for future reference.
Please read this manual
BEFORE installing and
operating this appliance.
LEGEND
Installation & Owner’s Manual
4003899-06
Gravity Vent Gas Insert
738JLN (NG) & 738JLP (LPG)
©2015, Miles Industries Ltd.

Table of Content
Designed and Manufactured by / for
Miles Industries Ltd.
190–2255 Dollarton Highway, North Vancouver, BC, CANADA V7H 3B1
Tel. [phone] Fax [phone]
www.valorfireplaces.com
© Copyright Miles Industries Ltd., 2015
The information contained in this installation
manual is believed to be correct at the time of
printing. Miles Industries Ltd. reserves the right
to change or modify any information or speci-
fications without notice. Miles Industries Ltd.
grants no warranty, implied or stated, for the
installation or maintenance of your heater, and
assumes no responsibility for any consequential
damage(s).
FOR THE OWNER FOR THE QUALIFIED INSTALLER
Warranty Card at the
back of this manual.
W
A
R
R
A
N
T
Y
P
R
O
G
R
A
M
W
A
R
R
A
N
T
Y
P
R
O
G
R
A
M
V
A
L
O
R
C
O
M
F
O
R
T
V
A
L
O
R
C
O
M
F
O
R
T
V
A
L
O
R
C
O
M
F
O
R
T
Massachusetts: The piping and final
gas connection must be performed by a
licensed plumber or gas fitter in the State
of Massachusetts.
Safety Precautions .................................................3
Safety and Your Fireplace......................................4
Owner’s Information...............................................5
Operating Your Fireplace for the First Time............... 5
Cleaning Your Fireplace ............................................ 6
Checking Pilot and Burner Flames ............................ 7
Using Handset Wall Holder........................................ 7
Replacing Batteries ................................................... 7
Locating Lighting, Operation and
Rating Information Plate ......................................... 7
Servicing Your Fireplace............................................7
Your Fireplace’s Vent Safety Switch .......................... 8
How to Turn Your Fireplace OFF (including pilot) ....... 8
How to Ensure Your Fireplace Cannot
Be Turned ON Inadvertently ...................................8
Remote Control Operation.....................................9
Options.................................................................. 11
Lighting Instructions............................................ 12
Warranty ................................................................28
Specifications .......................................................13
Overview................................................................14
Dimensions ...........................................................15
Cavity..................................................................... 15
Clearances ............................................................16
Venting................................................................... 17
Existing Fireplace Preparation............................ 18
Installation Planning ............................................18
Installation.............................................................19
Unpack the appliance .............................................. 19
Remove Window ..................................................... 19
Connect Vent ........................................................... 20
Connect Gas Supply................................................ 21
Check ignition spark ................................................ 22
Connect Remote Control Receiver.......................... 22
Install Ceramic Bricks .............................................. 23
Install Ceramic Logs ................................................ 24
Re-install and Check Window.................................. 26
Check Operation...................................................... 26
Adjust Aeration (if necessary).................................. 26
Install Front, Trim and Barrier Screen......................27
Install Handset Wall Holder ..................................... 27
Warranty ................................................................28
Spare Parts............................................................29
2

Safety Precautions
!
Children and adults should be ALERTED to the hazards
of high surface temperature and should STAY AWAY to
avoid burns or clothing ignition.
YOUNG CHILDREN should be CAREFULLY
SUPERVISED when they are in the same room as the
appliance. Toddlers, young children and others may
be susceptible to ACCIDENTAL CONTACT BURNS.
A physical barrier is recommended if there are at-risk
individuals in the house. To restrict access to a fireplace
or stove, INSTALL AN ADJUSTABLE SAFETY GATE
to keep toddlers, young children and other at-risk
individuals out of the room and away from hot surfaces.
DO NOT place furniture or any other combustible
household objects within 36” of the fireplace front.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO FOLLOW
these installation instructions may result in possible fire
hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the
Owner’s Information section of this manual.
DO NOT USE this appliance if any part has been under
water. Immediately, CALL a qualified service technician
to inspect the unit and to replace any part of the control
system and any gas control that has been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a
qualified service person. The appliance and venting
system should be INSPECTED before initial use and at
least annually by a professional service person. More
frequent cleaning may be required due to excessive
lint from carpeting, bedding, etc. It is IMPERATIVE that
the unit’s control compartment, burner, and circulating
air passageways BE KEPT CLEAN to provide for
adequate combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other flammable
vapors and liquids.
NEVER OBSTRUCT the flow of combustion and
ventilation air. Keep the front of the appliance CLEAR
of all obstacles and materials for servicing and proper
operation.
Due to the high temperature, the appliance should be
LOCATED out of traffic areas and away from furniture
and draperies.
Clothing or flammable material SHOULD NOT BE
PLACED on or near the appliance.
This unit MUST be used with a vent system as
described in this installation manual. NO OTHER vent
system or components MAY BE USED.
This gas fireplace and vent assembly MUST be vented
directly to the outside and MUST NEVER be attached
to a chimney serving a separate solid fuel burning
appliance. Each gas appliance MUST USE a separate
vent system. Common vent systems are PROHIBITED.
INSPECT the external vent cap on a regular basis to
make sure that no debris, plants, trees, shrubs are
interfering with the air flow.
DO NOT OPERATE this appliance with the glass door
removed, cracked, or broken. Replacement of the glass
door should be performed by a licensed or qualified
service person. DO NOT strike or slam the glass door.
The glass door assembly SHALL ONLY be replaced
as a complete unit, as supplied by the fireplace
manufacturer. NO SUBSTITUTE material may be used.
A BARRIER DESIGNED TO REDUCE THE RISK OF
BURNS from the hot viewing glass is provided with
this appliance and SHALL BE INSTALLED for the
PROTECTION OF CHILDREN and other AT-RISK
INDIVIDUALS.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass door
when it is hot.
If the barrier becomes damaged, the barrier SHALL BE
REPLACED with the MANUFACTURER’S BARRIER
for this appliance.
TURN OFF the gas before servicing this appliance.
It is recommended that a qualified service technician
perform an appliance check-up at the beginning of each
heating season.
Any safety screen, guard or barrier removed for ser-
vicing the appliance, MUST BE REPLACED prior to
operating the appliance.
BE CAREFUL not to put any decorating objects
sensitive to heat to close above or around the fireplace
as it gets very hot when operating.
DO NOT use this heater as a temporary source of heat
during construction.
This appliance is a DOMESTIC ROOM-HEATING AP-
PLIANCE. It must not be used for any other purposes
such as drying clothes, etc.
State of California. Proposition 65 Warning. Fuels
used in gas, wood-burning or oil fired appliances,
and the products of combustion of such fuels, contain
chemicals known to the State of California to cause
cancer, birth defects and other reproductive harm.
California Health & Safety Code Sec. 25249.6.
The glass door assembly MUST be in place and sealed
before the unit can be placed into safe operation.
3

Safety and Your Fireplace
Please Follow These Important
Child Safety Precautions and
Recommendations,
• Parts of your Valor Fireplace become
extremely hot while in operation.
• The glass viewing window
temperature can
exceed 500 F
at full capacity.
Momentary contact
with a hot glass
surface can cause
a severe burn, even if the fireplace
is operating at reduced heating
capacity.
• The glass window will remain hot
for an extended period of time after
the fireplace has been turned off.
Ensure that children are prevented
from touching the fireplace during the
cool down period.
• Toddlers and Young Children
must be closely supervised at all
times when they are in the same
room as the operating fireplace. They
lack full awareness of danger and
rely on your protection. Toddlers,
in particular, do not have the motor
skills and response reflexes to
withdraw in the event of accidental
contact with a hot surface.
• A physical barrier is strongly
recommended if there are young
children, or at-risk individuals in the
house. Install an approved after-
market safety gate to keep toddlers,
young children and other at-risk
individuals a safe distance from the
fireplace.
• Keep the remote control handset
out of reach of children at all
times. A wall mount storage holster
is provided with your remote control
handset.
• Ensure that the fireplace, including
the pilot light, is completely turned
off when children are present and
close supervision and safety barriers
are not available—see page 8 of
Owner’s Information section.
• If the fireplace is not going to be used
for the summer or any extended
period of time, remove the batteries
from the remote control handset
and receiver. It is recommended that
batteries are replaced annually in any
event—see page 7.
Please Read and Carefully Follow all Safety Warnings and
Operating Instructions Contained in Your Owner’s Manual
(Replacement Manuals are available by contacting our service department at
1-800-468-2567 or visit www.valorfireplaces.com).
Safety and Your Fireplace
4

Operating Your Fireplace for the First Time
When operating your new fireplace for the first time,
some vapors may be released due to the burning of
curing compounds used in the manufacture of the
appliance. They may cause a slight odor and could
cause the flames to be the full height of the firebox, or
even slightly higher, for the first few hours of operation.
It is also possible that these vapors could set off any
smoke detection alarms in the immediate vicinity.
These vapors are quite normal on new appliances. We
recommend opening a window to vent the room. After
a few hours use, the vapors will have disappeared and
the flames will be at their normal height.
Flame Supervision Device
For your safety, this appliance is fitted with a flame
supervision device which will shut-off the gas supply
if, for any reason, the pilot flame goes out. This device
incorporates a fixed probe, which senses the heat
from the pilot flame. If the probe is cool, the device will
prevent any gas flow unless manually lighting the pilot.
See full lighting instructions on page 12 of this manual.
Owner’s Information
This manual and particularly the preceeding
and following pages contain very important
information regarding the safe operation of your
fireplace as well as maintenance instructions.
Read carefully BEFORE operating your fireplace
and pay special attention to the SAFETY
WARNINGS.
A heating gas appliance does require safe handling
and for this reason, we very strongly recommend that
no children be allowed to touch the fireplace and its
controls at all times. Do install a screen or barrier
in front of the fireplace to protect your children
against severe burns.
Thank You ...
For purchasing a Valor by Miles Industries. Your new
radiant gas heater is a technical appliance that must
be installed by a qualified dealer. Each Valor fireplace
is fully tested during the production process for your
safety and comfort.
Your unit has been professionally installed by:
Dealer Name: ________________________________
Phone Number :_______________________________
Should you encounter an operational problem, call
your dealer immediately.
Do not try to repair the unit as you may cause an
injury or damage the fireplace.
Performance of LPG appliances may be affected
by the quality of commercial gas supplied in
your area.

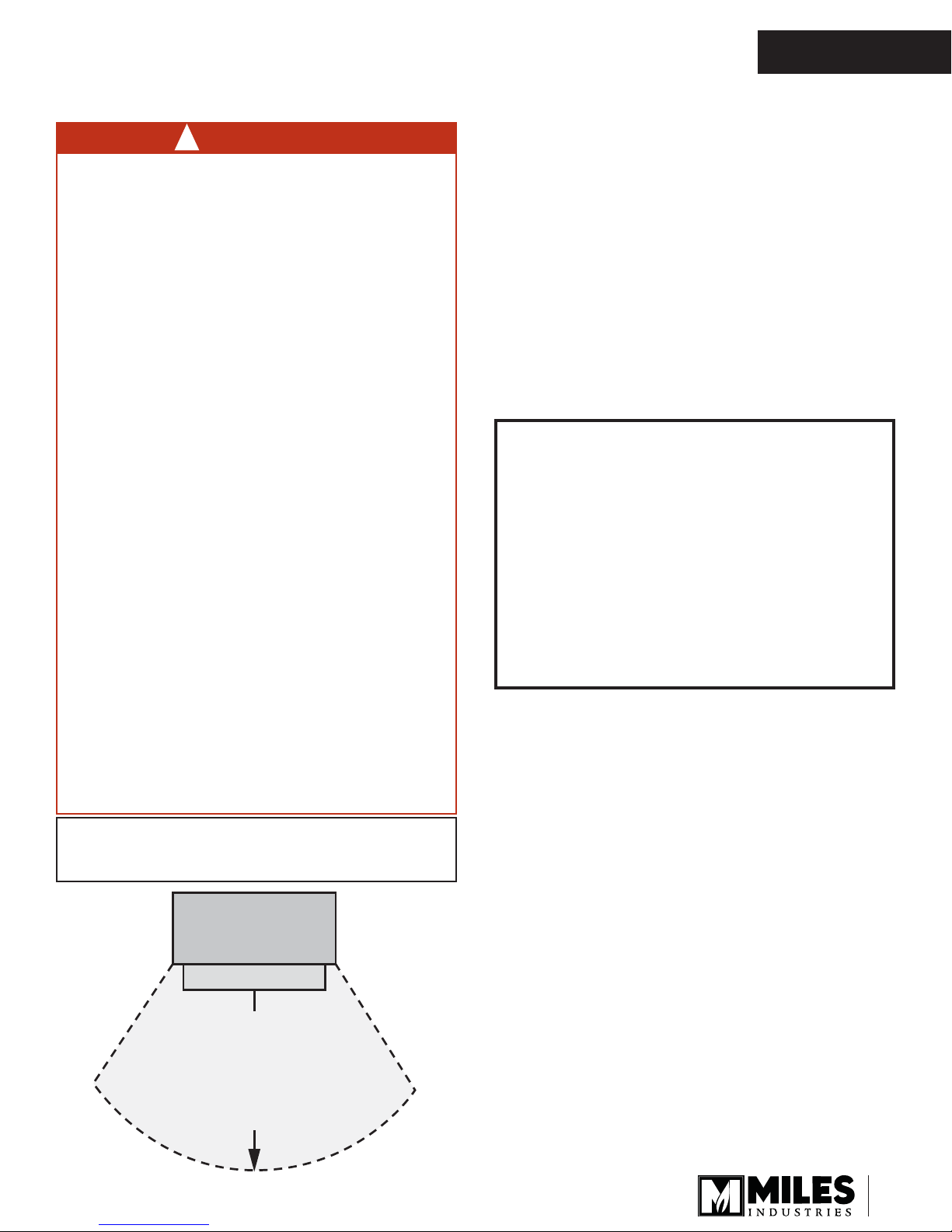

Do not put
furniture or other objects
in this space in front of
the replace:
36” (0.9 m)
Fireplace
Hearth
WARNING
EXTREMELY HOT!!!
• READ the SAFETY information on pages
3 and 4 of this manual BEFORE operating
your gas heater.
• Some parts of your fireplace are EXTREMELY
HOT, particularly the GLASS window.
• DO NOT LET CHILDREN touch the glass or
any parts of your fireplace even after it is
turned off as it is still hot.
• USE THE BARRIER SCREEN provided with
the appliance, front or trim or a GATE to
reduce the risk of burns.
• Keep the remote control handset OUT OF
REACH of children.
• HOT HEARTH/FLOOR SURFACE! The
hearth or floor directly in front of the fireplace
is VERY HOT when the fireplace heats. Even
if constructed of non-combustible materials,
and although safe, it may reach temperatures
in excess of 200º F depending on choice of
materials. DO NOT STEP ON IT!
•
•
Some materials or items, although safe, may
Some materials or items, although safe, may
discolor, shrink, warp, crack, peel, and so on
discolor, shrink, warp, crack, peel, and so on
because of the heat produced by the fireplace.
because of the heat produced by the fireplace.
AVOID PLACING
AVOID PLACING
candles, paintings, photos,
candles, paintings, photos,
and other items
and other items
SENSITIVE TO HEAT
SENSITIVE TO HEAT within
36 inches (0.9 m) around the fireplace.
•
•
Solid wood flooring in front of the fireplace (if
Solid wood flooring in front of the fireplace (if
allowed) may shrink during the heating season
allowed) may shrink during the heating season
due to heat.
due to heat.
!
5
OWNER’S
INFORMATION

Bottom
of window
(wider frame)
Owner’s Information
Cleaning Your Fireplace
Important - Glass cleaning - Mineral deposits
One of the by-products of the combustion process in
a gas appliance is a mineral which can show up as a
white film on the ceramic glass of the viewing door.
The composition of the deposit varies widely from
various locations and also from time to time in the
same location. It seems this is associated with the
varying sulfur content of the gas. You may have the
problem for a time and then not see it for many months
when it will reappear in your area.
We have discussed this problem with ceramic glass
manufacturers and they cannot give us a definitive
answer to this problem. Dealers have tried various
cleaning products with varying results. The following
recommendations will not guarantee results in your
particular case.
NOTE: This is a problem beyond Miles Industries’
control and is not covered under warranty.
• Clean the glass regularly as soon as you notice
the buildup (white film). If the film is left for a longer
period of time, it will bake on. It is then much harder,
if not impossible, to remove.
• NEVER use an abrasive cleaner on the ceramic
glass. Any abrasion of the surface has the
immediate effect of compromising the strength of the
glass. An emulsion type cleaner is recommended.
• Use a soft damp cloth to apply the cleaner. Dry the
glass with a soft, dry, preferably cotton cloth. Most
paper towels and synthetic materials are abrasive to
ceramic glass and should be avoided.
• Our dealers have had good results from the
products listed below. We cannot, however,
guarantee the results of these products.
• BRASSO, POLISH PLUS by KELKEM, COOK TOP CLEAN
CREME by ELCO, WHITE OFF by RUTLAND, TURTLE WAX
Do not clean the glass while it is hot!
Always securely replace the window and the barrier
screen before lighting.
If broken, the glass pane may only be replaced
as a complete window unit as supplied by the
manufacturer.
If the barrier becomes damaged, the barrier shall
be replaced with the manufacturer’s barrier for this
appliance.
To remove the window for cleaning:
1. Unhook the front with
barrier screen.
2. On the window, turn
each bolt a quarter turn
to disengage the bolt
pin.
3. Gently pull the bottom
of the window outward
and unhook it from
the firebox’s opening
frame.
4. Set the window aside in a safe place to avoid
damage.
Clean the window following the guidelines in this section.
Clean the trim and front with mild soap and water.
Dust the barrier screen with a soft brush.
Dust the firebox ceramic logs/rocks and walls with a soft
brush. Dust can also be removed from the burner using a
soft brush after removing the ceramic logs. When clean-
ing, make sure that no particles are brushed into the
slots of the burner.
To refit the window:
1. Hook its top part to
the firebox’s opening
frame. Make sure
that the wider part
of the window
frame is at the
bottom.
2. While you hold the
window, push in
and turn the two top
spring-loaded bolts a
quarter turn to engage their pin.
3. Push in the bottom of the window against the firebox
and fasten the two bottom spring-loaded bolts a
quarter turn.
4. If the Hot Glass Warning plate has been removed
from the front lower corner of the window,
reinstall it by sliding it between the glass and
the frame as indicated.
WARNING
!
DO NOT TOUCH THE GLASS WHILE IT IS HOT!
Let the fireplace cool first before touching it.
Hot Glass Plate
6
OWNER’S
INFORMATION

Owner’s Information
5. Replace the front or trim with the barrier screen
attached.
Checking Pilot and Burner Flames
A periodic check of the pilot and burner flames should
be made. Check after the fire has been on for at least
30 minutes. The pilot flame must cover the tip of the
thermocouple probe. The main burner flame pattern will
vary from appliance to appliance depending on the type
of installation and climatic conditions.
The appliance area must always be kept clear and
free from combustible materials, gasoline and other
flammable vapors and liquids.
Inspect the vent terminal outdoors regularly to make
sure that snow, trees, bushes, leaves, or other objects
do not obstruct it.
Examine the vent system and terminal regularly. We
recommend annually.
Using Handset Wall Holder
Your fireplace equipment includes a wall
holder to store the handset. If it hasn’t be
installed, refer to the instructions further on
in this manual for the installation.
Replacing Batteries
Low battery signal: see page 10.
The appliance uses four 1.5 V AA alkaline batteries
for its remote control receiver and one 9 V alkaline
battery for its handset. Batteries should last one to two
seasons, depending on usage. Removing the batteries
in the off-season will extend the battery life. Should the
batteries loose power, the control may be operated by
manually turning the control knob at the valve or by
turning off the valve at the switch.
To replace the batteries in the remote control
receiver:
1. The receiver is located to the left of the valve and it
is retained to the firebox by a Velcro tab. Grab the
receiver and pull it out from its location.
2. Slide and remove the receiver cover.
3. Replace the batteries with 4 AA alkaline batteries.
4. Replace the cover.
5. Put the receiver back in its position pushing it in so it
attaches to the Velcro tab.
Locating Lighting, Operation and Rating
Information Plate
The Lighting, Operation and Rating information plate is
located under the burner. Pull the plate out out to read it.
There is important information on both sides of the plate.
Servicing Your Fireplace
If any attention is required for your appliance, contact
your supplier quoting the model number. It will be helpful
if the appliance’s serial number can also be quoted. This
number is on the rating plate, which is located under the
burner. The replacement parts are shown at the end of
this manual. Please always quote the part number and
description when requesting spare parts.
WARNING
!
DO NOT ATTEMPT TO CHANGE THE BATTERIES
WHILE THE FIREPLACE IS STILL HOT! Let the
fireplace cool first before touching it.
WARNING
!
DO NOT ATTEMPT TO TOUCH THE DATA PLATE
WHILE THE FIREPLACE IS STILL HOT! Let the
fireplace cool first before touching it.
CAUTION
DO NOT USE a screwdriver or other metallic object to
remove the batteries from the receiver or the handset!
This could cause a short-circuit to the receiver.
WARNING
FOR SAFETY PURPOSE, ensure the barrier
screen is re-installed on the fireplace front after
maintenance.
!
Thermocouple
probe must be
in flame
Correct Flame
Picture—Logs
Pilot Flame can be seen
between left front and top logs
Pilot flame
Thermocouple
probe must be
in flame
7
OWNER’S
INFORMATION

Owner’s Information
Your Fireplace’s Vent Safety Switch
This appliance is equipped with a vent safety switch
which, when activated, will turn off the burner and
pilot if the vent is blocked, disconnected, or if there is
excessive down draught.
If the safety switch is activated, wait for it to cool off
before trying to light the appliance again. The safety
switch will cool off and reset itself automatically after
25 to 30 minutes.
In the event that the safety switch is activated
again, contact a qualified service technician for
inspection.
Should the safety switch require replacement, only use
parts supplied by Miles Industries.
How to Turn Your Fireplace OFF (including pilot)
First, ensure your fireplace is cooled BEFORE
going ahead.
Locate the gas valve under the firebox.
1. Set the Flame Adjustment Knob clockwise as far
as possible.
2. Push in the Gas Control Knob slightly and turn it
clockwise to OFF. Do not force.
How to Ensure Your Fireplace Cannot
Be Turned ON Inadvertently
The best way to ensure your fireplace will not turn on
is to turn it off, including pilot—see above.
If you wish to maintain the pilot only without the main
burner coming on, turn the Gas Control Knob to Pilot
position.

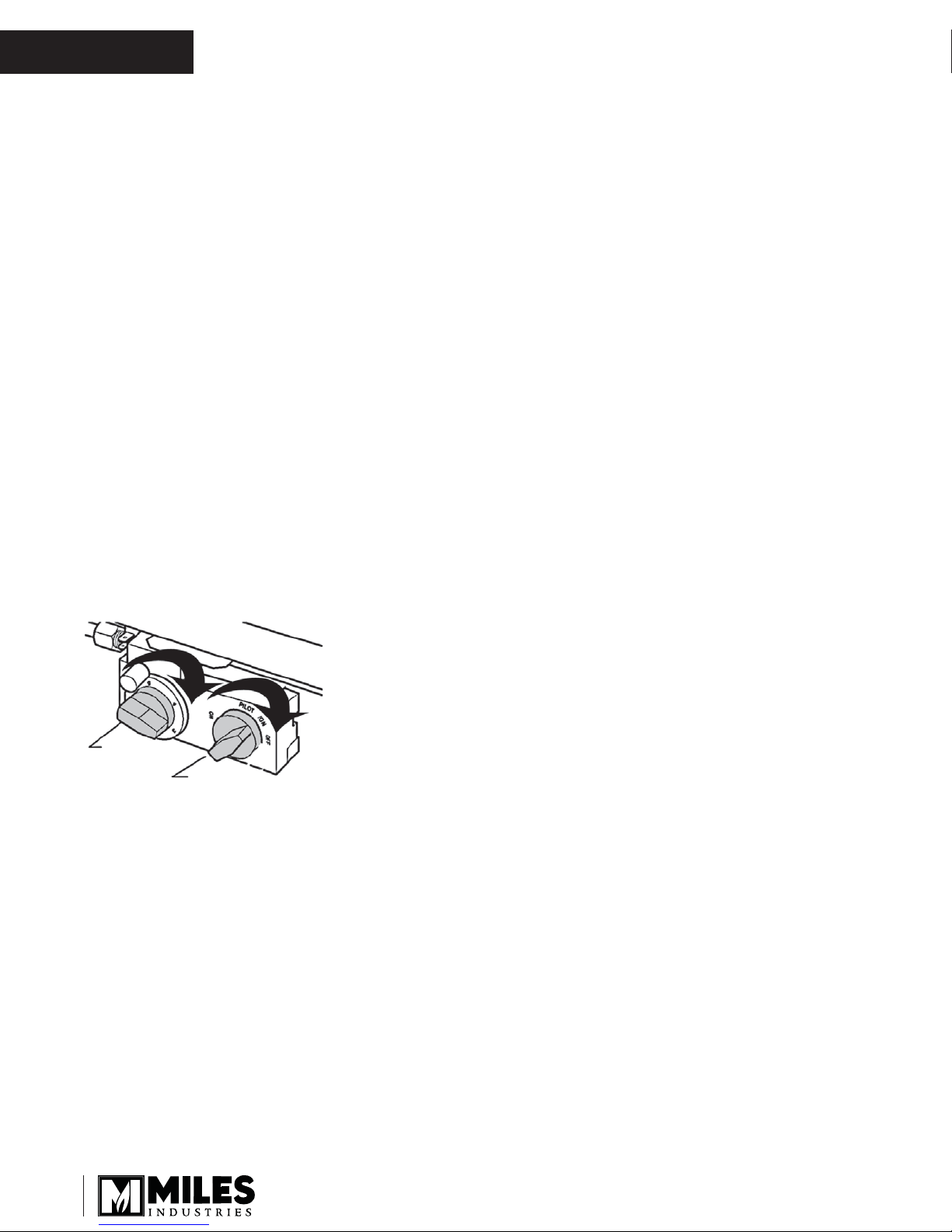

Turn gas valve buttons clockwise
to turn fireplace OFF.
Flame
Adjustment
Knob Gas
Control
Knob
8
OWNER’S
INFORMATION

Remote Control Operation
Your fireplace remote control helps you get the comfort, convenience and aesthetics you want from
your gas fireplace. The remote controls your fireplace in different ways.
IMPORTANT: BEFORE YOU BEGIN, please note that on this system, the settings of time, temperature
and automatic ON/OFF can only be programmed when the function display is flashing. Be patient
when programming as it can take a few seconds to set.
Setting the time
The first thing to do is to set the time.
1. With your thumb, hold down both the AUTO and TIMER buttons until F
flashes. Let go.
2. Note the digital clock on the bottom right hand corner. The ▲button sets
the hour; the ▼button sets the minutes. Set the time.
Note: You must start setting the time while the Fis flashing. If it stops
flashing, go back to 1.
3. The display shows °C/24-hour or °F/12-hour. To change the temperature/
hour display, press on the AUTO button while the display flashes.
4. Let go and wait until the flashing stops. The remote shows the time you
set. It also shows the current temperature.
Setting the temperature
Use this setting when you come in and want to enjoy a specific temperature.
1. Push the AUTO button until a number and Fflash. Let go.
2. While it is still flashing, push the ▲and ▼buttons to the temperature
you want. Let go.
Your fireplace will reach that temperature and the remote will check the
temperature every five minutes, adjusting the amount of fuel needed to give
you a steady, even heat.
9
OWNER’S
INFORMATION

Remote Control Operation
Setting the flame
Use this setting when you want a particular flame level. For instance, you want
to watch flames burn at their highest level and you don’t mind if the room is too
hot.
1. To raise the flame, press and hold the ▲button until the flame gets to the
desired level. Let go.
2. To lower the flame, press and hold the ▼button until the flame gets to
the desired level. Let go.
The flame level will remain just as you set it.
Automatic ON/OFF
You can set your fireplace to come on before you wake up and turn off after
you leave and then, turn on again just before you come home and turn off
after going to bed.
You can leave it like this for the heating season.
1. Decide what temperature you want your fireplace to be at. Also, decide
what time you want your fireplace to turn on and off. Finally, decide what
time you want it to come back on and off in the afternoon or evening. For
the first few times you set the timer, it’s handy to write these times down.
2. Set the temperature (just as you did in the section Setting the
temperature.)

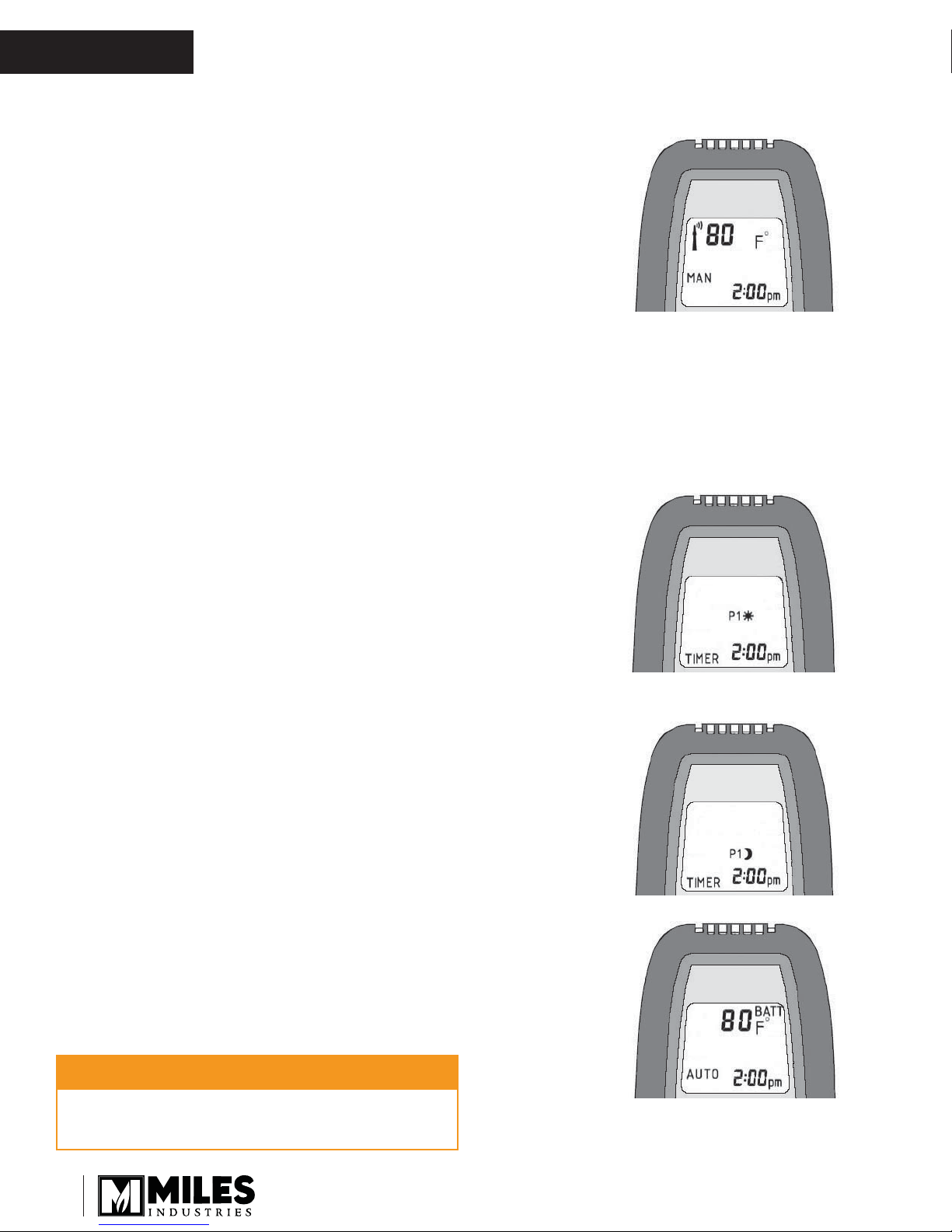

3. Press the TIMER button and hold it until P1 ☼appears and flashes. Let
go. While flashing, push the buttons ▲(hour) and ▼(minutes) to set the
time at which you want your fireplace to turn on in the morning.
4. Press the TIMER button and hold it until P1 ☽appears and flashes. Let
go. While flashing, push the buttons ▲(hour) and ▼(minutes) to set the
time at which you want your fireplace to turn off when you leave.
5. Press the TIMER button and hold it until P2 ☼appears and flashes. Let
go. While flashing, push the buttons ▲(hour) and ▼(minutes) to set the
time at which you want your fireplace will turn on again in the afternoon.
6. Press the TIMER button and hold it until P2 ☽appears and flashes. Let
go. While flashing, push the buttons ▲(hour) and ▼(minutes) to set the
time at which you want your fireplace to turn off in the evening.
Note: If you want to set your fireplace for only one time on and off, set P2 ☼
and P2 ☽ for the same times as P1 ☽. The remote will record the P1 ☽ off
time for both P2 times.
To temporarily override the timer setting, just press AUTO or ▲and ▼to go
back to manual settings. Press TIMER to go back to your settings.
When your remote control displays BATT, you need to replace the battery
with a new 9 volt alkaline battery—6LR61/MN1604.
CAUTION
DO NOT USE a screwdriver or other metallic object to
remove the batteries from the receiver or the handset!
This could cause a short-circuit to the receiver.
10
OWNER’S
INFORMATION

Options
Required Kits*
Venting
Approved venting accessories as per local codes.
Inner Fronts (choose one)
741—Contemporary Front with Barrier Screen 4003360
742—Traditional Cast Front with Barrier Screen 4003293
743—FenderFire Double Door Front
744—FenderFire Single Door Front
745—Clearview Front with Barrier Screen 4003313
Optional Kits*
Outer Surrounds, Trims & Frets
See your dealer for your choice of Outer Surrounds,
Trims and Frets.
Other Accessories
770ZCK—Zero Clearance Kit
759EBL—Enamel Liners
Conversion Kit
738PGK—Conversion Kit to Propane Gas
738NGK—Conversion Kit to Natural Gas
Hearth Gate
Hearth gates such as Cardinal’s VersaGates are
available at retail stores carrying safety products
for children.
*Information accurate at the time of printing and subject to
change without notice.
11
OWNER’S
INFORMATION

Lighting Instructions
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
A. This appliance has a pilot, which must be lighted by hand. When lighting the pilot, follow these
instructions exactly. To save energy, turn the pilot off when not using the appliance.
B. BEFORE LIGHTING smell all around the appliance area for gas. Be sure to smell next to the floor
because some gas is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electric switch; do not use any phone in your building.
Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
If you cannot reach your gas supplier, call the fire department.
C. Use only your hand to push in or turn the control knobs. Never use tools. If the controls will not
push in or turn by hand, don’t try to repair them, call a qualified service technician. Force or
attempted repair may result in a fire or explosion.
D. Do not use this appliance if any part has been under water. Immediately call a qualified service
technician to inspect the appliance and to replace any part of the control system and any gas
control, which has been under water.
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information above.
2. Set the flame adjustment knob as far
clockwise as possible
* .
3. Turn the gas control knob clockwise to OFF.
NOTE: The knob cannot be turned from PILOT to
OFF unless it is pushed in partially. Do not force.
4. Wait five (5) minutes to clear out any gas, then
smell for gas, including near the floor. If you
smell gas, STOP! Follow “B” in the safety
information above. If you don’t smell gas, go to
the next step.
5. Find the pilot. It is at the left side of the firebox
viewed through slotted hole in front log.
6. Push in and turn the gas control knob counterclockwise until resistance is felt just before the
“IGN” position.
7. Keep pushed in for a few seconds to allow gas to flow then, keeping knob depressed, turn to
“PILOT” to light pilot. Hold knob in for a further 5 seconds then release. The knob should pop
back out. Pilot should remain lit. If pilot goes out repeat steps 3 through 7.


If knob does not pop out when released, stop and immediately call your service technician or
gas supplier.


If pilot lights but will not stay lit after several tries, turn the gas control knob to “OFF” and call
your service technician or gas supplier.
8. When pilot is lit, partially depress the knob and turn to “ON” position (Burner alight).


Do not leave knob set between “PILOT” and “ON”.
9. Set the flame height to desired setting
* .
TO TURN OFF GAS TO APPLIANCE
1. Set the flame adjustment knob as far clockwise as possible *
2. Push in gas control knob slightly and turn clockwise to “OFF”. Do not force.
* The flame height can be increased or decreased by depressing the remote control hand set
button.
12
OWNER’S
INFORMATION

XX
Ratings
Model NG LPG
Gas
Natural Propane
Altitude (Ft.)*
0-4,500 feet*
Input Maximum (Btu/h)
24,000 24,000
Input Minimum (Btu/h)
6,500 13,000
Manifold Pressure (in
w.c.)
3.95 9.5
Minimum Supply
Pressure (in w.c.)
5.0 11.0
Maximum Supply
Pressure (in w.c.)
10.5 14.0
Main Burner Injector
Marking
82-650 92-260
Pilot Injector Marking
35 27
Min. Rate By-Pass
Screw
125 125
Specifications
Approval & Codes
This appliance is certified to ANSI Z21.88-2014 / CSA
2.33-2014 American National Standard / CSA Standard
for Vented Gas Fireplace Heaters for use in Canada
and USA, and to CGA 2.17-91 High Altitude Standard
in Canada. This appliance is for gravity vent insert
installations.
This appliance complies with CSA P4.1-09 Testing
method for measuring annual fireplace efficiencies.
The installation must conform to local codes or, in the
absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1 or the Natural Gas and Propane
Installation Code CAN/CGA-B149. Only qualified
licensed or trained personnel should install this
appliance.
This appliance must be electrically grounded in
accordance with local codes, or, in the absence of local
codes, with the National Electrical Code, ANSI/NFPA
70 or the Canadian Electrical Code, CSA C22.1.
*High Altitude Installations
Input ratings are shown in BTU per hour and are
certified without deration for elevations up to 4,500 feet
(1,370 m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the current
ANSI Z223.1 and/or local codes having jurisdiction.
Heating value of gas in some areas is reduced to
compensate for elevation—consult your local gas utility
to confirm.
For installations at elevations above 4,500 feet
(1,370 m) in Canada, please consult provincial
and/or local authorities having jurisdiction.
Supply Gas
Heater engine 738JLN is used with natural gas.
Heater engine 738JLP is used with propane gas.
The supply pressure must be between the limits shown
in the Ratings section above.
The supply connection is 3/8” NPT female and located
on the left hand side of the control valve. The gas line
entry point is on the left hand side on the fireplace.
Conversion Kits
The 738 Legend G3 is supplied as natural gas or
propane gas and is field convertible between fuels.
See instructions packaged with the conversion kit
for further information.
Electrical
The 738 does not require an electrical power source
to operate as a heater.
13
OWNER’S
INFORMATION

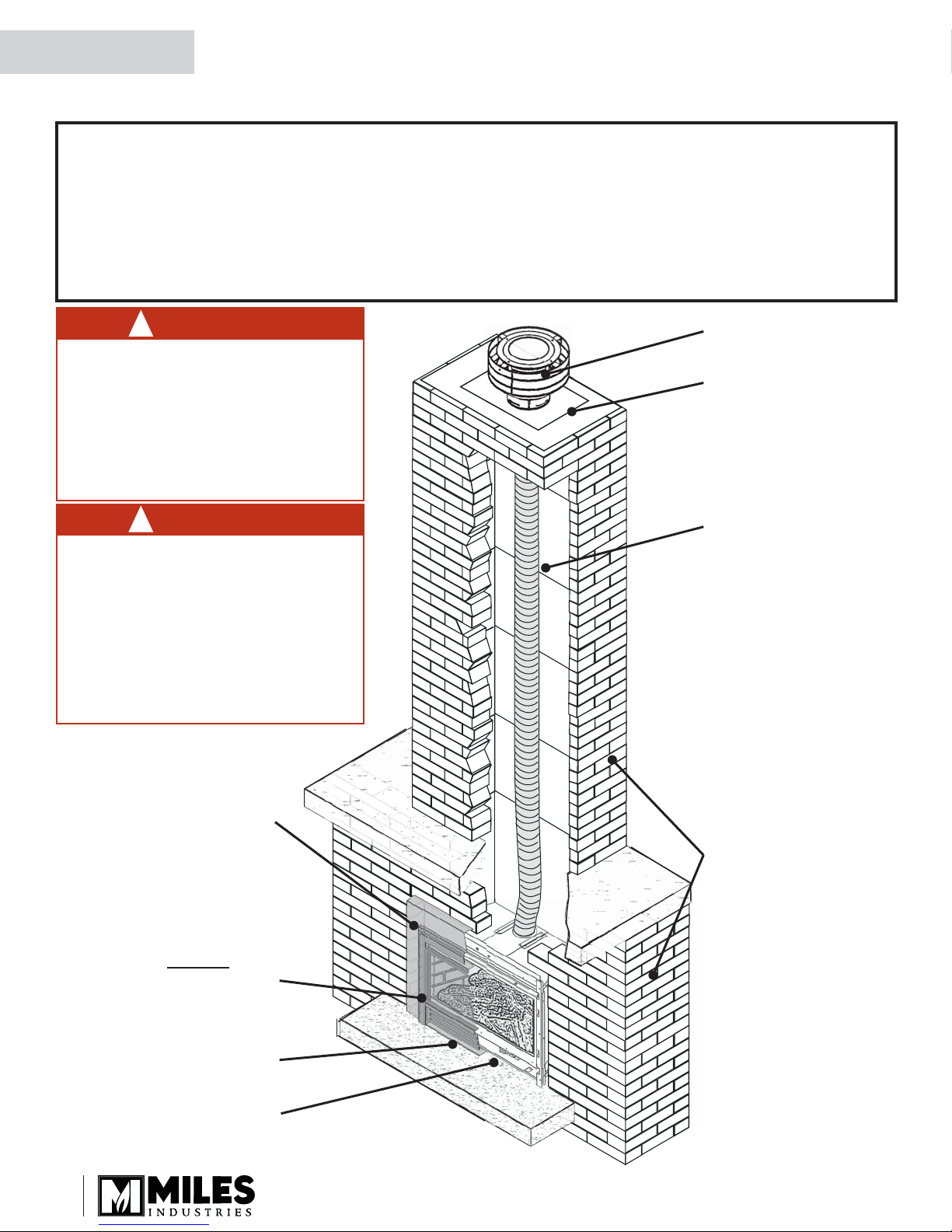

Overview
This appliance, as supplied, may ONLY be installed in an existing unal-
tered, functioning solid-fuel burning fireplace with a working flue and con-
structed of non-combustible material.
This appliance is APPROVED for installation into combustible type con-
struction only when using the 770ZCK Zero Clearance Kit (see separate
instructions packaged with the kit for details).
738JL fireplace
Chimney Terminal Cap
Flashing
Approved 3” flex
chimney liner
running full length
Existing unaltered,
functioning solid-fuel
burning fireplace &
chimney
Outer trim
(optional, sold
separately)
Inner Front
(required, sold
separately)
Fret
(optional, sold
separately)
WARNING
HOT HEARTH / FLOOR! The
hearth or floor in front of the
fireplace may become very hot
when the fireplace heats. Do not use
the hearth as a seat or shelf. Solid
wood flooring in front of the fireplace
(if allowed) may shrink during the
heating season due to heat.
WARNING
Some materials or items, although
safe, may discolor, shrink, warp,
crack, peel, and so on because of
the heat produced by the fireplace.
Avoid placing candles, paintings,
photos, and other items sensitive to
heat around the fireplace.
!
!
14
QUALIFIED
INSTALLER

28-5/8”(727 mm)
19-1/2”(495 mm)
7-7/8”- 9-7/8“
(200 - 251 mm)
Varies with
outer trim options
20”
(508 mm)
Gas inlet Gas connection
Optional Outer Trim or
Surround sold separately
12 - 14”(305 - 357 mm)
Varies with outer
trim options
X
Y
Dimensions
Cavity
Check that masonry step does not interfere with install dimensions or
vent pipe.
If mantel is combustible, see section Clearances for allowable
clearances.
Minimum width of fireplace opening at front: 28” (711 mm)
X = 12–14” (305–357 mm)—varies with outer trim options
Y = 20” (508 mm)
15
QUALIFIED
INSTALLER

9” (229 mm)
A
B
Do not put
furniture or
objects within
36” (914 mm)
of the front of
appliance
Combustible Mantel Clearances
*Measure taken from the underside of the mantel to finished
hearth or surface that the unit is sitting on.
Finishing Materials
Combustible materials: Material such as wood,
compressed paper, plant fibers, plastics or any material
capable of igniting and burning, whether flame-proofed
or not, plastered or un-plastered.
Non-combustible materials: Material such as steel,
iron brick, tile, concrete or materials that bear the UL
mark for zero (0) fire rating.
Sidewall Clearances
Minimum distance from side of appliance (liner box) to
combustible wall: 9” (229 mm).
Mantel legs projecting forward less than 6” (152 mm)
may be located within 5” (127 mm) of the side of the
appliance (liner box).
Mantel Pro-
jection A
1”
(25 mm)
1”– 6”
(25–152 mm)
9”
(229 mm)
12”
(305 mm)
Mantel
Height B*
36”
(914 mm)
39”
(991 mm)
42”
(1067 mm)
45”
(1143 mm)
WARNING
Some materials or items, although safe, may discolor, shrink, warp, crack, peel,
and so on because of the heat produced by the fireplace. Avoid placing candles,
paintings, photos, and other items sensitive to heat around the fireplace.
WARNING
HOT GLASS! The use of a screen in front of
the glass is highly recommended particularly in
households with children.
sidewall
WARNING
HOT HEARTH / FLOOR! The hearth or floor in
front of the fireplace may become very hot when
the fireplace heats. Do not use the hearth as a seat
or shelf. Solid wood flooring in front of the fireplace
(if allowed) may shrink during the heating season
due to heat.
!
!
!
16
Clearances
QUALIFIED
INSTALLER

Approved Termination Required
Max. 36” offset at 10’-0” min. vertical
3”Liner
3” min. Bend
Radius
Min. 10 feet (with offset) Min. 8 feet (without offset)
Minimum Vent Liner Radius
Allowable Vent Configurations
Minimum vent lengths.
For other allowable configurations,
refer to the venting tables in the
National Fuel Gas Code Z223.1 or the
Natural Gas or Propane Installation
Code B149.1.
Terminal Cap
Flashing
1 x 3” flex liner
Vent Location
The vent terminal must be located through the roof. This gravity
vent appliance is designed to opreate when an undistrubed
airflow hits the outside vent terminal from any direction.
Check local codes for allowable vertical vent termination.
Vent Materials
Use a 3” diameter aluminum flex liner approved for gas
venting when installed as an insert (existing chimney). Use a
4” diameter type “B” vent when installed with a 770ZCK Zero
Clearance Kit (see separate instructions packaged with the kit
for details).
Venting Notes
Where possible, avoid joining flex pipe. If joints are required,
use a approved connector and seal joints with RTV high temp
sealant.
Horizontal offsets are permissible to allow for routing around
masonry projections. Avoid bending flex pipe over a 45 degrees
radius where possible.
Typical Vent Installation
17
Venting
QUALIFIED
INSTALLER

Installation Planning
Installer—READ THIS FIRST
1. YOU NEED TO KNOW FROM THE
HOMEOWNER what accessories (surround,
door, etc.) will be installed with this fireplace;
2. Unpack the appliance.
3. Check that you have everything.
4. Clean cavity, chimney, ash dumps, clean-outs.
5. Install venting pipe.
6. Attach conversion plate to existing fireplace.
7. Fit appliance into cavity.
8. Connect and test gas supply.
Existing Fireplace Preparation
A few points must be considered before inserting the
738JL into an existing fireplace cavity. Generally, no
modifications are allowed to the existing fireplace that
will compromise the integrity of the existing fireplace.
Components that are bolted or screwed on such as
dampers or baffles may be removed to accommodate
the installation of the 738JL engine. Cutting away
any sheet metal parts of the existing fireplace
to accommodate the installation of the 738JL is
prohibited. Check with local authorities if in doubt.
Clean Fireplace and Chimney
Have the chimney swept and the fireplace cavity
including ash dumps and clean-outs cleaned before
installing the 738JL heater and vent liners. Any
creosote or soot residue remaining in the fireplace
cavity chimney or clean-out may cause odors or stains
once the 738JL insert is installed. Consult with chimney
sweep for information on how best to clean.
Existing Dampers
Factory-built, zero-clearance fireplaces will require the
damper to be removed in order to install the vent liners.
These dampers are usually bolted into place. Dampers
in masonry fireplaces must be fixed open and may
remain in place.
9. Install the remote control system.
10. Install bricks and logs.
11. Refit window.
12. Verify operation and adjust aeration settings.
13. Install the remote control handset wall holder.
14. Instruct the homeowner on the operation and
maintenance of the fireplace.
15. Install the surround trim, the front and the barrier
screen.
16. Install the fret if required.
Ash Retaining Curbs
Some fireplaces (particularly factory-built) have a
raised curb at the front edge to retain ashes. Check the
dimensions carefully to ensure the 738JL engine will fit
behind any raised curb (some curbs may be removed
separately from the refractory base).
Gas Line Routing
Plan the routing of the gas line before proceeding.
Use the existing hole for the gas line in factory-built
fireplaces. If the fireplace has no access hole, carefully
drill an access hole of 1.5 inch (38 mm) or less through
the lower sides or bottom of the firebox. The access hole
must be plugged with non-combustible insulation after
the gas supply line has been installed. See Dimensions
section for detailed location of gas inlet. Also, take
into consideration whether or not a shut-off valve will
interfere when planning routing of the gas line.
Only qualified licensed or trained personnel
should install this appliance.
18
QUALIFIED
INSTALLER

Unpack the appliance
Beware of sharp edges! Wear gloves!
1. Unpack the appliance.
2. Unpack any loose items from around the appliance
and check against the Pack Content list provided in
the documentation package.
3. Remove the window and set aside in a safe place to
avoid damage.
4. Verify that you have all the components required
for the installation, including:
-brick panels & logs;
- surround/doors/fret;
- venting components and accessories.
Installation
Existing Fireplace Preparation
Existing Glass Doors and Wire Screens
Existing glass doors must be permanently removed
prior to installing the 738JL insert.
Combustible Mantels
Combustible mantel clearances must conform to those
required for the original solid-fuel fireplace into which
the 738JL is being installed.
Remove Window
The window is held in place by four spring-loaded bolts,
two at the top and two at the bottom.
1. To remove the window, turn each bolt a quarter turn
to disengage the bolt pin.
2. Gently pull the bottom of the window outward and
unhook it from the firebox’s opening frame.
3. Set the window aside in a safe place to avoid
damage.
Attach Warning Conversion Plate to Existing
Fireplace (label supplied loose with 738JL
heater)
Attach the “This fireplace has been converted...”
label to the existing fireplace using screws or other
mechanical means and store any removed parts in
back of the existing fireplace for future use.
19
QUALIFIED
INSTALLER

Connect Vent
IMPORTANT: This appliance’s venting system requires room air to
be used in the combustion process.
1. Rough-in one 3” diameter vent liner into the existing chimney
system from the roof. Be careful not to tear or damage the liner
in the process. Leave plenty of liner at the bottom to facilitate the
connection of the liner to the vent slider. It is best to leave the
top termination until later.
2. a) Large cavity opening
Slide the appliance into the cavity.
b) Smaller cavity opening
Release the two screws retaining the vent slider to the front of
the firebox.
Remove the slider from the firebox by sliding it towards the back
of the firebox.
3. Secure the liner to the collar on the vent slider using 4 tapping
screws.
If the vent slider was removed from the firebox, slide the firebox
onto the vent slider in the cavity taking care not to damage the liner.
Make sure that the vent slider is pulled all the way forward.
Secure the vent slider to the front of the firebox with two screws
removed earlier.
4. From the roof, pull the liner and fit the flashing.
5. Fit the terminal cap. Secure with screws.
6. Seal the terminal and flashing from water penetration as required.
1
3
4
5
Installation
option 2b
option 2a
6
WARNING
Failure to position the parts in
accordance with these diagrams or
failure to use only parts specifically
approved with this appliance
may result in property damage or
personal injury.
!
20
QUALIFIED
INSTALLER
