LEGRAND HPM ELLIPTICA LBL034KWE User manual

ELLIPTICA LED Outdoor Light
Instruction Sheet
Cat.No: LBL034KWE, LBL034KBL
1 Specifications
Cat.No. LBL034KWE, LBL034KBL
Supply Voltage 230 - 240 V a.c. 50Hz
Input Power 15 W
Lumens Output 1420 lm
Efficacy 95 lm/W
Colour Temperature Cool White - 4000 K (Nominal)
Power Factor 0.55
Colour Rendering Index (CRI) 80+
Beam Angle 125°
Lifespan 36,000 hrs (@25° C ambient free air)
25,000 hrs (@40° C ambient)
Dimmable No
IP Rating IP65
Size 300 x 140 x 76 mm
Warranty 5 Years
Class II construction
Non-Dimmable
2 Installation
Please read carefully: This product should be installed by a licensed electrician or similarly qualified person. Read through these
instructions completely before commencing installation. Retain for future use.
Isolate 240 V mains supply before opening fitting for maintenance or installation. (Please refer to figure below)
Step 1: Use the bracket (provided) as a template to mark the screw positions onto the wall/ceiling.
Step 2: Drill and fix the mounting lugs and tighten the 2 x screws through the bracket into the wall as shown in Fig. 1.
Step 3: Connect the connecting lead (tails) to mains power.
Step 4: Install the fitting onto the bracket and make sure it is secured firmly.
DO NOT MEGGER TEST.

2 Installation (cont.)
3 Maintenance / Cleaning
1. This product should only be cleaned with a damp cloth. Cleaning agents and solvents should not be used.
2. This product should not be cleaned with a hose.
LE12237AAA 10 / 2020
Customer Service
For all Customer Service and Technical Support
please call Monday to Friday during business hours.
Legrand Australia
1300 369 777
www.hpm.com.au
Legrand New Zealand
0800 476 009
www.hpm.co.nz
ABN: 31 000 102 661
Warranty
Legrand Australia Pty Ltd warrants this product for a period of 5 years from the date
of purchase.
These goods come with guarantees that cannot be excluded under the Australian
and New Zealand Consumer Laws. You are entitled to a replacement or a refund
for a major failure and compensation for any other reasonably foreseeable loss
or damage. You are also entitled to have the goods repaired if the goods fail to be
acceptable quality and the failure does not amount to a major failure.
See the Warranty card enclosed with this product for further details.
Product Notes
Paper

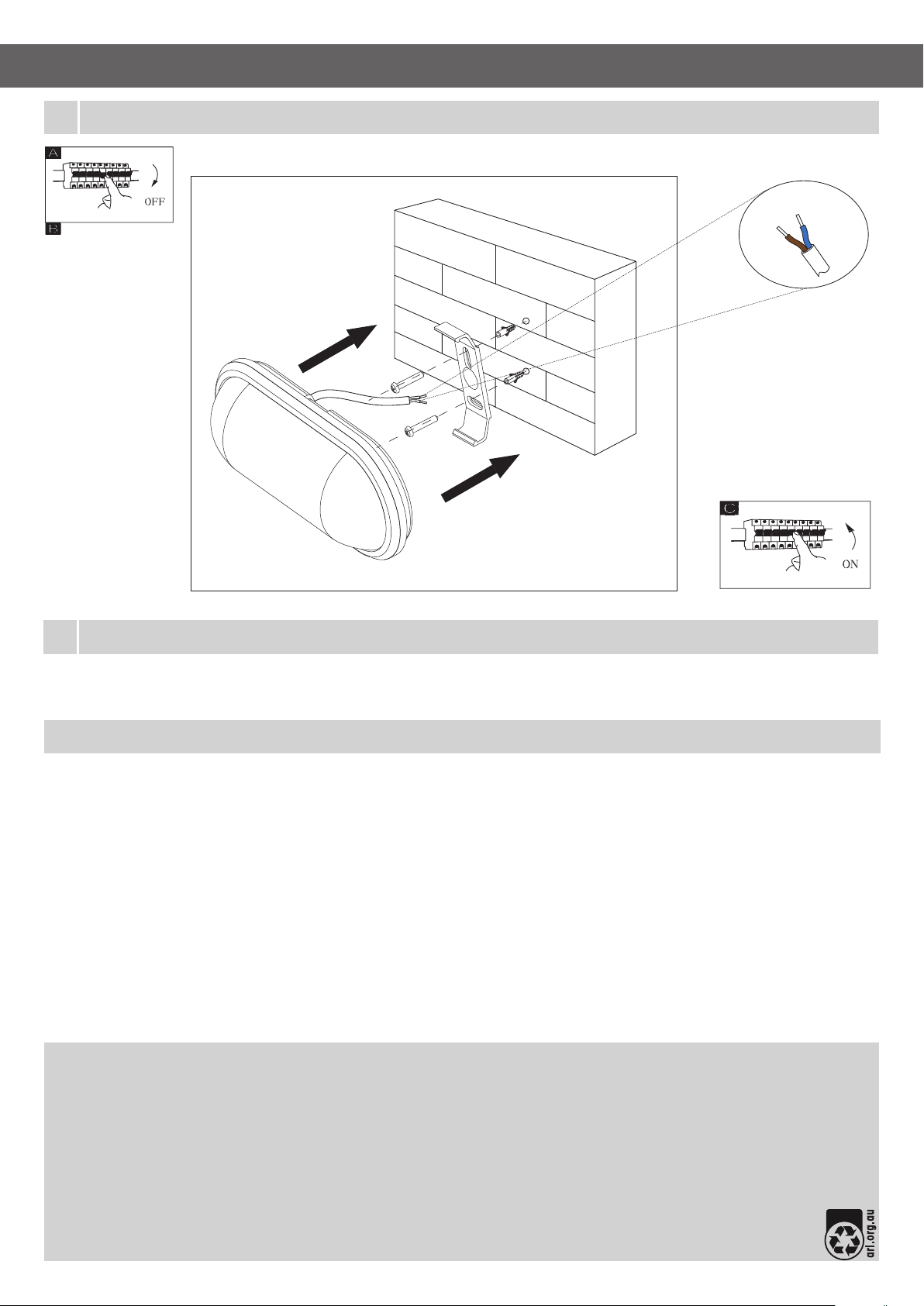

Fig.1
1. This product must be installed and used as per these instructions. 2. An IP rating of IP65 is completely protected against dust and
generally considered suitable for fully exposed external installations, but not for high-pressure hoses. 3. The IP rating of this product is only
valid when installed on a flat and non-porous surface. Additional sealing may be required for irregular surfaces. 4. The mounting screws
on this product should be tightened to a maximum torque of 0.8Nm. Over tightening may damage the product. 5. This product contains no
serviceable parts and no attempt should be made to repair it. If the product is faulty it should be discarded. 6. This product is not suitable
for installation in hazardous and/or corrosive areas. This product is not suitable for marine environments such as areas subject to salt spray
and/or mist. 7. Electrical installations periodically receive transient over-voltages. This product has been designed to minimise the effect of
such voltages on the connected equipment. It may not give full protection for extreme over-voltage transients such as those resulting from
a close lightning strike. 8. This product has been designed to operate in ambient temperatures -5°C to 40°C. 9. The material in this product
may vary in colour from batch to batch. Colour matching from one batch to another cannot be guaranteed. 10. Extended exposure to UV
rays (such as exposure to direct sunlight) may cause discolouration of this product.11. Stated lifespan is an average. The actual lifespan
will vary according to individual circumstances.12. Legrand reserves the right to modify the specification of this product at any time.13. This
product utilises intellectual property in the form of registered designs, trademarks, and/or patents. Such intellectual property remains the
property of Legrand in all cases.
Note: Mains supply to be terminated via
2-Way lead as supplied.
N
L
L - Brown
N- Blue
