Spa Owner’s
Manual
“Trend Setting Innovations Since 1973”
This Manual Contains
IMPORTANT SAFETY
INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
“SAVE THESE INSTRUCTIONS”
Smart S-3 & Genius G-2.5 & G-3 Series

SAFETY
IMPORTANT SPA SAFETY INSTRUCTIONS ................. 1, 2, 3
Important Safety Precautions .................................................. 3
Ground Fault Circuit Interrupter ............................................... 5
Safety Factors In Placement of Receptacle............................. 5
SPA LOCATION
Selecting A Good Site ............................................................. 3
Site Load Bearing Requirements ............................................ 3
Site Surface Requirements ...................................................... 3
SPA WATER LEVELS
Filling Your Spa ........................................................................ 4
Draining Your Spa .................................................................... 4
Winterizing Your Spa ............................................................... 4
S-3 SMART SERIES EQUIPMENT
All Electrical Wiring Must be Installed By A Certified Licensed
Electrician
NEMA 5-20 amp Receptacle ................................................... 5
Isolated, Dedicated 120 volt, 20 amp Circuit ........................... 5
Ground Fault Circuit Interrupter Plug ................................... 5, 6

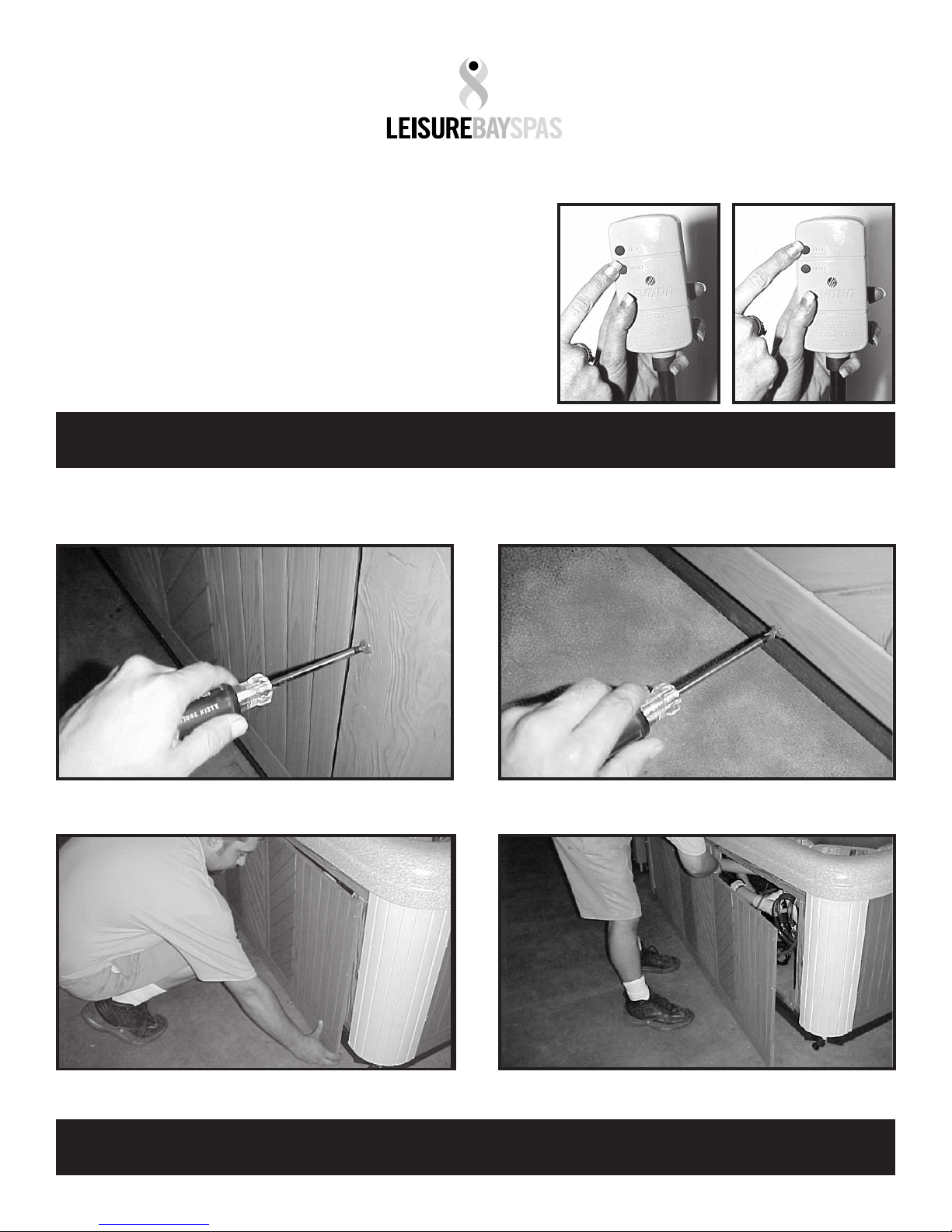

Cabinet Panels ........................................................................ 6
Conversion, 120 volt to 240 volt .................................... 7, 9, 10
240 volt 50 amp Circuit .......................................................... 10
240 volt, 30 amp Circuit ......................................................... 10

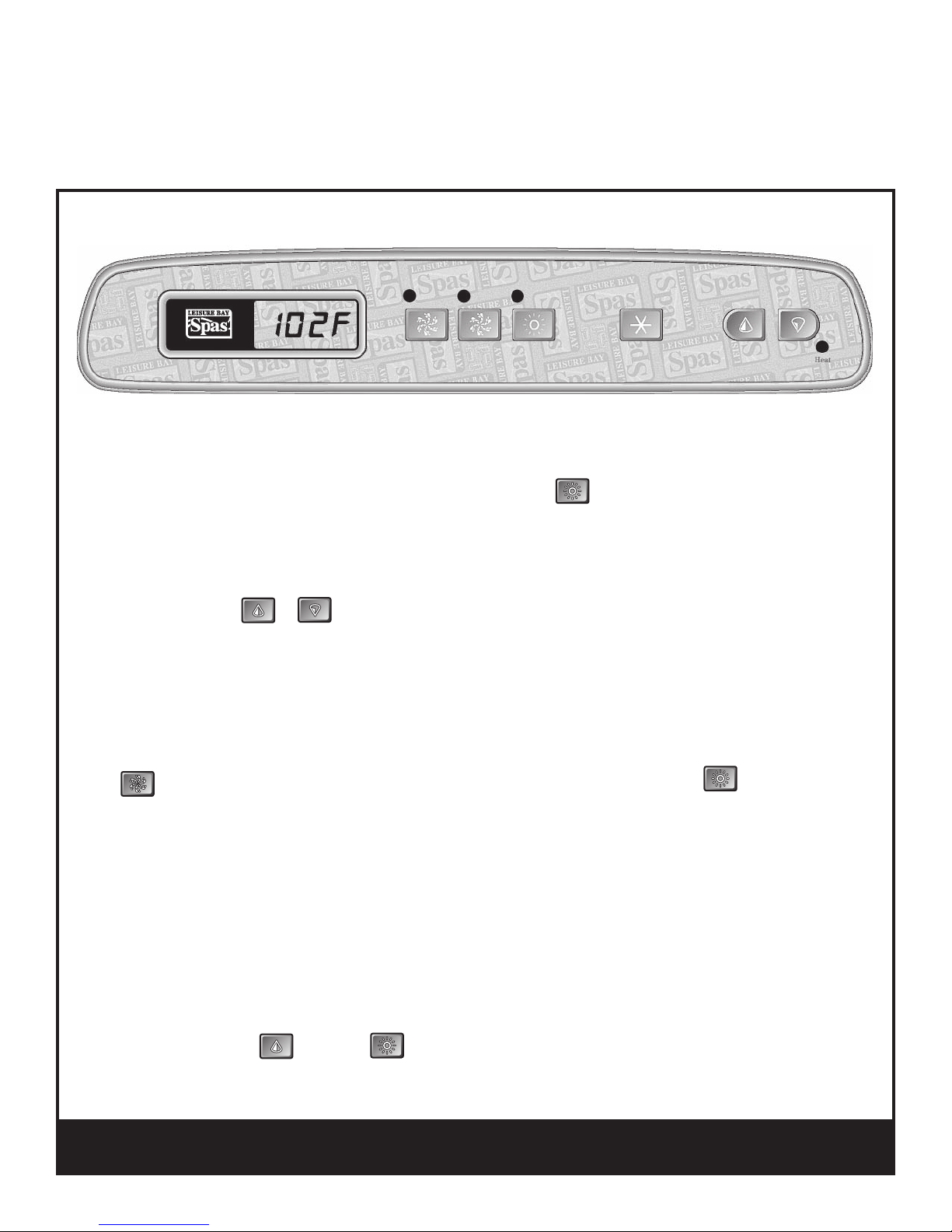

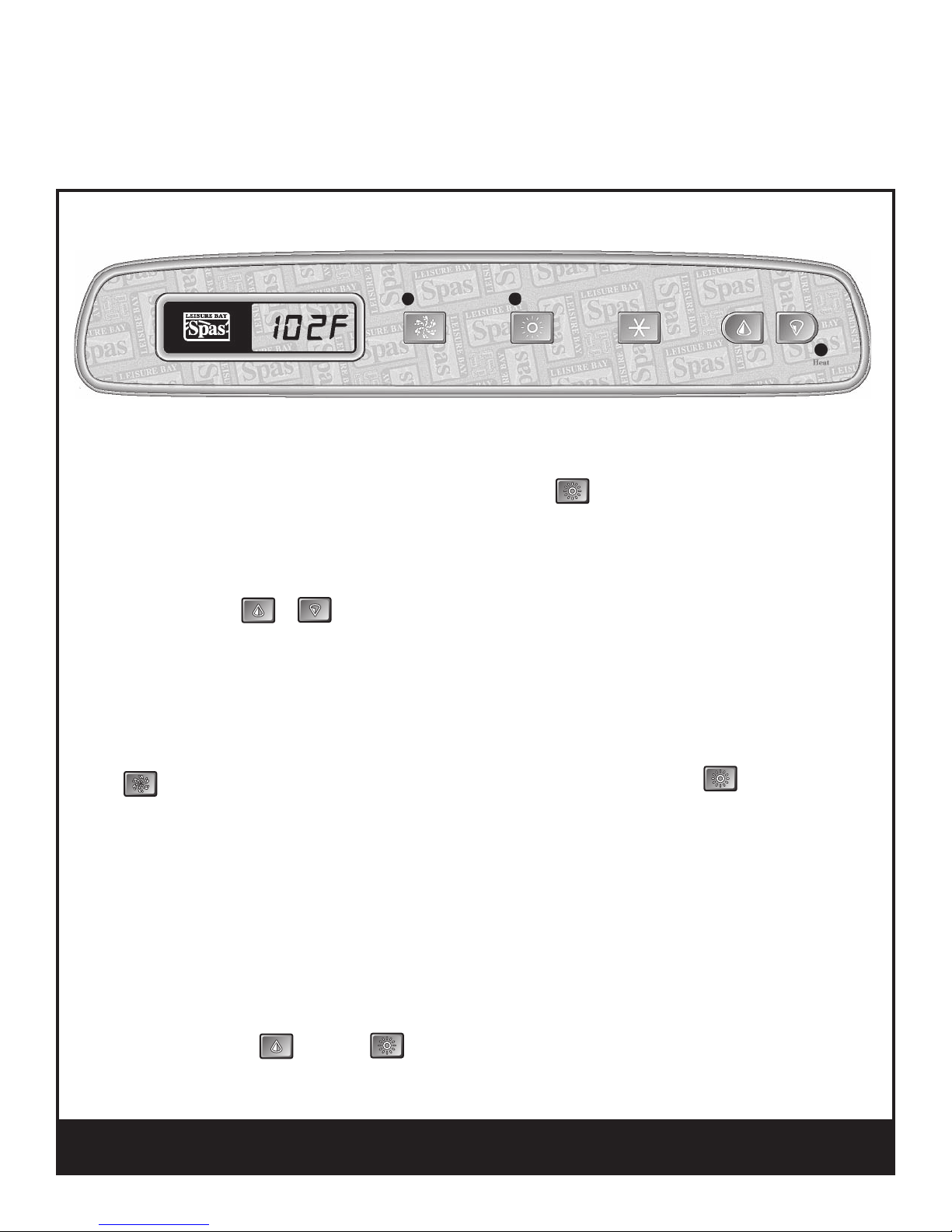

Control Console ..................................................................... 12
Heating Modes and Other Features ...................................... 15
Display Messages ................................................................. 16
TABLE OF CONTENTS
G-2.5 & G-3 GENIUS SERIES EQUIPMENT
All Electrical Wiring Must be Installed By A Certified Licensed
Electrician
G-2.5 and G-3 Dip Switch Configuration ............................... 11
Conversion 50 amp to 30 amp Circuit ................................... 11
G-2.5 Control Console ........................................................... 13
G-3 Control Console .............................................................. 14
Heating Modes and Other Features ...................................... 15
Display Messages ................................................................. 16
FILTERS
Skim Filter.............................................................................. 17
WATER PURIFICATION and MAINTENANCE
Recommended Schedule ...................................................... 18
pH .......................................................................................... 19
Total Alkalinity ........................................................................ 19
Calcium Hardness ................................................................. 19
Cleaning The Spa .................................................................. 19
Water Marks On Spa Shell .................................................... 19
Recovering Tub Ring ............................................................. 19
Cleaning The Spa Cabinet .................................................... 19
WARNING SIGN MUST BE POSTED
An important WARNING sign is packed with your Leisure Bay Spa. This sign must be
posted in a prominent place in close proximity to the spa installation site immediately
upon completion of spa installation.
THIS WARNING SIGN MUST BE POSTED BEFORE THE SPA IS USED!
!WARNING
DURING PREGNANCY, SOAKING IN HOT WATER MAY CAUSE DAMAGE TO THE FETUS.
LIMIT USE TO 10 MINUTES AT A TIME.
PREVENT DROWNING
SPA HEAT SPEEDS UP EFFECTS OF ALCOHOL,
DRUGS, OR MEDICINE AND CAN CAUSE
UNCONSCIOUSNESS.
IMMEDIATELY LEAVE SPA IF
UNCOMFORTABLE OR SLEEPY.
PREVENT CHILD DROWNING
WATER ATTRACTS CHILDREN.
ALWAYS ATTACH A SPA COVER AFTER EACH
USE.
PL601035 Rev A

SAVE THESE INSTRUCTIONS
THIS SPA IS FOR RESIDENTIAL USE ONLY!
IMPORTANT SAFETY INSTRUCTIONS
When installing and using this electrical equipment, basic safety precautions should always be followed, including the following:
1. READ AND FOLLOW ALL INSTRUCTIONS
2. Warning
To reduce the risk of injury, do not permit children to use this product unless
they are closely supervised at all times.
3. A wire connector is provided on this unit to connect a minimum No. 8AWG
(8.4mm) solid copper conductor between this unit and any metal equipment,
metal enclosures of electrical equipment, metal water pipe, or conduit within
5 feet (1.5m) of the unit.
4. Danger Risk of Injury
(For cord-connected / convertible units)
A. Replace damaged cord immediately
B. Do not bury cord
C. Connect to a grounded, grounding type receptacle only.
4A. (For units with a G.F.C.I.)
WARNING - This product is provided with a Ground Fault Circuit Interrupter
“G.F.C.I.” on the end of the spa’s power cord. This G.F.C.I. must be tested
before each use. With the product operating depress the “test” button on
the G.F.C.I.The spa should not operate. Depress the “Reset” button on the
G.F.C.I.The product should now operate normally. If the spa fails to operate
in this manner, there is a ground current flowing indicating a possible electric
shock. Disconnect the power until the fault has been identified and corrected
by a certified licensed electrician.
5. Warning

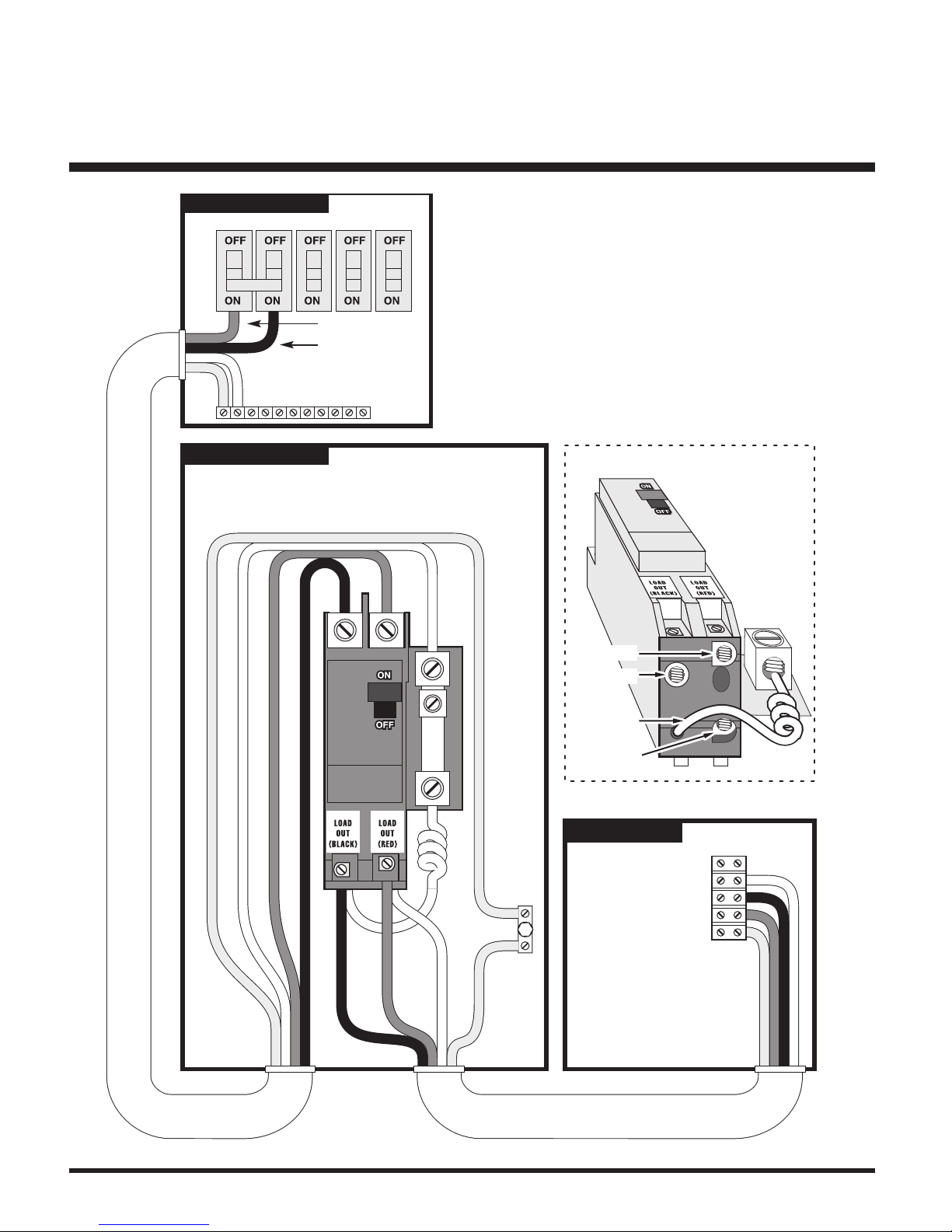

FOR PERMANENTLY INSTALLED UNITS - The electrical supply for this
product must include a suitably rated switch or circuit breaker to open all
ungrounded supply conductors to comply with Section 442-20 of the
National Electric Code. ANSI / NFPA 70-1987. In addition, all 230 volt
installations must be protected by a 230 volt Ground Fault Circuit Interrupter
"G.F.C.I.". Any G.F.C.I. circuit breaker used in the house panel must read
current returning through the neutral conductor. 230 volt 2 conductor G.F.C.I.
circuit breakers will not operate correctly for your application.
6. Danger
Risk of Accidental Drowning. Extreme caution must be exercised to prevent
unauthorized access by children. To avoid accidents, ensure that children
cannot use this spa unless they are supervised at all times. For additional
protection, select a cover which is classified by the Underwriters
Laboratories Meeting ASTM F1346-91 requirements.
7. Danger
Risk of Injury. The suction fittings in this spa are sized to match the specific
water flow created by the pump. Should the need arise to replace the suction
fittings or the pump, be sure that the flow rates are compatible.
Never operate spa if suction fittings are broken or missing. Never replace a
suction fitting with one less than the flow rate marked on the original suction
fitting.
8. Danger
Risk of Electric Shock. Install at least 5 feet (1.5m) from all metal surfaces.
As an alternative, a spa may be installed within 5 feet (1.5m) of metal
surfaces if each metal surface is permanently connected by a minimum
No. 8AWG (8.4mm) solid copper conductor to the wire connector on the
terminal box that is provided for this purpose.
9. Danger
Risk of Electric Shock. Do not permit any electric appliance, such as light,
telephone, radio, or television, within 5 feet (1.5m) of a spa.
10. Warning To reduce risk of injury:
A. The water in a spa should never exceed 104 ° F (40 ° C). Water
temperatures between 100 ° F (38 ° C) and 104 ° F (40 ° C) are considered
safe for a healthy adult. Lower water temperatures are recommended
for your children and when spa use exceeds 10 minutes.
B. Since excessive water temperatures have high potential for fetal damage
during the early months of pregnancy, pregnant or possibly pregnant
women should limit spa water temperatures to 100 ° F (38 ° C).
C. Before entering spa, the user should measure the water temperature
with an accurate thermometer since the tolerance of water temperature-
regulating devices vary.
D. The use of alcohol, drugs, or medication before or during spa use may
lead to unconsciousness with the possibility of drowning.
E. Persons suffering from obesity or with a medical history of heart disease,
low or high blood pressure, circulatory system problems, or diabetes
should consult a physician before using a spa.
F. Persons using medication should consult a physician before using a
spa since some medication may induce drowsiness while other
medication may affect heart rate, blood pressure, and circulation.
11. Warning Sign
Included with this spa is a warning sign. It is extremely important that this
sign be permanently placed in clear view of any persons using the spa.
Occasional spa users may not be aware of some of the dangers hot water
poses to pregnant women, small children, and people under the influence
of alcohol, drugs or medication. If you did not receive a warning sign or
your sign has become damaged, please contact your spa dealer and ask
for sign number PL601035 Rev A.
1

1. Never permit the spa to be used unless it is attended
by at least one person other than the bather.
Someone should be present to lend assistance if the bather should be in
trouble due to injuries, cramps, drowning especially in case of children,
etc.
2. Always use care in and around your spa.
The spa has many rigid, unyielding parts and many areas that become wet
and slippery. These all are potentially dangerous when rough play is
permitted or if care is not used, particularly when entering or leaving the
spa.
3. Keep the water sanitary and healthful at all times.
Your filter system will remove suspended particles from the water. Regular
application of spa chemicals in proper quantities will destroy harmful bacteria
and prevent formation of algae.Your surface skimmer will remove insects,
leaves, and other debris from the water surface. Unsanitary water is a
serious health hazard.
4. The water in your spa should NOT be warmer than
100 ° F - 104 ° F (38 ° - 40 ° C).
Always keep an accurate thermometer in the water because your spa’s
thermostat may be in error. Use a high quality, shatterproof thermometer
with increments of one degree or less.
The National Spa and Pool Institute considers a temperature of 100 ° F (38 ° C)
safe and comfortable for a healthy adult. Most healthy adults can enjoy this
water temperature for as long as desired, although it may raise the body
temperature to the water temperature and eventually become uncomfortable
(like a fever). At higher water temperatures the soaking time should be
shorter. Never soak for more than 20 minutes when the water temperature
is 102 ° F (39 ° C) or higher. If you are planning a long rest in the spa, lower
the water temperature closer to normal body temperature, about 99 ° F
(37.2 ° C). Some people find even lower water temperatures relaxing and
pleasing. Try different water temperatures in the 98 ° -102 ° F (36.6 ° -39 ° C)
range until you find what temperatures suit you best.
5. Hot water can raise the body temperature high
enough to cause heat stroke.
This can be fatal even to healthy adults. If you have any questions about
your own fitness or whether you should soak in the spa, check with your
physician.
6. Prolonged immersion in hot water may induce
hyperthermia.
Hyperthermia occurs when internal body temperature reaches a level
several degrees above the normal body temperature of 98.6 ° F (36.6 ° C).
The symptoms of hyperthermia include: (1) dizziness, (2) fainting, (3)
drowsiness, (4) lethargy and (5) increase in the internal body temperature.
The effects of hyperthermia include: (1) unawareness of impending hazard,
(2) failure to perceive heat, (3) failure to recognize the need to exit spa, (4)
physical inability to exit spa and (5) unconsciousness resulting in danger
of drowning.
7. WARNING-The use of alcohol, drugs or medication
can greatly increase the risk of fatal hyperthermia
in hot tubs or spas.
Despite the popular image of people in spas drinking wine or other alcoholic
beverages, DO NOT use alcoholic beverages before or during spa use.
Alcohol and certain drugs and medications, are depressants which cause
slowed reflexes and drowsiness, especially in conjunction with the relaxed
soaking in hot water.This can lead to sleep or unconsciousness and possibly
result in drowning. Using your spa with other people who are also drinking
or under the influence of drugs or medications is not a preventative measure
since they are likely to become similarly affected by the combinations of
alcohol, drugs or medication and hot water soaking.
Soaking in hot water causes changes in the circulatory system, such as
enlargement of blood vessels near the skin.Therefore, people with a medical
history of heart disease, circulatory problems, diabetes, low or high blood
pressure should check with their physician before using spas. Additionally,
people taking medications causing drowsiness, such as tranquilizers,
narcotics, antihistamines, or anticoagulants should not use spas without
asking their physician.
8. Broken or missing drain covers should be replaced
immediately.
Accidents can occur when long hair or a body part is trapped by suction
from a drain or outlet whose cover is broken or removed. Children are
particularly vulnerable, and they should be warned against danger.
Your spa can be a source of great pleasure. It offers healthful stimulating recreation and is a delightful fun
center for you, your family and friends. However, it contains large quantities of water and is deep enough to
present inherent dangers to life and health unless the following safety rules are strictly observed.
IMPORTANT SAFETY PRECAUTIONS
DO NOT :
Do not use electrical appliances in or around your spa. Do not use glass or other breakable items in or around your
spa. Do not remove spa cabinet panels and attempt to make repairs. Do not attempt electrical repairs. Retain a certified
licensed electrician.
SAVE THESE INSTRUCTIONS
2

3
Selecting A Good Location
LEVEL, FLAT & SOLID LOAD BEARING SITE CRITICAL
Solid Load Bearing Site
The site must provide a solid foundation with a minimum load bearing capacity
of 135 pounds per square foot (61.23 kgr per 929.03 sq. cm). Concrete slabs
and decks must be designed to support this weight. Do not select a site composed
of individual unsupported bricks, blocks or other materials which will shift unevenly
and cause damage to your spa’s internal frame.
Site Selection...
Your new spa will provide you and yours with hour upon hour of healthy, relaxing enjoyment. The following suggestions and
recommendations will help you select a safe and compatible site for your spa, maximizing your enjoyment.
1. Certified Licensed Electrician Required
Electrical installation, (approval of and connection to power source) must
be completed by a qualified certified licensed electrician in compliance
with all codes.
2. No Overhead Power Lines
Do not locate your spa under overhead power lines or in near proximity to
existing buried or exposed electrical circuits. See your certified licensed
electrician.
READ ALL SAFETY INSTRUCTIONS!
See pages 1 and 2 for other safety requirements and instructions
3. Childproof Your Spa
Plan for limiting access of children. Precautions such as self closing and
locking gates or access doors, fencing and other child barriers, as dictated
by the site would be recommended.
4. UL Safety Cover Required
In addition to its insulating factors, a good cover also provides a measure
of additional protection from unwanted access. Select a cover which is
classified by the Underwriters Laboratories meeting ASTM F1346-91
requirements.
Level Site, Flat Surface
A level site is critical to both the performance and enjoyment of your spa. Water
is unforgiving and will always settle level. A flat and level site provides the surface
necessary to properly disperse weight between the footwell which bears most of
the spa’s weight and the structural frame which primarily provides stabilization
and secondary support. The importance of proper support for the footwell in
conjunction with the spa cabinet cannot be over stressed.
THE BULK OF YOUR SPA’S WEIGHT IS SUPPORTED BY THE FOOTWELL
Failure to provide support will result in damage to the spa’s shell and will void the shell warranty!
15%
WEIGHT
LOAD
70% OF THE SPA’SWEIGHT LOAD
15%
WEIGHT
LOAD
