Lemco Micro Line MLH-201 User manual

2
1. IMPORTANT SAFETY PRECAUTIONS INFORMATION
READ THE FOLLOWING WARNINGS BEFORE YOU USE YOUR DEVICE
Παρακαλούμε φυλάξτε αυτό το εγχειρίδιο σε ασφαλές μέρος για μελλοντική αναφορά.
Power supply / Mains cord
zx w Operate the unit only within the voltage range defined as appropriate by the man-
ufacturer.
zx w Occasionally check the power connector and remove dirt or dust that may have
accumulated.
zx w Use only the mains cord that comes with your unit.
zx w Do not operate the unit or plug in the mains cord if it is broken, split, or damaged
in any way.
zx w Do not place the mains cord next to heating devices. Do not pull it, place heavy
objects on it or damage it in any way. Keep it out of reach of children.
zx w Ensure that the device is plugged in a properly grounded socket. Insufficient
grounding may cause electrocution.
zx w Always carefully disconnect all plugs by pulling on the plug and not on the cord.
Make sure the unit's power switch is turned off before removing the cord from an
outlet.
zx w Disconnect the mains cord when the unit is not in use for long periods of time or
during storms.
zx w Do not connect the unit to a multiple-outlet to avoid plug overheating.
Disassembling
zx w This unit contains parts that cannot be repaired by the user. Do not disassemble
or try to repair it as this will void all warranties. Please contact the manufacturer if
you experience any problems with your unit.
Water/humidity
zx w Do not keep the unit in a humid place or near water.
zx w Do not plug/unplug the unit with wet hands.
WARNING
The following safety precautions must be observed to prevent fire
or electric shock hazard. Safety precautions include but are not re-
stricted to the following:

3
Fire
zx w Never place a candle or another source of fire on the unit as it may fall and start
a fire.
zx w If the mains cord or the power connector is damaged or destroyed, or if there is a
sudden loss of picture during operation, or if you notice a strange smell or there is
smoke, immediately switch the unit off, disconnect the mains cord and contact the
manufacturer’s technical support department.
Installation / Storage
zx w This unit contains high precision pieces of electronics. To ensure optimal perform-
ance and avoid damage, do not store it in any location where it may collect dirt,
duct, lint, etc. Do not expose it to extreme heat or cold (e.g. in direct sunlight, near
a heater or in the car during the day). Place the unit in a secure place to avoid falls.
zx w Before moving the unit, always unplug all cords first.
zx w When installing the unit, make sure that an outlet is within easy reach. In case of
malfunction, switch the unit off and unplug the power cord. When the unit is not in
use for a long period of time, make sure that the mains cord is disconnected.
Connectivity
zx w Before connecting the unit to other electronic devices, always switch off and unplug
all devices.
Maintenance
zx w Do not spill liquids on the unit. Do not use any diluents or volatile liquid to clean
the unit. Instead, use a soft slightly damp cloth and allow the unit to dry completely
before using again.
Handling
zx w Do not poke your finger into the openings on your unit.
zx w Never put paper, metal parts or other objects into the openings of your unit. If you
suspect that there are foreign parts in your unit, switch it off and unplug the mains
cord. Contact the manufacturer’s technical support department.
zx w Do not step on or place heavy objects on top of the unit. To avoid hardware dam-
age, handle all buttons, connectors and switches gently.

4
2. INTRO
Congratulations on purchasing the MLH-201. You now own a high quality, professional
DTV headend. To get the most out of your purchase, please take the time to carefully
read through this manual.
3. INSTRUCTIONS
3.1 - Description
The MLH-201 is a very powerful, all-in-one mini headend device, able to receive up to
4 HD signals and convert them either in IPTV streaming using UDP/RTP protocols mul-
ticast/unicast.
The embedded web server of the MLH-201 provides a very friendly user interface as
well as the ability of remote or local control of the device via LAN.
Its small size and its powerful features render the MLH-201 the ideal solution in case
we want to distribute HD content eg. coming from STBs or blue ray to a CATV instal-
lation using the IPTV technology.
3.2 - Features
zx w 4 x HD inputs
zx w HDCP v1.4 support
zx w Gbit IP streaming (up to 64 x SPTS / 4 x MPTS)
zx w Dual power supplies offering redundancy mode
zx w Local or remote control via webserver
zx w Very friendly user interface
zx w Wall or rack mount options
zx w SNMP v2
zx w Ultra-compact size
zx w 5-year warranty
3.2.1 - Auto-reset functions and watchdog
During the normal operation of the MLH-201, the main CPU monitors all the internal
parts in order to ensure that the device works normally. In case of an internal error or
module failure, the MLH-201 immediately initiates the recovery procedure by resetting
the appropriate module or the device. Finally, watchdog timers ensure that the device
will be reset in case of CPU failure..

5
3.2.2 - IP streaming
The MLH-201 is able to make IP streaming of all programs coming from the 4 x HD in-
puts using UDP or RTP protocol in multicast/unicast IP addresses. The max. output bi-
trate can be up to 480 Mpbs.
3.2.3 – Dual power supplies
The MLH-201 is powered from one or two external power supplies of +12VDC/2.5A. In
case we connect two external power supplies then they will work in redundancy mode.
Thus, in case of failure of one of the two external power supplies the device will con-
tinue working without stoping.
3.3 – Block Diagram
HD
HD
HD
(64 SPTS
201-MLH I
S
/4 MPTS)
P
HD
HD

6

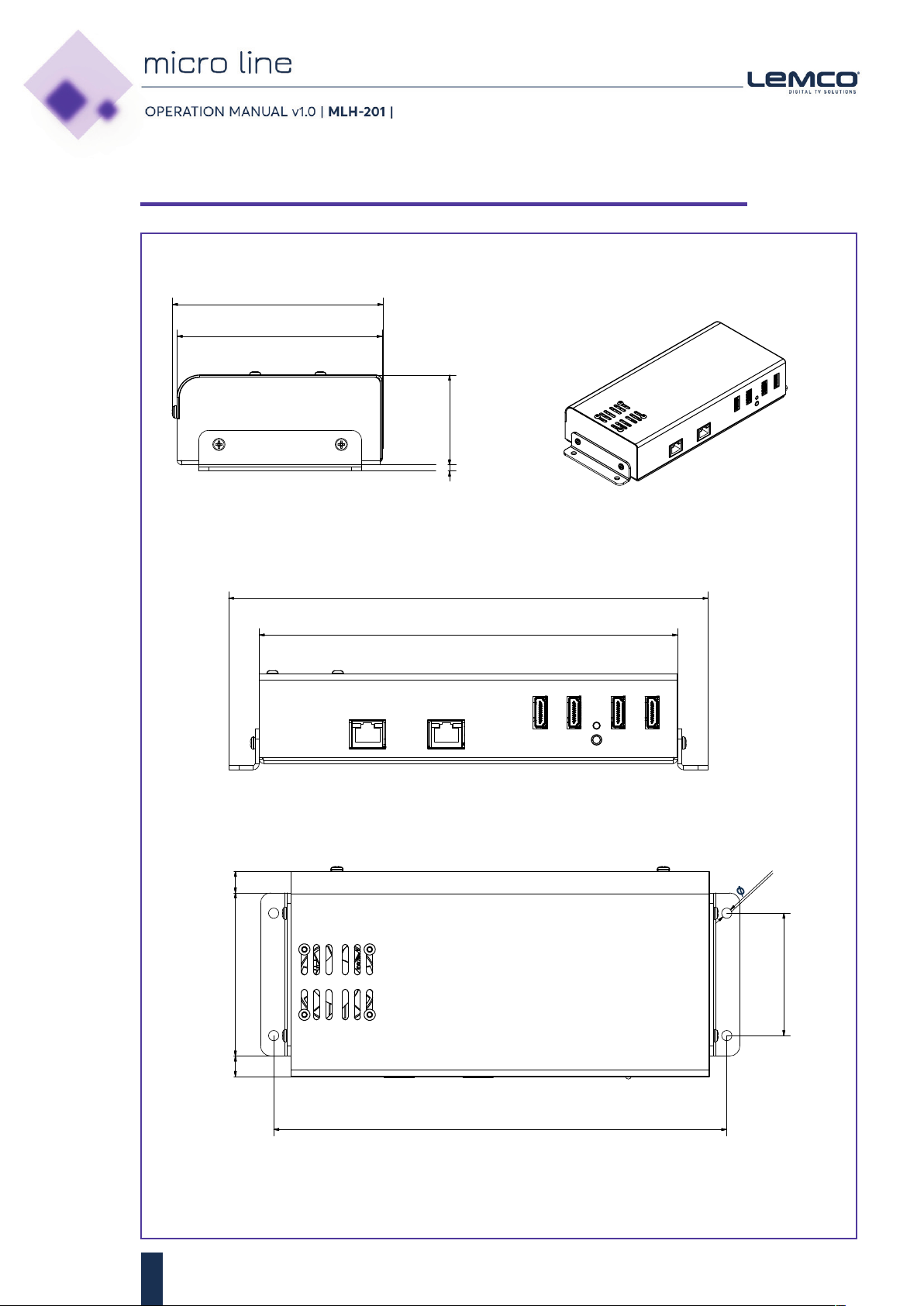

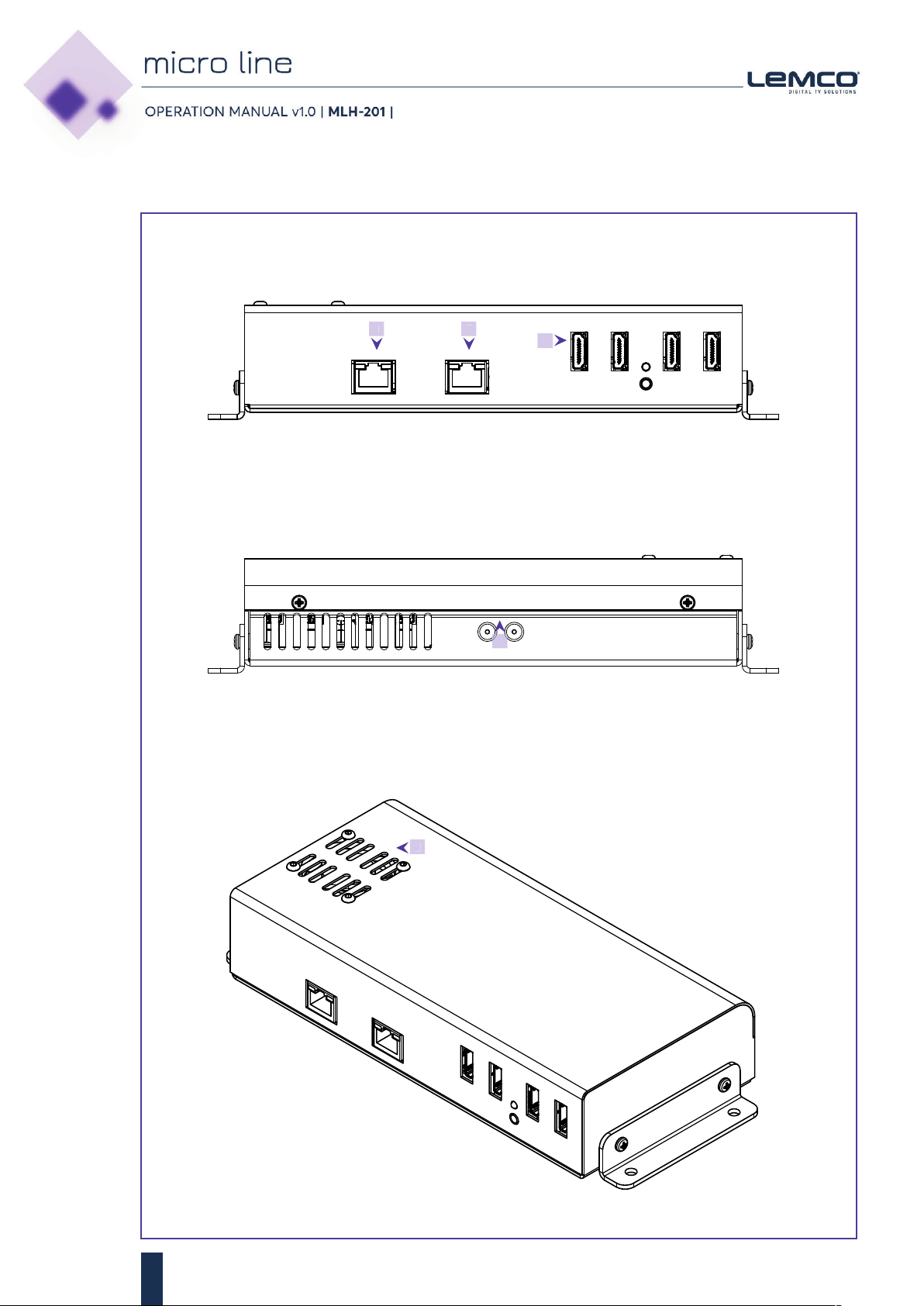

3.4 - Product drawing views
1 2
3
5
4
1. IPTV streaming port
2. LAN control port
3. HD inputs
4. Power supply inputs
5. Fan cooler

7
4. INSTALLATION
4.1 - General
The MLH-201 has a very friendly interface for programming and monitoring purposes.
The user is able to gain access to the embedded webserver, by opening an Internet
browser (e.g. Internet Explorer, Firefox or Chrome) and type the following static IP:
192.168.1.205.
The default username and password are the following:
Username: admin
Password: 12345
4.2 - Embedded Webserver
Status
4.2.1 - “General” page
Every time that the user is connected to the device, the “General” page (Figure No 1) is
loaded providing a current general status information of the device.
Status - Inputs 1…4
In these fields, the user is able to see the status of each HD input e.g. if the H.264 en-
coder is running or if it is in idle state, its Service name, its Service ID, video/audio PID
and LCN number.
Figure No 1

8
Outputs – IP
In these fields, the user is able to see the status of all the IP outputs of the device.
System
This section provides general information of the device, like internal status of all device’s mod-
ules, CPU temperature and fan state as well as error codes for troubleshooting purposes.
4.2.2 - “Program list” page

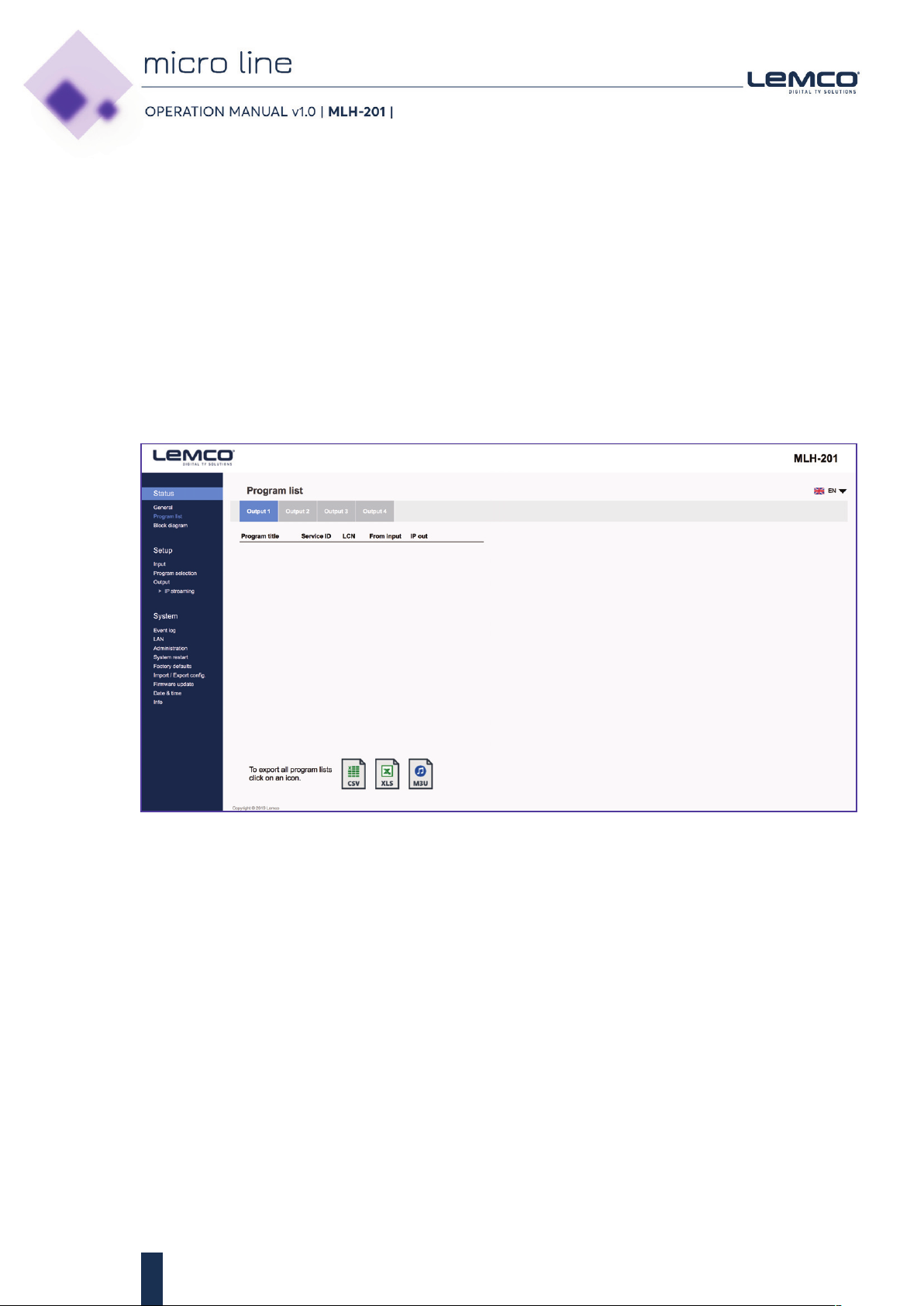

In “Program list” page (Figure No 2) the MLH-201 provides information of all programs
that are currently being distributed via its IP outputs.
At the same time, the device offers the whole channel list to be exported under the
follow file types:
zx w Excel – All the program list is exported in .xlsx format
zx w CSV – All the program list is exported in .csv format
zx w M3U – All the program list is exported in .m3u
4.2.3 - “Block diagram” page
The “Block diagram” page (Figure No 3) provides a general view of device’s internal
modules and architecture.
All icons are clickable providing the ability to the user to go directly to the setup
page of all internal modules of the device. The grey icons mean that the current
module is disabled.
Figure No 2

9
Figure No3
Figure No 4
Setup
4.2.4 “Input” page
In the “Input page” (Figure No 4) the user is able to setup each HD input independ-
ently.
There are four tabs including all the 4 HD inputs. For each tuner the user needs to pro-
gram the following fields:

10
1. Input Enabled/Disabled - Enable or disable the specific HD input
2. Service Name – Insert the preferred service name
3. Service ID – Insert the service ID number
4. Video Bitrate – Set the video bitrate (2000-19000 Kbps)
5. Audio Bitrate – Set the audio bitrate (64,96,128,192,256,320 Kbps)
6. Audio encoding – Set the audio encoding (AAC, AC3, MPEG2)
7. HDCP – Enable/disable the HDCP function
8. LCN – Set the LCN number
9. PMT PID – Set the PMT PID
10. Video PID – Set the Video PID
11. Audio PID – Set the Audio PID
Once all settings are being written, the user must click the “Apply” button for the set-
tings to be saved.
Encoder status
For each HD input the MLH-201 provides its current state e.g. if it is running or if it is
in idle state.
4.2.5 - “Program Selection” page

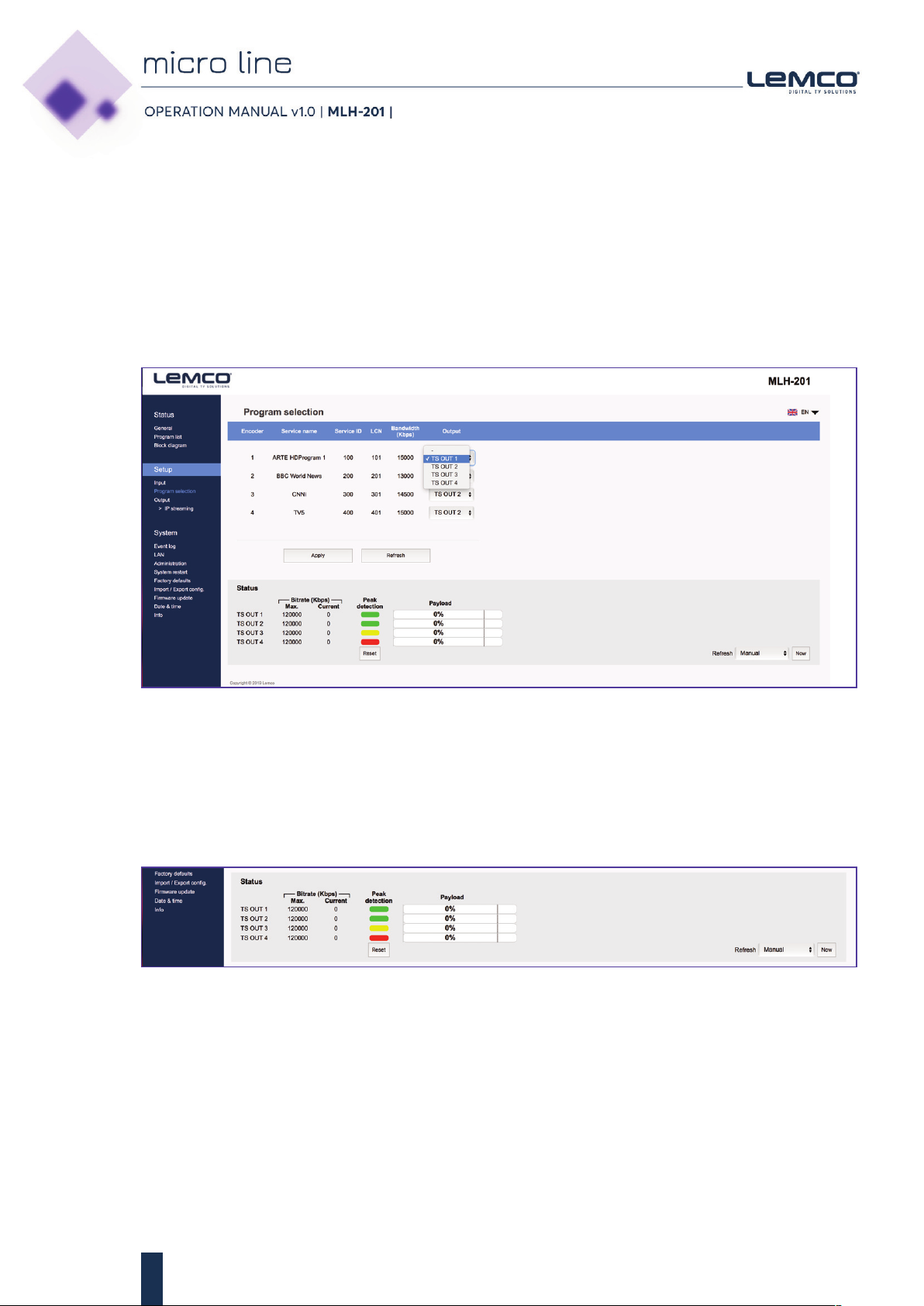

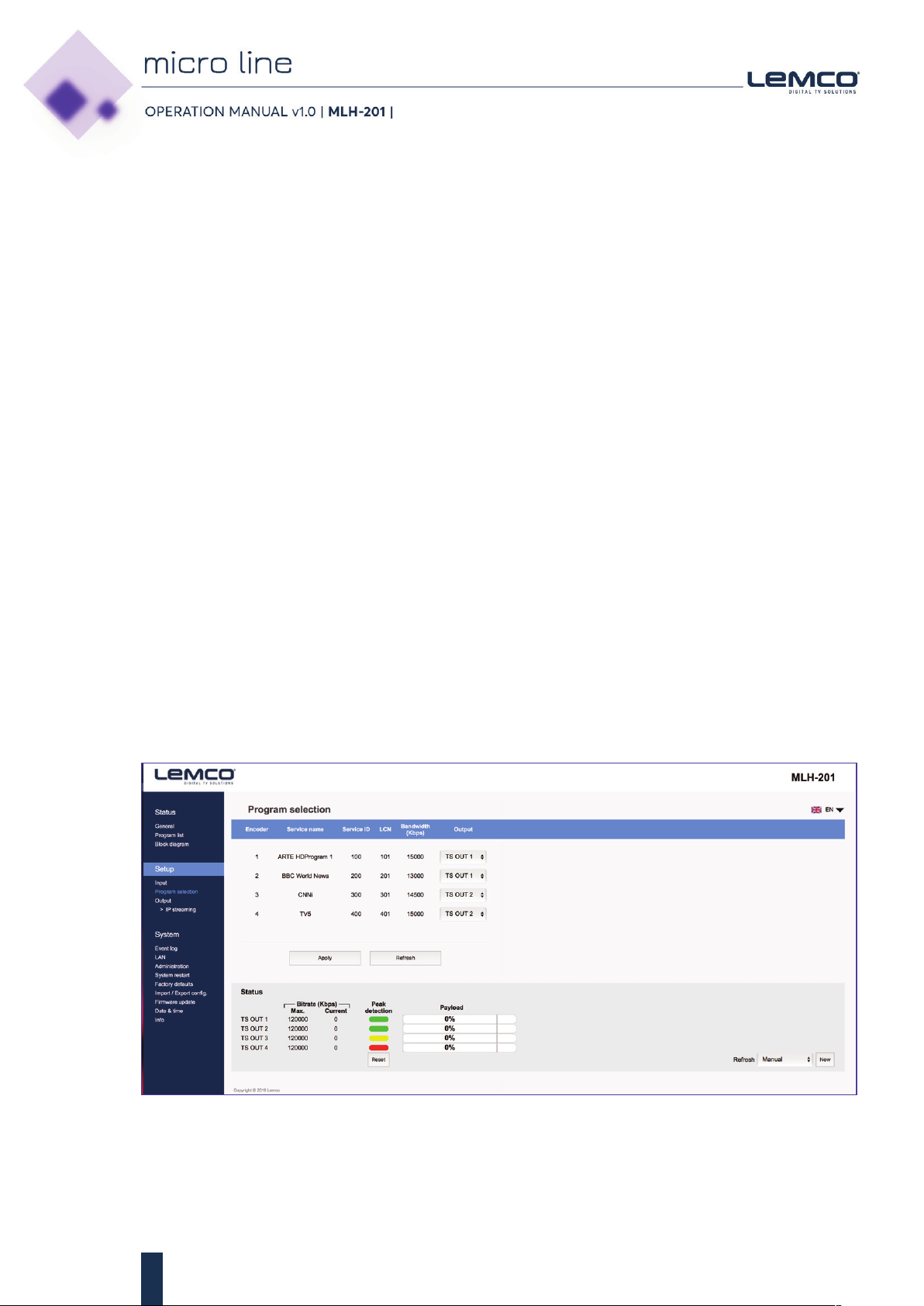

In the “Program Selection” section (Figure No 5) the user is able to select any program
from any input and assign it to any output using the “pool” technology. .
Figure No 5

11
This page depicts all programs coming from the 4x HD inputs and their settings.
For each program the MLH-201 provides the following information:
zx w Service Name – which is the name of the program
zx w Service ID – which is the Service ID number of the program
zx w LCN No – which is the logic channel number of the program
zx w Bandwidth – which is the bitrate of the program
Using the Drop down menu from “Output” column (Figure No 6) the user is able to as-
sign any program to any of the four outputs. By doing the same process for each pro-
gram, from all inputs the user is able to create the four custom multiplexes in device’s
output.
Figure No 6
Figure No 7
The status section in (Figure No 7) provides a general idea to the user of the current pay-
load (according to the selected programs) comparing to the max. output payload.
It is recommended that the user must not exceed the 85% from each output, since all
the bitrate are variable according to their specific content.

12
In Figure No 8 we have general settings of the IP streamer as follows:
zx w IP address: This is the IP address of the streamer for ping purposes.
zx w MAC address: This is the MAC address of the streamer
zx w IGMP: The user is able to select IGMP v2 or v3 or disable the IGMP.
The Status section provides a general view of how many programs and in what format
are currently being streamed from the device is its four outputs.
Peak Detection mechanism
As shown in Figure No 7 there is a colored indicator of the peak detection mechanism,
for each output transport stream. This indicates if any overflow has occurred on IP
streamer’s output bitrate with the following colors:
zx w Green – No overflow occurred
zx w Yellow – No overflow occurred but the input bitrate is close to the output bitrate
zx w Red – Overflow occurred. The user must decrease the input bitrate
4.2.6 - “IP streaming” page
In “IP streaming” section the user is able to setup the IP streamer of the device.

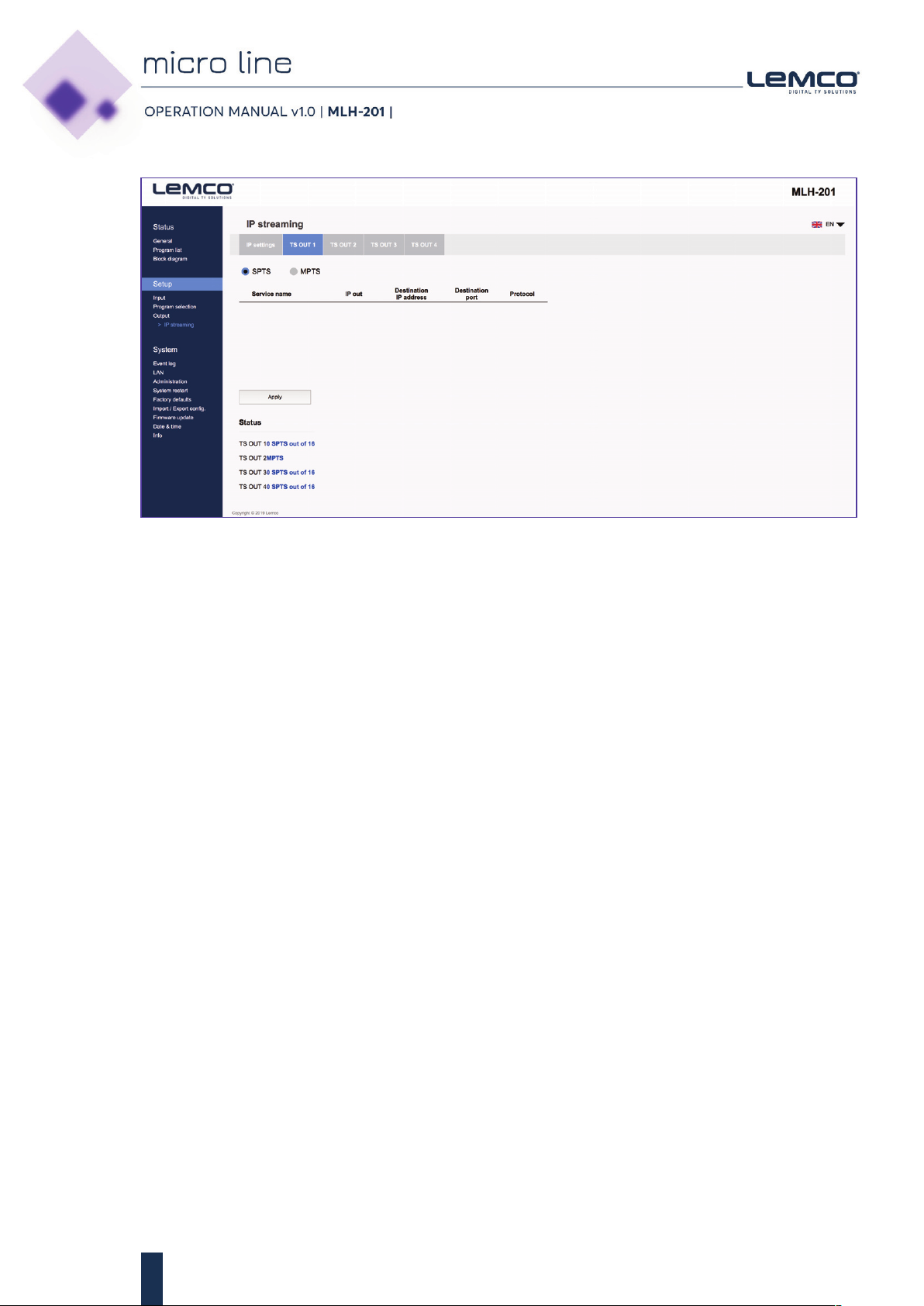

Figure No 8

13
In order to setup the IP address for each program there are four tabs one for each IP
output of the MLH-201.
By selecting e.g. the TS1 tab (Figure No 9) the user is able to setup the IP streamer for
this specific output, following the steps below:
1st step: Select SPTS or MPTS streaming mode.
SPTS mode: Means that each program has its own IP
MPTS mode: Means that all the programs of the current output (e.g.
TS1) will be streamed in a single IP.
2nd step: For each program (in SPTS mode) or for the whole TS (in MPTS mode)
the user is able to assign a multicast IP address from 224.0.0.0 to
239.255.255.255 or a unicast IP address as well as its destination port
and protocol (UDP or RTP).
By repeating the above procedure for all four outputs of the MLH-201, the user is able
to setup the IP streamer of the device.
Figure No 9

14
The user has the ability to select which kind of events to display as well as the device
gives the opportunity to export these logs as follow:
zx w Excel – All the program list is exported in .xlsx format
zx w CSV – All the program list is exported in .csv format
4.2.8 - “LAN” page
In “LAN” page (Figure No 11) the user is able to setup all the parameters of the LAN
control of the device as follows:
System
4.2.7 - “Event log” page
In “Event log” page (Figure No 10) the system logs all the events occurs in the device
during its operation. These logs are divided in three different categories based on their
priority as follow:
High Using the red color the system logs the events which are of high priority.
Medium Using the orange color the system logs the events which are of medium
priority.
Low Using the red color the system logs the events which are of low priority.
Figure No 10

15
zx w DHCP – Enable or disable DHCP
zx w IP address: Set a static IP address for controlling the device
zx w Subnet mask: Set the specific Subnet mask
zx w Gateway: Set the gateway’s IP address
zx w Primary DNS: Set the IP address of the primary DNS
zx w Secondary DNS: Set the IP address of the secondary DNS
zx w Port: Assign the control port
zx w MAC address: Depicts the MAC address of the LAN control
4.2.9 - “Administration” page
In “Administration” section (Figure No 12) the user is able to change the default password
of the webserver.
Figure No 11
Figure No 12

16
4.2.10 - “System restart” page
In “System restart” section (Figure No 13) the user is able to apply a full reset to the de-
vice.
Figure No 13
4.2.11 - “Factory default” page
In “Factory default” section (Figure No 14) the user is able to apply a factory default reset
either as DVB-T or DVB-C.
Figure No 14
Caution!
In case of factory default procedure, the username and password
will be reset unless we select the check box “Keep username &
password after applying factory defaults”.

17

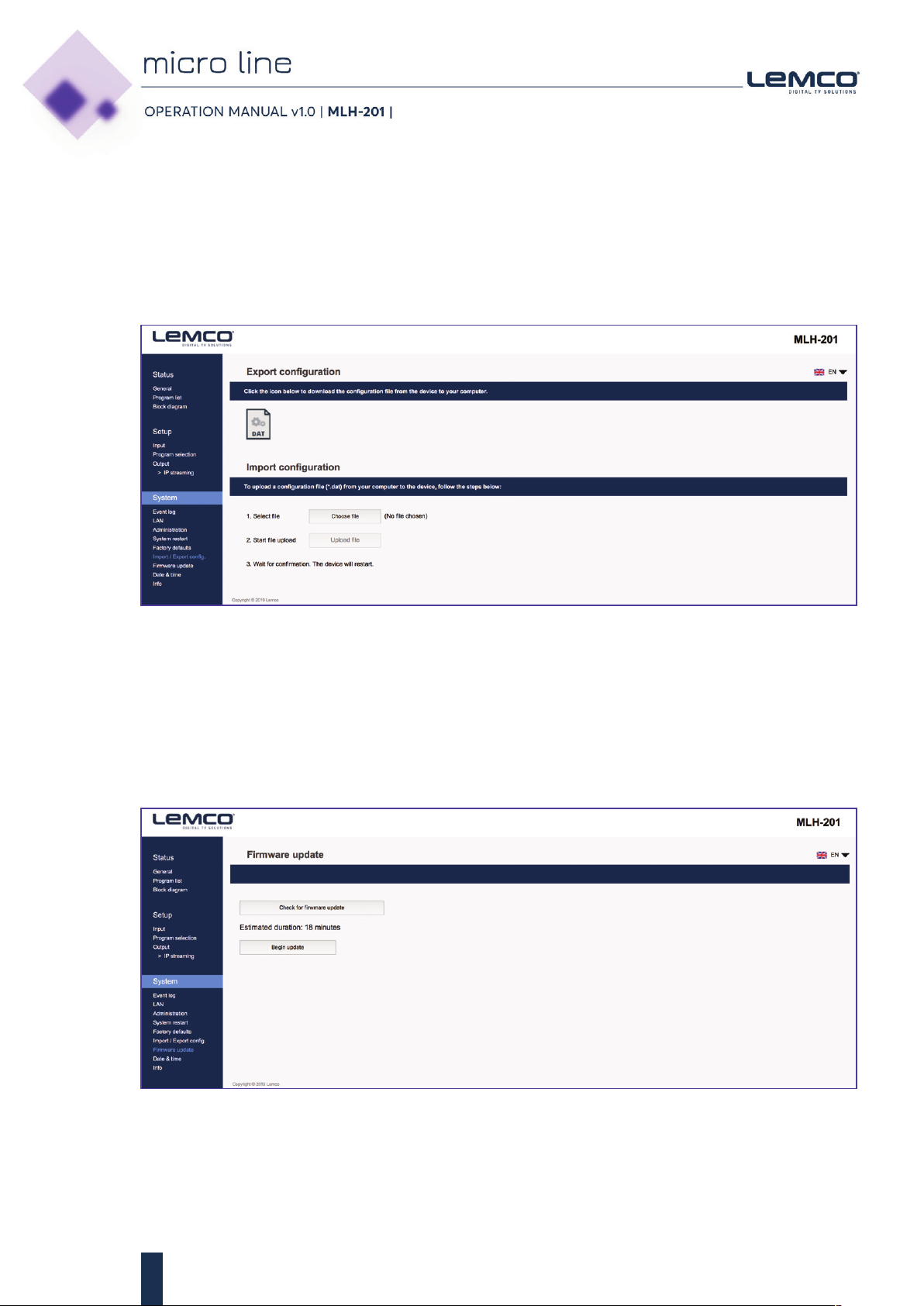

4.2.12 - “Import/Export Config” page
In “Import/Export Config” section (Figure No 15) the user is able to do the following:
1. Export: Save all the configuration is a specific file
2. Import: Upload a previously save configuration file.
Figure No 15
4.2.13 - “Firmware update” page
In “Firmware update” (Figure No 16) section the user is able to upload a new firmware
update using the appropriate file..
Figure No 16

18

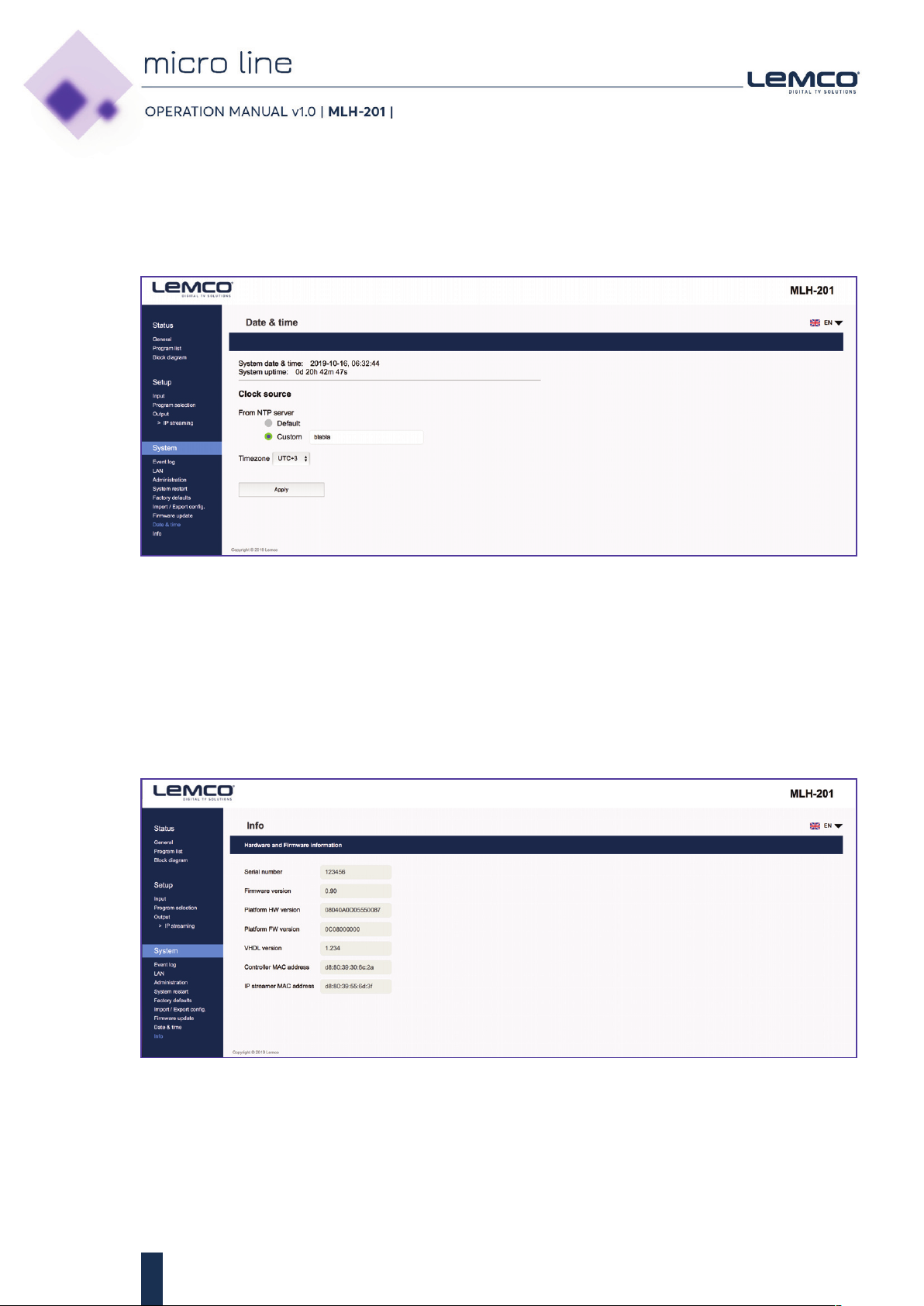

4.2.14 - “Date & Time” page
In “Date & Time” (Figure No 17) section the user is able to select the NTP server in order
for the device to receive the date and time as well as to set the timezone of his country.
Figure No 17
4.2.15 - “Info” page
In “Info” (Figure No 18) section the user is able to see the serial No of the device as well
as firmware and hardware versions.
Figure No 18

19
5. TECHNICAL SPECIFICATIONS
Input Specifications
HD Input
Type 4 x HD inputs
Video coding MPEG-4 AVC / H.264
Profile High profile 4.0
Input resolution Up to 1920 x 1080 - 50/60 p & i
Output resolution Up to 1920 x 1080 - 30p
HDCP support Yes, v1.4
Audio
Audio HD
Standard MPEG-1 Layer II
Audio Bit Rate 64, 96, 128, 192, 256, 320 Kbps
Format MPEG2, AAC, AC3
H.264 encoder
Standard MPEG-4 AVC / H.264
Bit Rate 1 – 19 Mbps adjustable
Configurable Parameters Service Name, Service ID
LCN processing Yes
Output Specifications
IP Streaming
IP TS Out Yes
Protocol UDP / RTP (Multicast/Unicast)
Speed 1Gbit (480 Mbps in IP only mode)
IGMP support Yes, v2, v3
Type MPTS (up to 4 TS)
SPTS (up to 4 HD programs)
Max. Bitrate 480Mbps max.
Programming Interface
Ethernet webserver Yes, embedded webserver
Speed 10/100 Mbps
Connector RJ45
Browser compatibility Chrome, Firefox, Safari, Opera, Edge etc.
(Must support HTML v5.0)
SNMP support Yes
SNMP version v2.0
General
Power Supply 2 x +12VDC
Power supply consumption 2A max.
Operating Temperature 0 ºC to 40 ºC
Storage Temperature -10 ºC to +70 ºC
Humidity Up to 90%
Dimensions 235 x 115 x 48 mm
Weight 0.45 Kg

20
6. DIMENSIONS
235,00
205,00
222,00
60,00
80,00 10,5010,00
103,23
100,50
44,003,00
5,00
*dimensions in mm
