LeMond WattBox User manual

OWNER’S MANUAL

!WARNING
Be sure to read all instructions and warnings included with your LeMond Revolution
trainer before using this equipment. Failure to avoid the following potentially
hazardous situations could result in death or serious injury.
The Watt Box is designed for indoor use only.
The device is not a medical device and could suer from interference from external electrical sources.
If you have a pacemaker or other implanted electronic device, consult your physician before using this
device.
It is always important to consult a physician for a complete physical examination before starting any
exercise program. Beyond identifying any risk factors you may have, your health professional can
assist in developing an exercise program which establishes the frequency and intensity appropriate
for your age and current health status. Always consult your physician before beginning or modifying
any exercise program.
If at any time during a workout you experience pain or tightness in the chest, an irregular heartbeat,
shortness of breath, feel faint or severe discomfort of any kind, STOP exercising immediately. Consult
your physician before continuing your program.
Do not use a sharp object to remove the batteries.
Keep the batteries away from children.
Only replace the batteries with the correct replacement batteries. Using another battery presents a
risk of re or explosion.
Please dispose of batteries according to manufacturer instructions. Do not dispose of old batteries in
unsorted municipal waste.
2

!AVERTISSEMENT
Veuillez bien lire toutes les instructions et les avertissements inclus avec votre
LeMond Revolution trainer avant d'utiliser cet équipement. S'exposer aux
situations potentiellement dangereuses suivantes peut entraîner la mort ou des
blessures graves.
Le Watt Box est conçu pour une utilisation en intérieur uniquement.
L'équipement n'est pas un appareil médical et pourrait subir des interférences de sources électriques
externes. Si vous avez un stimulateur cardiaque ou un autre appareil électronique implanté, consultez
votre médecin avant d'utiliser cet appareil.
Il est toujours important de consulter un médecin pour un examen physique complet avant de
commencer tout programme d'exercice physique. En plus d'identier tous les facteurs de risque que
vous pouvez avoir, votre professionnel de la santé peut vous aider à l'élaboration d'un programme
d'exercice qui établit la fréquence et l'intensité appropriée pour votre âge et votre état de santé
actuel. Consultez toujours votre médecin avant de commencer ou de modier tout programme
d'exercice physique.
Si à tout moment pendant un entraînement vous ressentez de la douleur ou de la pression à la
poitrine, un battement cardiaque irrégulier, de l'essouement, des étourdissements sévères ou une
gêne quelconque, cesser votre activité immédiatement. Consultez votre médecin avant de continuer
votre programme.
N'utilisez pas d'objet pointu pour retirer les piles.
Gardez les piles hors de portée des enfants.
Remplacez les piles uniquement avec les piles de remplacement adéquates. L'utilisation d'une autre
batterie peut présenter un risque d'incendie ou d'explosion.
Veuillez disposez des batteries conformément aux instructions du fabricant. Ne jetez pas les piles
usagées avec les déchets ménagers non triés.
3

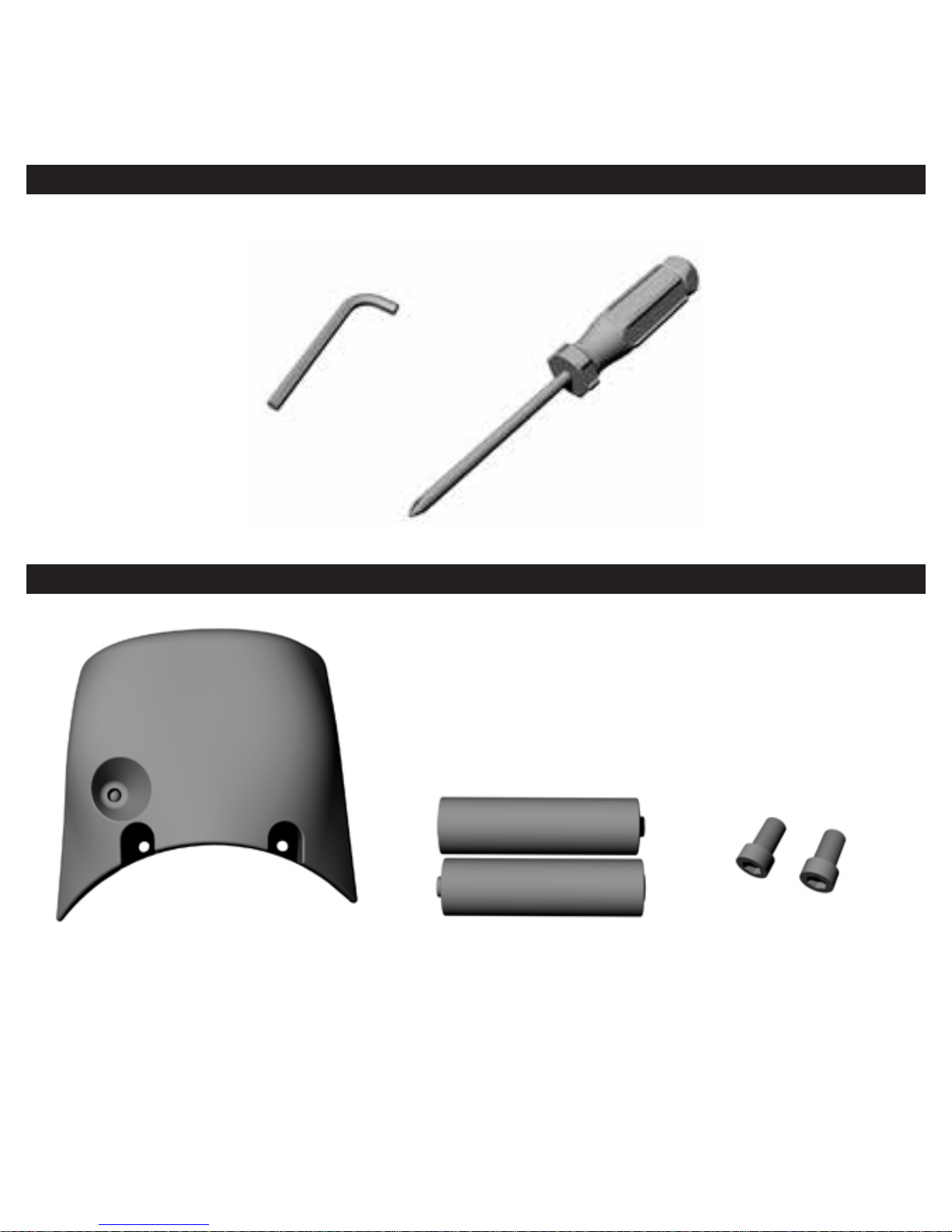

(2) R6 batteries - AA(1) Watt Box (2) 3mm Hex-Head Screw
4
TOOLS REQUIRED
ITEMS INCLUDED
3mm Hex Key
Small Phillips-Head Screwdriver

INSTALLATION
Use a small Philips-Head screwdriver to
remove the (2) screws on the back of the
Watt Box and pull the top cover o.
Install (2) AA batteries as indicated
Place cover on top and fasten with the
original screws
1
2
3
There are two tabs located on the non-drive
side of the Revolution’s main body. With the
(2) 3mm hex key screws supplied, attach the
Watt Box to the Revolution. (see below)
4
Tabs
5

Before you can pair the Watt Box must be properly installed on the LeMond
Revolution trainer (Pg. 4). It is important to stay at least 10 meters away from other
power-meters during this procedure.
Navigate to the ANT+ pairing screen on your cyclometer and select Search
(Figure 3.1) .
*Note: The Watt Box is Power-Meter only. Please make sure that your cyclometer is set to search for
only Power-Meter devices during this operation.
Once pedaling, the Watt Box will awaken from sleep as it detects movement of the
Revolution’s pulley wheel. The green light on the Watt Box will illuminate, indicating
that it is now powered on. This motion will awaken the Watt Box from sleep mode
and begin the pairing operation. The green light on the Watt Box will illuminate,
indicating that it is now powered on.
After 2-3 seconds your cyclometer will show “Connected” once it has successfully
paired with the Watt Box. If not found after 10 seconds, repeat the pairing
procedure as indicated above.
This pairing operation only needs to be performed before use with a new cyclome-
ter. Once paired, your cyclometer will automatically link to your Watt Box.
6
PAIRING WITH COMPUTER
ANT + Sensors
Bike Prole
Search All

Veuillez bien lire toutes les instructions et les avertissements inclus avec votre
LeMond Revolution trainer avant d'utiliser cet équipement. S'exposer aux
situations potentiellement dangereuses suivantes peut entraîner la mort ou des
blessures graves.
Le Watt Box est conçu pour une utilisation en intérieur uniquement.
L'équipement n'est pas un appareil médical et pourrait subir des interférences de sources électriques
externes. Si vous avez un stimulateur cardiaque ou un autre appareil électronique implanté, consultez
votre médecin avant d'utiliser cet appareil.
Il est toujours important de consulter un médecin pour un examen physique complet avant de
commencer tout programme d'exercice physique. En plus d'identier tous les facteurs de risque que
vous pouvez avoir, votre professionnel de la santé peut vous aider à l'élaboration d'un programme
d'exercice qui établit la fréquence et l'intensité appropriée pour votre âge et votre état de santé
actuel. Consultez toujours votre médecin avant de commencer ou de modier tout programme
d'exercice physique.
Si à tout moment pendant un entraînement vous ressentez de la douleur ou de la pression à la
poitrine, un battement cardiaque irrégulier, de l'essouement, des étourdissements sévères ou une
gêne quelconque, cesser votre activité immédiatement. Consultez votre médecin avant de continuer
votre programme.
N'utilisez pas d'objet pointu pour retirer les piles.
Gardez les piles hors de portée des enfants.
Remplacez les piles uniquement avec les piles de remplacement adéquates. L'utilisation d'une autre
batterie peut présenter un risque d'incendie ou d'explosion.
Veuillez disposez des batteries conformément aux instructions du fabricant. Ne jetez pas les piles
usagées avec les déchets ménagers non triés.
Once pedaling, the Watt Box will automatically awaken after a few seconds, as
indicated by a green light. The light will remain illuminated for 20 seconds. Once
nished with your workout, the Watt Box will switch into sleep-mode after approxi-
mately 30 seconds of inactivity.
If your bicycle is equipped with an ANT+ compatible cadence sensor, you can link it
to the Watt Box. Once on, the Watt Box will automatically search for compatible
cadence sensors for a period of 10 seconds. It will pair with a cadence sensor that is
located within 18” of the Watt Box. The cadence sensor will continue to transmit
data to your cyclometer directly while also providing the Watt Box information on
your RPM’s.
When not paired with a cadence sensor, the Watt Box will continue to display wattage even though
the rider may not be pedaling. With it paired, the Watt Box will display “0 Watts” when coasting.
For Customer Support and Technical Questions, please contact:
LeMond Revolution LLC
404 3rd Avenue North, Suite 203
Minneapolis, MN 55401
612-486-5750
7
TURNING OFF/ON
CADENCE SENSOR
SUPPORT

This device has been tested and found to comply with Part 15 of the FCC interference limits for Class B
devices. Operation is subject to the following two (2) conditions: 1) This device may not cause harmful
interference and 2) This device must accept any interference received including interference that may
cause undesired operation. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and may cause harmful interference to radio communications if not installed and used in
accordance with the instructions. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment o and on, the user is encouraged to try to correct
the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet that is on a dierent circuit from the receiver
• Consult the dealer or an experienced radio/TV technician for help.
Unauthorized repairs or modications could result in permanent damage to the equipment, and void
your warranty and your authority to operate this device under Part 15 regulations.
CE Declaration of Conformity
This device is declared to be in conformance with the essential requirements and other relevant
provisions of Directive 1999/5/EC, as a low-powered unlicensed transmitter: EN 60950-1:2006+A11
Safety of Information Technology Equipment • EN 301 489-3:2002 v 1.4.1 Electromagnetic compatibility
and Radio Spectrum Matters (ERM): Short range • EN 300 328 Electromagnetic compatibility and Radio
spectrum Matters (ERM); Wideband transmission systems; Data transmission equipment operating in the
2,4 GHz ISM band and using wide band modulation techniques; Harmonized EN covering essential
requirements under article 3.2 of the R&TTE Directive
FCC CLASSIFICATION
8

Industry Canada Compliance
This device complies with Industry Canada license-exempt RSS-210.
Operation is subject to the following two (2) conditions: 1) This device may not cause harmful
interference and 2)device must accept any interference received including interference that may cause
undesired operation.
Conformité aux normes d'Industrie Canada
Cet appareil est conforme aux normes Industry Canada exemptes de licence RSS-210.
Son fonctionnement est soumis aux deux (2) conditions suivantes : 1) Cet appareil ne doit pas provoquer
d'interférences nuisibles et 2) doit accepter toute interférence reçue, y compris les interférences
susceptibles de provoquer un fonctionnement indésirable.
9

This is to certify that the LeMond® Watt Box™ is warranted by LeMond Inc. to be free of all defects in
materials and workmanship. This warranty does not apply to any defect caused by negligence, misuse,
accident, alteration, improper maintenance, or an “act of God.” The LeMond Watt Box Warranty assumes
that the recommended service guidelines have been followed by the customer, and covers the following:
One (1) Year warranty for the original purchaser. Please retain your purchase invoice for proof of
purchase. • Contact our Customer Service Department to report any problems. When calling, please be
prepared to provide the customer service representative with the following information: Your name,
shipping address, and telephone number • The date of purchase • Your billing address •
If warranty replacement parts are shipped to you, you may be required to return the inoperable part. To
facilitate this process, the following policy has been established: Please call our Customer Service
Department (612-486-5750) to receive a return goods authorization prior to shipment. LeMond will incur
all ground freight charges for warranty parts ordered for items that are less than 90 days old. You are
responsible for freight charges on warranty parts for items that are more than 90 days old. If an
inoperable warranty part must be returned to our Customer Service Department, we will pay the
shipping cost and provide detailed return shipping instructions. These instructions will be sent along
with your warranty replacement part. LeMond Inc. neither makes, assumes nor authorizes any
representative or other person to make or assume for us, any other warranty whatsoever, whether
expressed or implied, in connection with the sale, service, or ship-ment of our products. We reserve the
right to make changes and improvements in our products without incurring any obligation to similarly
alter products previously purchased. In order to maintain your product warranty and to ensure the safe
and ecient operation of your machine, only authorized replacement parts can be used.
Model #: 250600
FCC ID: 2AA5K250600WAT
IC: 11382A-250600WAT
250613 - Rev. F
2014, LeMond Revolution LLC
WARRANTY
