Congratulations!
Welcome to our most
advanced Flash
System yet,
the SuperFast.
The instructions in this manual apply
to both our 300Ws and 600Ws models,
the controls are identical.
Enjoy!

1
22 2
3
4
5
6
7
8
9
10

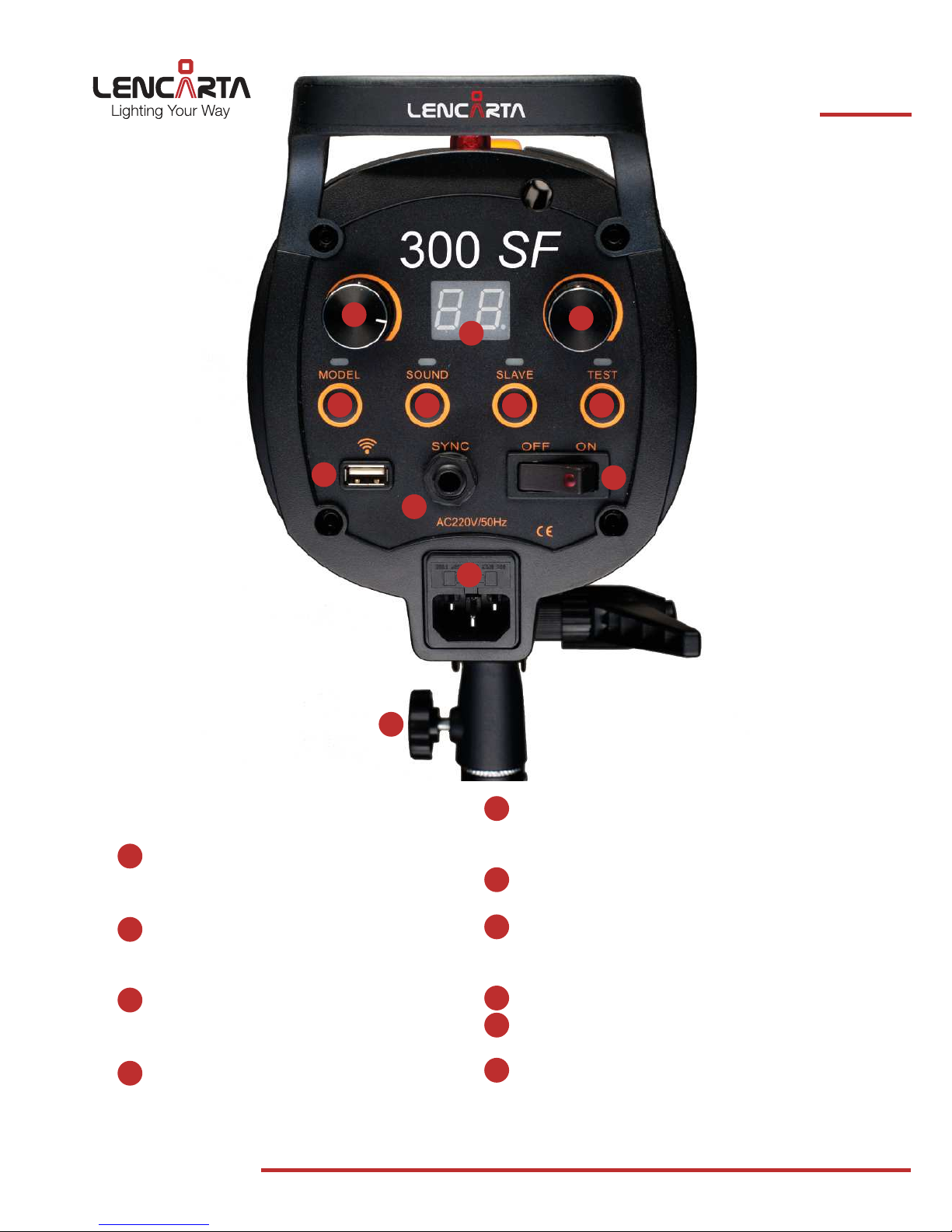

The rear panel controls are simple
and intuitive.
1. The modelling lamp can be set
to any power, and is independent
of the flash power setting.
2. The modelling lamp, ready beep
and slave cell can all be
switched on or off.
3. The optional radio receiver/
remote control plugs into a USB
port, which powers the receiver.
4. The sync socket can be used
with a non-dedicated radio
trigger or with a sync lead.
5. The
mains socket has a 5Amp
fuse (300Ws) or an 8Amp (600Ws)
situated immediately above it.
6. The stand locking screw secures
the flash head to the stand.
7. The LCD digital display shows
the power, which can be set in
1/10th stop increments.
8. The power adjustment is digital.
9. The test button can also be used
for open (non-synchronised) flash.
The on/off switch controls all
electrical functions.
www.lencarta.com
1
2
3
4
5
6
7
8
9
10
getting
started

The slave sensor, is switched on or off from the rear
control panel. It responds to another flash and so
allows any non-synchronised flash heads to operate
as a slave when switched on. There is a choice of S1
and S2 slave modes. S1 causes the SuperFast to
fire in response to another flash, whereas S2 ignores
the first flash, and responds to the second flash.
S2 mode is ideal when needing to respond to an
iTTL or eTTL speedlight being used as a trigger.
To change from S1 mode to S2 mode, or vice versa,
simply press the slave button until it displays the
required mode. A blue indicator light above the
slave button shows that it is in S2 mode, a red light
above the slave button shows that it is in S1 mode.
If the light is not showing at all, slave mode is disabled.
www.lencarta.com
The SuperFast flash heads accept
the full range of Lencarta/Bowens
S-fit accessories and light shapers.
Simply press and hold the orange
catch whilst removing the accessory.
SuperFast flash heads are fitted with a 150watt
modelling lamp. The safety cover, shown on the left,
provides additional protection in the unlikely event
of bulb breakage, and must always be used.
To adjust the tilt, simply loosen the tilt
handle and tighten it again to lock the
position. Pull out and twist the handle
to adjust its position.
When used at high power settings, the SuperFast behaves in the same way as other
high-specification flash heads, except that the flash duration is shorter than most, allowing
even fairly fast action to be frozen by the flash.
Their main advantage however, is that when the power is turned down, the flash duration and
the recycling time become progressively shorter. Both the flash duration and the recycling
time halve each time the power setting is reduced by one stop. So, to get the fastest flash
and the fastest recycling time, reduce the power as much as possible.
getting
started

Using your camera in continuous mode
The extremely fast recycling at lower power settings
allows the Superfast flash heads to be used in continuous
shooting mode. This allows images such as these shots
with a water filled balloon, to be produced easily, by
capturing the action in a burst of consecutive shots.
The SuperFast, when used at low power settings, can
recycle quicker than any camera currently available.
Safety warning
SuperFast flash heads are fan cooled and also incorporate
a safety cut-out in case of overheating. However, they do
become hot when used continuously, and must be allowed
to cool down after firing a burst lasting 3 seconds or
more. The recommended cooling period is 10 minutes.
Shutter sync speed
As with all studio flash heads, the maximum
synchronisation speed that can be set on the camera is
determined by the shutter fitted to the camera, it is not
in any way dependent on the flash head. Therefore,
please refer to your cameras instruction manual if you
are unsure about the fastest usable shutter speed.
www.lencarta.com
about the
superfast
The reason that both the flash and the recycling time become extremely short as
the power is reduced is that the SuperFast utilizes the same advanced IGBT
technology as hotshoe flash guns.
IGBT is the abbreviation for Insulated-gate bipolar transistor technology. When
IGBT technology is used, the flash always fires at full power (unlike conventional
flash heads, where the power is reduced in line with the power setting). When
the power setting is reduced, the duration of the flash is reduced by quenching,
or cutting the flash short. This not only creates incredibly short flash durations
but also saves the unused power, which means that at low power settings it
takes only a tiny fraction of a second before the flash is ready to fire again.

1. Do not dissemble the flash unit. The Lencarta SuperFast is a precision
instrument. It contains high voltage components. Unauthorised
tampering with the unit is dangerous and will void its warranty.
2. Do not leave the unit unattended when switched on.
3. To avoid risk of overheating, switch the unit off once the current studio
session is complete.
4. Do not use non-approved modelling lamps. Always use modelling lamps
of the correct wattage to prevent damage.
5. Do not leave modelling lamps switched on when using restrictive
lighting tools such as honeycombs or spotlights. It will overheat and may
be damaged.
6. Always switch the unit off when fitting or removing modelling lamp or cables.
7. Always remove the protective head cap before operating the unit.
8. For indoor use only. The SuperFast should be used in a dry, well
ventilated environment.
9. Keep the flash tube and modelling lamp clean. Gently remove any dirt
with alcohol.
10. Do not touch the flash tube with bare hands.
11. Fire the flash at least once every two months to prolong its life span.
12. Do not expose the unit to rain, vapour or excessive dust. Keep it away
from sources of fire and heat, including strong direct sunlight. Do not
leave the unit in a car in hot weather.
13. When working under high humidity, turn on the modelling lamp to
dissipate any condensation that may have gathered on the flash tube
before using the flash.
The flash unit arrives with a protective cap fitted. This cap is designed to
protect the delicate flash tube during transit and we strongly recommend that
you keep this cap on whenever the flash unit is not in use. You must remove
the protective cap when you are using the SuperFast.
www.lencarta.com
using your
superfast
setting up
your superfast

www.lencarta.com
remote • control
Wavesync
Commander System
Instructions for use

The flash will still be triggered even if the two Selector Dials are not on the same setting,
but the remote control functions will not operate unless they are set the same.
Insert 2 type AA batteries into the transmitter.
Both alkaline and rechargeable batteries can
be used. Fit the transmitter to your camera
hotshoe, as shown.
Switch the transmitter on, using the on/off switch mounted to the left hand facing
side of the transmitter unit.
With the flash head switched on, and the power set to any setting from 5 – 10, the
flash should operate if you either release the camera shutter or press the ‘test’
button. A red LED, above the test button, should flash momentarily, together with a
red LED on the receiver unit.
Remote control buttons
1. The SET button is not used with the SuperFast flash heads
2. The BEEP button, when pressed, switches the recycling beep either on or off
3. The
LAMP button, when pressed, switches the modelling lamp either on or off
4. The TEST button, when pressed, fires the flash
5. The –button reduces the power setting of the flash head. Each press of the button
reduces the power by 1/10th, and finally to off. The setting is displayed on the LCD
screen. If the button is held down it will continue to adjust the flash power, and the
power setting will be displayed on the LCD display as soon as the button is released.
6. The
+button increases the power setting of the flash head, and operates exactly
as above.
www.lencarta.com
using your
wavesync
commander

The Transmitter Selector Dial can be used to control the
various settings on any number of flash heads.
1. To control one flash head, set the Selector Dial to the
same number or letter on both the Transmitter and
the Receiver.
2. To control more than one flash head, and to operate
each of them with identical settings, set the Selector
Dial to the same number or letter on both the
Transmitter and each Receiver.
3. To control more than one flash head, and to operate
each of them with different settings, set a different
number or letter on each receiver.
Select the required flash head by setting
the appropriate number or letter on the
Transmitter Selector Dial, adjust the
settings for that flash head as required
and then adjust the settings of any
other flash heads.
Shutter sync speed
As with all studio flash equipment, the
maximum synchronisation speed that
can be set on the camera is determined
by the shutter fitted to the camera, it is
not in any way dependent on the flash
head.
Therefore, please refer to your camera
instruction manual if you are unsure
about the fastest usable shutter speed
on your camera.
www.lencarta.com
using your
wavesync
commander

Our warranty is 36 months and covers all components (except bulbs) and
includes labour. Physical damage and damage caused by failure to remove
batteries is not covered by our warranty.
All Lencarta products are fully compliant with both ROHS and EU standards
and have been issued with the necessary certificates. We are also fully
compliant with WEE Regulations and are happy to accept any Lencarta
electrical products for recycling, once they have reached the end of their
useful life.
Should you have any problems with your SuperFast you can contact us using
the details below.
Tel: [phone]
Email: [email protected]
View videos and demos :www.lencarta.com
www.lencarta.com
Warranty

www.lencarta.com
0845 618 2889
Company No. 05750369
VAT No. GB 898 3998 22
Reg. Address
Unit 3A Mohair Mills
Gibson Street
Bradford BD3 9TR

www.lencarta.com
getting
started
Welcome to your new Lencarta Wavesync Commander
System for use in conjunction with the with Lencarta
SuperFast flash head.
Features:
1. Combined radio trigger and remote control.
2. ‘Zero delay’ electronic circuitry allows the maximum sync
speed of the camera to be used if required.
3. Transmitter uses 2 x standard AA batteries.
4. Receiver draws its power from the USB socket fitted.
5. 50 metre range, subject to environmental conditions.
6. 16 separate channels.
The transmitter slides into the camera hotshoe, with the controls facing the rear of the camera.
It will work with any type of hotshoe except for the proprietary Sony/Minolta hotshoes, for
which an adapter is needed. Once fitted, the knurled locking wheel should be gently tightened.
Please note that over-tightening can damage the unit, and can also prevent reliable operation.
The radio receiver is powered by the USB port on the control panel of the SuperFast flash head,
so no batteries are required. The USB connection folds neatly away when not in use.
The channel settings, near the top of the receiver, need to be set to correspond with the
channel settings on the receiver.
The only other adjustment fitted to the receiver is the Selector Dial. This receives the settings
from the transmitter unit.
If just one flash head is in use, the selector can be set to any setting from 0-9 or A-F.
For the unit to act as a remote control, both of the selector dials must have the same setting.
