Lennox MPB35ST-NM User manual

HOMEOWNER'S CARE AND
OPERATION INSTRUCTIONS
MPB35ST-NM MPB35ST-NE
MPB35ST-PM
Millivolt Models Electronic Models
MODELS
P/N 875,024M REV. NC 04/2005
B-VENT GAS FIREPLACES
B-VENT SEE-THROUGH
MERIT®PLUS SERIES
A French manual is available upon request. Order P/N 875,024CF
Ce manuel d’installation est disponible en francais, simplement en
faire la demande. Numéro de la pièce 875,024CF
OTL Report No. 116-F-27-5
RETAIN THESE INSTRUCTIONS
FOR FUTURE REFERENCE
FOR YOUR SAFETY: Do not store or use gasoline
or other flammables or liquids in the vicinity of
this or any other appliance.
FOR YOUR SAFETY: What to do if you smell gas:
• DO NOT light any appliance.
• DO NOT touch any electrical switches.
• Do not use any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow your gas suppliers
instructions.
• If your gas supplier cannot be reached, call
the fire department.
Installation and service must be performed by
a qualified installer, service agency or the gas
supplier.
WARNING: IFTHEINFORMATIONINTHIS MANUAL
IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLO-
SIONMAYRESULTCAUSINGPROPERTYDAMAGE,
PERSONAL INJURY OR LOSS OF LIFE.
Listing Agency

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
2
CONGRATULATIONS!
In selecting this LENNOX B-Vent Gas Appliance you have chosen the finest and most
dependable fireplace to be found anywhere. Its a beautiful, prestigious alternative to a
wood burning fireplace. Welcome to a Family of tens of thousands of satisfied LENNOX
Fireplace Owners.
Please carefully read and follow all of the instructions found in this manual. Please pay
special attention to the safety instructions provided in this manual. The Homeowner's
Care and Operation Instructions included here will assure that you have many years of
dependable and enjoyable service from your LENNOX product.
Installation must conform to local codes. In
the absence of local codes, installation must
comply with the current National Fuel Gas Code,
ANSI Z223.1 (NFPA 54). (In Canada, the current
CAN/CGA B149 installation code.) Electrical
wiring must comply with local codes. In the
absence of local codes, installation must be in
accordance with the National Electrical Code,
NFPA 70 - (latest edition). (InCanada, the current
CSA C22.1 Canadian Electric Code.)
GENERAL INFORMATION
Note: Installation and repair should be per-
formed by a qualified service person. The
appliance should be inspected annually by a
qualified professional service technician. More
frequent inspections and cleanings may be
required due to excessive lint from carpeting,
bedding material, etc.
TABLE OF CONTENTS
Introduction .......................................page 2
General Information ...........................page 2
Gas Controls/Control Compartment,
Access .............................................page 4
Operation/Care of Your Appliance ......page 4
Variable Flame Adjustment.................page 5
Venting Action and (spill switch) .......page 5
Outside Combustion Air Control ........page 6
Maintenance.......................................page 6
Front Glass Enclosure Panel,
Removal and Installation..................page 7
Logs, Vermiculite & Ember Placement page 8
Burner Adjustments ...........................page 10
Maintenance Schedule .......................page 11
Troubleshooting Guide – Millivolt ......page 12
Troubleshooting Guide – Electronic ...page 12
Millivolt Appliance Checkout ..............page 14
Electronic Appliance Checkout...........page 14
Wiring Diagrams................................page 14
Warranty ............................................page 14
Product Reference Information..........page 14
Accessory Components .....................page 15
Lighting Instructions – Millivolt .........page 18
Lighting Instructions – Electronic ......page 19
Replacement Parts List ......................page 20
Electronic Models -
Electronic models have a fixed rate gas valve.
Input of electronic models is shown in the
following table:
INTRODUCTION
The millivolt appliances have a millivolt gas
control valve witha piezo ignition system which
provides safe, efficient operation.
The electronic appliances have an electronic
intermittentpilot system provides safe, efficient
operation. External electrical power is required
to operate these units.
LISTING AS FOLLOWS:
These appliances comply with National Safety
Standards and are tested and listed by Omni-
Test Laboratories (Report No. 116-F-27-5)
to ANSI Z21.50 - 2000 (in Canada, CSA 2.22
- 2000), and CAN/CGA-2.17-M91 in both USA
and Canada, as vented gas fireplaces.
Provide adequate clearances around air open-
ings and adequate accessibility clearance for
service and proper operation. Never obstruct
the front openings of the appliance.
Due to high temperatures the appliance should
be located out of traffic and away from furniture
and draperies. Locate furniture and window
coverings accordingly.
These appliances are designed to operate on
natural or propane gas only. The use of other
fuels or combination of fuels will degrade
the performance of this system and may be
dangerous.
Millivolt Models - BTU Input
Millivolt models come standard with the manu-
ally-modulated gas valve; flame appearance and
heat output can be controlled at the gas valve.
Input of for these models is shown in the fol-
lowing table:
Gas Pressure -
Tables 3, 4 and 5 show the appliances' gas
pressure requirements.
Inlet Gas Supply Pressure
(all models)
Fuel # Minimum Maximum
Natural Gas 5.0" WC
(1.24 kPa)
10.5" WC
(2.61 kPa)
Propane 11.0" WC
(2.74 kPa)
13.0" WC
(3.23 kPa)
Table 3
Manifold Gas Supply Pressure
(electronic models)
Fuel # Fixed
Natural Gas 3.5" WC
(.87 kPa)
Propane 10.0" WC
(2.49 kPa)
Table 5
Input (BTU) - Fixed Rate
(electronic models)
Models Fuel
Type
Input Rate
(BTU / HR)
MPB35ST-NE Nat. Gas 30,000
MPB35ST-PE
(if field converted)
Pro. Gas 28,000
Table 2
Manifold Gas Supply Pressure
(millivolt models)
Fuel # Low High
Natural
Gas
(Lo) 2.2" WC
(.55 kPa)
(Hi) 3.5" WC
(.87 kPa)
Propane (Lo) 6.3" WC
(1.57 kPa)
(Hi) 10.0" WC
(2.49 kPa)
Table 4
Input (BTU) Manually-Modulated Gas
Valves (millivolt models)
Models Fuel
Type
Input Rate
(BTU / HR)
MPB35ST-NM Nat. Gas 30,000 high
23,000 low
MPB35ST-PM Propane 28,000 high
22,000 low
Table 1
IMPORTANT
It is imperative that the control
compartment, burners and
circulating air passage ways
of the appliance be kept clean.
See Maintenance instructions
on Pagex 6.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 3
Burn-in Period
During the first few fires of this appliance
there will be some odor due to the curing of
paint and burning off of lubricants used in the
manufacturing process.
Depending on your use, the burn-in period may
take a few hours or a few days.
Test gauge connections areprovided on thefront
ofthe millivolt gas control valve, identified IN for
the inlet and OUT for the manifold side (see Fig-
urex 2 on Pagex 4 ). A 1/8" NPT Test gauge con-
nection is provided at the inlet and outlet side of
the electronic gas control valve (see Figurex
3 on Pagex 5).
These appliances and their individual shut-off
valves must be disconnected from the gas
supply piping system during any pressure
testing of that system at pressures greater
than 1/2 psig (3.5 kPa).
These appliances must be isolated from the
gas supply piping system (by closing their
individual manual shut-off valve) during any
pressure testing of the gas supply piping
system at test pressures equal to or less than
1/2 psig (3.5 kPa).
Orifice Sizes - Sea Level to High Altitude
(All Models)
These appliances are tested and approved for
installations at elevations of 0-4500 feet (0-1372
meters)above sealevel using thestandard burner
orifice sizes (marked with an "*" in Table 6 ).
For elevations above 4500 feet,these appliances
must be properly "derated" by the gas supplier
or qualified service technician (usually done at
the time of installation).
Note: Derated (definition) - Replacing burner
orifice with a smaller one to reduce BTU input.
Theinstallation of this appliance must beaccord-
ing to the regulations of the local authorities
having jurisdiction and, in the USA, the National
Fuel Gas Code NFPA 54 / ANSI Z223.1 - latest
edition or, in Canada, the CAN1-B149.1 and .2
codes - latest edition.
Burner Orifice Sizes (all models)
Elevation
Feet (meters)
Natural
Gas
drill size (inches)
Propane
Gas
drill size (inches)
0-4500
(0-1372)
#37 (.104") *
24M1001 •
1.55 mm (.061")*
42M7901 •
* Standard size installed at factory
• Part /Cat. Number
Table 6
WARNING
Failure to comply with the instal-
lation and operating instructions
provided in this document will
result in an improperly installed
and operating appliance,voiding
its warranty. Any change to this
appliance and/or its operating
controls is dangerous. Improper
installation or use of this appli-
ance can cause serious injury or
death from fire, burns, explosion
or carbon monoxide poisoning.
WARNING
Do not use these appliances if
any part has been under water.
Immediately call a qualified,
professional service technician
to inspect the appliances and to
replace any parts of the control
system and any gas controls
which have been under water.
WARNING
If the information in this
manual is not followed
exactly,a fireorexplosion
may result causing prop-
erty damage, personal
injury or loss of life.
IMPORTANT
These appliances must not be
connected to a chimney or flue
serving a separate solid fuel
burning appliance.
KEEP YOUR HOUSE WELL VENTILATED
DURING THE CURING PROCESS. THE ODOR
AND HAZE EMITTEDBY THE CURING PROCESS
CAN BE QUITE NOTICEABLE AND MAY SET OFF
A SMOKE DETECTOR.
A white film may develop on the glass front
during the first few fires as part of the curing
process. The glass should be kept clean during
thefirst two weeks of use to prevent the filmfrom
baking on (making it very difficult to remove).
See Glass Cleaning on Page 8.
SAFETY & WARNIING INFORMATION
WARNING
Do not attempt to alter or modify
the construction of the appli-
ance or its components. Any
modification or alteration may
void the warranty, certification
and listings of this unit.
WARNING
Improper installation, adjust-
ment, alteration, service or
maintenance can cause injury
or property damage. Refer to
this manual. For assistance or
additional information consult
a qualified installer, service
agency or the gas supplier.
WARNING
These fireplaces are vented
heaters. Do not burn wood or
other material in these appli-
ances.
WARNING
This appliance is only for use
with the type of gas indicated on
the rating plate. This appliance
is not convertible for use with
other gases, unless a certified
kit is used.
WARNING
Children and adults should be
alerted to the hazards of high
surface temperatures. Use
caution around the appliance
to avoid burns or clothing igni-
tion. Young children should be
carefully supervised when they
are in the same room as the
appliance.
Note: An Optional Screen Heat
Guard for the glass is available
(see Page 15 for ordering infor-
mation).

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
4
WARNING
B-Ventappliancesarenotdesigned
to operate in negatively pressured
environments (pressure within
the home is less than pressures
outside). Significant negatively
pressured environments caused
by weather, home design, or other
devices may impact the operation
of these appliances. Negative
pressuresmayresultin poorflame
appearance, sooting, damage to
property and/or severe personal
injury. Do not operate these appli-
ances in negatively pressured
environments.Providingadequate
ventilation to the appliance for
combustion air will eliminate a
negative pressure environment.
H
I
LO
W
H
TPT
HT
P
T
P
I
L
O
T
P
I
L
O
T
O
N
it
O
F
F
IN OUT
Manifold Pressure Tap
Inlet Pressure Tap
SIT Millivolt Gas Valve
Pilot Adjustment
Screw
HI/LO Variable
Flame Height
Adjustment
Main Gas Control Knob
OFF/PILOT/ON
Figure 2
TPTH TP TH
Main Gas
Control Knob
OFF/PILOT/ON
HI/LO Variable
Flame Height
Adjustment
Gas
Outlet
Gas
Inlet
Terminals
TPTH,TP & TH
Note: The piezoigniter is located below
the valve (see Figure 1).
OPERATION AND CARE OF YOUR
APPLIANCE
The standard controls for appliance operation
are located behind the hinged drop-down panel
below the appliance front glass enclosure panel
(see Figure 1). Optional control switches are
also available (see Page 15 - Remote Wall
Switch or Remote Control).
Operation of millivolt and electronic gas con-
trol systems are different. Before lighting and
operating your appliance determine if you have
a millivolt or electronic appliance. Familiarize
yourself with the gas control valve that your
appliance uses. Refer to Figure 1 for access
to the gas control valve.
Millivolt Appliances - Appliances with
Millivolt systems will be fitted with the gas
control valve shown in Figure 2.
Electronic Appliances - Appliances with
electronic systems will be fitted with the
electronic valve shown in Figure 3.
Gas Control Compartment Access
The gas controls can be found behind the control compartment access panel.
To open the control compartment access panel, actuate the spring-loaded magnetic catches secur-
ing the panel. First, depress the outer top right corner of the panel until the catch "pops" the door
free. Then, gently pull the door forward until the left top corner "pops" free, allowing the panel to
swing out and down to open.
On millivolt systems, the piezo igniter, HI/LO flame adjustment knob, and pilot and main gas OFF/ON
control knob are located below the glass panel enclosure. The gas valve for electronic systems is
also located below the glass enclosure panel. See Figure 1.
To ease door closure, depress the catches to place them in their retracted position, then close the door.
Control
Compartment Access panel

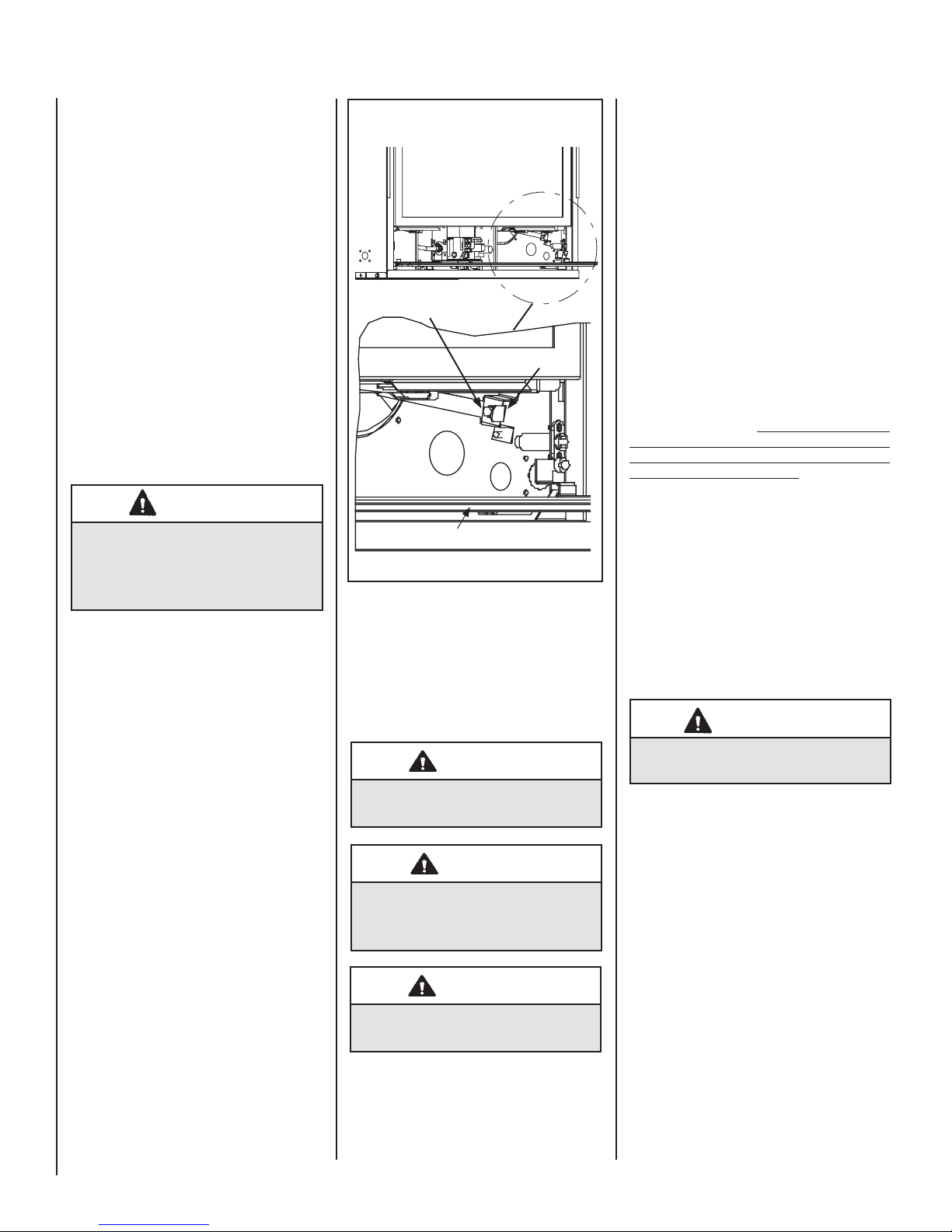

Figure 1 - Gas Control Compartment Access
Note: The gas supply line must be installed in accordance with building codes by a qualified
installer approved and/or licensed as required by the locality. In the Commonwealth of Massachu-
setts, installation must be performed by a licensed plumber or gas fitter.
HI/LO (flame height
control knob)
OFF/PILOT/ON (gas control knob)
Gas Flex Line
Gas Valve
Piezo Igniter
OFF/ON Switch
Hinge Pin
WARNING
Carbon monoxide poisoning:
early signs of carbon monoxide
poisoning are similar to the flu
withheadaches,dizziness and/or
nausea. If you have these signs,
obtainfresh airimmediately.Turn
offthegas supply totheappliance
and have it serviced by a quali-
fied professional, as it may not
be operating correctly.
WARNING
Any safety guard or screen
removed for servicing the appli-
ance must be replaced prior to
operating the appliance.
WARNING
Do not place clothing or other flammable materials on or near appliance.
Millivolt Appliances -
To light millivolt appliances refer to the detailed
lightinginstructions found on Page 18 . Millivolt
appliance lighting instructions may also be
found on the pull out lightinginstruction labels
attached to the gas control valve.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 5
Millivolt appliances are fitted with an OFF/ON
Rocker Switch located behind the control
compartment access panel, below the appli-
ance front glass enclosure panel (see Figure 1
for location). Once the pilot is lit, the OFF/ON
rocker switch will control the appliance OFF/ON
burner operation. To operate: Toggle the switch
between its ON and OFF positions.
If your millivolt appliance is equipped with an
optional remote switch kit(wall switch or remote
control) and the pilot is lit, the appliance main
burner may be turned on and off using the
optional switch. When using an optional remote
switch, turn off the standard OFF/ON switch.
Note: To prevent excessive resistance in burner
circuit (which can cause burner operation prob-
lems), only one burner control switch should be
wired to valve. Therefore, if an optional control
switch is installed, the standard Off/On switch
and wires should be removed.
Electronic Appliances -
To light electronic appliances refer to the
detailed lighting instructions found on Pagex
19. Electronic appliance lighting instructions
mayalsobe foundonthepullout lightinginstruc-
tion labels attached to the gas control valve.
Once the pilot is lit, if your electronic appliance
is equipped with an optional burner control
switch kit the appliance main burner may be
turned on and off using the optional switch
(See Optional Accessories on Pagex 15 - wall
switch, or remote control Receiver).
Figure 3
Honeywell Electronic Gas Valve
FFO
NI
PSI
NO
L
O
R
T
N
O
C
G
INT
IER
Manifold
Pressure
Port ON / OFF Switch
Inlet
Pressure
Port
Electronic Gas
Control Valve
2. During the first initial burns of these appli-
ances, there will be some odor emitted (see
Burn-In Period on Page 3 ).
3. Keep the lower control compartment clean
by vacuuming or brushing at least twice a
year. More frequent cleaningmay be required
dueto excessive lint from carpeting, bedding
materials, pet hair, etc. It is very important
that the control compartments, burners
and circulating air passageways of the
appliance are kept clean.
4. Always turn off gas to the pilot (millivolt
appliances) and let the appliance cool down
before cleaning. Before re-lighting, refer
to the lighting instructions in this manual.
Lighting instructions may also be found
on the pull out lighting instruction labels
attached to the gas control valve.
5. Always keep the appliance area clear and
free from combustible materials, gasoline
and other flammable liquids.
6. Remember, Millivolt appliances have a con-
tinuous burning pilot flame. Exercise cau-
tion when using products with combustible
vapors.
VENT OPERATION TEST
A vent operation test is required as part of the
installationto verify that proper venting condi-
tions exist and should be done periodically to
ensure nothing has changed that would affect
proper venting of the appliance.
Procedure:
1. ENSURE APPLIANCE IS OFF (PILOT ONLY)
AND COOL.
2. Open both latches on one of the glass
enclosure doors and slightly prop it open at
the bottom (approx. 1/4” gap). See Figure
6 on Page 9.
3. Turn on all the exhaust fans in the dwelling
(and any other appliances which remove
air from the dwelling, such as a furnace or
clothes dryer, etc.).
4. Ensure that all the doors and windows in
the room where the fireplace is located are
closed.
5. Light the appliance (see Lighting Instruc-
tions, Pages 18 & 19 ). Adjust flame
height to highest setting and operate for
approximately 5-10 minutes. Do not leave
appliance unattended.
6. Take a smoke producing device and move it
alongthebottomedgeoftheglassdoor(where
it is cracked open). If smoke is drawn into the
firebox, the vent operation is adequate.
IF THE SMOKE IS NOT DRAWN INTO
THE FIREBOX, TURN THE APPLIANCE
OFF AND CALL A QUALIFIED SERVICE
TECHNICIAN.
Variable Flame Height Adjustment
( Millivolt Appliances only)
1. All Millivolt appliances are equipped with a
variable gas control valve. Flame height for
these models may be adjusted through a
range between fixed low and high settings
while the appliance is in operation. Adjust
the flame height as desired after lighting the
appliance by rotating the variableadjustment
control knob (HI/LO) located on the front of
the valve (refer to Figure 2 ).
SPILL SWITCH OPERATION
Manual-Reset (safety limit) Spill Switch
This appliance is equipped with a (safety limit)
spill switch that is designed to "trip" and discon-
nect the burner circuit if flue spillage occurs
(because of improper venting of combustion
products or vent blockage). If, during appliance
operation, the burner flame goes out (indepen-
dently of the burner OFF/ON wall switch), it may
be due to the operation of this (safety limit) spill
switch. If this switch "trips" it will need to be
manually reset by pressing the reset button on
switch (see Figure 4 ).
Procedure to Reset (safety limit) Spill Switch
ALLOW APPLIANCE TO COOL COMPLETELY
BEFORE ACCESSING AND RESETTING
To access the spill switch:
1. Pull off the top louvered panel.
2. Locate and press the red reset button on
the switch (it will click & lock in).
The appliance should then relight and remain
lit. If this does not occur, turn off the appliance
and call a qualified service technician.
Press Reset Button on
Spill Switch
Remove Top
Louvered
Panel (or
optional
radiant panel,
if applicable)
Figure 4 - Spill Switch

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
6
To open the outside air shutter, open the bottom
control access panel, and pull the outside air
control lever all the way out. The outside air
shutter should be fully open when the fireplace
is in use and completely closed when the fire-
place is not being used. Closing it when not in
use will prevent outside cold air from entering
the dwelling.
The hand operated outside air control lever is
located on the right side of the fireplace open-
ing. See Figure 5.
To open the outside air , open the bottom control
access panel, reach into the gap between the
firebox bottom and pull the outside air control
lever all the way out.
Theoutside air shutter should be fully open when
the fireplace is in use and completely closed
when the fireplace is not being used. Closing
it when not in use will prevent outside cold air
from entering the dwelling.
Operate the actuator through several cycles
including the closed position. Ensuring proper
operation and freedom of movement. Return
the actuator arm to the closed position.
WARNING
Do not operate the shutoff lever
unless a complete outside com-
bustion air system has been
installed with your appliance.
Outside Combustion Air Controls
Many appliances are equipped, when installed,
with an outside (make-up air) vent system
that is designed to provide the appliance with
outside make-up air for combustion when in
operation.
The outside air control lever for the outside
air system is standard on all appliances but
should not be operated if the complete system
is not installed. Refer to Figure 5. When the
complete outside air vent system is installed,
the installer will remove the securing screw
from the combustion air control lever located
on the right side of the fireplace opening.
If the securing screw has not been removed
and you have reason to believe that you have
a complete outside air system, contact your
distributor to have your appliance inspected for
the presence of the complete system. DO NOT
assume that you have this system in place.
Glass Front
Figure 5
Control Compartment Access Panel
Outside Air Control Lever
with Stop Behind
Securing Screw
Outside Air Control Lever
and Securing Screw Location
Inspect Venting System
The appliance and venting system should be
thoroughly inspected before initial use and at
least annually by a qualified service technician
(inspection should include ensuring that exhaust
or intake passages are unobstructed and vent
componentsare properly assembled andnotdam-
aged). If the venting system is disassembled for
any reason, a qualified service technician should
follow vent installation instructions for proper
reassembly and proper sealing of the venting
system components. However, more frequent
periodic inspections and cleanings should be
performed by the homeowner.
Clean Lower Control Compartment
Keep lower control compartment clean by vacu-
uming or brushing it out at least twice a year (also
clean the air venturi with a brush or wire). More
frequentcleaningmayberequiredduetoaccumula-
tion of lint from carpeting, bedding materials, pet
hair, spider webs, etc. It is very important that
control compartments, burners, circulating air
passageways and air venturi on the appliance
are NOT obstructed in any way.
MAINTENANCE
Cleaning Glass
(see Front Glass Enclosure Panel, Removal and
Installation on Page 9 ) Note: Clean glass after
first two weeks of operation (after Burn-In period
is over) and then only when necessary and when
the fireplace is cool. Wipe surface with clean,
dampened, soft cloth. Follow with dry, soft
towel as desired. Take care not to scratch the
glass surface.
The viewing glass should be cleaned periodically
to remove any build-up caused from the fol-
lowing:
(See Maintenance Schedule, Page 20 )
Refertothemaintenancescheduleformaintenance
tasks, procedures, periodicity and by whom they
should be performed. Always verify proper opera-
tion of the appliance after servicing.
• During start-up, it is normal for condensation to
form on the inside of the glass (this condensation
and fog will usually disappear in a few minutes).
The moisture can cause lint, dust and other air-
borne particles to cling to the glass surface.
• Initial curing of the high temperature paint and
burningoffoflubricantsusedinthemanufacturing
process may result in a film on the glass.
• A whitecoating mayform onthe glassas aresult
of impurities and minerals in the fuel.
It is recommended that the glass be cleaned
two or three times during each heating season,
depending on the circumstances present.
The following cleaning solutions are approved for
use to clean glass:
• Non-ammonia based household cleaner
• 50%-50% mix of white vinegar & water
• gas fireplace/stove glass cleaner
Inspect Glass Gasket - Visually inspect the
gasket on the backside of the glass enclosure
panels. The gasket surface must be clean, free
of irregularities and seated firmly.
WARNING
Turn off gas and electrical power
before servicing the appliance.
CAUTION
Wear gloves and safety Glasses
for protection while doing
required maintenance.
IMPORTANT
Always verify proper operation
after servicing.
IMPORTANT
Do not use abrasive cleaners on
glass. Never clean glass when hot.
Before re-lighting the fireplace, refer to the
lighting instructions in this manual. Instruc-
tions are also found on pull-out panels
located below the glass door in the control
compartment.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 7
Front Glass Enclosure Panel
Lower Compartment
Door & Hinge
Glass Door
(Enclosure Panel)
Top Flange
Glass Door
Figure 6
Firebox Floor
Glass Door Latch
Bottom Vee-flange
Glass Door
Removing Glass Enclosure Panels
(see Figure 6 )
1. Remove the top louver assembly or radiant
panel by pulling it out and off.
2. Open the control compartment access panel
by actuating the spring-loaded magnetic
catchessecuring thepanel (gently depressthe
outer top corners of the louvered or radiant
panel until the catches "pop" the door free,
allowing it to swing out and down to the open
position).
3. Locate the two (2) latches at the top of the
control compartment. To disengage the two
latches from the bottom vee-flange of the
glass enclosure panel, reach for the handles
located towards the back of the latches and
pull the handles down toward the front of
the appliance.
4. Swing the bottom of the door out and raise
it slightly to lift the top flange of the door
frame away from the appliance.
Installing Glass Enclosure Panels
(see Figure 6 )
1. Visuallyinspect the gasket on the backside of
the panels. The gasketsurface must be clean,
free of irregularities and seated firmly.
2. Position the glass enclosure panel in front of
the firebox opening at a 45 degree angle and
engage the top flange over the lip at the top
of the firebox opening. See Figure 6.
3. Swing the glass enclosure panel down and
back. Ensure the gasket seats evenly as the
panel draws shut. Engage the Vee-flange at
the bottom of the panel with the latches and
close the latches to secure the panel.
4. Close the bottom control compartment
access panel.
WARNING
Do not attempt to touch the front
enclosure glass with your hands
while the fireplace is in use.
WARNING
Do not operateappliancewiththe
glass front removed, cracked or
broken. Replacementoftheglass
should be done by a licensed or
qualified service technician.
WARNING
Handle this glass with extreme
care! Tempered glassis suscep-
tible to damage – do not scratch
or handle roughly while rein-
stalling the glass door frame.
WARNING
Do not attempt to substitute the
materials used on this door, or
replace cracked or broken glass
with any materials other than
those provided by the appliance
manufacturer.
WARNING
The glass door of this appli-
ance must only be replaced as a
complete unit as provided by the
manufacturer. Do not attempt to
replacebroken,crackedorchipped
glass separately.
These fireplaces are designed to operate only
with the glass enclosure panels properly
installed. Generally the glass enclosure panels
should not be removed except to gain access
to the components within the firebox, and the
appliance may only be operated without the
front glass enclosure panel in place for very
brief periods of time during initial appliance
checkout and adjustment.
During this appliance checkout and adjust-
ment period, a potential safety hazard exists
- EXERCISE EXTREME CAUTION to prevent
the occurrence of any burn injuries from the
exposed flames or hot surfaces. Also note, that
while the front glass enclosure panel (or any of
the panels) is removed, the flame appearance
will appear to be smaller than normal.
Cleaning Logs And Burner
Carefully remove the logs (use care when han-
dling the fiber logs, as they become quite fragile
after curing). Vacuum out any foreign matter
(lint, carbon, etc.) on the burner. Ensure the
burner ports are “open.” Remove any carbon
deposits from the under side of the logs using
a vacuum cleaner, or a soft bristled brush (i.e.
paint brush). Note: Improper positioning of
logs can create carbon build-up and will alter
the performance of the appliance.
Replacing Logs -
If the logs become damaged by accident or
improper handling and need replacement, use
onlytheproper replacement logs from manufac-
turer (see Page 23 for ordering information).
Re-Install Embers, Logs and Vermiculite
- Carefully follow placement instructions on
Pages 9 to 12 ). All logs should fit onto cor-
responding pins and/or log stoppers. This will
ensure a proper flame and safe combustion.
Inspect Wiring
Refer to wiring diagrams on Page 14.
Inspect and clean all wire connections. Ensure
that there is no melting or damage. Inspection
should include:
• Terminals at the Valve
• OFF/ON Switch
• (Optional Control Switch) Remote Control
or Remote Wall Switch Kit
Inspect Burner Flame Appearance
Ensure that the burner flame appearance
resembles the flame shown in Figure 15 and
as described in Flame Appearance and Sooting
on Page 13.The Homeowner must contact
a qualified service technician at once if any
abnormal condition is observed.
Small Area Paint Touch-up
The finish of the appliance is a high qual-
ity powdercoat. Only use factory supplied
powdercoat paint kit for touch-ups. Paint is
availableat your local authorized Lennox Hearth
Productsdealer (cat. no. 90L74). Never attempt
to paint a hot fireplace.
Do not attempt to repaint the appliance until the
finish is completely cured (see Burn-In Period
on Page 3 ). If the surface later becomes stained
or marred, it may be lightly sanded and touched
up with spray paint.
WARNING
Label all wires prior to discon-
nection when servicing con-
trols. Wiring errors can cause
improper and dangerous opera-
tion. Verify proper operation
after servicing.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
8
LOG SET
Catalog Number H3210
* Item Description
A Log, Center
B Log, Left Rear
C Log, Left Front
D Log, Right Rear
E Log, Top Center
F Log, Front Center
* Item "letters" above correspond to photos on right
LOG SET - IDENTIFICATION
REFERENCE
Firebox Accessories / Parts
Cat. No. Model No. Description
88L53 FGE Bag of Glowing Embers
(1 oz. rockwool)
42363 Vermiculite, Bag (2 liters)
F
D
Bottom View of Logs (in packaging)
Top View of Logs
C
E
A
B
Glowing Embers
Bag of Glowing
Embers (rockwool)
Separate into Quarter
Size (separate) Pieces
Top View of Logs - Installed
E
B
C
F
A
D
F
E
A
C
B
D
Figure 7
(Valve Access Side)
WARNING
The size and position of the log
set was engineered to give the
appliance a safe, reliable and
attractive flame pattern. Any
attempt to use a different log
set in the fireplace will void
the warranty and will result in
incomplete combustion, soot-
ing, and poor flame quality.
RE-INSTALLING GRATE, VERMICULITE, GLOWING EMBERS AND LOGS

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 9
Position The Groove At The Bottom Of
Log (A) Over The Grate And Slide It
Forward Against The Grate Here
Figure 9
READ LOG WARNINGS ON PAGE 9 BEFORE PROCEEDING
1. Remove front glass enclosure panel from appliance.
a. Open Control Compartment Access Panel (see Control Compart-
ment Access Instructions on Page 4.
b. Removethe glass panel enclosure (see Removing Glass Enclosure
Panel instructions on Page 9.
2. Remove the following from firebox; log set, embers (rockwool) and
vermiculite. Handle logs carefully to prevent breakage.
3. Ensure the Grate is properly installed in the firebox with the 4 legs
of the grate fitting into the 4 dimples on the firebox floor.
4. InstallVermiculite-Place some vermiculite on the firebox floor around
the grate (the entire bag of vermiculite will NOT be used). See Figure 15
on Page 13. DO NOT PLACE ANY VERMICULITE ON THE BURNER.
6. Placement of Glowing Embers -
Separate the Embers (rockwool) into pieces about the size of a quarter
(see Figure 7 ). Keep the pieces fluffed up, not matted. Distribute
these pieces over the surface of the burner, as shown in Figure 8.
Do not use more than is necessary. Ensure that the main burner ports
remain uncovered by the ember material.
Note: This appliance is provided with enough Glowing Embers for
several applications, do not use all that is in a new bag at one time. For
best glowing effect, replace the ember material annually. Replacement
Glowing Embers are available (order Catalog Number 88L53).
B
C
D
A
(Valve Access Side)
(Valve Access Side)
(Valve Access Side)
(Valve Access Side)
Position Groove At The Bottom Of
Log (A) Over The Log Support Here
8. Place Log (B) as shown in Figure 10.
Position Log (B) Against The Back Of
The Grate Here
Position Groove at The Bottom Of Log (B) Over The Grate
Here And Slide It Against The Back Of The Grate
Figure 10
Log (C) Lays Over Logs (A) and (B)
A
B
Position And Slide Log (D) Against The
Back Of The Grate
Place Log (D) Over The
Flat Spot On Log (A) Here
A
Position The Groove in The Back of Log (C)
Against The Grate
Figure 11
9. Place Log (C) as shown in Figure 11.
Figure 12
10. Place Log (D) as shown in Figure 12.
Figure 8
Place Embers on burner as shown.
DO NOT PLACE EMBERS OVER
GAS PORTS / AREAS CIRCLED
7. Place Log (A) on the grate as shown in Figure 9

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
10
Position round end of log (E) against the notch of
log (D) here. Two charred spots face the front
Figure 13
10. Place Log (E) as shown in Figure 13.
WARNING
DO NOT attempt to install the logs
untiltheapplianceinstallation has
been completed, the gas line con-
nectedand tested for leaks andthe
initial burner operation has been
checked out.
WARNING
Logs get very hot and will remain hot up to one hour after gas supply is
turned off. Handle only when logs are cool. Turn off all electricity to the
appliance before you install grate and logs.
BURNER ADJUSTMENTS (QUALIFIED TECHNICIANS ONLY)
If the air shutter openings closed too far, sooting may develop. Sooting is indicated by black puffs
developing at the tips of very long orange flames. Sooting results in black deposits forming on the
logs, appliance inside surfaces and on exterior surfaces adjacent to the vent termination. Sooting is
caused by incomplete combustion in the flames and lack of combustion air entering the air shutter
opening. To achieve a warm yellowish-orange flame with an orange body that does not soot, the
shutter opening must be adjusted between these two extremes.
Air Shutter Adjustment Guidelines
• If there is smoke or soot present, first check the log set positioning to ensure that the flames are
not impinging on any of the logs. If the log set is properly positioned and a sooting condition
still exists, then the air shutter opening should be increased.
• The more offsets in the vent system, the larger the air shutter opening will need to be.
• An appliance operated with the air shutter opened too far, may have flames that appear blue
and transparent. These weak, blue and transparent flames are termed anemic.
• Propane models may exhibit flames which candle or appear stringy. If this is present and per-
sists, adjust the air shutter to a more closed position, then operate the appliance for a few more
minutes to ensure that the flame normalizes and the flames do not appear sooty.
Air Shutter Adjustment Guidelines:
Amount of
Primary Air
Flame
Color
Air Shutter
Adjustment
If air shutter is
closed too far
Flame will
be orange
Air shutter
gap should be
increased
If air shutter is
open too far
Flame will
be blue
Air shutter
gap should be
decreased
The following chart is provided to aid you in
achieving the correct air shutter adjustment
for your installation.
WARNING
Air shutter adjustment should
only be performed by a qualified
professional service technician.
WARNING
Ensure front glass panels are in
place and sealed during adjust-
ment.
CAUTION
The air shutter door and nearby
appliance surfaces are hot. Exer-
cise caution to avoid injury while
adjusting flame appearance.
CAUTION
Carbon will beproduced if the air
shutter is closed too much. Any
damagedue to carboning result-
ing from improperly setting the
air shutter is not covered under
the warranty.
D
E
C
Position Small End of
Log (E) on The Notch of
Log (C) Here
(Valve Access Side)
11. Place Log (F) as shown in Figure 14.
(Valve Access Side)
F
Figure 14
Log (F) sits in front of the grate
WARNING
This appliance is not designed
to burn wood. Any attempt to
do so could cause irreparable
damage to appliance and prove
hazardous to your safety.
WARNING
If logs are not installed according
tothe loginstallationinstructions,
flameimpingementandimproper
combustioncouldoccurand result
in soot and/or excessive produc-
tion of carbon monoxide (CO), a
colorless, odorless, toxic gas.
Vermiculite
Figure 15 *- Burner Flame Appearance
Flame Appearance & Sooting
Proper flame appearance is a
flame which is blue at the base
andbecomesyellowish-orange in
the body of the flame. When the
applianceisfirstlit,theentireflame
maybeblueandwillgraduallyturn
yellowish-orange during the first
15 minutes of operation. If after
period the flame stays lowered
blue, or if the flame is orange with
evidenceofsooting(blacktip),the
air shutter opening may need to
be adjusted.
Burner Air Shutter Adjustment Procedure
1. Locate adjustment rod and adjust air shutter
to the standard setting as shown in Figure
16 (adjustment rod is located in the lower
control area). Note: Rotating the adjustment
rod counterclockwise decreases air and
clockwise increases air.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 11
MAINTENANCE TASK ACCOMPLISHING PERSON PROCEDURE
Inspecting/Cleaning Burner, Logs
and Controls
Qualified Service Technician Inspect valve and ensure it is properly operating. Check piping
for leaks. Vacuum the control compartment, fireplace logs and
burner area.
Check Flame Patterns and Flame
Height
Qualified Service Technician Refer to Figure 15 on Page 13 and verify the flame pattern
and height displayed by the appliance conforms to the picture.
Flames must not impinge on the logs. Ensure flames are steady
(not lifting or floating).
Inspecting/Cleaning Pilot and Burner Qualified Service Technician Refer to Figure 17 and Figure 18 on Page 14. Remove any
surface build-up on pilot and burner assembly. Wipe the pilot
nozzles, igniter/flame rod and hood. Ensure the pilot flame
engulfs the flame sensor as shown.
Checking Vent System Qualified Service Technician Inspect the vent system at the top and at the base (within the
firebox) for signs of blockage or obstruction. Look for any signs
of dislocation or deterioration of the vent components. Note:
Inspect wall straps or plumbers's tape to ensure it is secure
and in place.
Appliance Checkout Qualified Service Technician Perform the appropriate appliance checkout procedure detailed
in this manual.
Replacing Rockwool Ember Materials Homeowner/Qualified Service
Technician
Remove old ember materials (rockwool) and vacuum the ember
placement area. Place new embers as described in Step 6 on
Page 11.
MAINTENANCE SCHEDULE - Annually (Before the onset of the Burning Season)
MAINTENANCE TASK ACCOMPLISHING PERSON PROCEDURE
Cleaning Firebox Interior Homeowner Carefully remove logs, embers (rockwool), and vermiculite.
Vacuum out interior of the firebox. Clean firebox walls and
log grate. Replace logs, embers (rockwool) and vermiculite as
detailed in this manual (see Pagexs 8-10 ).
Check Flame Patterns and Flame
Height
Homeowner Refer to Figurex 15 on Pagex 10 and verify the flame pattern
and height displayed by the appliance conforms to the picture.
Flames must not impinge on the logs.
Checking Vent System Homeowner Inspect the vent system at the top and at the base (within the
firebox) for signs of blockage or obstruction. Look for any signs
of dislocation of the vent components.
Cleaning Front Glass Enclosure Panel Homeowner Clean as necessary following the directions provided in this
manual. DO NOT TOUCH OR ATTEMPT TO CLEAN GLASS
WHILE HOT.
MAINTENANCE SCHEDULE - Periodically (After the Burning Season)
2. Light appliance (follow lighting procedure on
lighting label in control compartment or see
homeowners manual).
3. Allow the burner to operate for at least 15 min-
utes while observing the flame continuously to
ensure that the proper flame appearance has
been achieved (see Figure 15). If the following
conditions are present, adjust accordingly.
• If flame appears weak or sooty, adjust the
air shutter, incrementally, to a more open
positionuntiltheproperflameappearance
is achieved.
• If flame stays lowered blue, adjust the air
shutter, incrementally, to a more closed
positionuntiltheproperflameappearance
is achieved.
4. Leave the control knob (off/pilot/on) in the ON position and the burner OFF/ON switch OFF (& remote switches, if applicable).
5. When satisfied that the burner flame appearance is normal, close the lower control compartment door.
Adjustment Rod Positions
(when viewed from above)
Figure 16
Main Burner Factory Air Shutter
Opening Setting - All Models
Model Natural
Gas
Propane
Gas
MPB35ST
1/8”
3.2mm
1/4”
6.4mm
Increase Shutter Opening
In This Direction
Decrease Shutter Opening
In This Direction Note - Burners are
omitted in this
view for clarity.
Orifice
Air Shutter
Adjusting
Rod

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
12
TROUBLESHOOTING GUIDE - MILLIVOLT GAS CONTROL SYSTEM
Note: Before troubleshooting the gas control system, Ensure external gas shut off valve, located at gas supply inlet, (and wall switch, iff applicable), is
in the “ON” position. Important: Valve system troubleshooting should only be accomplished by a qualified service technician.
SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION
1. Spark igniter will not light pilot after
repeated triggering of igniter button.
A. Defective igniter
(no spark at electrode).
Check for spark at electrode and pilot; if no spark and
electrode wire is properly connected, replace igniter.
B. Defective or misaligned electrode at pilot
(spark at electrode).
Using a match, light pilot. If pilot lights, turn off pilot
and trigger the igniter button again. If pilot lights, an
improper gas mixture caused the bad lighting and
a longer purge period is recommended. If pilot will
not light – check gap at electrode and pilot – should
be 1/8" to have a strong spark. If gap measures 1/8",
replace pilot (see Figure 17 on Page 14).
C. Gas supply pressure errant. Check inlet gas pressure. It should be within the limits
as marked on the rating plate.
D. Pilot orifice plugged. Clean or replace pilot orifice.
2. Pilot will not stay lit after
carefully following the lighting
instructions.
A. Defective pilot generator
(thermocouple).
Check pilot flame, it must impinge on thermocouple
(see Figure 17 on Page 14). Clean and/or adjust pilot
for maximum flame impingement on thermocouple.
Ensure that the connection between the valve and
thermocouple are tight and secure.
3. Pilot burning, no gas to burner, Valve
knob “ON,” and the (standard) burner
OFF/ON switch is “ON." Read impor-
tant note below.
IMPORTANT NOTE: If an optional
*remote switch is used for burner
operation, the standard burner
OFF/ON switch on appliance must
be in the "OFF" position.
*Optional remote switch kits - wall
switch or remote control.
A. Manual Reset Spill Switch has Tripped or is
defective.
Follow Manual Reset procedure on Page 6. Once the
red reset button is fully depressed and clicks in, check
continuity with a multimeter between switch terminal
(Ohms). If it shows an open circuit, replace switch.
B. Wall switch or wires defective. Check wall switch and wires for proper connections.
Jumper wire across terminals at wall switch, if burner
comes on, replace defectivewall switch. If okay, jumper
wires across wall switch wiresat valve, if burner comes
on, wires are faulty or connections are bad.
C. Thermopile may not be generating suf-
ficient millivolts.
Check thermopile with millivolt meter. Take reading
at thermopile terminals of gas valve. Should read
325 millivolts minimum with optional wall switch
“OFF.” Replace faulty thermopile if reading is below
specified minimum.
D. Plugged burner orifice. Check burner orifice for blockage and remove.
E. OFF/ON Switch & *Remote Switch are in
the "ON" position resulting in excessive
resistance.
When turning on the burner using a *remote switch,
ensure that the standard OFF/ON switch is in the "OFF"
position. If both switches are in the ON position, it
may result in excessive resistance (& millivolt drain-
age) and the burner may not come on.
4. Frequent pilot/burner outage prob-
lem.
A. Pilot flame may be too low or blowing (high)
causing the pilot/valve safety to drop out.
Clean and/or adjust pilot flame for maximum flame
impingement on thermocouple (see Figure 19 on
Page 20).
TROUBLESHOOTING
SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION
1. Burner will not light. A. Faulty Valve System. See Below.
B. “OFF/ON” or wall switch defective. Disconnect the two black wires from the wire nuts.
Test switch(s) for continuity with a multimeter. If
continuity is not indicated, switch(s) is defective and
must be replaced.
Note: Before replacing “OFF/ON” switch, Ensure to
check wiring for loose connections or broken wires
and repair as needed.
2. Burners come “ON,” then turns “OFF.” A. Burner orifice plugged. Check main burner orifice(s) for blockage. Clean
or replace.
B. Obstructed vent system. Check vent system for obstructions.
TROUBLESHOOTING GUIDE - ELECTRONIC IGNITION SYSTEM

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
13
13
START CHECK
• Turn Off Gas Supply.
• Ensure Valve Switch Is In ON Position.
• Disconnect Control Harness.
• Set Thermostat To Call For Heat.
• Check for proper volt-
age at control harness
(see insert A). Voltage
should be 24V between
thermostat or pressure
switch and 24V common
and 24V hot.
NO
• Line voltage power
• Low voltage transformer
• Limit controller
• Thermostat
• Wiring
YES
• Plug control harness into
valve. Wait for internal check
delay.
• Igniter warms up and glows
red.
NO
• With pilot burner cable con-
nected, measure voltage at
valve HSI element output. 24V
nominal. (See insert B)
NO • Replace valve.
YES
YES • Replace igniter/flame rod
assembly.
YES
• Turn on gas supply.
• Pilot burner lights.
NO
• Check that pilot gas is flowing. Wait
to ensure pilot gas tubing is purged.
Recycle call for heat if necessary.
NO • Replace valve.
YES
YES
• Measurevoltage between 24V hot and
24V common leads to valve control.
Must measure at least 19.5 VAC with
igniter powered (see insert A). To
identify proper lead, this check must
be done with the valve control con-
nected and igniter powered.
NO
• Check transformer and
line volt supply.
YES
• Replace Pilot Assembly.
• Main valve opens and main
burner lights.
NO
• Check that pilot flame makes good
contact with pilot burner flame rod.
• Check for good electrical connection
through the pilot tubing.
• If both of the above are good, replace
igniter/flame rod assembly.
YES YES
• System Is okay. • Cycle thermostat off and back on.
Igniter will cycle off and
back on once during the 90
second ignition trial. All
voltage measurements must
be taken while the igniter is
powered.
When measuring voltage
at connections, use care
to ensure terminals are
not damaged.
• Main burner lights.
NO
• Replace valve.
Insert A
End View of Control Harness Connector
24 Volt
Common
24 Volt Hot
24 Volt
Switched
Check For Damaged or Missing
Terminals in Connector
Insert B
Igniter Terminals
1
2
2
1
2
1
TROUBLESHOOTING PROCEDURE - ELECTRONIC IGNITION SYSTEM

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
14
Electronic Appliance Checkout
To light the burner, refer to the lighting instruc-
tions on Pagex 19. Ensure the igniter lights the
pilot. The pilot flame should engulf the flame
sensor as shown in Figurex 18.
Withpropercare andmaintenance, yourappliance
willprovidemanyyears ofenjoyment.Ifyoushould
experience any problem, first refer to the trouble
shootingguideinthis manual.If problempersists,
contact your Lennox distributor.
WIRING DIAGRAMS
Wiring diagrams are provided here for refer-
ence purposes only. This information is also
provided on schematics attached directly to the
appliance on a pullout panel located within the
control compartment.
WARRANTY
Your gas appliance iscovered by a limitedtwenty
year warranty. You will find a copy of the war-
ranty accompanying this manual. Please read
the warranty to be familiar with its coverage.
Retain this manual. File it with your other docu-
ments for future reference.
REPLACEMENT PARTS
A complete parts list is found at the end of
this manual. Use only parts supplied from the
manufacturer. Normally, all parts should be
ordered through your Lennox distributor or
dealer. Parts will be shipped at prevailing prices
at time of order.
When ordering repair parts, always give the
following information:
1. The model number of the appliance.
2. The serial number of the appliance.
3. The part number.
4. The description of the part.
5. The quantity required.
6. The installation date of the appliance.
Ifyouencounter any problems or have any ques-
tions concerning the installation or application
of this system, please contact your distributor,
or Lennox directly:
LENNOX HEARTH PRODUCTS
1110 West Taft Avenue
Orange, CA 92865
PRODUCT REFERENCE INFORMATION
We recommend that you record the following important information about your fireplace. Please
contact your Lennox dealer for any questions or concerns. For the number of your nearest Lennox
dealer, please call 800-731-8101
Your Fireplace's Model Number________________________________________
Your Fireplace's Serial Number ________________________________________
The Date On Which Your Fireplace Was Installed___________________________
The Type of Gas Your Fireplace Uses ____________________________________
Your Dealer's Name ________________________________________________
1. If any of the original wire as supplied must be replaced,
1. it must be replaced with Type AWM 105°C – 18 GA.
wire.
2. 120V, 60Hz – Less than 3 amps.
BK
Junction Box
Transf.
120 V.
24 V
BL
Electronic Wiring Diagram (Honeywell)
R
WT
BL
G
W
120
VAC.
BK
W
Gas Valve
B
R
IGNITER
PILOT
ASSEMBLY
BK
G
Outlet Box Green
Ground Screw
Hot side of Outlet
*ON/OFF Switch (Integral
with Gas Valve)
White Wire
To Opposite
Side
*Leave the ON/OFF switch, which is integral
with the gas valve, in the ON position.
SPILL SWITCH
(high limit disc)
WT
G
Figure 18
3/8" to 1/2"
(9 -13 mm)
Ground
Electrode
Flame Rod
Hot Surface
Igniter
Proper Flame
Adjustment
Pilot
Nozzels
ELECTRONIC PILOT ASSEMBLY
Proper Pilot Flame Appearance
Figure 17
Proper Pilot Flame
Appearance
Thermocouple
Thermopile
Pilot
Nozzels
MILLIVOLT PILOT ASSEMBLY
3/8" Min.
(9 mm)
Igniter Rod
Hood
Figure 20
If any of the original wire as supplied must
be replaced, it must be replaced with Type
AWM105 C - 18 gage wire.
* Optional Control Switches - OFF/ON wall
switch or remote control receiver.
Note: Turn the appliance-mounted OFF/ON
burner control switch to the OFF position if an
optional control switch is installed.
Millivolt Wiring Diagram
Figure 19
Thermopile
TH
TP TH
TP
White
White
Black
Spill Switch
Schematic Represen-
tation Only
Field Wired
Factory
Wired
* Optional Control Switch
Field Wired
Factory
Wired
Schematic Represen-
tation Only
* Optional Control Switches - OFF/ON wall
switch or remote control receiver.
Millivolt Appliance Checkout
The pilot flame should be steady, not lifting
or floating. Flame should be blue in color with
traces of orange at the outer edge.
The top 3/8" (10 mm) at the pilot generator
(thermopile) and the top ¹⁄₈" min (tip) of the
quick drop outthermocouple should be engulfed
in the pilot flame. The flame should project 1"
(25 mm) beyond the hood at all three ports.
See Figure 17.
To light the burner, refer to the lighting instruc-
tions on Page 18.
Appliance mounted OFF / ON Switch
CAUTION: LABELALL WIRES PRIOR TO DISCONNECTION WHEN SERVICING CONTROLS. WIRING
ERRORS CAN CAUSE IMPROPER AND DANGEROUS APPLIANCE OPERATION.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 15
ACCESSORY COMPONENTS
Standard Remote Control System
The Model RCL (Standard) Remote Control
System, features a simplistic OFF/ON control
function for the fireplace. This model includes
a hand-held transmitter, a remote receiver
with wall-mount cover plate and all hardware
required to install the unit. The remote receiver
can be wall or hearth mounted.
The transmitter has ON and OFF functions that
are activated by pressing either button on the
face of the transmitter. When a button on the
transmitter is pressed, a signal light illuminates
briefly to verify that a signal has been sent.
The Model RCL is designed to operate with all
millivolt ignition systems, as well as electronic
ignition systems. It may be installed with use
for either natural or propane gas appliances.
The RCL offers ease of installation and allows
youtoexecuteon-offcommands to the fireplace
effortlessly with one simple motion.
The Model RCL comes complete with detailed
operating instructions.
Remote Control Kit, Standard
Cat. No. Model No. Description
H0249 RCL Remote Control System
(Standard)
OFF/ON Wall Switch Kit
The OFF/ON wall switch kit may be used to
control the operation of the fireplace burner.
Install the OFF/ON wall switch in a convenient
location near the fireplace.
White Wall Switch Kit
Cat. No. Model No. Description
85L87 FWSK OFF/ON Wall Switch Kit
(ref. Form # 750,127M)
Touch-Up Paint Kit
Repair of minor scratches and discoloration of
the appliance charcoal painted surfaces may be
accomplished with the touch-up paint kit.
P
A
I
N
T
Touch-Up Paint Kits
Cat. No. Model No. Description
90L74 TPK-C Touch-Up Paint (Charcoal)
98K67 TPK-T Touch-Up Paint (Tan)
(TPK-C ref. Form # 504,216M)
Bag of Glowing Embers
Bag of Volcanic Stone
Replacementember materials or volcanic stone
are available for use with these appliances.
Order kits as part of the periodic maintenance
of the appliance.
Decorative Firebox Accessories
Cat. No. Model No. Description
88L53 FGE Bag of Glowing Embers
(1 oz. rockwool)
80L42 FDVS Bag of Decorative
Volcanic Stone
(FDVS ref. Form #750,010M)
3 Piece Trim Kit
Cat. No. Model No. Description
96K21 TK35PB3 35” 3 Piece Finish Trim Kit,
Polished Brass
(ref. Form # 750,147M)
4 Piece Trim Kit
Cat. No. Model No. Description
96K17 TK35PB4 35” 4 Piece Finish Trim Kit,
Polished Brass
Polished Brass 3-Piece Trim Kit
This kit contains brass trim pieces used to
finish the gaps between the wall board and
the fireplace, providing the appliance a brass
perimeter highlight. This kit contains the trim
pieces and these instructions.
(ref. Form # ii-9299)
Product Reference Information
Cat.
No.
Model Ship.
Weight
Ship.
Volumn
H3201 MPD35ST-NM 220 lbs 46W x 26D x 43H
(30 cu.ft.)
H3202 MPD35ST-PM 220 lbs 46W x 26D x 43H
(30 cu.ft.)
H3203 MPD35ST-NE 220 lbs 46W x 26D x 43H
(30 cu.ft.)

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
16
Brickaded Wall Liner Kits
Cat. No. Model No. Description
H3207 MBLK-35ST Interior Brick Liner Kit
Brickaded Panel Liner Kit
The brickaded liner kits include ceramic panels
as shown here. The panels have brick-like
features in relief.
(ref. Form # 750,160M)
Screen Heat Guard Kit
This easy to install optional screen heat guard
installs over the standard glass enclosure panel
toprovideprotection from the hot glass surface.
These screen heat guard panels cannot be used
in conjunction with the arch door kits or door
frame kits. Order 2 if a set is desired (for front
face and rear face glass surfaces).
35" Screen Heat Guard Kit
Cat. No. Model No. Description
26M48 HG35M 35" Screen Heat Guard Kit
(ref. Form # 750,101M)
ACCESSORY COMPONENTS
Door Frame Kits
A decorative door frame kit is available for use
with these appliances. It is designed to attach
directly to the front face of the appliance at the
four edges of the glassenclosure panel resulting
in the appearance of a picture frame.
4 Piece Door Trim Kits
Cat. No. Model No. Description
26M82 4DFK35PB Door Trim, Polished Brass
26M85 4DFK35BS Door Trim, Brushed Stainless
(ref. Form # 750,098M)
Arch Design Kits
Cat. No. Model Description
H0858 AD35C 35” Arch Doors, Charcoal
H0859 AD35TI 35” Arch Doors, Textured Iron
H0860 AD35SP 35” Arch Doors, Satin Pewter
H0861 AD35AB 35” Arch Doors, Antique Brass
Arch Pane Design Kits
H0930 APD35C 35” Arch Pane Doors, Char.
H0931 APD35TI 35” Arch Pane Doors, Text. Iron
H0932 APD35SP 35” Arch Pane Doors, Satin Pew.
H0933 APD35AB 35” Arch Pane Doors, Ant. Brass
Square Design Kits
Cat. No. Model Description
H0946 SD35C 35” Sq. Doors, Charcoal
H0947 SD35TI 35” Sq. Doors, Textured Iron
H0948 SD35SP 35” Sq. Doors, Satin Pewter
H0949 SD35AB 35” Sq. Doors, Antique Brass
Square Pane Design Kits
H0962 SPD35C 35” Sq. Pane Doors, Char.
H0963 SPD35TI 35” Sq. Pane Doors, Text. Iron
H0964 SPD35SP 35” Sq. Pane Doors, Satin Pew.
H0965 SPD35AB 35” Sq. Pane Doors, Ant. Brass
Style View Doors -
Style View Doors come in 4 beautiful styles. They
are easy to install and will not require hardware to
attach them to the standard glass door frame. The
door includes heavy duty magnet door latches and
functional twin-pane doors.
Arch
Design
Arch Pane
Design
Square
Pane
Design
Square
Design
(ref. Form # 775,169M)
Clean Face Charcoal Radiant Panel Kits
Cat. No. Model No. Description
88L36 RAD35C-2 Clean Face Panel Kit
(ref. Form # 504,223M)
Clean Face Panel Kits
Clean faced panel kitsare available to convert the
standard louvered fireplaces to radiant models
which are more suited for finishing around the
firebox opening with non-combustible materi-
als, such as tile.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 17
ACCESSORY COMPONENTS
Outside Air Kits Models FOAK-4 and
FOAK-4LD
Outside Air kits are available with duct (FOAK-4)
and without duct (FOAK-4LD) for use if outside
combustion air is required or desired. If model
FOAK-4LD is used itmust be used inconjunction
with locally purchased, non-combustible Class
1 or Class 0 flexible duct.
Polished Brass and Brushed Stainless
Hood Kits
Attractive hoods are available in two styles to
be used on the Multi-Open Series appliances.
These hoods aredesigned to be fittedto the glass
viewing sides of the appliance. In addition to
providing an aesthetically pleasing appearance
to your appliance installation, the hood reduces
heat effects to decorative mantles and finish
materials located above the fireplace opening.
The hood kit replaces the standard hood that
comes with these appliances and snaps into
place. These kits can be retrofitted to previously
installed appliances.
* 35" Eyebrow Hood Kits
Cat. No. Model No. Description
96K67 EB35PB Hood Kit, Polished
Brass
88L49 EB35BS Hood Kit, Brushed
Stainless
* These hood kits replace the standard hood that
comes with these fireplaces.
(ref. Form #504,142M)
Arch Door Kits
Two types of arch door kits are available for
the Multi-Open Series. Both types of kits are
easy to install and do not require hardware to
attach them to the standard door frame. These
kits can be retrofitted to previously installed
Multi-Open Series appliances. The decorative
arch kits can not be used in conjunction with
the screen panel kit.
* 35" Arch Door Kits
Cat. No. Model No. Description
26M43 ADK35CMPB Arch Door, Polished Brass
26M44 ADK35CMBS Arch Door, Brushed Stainless
(ref. Form # 750,021M)
Polished Brass and Brushed Stainless
Louvers Kits
Decorative louvers are available for use with all
Multi-Open Series appliances. These louvers
are designed to replace the standard radiant
panels that are provided with the appliance.
These kits include a top 3-piece assembly and
a bottom 3-piece assembly. They provide a
touch of elegance to any Multi-Open Series
appliance. These kits can be retrofitted to
previously installed appliances.
35" Assembled Louver Kits
Cat. No. Model No. Description
88L28 LVR35PB-2 Louver Kit, Polished
Brass
88L32 LVR35BS-2 Louver Kit, Brushed
Stainless
(ref. Form # 750,119M)
2-Piece Polished Brass and Brushed
Stainless Louvers Kits
These louvers are designed to replace either
the middle charcoal louver of each set or the
charcoal louver in each set closest to the glass
door. These kits include two narrow louvers.
They provide a touch of elegance to these
appliances. These kits can be retrofitted to
previously installed appliances.
2-Piece Louver Kits
Cat. No. Model No. Description
96L05 2LVR35PB 2 Pc. Louver Kit,
Polished Brass
96L09 2LVR35BS 2 Pc. Louver Kit,
Brushed Stainless
(ref. Form # 504,224M))
(ref. Form # 750,008M)
Outside Combustion Air Kits
Cat. No. Model No. Description
81L87 FOAK-4 Combustion Air Kit (with
duct)
81L88 FOAK-4LD Combustion Air Kit
(without duct)

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
18
6. Wait five (5) minutes to clear out any gas. If you then smell gas,
STOP! Follow “B” in the safety information above on this page. If you
do not smell gas, go to the next step.
7. Push in gas control knob slightly and turn counterclockwise
to “PILOT.”
8. Push in control knob all the way and hold in. Immediately light the
pilot by triggering the spark igniter (pushing the button) until pilot
lights. Continue to hold the control knob in for about 1 1/2 minutes
after the pilot is lit. Release knob and it will pop back up. Pilot should
remain lit. If it goes out, repeat steps 5 through 8.
•If knob does not pop up when released, stop
and immediately call your service technician
or gas supplier.
•If pilot will not stay lit after several tries,
turn the control knob to “OFF” and call
your service technician or gas supplier.
9. Turn gas control knob counterclockwise
to “ON.”
10. Close lower control compartment.
LIGHTING INSTRUCTIONS – MILLIVOLT GAS VALVE
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION
MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
FOR YOUR SAFETY READ BEFORE LIGHTING
A. This appliance has a pilot which must be lit with a piezo
igniter. When lighting the pilot, follow these instructions
exactly.
B. BEFORE OPERATING smell all around the appliance area for
gas. Ensure to smell next to the floor because some gas is
heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
•Extinguish any open flame.
•Open windows.
•Do not light any appliance.
•Do not touch any electrical switches.
TO TURN OFF GAS TO APPLIANCE
1. Turn remote wall switch “OFF.” The pilot will remain lit for
normal service.
2. For complete shutdown, turn remote wall switch to “OFF.”
3. Access the lower control compartment.
4. Depress gas control knob slightly and turn clockwise
to “OFF.” Do not force.
5. Close lower control compartment.
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information above on this page.
2. Access the lower control compartment.
3. Turn OFF/ON switch to “OFF” (and remote wall switch, if appli-
cable).
4. Verify main line shut-off valve is open.
5. Push in gas control knob slightly and turn clockwise
to “OFF.”
•Do not use any phone in your building.
•Immediately call your gas supplier from a neighbor’s
phone.
•If your gas supplier cannot be reached, call the fire depart-
ment.
C. Use only your hand to push in or turn the gas control knob.
Never use tools. If the knob will not push in or turn by hand,
do not try to repair it, call a qualified service technician. Force
or attempted repair may result in a fire or an explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and
any gas control which has been under water.
Note: Knob cannot be turned from “PILOT” to “OFF”
unless the knob is pushed in slightly. Do not force.
Millivolt Pilot
H
I
L
O
W
TPTH TP TH
P
I
L
O
T
P
I
L
O
T
O
N
it
it
O
F
F
OUT
OUT
IN
IN
SIT Millivolt Gas Valve
- LO / HI + GAS CONTROL
KNOB
TP/TH
TH
TP
PIEZO
IGNITER
BURNER
OFF/ON SWITCH
OFF
ON

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE. 19
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION
MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
A. When lighting the appliance, follow these instructions
exactly.
B. BEFORE OPERATING smell all around the appliance area
for gas. Be sure to smell next to the floor because some
gas is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
•Extinguish any open flame.
•Open windows.
•Do not light any appliance.
•Do not touch any electrical switches.
•Do not use any phone in your building.
FOR YOUR SAFETY READ BEFORE LIGHTING
•Immediately call your gas supplier from a neighbor’s
phone.
•If your gas supplier cannot be reached, call the fire
department.
C. Use only your hand to turn the gas control lever. Never
use tools. If the lever will not turn by hand, do not try
to repair it, call a qualified service technician. Force or
attempted repair may result in a fire or an explosion.
D. Do not use this appliance if any part has been under
water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of the
control system and any gas control which has been under
water.
LIGHTING INSTRUCTIONS — ELECTRONIC
1. For complete shut-down, turn remote wall switch to
“OFF.”
2. Open lower control compartment door.
3. Turn the OFF/ON switch to “OFF”. Do not force.
4. Close the main line shut-off valve.
5. Close lower control compartment door.
TO TURN OFF GAS TO APPLIANCE
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information above on this page.
2. Turn remote wall switch to “OFF.”
3. Open lower control compartment door.
4. Verify main line shut-off valve is open.
5. Turn the OFF/ON switch to “OFF”. Do not force.
6. Wait five (5) minutes to clear out any gas. If you then
smell gas, STOP! Follow “B” in the safety information
above on this page. If you do not smell gas, go to the
next step.
7. Turn the OFF/ON switch to “ON”. Do not force.
8. Turn “ON” all electrical power to appliance (remote wall
or appliance switch).
9. Close lower control compartment door.
TO SHUT OFF
1. Turn off all electrical power to the appliance (remote wall
switch).
FFO
NI
PSI
NO
L
O
R
T
N
O
C
G
INT
IER
Honeywell Electronic Gas Control Valve
ON / OFF Switch
Front View

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
20
Printed in U.S.A. © 2005 by LENNOX HEARTH PRODUCTS
P/N 875,024M REV. NC 04/2005
Lennox Hearth Products reserves the right to make changes at any time, without notice, in design,
materials, specifications, prices and also to discontinue colors, styles and products. Consult your
local distributor for fireplace code information.
1110 West Taft Avenue • Orange, CA 92865
Item Part/Cat. Qty Description Where Used
SIT Millivolt Only
1 H3357 1 Gas Train Assembly, NG, MV MPB35ST-NM
1 H3355 1 Gas Train Assembly, LP, MV MPB35ST-PM
Honeywell Electronic Only
2 H3356 1 Gas Train Assembly, NG, Elecrtr. MPB35ST-NE
3 LB-97493 1 Transformer MPB35ST-NE &
MPB35ST-PE
Misc. Replacement Parts
4
H3351
2
Brickaded Side Panels All
5
H3352
1
Burner, Pan All
6
H3353
1
*Electrical kit All
7
LB-91941B
2
Eyebrow Panel All
8 93L32 1 Flex Line Gas Connector, FFGC All
9
LB-92398B
2 Glass Enclosure Assembly All
10
88L53 Glowing Embers (1 oz.), FGE
All
11 H3358 1 Grate Assembly All
12 69L2101 4 Latch, Glass Enclosure Panel All
13
H3354
1
Firebox Sub-floor All
Item Part/Cat. Qty Description Where Used
Misc. Replacement Parts
14
H3210 1 Log Set All
15 LB-92449B 2 Louver Assembly, Upper
Charcoal All
16 LB-92652B 1 Louver Assembly, Lower,
Charcoal (valve access side) All
17 H3359 1 Louver Assembly, Lower, Char. All
18 69L3101 2 Magnet, Latch, Spring-Loaded All
19 94326 2 Magnet All
20 LB-95668 8 Nailing Flange
All
21 12L15 2 Nameplate, Lennox All
22
24M1001
1 Orifice, Burner, NG, #37 (.104") MPB35ST-NM &
MPB35ST-NE
22
42M7901
1 Orifice, Burner, LP, 1.55mm
(.061")
MPB35ST-PM &
MPB35ST-PE
23 111061 1 Piezo Igniter MPB35ST-NM &
MPB35ST-PM
24 27K30 1 Switch, OFF/ON, Rocker All
10 42363 1 Vermiculite, Bag (2 liters) All
14
REPLACEMENT PARTS - MPB35ST
Note: Ordering information for Volcanic Stone, Glowing Embers and Touch-up Paint can be found
on Page 15
3
13
5
4
20
16
21
9
15
7
17
9
15
7
10
12 18 19
11
2
22
8
23
24
8
1
22
6
* Electrical Outlet Kit consists of a junction box, 2 screws, an receptacle outlet, an OFF/ON rocker switch
and a snap bushing. Note: All the components in the electrical kit will Not be used by every model.
