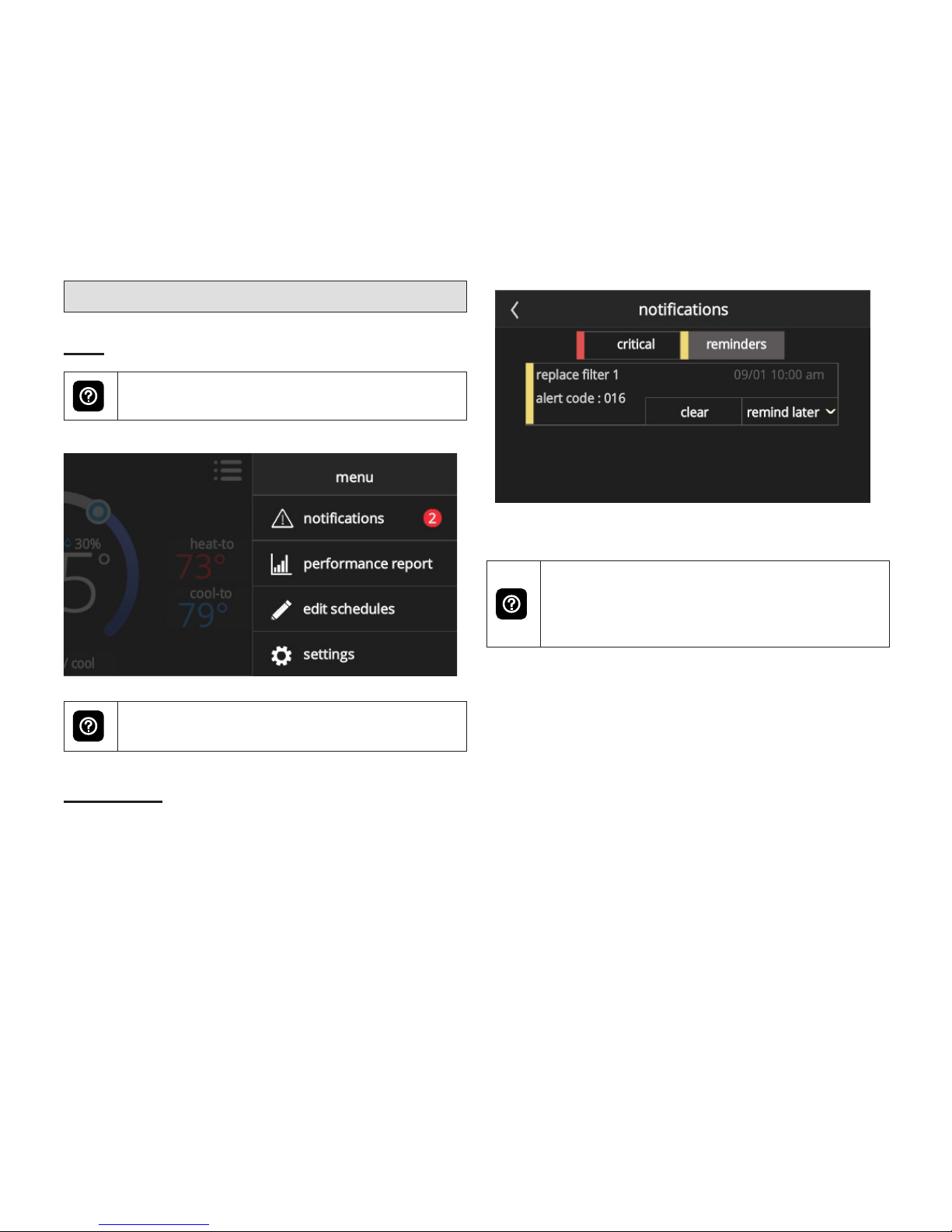

Menu .............................................................. 13
Menu ....................................................................... 13
Notications............................................................. 13
Performance Report................................................ 14
Edit Schedules ........................................................ 14
Settings ................................................................... 16
Wi-Fi Connection and Troubleshooting ..... 24
Visible Home Wi-Fi Access Point ............................ 25
Hidden Home Wi-Fi Access Point ........................... 25
Wireless Terminology .............................................. 26
Troubleshooting Tips............................................ 26
Determining Wireless Connection Signal
Strength................................................................... 26
Connecting to Lennox Server using Alternate
Method .................................................................... 27
Mobile Apps (Applications) ......................... 27
Amazon Alexa Enabled Devices ................. 27
Setup....................................................................... 28
Alexa Voice Commands for Lennox Skill ................ 28
Changing to Celsius ................................................ 29
Heat and Cool Mode ............................................... 29
FCC Statements............................................ 30
FCC Compliance Statement — PART 15.19........... 30
FCC Interference Statement — PART 15.105 (B)... 30
RF Exposure Information ........................................ 30
Index .............................................................. 31

3
Thermostat
The iComfort® M30 is a Wi-Fi enabled, electronic
7-day, universal, multi-stage, programmable,
touchscreen thermostat. It also offers enhanced
capabilities including control for humidication /
dehumidication / dew point measurement and
control, Humiditrol® Enhanced Dehumidication
Accessory (EDA), and equipment maintenance
reminders.
• Easy to read 4.3 inch color screen (measured
diagonally).
• LCD display with back light shows the current
and set temperature, time, inside relative
humidity, system status (operating mode and
schedules) and outside temperature (optional
outdoor sensor required).
• Touchscreen interaction.
• Ergonomic design.
• Smooth Setback Recovery starts system early to
achieve set point at start of program period.
• Compressor short-cycle protection (5 minutes).
• Real-time clock keeps time during power failures
and automatically updates to daylight savings.
• Maintenance reminders let user know when to
service or replace lters, PureAir® metal insert,
humidier pads, ultraviolet lamps, plus one user
or installer dened custom reminder.
• Up to four separate schedules are available
plus Schedule IQ™. Schedule IQ™schedule
determines when to operate the system based on
individual “home day”, “home night” and “away”
time and temperature settings. Schedule is
controlled by the Smart-Away™ proximity sensor
(geo-fencing) in the thermostat and the iComfort®
S30 mobile App. Multiple Apps on multiple
devices can control one system.
• One-Touch Away Mode - A quick and easy way to
set the cooling and heating set points while away.
• Smart Away™ - uses geo-fencing technology
to determine when the homeowner is within a
predetermined distance from the home to operate
the system when leaving, away and arriving.
• Permanent memory storage of programs.
• Wall plate furnished.

4
Home AutomAtion
The iComfort® M30 smart thermostat is an Amazon®
Alexa-enabled, smart-home-compatible thermostat.
It works with Amazon Echo, Echo Dot and Tap
devices allowing the homeowner to ask Alexa to
adjust the temperature.
energy efficient SettingS
Factory preset program settings conform to EPA
Energy Star® recommended set points.
ApplicAtionS
Fully programmable thermostat provides universal
system compatibility, precise comfort control and
easy programmability.
Provides temperature control for gas, oil, electric
and heat pumps for up to 4 heat / 2 cool multi-stage
systems (includes dual-fuel operation).

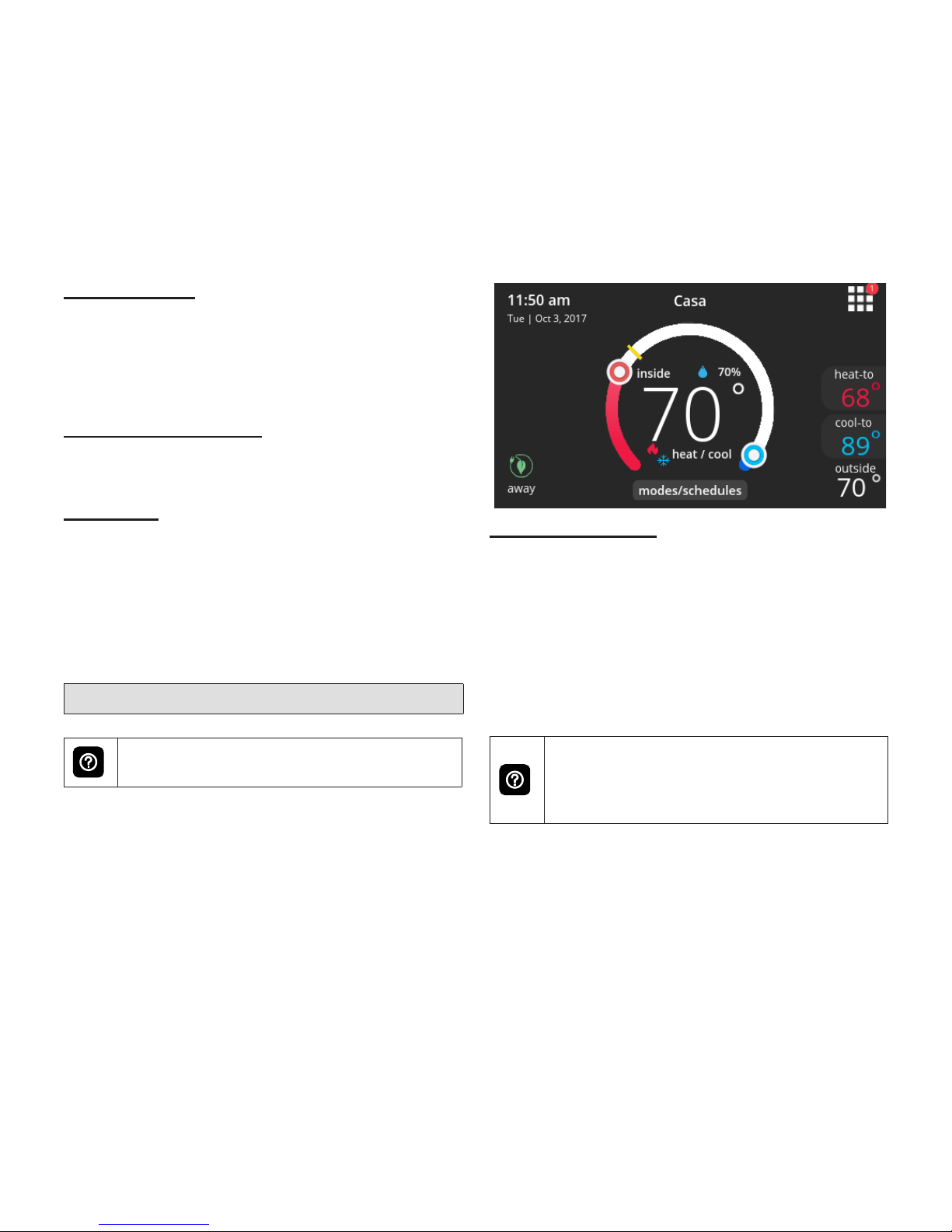

Home Screen
If screen is dark (screen saver on), touch
screen to turn on the back light.
temperAture SettingS
• Large display of current inside temperature (°F
or °C)
• Heating and Cooling set point indicators on the
round animated temperature band
• Current cooling set point temperature (cool-to)
• Current heating set point temperature (heat-to)
Touching the heat or cool set point
indicators on the round temperature band,
or touching the heat-to or cool-to option
displays the heat or cool menu screens.

5
Both heating and cooling set point
indicators on the round temperature band
and the heat-to and cool-to options are
displayed if System is set to Heat/Cool
mode.

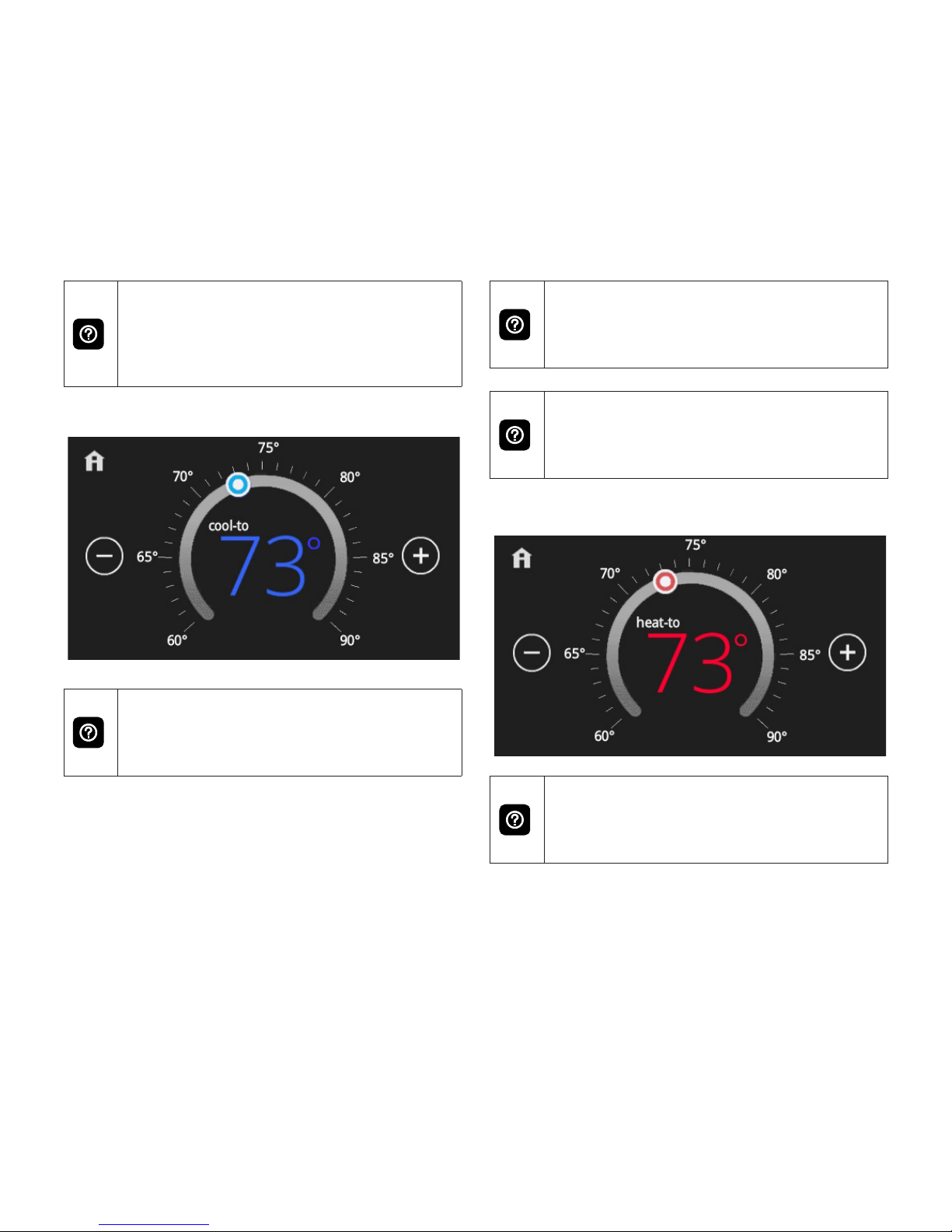

Cool Only Temperature Adjustment Screen
On the Home Screen, touching the
cool set point indicators on the round
temperature band, or touching the cool-to
option displays the cool menu screen.
• Cooling set point display
• Cooling set point indicator on the round
temperature band
• Plus (+) and Minus (–) option
• Home (return to Home Screen)
Touch the blue cool set point indicator on
the round temperature band, or touch the
plus or minus to change the cooling set
point in one degree increments.
During a scheduled time period, touching
either the set point indicator on the
temperature band or the cool-to will initiate
a schedule hold (see .
Heat Only Temperature Adjustment Screen
On the Home Screen, touching the
heat set point indicators on the round
temperature band, or touching the heat-to
displays the heat menu screen.

6
• Heating set point display
• Heating set point indicator on the round
temperature band
• Plus (+) and Minus (–) options
• Home (return to Home Screen)
Touch the red heat set point indicator on
the round temperature band, or touch the
plus or minus to change the heating set
point in one degree increments.
During a scheduled time period, touching
either the set point indicator on the
temperature band or the heat-to will
initiate a schedule hold.
Current Outside Temperature
Displays current outside temperature in °F or °C
(optional Remote Outdoor Temperature Sensor
required). If no sensor is used, then once connected
to the Internet and login to your account through
the thermostat, the option to get your outside
temperature can obtained using the Internet option
. Go to menu > settings > display and set outdoor
temperature display to Internet.
time And dAte diSplAy
Displays current time and date (supports daylight
savings time changes). When connected to the
Internet, time and date are automatically set.
Humidity diSplAy
Displays current inside relative humidity above
current indoor temperature.
The icon next to the indoor humidity percentage
also represents the humidity level in the home.

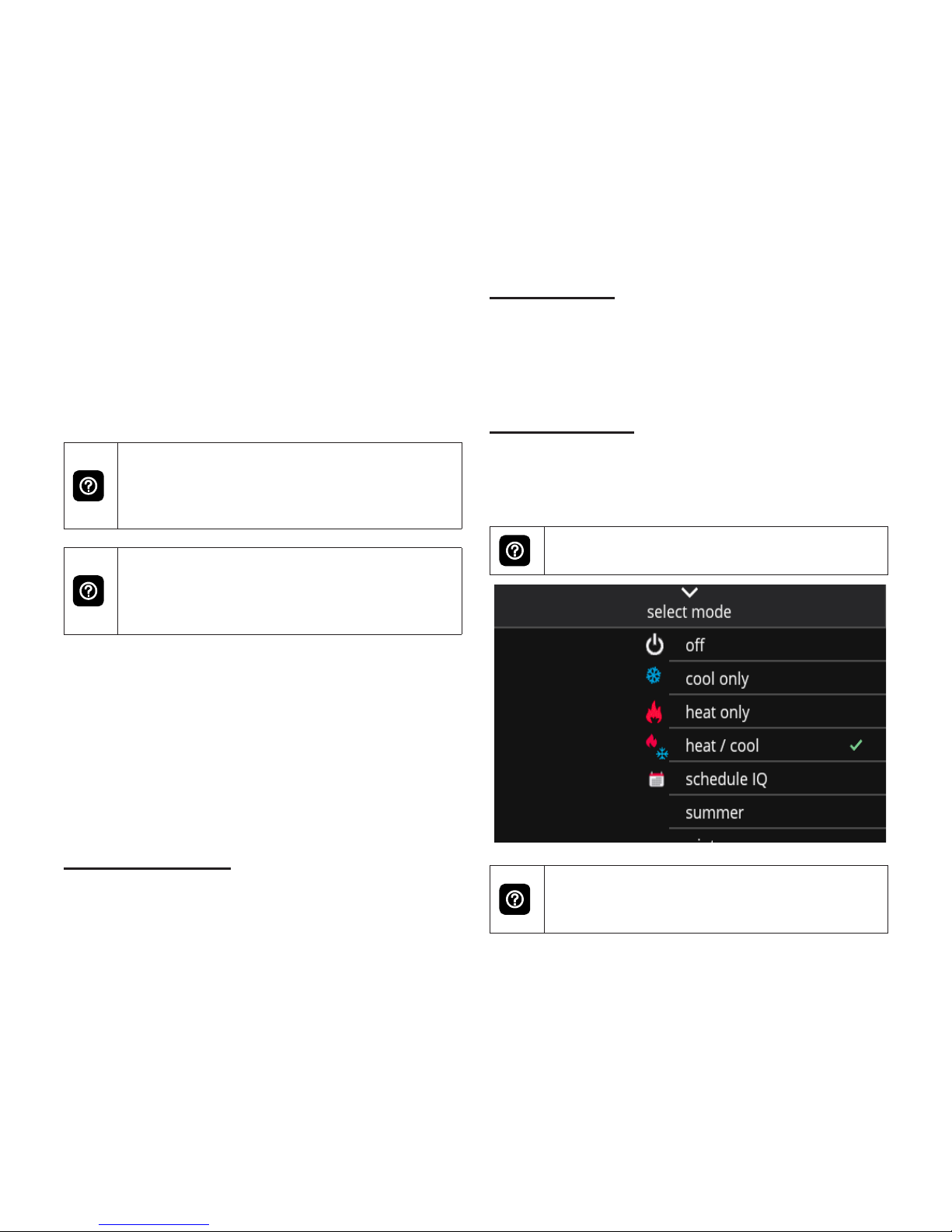

modeS / ScHeduleS
Displays current system operating mode below
current indoor temperature (heat/cool, heat only,
cool only, active schedule or off)
Touch to access Modes/Schedules screen.
Touch modes/schedules on home
screen under current operating mode to
access screen.

7
Select to operate a specic mode or schedule.
• Off
• Cool Only
• Heat Only
• Heat/Cool
• Emergency Heat (heat pump systems only)
• Schedule IQ, summer, winter, spring/fall and
save energy
• On
• Auto
• Circulate
A check mark indicates which mode is
active.
Scroll down to see all modes available on
the screen.

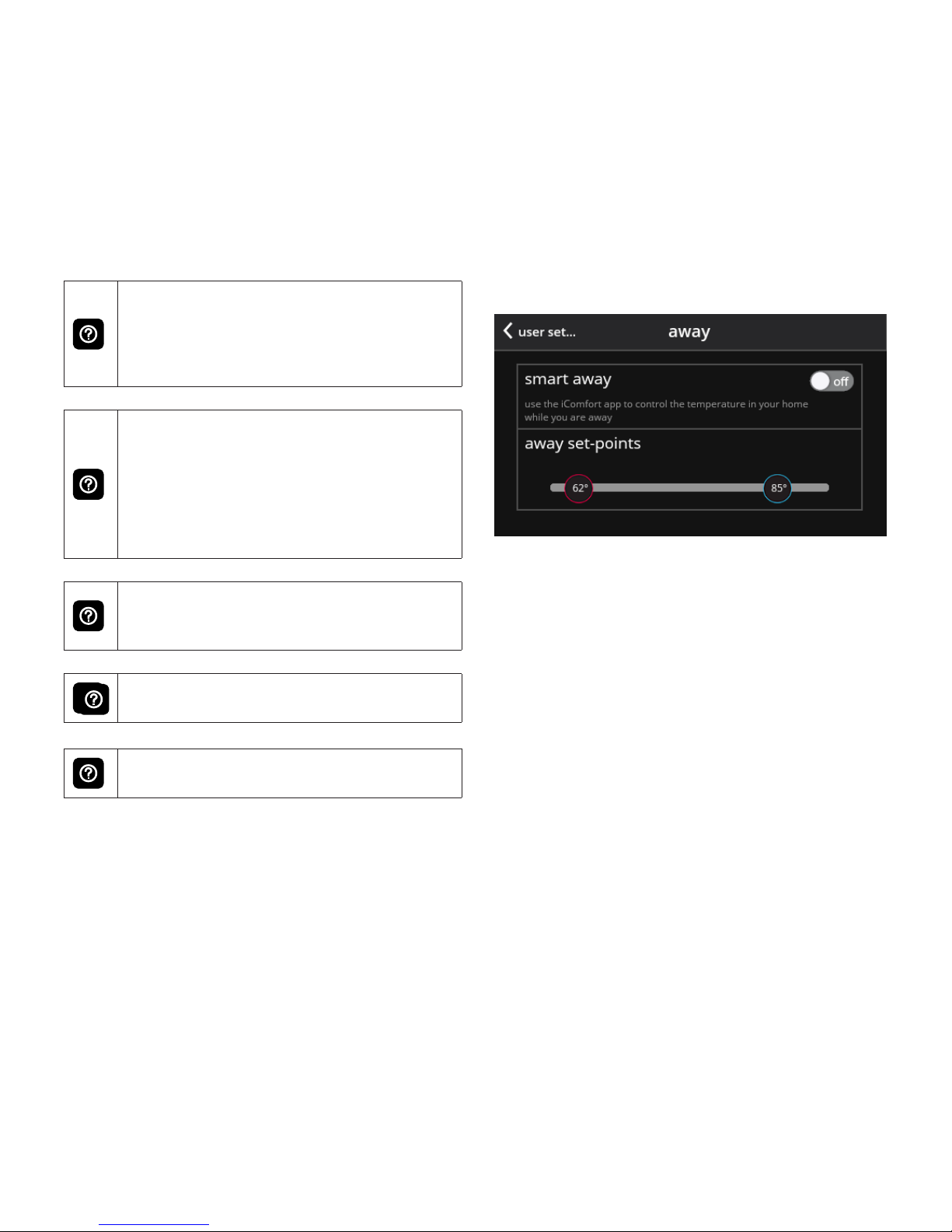

AwAy
Touch to display away screen.
Set heating or cooling set points during unoccupied
periods.
• System status indicators which are located along
the left side of the home screen. See “Table 1.
System Icons” on page 8 for details for each
icon.
• Heating and Cooling set point indicators on the
round temperature band. Yellow line indicates
current room temperature.
• Current cooling set point temperature (cool-to).
Cooling is always represented by the color blue.
• Current heating set point temperature (heat-to).
Heating is always represented by the color red.
• Cancel Away Mode
Touch cancel away to end away mode
and return to current system operation.

8

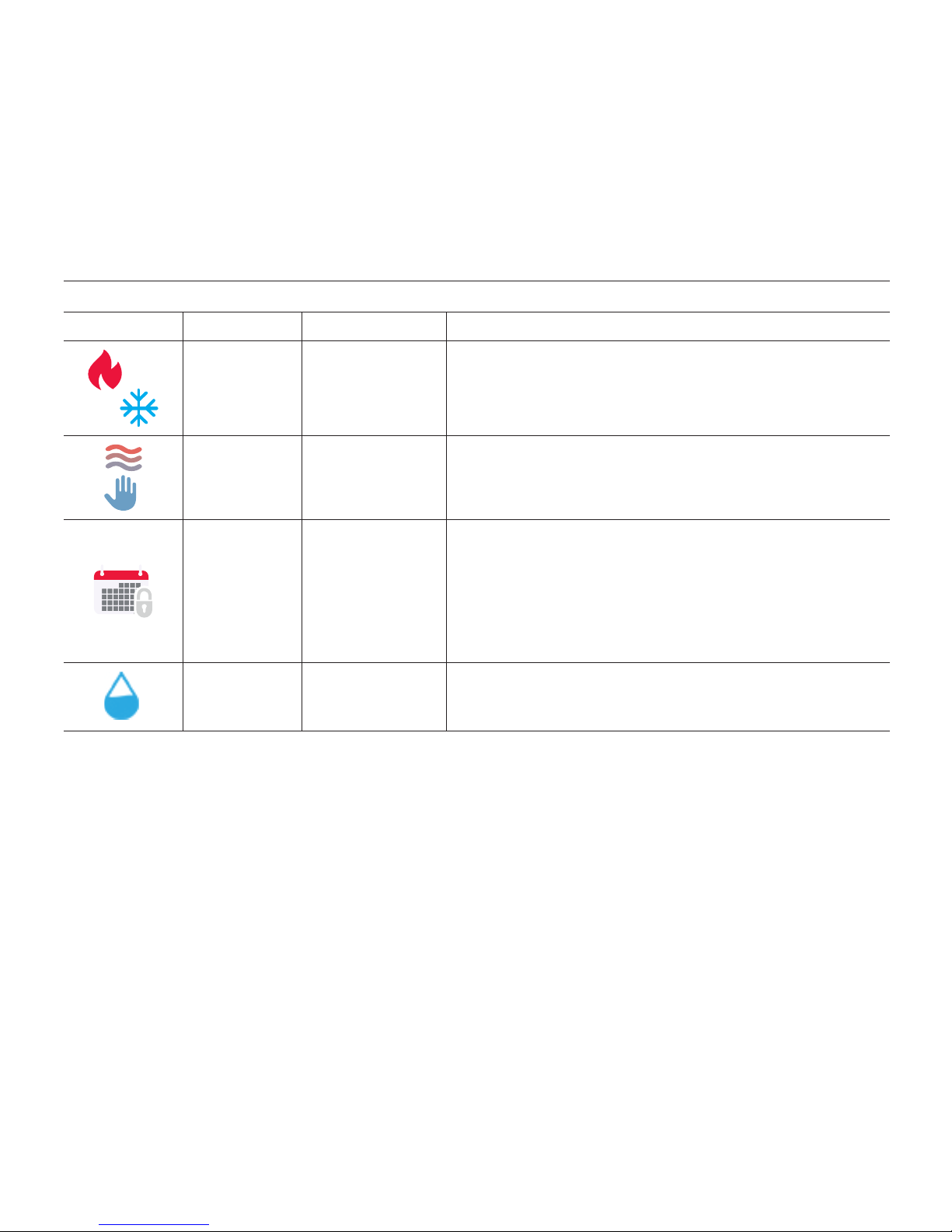

Home And SyStem StAtuS iconS

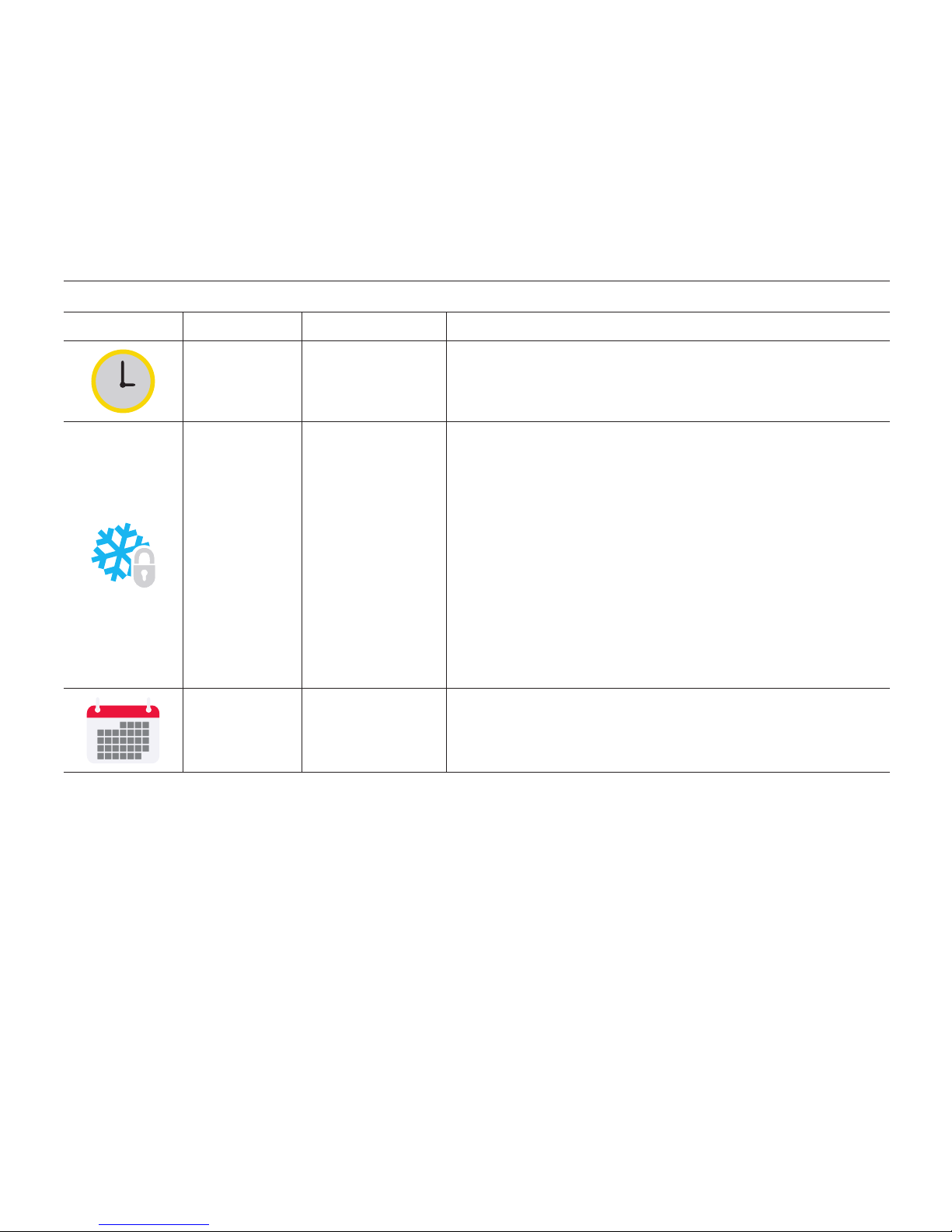

The following icons are located on home screen and will appear during applicable operations or tasks.

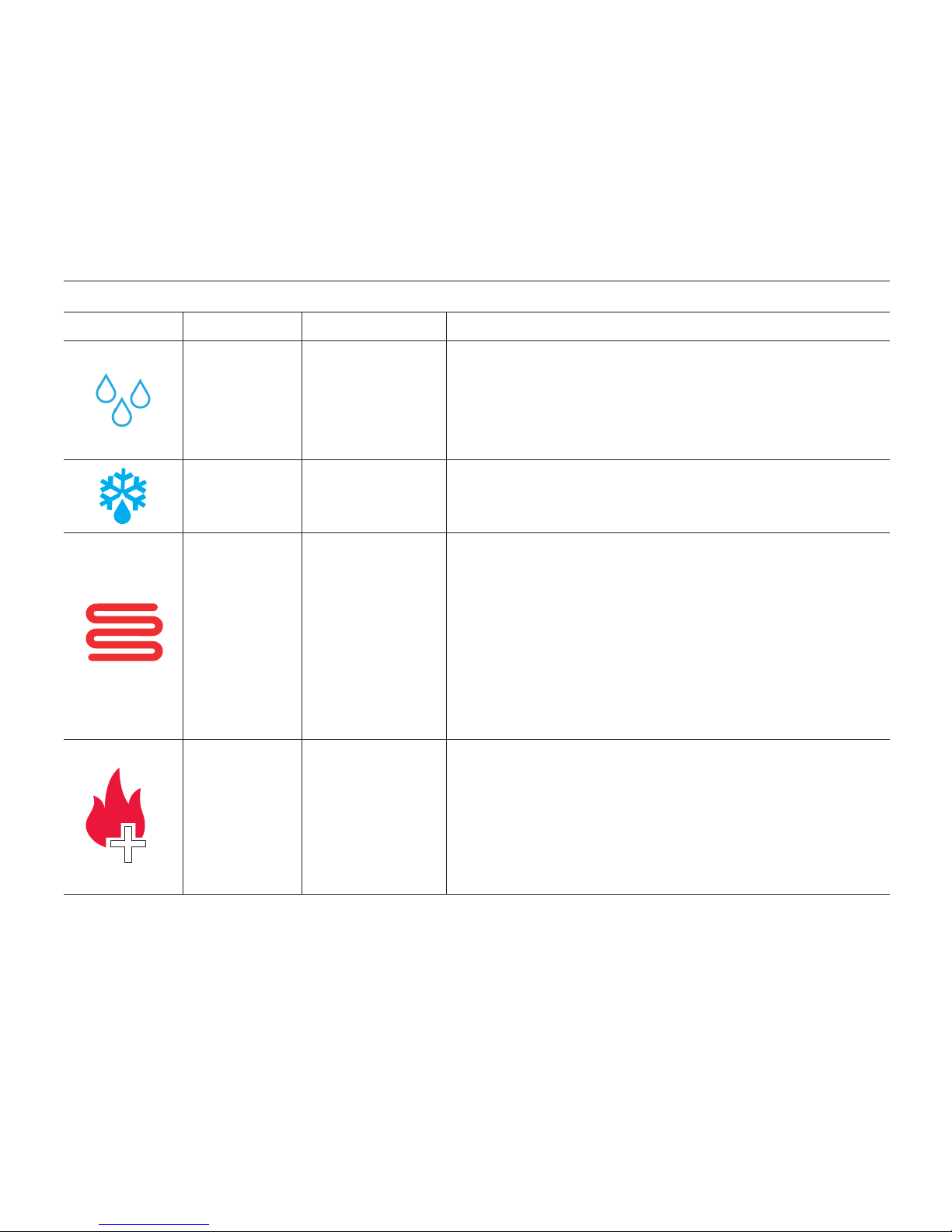

Table 1. System Icons
Icon Function Screen Text Purpose
Navigation Menu Selecting this icon will bring up user and installer
menus.
Function Away
When the away icon is touched, the system will auto-
matically use energy saving settings - heat-to 62 (16.5)
and cool-to 85 (29.5). Temperatures can be adjusted
by pressing on the available temperature setting (i.e.,
heat-to or cool-to). To exit away, press the cancel icon.
In a zoning system, all zones are set to a single heat-to
and cool-too setting. Note that when manually selecting
Away from the home screen, the Smart Away feature (if
enabled under settings) will be temporally disabled until
Away is canceled.
System
Status Heating System is heating the home.
System
Status Cooling System is cooling the home.
System
Status Humidifying
If humidication equipment is installed and congured,
the system will display this message when adding hu-
midity to the air in the home.

9
Table 1. System Icons
Icon Function Screen Text Purpose
System
Status Dehumidifying
The system can be used in cooling mode to help re-
move excessive humidity as determined by the user
setting. Go to menu > settings > humidity > and turn on
dehumidify. Then adjust the acceptable low and high
humidity levels in the home with the dehumidication
set-point slider.
System
Status Defrosting The system is defrosting the outdoor unit coil (only
when required). Heat pump only.
System
Status Emerg. Heat
All heat pumps operating in northern climates below
35°F (1.6°C) normally need a supplemental heating
source. Usually it is in the form of electric heating pro-
vided by the indoor unit. Other sources could be gas,
oil, or hot-water back-up systems as well. The sup-
plemental heat is also referred to as “second-stage”
or “back-up” heating, with “rst-stage” being the heat
pump only. Emergency heat is when you use your sup-
plemental heat (2nd stage) by itself, without the use of
your heat pump (1st stage heat). Not available for non-
heat pump systems.
System
Status Aux. Heat
Is only available with heat pump system. If outdoor tem-
perature is above the high balance point, only the heat
pump will operate - default 50°F (10°C) high. If outdoor
temperature is below the low balance point, only aux-
iliary heating will operate - default 25°F (-4.0°C) low.
If outdoor temperature is in-between the high and low
balance point, both the heat pump and auxiliary heat
sources can operate.

10
Table 1. System Icons
Icon Function Screen Text Purpose
System
Status Will start soon
A ve minute safety delay prevents the compressor
from operating too soon after shut-down to allow inter-
nal pressures to equalize.
System
Status Ambient lockout
This indicates that either the outdoor temperature is
above or below the balance point temperature settings.
The low balance point setting prevents heat pump heat-
ing below the set point and back up heat will be used.
Typically the default is 25°F (-4.0°C), but that setting
can be adjusted by your dealer. At 25°F (-4.0°C) or be-
low for example, only auxiliary heating (electric or gas)
is used.
If the high balance point is set to 50°F (10°C ) for exam-
ple, which is also adjustable by your dealer, then aux-
iliary heat will not be allowed. Only heat pump heating
will be used. Anytime the outdoor temperature is below
or above the balance point temperature settings, the
ambient lockout notice will appear on the home screen.
Function Transitioning to
next schedule
The system is following an active schedule and is tran-
sitioning to the next temperature setting based on a
time indicator.

11
Table 1. System Icons
Icon Function Screen Text Purpose

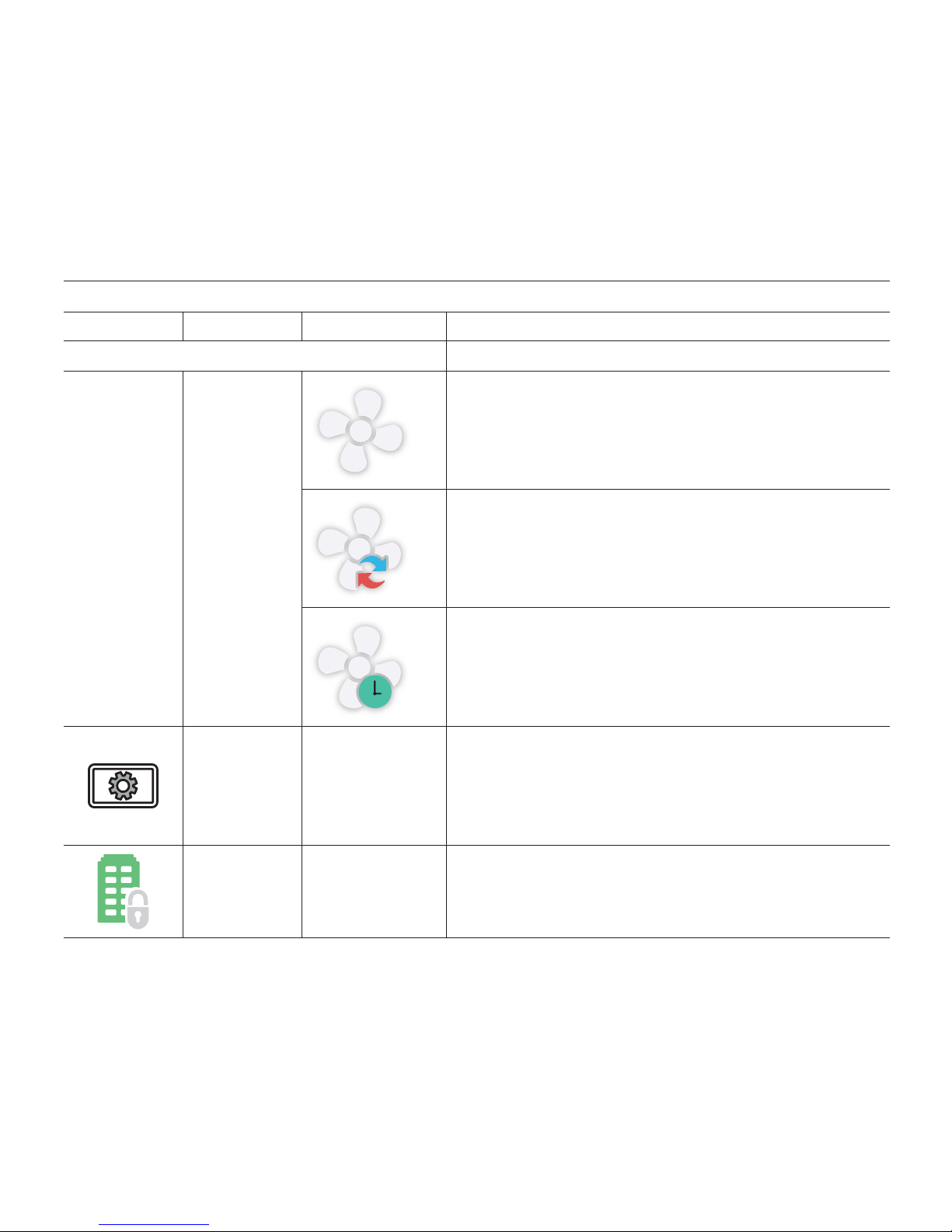

Fan is running Displayed whenever the system is heating or cooling.
Function
Fan set to ON
Fan set to Auto
Fan set to circulate
Function System Under
Test
Typically occurs when the system has had a power in-
terruption. The thermostat starts to look for the indoor
and outdoor controls. Sometimes the outdoor control
takes longer to boot up and therefore does not respond
to inquiry by the thermostat. Recycle power to system
may resolve issue.
Function
Load shedding,
wait time 45
min
Load shedding is where the utility company turns off
you outdoor unit in peak times for a specied period of
time to help spread the electrical system load for the
area. Your system will resume operation in 45 minutes.

12
Table 1. System Icons
Icon Function Screen Text Purpose
Function Changing set
point range
Temperature is being adjusted. These two symbols to-
gether also indicate the mode of operation. As displayed
here would indicate heat/cool mode (auto-changeover).
Function Turning feels
like on
Indicating the system is transitioning to “feels like”
mode.
Function
Schedule
hold until next
period
The schedule hold screen is displayed after changing
the temperatures on the heating or cooling screens
while a schedule is running. Preset 1, 2, 4, 8, 24 hours
or custom setting (using the Time Tool) sets and hold
the temperature for a preset or custom time period until
the next time period setting. Cancel schedule hold on
Home Screen cancels the held setting.
Function Indoor humidity
level
This symbol indicates the humidity level in the home.
The indicator can display humidity levels from 10 to
100%.

13
Menu
menu
Touch to display menu screen
Touch each item to display the selected
screen
notificAtionS
Displays system operating and service reminder
messages.
Displays faults, errors and service information.
If any faults, errors, or service information
appears, options are displayed underneath
the notication, remind, clear, service, or
reset. Touch to select the desired action.

14
performAnce report
Displays the number of hours each month the
system has been operating in heating mode (red) or
cooling mode (blue) in an easy-to-read graph.
edit ScHeduleS
Set schedules for specic times of the year or edit to
create custom schedules.
Touch the Menu icon on the Home Screen
and select Edit Schedules to access the
schedules screen.
• Schedule IQ™
• Summer
• Winter
• Spring/Fall
• Save Energy

15
Schedule IQ™ schedule determines
when to operate the system based on
individual “home day”, “home night”,
“away” times and temperature settings.
Schedule is controlled by the Smart
Away™ (geo-fencing) (when enabled)
in the thermostat and the iComfort®M30
mobile App. Multiple Apps on multiple
devices can control one system.
Touch a schedule name to edit individual
schedule.
• Select Days
> Individual Days (Monday, Tuesday, etc.)
> Week/Weekend
(Monday-Friday and Saturday-Sunday)
> All Days
• Select Mode
> Heat/Cool
>Heat Only
> Cool Only
Touch days selected to adjust individual
times and temperatures.
Touch each time period and select delete
period if you want to remove a time
period. You can remove all time periods
except one if desired.
Using all days follows the same schedule
for each day.
• Set Time (4 time periods per day)
• Individual Sliders to adjust cooling (blue) and
heating (red) temperatures for each time period
(Adjustable 60 to 90°F)
• Fan Icon
>On
>Auto
> Circulate
• Rename
Rename a schedule with the keyboard
tool (maximum 16 characters).
• Restore Defaults resets schedules to factory
settings

16
SettingS
Displays various user settings (fan, heat/cool,
humidity, reminders, general, display).
Touch left side of screen to return to the
Home Screen.
Access to all user settings
• Wi-Fi
• Name
• Away
• Feels Like™
• Fan
• Heat/Cool
• Humidity
• Notications
• Advanced Settings (Installer Settings)
• General
• Display
• Home Info
• Account
Touch a parameter on the left side of the
screen to display that particular screen.
Wi-Fi
wi-fi
wi-fi network lennox.com
on
A graphical representation of the home network
showing the connection status from the High
Denition Display to the Smart Hub to the Internet
to the Lennox server.
• Wi-Fi (on/off)
• Wi-Fi Network

17
Touch wi- network to see a list of
available networks or to add a network
connection not shown (other). Also
displays network status (secured/
unsecured), strength.
Do not use a guest account.
Do not use a unsecured connection.
Do not use your neighbor’s Wi-Fi.
Satellite provider network may cause
issues as well.
Touch the ifor additional information
about a particular network (name, SSID,
security, RSSI, etc.).
Touch a particular network ID to connect to
that network. Enter password to connect.
A red “X” means that there is an issue with
a connection point that must be resolved.
Name
Enter system name (Home 1, Home 2, etc) using
the keyboard tool
Away
Controls the temperature in the home while away.
• Smart Away™ On/Off (use the iComfort mobile
app to control temperature in the home while
away)
• Away set points range is 60 to 90°F (15.5 to
32°C). Factory defaults are 62°F (16.5°C) heating
and 85°F (29.5°C) cooling.
Feels Like
Accurately controls temperature in the home by
determining the “feels like” temperature based
on outdoor temperature, indoor temperature plus
indoor relative humidity.
• On/Off

18
Fan
Set how long to circulate the air each hour.
• Circulate (9 to 27 minutes, default is 21 minutes)
Heat / Cool
Adjustments for heating and cooling set points,
auxiliary heat, safety protection and other settings.
Depending on system mode setting, heat/
cool, heat only or cool only is displayed
under Settings (user).
Wider Set Point Range
Controls heating and cooling temperatures with a
wider set point range
• On/Off - Changes temperature range from 60-
90°F (15.5 to 32°C) to 40-99°F (4.5 to 37°C).
Select Heating Mode (Heat Pump Systems Only)
The following options are not available if the outdoor
unit is not a heat pump.
• Normal (heats home to desired temperature).

19
• Comfort (2-stage heating or cooling, second
stage is locked in until demand is satised)
Auxiliary Heat (Heat Pump Systems Only)
• On/Off.
• Allows auxiliary heat operation if
temperature drops below set balance point
-20 to 75°F (-29 to 24°C), adjustable).
Selecting Auxiliary Heat displays a slider
to adjust balance point levels. The optional
outdoor temperature sensor is required for
balance point operation.
Safety Protection
• Safety Protection - 30 to 100°F (-1 to 38°C),
adjustable). Default when enable is 40 to 90°F
(4.5 to 32°C).
Safety Protection alerts the homeowner
if the house is too cold or hot.
Humidity Screen
Options on the following screen are dependent on
whether humidity control has been enabled and
both humidication and dehumidication has been
enabled.
Humidity control can be set during initial
commissioning of the system or changed later by
a technician. Options available on the below screen
depends on system conguration settings.
• Off
• Humidify
> Set point - 45% adjustable RH (15 to 45%)
• Dehumidify
> Set point - 50% adjustable RH (35 to 60%)
• Humidify + Dehumidify

20
Selecting humidify or dehumidify
displays a slider to adjust the desired
levels. Selecting humidify + dehumidify
displays a slider to adjust both levels
(humidication-left, dehumidication-
right).
Dew point setting is only available with
optional remote Outdoor Temperature
Sensor (-15 to 15%, adjustable, 0%).
Humidication Control Center
normal setting is recommended for
moderate climates. Operates the
humidier when there is a call for heating
and humidication.
max setting is recommended for drier
climates. Operates the humidier when
there is a call for humidication only.
Overcooling range is 0 to 4° degrees.
For dehumidication, the max setting will
overcool the space based on overcool
slider adjustment tool setting.
Notication
• Replace Filter 1
• Replace Filter 2
• Replace UV Bulb
• Replace Humidier Pad
• PureAir™ Maintenance
• Maintenance Reminder Settings
• Settings for all Reminders:
>Disabled
> 3, 6, 12, 24 Months or Custom date
> Set for Calendar Time or Runtime
Touch custom to access the Set Date
Tool screen to input custom date settings.
