Lenovo ServeRAID M5100 Series User manual

ServeRAID M5100 Series Battery Kit
Quick Installation Guide

Second Edition (March 2016)
© Copyright Lenovo 2014, 2015, 2016.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant a General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract
No. GS-35F-05925.
Lenovo P/N: 81Y1389
Revision History
Version and Date Description of Changes
March 2016 Rebranded document.
October 2011 Initial release of the document.

| March 2016 Page 3
ServeRAID M5100 Series Battery Kit Quick Installation Guide Safety

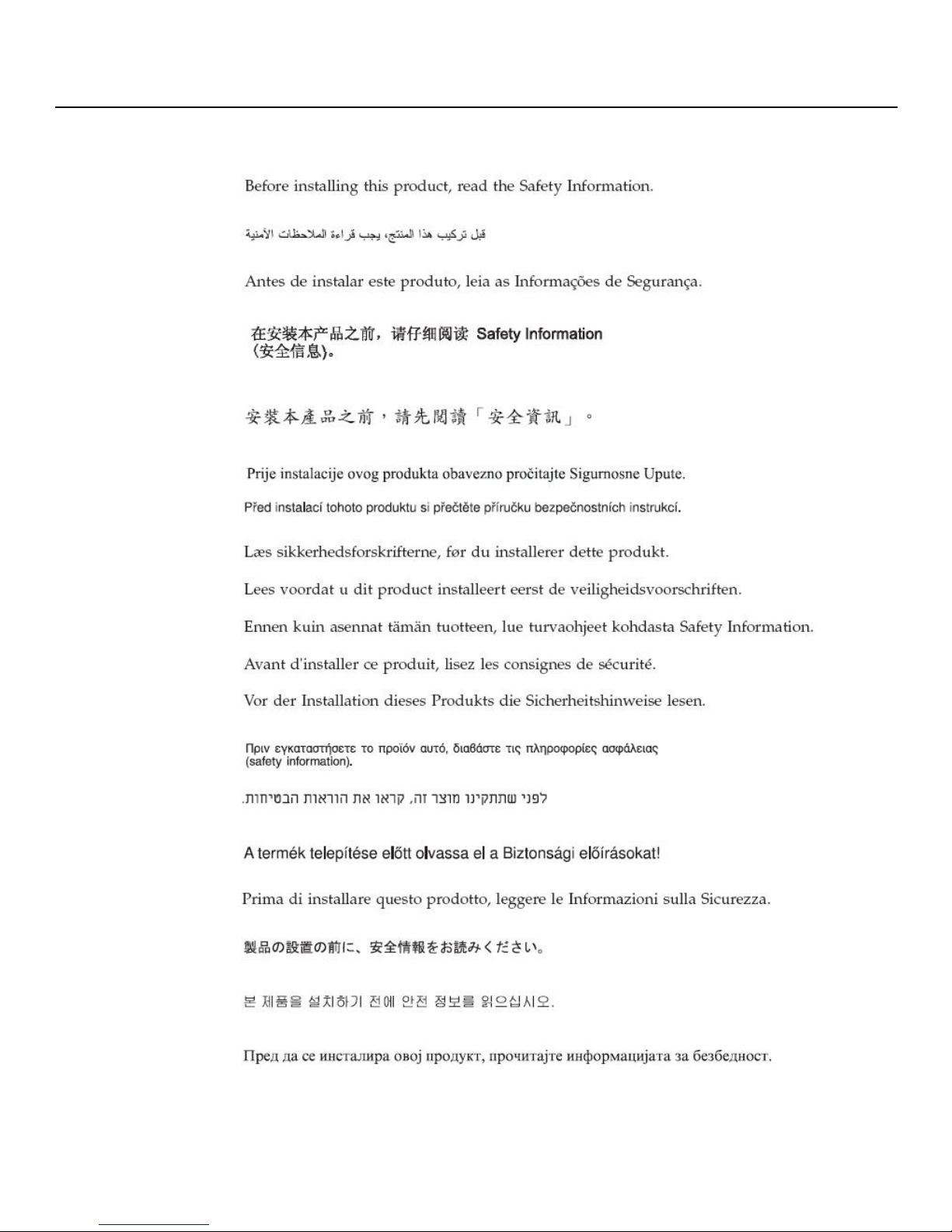

Safety

Page 4 | March 2016
ServeRAID M5100 Series Battery Kit Quick Installation Guide Safety

| March 2016 Page 5
ServeRAID M5100 Series Battery Kit Quick Installation Guide Safety

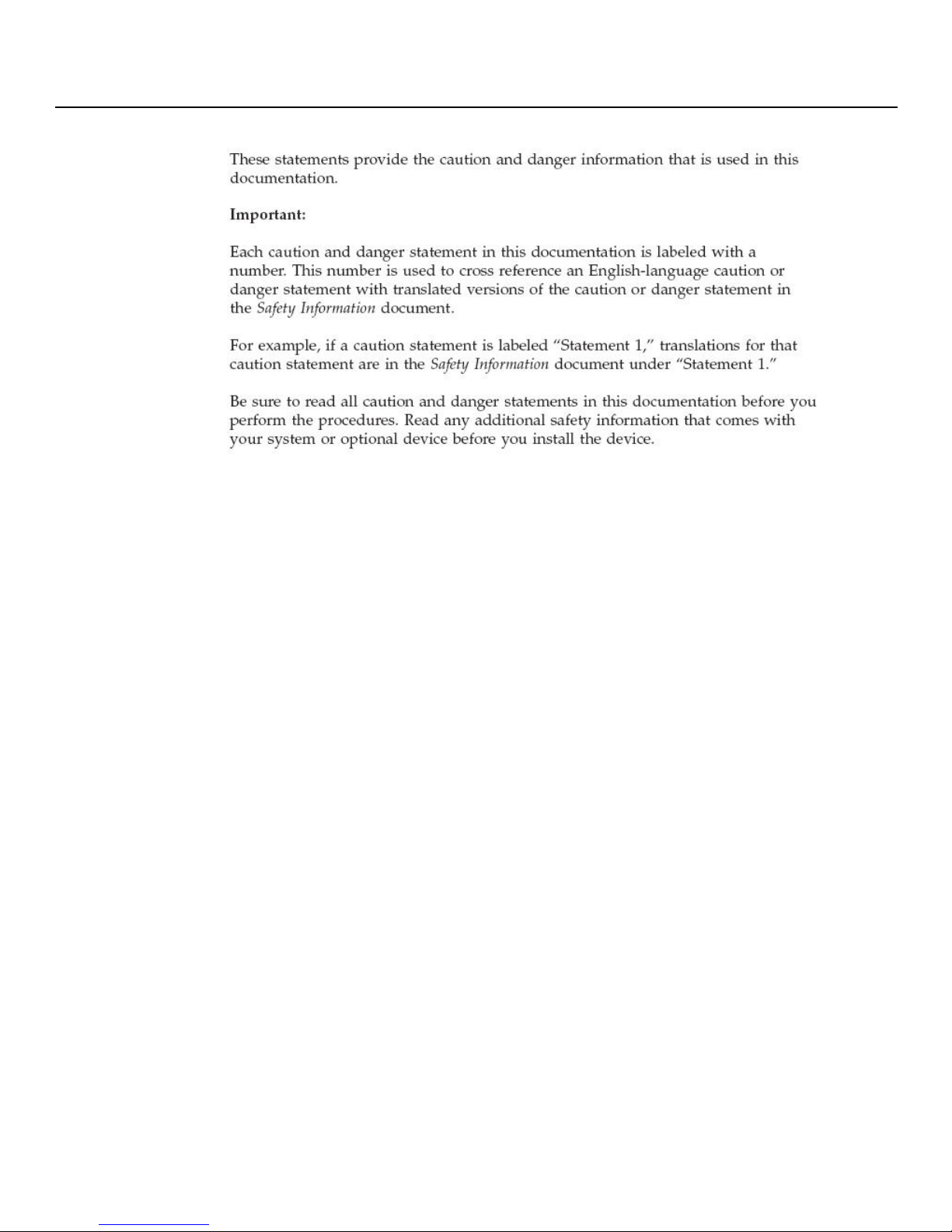

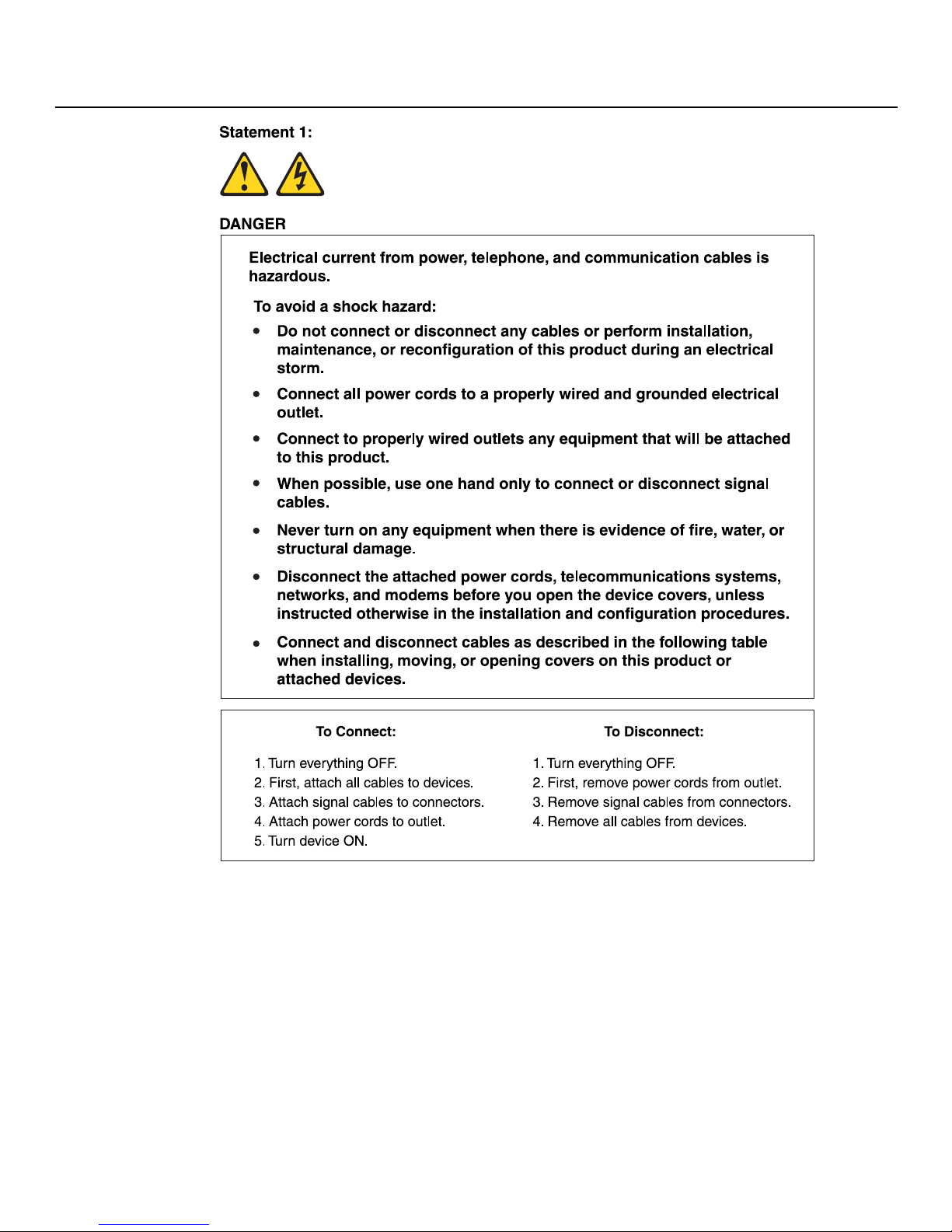

Safety statements

Page 6 | March 2016
ServeRAID M5100 Series Battery Kit Quick Installation Guide Safety

| March 2016 Page 7
ServeRAID M5100 Series Battery Kit Quick Installation Guide Safety

Page 8 | March 2016
ServeRAID M5100 Series Battery Kit Quick Installation Guide Safety
Statement 28:
CAUTION:
The battery is a lithium ion battery. To avoid possible explosion, do not burn the
battery. Exchange it only with the approved part. Recycle or discard the battery
as instructed by local regulations.

| March 2016 Page 9
ServeRAID M5100 Series Battery Kit Quick Installation Guide Product Overview
Quick Installation Guide
Thank you for purchasing the ServeRAID M5100 Series Battery Kit. Before you install
and connect the ServeRAID M5100 Series Battery Kit, please take a few minutes to read
this quick installation guide. This guide explains how to connect the ServeRAID M5100
Series Battery Kit remotely to your ServeRAID M5100 Series Controller. If you need more
information about any topic covered in this guide, refer to the related documents on
your ServeRAID-M Documentation CD.
Product Overview The ServeRAID M5100 Series Battery Kit provides an inexpensive alternative to using an
uninterruptible power supply (UPS) and a second level of fault tolerance when used
with a UPS.
The ServeRAID M5100 Series Battery Kit product is an intelligent battery backup unit
(iBBU) based on Lithium ion (LiON) battery cell technology. The unit protects the
integrity of the cached data on a ServeRAID M5100 Series Controller for up to 48 hours
(depending on the derated retention time selected) in case of a complete AC power
failure or a brief power outage.
Connect the remote ServeRAID M5100 Series Battery Kit unit by cable to the ServeRAID
M5100 Series 512MB Cache/RAID 5 Upgrade, which is a transportable memory module
installed on the following ServeRAID controllers:
ServeRAID M5110 SAS/SATA Controller
ServeRAID M5120 SAS/SATA Controller
For the procedures, see Connecting a Remote ServeRAID M5100 Series Battery Kit Unit on
the System Chassis to a ServeRAID-M5100 Series 512MB Cache/RAID 5 Upgrade on a
ServeRAID Controller.
CAUTION: The battery used in this device might present a fire or chemical burn hazard
if mistreated. Do not disassemble, heat above 100 °C (212 °F) or incinerate. Dispose of
used battery properly. Keep away from children.
Top View and Bottom View of the
ServeRAID M5100 Series Battery
Kit
The following figure shows the top view and the bottom view of the ServeRAID M5100
Series Battery Kit. The top view is the side that you can see after you install the
ServeRAID M5100 Series Battery Kit on the system chassis.
ServeRAID M5100 Series Battery Kit

Page 10 | March 2016
ServeRAID M5100 Series Battery Kit Quick Installation GuideConnecting a Remote ServeRAID M5100 Series Battery Kit Unit on the System Chassis to a
ServeRAID-M5100 Series 512MB Cache/RAID 5 Upgrade on a ServeRAID Controller
Figure 1: Top View and Bottom View of the ServeRAID M5100 Series Battery Kit
1. Board-to-Board Connector
2. Remote Cable Connector
NOTE: Record your controller serial number in a safe location in case you need to
contact Lenovo.
Connecting a Remote ServeRAID
M5100 Series Battery Kit Unit on
the System Chassis to a
ServeRAID-M5100 Series 512MB
Cache/RAID 5 Upgrade on a
ServeRAID Controller
The procedures in this section show how to connect a remote ServeRAID M5100 Series
Battery Kit on the system chassis to ServeRAID M5120 SAS/SATA Controller. You can
connect the ServeRAID M5100 Series Battery Kit in the same way to the ServeRAID
M5110 SAS/SATA Controller.
To connect a remote ServeRAID M5100 Series Battery Kit unit to your ServeRAID
controller, perform the following tasks in order:
1. See Removing the ServeRAID Controller from the Computer on page 11
2. See Connecting the Cable Between the ServeRAID M5100 Series 512MB Cache/RAID 5
on the ServeRAID Controller and the Remote ServeRAID M5100 Series Battery Unit on
page 11
3. See Reinstalling the ServeRAID Controller in the Computer on page 12
NOTE: Because server chassis vary from vendor to vendor, no standard mounting
option exists that is compatible with the various system configurations. The
ServeRAID M5100 Series Battery Kit, in combination with the Remote Battery Kit,
includes the battery, daughtercard, cable, and screws. This combination enables
authorized resellers and chassis manufacturers to customize the location of the
remote battery to provide the most flexibility within various environments.
LSI CORP. © 2010 ALL RIGHTS RESERVED
Pb e1 ASSEMBLED
IN CHINA
RoHS AsRPCB
E248037
94V0
Li Ion
Model: BAT1S1P-A
BBU P/N: L4-25407-00
BBU S/N: SAYWWSSSSSss
Contains:
Sony US454261A8T Cell
Rechargeable Li-Polymer
Battery Pack
Rating:
3.7V; 1.59 Ah; 5.9Wh
Finished in China
WARNING: The battery used in this
device may present a risk of fire or
chemical burn if mistreated. DO NOT
disassemble, heat above 60C, crush or
puncture, short circuit external contacts,
or dispose of in fire or water.
MH29577
Li-ion
!
L3-25407-00A
Top View
Bottom View
85083-00
1
2
