Lenovo ideapad 330-15IKB User manual

Lenovo ideapad 330
ideapad 330-14IKB
ideapad 330-15IKB
ideapad 330-14AST
ideapad 330-15AST
ideapad 330-15IKB Touch
User Guide

Read the safety noticesand important tipsin the 
included manualsbefore using your computer.

Notes
• Before using the product, be sure to read Lenovo Safety and General Information
Guide first.
• The latest electronic compliance and environmental information are available
from the Lenovo compliance information Web sites.
- To view compliance information go to: 
http://www.lenovo.com/compliance.
- To download environmental information go to: 
http://www.lenovo.com/ecodeclaration.
• Some instructions in this guide may assume that you are using Windows®10.
If you are using another Windows operating system, some operations may be
slightly different. If you are using other operating systems, some operations
may not apply to you.
• The features described in this guide are common to most models. Some
features may not be available on your computer or your computer may include
features that are not described in this user guide.
• The illustrations used in this manual are for Lenovo ideapad 330-15IKB unless
otherwise stated.
• The illustrations in this manual may differ from the actual product. The
screenshots of operating system are for reference only. Please refer to the actual
product.
Regulatory Notice
• For details, refer to Guides & Manuals at http://support.lenovo.com.
First Edition (January 2018)
© Copyright Lenovo 2018.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a General
Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set
forth in Contract No. GS-35F-05925.

Lenovo
User Guide
Instructionsand technical information in thismanual are applicable to the following 
Lenovo notebook computersunless otherwise stated.
Model name MT Model name MT
Lenovo ideapad 330-14IKB
81DA
81G2
81FC (for
Brazil only)
Lenovo ideapad 330-14AST
81D5
Lenovo ideapad 330-14IKB D Lenovo ideapad 330-14AST D
Lenovo ideapad 330-14IKB U Lenovo ideapad 330-14AST U
Lenovo ideapad 330E-14IKB D Lenovo ideapad 330E-14AST D
Lenovo ideapad 330E-14IKB U Lenovo ideapad 330E-14AST U
Lenovo ideapad 330H-14IKB Lenovo ideapad 330H-14AST
Lenovo ideapad 330L-14IKB Lenovo ideapad 330L-14AST
Lenovo ideapad 330E-14IKB Lenovo ideapad 330E-14AST
Lenovo ideapad 330R-14IKB Lenovo ideapad 330R-14AST
Lenovo ideapad 330-15IKB
81DC
81DE
81FE (for
Brazil only)
81FD (for
Brazil only)
Lenovo ideapad 330-15AST
81D6
Lenovo ideapad 330-15IKB U Lenovo ideapad 330-15AST D
Lenovo ideapad 330E-15IKB D Lenovo ideapad 330-15AST U
Lenovo ideapad 330-15IKB D Lenovo ideapad 330E-15AST D
Lenovo ideapad 330H-15IKB Lenovo ideapad 330E-15AST U
Lenovo ideapad 330L-15IKB Lenovo ideapad 330H-15AST
Lenovo ideapad 330E-15IKB Lenovo ideapad 330L-15AST
Lenovo ideapad 330R-15IKB Lenovo ideapad 330E-15AST
Lenovo ideapad 330E-15IKB U Lenovo ideapad 330R-15AST
Lenovo ideapad 330-15IKB Touch 81DH
81DJ

i
Contents
Chapter 1. Getting to know your computer .........................................1
Top view ..................................................................................................................... 1
Left-side view ............................................................................................................ 8
Right-side view ........................................................................................................ 12
Bottom view ............................................................................................................. 14
Chapter 2. Starting to use Windows 10 .............................................15
Configuring the operating system for the first time .......................................... 15
Operating system interfaces .................................................................................. 15
Putting the computer to sleep or shutting it down ............................................ 19
Connecting to a wireless network ........................................................................ 21
Get help from Windows ......................................................................................... 22
Chapter 3. Recovery system ............................................................... 23
Push-button reset .................................................................................................... 23
Chapter 4. Troubleshooting ................................................................ 25
Frequently asked questions ................................................................................... 25
Troubleshooting ...................................................................................................... 27
Appendix A. CRU instructions ............................................................ 30
Replacing the optical drive/hard disk drive (on select models) ....................... 31
Trademarks .......................................................................................... 34

1
Chapter 1. Getting to know your computer
Top view -------------------------------------------------------------------------
Lenovo ideapad 330-14IKB / ideapad 330-14AST
c
f
a b
d
e

Chapter 1. Getting to know your computer
2
Lenovo ideapad 330-15IKB / ideapad 330-15AST / 
ideapad 330-15IKB Touch
c
g
ab
d
e
f
Note: The dashed areas indicate parts that are not visible externally.
Attention:
•Do not open the display panel beyond 170 degrees. When closing the display panel, be
careful not to leave pens or any other objects in between the display panel and the
keyboard. Otherwise, the display panel may be damaged.

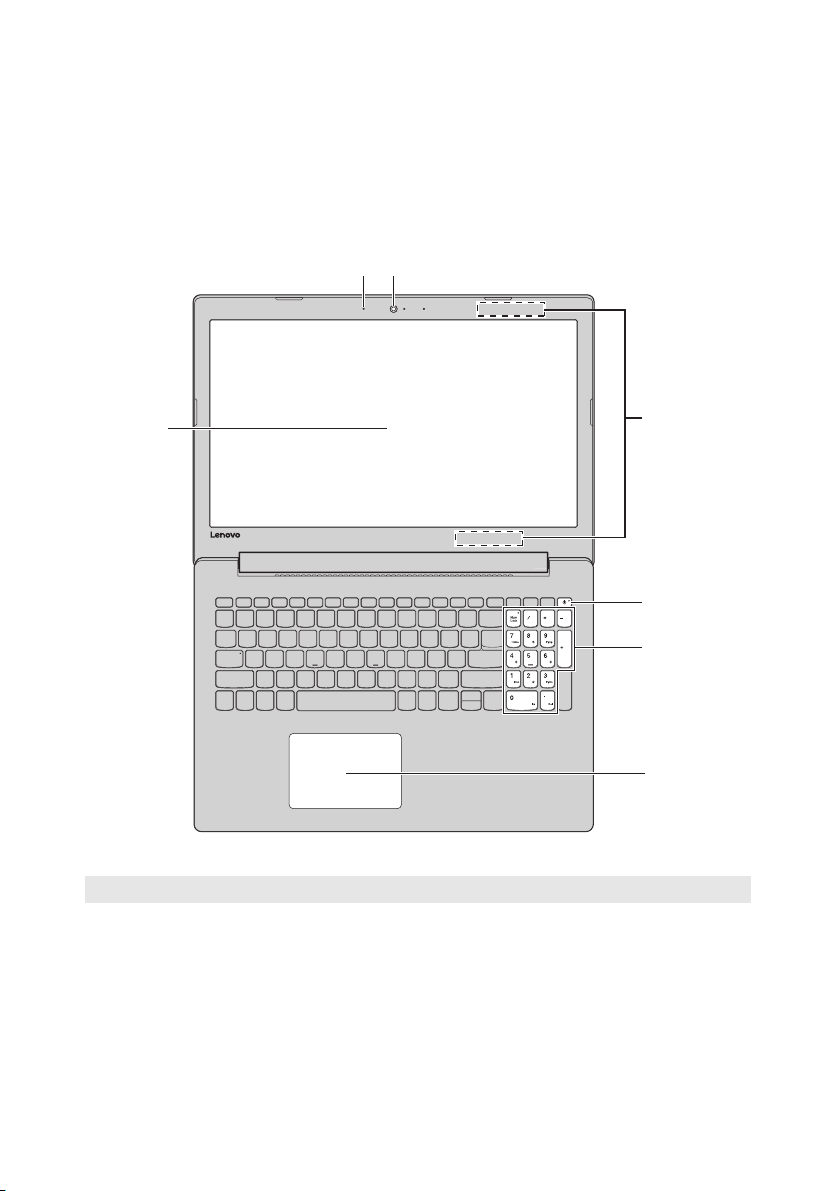

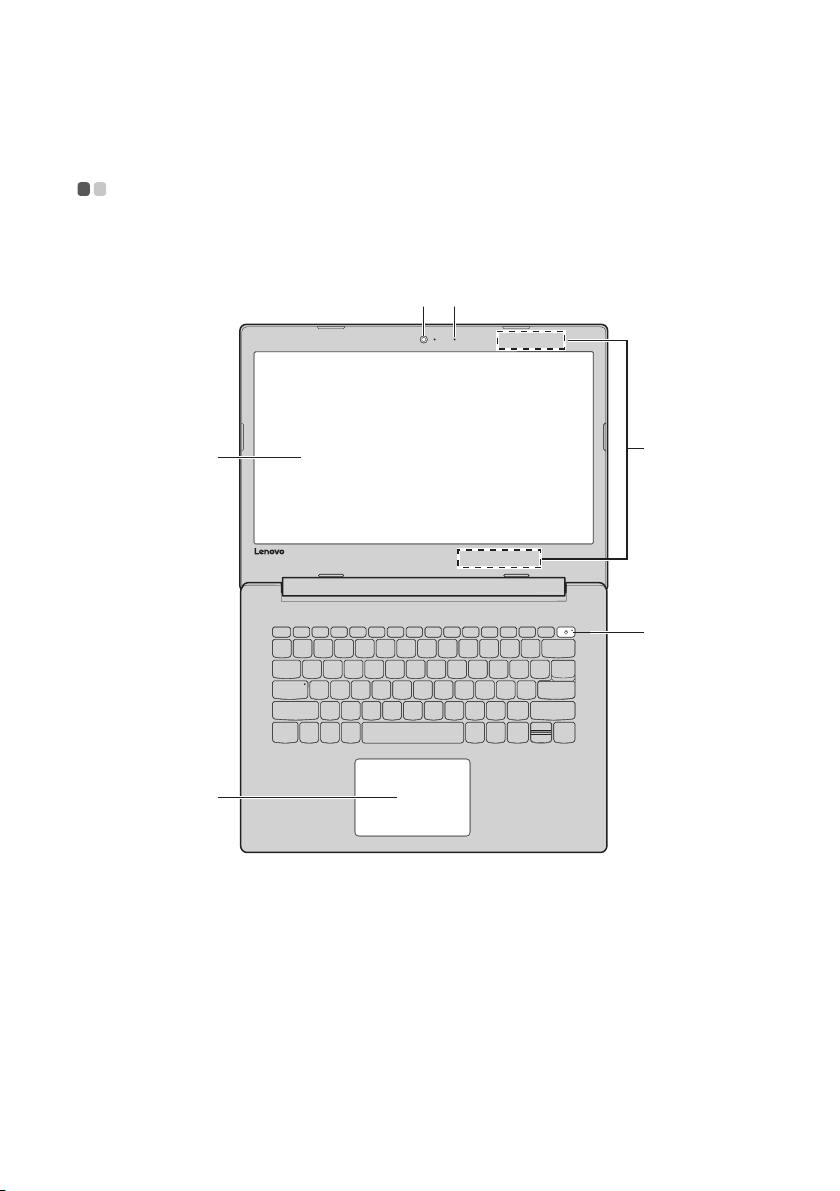

aIntegrated
camera
Use the camera for video communication.
bBuilt-in
microphone
Capture sound which can be used for video conferencing,
voice narration, or audio recording.
cComputer display The LCD display with LED backlight provides brilliant
visual output.
dWireless LAN
antennas
Connect to a wireless LAN adapter to send and receive
wireless radio signals.
ePower Key Press this key to turn on/off the computer.
When the computer is on, press and hold this key for more
than 1 second, the computer will enter sleep mode, press
and hold it for more than 4 seconds, the computer will be
turned off.
fNumeric keypad For details, see “Using the keyboard” on page 4.
gTouch pad The touch pad functions as a conventional mouse.
Touch pad: To move the pointer on the screen, slide your
fingertip over the pad in the direction in which you want
the pointer to move.
Touch pad buttons: The functions of the left/right side
correspond to those of the left/right mouse button on a
conventional mouse.
Note: You can enable/disable the touch pad by pressing F6 ( ).
Chapter 1. Getting to know your computer
3

Chapter 1. Getting to know your computer
4
Using the keyboard
Your computer has number keys and function keys and may also have a
numeric keypad incorporated into its standard keyboard.
Numeric keypad
Lenovo ideapad 330-15IKB / ideapad 330-15AST / ideapad 330-
15IKB Touch
The keyboard has a separate numeric keypad. To enable or disable the
numeric keypad, press the Num Lock key.
Hotkeys
You can access certain system settings quickly by pressing the appropriate
hotkeys.
Lenovo ideapad 330-14IKB / ideapad 330-14AST

Chapter 1. Getting to know your computer
5
Lenovo ideapad 330-15IKB / ideapad 330-15AST / 
ideapad 330-15IKB Touch

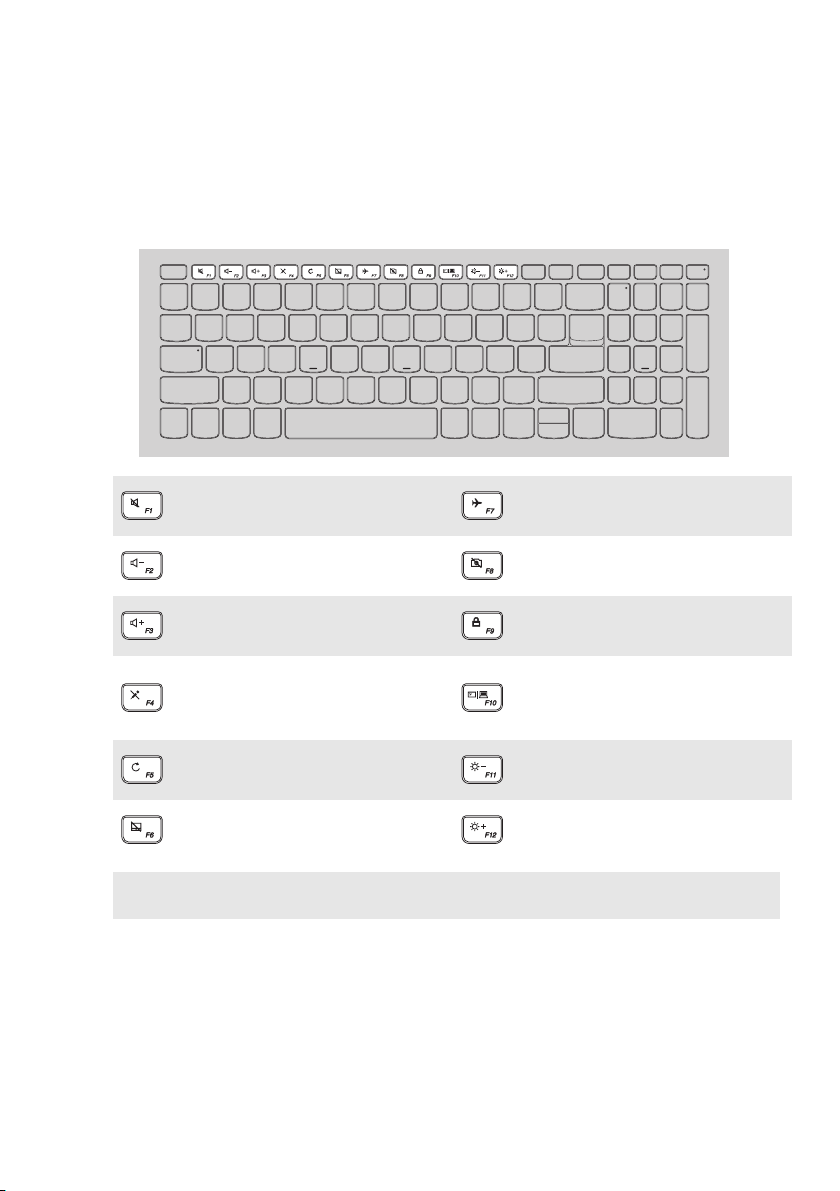

Mutes/unmutes the sound. Enables/disables airplane
mode.
Decreases the volume
level. Enables/disables camera.
Increases the volume level. Locks/unlocks the LCD
screen.
Enables/disables
microphone.
Enables the external
projector or dangles the
external display.
Refreshes page. Decreases display
brightness.
Enables/disables the touch
pad.
Increases display
brightness.
Note: If you changed the Hotkey Mode from Enabled to Disabled in the BIOS setup utility,
you will need to press the Fn key in combination with the appropriate hotkey.

Chapter 1. Getting to know your computer
6
Function key combinations
Through the use of the function keys, you can change operational features
instantly. To use this function, press and hold Fn a; then press one of the
function keys b.
Lenovo ideapad 330-14IKB / ideapad 330-14AST
a
b
Lenovo ideapad 330-15IKB / ideapad 330-15AST / 
ideapad 330-15IKB Touch
a
b

Chapter 1. Getting to know your computer
7
The following describes the features of each function key.

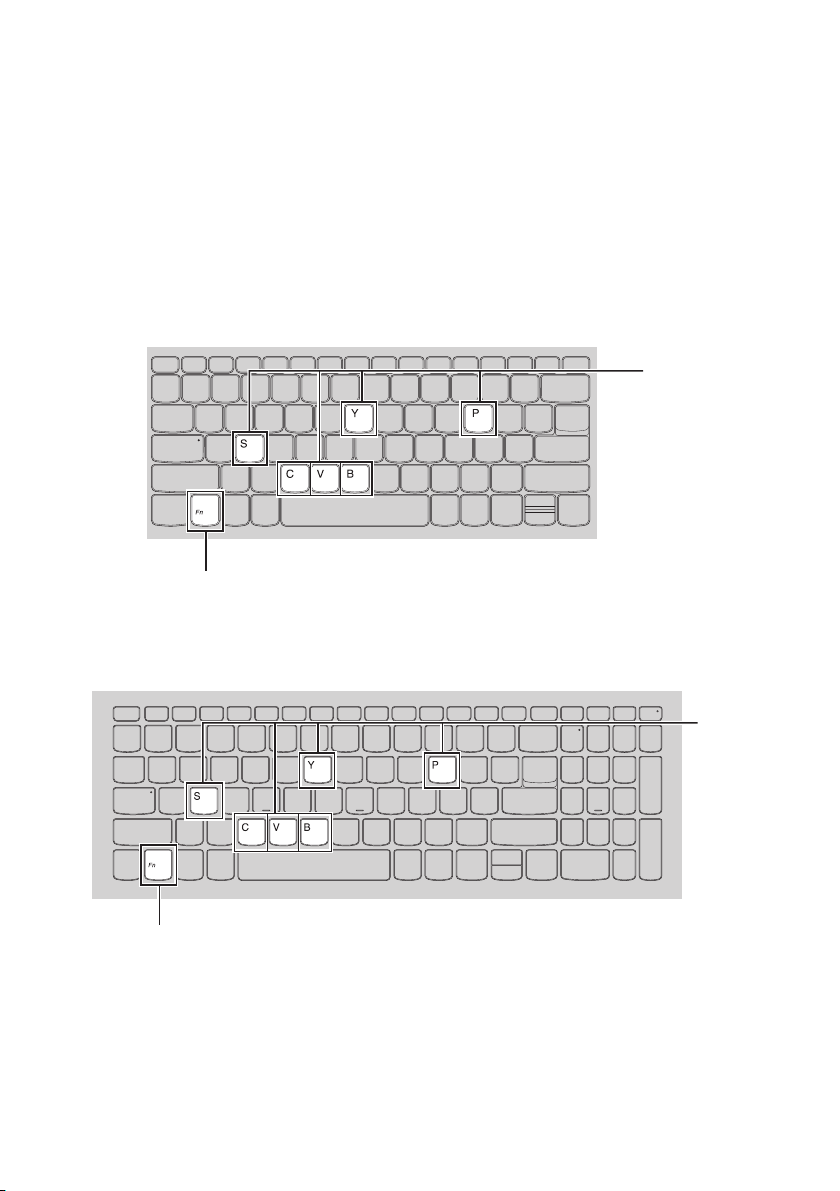

Fn + B: Activates the break function.
Fn + P: Activates the pause function.
Fn + C: Enables/Disables the scroll lock.
Fn + Y: Activates the system request.
Fn + S + V: Set the battery Ship Mode.

Chapter 1. Getting to know your computer
8
Left-side view ---------------------------------------------------------------
Lenovo ideapad 330-14AST / ideapad 330-15AST
ab c d e gf i jk
Lenovo ideapad 330-14IKB / ideapad 330-15IKB / ideapad 330-
15IKB Touch
ab c d e g ih jk
aAC power
adapter jack
Connects to the AC power adapter.

bBattery/Charging
status indicator
AC power
adapter
status
Indicator status Meaning
Disconnected
Off The computer is in sleep mode or turned
off; The battery has more than 20%
charge.
Solid amber The battery has between 5% and 20%
charge.
Fast blinking amber The battery has between 1% and 5%
charge.
Connected
Slow blinking amber The battery is being charged. When
battery charge reaches 20%, the blinking
color changes to white.
Slow blinking white The battery has between 20% and 80%
charge and is still charging. When the
battery reaches 80% charge the light will
stop blinking.
Solid white The battery has more than 80% charge,
charging will continue until the battery
is fully charged.
cRJ-45 port Connects the computer to an Ethernet network.
dHDMI port Connects to devices with HDMI input such as a TV or a
display.
eUSB 3.0 port Connects to USB devices.
Note: For details, see “Connecting USB devices” on page 11.
fUSB 2.0 port (on
select models)
Connects to USB devices.
Note: For details, see “Connecting USB devices” on page 11.
Chapter 1. Getting to know your computer
9

gCombo audio
jack
Connects to headsets.
•The combo audio jack does not support conventional microphones.
•The recording function may not be supported if third-party headphones or headsets are
connected, due to different industry standards.
hType-C port (on
select models)
Type-C port supports:
• USB 3.0 (Gen1, Output 5V DC, 0.9A DC)
iMemory card slot Insert memory cards (not supplied) here.
Note: For details, see “Using memory cards (not supplied)” on page 13.
jNovo button When the computer is off, press this button to start the
System Recovery or the BIOS setup utility, or to enter the
boot menu.
kPower status
indicator
Indicator Indicator status Meaning
Power status
indicator
On (solid white) The computer is powered on.
Blinking The computer is in sleep mode.
Off The computer is powered off.
Chapter 1. Getting to know your computer
10
Notes:

Chapter 1. Getting to know your computer
11
Connecting USB devices
You can connect a USB device to your computer by inserting its USB plug
(Type A) into the USB port on your computer.
The first time you plug a USB device into a particular USB port on your
computer, Windows automatically installs a driver for that device. After the
driver has been installed, you can disconnect and reconnect the device
without performing any additional steps.
Note: Typically, Windows detects a new device after it has been connected, and then installs
the driver automatically. However, some devices may require you to install the driver
before connecting. Check the documentation provided by the device’s manufacturer
before connecting the device.
Before disconnecting a USB storage device, make sure your computer has
finished transferring data to that device. Click the Safely Remove Hardware
and Eject Media icon in the Windows notification area to remove the device
before disconnecting.
Note: If your USB device uses a power cord, connect the device to a power source before
connecting it. Otherwise, the device may not be recognized.

Chapter 1. Getting to know your computer
12

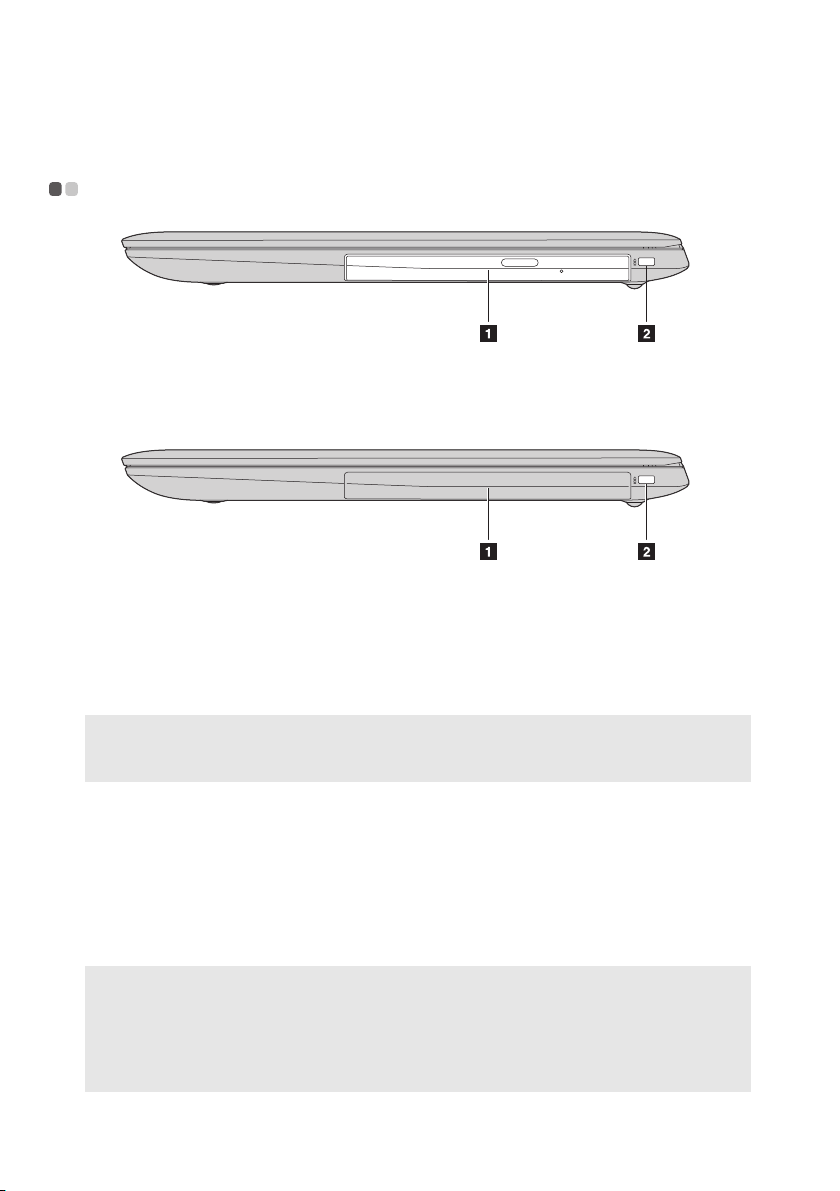

Right-side view ------------------------------------------------------------
aOptical disc drive
(on select
models)
Reads/Burns optical discs.
aDummy module
(on select
models)/hard
disk drive (on
select models)
Note: Some models are supplied with a dummy module. For some models, you can buy an
optical disc drive to replace the dummy module. For some models, you can buy an
optical disc drive or a hard disk drive to replace the dummy module.
bKensington
Security slot
Attach a security lock (not supplied) here to help protect
your computer from theft and unauthorized use. You can
attach a security lock to your computer to help prevent it
from being removed without your permission. For details
on installing the security lock, please refer to the
instructions shipped with the security lock that you have
purchased.
•Before purchasing any security product, verify that it is compatible with this type of
security keyhole.
•You are responsible for evaluating, selecting, and implementing the locking devices and
security features. Lenovo offers no comment, judgment, or warranty regarding the
function, quality, or performance of locking devices and security features.
Notes:

Chapter 1. Getting to know your computer
13
Using memory cards (not supplied)
Your computer supports the following types of memory cards:
• Secure Digital (SD) card
• Secure Digital High Capacity (SDHC) card
• SD eXtended Capacity (SDXC) card
• MultiMediaCard (MMC)
•Insert only one card in the slot at a time.
•This card reader does not support SDIO devices (e.g., SDIO Bluetooth, etc.).
Inserting a memory card
Insert the memory card until it touches the bottom of the slot.
Removing a memory card
Gently pull the memory card out of the memory card slot.
Note: Before removing the memory card, disable it by using the Windows safely remove
hardware and eject media utility to avoid data corruption.
Notes:

Chapter 1. Getting to know your computer
14
Bottom view ------------------------------------------------------------------
aVentilation slots Dissipate internal heat.
Note: Make sure that none of the ventilation slots are blocked, or else overheating of the
computer may occur.
bSpeakers Provide audio output.
