Lenovo IdeaPad Y410p User manual

Lenovo IdeaPad
Y410p/Y510p
Read the safety notices and important tips in the
included manuals before using your computer.
©Lenovo China 2013
User Guide
en-US
Rev. AA00

To refer to it, go to http://support.lenovo.com and click User guides and manuals.
Regulatory Notice
First Edition (February 2013)
© Copyright Lenovo 2013.
Before using the product, be sure to read Lenovo Safety and General Information Guide first.
The features described in this guide are common to most models. Some features may not
be available on your computer or your computer may include features that are not
described in this user guide.
Some instructions in this guide may assume that you are using Windows®8. If you are
using other Windows operating system, some operations may be slightly different. If
you are using other operating systems, some operations may not apply to you.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a General
Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set
forth in Contract No. GS-35F-05925.
Notes
•
•
•
•
The illustrations used in this manual are for Lenovo IdeaPad Y510p unless otherwise stated.
•
The illustrations in this manual may differ from the actual product. Please refer to the
actual product.
•

i
Chapter 1. Getting to know your computer ..................................................................................... 1
Top view ......................................................................................................................................................... 1
Left-side view ................................................................................................................................................ 7
Right-side view............................................................................................................................................ 10
Front view .................................................................................................................................................... 13
Bottom view ................................................................................................................................................. 15
Chapter 2. Starting to use Windows 8............................................................................................17
Configuring the operating system for the first time .............................................................................. 17
Operating system interfaces ...................................................................................................................... 17
The charms ................................................................................................................................................... 18
Putting the computer to sleep or shutting it down ................................................................................ 20
Connecting to wireless LAN ..................................................................................................................... 22
Help and support ........................................................................................................................................ 23
Chapter 3. Lenovo OneKey Recovery System .............................................................................. 24
Chapter 4. Troubleshooting ............................................................................................................ 25
Frequently asked questions ....................................................................................................................... 25
Troubleshooting .......................................................................................................................................... 27
Appendix. CRU instructions............................................................................................................ 31
Replacing the battery pack......................................................................................................................... 31
Replacing the removable module ............................................................................................................. 32
Trademarks....................................................................................................................................... 34
Contents

1
Chapter 1. Getting to know your computer

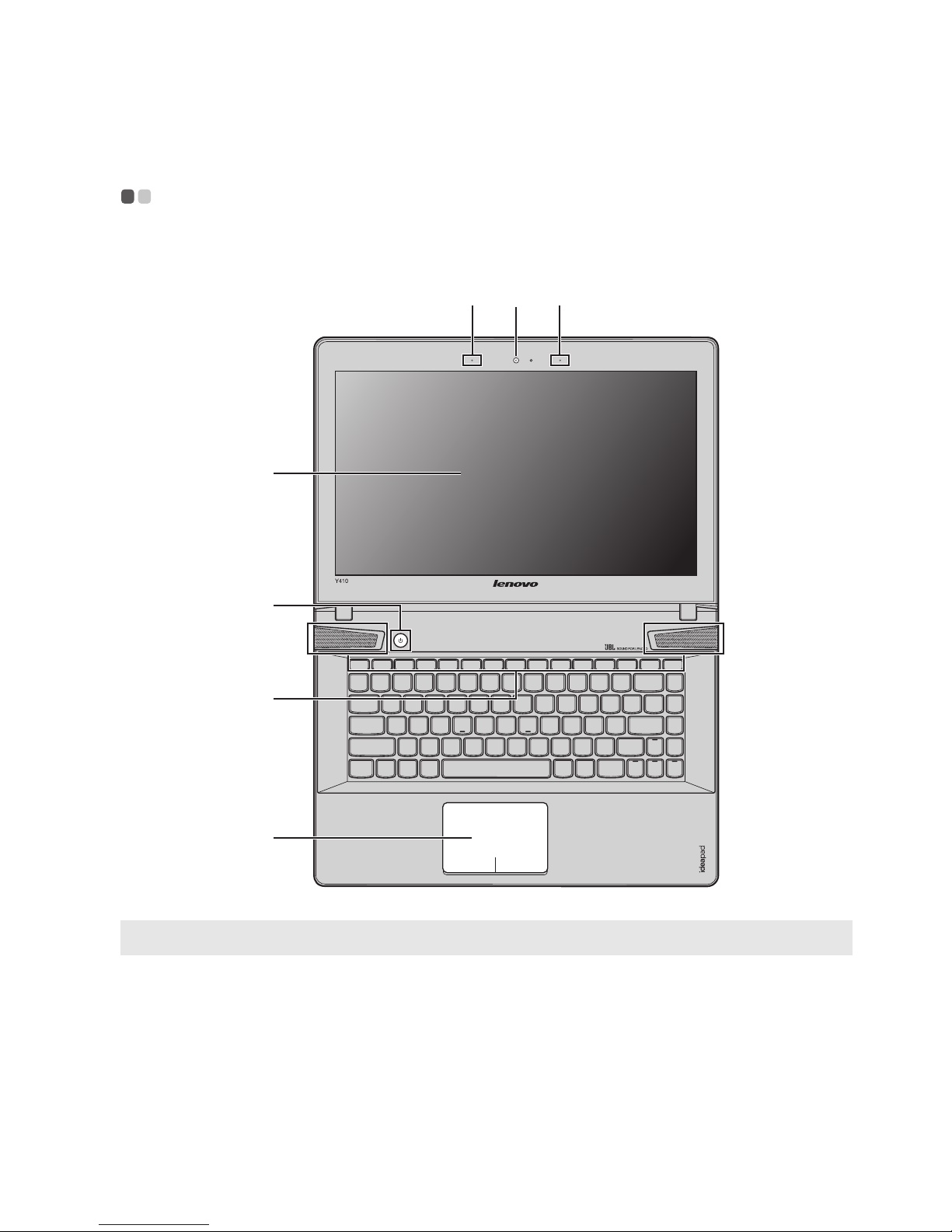

Top view ---------------------------------------------------------------------------------------------------------------------------
Y410p
Note: The illustrations in this manual may differ from the actual product. Please refer to the actual product.
Attention:
•Do not open the display panel beyond 130 degrees. When closing the display panel, be careful not to
leave pens or any other objects in between the display panel and the keyboard. Otherwise, the display
panel may be damaged.
d
f
e
abb
c


2
Chapter 1. Getting to know your computer
Y510p
Integrated camera Use the camera for video communication.
Built-in microphone
(with noise reduction)
Captures sound which can be used for video conferencing, voice narration,
or audio recording.
Computer display Provides brilliant visual output.
Power button Press this button to turn on the computer.
JBL speakers Provide the audio output.
$
'
&
)
(
% %
*
a
b
c
d
e

Chapter 1. Getting to know your computer
3
Touch pad The touch pad functions as a conventional mouse.
One piece multi-touch ClickPad: To move the pointer on the screen, slide
your fingertip over the pad in the direction in which you want the pointer
to move.
Left-click area: Clicking in this area corresponds to the functions of
clicking the left button on a conventional mouse.
Right-click area: Clicking in this area corresponds to the functions of
clicking the right button on a conventional mouse.
Note: You can enable/disable the touch pad by pressing Fn + .
Numeric keypad
(Y510p)
For details, see “Using the keyboard” on page 4.
f
g

4
Chapter 1. Getting to know your computer
Using the keyboard
Your computer has a numeric keypad and function keys incorporated in its standard keyboard.

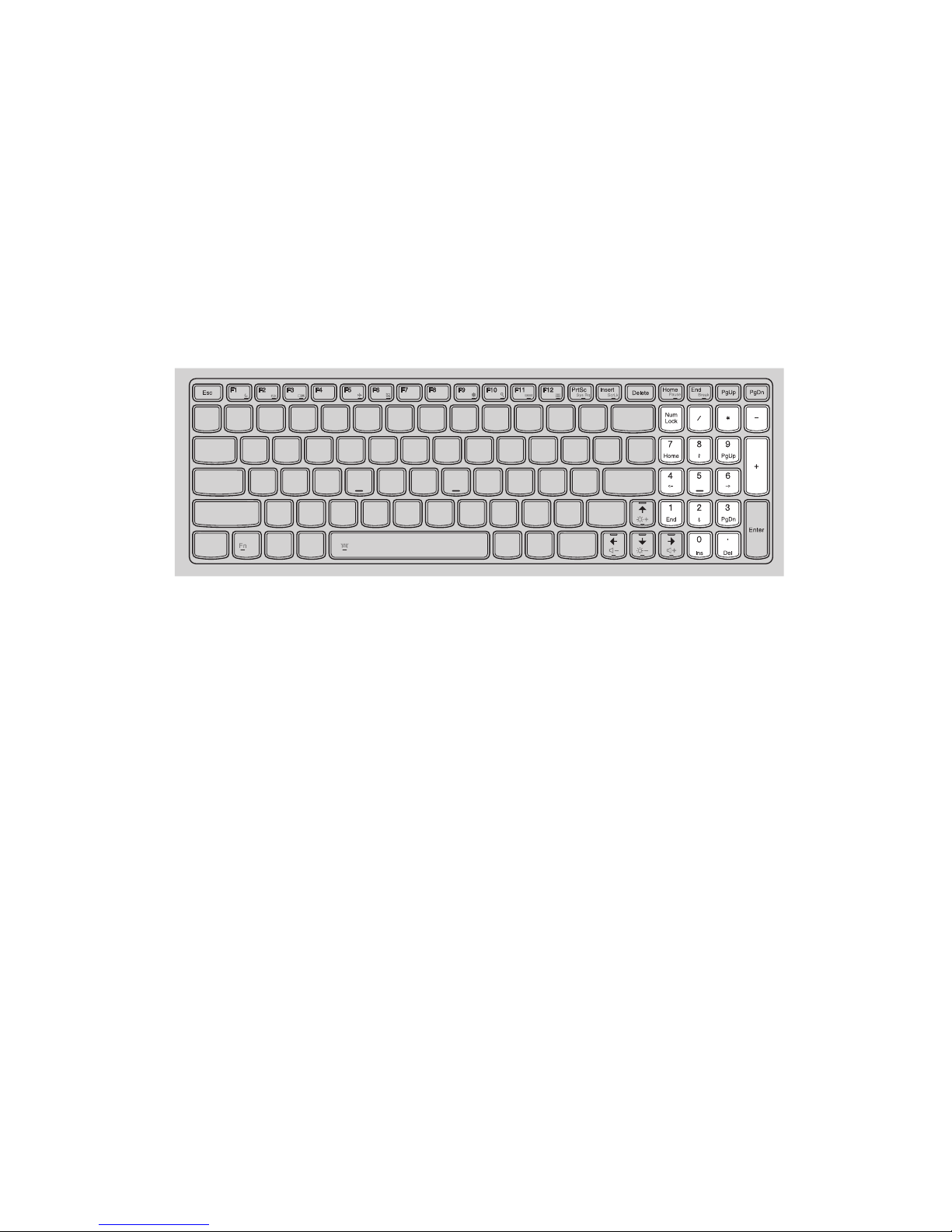

Numeric keypad
Y510p
The keyboard has a separate numeric keypad. To enable or disable the numeric keypad, press
the Num Lock key.

Chapter 1. Getting to know your computer
5

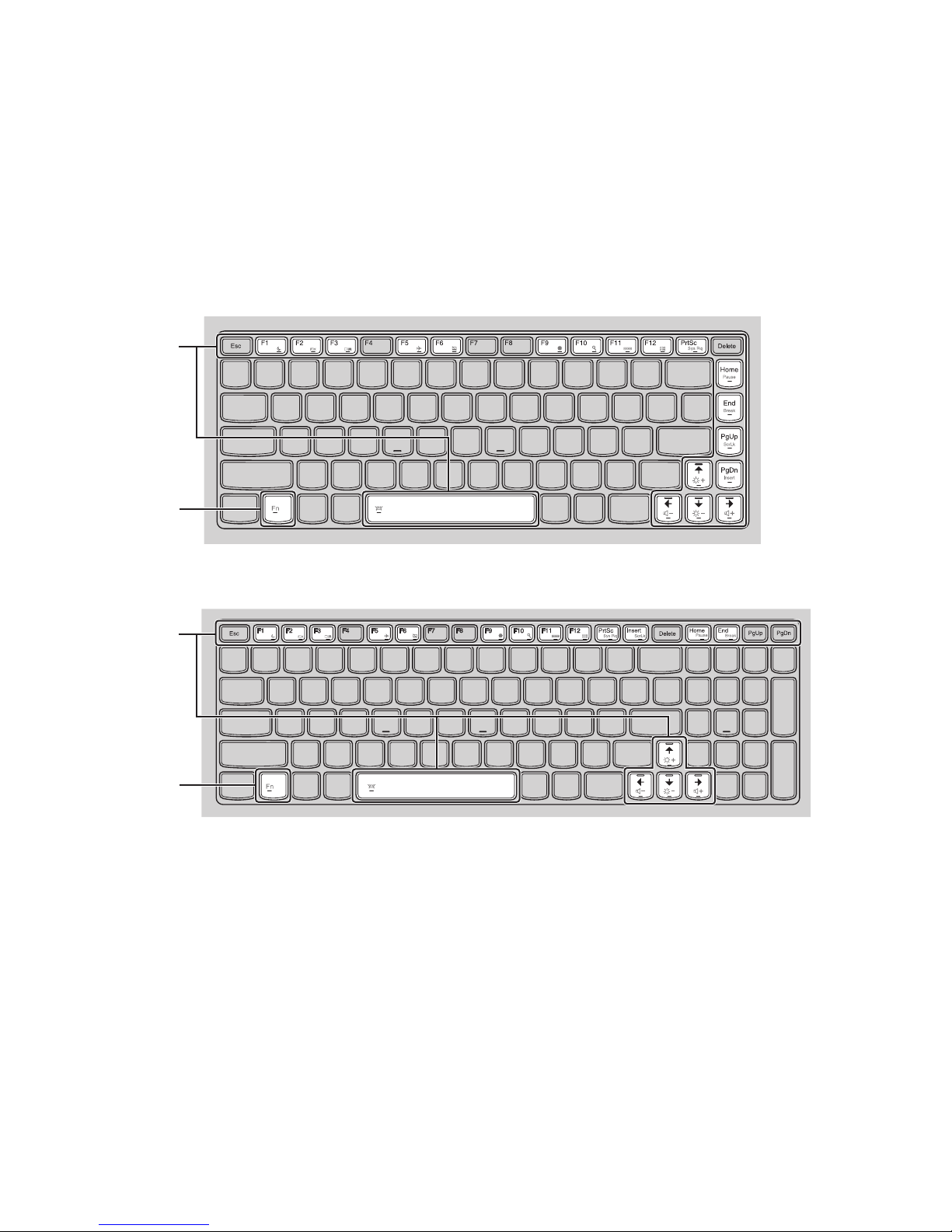

Function key combinations
Through the use of the function keys, you can change operational features instantly. To use this
function, press and hold Fn ; then press one of the function keys .
Y410p
Y510p
a
b
b
a
b
a

6
Chapter 1. Getting to know your computer
The following describes the features of each function key.
Fn + Esc: Cancels hotkey.
Fn + F1: Enters sleep mode.
Fn + F2: Turns on/off the backlight of the LCD screen.
Fn + F3: Opens the interface for selecting display options.
Fn + F5: Enables/disables Airplane mode.
Fn + F6: Enables/disables the touch pad.
Fn + F9: Opens the Settings charm.
Fn + F10: Opens the Search charm.
Fn + F11: Displays current apps.
Fn + F12: Displays all apps.
Fn + PrtSc: Activates the system request.
Fn + Insert (Y510p):
Fn + PgUp (Y410p): Enables/disables the scroll lock.
Fn + Home: Activates the pause function.
Fn + End: Activates the break function.
Fn + PgDn (Y410p): Activates the insert function.
Fn + /:Increases/decreases the display brightness.
Fn + /:Increases/decreases the volume.
Fn + Space
(on select models): Turns on/off the keyboard backlight.

Chapter 1. Getting to know your computer
7
Left-side view --------------------------------------------------------------------------------------------------------------
Y410p
Y510p
Novo button When the computer is off or in hibernation mode, press this button to start
the Lenovo OneKey Recovery System or the BIOS setup utility, or to enter
the boot menu.
AC power adapter
jack
Connect the AC power adapter here.
Ventilation slots Dissipate internal heat.
Note: Make sure that the ventilation slots are not blocked or else the computer may overheat.
VGA port Connects to external display devices.
RJ-45 port Connects the computer to an Ethernet network.
HDMI port Connects to devices with HDMI input such as a TV or an external display.
USB port Connects to USB devices.
Note: The blue port supports USB 3.0.
a b c d e f g
a b
c
d e f g
a
b
c
d
e
f
g

8
Chapter 1. Getting to know your computer

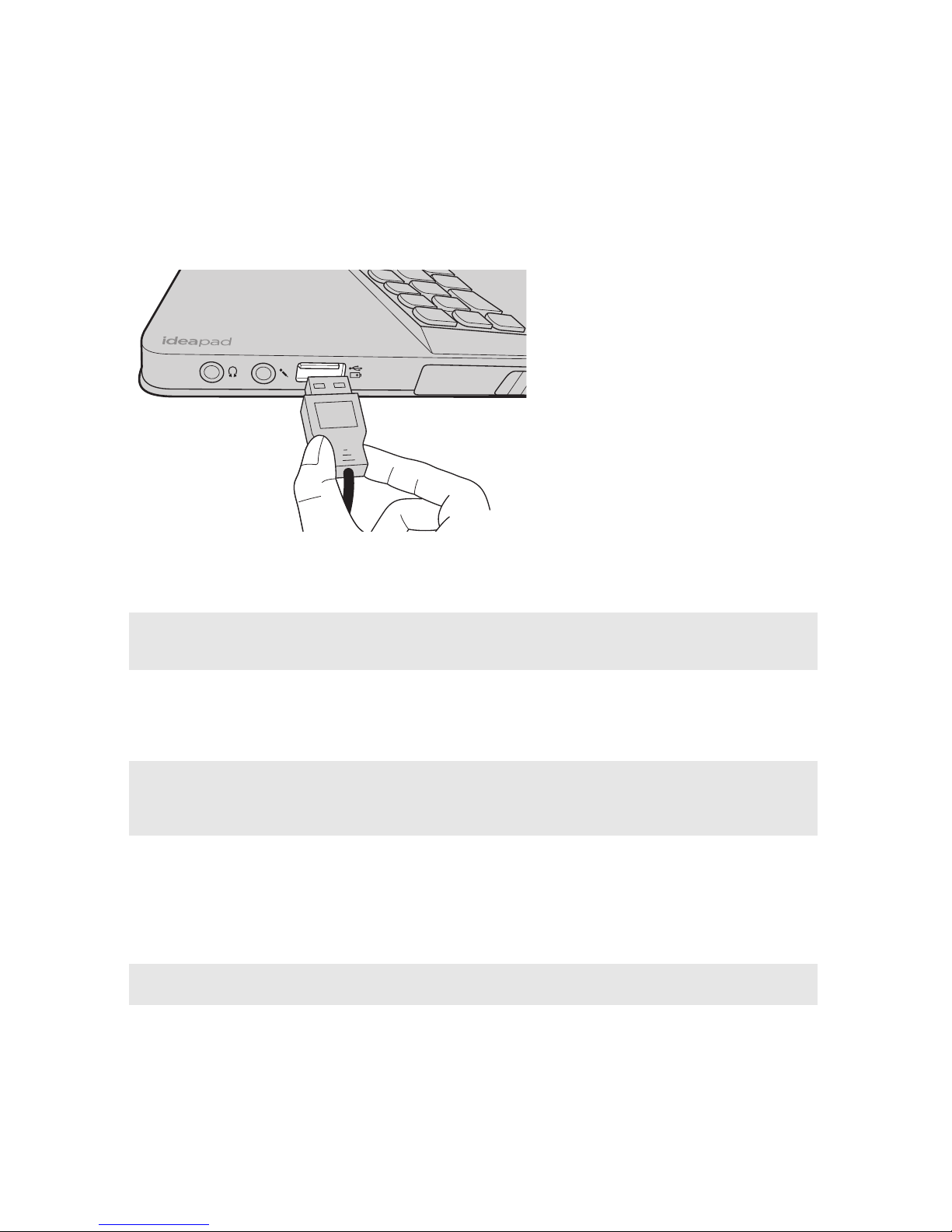

Connecting USB devices
You can connect a USB device to your computer by inserting its USB plug (Type A) into the USB
port on your computer.
The first time you plug a USB device into a particular USB port on your computer, Windows
automatically installs a driver for that device. After the driver has been installed, you can
disconnect and reconnect the device without performing any additional steps.
Before disconnecting a USB storage device, make sure your computer has finished transferring
data to that device. Click the Safely Remove Hardware and Eject Media icon in the Windows
notification area to remove the device before disconnecting.
Connecting a Bluetooth device
If your computer has an integrated Bluetooth adapter card, it can connect to and transfer data
wirelessly to other Bluetooth enabled devices, such as notebook computers, PDAs and cell
phones. You can transfer data between these devices up to 10 meters range in open space.
Note: Typically, Windows detects a new device after it has been connected, and then installs the driver
automatically. However, some devices may require you to install the driver before connecting.
Check the documentation provided by the device’s manufacturer before connecting the device.
Notes:
•If your USB device uses a power cord, connect the device to a power source before connecting it.
Otherwise, the device may not be recognized.
•When in sleep mode, you can only use the keyboard instead of the mouse to wake up the computer.
Note: The actual maximum range may vary due to interference and transmission barriers. For best
transfer speed, place the device as near your computer as possible.

Chapter 1. Getting to know your computer
9
Enabling Bluetooth communications on your computer
Press Fn + to make configuration.
Notes:
•When you do not need to use the Bluetooth function, turn it off to save battery power.
•You need to pair the Bluetooth enabled device with your computer before you can transfer data
between them. Read the documentation supplied with the Bluetooth enabled device for details on how
to pair the device with your computer.

10
Chapter 1. Getting to know your computer

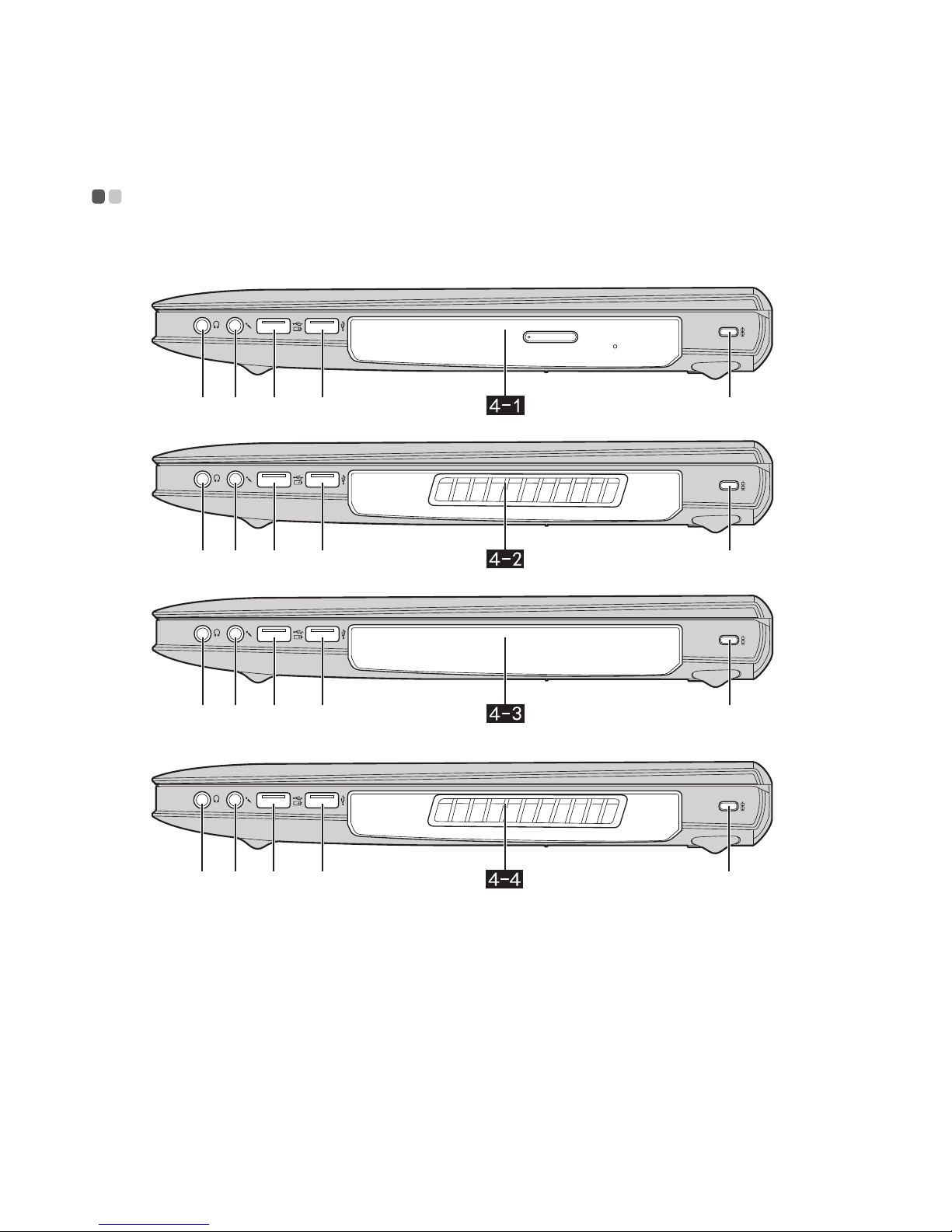

Right-side view ----------------------------------------------------------------------------------------------------------
Y410p
$ % & & (
$ %
&
(&
$ %
&
(&
$ % & & (

Chapter 1. Getting to know your computer
11
Y510p
Headphone jack Connects to external headphones.
Attention:
•Listening to music at high volume over extended periods of time may damage your hearing.
Microphone jack Connects to external microphones.
$ % & (
$ % & (
$ % & (
$ % & (
a

b

12
Chapter 1. Getting to know your computer
USB port Connects to USB devices.
Notes:
•The yellow port supports USB 2.0.
•For details, see “Connecting USB devices” on page 8.
•When turned off, the port can charge most currently available external USB devices. Support of
future USB devices cannot be guaranteed.
•The USB-always-on function (enabled in BIOS Setup Utility) is available only when the battery
pack or the AC power adapter is connected to the computer. If an external USB device cannot be
charged, connect the AC power adapter to activate.
Removable optical disc drive
(Optional)
Reads/Burns optical discs.
Removable graphics (Optional)
Removable hard disk drive (Optional) Removable fan (Optional)
Note: The computer is supplied with an optical disc drive, a dummy optical disc drive, or removable
graphics.
Kensington lock slot Attach a security lock (not supplied) here to help
protect your computer from theft and unauthorized
use.
You can attach a security lock to your computer to help
prevent it from being removed without your
permission. For details on installing the security lock,
please refer to the instructions shipped with the
security lock that you have purchased.
Notes:
•Before purchasing any security product, verify that it is compatible with this type of security
keyhole.
•You are responsible for evaluating, selecting, and implementing the locking devices and security
features. Lenovo offers no comment judgment or warranty regarding the function, quality or
performance of locking devices and security features.
c
4-1
4-2
4-3
4-4
e

Chapter 1. Getting to know your computer
13
Front view -----------------------------------------------------------------------------------------------------------------------
Y410p
Y510p
System status
indicators
Power indicator
Battery status indicator
Touch pad indicator
Caps lock indicator
Num lock indicator
Memory card slot Insert memory cards (not supplied) here.
b
a
b
a
a
b

14
Chapter 1. Getting to know your computer
Using memory cards (not supplied)
Your computer supports the following types of memory cards:
• Secure Digital (SD) card
• Secure Digital High Capacity (SDHC)
• Secure Digital Extended Capacity(SDXC)
• MultiMediaCard (MMC)
• Memory Stick (MS)
• Memory Stick PRO (MS PRO)
Inserting a memory card
1 Push the dummy card in until you hear a click.
2 Gently pull the dummy card out of the memory card slot.
3 Slide the memory card in until it clicks into place.
Removing a memory card
1 Push the memory card in until you hear a click.
2 Gently pull the memory card out of the memory card slot.
Notes:
•Insert only one card in the slot at a time.
•This card reader does not support SDIO devices (e.g., SDIO Bluetooth and so on.).
Note: The dummy card is used for preventing dust and small particles from entering the inside of your
computer when the memory card slot is not in use. Retain the dummy card for future use.
Note: Before removing the memory card, disable it by using the Windows safely remove hardware and
eject media utility to avoid data corruption.

Chapter 1. Getting to know your computer
15

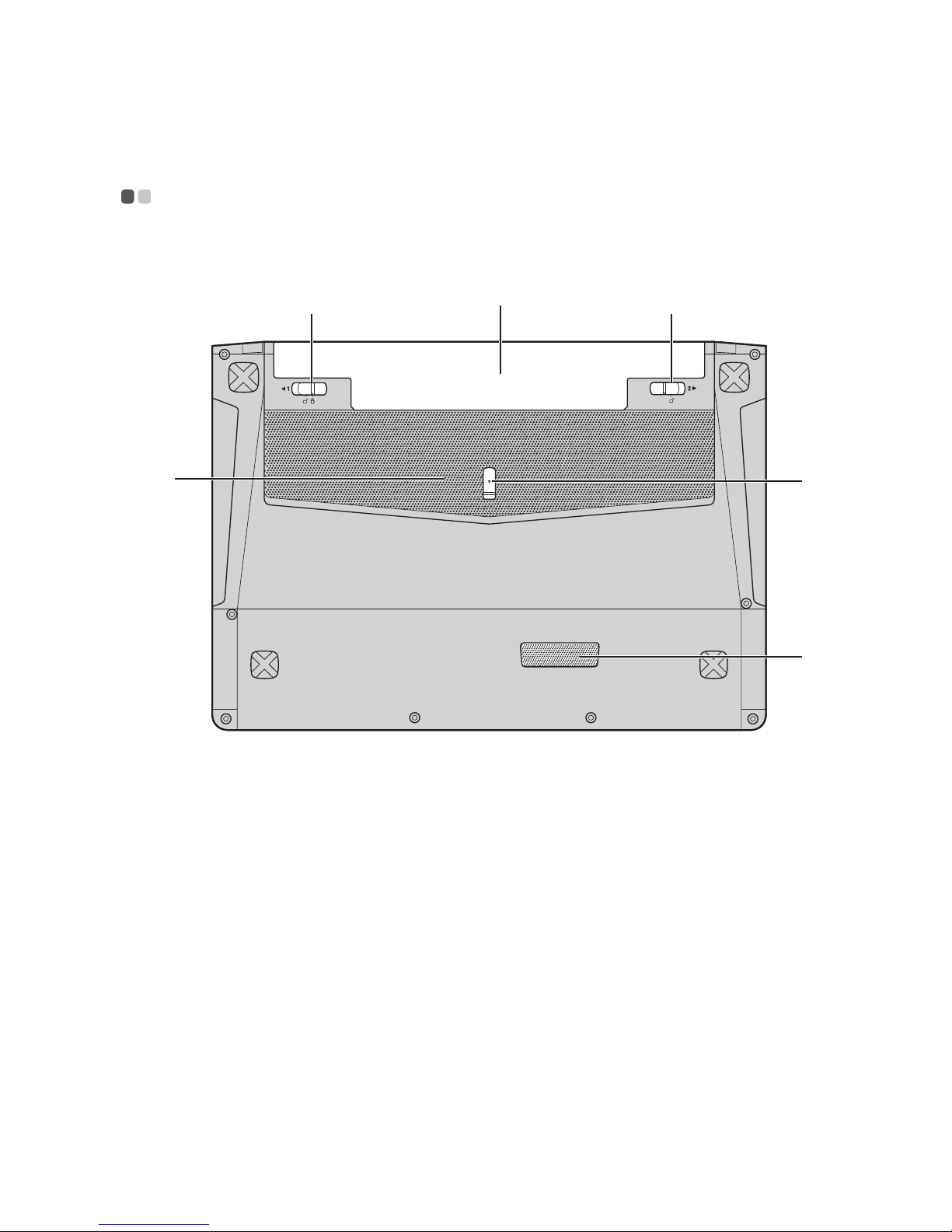

Bottom view ------------------------------------------------------------------------------------------------------------------
Y410p
%
(
$ &
'
(

16
Chapter 1. Getting to know your computer

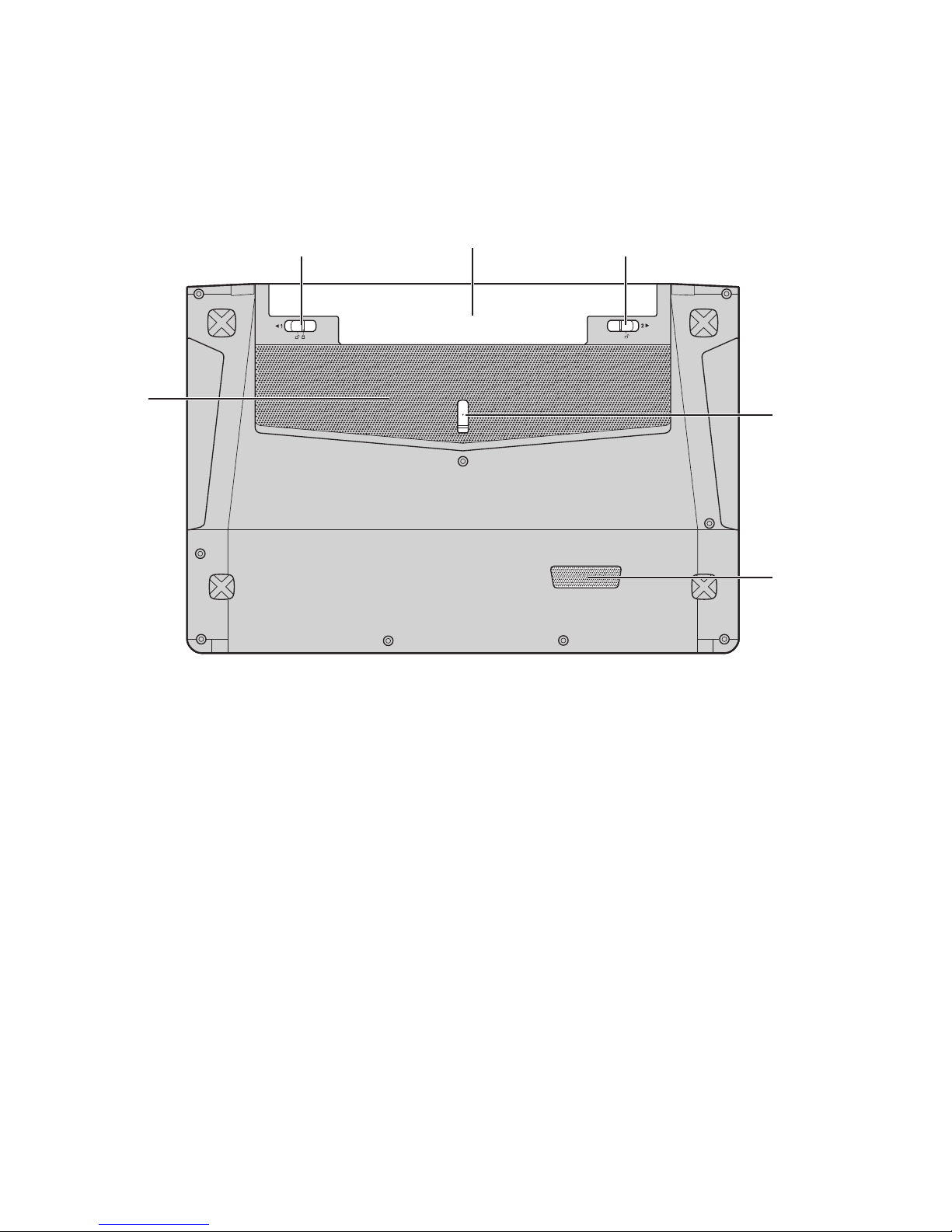

Y510p
Battery pack latch -
manual
The manual battery pack latch is used to keep the battery pack secured in
place.
Battery pack
Battery pack latch -
spring loaded
The spring-loaded battery pack latch keeps the battery pack secured in
place.
Removable module
lock
Louvers Allow air to enter the computer for cooling.
%
(
$ &
'
(
a
b
c
d
e
