Lenovo V530s-14IKB User manual

Read the safety notices and important tips in the
included manuals before using your computer.
Lenovo V530s-14IKB
User Guide

First Edition (December 2017)
© Copyright Lenovo 2017.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or soware is delivered pursuant to a General
Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set
forth in Contract No. GS-35F-05925.
For details, refer to Guides & Manuals at hp://support.lenovo.com.
Regulatory Notice
Before using the product, be sure to read Lenovo Safety and General Information Guide first.
The features described in this guide are common to most models. Some features may not
be available on your computer or your computer may include features that are not
described in this user guide.
Some instructions in this guide may assume that you are using Windows®10. If you are
using another Windows operating system, some operations may be slightly different. If
you are using other operating systems, some operations may not apply to you.
Notes
•
•
•
•
The illustrations in this manual may differ from the actual product. Please refer to the
actual product.
•
- To view compliance information go to: hp://www.lenovo.com/compliance
-
To download environmental information go to: hp://www.lenovo.com/ecodeclaration
The latest electronic compliance and environmental information are available from the
Lenovo compliance information Web sites.
•

i
Contents
Chapter 1. Getting to know your computer .................................................................................... 1
Top view......................................................................................................................................................... 1
Left-side view................................................................................................................................................ 5
Right-side view.............................................................................................................................................. 8
Bottom view................................................................................................................................................. 10
Chapter 2. Starting to use Windows 10......................................................................................... 11
Configuring the operating system for the first time.............................................................................. 11
Operating system interface........................................................................................................................ 11
Putting the computer to sleep or shutting it down................................................................................ 13
Task and desktop management................................................................................................................ 15
Connecting to a wireless network ............................................................................................................ 16
Chapter 3. Recovery system .......................................................................................................... 17
Reset this PC................................................................................................................................................ 17
Chapter 4. Troubleshooting............................................................................................................ 18
Frequently asked questions....................................................................................................................... 18
Troubleshooting.......................................................................................................................................... 20
Trademarks...................................................................................................................................... 24

1
Chapter 1. Getting to know your computer
Top view ------------------------------------------------------------------------------------------
Attention:
•Do not open the display panel beyond 180 degrees. When closing the display panel, be careful not to leave
pens or any other objects in between the display panel and the keyboard. Otherwise, the display panel
may be damaged.
Note: The dashed areas indicate parts that are not visible externally.

2
Chapter 1. Getting to know your computer
aIntegrated camera Use the camera for video communication or taking photos.
bBuilt-in microphone Captures sound which can be used for video conferencing, voice
narration, or audio recording.
cComputer display Provides brilliant visual output.
dWireless LAN antennas Connect to a wireless LAN adapter to send and receive wireless radio
signals.
eVentilation slots Dissipate internal heat.
Note: Make sure that the ventilation slots are not blocked or else the computer may overheat.
fPower button Press this button to turn on the computer.
gTouchpad The touchpad functions as a conventional mouse.
One piece multi-touch ClickPad: To move the pointer on the screen,
slide your fingertip over the pad in the direction in which you want the
pointer to move.
Left-click area: Clicking in this area corresponds to the functions of
clicking the left button on a conventional mouse.
Right-click area: Clicking in this area corresponds to the functions of
clicking the right button on a conventional mouse.
Note: You can enable/disable the touchpad by pressing F6 ( ).

Chapter 1. Getting to know your computer
3
Using the keyboard
Function key combinations
Through the use of the function keys, you can change operational features instantly. To use this
function, press and hold Fn ; then press one of the function keys .
The following describes the features of each function key.

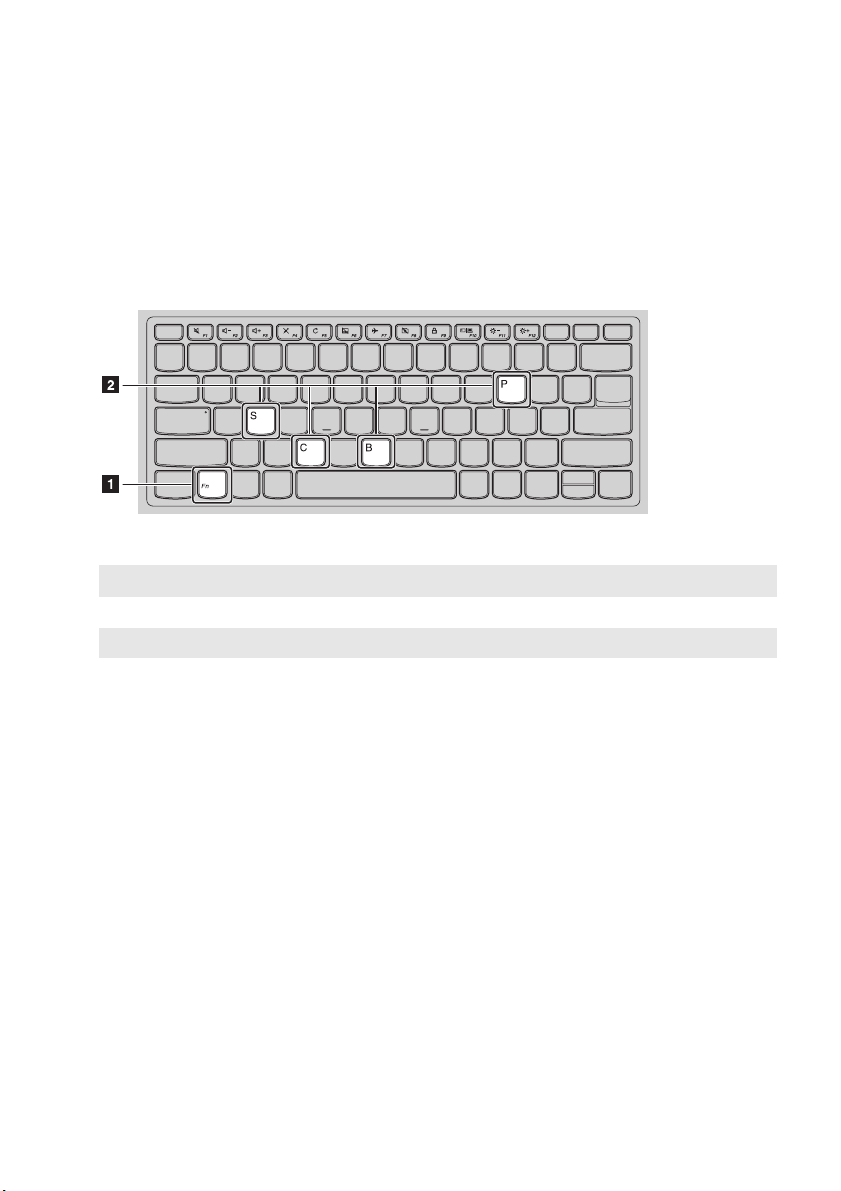

Fn + B: Activates the break function.
Fn + P: Activates the pause function.
Fn + C: Enables/disables the scroll lock.
Fn + S: Activates the system request.
a
b

4
Chapter 1. Getting to know your computer
Hotkeys
You can access certain system settings quickly by pressing the appropriate hotkeys.
:Mutes/unmutes the sound. :Enables/disables Airplane mode.
: Decreases the volume level. : Enables/disables the integrated
camera.
:Increases the volume level. :Locks the screen.
: Enables/disables the microphone. :
Toggles the display between the
computer and an external
display device.
:Refreshes the desktop or the
currently active window. :Decreases the display brightness.
: Enables/disables the touchpad. : Increases the display brightness.
Note: You can use the Lenovo Setting to enable/disable the hotkey function.

Chapter 1. Getting to know your computer
5
Left-side view --------------------------------------------------------------------------------
aAC power adapter jack Connects to the AC power adapter.
bPower status indicator
Indicator Indicator status Meaning
Power status
indicator
On (solid white) Connect the AC power adapter (plugged into a working
electrical outlet) to the computer.
Off The computer is powered off.
cUSB 2.0 port Connects to USB devices.
Note: For details, see “Connecting USB device” on page 7.
dCombo audio jack Connects to headsets.
Notes:
•The combo audio jack does not support conventional microphones.
•The recording function might not be supported if third-party headphones or headsets are connected,
due to different industry standards.
eNovo button When the computer is off, press this button to start the recovery system
or the BIOS setup utility, or to enter the boot menu.
Notes:
•You can use the tip of an unfolded paper clip (or similar object without a sharp tip) to gently press the
Novo button.
•For details, see “Recovery system” on page 17.

6
Chapter 1. Getting to know your computer
fBattery status indicator
AC power
adapter status Indicator status Meaning
Disconnected
Off The computer is in sleep mode or turned off; The battery has
more than 20% charge.
Solid amber The battery has between 5% and 20% charge.
Fast blinking amber The battery has between 1% and 5% charge.
Connected
Slow blinking
amber
The battery is being charged. When battery charge reaches
20%, the blinking color changes to white.
Slow blinking white
The battery has between 20% and 80% charge and is still
charging. When the battery reaches 80% charge the light will
stop blinking.
Solid white The battery has more than 80% charge, charging will continue
until the battery is fully charged.

Chapter 1. Getting to know your computer
7
Connecting USB device

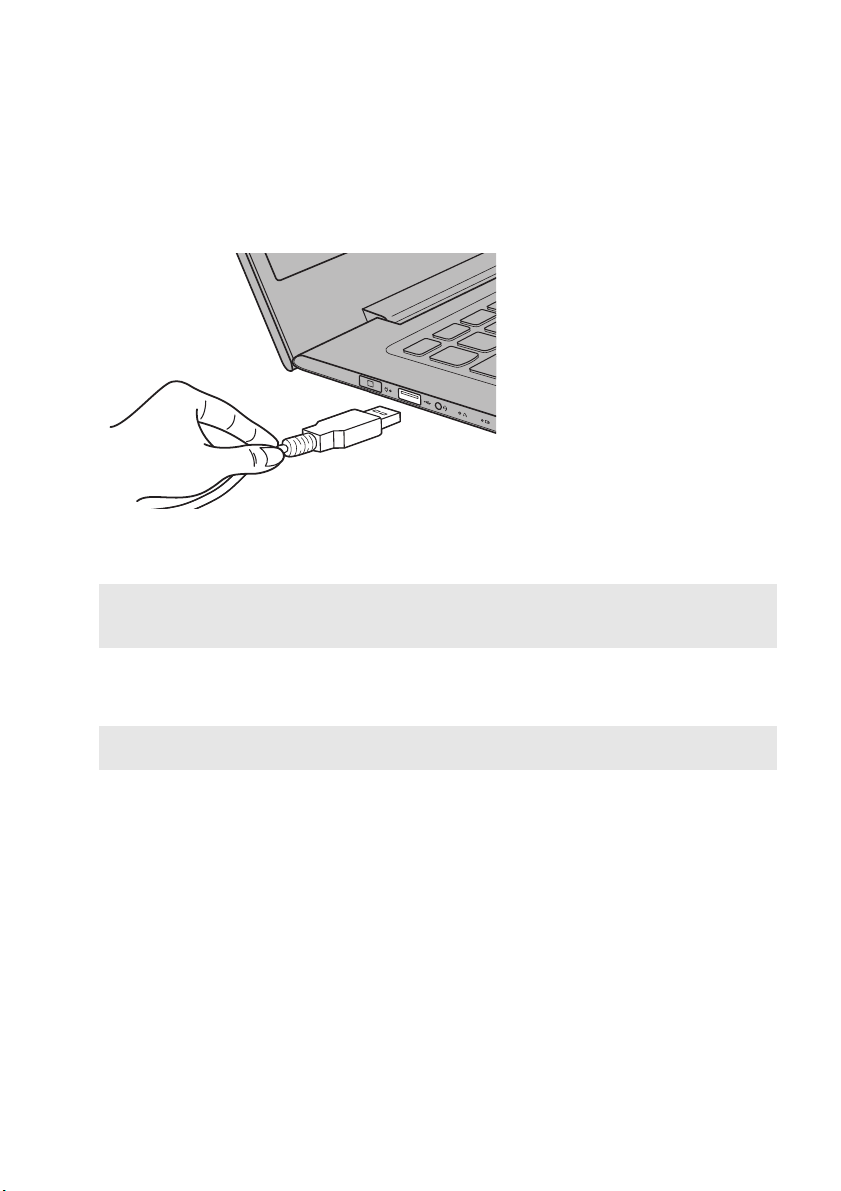

You can connect a USB device to your computer by inserting its USB plug (Type A) into the USB
port on your computer.
The first time you plug a USB device into a particular USB port on your computer, Windows
automatically installs a driver for that device. After the driver has been installed, you can
disconnect and reconnect the device without performing any additional steps.
Before disconnecting a USB storage device, make sure your computer has finished transferring
data to that device. Click the Safely Remove Hardware and Eject Media icon in the Windows
notification area to remove the device before disconnecting.
Note: Typically, Windows detects a new device after it has been connected, and then installs the driver
automatically. However, some devices may require you to install the driver before connecting. Check
the documentation provided by the device’s manufacturer before connecting the device.
Note: If your USB device uses a power cord, connect the device to a power source before connecting it.
Otherwise, the device may not be recognized.

8
Chapter 1. Getting to know your computer
Right-side view -----------------------------------------------------------------------------
aMemory card slot Accepts memory cards (not supplied).
Note: For details, see “Using memory cards (not supplied)” on page 9.
bType -C port Type-C port supports:
•USB 3.0
cUSB 3.0 port Connects to USB devices.
Notes:
•When the computer is on, the USB port supports charging function.
•For details, see “Connecting USB device” on page 7.
dHDMI port Connects to devices with HDMI input such as a TV or an external
display.

Chapter 1. Getting to know your computer
9
Using memory cards (not supplied)
Your computer supports the following types of memory cards:
• Micro Secure Digital (SD) card
• Secure Digital High Capacity (SDHC) card
• Secure Digital eXtended Capacity (SDXC) card
• MultiMediaCard (MMC)
Inserting a memory card
Insert the memory card until it touches the bottom of the slot.
Removing a memory card
Gently pull the memory card out of the memory card slot.
Notes:
•Insert only one card in the slot at a time.
•This card reader does not support SDIO devices (e.g., SDIO Bluetooth, etc.).
Note: Before removing the memory card, disable it by using the Windows safely remove hardware and eject
media utility to avoid data corruption.

10
Chapter 1. Getting to know your computer
Bottom view -----------------------------------------------------------------------------------
aLouvers Allow air to enter the computer for cooling.
bSpeakers Provide audio output.

11
Chapter 2. Starting to use Windows 10
Configuring the operating system for the first time ------------
You may need to configure the operating system when it is first used.
The configuration process may include the procedures below:
• Accepting the end user license agreement
• Configuring the Internet connection
• Registering the operating system
• Creating a user account
Operating system interface--------------------------------------------------------

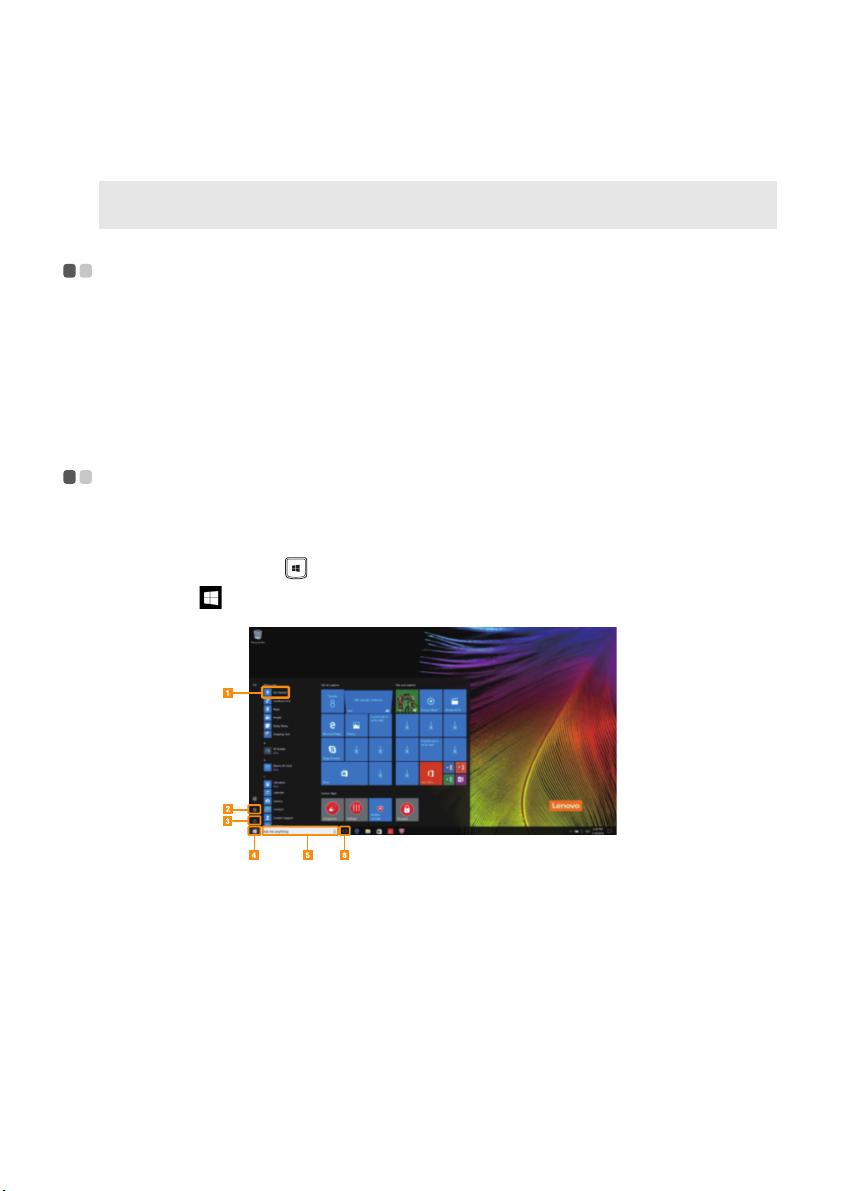

Windows 10 comes with a powerful and useful start menu.
To open the start menu, do one of the following:
• Press the Windows key on the keyboard.
• Select Start on the lower-left corner of the desktop.
Note: Windows®10 has an updated version. If you are using the updated version, some operations may be
different. Please refer to the actual product.
aGet Started app dStart button
bSettings button eSearch box
cPower button fTask view button

12
Chapter 2. Starting to use Windows 10
Settings

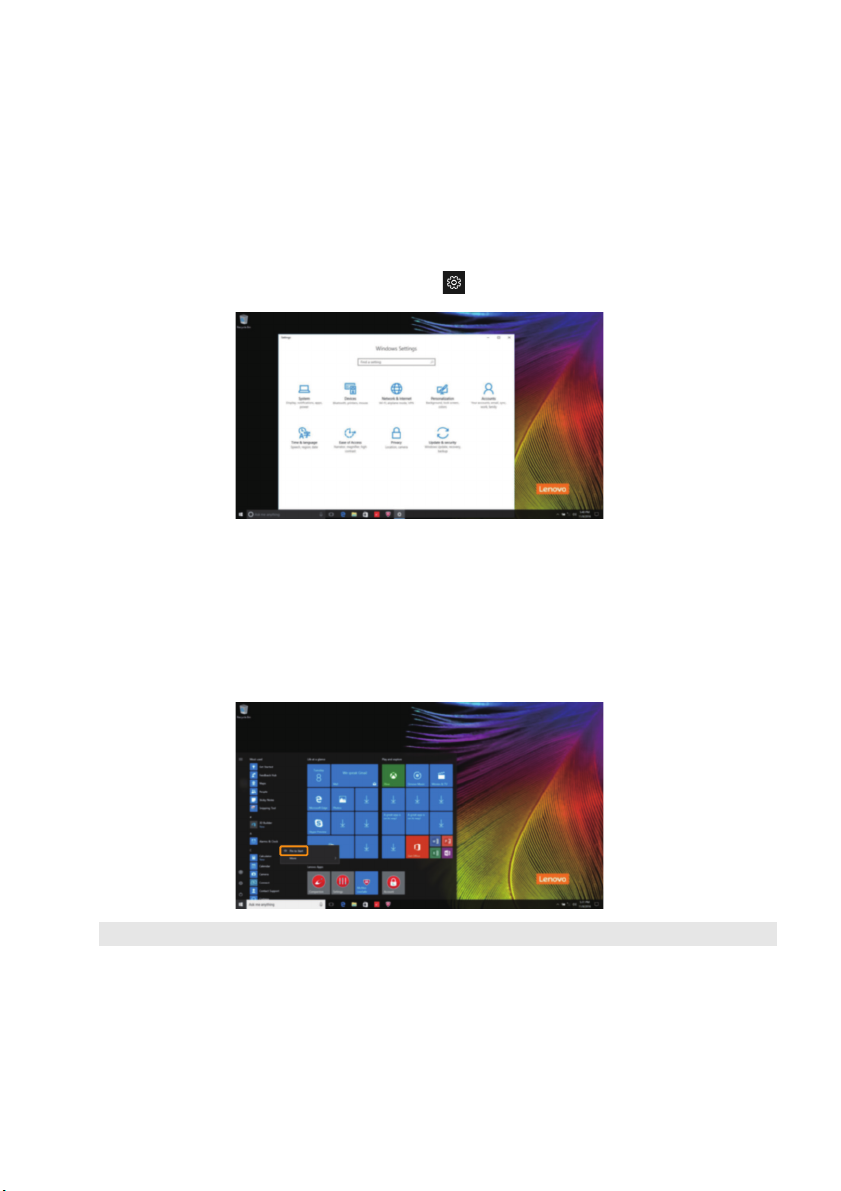

Settings lets you perform basic tasks. You can also search for more settings with the settings
search box in the upper-right corner.
To open the settings, do the following:
• Open the start menu, and then select Settings .
Personalize the start menu
You can personalize the start menu with your favorite apps.
To personalize the start menu, do the following:
1Open the start menu and find the apps list on the left.
2Right click the app you want to add to the start menu, and then select Pin to Start.
Note: You can also drag apps from the apps list to add them to the start menu.

Chapter 2. Starting to use Windows 10
13
Putting the computer to sleep or shutting it down --------------
When you have finished working with your computer, you can put it to sleep or shut it down.
Putting your computer to sleep
If you will be away from your computer for only a short time, put the computer to sleep.
When the computer is in sleep mode, you can quickly wake it to resume use, bypassing the
startup process.
To put the computer to sleep, do one of the following:
• Close the display lid.
• Press the Power button.
• Open the start menu, and then select Power Sleep.
To wake the computer, press any key on the keyboard.
Note: Wait until the power indicator light starts blinking (indicating that the computer is in sleep mode)
before you move your computer. Moving your computer while the hard disk is spinning can damage
the hard disk, causing loss of data.

14
Chapter 2. Starting to use Windows 10
Shutting down the computer
If you are not going to use your computer for a long time, shut it down.
To shut down the computer, do one of the following:
• Open the start menu, and then select Power Shut down.
• Right-click the Start button in the lower-left corner and select Shut down or sign out
Shut down.

Chapter 2. Starting to use Windows 10
15

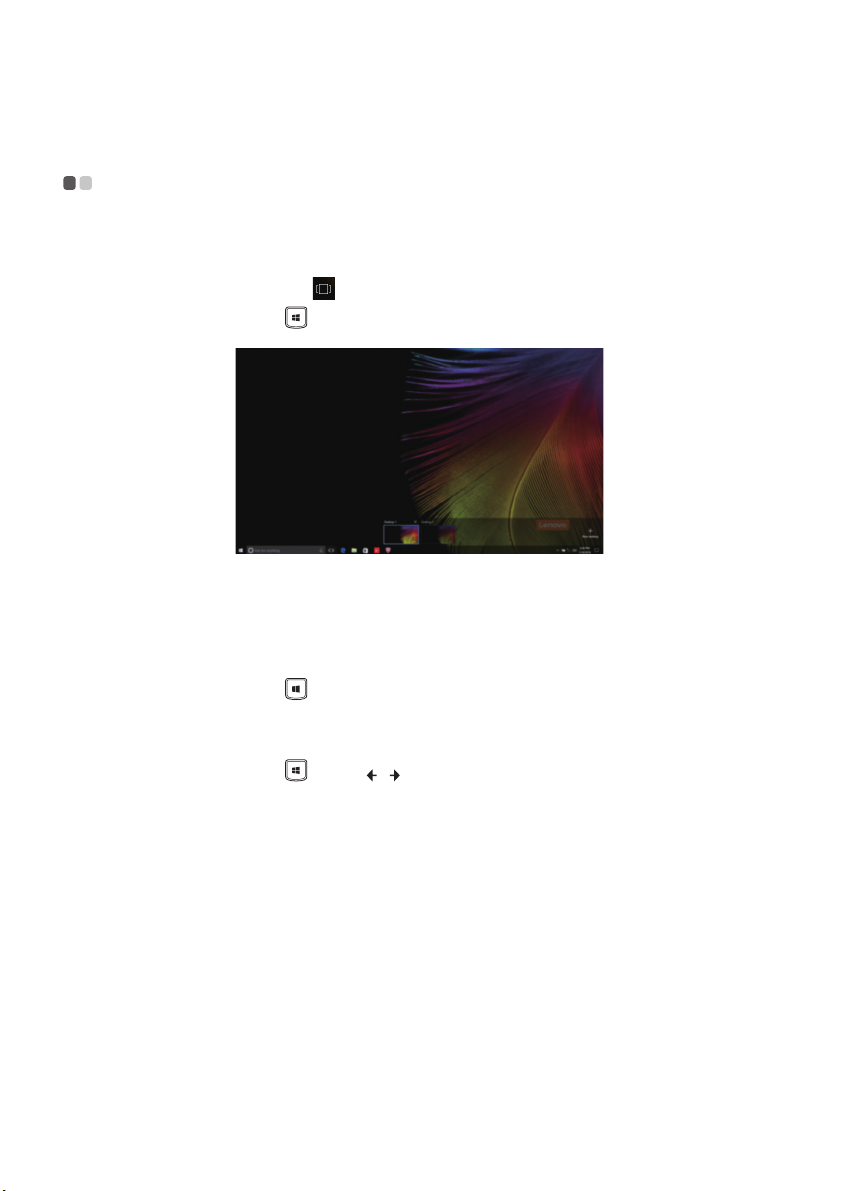

Task and desktop management ------------------------------------------------
Ta s k v i e w
To open the task view, do one of the following:
• Select the Task view button on the task bar.
• Press the Windows key + Tab.
Virtual desktop management
Windows 10 supports the ability to create, manage and switch between virtual desktops.
To create a new virtual desktop, do one of the following:
• Open the task view, and then select New desktop.
• Press the Windows key + Ctrl + D.
To switch between different desktops, do one of the following:
• Open the task view and select the desktop you want active.
• Press the Windows key + Ctrl + / to scroll through the desktops you’ve created.

16
Chapter 2. Starting to use Windows 10

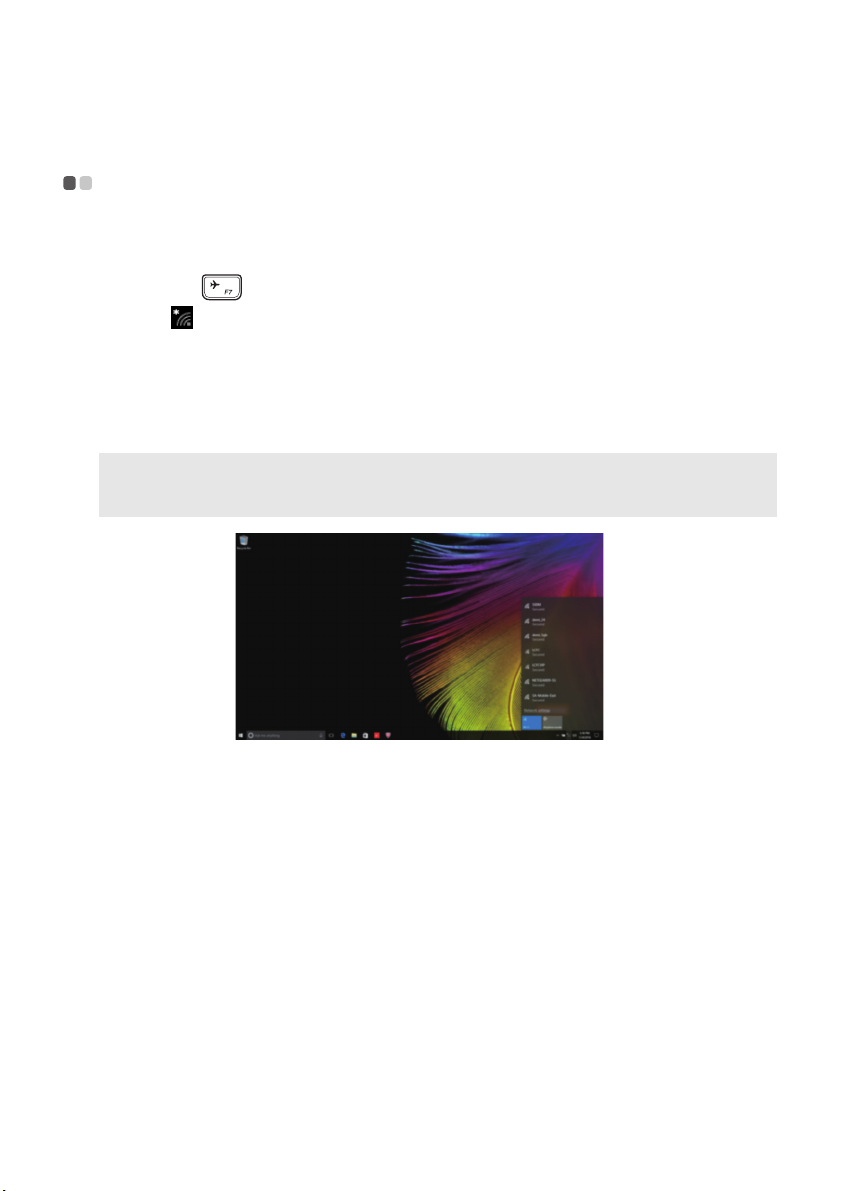

Connecting to a wireless network--------------------------------------------
Enabling wireless connection
To enable wireless functions, do the following:
1Press F7 ( ) to disable airplane mode.
2Click on the lower-right corner of the task bar to open the network configuration page.
Connecting to a wireless network
After wireless has been enabled, the computer will automatically scan for available wireless
networks and display them in the wireless network list. To connect to a wireless network, click
the network name in the list, and then click Connect.
Note: Some networks require a network security key or passphrase for connection. To connect to one of
those networks, ask the network administrator or the Internet service provider (ISP) for the security
key or passphrase.
