IdeaPad Y530
User Guide
User Guide
V1.0
V1.0

Lenovo IdeaPad Y530 UG V1.0 cover_en_2-3
If your product is not working correctly,
DO NOT RETURN IT TO THE STORE.
For technical assistance, contact a Lenovo support
specialist 24 hours a day by calling toll free 1-877-4
LENOVO (1-877-453-6686).
Additionally, you can find support information and updates
on the Lenovo Web site located at
http://consumersupport.lenovo.com.
* Only for the users from the United States.
•OneKey Rescue System User Guide included in the package with this publication.
First Edition (April 2008)
Before using this information and the product it supports, be sure to read the following:
• Chapter 6. Safety, Use, and Care Information on page 70.
• Appendix D. Notices on page 118.
Note
U.S. GOVERNMENT USERS – RESTRICTED RIGHTS: Our products and/or services are provided with
RESTRICTED RIGHTS. Use, duplication or disclosure by the Government is subject to the GSA ADP Schedule
contract with Lenovo, if any, or the standard terms of this commercial license, or if the agency is unable to accept
this Program under these terms, then we provide this Program under the provisions set forth in Commercial
Computer Software–Restricted Rights at FAR 52.227-19, when applicable, or under Rights in Data-General, FAR
52.227.14 (Alternate III).
© Copyright Lenovo 2008. All rights reserved.

ENERGY STAR model information
ENERGY STAR
®
is a joint program of the U.S. Environmental Protection
Agency and the U.S. Department of Energy aimed at saving money and
protecting the environment through energy efficient products and practices.
Lenovo
®
is proud to offer our customers products with an ENERGY STAR
compliant designation. Lenovo computers of the following machine types, if
the ENERGY STAR mark is affixed, have been designed and tested to conform
to the ENERGY STAR 4.0 program requirements for computers.
• 20009
• 4051
By using ENERGY STAR compliant products and taking advantage of the
power-management features of your computer, you reduce the consumption
of
electricity. Reduced electrical consumption contributes to potential financial
savings, a cleaner environment, and the reduction of greenhouse gas
emissions.
Lenovo IdeaPad Y530 UG V1.0_en.book Page 1 Tuesday, June 3, 2008 1:48 PM

For more information about ENERGY STAR, visit
http://www.energystar.gov.
Lenovo encourages you to make efficient use of energy an integral part of
your day-to-day operations. To help in this endeavor, Lenovo has preset
the following power-management features to take effect when your
computer has been inactive for a specified duration:
To awaken your computer from a Sleep or System Standby mode, press any
key on your keyboard. For more information about these settings, refer to
your Windows Help and Support information system.
Table 1. ENERGY STAR power-management features, by operating system
Windows XP Windows Vista
•Turn off monitor: After 10
minutes
•Turn off hard disks: After 30
minutes
•System standby: After 20 minutes
•System hibernates: After 2 hours
Power plan: Balanced
•Turn off the display: After 10
minutes
•Put the computer to sleep: After
25 minutes
•Advanced power settings:
-Turn off hard disks: After 20
minutes
-Hibernate: After 1 hour
Lenovo IdeaPad Y530 UG V1.0_en.book Page 2 Tuesday, June 3, 2008 1:48 PM

Explanation of Hard Disk Capacity
Dear user,
While using your computer, you may discover that the nominal hard
disk capacity indicated is somewhat different from the disk capacity
displayed by the operating system. For example, a nominal 40GB hard
disk will appear as less than 40GB in the operating system. This
discrepancy is not an error in hard disk installation nor any other
problem, but a normal phenomenon of computers. This phenomenon is
primarily due to the following reasons:
I. Different standards used by the manufacturer and operating
system when calculating hard disk capacity
Hard disk manufacturers use a radix of 1000, i.e. 1G = 1,000MB, 1MB =
1,000KB, 1KB = 1,000 bytes. However, when identifying hard disk capacity,
operating systems use a radix of 1024, i.e. 1GB = 1,024MB, 1MB = 1,024KB,
1KB = 1,024 bytes. The standard adopted by your computer is that of the
hard disk manufacturers. Since the standards adopted by the hard disk
manufacturer and operating system are different, the hard disk capacity
displayed by the operating system will be different from the nominal hard
disk capacity.
For example, if the hard disk is nominally X G, even when it is completely
empty, the capacity displayed by the operating system will be:
X × 1000 × 1000 × 1000/ (1024 × 1024 × 1024) ≈X × 0.931 G
Lenovo IdeaPad Y530 UG V1.0_en.book Page 3 Tuesday, June 3, 2008 1:48 PM

If a portion of the hard disk space has been used for some specific purpose,
then the capacity indicated by the operating system will be even less than
X × 0.931 G.
II. A portion of the hard disk space is used for specific purposes
Lenovo computers come with preinstalled OneKey Recovery software, so
the hard disk has a special portion partitioned before delivery, which is
used to store hard disk mirror and OneKey Recovery program files. The
size of the reserved space for this partition varies according to the model,
operating system and software of the computer. For the sake of safety, this
partition is not evident, which is commonly referred to as a “hidden
partition”.
In addition, after the hard disk is partitioned or formatted, the system will
assign a certain amount of hard disk space for the system files.
For the above reasons, the available hard disk space indicated by the
operating system is always less than the computer’s nominal hard disk
capacity.
Lenovo IdeaPad Y530 UG V1.0_en.book Page 4 Tuesday, June 3, 2008 1:48 PM

i
Chapter 1. Getting to Know Your
Computer ...................................... 1
Top View .......................................1
Left-side View...............................3
Right-side View ............................5
Front View.....................................7
Bottom View..................................9
Chapter 2. Using Your
Computer .................................... 12
Putting your computer to
Sleep or Shutting It Down.........12
Using the Touch Pad..................13
Using the Keyboard ...................14
Special keys and buttons ...........17
Using the optical drive ..............20
Using memory cards..................21
Using Lenovo Remote
(Specific models only)................22
Using the Integrated Camera....22
Using the Internet.......................23
Securing your computer............26
Installing Device Drivers...........37
Using battery and AC
adapter .........................................38
Chapter 3. Using external
devices.........................................42
Connecting a Universal
Serial Bus (USB) device..............42
Connecting an IEEE 1394
device ...........................................44
Connecting a PC card device ....45
Connecting an external
display..........................................47
Connecting a headphone and
audio device ................................49
Connecting an external
microphone..................................51
Connecting a Bluetooth
device ...........................................52
Chapter 4. Troubleshooting .......53
Frequently Asked Questions ....53
Troubleshooting..........................55
Chapter 5. Getting Help and
Service .........................................65
Getting Help and Service ..........65
Getting Help on the Web...........66
Calling the Customer Support
Center ...........................................66
Getting Help around the
World............................................69
Contents
Lenovo IdeaPad Y530 UG V1.0_en.book Page i Tuesday, June 3, 2008 1:48 PM

ii
Contents
Chapter 6. Safety, Use, and
Care Information......................... 70
Important Safety
Information ................................. 70
Caring Your Computer ............. 87
Accessibility and Comfort ........ 95
Maintenance................................ 98
Appendix A. Lenovo Limited
Warranty.................................... 102
Warranty Information ............. 110
Lenovo Warranty Service
Telephone Numbers ................ 113
Appendix B. Customer
Replaceable Units (CRUs) ....... 115
Appendix C. Specifications ..... 116
Specifications ............................116
Appendix D. Notices ................ 118
Notices ....................................... 118
Wireless related
information ............................... 121
TV tuner information............... 124
Electronic Emissions
Notices ....................................... 127
WEEE and Recycling
Statements ................................. 133
EU WEEE Statements .............. 134
Japan Recycling Statements....135
Notice for Users in the
U.S.A. .........................................137
Notice on Deleting Data from
Your Hard Disk ........................137
Trademarks ...............................139
Index...........................................140
Lenovo IdeaPad Y530 UG V1.0_en.book Page ii Tuesday, June 3, 2008 1:48 PM

Contents
iii
Lenovo IdeaPad Y530 UG V1.0_en.book Page iii Tuesday, June 3, 2008 1:48 PM

1
Chapter 1. Getting to Know Your Computer

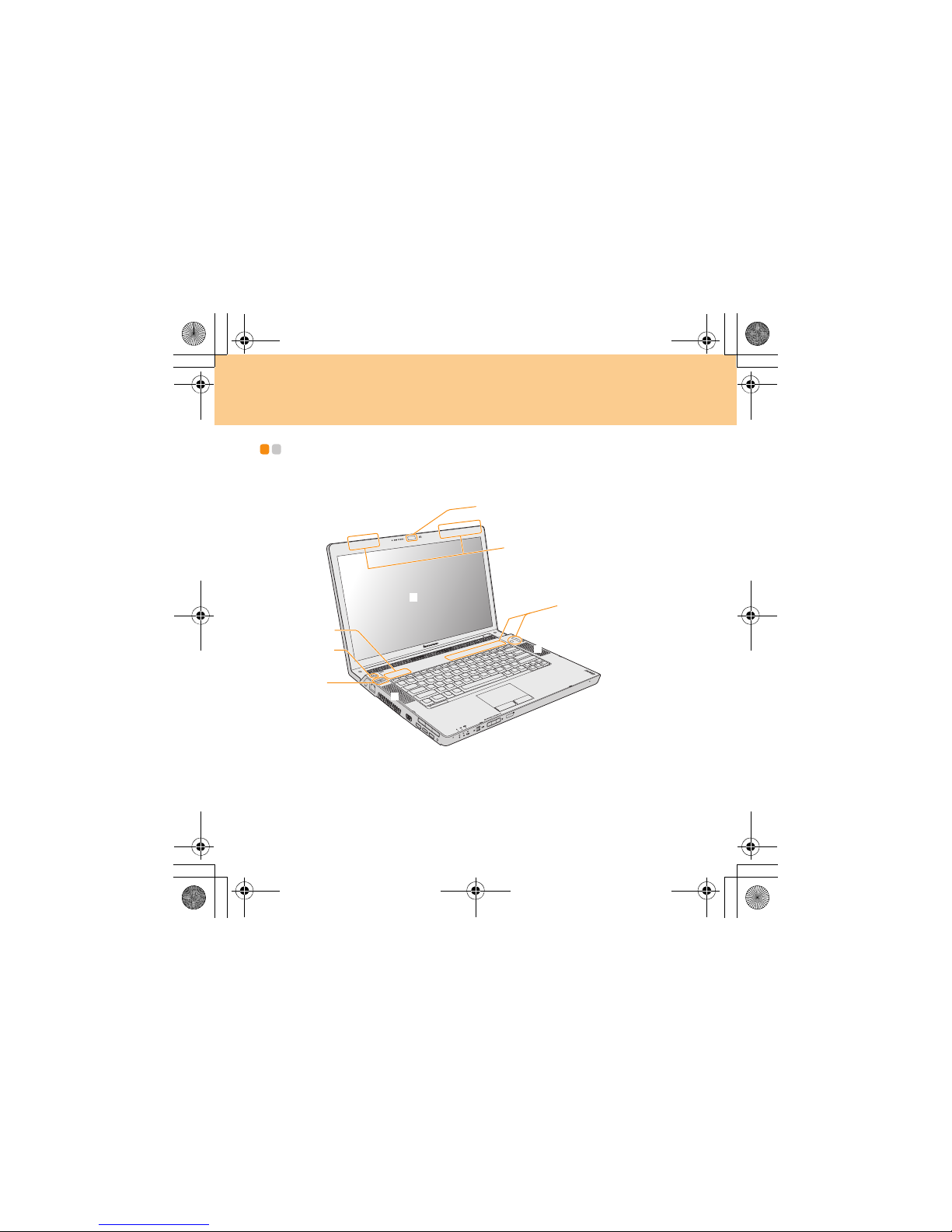

Top View---------------------------------------------------------------------------------------------
* The illustrations in this manual may differ from the actual product.









Lenovo IdeaPad Y530 UG V1.0_en.book Page 1 Tuesday, June 3, 2008 1:48 PM

Chapter 1. Getting to Know Your Computer
2
Integrated camera............................................................................ 22
Wireless LAN antennas
An isotropic antenna system is built into the display for optimal
reception, enabling wireless communication wherever you are.
Computer display
The color display with TFT technology provides clear and brilliant text
and graphics.
Note:
Polymethyl methacrylate (PMMA) film is used on specific models,
which has excellent strength and transparency.
Touch inductive panel and Multi-media buttons .......................... 17
OneKey Rescue System button...................................................... 19
Power button
Use the Power button to turn on the computer.
Speakers
Built-in speakers for rich powerful sound.








Lenovo IdeaPad Y530 UG V1.0_en.book Page 2 Tuesday, June 3, 2008 1:48 PM

3
Chapter 1. Getting to Know Your Computer

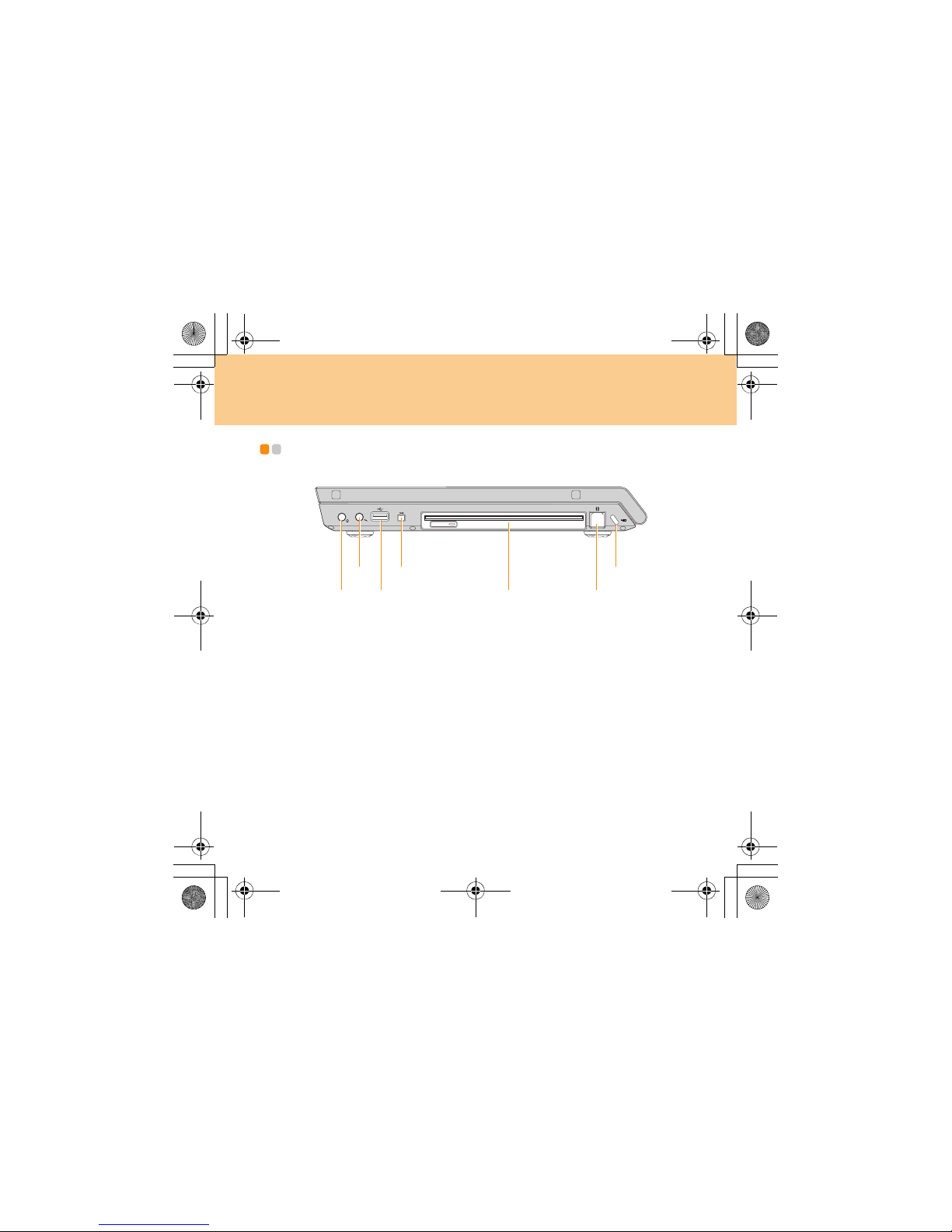

Left-side View ---------------------------------------------------------------------------------


Lenovo IdeaPad Y530 UG V1.0_en.book Page 3 Tuesday, June 3, 2008 1:48 PM

Chapter 1. Getting to Know Your Computer
4
AC power adapter jack
Connect the power adapter here to supply power to the computer and
charge the battery pack.
Note:
To prevent damage to the computer and battery pack, use the supplied
AC adapter only.
LAN port............................................................................................ 23
Fan louvers
The fan louvers allow warm air to exit the computer.
Important:
Make sure that paper, books, clothing, cables or other objects do not
block any of the fan louvers or else overheating of the computer may
occur.
VGA port ........................................................................................... 47
HDMI connector ............................................................................... 48
PCI Express card (new card) slot ................................................... 45
USB 2.0 port ..................................................................................... 42
TV-in jack (Specific models only)
Use this jack to connect with TV signal cable through the provided TV
adapter (Analog input supported).










Lenovo IdeaPad Y530 UG V1.0_en.book Page 4 Wednesday, July 2, 2008 2:46 PM

5
Chapter 1. Getting to Know Your Computer
Right-side View ------------------------------------------------------------------------------







Lenovo IdeaPad Y530 UG V1.0_en.book Page 5 Tuesday, June 3, 2008 1:48 PM

Chapter 1. Getting to Know Your Computer
6
Headphone jack (S/PDIF)(external) ................................................ 49
Microphone jack (external) ............................................................. 51
USB 2.0 port ..................................................................................... 42
IEEE 1394 connector ....................................................................... 44
Optical drive ..................................................................................... 20
Modem port ...................................................................................... 25
Security keyhole
Your computer comes with a security keyhole. You can purchase a
security cable and lock to fit this keyhole.
Note:
Before purchasing any security product, verify that it is compatible
with this type of security keyhole.








Lenovo IdeaPad Y530 UG V1.0_en.book Page 6 Thursday, June 26, 2008 6:45 PM

7
Chapter 1. Getting to Know Your Computer

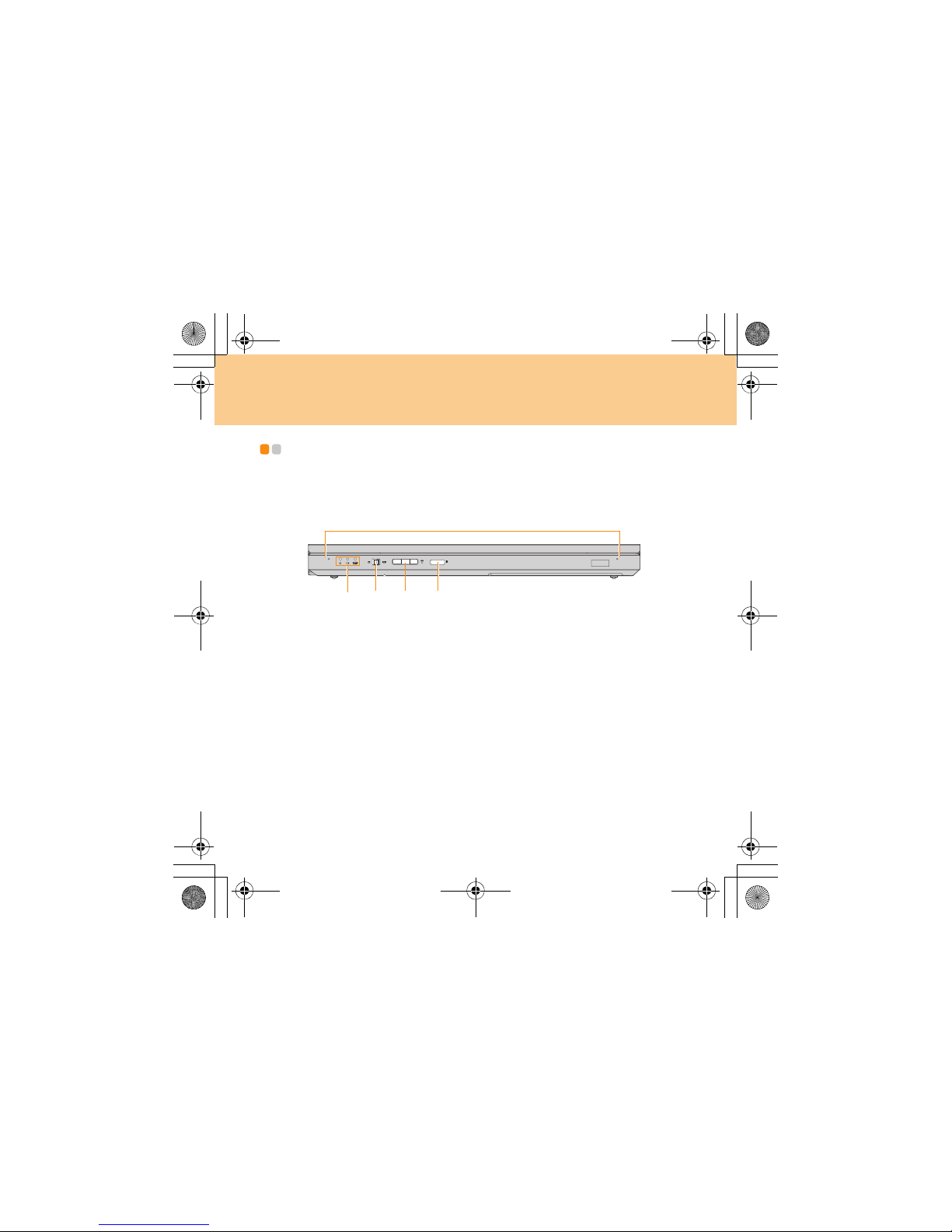

Front View -----------------------------------------------------------------------------------------




Lenovo IdeaPad Y530 UG V1.0_en.book Page 7 Tuesday, June 3, 2008 1:48 PM

Chapter 1. Getting to Know Your Computer
8
Array Microphone (built-in)
The built-in microphone (with noise reduction) can be used for video
conferencing, voice narration, or simple audio recordings.
System status indicators
The System status indicators show the current status of your
computer.
Wireless device switch
Use this switch to simultaneously turn on or turn off Wireless LAN
and Bluetooth devices.
Multi-media reader slot.................................................................... 21
CIR port............................................................................................. 22





Lenovo IdeaPad Y530 UG V1.0_en.book Page 8 Tuesday, June 3, 2008 1:48 PM

9
Chapter 1. Getting to Know Your Computer
Bottom View-------------------------------------------------------------------------------------

 
Lenovo IdeaPad Y530 UG V1.0_en.book Page 9 Wednesday, July 2, 2008 5:53 PM

Chapter 1. Getting to Know Your Computer
10
Subwoofer
The multimedia subwoofer features a super bass effect while you are
watching movies or enjoying music.
Battery latch - spring loaded
The spring-loaded battery latch keeps the battery pack secured in
place. When you insert a battery pack, this latch automatically secures
the battery in place. To remove the battery, hold this latch in the
unlocked position.
Battery pack ..................................................................................... 38
Battery latch - manual
The manual battery latch is used to keep the battery pack secured.
Move the manual battery latch to the unlocked position to insert or
remove the battery pack. Move the manual latch to the locked position
after inserting the battery pack.
Central Processing Unit (CPU)/ Memory (RAM)/ Wireless LAN
Card compartment
Central Processing Unit (CPU)
The CPU compartment provides space for the CPU and the radiator.
Important:
Do not replace the CPU yourself! Visit an authorized service center
or retailer for replacing.






Lenovo IdeaPad Y530 UG V1.0_en.book Page 10 Wednesday, July 2, 2008 2:47 PM

11
Chapter 1. Getting to Know Your Computer
Memory (RAM) compartment
The memory compartment provides expansion capabilities for
additional memory.
Note:
(1) Only purchase expansion modules from authorized retailers of
this computer to ensure maximum compatibility and reliability.
(2) If you only insert one memory in the compartment, plug it into
the slot near the mainboard.
Wireless LAN Card compartment
The Lenovo wireless network card is secured in a compartment.
Important:
Do not disassemble or replace the wireless LAN card by yourself! If
you do need to, ask a Lenovo authorized service center or dealer to
disassemble or replace it.
Hard Disk/TV card (Specific models only) compartment
The hard disk drive and TV-card are secured in a compartment.
Important:
Do not disassemble or replace the hard disk drive by yourself! If
you do need to, ask a Lenovo authorized service center or dealer to
disassemble or replace it.




Lenovo IdeaPad Y530 UG V1.0_en.book Page 11 Wednesday, July 2, 2008 2:47 PM
